USER MANUAL KM0556 Krüger&Matz

• Links: 1,5", 30 W, 8 Ohm

The lightning ash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sucient magnitude to constitute a risk of electric shock to person. The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. SAFETY INSTRUCTIONS

1. Before using the device, read this manual and follow provided

steps. Keep the manual for future reference.

2. Follow all instructions and warnings in this manual.

3. Do not use the device near water and sources of moisture. Protect

the device from getting water inside the case.

4. Clean this device with soft, dry cloth, without any abrasive agents.

5. Do not block any ventilation openings.

6. Do not install the device near sources of heat.

7. Protect the power cord from being walked on or pinched.

8. Only use accessories approved by the manufacturer.

9. Unplug the device from power supply during storms.

10.If the device is damaged or does not work in proper way, contact the service center. Do not repair the device yourself. 11.This device has Class II double insulation. This means that the device does not require electrical connection to earth.

12. Minimum distance around the device for sucient ventilation is 5 cm.

13.Do not place any objects on the device. 14.Replace remotes batteries with new ones, with the same parameters. 15.If the device will not be used for a long time, take out the batteries.

3. Wall mounting screws

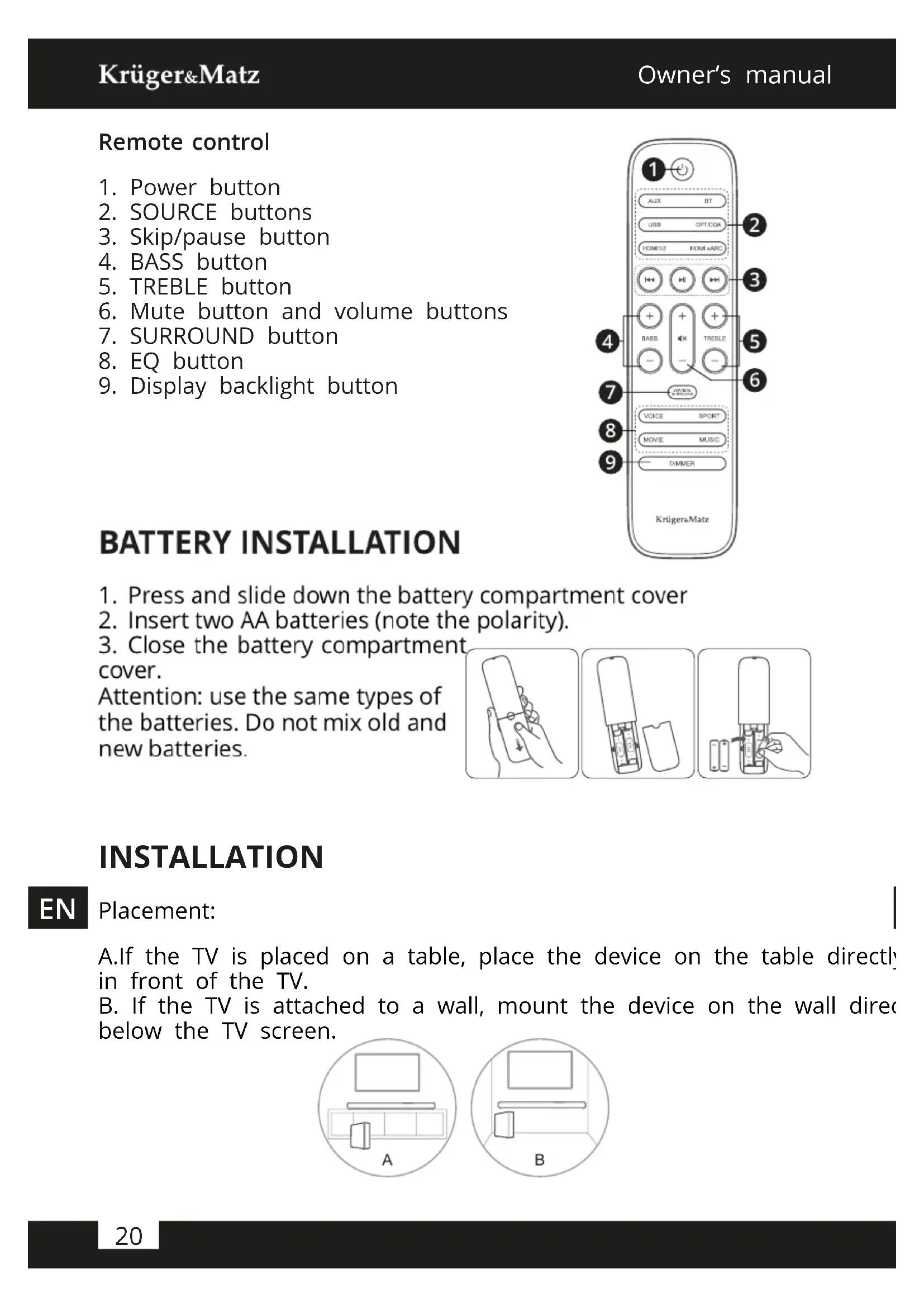

INSTALLATION Placement: A.If the TV is placed on a table, place the device on the table directly in front of the TV. B. If the TV is attached to a wall, mount the device on the wall directly below the TV screen. A B

• While mounting, take extra care or hire a technician to do it.

• Before mounting, make sure, that the wall is suitable for hanging such devices. Producer is not responsible for damaged caused by improper installation on a wall.

• Required tools are not included in set.

• Before drilling, make sure that there are not any wires inside a wall.

1. Drill 4 holes, parallel to each other (5,5 - 6 mm in diameter).

Distance between brackets must be 892 mm (see picture below).

2. Fix a dowel into each hole in the wall. Tighten the wall mount

brackets on the wall with screws. Make sure, that they are securely installed.

3. Remove the screws from the back of the device. Install the wall

mounting screws into the back of the unit.

4. Slide the device into wall mount brackets.

CONNECTING Connecting to power supply Connect the AC plug to the power socket. Plug the cord to a mains socket. This applies to both soundbar and subwoofer. Dolby Atmos Dolby Atmos technology gives you amazing experience with sound that is rich, clear and powerful. Dolby Atmos technology is available only in HDMI mode.

1. To use Dolby Atmos, the TV must support it.

2. Make sure that the "No encoding" option is enabled on external

4. To use this, connect the soundbar with HDMI 2.0 cable.

HDMI connection Some 4K HDR TVs require enabling HDR content reception option enabled. To enable it, refer to instruction manual of your TV. Method 1: ARC (Audio Return Channel) The ARC function allows to send audio from ARC-compliant TV to soundbar with a single HDMI cable. Connect the HDMI cable and switch to HDMI (eARC/ARC). TV remote control can now be used for controlling soundbar volume. TV must support ARC function as well as HDMI-CEC. HDMI eARC/ARC HDMI OUT (eARC/ARC)Method 2: standard HDMI If the TV does not support ARC, soundbar can be connected with standard HDMI cable.

1. Connect the HDMI to HDMI

output on the soundbar and to TVs HDMI input.

2. Connect external devices to

Connecting with optical socket

1. Remove the protective cap from optical socket.

2. Connect the optical cable to the TVs optical out socket and the

OPTICAL socket on the soundbar. COAXIAL OPTICAL Connecting with COAXIAL socket Plug the coaxial cable to soundbars socket and to the TVs socket. Caution: the device may encounter problems while playing through coaxial source. Make sure that the sound settings in external device are set to PCM or Dolby Digital (refer to user manual of the external device). If the soundbar cannot play the sound, there display will show "NO SUPPORT" message.

Connecting with AUX socket Plug the 3,5 mm jack-jack cable to soundbar and to external device. You may also use jack-RCA cable (sold separately).

Automatic pairing The subwoofer and soundbar will automatically pair when both devices are plugged into the mains socket and turned on. While pairing, the pairing indicator will ash. After successful pairing, the pairing indicator will light up. If pairing failed, do manual pairing. Manual pairing

1. Make sure that both soundbar and subwoofer are connected

correctly to mains, and the soundbar is in standby mode.

2. Press and hold the pairing button. Subwoofer will go to pairing

mode. Pairing indicator will ash.

3. Press the power button on the soundbar.

4. After successful pairing, the pairing indicator will light up.

5. If connection failed, disconnect both devices form mains and wait

4 minutes. Repeat steps 1-4. Note:

• Make sure, that there is no devices emitting noise around.

• The soundbar has to be places within 6 meters from the subwoofer.OPERATION Turning on

1. After plugging the soundbar to mains, it will go to standby mode.

2. To turn in on, press the power button.

3. To turn it o completely, unplug it from the power.

4. If the soundbar is connected to the TV or to an external device, it will

turn on automatically after turning on the TV or an external device.

5. If no sound is detected after 15 minutes, the soundbar will turn o.

Mode selection To change the source of sound, press the SOURCE button on the soundbar or select source on the remote control. Selected mode will be shown on the display. Sound adjustment

• To adjust the bass and treble level, use the BASS and TREBLE buttons.

• To change the volume level, use the VOLUME buttons.

• Bluetooth range is around 8 meters. Do not exceed the range.

• Manufacturer does not guarantee compatibility with all external devices.

• Make sure, that between the soundbar and external device, there are no obstacles.

• If there is no connection within 2 minutes, the soundbar will return to previously selected mode.

• If external device cannot nd the soundbar, press and hold the Bluetooth button to enable visibility.

1. Turn on the soundbar and external device.

2. Press the Bluetooth button on the soundbar. "NO BT" message will

appear on the display.

3. Turn on the Bluetooth function on external device. Search for

5. After successful pairing there will be an audio cue, and the display

will show "BT" message.

6. You can now play the music via Bluetooth. If external device

supports AVRCP function, it is possible to control the music with the remote control.

PLAYING FROM USB DRIVE

1. Connect the USB drive to USB socket.

2. Press the source button to select the USB mode.

3. Use the skip/pause buttons to control the music.

• The soundbar supports USB drives with capacity up to 32 GB.

• The soundbar plays MP3 les only. USBNo power

• Make sure that the power cords are connected correctly.

• Make sure that the power socket has power in it.

• Press the power button Remote control does not work

• Select the correct source.

• Reduce the distance between the remote control and the soundbar

• Make sure that the batteries are installed correctly

• Replace the batteries

• Aim the remote control into the IR sensor No sound

• Make sure that the sound is not muted

• Unplug both devices and plug them again

• Make sure that the source is set correctly

• Pair the subwoofer and the soundbar

• Format is not supported The TV does not view HDR image

• Some models of TVs require enabling HDR content reception. Refer to the manual of your

• Make sure that the Bluetooth function is enabled

• Make sure that the pairing mode is enabled The soundbar turns o after 15 minutes

• The soundbar turns o automatically after 15 minutes, if no sound is detected The subwoofer does not work or power indicator does not light up

• Unplug the subwoofer from the mains socket and reconnect it after 4 minutes TROUBLESHOOTING

• Supported formats: A2DP, AVRCP

• Mounting: horizontally, on a wall SOUNDBAR

• Frequency response: 120 Hz – 20 kHz

• Power consumption in standby: <0,5 W

• Weight: 4 kg SUBWOOFER

• Frequency response: 40 Hz – 120 Hz

MORE For more information on this device visit: www.krugermatz.com. Read owner's manual carefully before using your device. Visit www.krugermatz.com website for more products and accessories. In case of any doubts or questions reach out to our Frequently Asked Questions section. REMOTE CONTROL

• Power supply: 2x AAA battery Lechpol Electronics Sp. z o.o. Sp.k. hereby declares that soundbar KM0556 is consistent with directive 2014/53/UE. Full text of the EU Declaration of Conformity is available at following Internet address: www.lechpol.eu.English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm lo the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal. Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG,. Inc. The HDMI, High Denition Media Interface and the HDMI Logo are registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Copyright © 2012-2020 Dolby Laboratories. All rights reserved.
