USER MANUAL H3250 PureGuardian

©2016 Guardian Technologies LLCGuardian Technologies LLC26251 Bluestone Blvd. • Euclid, OH 441321.866.603.5900 • www.guardiantechnologies.com Ultrasonic Cool/Warm Mist Tower Humidifier Model No. H3250 3-Year Limited Warranty English E - 1 French F - 1 Spanish S - 1 Date Purchased month ________ year _________

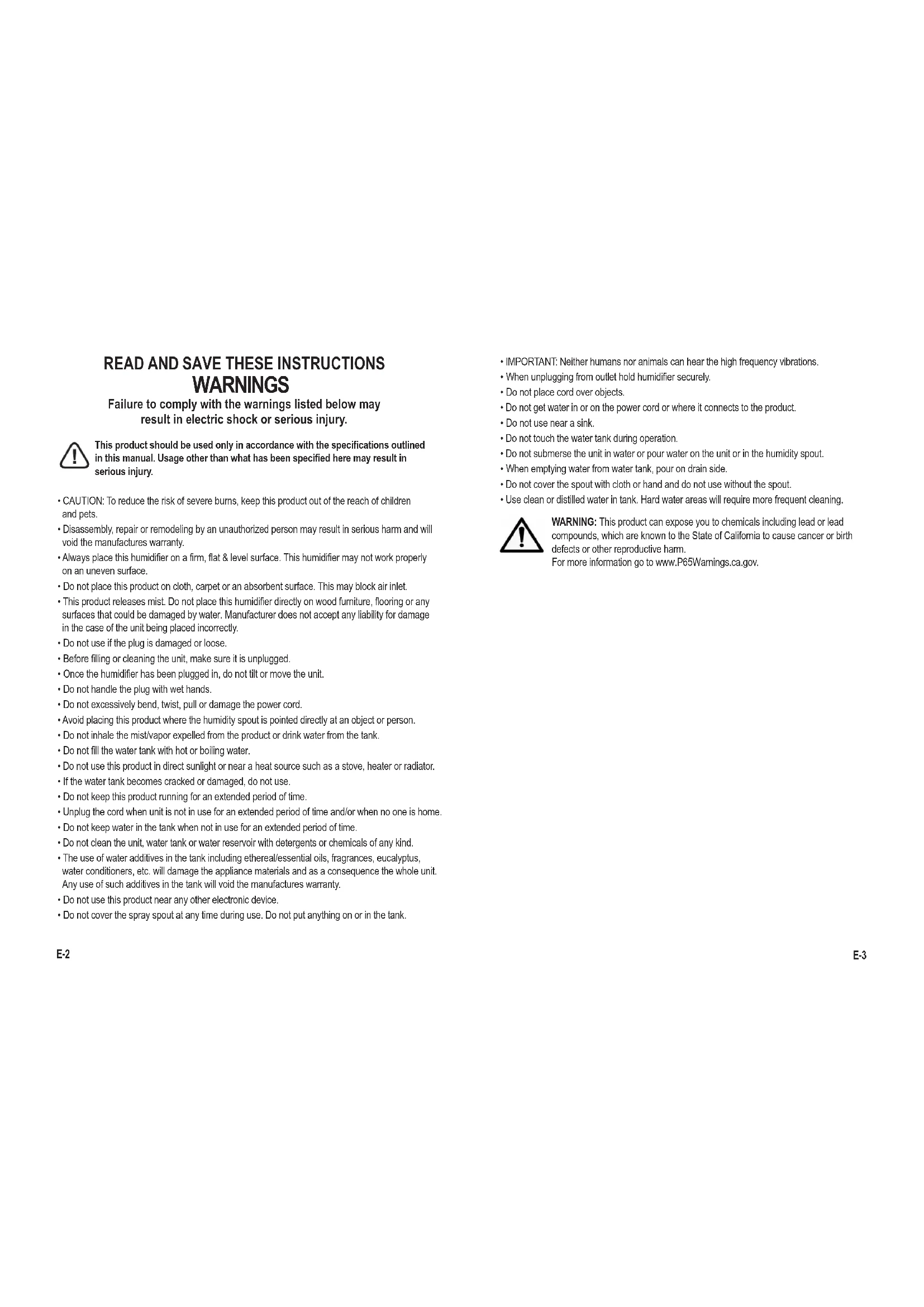

E-1READ AND SAVE THESE INSTRUCTIONS

WARNINGS Failure to comply with the warnings listed below may result in electric shock or serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.

• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.

• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.

• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.

• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.

• Do not use if the plug is damaged or loose.

• Before filling or cleaning the unit, make sure it is unplugged.

• Once the humidifier has been plugged in, do not tilt or move the unit.

• Do not handle the plug with wet hands.

• Do not excessively bend, twist, pull or damage the power cord.

• Avoid placing this product where the humidity spout is pointed directly at an object or person.

• Do not inhale the mist/vapor expelled from the product or drink water from the tank.

• Do not fill the water tank with hot or boiling water.

• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.

• If the water tank becomes cracked or damaged, do not use.

• Do not keep this product running for an extended period of time.

• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.

• Do not keep water in the tank when not in use for an extended period of time.

• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.

• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.

• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank. E-2 E-3 This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.

• Do not place cord over objects.

• Do not get water in or on the power cord or where it connects to the product.

• Do not use near a sink.

• Do not touch the water tank during operation.

• Do not submerse the unit in water or pour water on the unit or in the humidity spout.

• When emptying water from water tank, pour on drain side.

• Do not cover the spout with cloth or hand and do not use without the spout.

• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

WARNING: This product can expose you to chemicals including lead or lead

compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SPECIFICATIONS HUMIDIFYING MODE: Cool/Warm Mist TANK CAPACITY: 1.5 gallons SUCCESSIVE HUMIDITY HOURS: Up to approximately 100 hours between tank refills when on lowest mist setting. PARTS E-4 E-5

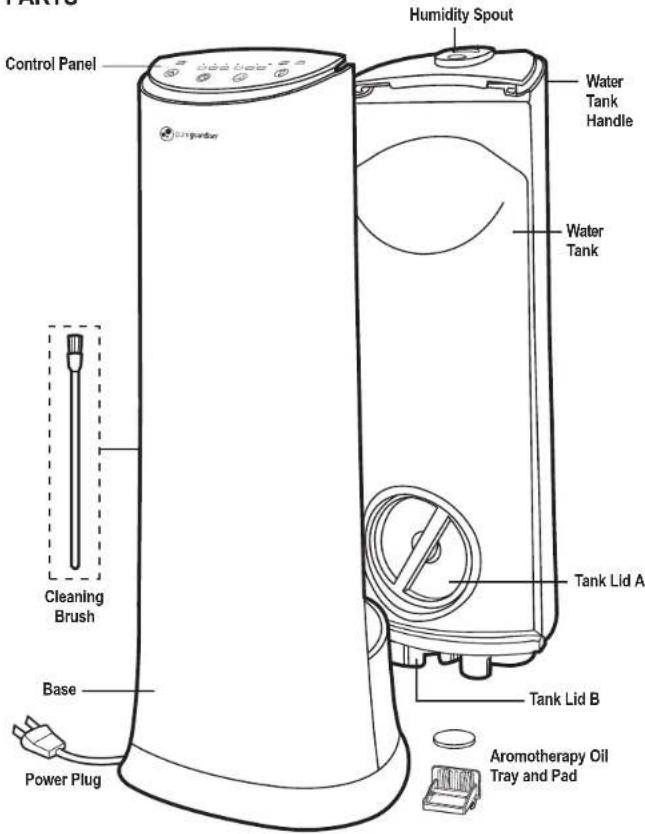

PRODUCT SPECIFICATIONS AND PARTS

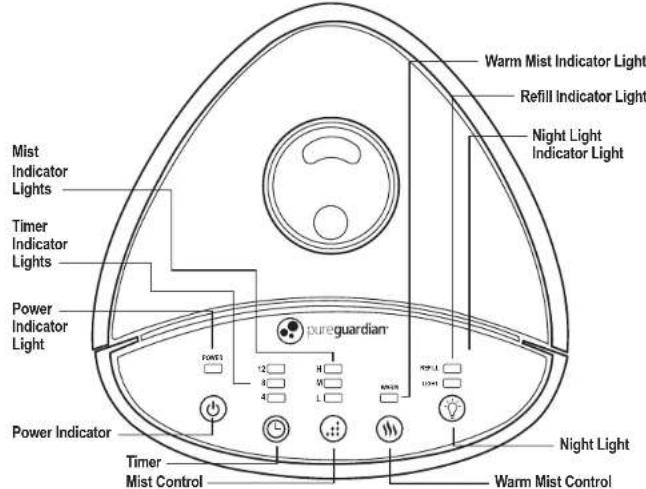

CONTROL PANEL BUTTON FUNCTIONS

FEATURE HIGHLIGHTS NIGHT LIGHT An LED illuminates the tank for a soft glow night light. TIMER Preset the humidifier to automatically turn off in 4, 8, or 12 hours. POWER Turns humidifier ON/OFF. MIST CONTROL The spray volume or amount of mist that is produced by the unit can be adjusted to three levels based on need.

WARM/COOL MIST OPTION

Choose Warm Mist Control for Warm Mist. REFILL INDICATOR When the Water Refill button lights up it is time to refill the water tank.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardian™ Ultrasonic Humidifier uses Silver Clean™ technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank. AROMATHERAPY TRAY Add your favorite essential oil to the Scent Pad.

WARM REFILL LIGHT Warm Mist ControlWarm Mist Indicator LightTimerIndicatorLights Mist IndicatorLightsPower PlugAromotherapy OilTray and PadSET UP Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper airflow. Place the humidifier on a water-resistant surface, as water can damage furniture and someflooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.Guardian Technologies will not accept responsibility for damage caused by water spillage.NOTE: Handle is designed to carry tank, not unit. FILLING Make sure unit is unplugged. E-6 E-7

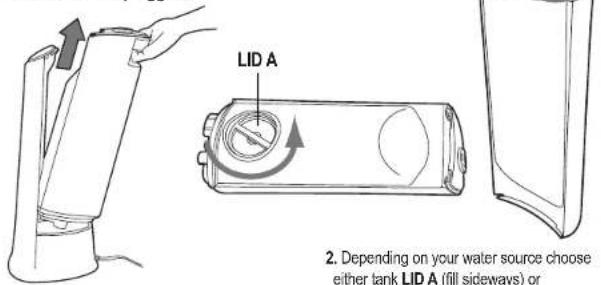

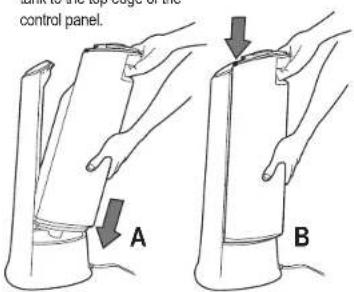

1. Lift the water tank by the handle to separate the tank from the base of the unit.2. Depending on your water source choose either tank LID A (fill sideways) or tank LID B (fill lengthwise). Remove lid by turning it to the left. IMPORTANT: Remove only 1 lid when filling.3. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water. 4. Return the tank. A. Guide tank into base. B. Lift tank slightly to connect tank to the top edge of the control panel.POWER BUTTONBefore turning on make sure there is waterin the unit. Press the Power Button. CONTROL OPERATION 1. Night Light Feature Press the Night Lamp button to turn night light on/off.POWER2. Timer Press the Timer button to select either 4, 8, or 12 hours. The unit will turn off in that time. 3. Mist Control Button When you press the Mist Control button there are three options: Press once for LOW Press twice for MEDIUM* Press three times for HIGH *Medium is default setting.4. Water Refill Indicator When the unit is low on water the Refill LED on the front panel will light up, and the unit will shut off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled. REFILL LMH NOTE: If control panel lights are off - push any button to wake up, then proceed with control operation below. LID ALID BNOTE: The humidifier is equipped with a safety device that will automatically shut the unit off when activated. To restart, unplug for 5 seconds, replug then press the power button. If the unit continues to shut down, there may still be an abnormal condition and the unit may need service.Call Customer Service..

5. Add a few drops of your favorite essential oil to the pad in the tray. (Oil not included)

WARNING: DO NOT add oils or other additives

directly into the water tank. Add only to the pad in the tray. Oils added to the tank will damage the tank and the whole unit. Any use of such additives in the tank will void the manufacturers warranty.Pureguardian essential oils and replacement pads sold separately at www.guardiantechnologies.comWarm Humidification ControlPress to select warm mist. When warmis selected, LED will light. Water temperature ismaintained at room temperature for cool settingand 80 degrees for warm. Allow 15 minutes forwater to warm. WARMCLEANING

• Always unplug the unit before servicing in any way.

• The water temperature of the water remaining in the unit after use may be high, allow time for it to cool. GENERAL CLEANING

• Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.

• Water tank. Empty water tank. Remove mist nozzle and clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended).

• Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth. DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.

• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or ‘white dust’.

• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind. ULTRASONIC DISK

2. Remove the tank and empty all water from unit base and tank.

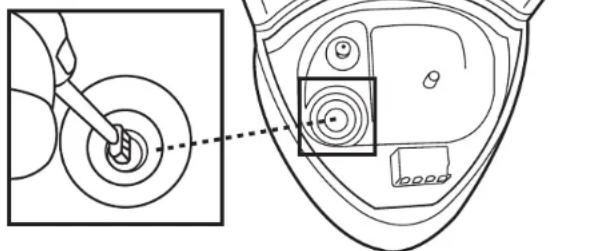

3. Locate the ultrasonic disk on the inside center of the base unit. (see pg. E-4)

4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits.

Do not scrub or scrape the ultrasonic disk. E-8 E-9 CLEANING CLEANING Ultrasonic Disk *Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY. CLEANING If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.

2. Let solution stand for 5 minutes.

3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help

4. Also check mist nozzle and mist tube in water tank. Clean as needed.

5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

Are minerals in your water producing white dust? Try Decalcification Cartridge FLTDC20. Look for cartridge at your local retailer or visit www.guardiantechnologies.com

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.

• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.

• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.E-10 E-11 LIMITED WARRANTY To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers product that was purchased from authorized distributors. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.) The product warranty registration can be completed online at www.guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below. Guardian Technologies LLC 26251 Bluestone Blvd. • Euclid, Ohio 44132

www.guardiantechnologies.com Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service. This product has been tested and complies with the requirements for Federal Communications Commission, Part 18 for Radio/TV/Communication interference. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

TROUBLE SHOOTING GUIDE

Water vapor and humidity are not produced. Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Tank Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) PROBLEM SOLUTION Air blows but water vapor is not produced. Excessive Water: Remove a certain amount of water from the tank. Increase mist setting. Detergent residue and/or oil ingredients from cosmetics, eta may be in tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pa. E-6) If you use hard water, replace with softer water. Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pa. E-6) The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk: Contact Customer Service The humidity has a bad smell. Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water. (see pa. E-5) White dust is forming on nearby furniture. Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.

• Decalcification Filter (FLTDC) available at www.guardiantechnologies.com or through Customer Service 1.866.603.5900. Unit has stopped working. No or low water. Unplug unit and refill tank. Check timer has not been set. Water is accumulating outside of unit or area surrounding unit. Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor. Increased noise level. Unit must be placed on a flat, level, hard surface. Make sure it is NOT placed on a soft or absorbent surface. Warm humidity is not produced. It may take 10-15 minutes before warm humidity is created. The mist may not feel warm due to the fact it is so fine and is cooled rather quickly from the air in your home. Test by either feeling the base of the unit which should be warm to the touch or by allowing the unit to run for approximately 30 minutes on warm setting in a closed 200 sq. foot room or smaller. The room should feel moderately warmer if the unit is working properly. Unit shuts off unexpectedly or does not operate. Check that the safety device triggered. To restart, unplug for 5 sec/replug then press the power button. Call Customer Service. Water dripping when refilling. Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting. Make sure tank cap is secured tightly.©2016 Guardian Technologies LLCGuardian Technologies LLC26251 Bluestone Blvd. • Euclid, OH 441321.866.603.5900 • www.guardiantechnologies.com Humidificateur à vapeur froide/chaude à ultrasons configuré de type tourelle

When the W ater Refill button lights up it is time to refill the water tank.
