Product type	Digital multimeter
Brand	Greenlee
Model	DM210A
Power supply	2 AAA 1.5 V batteries (NEDA 24A or IEC LR03)
Display	6000-count LCD, 24-segment bar graph, backlight
Measurement functions	AC/DC voltage (1000 V max), AC/DC current (8 A continuous, 15 A 30 s), resistance (600 Ω to 60 MΩ), capacitance (60 nF to 3000 μF), frequency (10 Hz to 50 kHz), temperature (-50 °C to 1000 °C with K-type thermocouple), diode test, continuity
Special functions	Contactless electric field detection (EF), Beep-Jack™, backlight, relative zero, HOLD mode, auto power off (30 min), manual/auto ranging
Safety	Overvoltage category: Cat II 1000 V, Cat III 600 V, Cat IV 300 V (V/Ω terminals); Cat III 500 V (mA/A terminals); built-in fuses
Fuses	0.63 A/500 V (breaking capacity 50 kA) for mA/μA; 10 A/600 V (breaking capacity 100 kA) for A
Maintenance	Clean the case with a damp cloth and mild detergent. Do not use solvents or abrasives. Replace batteries and fuses as per instructions.
Warranty	Limited lifetime warranty for the first purchaser. Repairs by Greenlee customer service (call [phone]).
Repairability	Contains no user-serviceable parts. Repairs must be carried out by an authorized service center.
Operating temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating humidity	80% max up to 31 °C, decreasing linearly to 50% at 40 °C
Maximum altitude	2000 m
Computer connectivity	Optional optical interface (DMSC-2U) for transfer to Windows PC
Weight	Approximately 340 g (with batteries and holster)
Dimensions	Approximately 190 x 90 x 45 mm

Frequently Asked Questions - DM210A GREENLEE

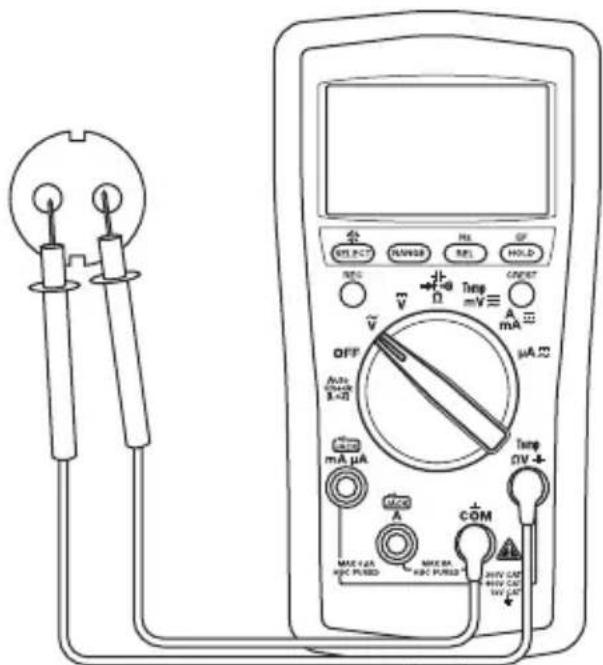

How to measure DC voltage with the DM210A?

Set the rotary switch to the V position with the DC symbol displayed. Connect the red test lead to the V terminal and the black test lead to COM. Apply the test probes to the circuit. Read the value on the display. The range is automatic or manual via the RANGE button.

How to test continuity of a circuit?

Set the rotary switch to the Ω position and press SELECT until the continuity icon (waves) appears. Connect the leads to V (red) and COM (black). If the resistance is lower than approximately 80 Ω, the device emits a beep.

How to change the batteries of the DM210A?

Disconnect the device from the circuit and set the rotary switch to OFF. Remove the rubber holster, unscrew the back cover and remove it. Replace the two AAA batteries respecting polarity. Replace the cover, screws, and holster.

How to use the contactless electric field detection (EF)?

Set the rotary switch to a voltage or current function, then press and hold the EF button for at least 1 second. The E.F. icon is displayed. Approach the built-in antenna (top edge of the device) to a live conductor. The detection distance ranges from 10 V to 1000 V (50/60 Hz). The bar graph and tone indicate the field strength.

What does the Beep-Jack sound mean and how to avoid it?

The Beep-Jack beep triggers if a test lead is plugged into a current terminal (mA/μA or A) while the rotary switch is not in the corresponding position. To avoid it, always check that the rotary switch is on the correct function before connecting the leads.

How to measure temperature with the DM210A?

Set the rotary switch to the Temp position (thermometer symbol). Connect a K-type thermocouple to the V terminal (positive) and COM (negative). Press SELECT to toggle between °C and °F. Accuracy is ±(0.3% + 3°C) for the device (excluding the probe).

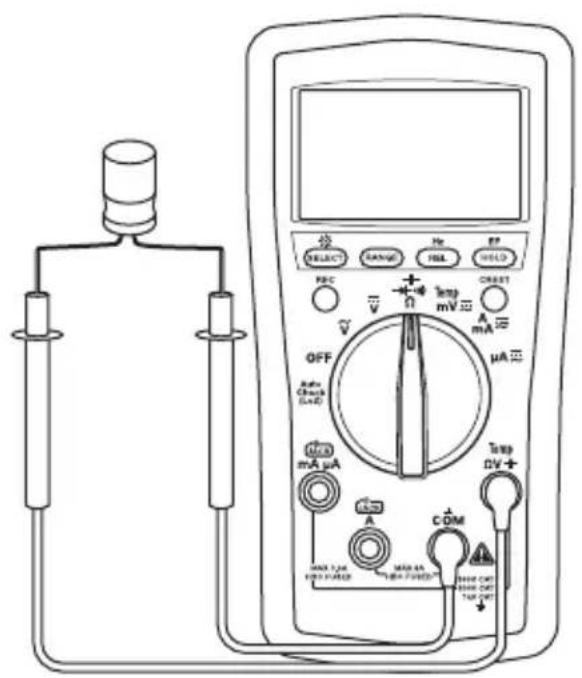

How to measure capacitance with the DM210A?

Set the rotary switch to the Ω position and press SELECT until the capacitance icon (nF) appears. Make sure the capacitor is discharged. Connect the red test lead to V and the black test lead to COM. Place the test probes on the capacitor terminals. The reading appears after a few seconds.

What is the function of the REL button?

The REL button (relative zero) allows calculating the difference between two measurements. Take a first measurement, press REL to zero the display. Take the second measurement: the displayed value is the difference. Press REL again to exit the mode.

How to activate the backlight of the display?

Press and hold the SELECT button until the backlight turns on. To turn it off, press and hold again. The backlight turns off automatically after 30 seconds to save battery.

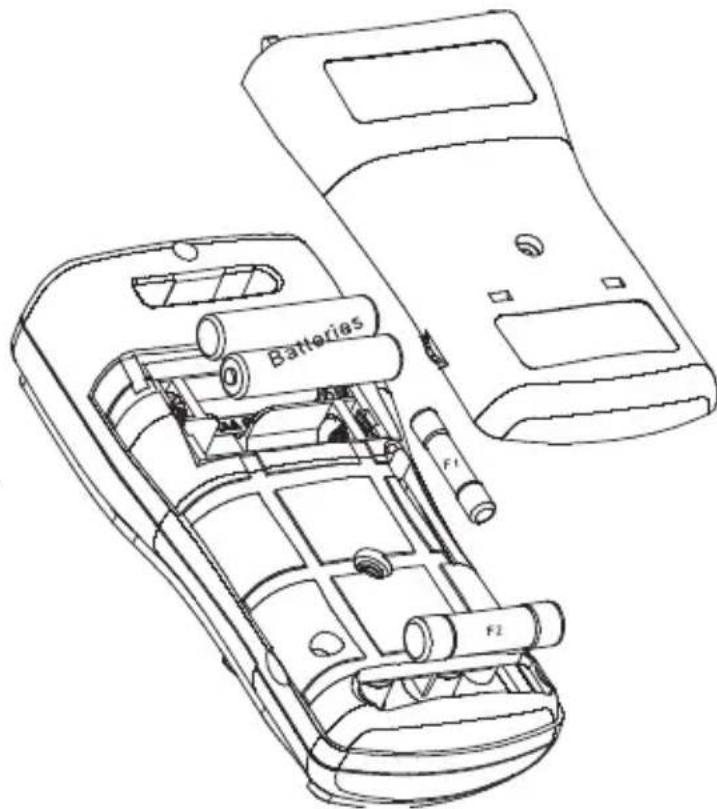

What fuses are used in the DM210A and how to replace them?

The device contains two fuses: a 0.63 A / 500 V fuse (breaking capacity 50 kA) for the mA/μA terminal, and a 10 A / 600 V fuse (breaking capacity 100 kA) for the A terminal. To replace them, remove the back cover after turning off the device and disconnecting the leads. Replace with identical fuses.

USER MANUAL DM210A GREENLEE

Read and understand all of the instructions and safety information in this manual before operating or servicing this tool.

Register this product at www.greenlee.com

Description

The Greenlee DM-200A, DM-210A, and DM-510A Digital Multimeters are hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, and resistance. They also check diodes and verify continuity. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.

Other specialized capabilities and functions common to all meters include:

• Backlighted LCD for reading in dim conditions.
• Beep-Jack™ audible warning alerts the user with a beep and an error message on the LCD if the test lead is plugged into the mA/μA or A input terminal while the selector switch is not in the mA/μA or A position.
• Non-contact and single-probe voltage detection capability.
• Bar graph display, which responds more quickly than the numeric display — useful for detecting faulty contacts, potentiometer clicks, and signal spikes.
• Relative zero mode.
  Data hold mode
• Selectable automatic power off.

The DM-210A and DM-510A multimeters have the following additional capabilities: temperature (K-type thermocouples only) and capacitance.

The DM-510A multimeter has an AutoCheck™ function for automatic selection of AC voltage, DC voltage, and resistance with low input impedance to mask "ghost" voltages. The DM-510A also has a crest function, which captures voltage or current signal peaks, as well as a recording function, which stores the maximum and minimum input readings. The DM-510A is a true RMS meter.

Safety

Safety is essential in the use and maintenance of Greenlee tools and equipment. This instruction manual and any markings on the tool provide information for avoiding hazards and unsafe practices related to the use of this tool. Observe all of the safety information provided.

Purpose of This Manual

This instruction manual is intended to familiarize all personnel with the safe operation and maintenance procedures for the Greenlee DM-200A, DM-210A, and DM-510A Digital Multimeters

Keep this manual available to all personnel. Replacement manuals are available upon request at no charge at www.greenlee.com.

Do not discard this product or throw away! For recycling information, go to www.greenlee.com.

Important Safety Information

SAFETY ALERT SYMBOL

This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, defined below, indicates the severity of the hazard. The message after the signal word provides information for preventing or avoiding the hazard.

DANGER

Immediate hazards which, if not avoided, WILL result in severe injury or death.

WARNING

Hazards which, if not avoided, COULD result in severe injury or death.

CAUTION

Hazards or unsafe practices which, if not avoided, MAY result in injury or property damage.

WARNING

Read and understand this material before operating or servicing this equipment. Failure to understand how to safely operate this tool could result in an accident causing serious injury or death.

WARNING

Electric shock hazard: Contact with live circuits could result in severe injury or death.

All specifications are nominal and may change as design improvements occur. Greenlee Textron Inc. shall not be liable for damages resulting from misapplication or misuse of its products.

Registered: The color green for electrical test instruments is a registered trademark of Textron Innovations Inc.

AutoCheck and Beep-Jack are trademarks of BTC.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Important Safety Information

▲WARNING

Electric shock and fire hazard:Do not expose this unit to rain or moisture.Do not use the unit if it is wet or damaged.Use test leads or accessories that are appropriate for the application. Refer to the category and voltage rating of the test lead or accessory.Inspect the test leads or accessory before use. They must be clean and dry, and the insulation must be in good condition.Use this unit for the manufacturer's intended purpose only, as described in this manual. Any other use can impair the protection provided by the unit.Failure to observe these warnings could result in severe injury or death.

▲WARNING

Electric shock hazard:Do not apply more than the rated voltage between any two input terminals, or between any input terminal and earth ground.Do not contact the test lead tips or any uninsulated portion of the accessory.Failure to observe these warnings could result in severe injury or death.

▲WARNING

Electric shock hazard:Do not operate with the case open.Before opening the case,remove the test leads from the circuit and shut off the unit.Failure to observe these warnings could result in severe injury or death.

▲WARNING

Electric shock hazard:

The fuses are an integral part of the overvoltage protection. When fuse replacement is necessary, refer to “Specifications” for the correct type, size, and capacity. Using any other type of fuse will void the overvoltage protection rating of the unit.

Failure to observe this warning could result in severe injury or death.

Important Safety Information

▲WARNING

Electric shock hazard: • Unless measuring voltage, current, or frequency, shut off and lock out power. Make sure that all capacitors are discharged. Voltage must not be present. • Set the selector and connect the test leads so that they correspond to the intended measurement. Incorrect settings or connections can result in a blown fuse. • Using this unit near equipment that generates electromagnetic interference can result in unstable or inaccurate readings. Failure to observe these warnings could result in severe injury or death.

▲CAUTION

Electric shock hazard:Do not change the measurement function while the test leads are connected to a component or circuit.Failure to observe this precaution may result in injury and can damage the unit.

▲CAUTION

Electric shock hazard:Do not use the tester to measure voltages in circuits that could be damaged or activated by the AutoCheck™ mode's low input impedance (approximately 2.5 kΩ and 120 pF).Failure to observe this precaution may result in injury and can damage the unit.

▲CAUTION

Electric shock hazard:Do not attempt to repair this unit. It contains no user-serviceable parts.Do not expose the unit to extremes in temperature or high humidity. Refer to "Specifications."Failure to observe these precautions may result in injury and can damage the unit.

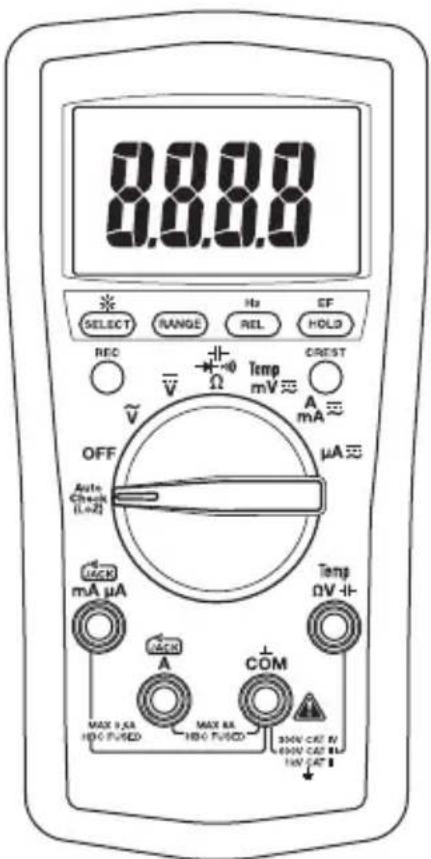

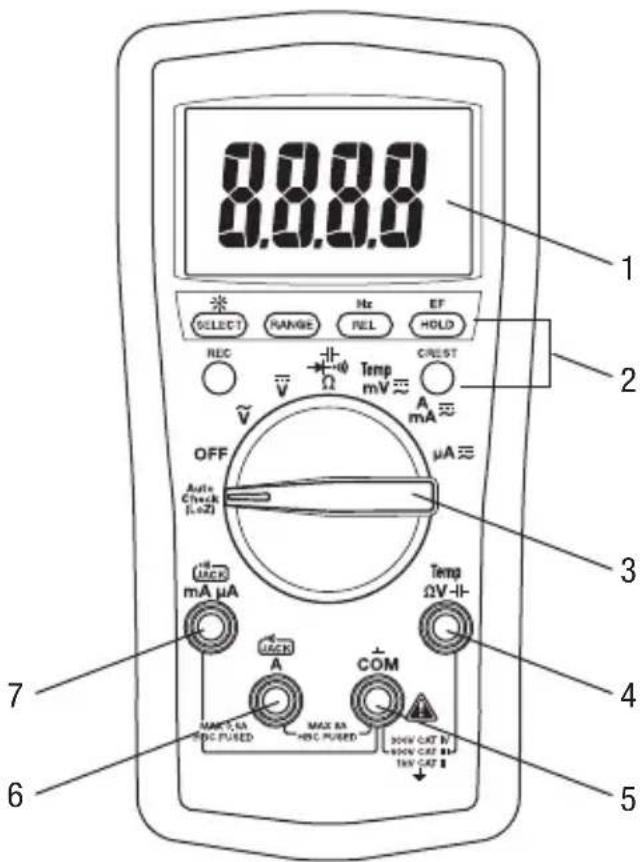

Identification

1. Display 4-digit LCD (maximum reading is 5999) and bar graph.
2. Feature buttons Refer to explanations in the "Using the Features" section.
3. Selector Selects a function or turns power OFF.
4. V - H Positive input terminal for all measurements except current.
   5.COM Negative, common, or ground input terminal for all measurements.
5. A Positive input terminal for high current measurements.
6. mA μA Positive input terminal for low current measurements.

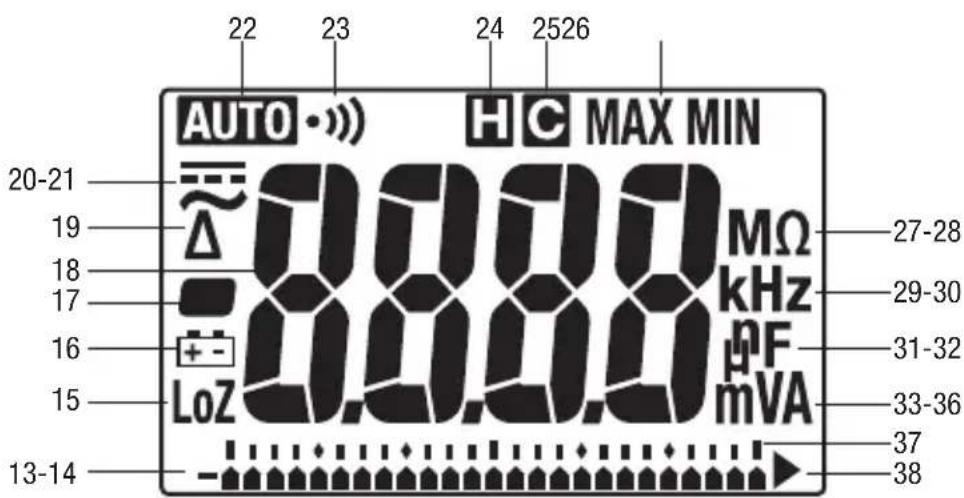

Display Icons

1. Bar graph element
2. • Polarity indicator for bar graph
3. LoZ Low input impedance is active.
4. Low battery
5. • Polarity indicator
6. 8.8.8.8 Numeric display
7. Relative zero function is enabled.
8. AC measurement is selected.
9. measurement is selected.
10. Automatic ranging is enabled.
11. Continuity
12. Hold function is enabled.
13. Crest capture function is enabled.
14. MAX Maximum is displayed or being recorded.

MIN Minimum is displayed or being recorded.

27.M Mega (10^6)
28.Ω Ohm
29. K Kilo (10 3)
30. Hz Hertz (frequency in cycles per second)
31.n Nano (10
32.F Farad
33. Micro (10
34.m Milli (10^-9)
35. V Volt
36. A Ampere
37. Bar graph scale
38. Overload (bar graph display)

Using the Features

All Models

• SELECT: Press momentarily to toggle between functions.
• : Press and hold until backlight illuminates. Press and hold again to turn off. The backlight automatically turns off after approximately 30 seconds to extend battery life.
• RANGE: Press once to enter the manual ranging mode. The AUTO icon will disappear from the display. Press repeatedly to step through the ranges. Press and hold to return to the automatic ranging mode.

Note: When using MAX/MIN, HOLD, or mode, pressing RANGE will cause the meter to exit that mode.

• REL: Finds the difference between two measurements. While taking a measurement, press REL to set the display to zero. The icon will appear on the display. Take the second measurement. The value on the display will be the difference between the two measurements. Press again to exit this mode.
• Hz: Press and hold until the meter beeps to enable frequency measurement. The frequency function can be used with the selector in any voltage or current setting. Use the V or A settings for measuring the frequency of sinusoidal waveforms. Use the mV setting for measuring the frequency of 3 volt or 5 volt logic level, square waveform signals.

The sensitivity of the frequency measurement function varies with the measurement range. To automatically select a sensitivity level, measure the voltage or current first, and then press Hz . If the reading becomes unstable or reads zero, press the RANGE button to select a different sensitivity level.

The number of bar graph elements indicates the sensitivity selected:

• 1 element = 6 V, 6 A, 60 mA, or 600 μA
• 2 elements = 60 V, 10 A, 600 mA, or 6000 μA
• 3 elements = 600 V

• 4 elements = 1000 V

• HOLD H: Press momentarily to hold the present value on the display. Press again to exit this mode. This feature does not affect the bar graph.

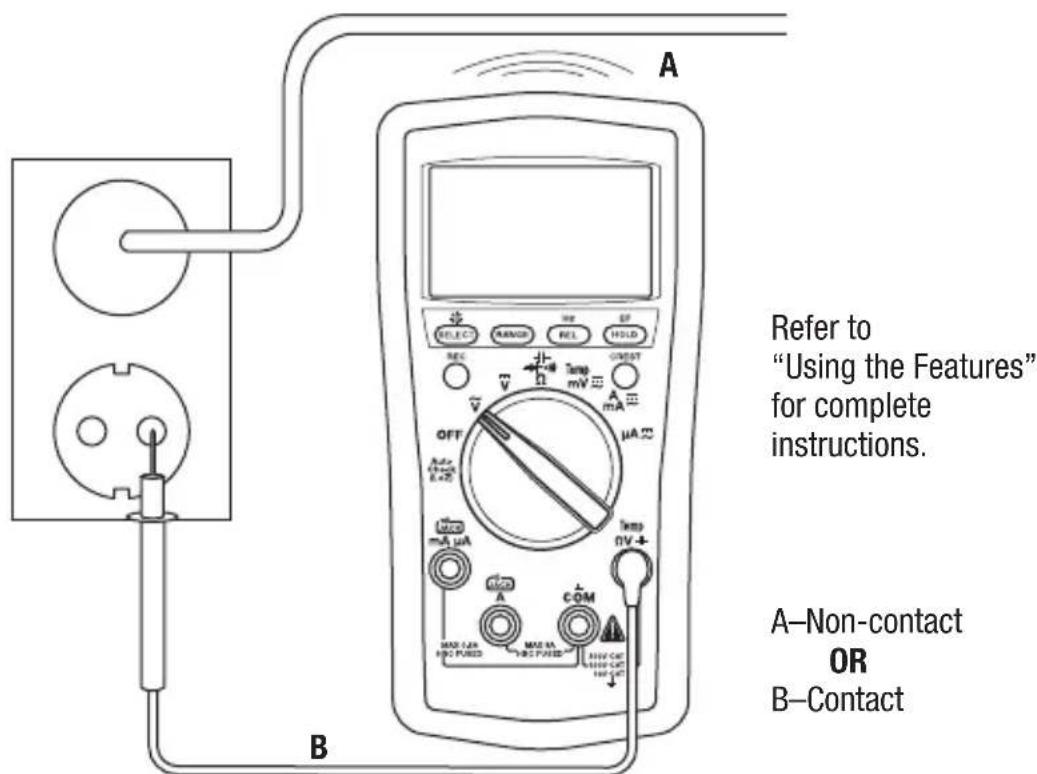

• EF: Set the meter to any current or voltage function. Press and hold until the meter beeps to detect the electric field that surrounds current-carrying conductors. Signal strength is displayed as a series of dashes on the display.

• Use the tester's built-in antenna (located along the top, near the LCD) for tracing live circuits or locating a break in a wire.

• For more precision, such as distinguishing between current-carrying and ground wires, connect a test lead to the V input terminal and use it as a probe for direct contact verification of AC voltage.

• Automatic Power Off: To extend battery life, the meter will shut itself off after approximately 30 minutes of inactivity. To restore power, press either the SELECT, CREST, or REC button or turn the selector to OFF and then back on. To disable this feature, press SELECT while turning the meter on.

Using the Features (cont'd)

• Disabling the Beeper: Hold down the RANGE button while turning the meter on to temporarily disable the beeper feature. Turn the selector to OFF and then back on to enable the beeper.

DM-510A Only

• Low Impedance AutoCheck™ Mode: In this mode, the meter automatically selects the proper measurement based on the input.

• If there is no input, "Auto" appears on the display.

• If the voltage is above approximately 1 volt AC or DC, voltage is displayed.
• If both AC and DC voltages are present, the larger voltage is displayed.
• If no voltage is present and there is resistance less than approximately 10M , resistance is displayed. If the measured resistance is below the continuity threshold (between 10 and 80 ), then the continuity tone will sound.

This mode features low input impedance to mask stray or "ghost" voltage pickup. The input impedance is approximately 2.5k at low voltage, increasing to approximately 375k at 1000V .

The symbol "LoZ" indicates that the meter is in a low impedance mode. Do not use the AutoCheckTM mode on circuits that could be damaged or activated by such low input impedance. Instead use the selector to select the high impedance AC or DC volts modes to minimize loading for such circuits.

Range-Lock and Function Feature: While in the AutoCheck™ mode, press the SELECT button momentarily to lock the displayed function. Press the RANGE button momentarily to lock the displayed measurement range. Press either button repeatedly to step through the ranges or functions.

Energized Circuit Alert: If the resistance mode is locked in the AutoCheck™ mode and the leads are placed across an energized circuit, the meter will emit an audible warning tone.

• REC: Press momentarily to activate the MAX/MIN recording mode. The input value is measured every 50 ms in this mode. "MAX MIN" will appear on the display. The LCD will display the actual input value. The meter will beep whenever the maximum or minimum is updated. Press repeatedly to select the desired display: maximum, minimum, or actual input. Press and hold to exit this mode.

The automatic power off feature is disabled when using this function.

• CREST: Press momentarily to activate the crest recording mode. The input value is measured every 5 ms in this mode. And "MAX" will appear on the display. The LCD will display the maximum crest value. Press repeatedly to select the desired display: maximum or minimum crest value. Press and hold to exit this mode.

Automatic ranging and automatic power off are disabled when using this function.

AC Measurement

AC measurements are usually displayed as RMS (root mean square) values. The RMS value is equal to the value of a DC waveform, which would deliver the same power if it replaced the time-varying waveform. Two AC measurement methods are average-responding RMS calibrated and true RMS-reading.

The average-responding RMS calibrated method takes the average value of the input signal after full wave rectification, multiplies it by 1.11, and displays the result. This method is accurate if the input signal is a pure sine wave. The DM-200A and DM-210A are average-responding meters.

The true RMS-reading method uses internal circuitry to read the true RMS value. This method is accurate, within the specified crest factor limitations, whether the input signal is a pure sine wave, square wave, triangle wave, half wave, or signal with harmonics. The ability to read true RMS provides much more measurement versatility. The DM-510A is a true RMS meter.

The Waveforms and Crest Factors table shows some typical AC signals and their RMS values.

Waveforms and Crest Factors

Waveform
RMS Value 100	100 100 100
Average Value 90	100 87 64
Crest Factor* (ξ)	1.414 1 1.73	2

• The crest factor is the ratio of the peak value to the RMS value; it is represented by the Greek letter .

Using the Optional Software

These meters are compatible with Greenlee DMSC-2U, an optically isolated computer interface cable and software. It allows measurements to be logged to a personal computer using the Microsoft® Windows® operating system.

Installing the Software

1. Insert the CD into the computer's CDROM drive.
2. The installation program should launch automatically. If it does not, double click on the CD icon in "My Computer."
3. The installation program menu will appear. Click on "Software Installation."
4. Type your meter's catalog number (for example, "DM-510A") in the dialog box.
5. Complete the remaining dialog boxes according to user preferences.
6. Refer to the program's Readme file for instructions on using the software.

Connecting the Optical Interface Cable

1. Align the interface with the slot on the back of the meter. The cable must point to the left.
2. Push the interface into the slot.
3. For USB applications, proceed to step 5.
4. For RS-232 applications, connect the interface cable to a serial port on the computer, and proceed to step 8.
5. Connect the interface cable to the RS-232-to-USB adapter supplied with DMSC-2U.
6. Connect the square end of the USB cable to the RS-232-to-USB adapter.
7. Connect the other end of the USB cable to the computer.
8. Press the HOLD button while turning the meter on to enable its communication capabilities.

Operation

WARNING

Electric shock hazard: Contact with live circuits could result in severe injury or death.

1. Refer to the Settings Table. Set the selector to the proper setting, press SELECT (when instructed to do so), and connect the test leads to the meter.
2. Refer to "Typical Measurements" for specific measurement instructions.

3. Test the unit on a known functioning circuit or component.

4. If the unit does not function as expected on a known functioning circuit, replace the battery and/or fuses.

5. If the unit still does not function as expected, call Greenlee for technical assistance at [phone].

6. Take the reading from the circuit or component to be tested.

Settings Table

To measure this characteristic ...	Set the selector to this symbol ...	These icons will appear on the display ...	Connect the red lead to ...	Connect the black lead to ...
All Models
Voltage (1000 V max)	~V	~ and V	ΩV COM
	~V	~ and V

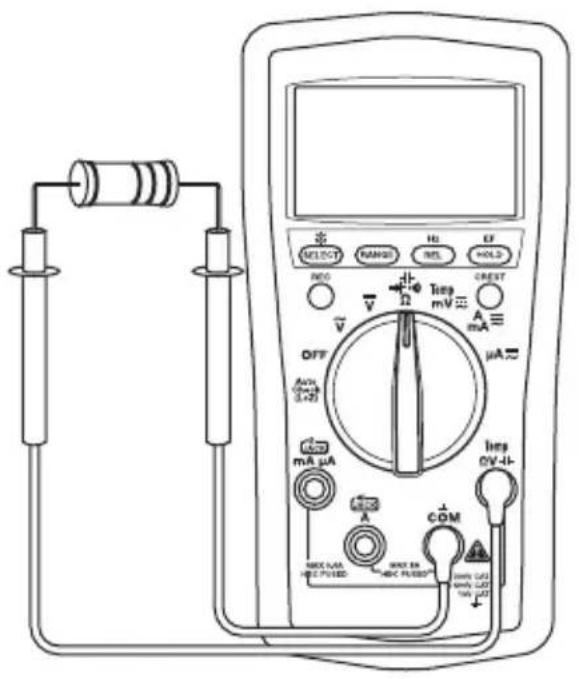

Resistance	→ + ~Ω and press SELECT	MΩ	ΩV COM

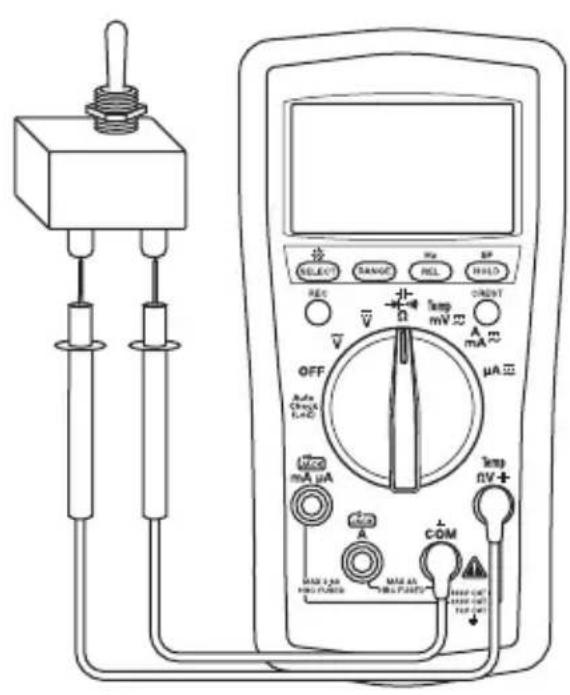

Continuity*		~ and Ω

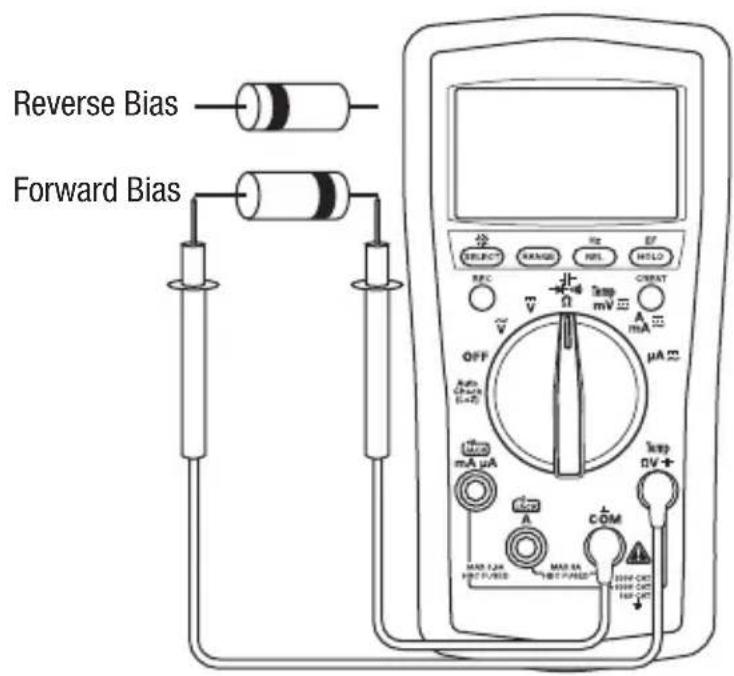

Diode		diod (momentarily) and V
Voltage (600 mV max)**	mV ≈	mV ΩV COM

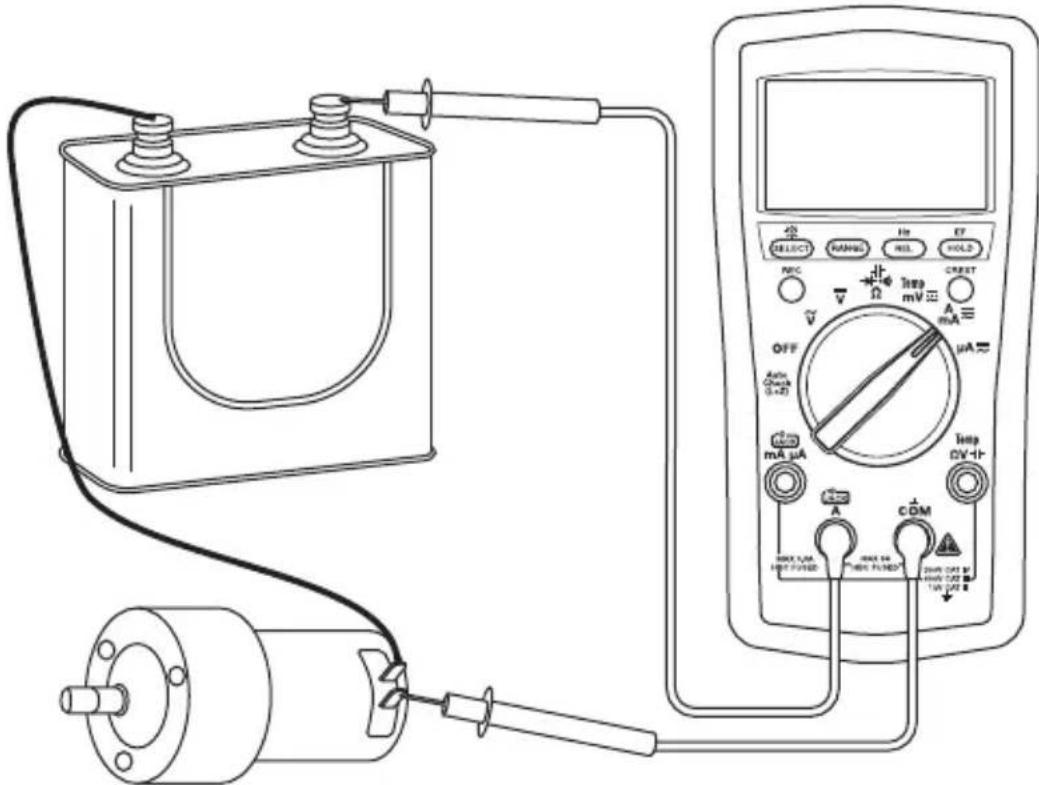

Current (8 A max)**	A mA ≈	AUTO A, GF= ~	A COM
Current (600 mA max)**	A mA ≈	AUTO mA, GF= ~	mA μA COM
Current (6000 μA max)**	μA ≈	AUTO μA, GF= ~	mA μA COM

This table continues on the next page.

Operation (cont'd)

Settings Table (cont'd)

To measure this characteristic ...	Set the selector to this symbol ...	These icons will appear on the display ...	Connect the red lead to ...	Connect the black lead to ...
All Models (cont'd)
Frequency-Line Level Voltage or Current	\(\mathbf{V}\), A, mA, or μA and press Hz	Hz ΩV COM
Frequency—Logic Level*** mV and press Hz Hz ΩV COM
EF single probe†	Any voltage or current function and press EF for at least 1 second	E.F.	ΩV	—
EF non-contact†			—
DM-210A and DM-510A Only
Capacitance††	\(\rightarrow+\)and press SELECT	AUTO nF	Temp ΩV-H‡	COM

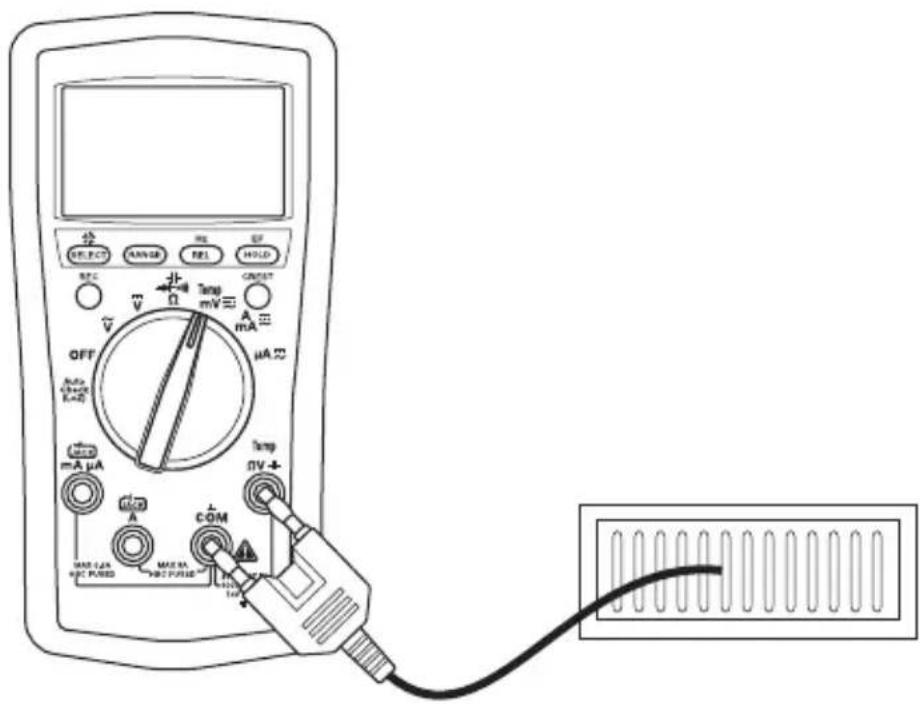

Temperature Temp		C or F (press SELECT to change scale)	Temp ΩV-H‡	COM
DM-510A Only
Auto select AC volts, DC volts, resistance, and continuity (low impedance measurement)	AutoCheck	Ruta and LoZ	Temp ΩV-H‡	COM

• Tone indicates continuity. The threshold is between 10 Ω and 80 Ω.
  Press SELECT for AC or DC, as required.
  * Logic level frequency has a fixed sensitivity and is for digital signals. Refer to "Accuracy".
  † Refer to the "Using the Features" section for an explanation of EF (electric field detection).
  Discharge capacitor before measurement. Discharge a large capacitor through an appropriate resistive load.

Typical Measurements

Voltage Measurement

Current Measurement

Typical Measurements

Resistance Measurement

Continuity Check

Capacitance Measurement Diode Measurement

Typical Measurements

Temperature

Electric Field Detection (EF)

Accuracy

Refer to the "Specifications" section for operating conditions and temperature coefficient.

Accuracy is specified as follows: ± (a percentage of the reading + a fixed amount) at 23^ ± 5^ ( 73.4^ ± 9^ ), 0% to 75% relative humidity.

True RMS Readings: DM-510A AC accuracies are specified from 5% to 100% of the range unless otherwise specified. Frequency must be within the specified bandwidth for non-sinusoidal waveforms. Crest factors are as follows:

• Crest factor < 3:1 at full scale
• Crest factor < 6:1 at half scale

All Models

AC Voltage DC Voltage

Range (50 Hz to 400 Hz)	Accuracy Range
60.00 mV ± (1.0% + 0.05 mV) 60.00 mV ±	600.0 mV ± (1.0% + 0.5 mV) 600.0 mV ±
6.000 V ± (1.0% + 0.005 V) 6.000 V ± (0.2%	60.00 V ± (1.0% + 0.05 V) 60.00 V ± (0.2%
600.0 V ± (1.0% + 0.5 V) 600.0 V ± (0.2%	1000 V ± (1.0% + 5 V) 1000 V ± (0.2% + 3

Input Impedance: 10M /50pF
Accuracies for DM-510A are specified from
5% to 100% of range

Accuracy
4% + 0.05 mV
% + 0.3 mV
0.003 V
0.03 V
3 V)

Input Impedance: 10M /50pF

Resistance Diode Test

Range Accuracy
600.0 Ω	± (0.5% + 0.4 Ω)
6.000 kΩ	± (0.5% + 0.004 kΩ)
60.00 kΩ	± (0.5% + 0.04 kΩ)
600.0 kΩ	± (0.5% + 0.4k Ω)
6.000 MΩ	± (0.7% + 0.004 MΩ)
60.00 MΩ	± (1.2% + 0.04 MΩ)

Open Circuit Voltage: 0.45 VDC typical
Measuring Range: 1.000 V
Test Current (typical): 0.56 mA
Open Circuit Voltage: < 1.8 VDC
Accuracy: ± (1.0% + 0.003V)

Continuity

Tone Threshold: Between 10 Ω and 80 Ω

Response Time: < 32 ms

Accuracy (cont'd)

All Models (cont'd)

AC Current

Range (50 Hz to 400 Hz) Accuracy Burden Voltage (typical)
600.0 μA ± (1.0% + 0.3 μA)	0.1 mV/μA
6000 μA ± (1.0% + 3 μA)
60.00 mA ± (1.0% + 0.3 mA)	1.7 mV/mA
600.0 mA ± (1.0% + 3 mA)
6.000 A ± (1.2% + 0.006 A)	0.03 V/A
8.00 A* ± (1.8% + 0.006 A)

Accuracies for DM-510A are specified from 5% to 100% of range
* 8 A continuous, > 8 A to 15 A for 30 second max with 5 minutes cool down interval

DC Current

Range Accuracy Burden Voltage (typical)
600.0 μA ± (0.5% +0.5 μA)	0.1 mV/μA
6000 μA ± (0.5% + 3 μA)
60.00 mA ± (0.5% + 0.05 mA)	1.7 mV/mA
600.0 mA ± (0.5% + 0.3 mA)
6.000 A ± (1.2% + 0.006 A)	0.03 V/A
8.00 A* ± (1.8% + 0.006 A)

• 8 A continuous, > 8 A to 15 A for 30 second max with 5 minutes cool down interval

Frequency —Hz (Line) at ACV, DCV, Current, AutoCheck™ Mode

Function Sensitivity (Sine RMS) Range
6 V 0.4 V	10 Hz to 10 kHz
60 V	4 V	10 Hz to 50 kHz
600 V	40 V	10 Hz to 50 kHz
1000 V	400 V	45 Hz to 1 kHz
600 μA	40 μA	10 Hz to 10 kHz
6000 μA	400 μA	10 Hz to 10 kHz
60 mA	4 mA	10 Hz to 10 kHz
600 mA	40 mA	10 Hz to 10 kHz
6 A	1 A	10 Hz to 1 kHz
10 A	6 A	10 Hz to 1 kHz

Accuracy (cont'd)

All Models (cont'd)

Accuracy of Frequency Ranges

Display Range Accuracy

10.00 Hz to 65.53 Hz ± (0.03% + 0.03 Hz)

65.5 Hz to 655.3 Hz ± (0.03% + 0.3 Hz)

0.655 kHz to 6.553 kHz ± (0.03% + 0.003 kHz)

6.55 kHz to 50.00 kHz ± (0.03% + 0.03 kHz)

Frequency—Logic Level Hz (mV Function)

Range Accuracy		Sensitivity (square wave)
5.0 Hz to 6.553 Hz ± (0.03% + 0.002 Hz)		3 V peak
6.55 Hz to 65.53 Hz ± (0.03% + 0.02 Hz)
65.5 Hz to 655.3 Hz ± (0.03% + 0.2 Hz)
0.655 kHz to 6.553 kHz ± (0.03% + 0.002 kHz)
6.55 kHz to 65.53 kHz ± (0.03% + 0.02 kHz)
65.5 kHz to 500.0 kHz ± (0.03% + 0.2 kHz)
500.0 kHz to 655.3 kHz ± (0.03% + 0.2 kHz)		5 V peak
0.655 MHz to 1.000 MHz ± (0.03% + 0.002 MHz)

Non-contact Electric Field Detection (EF)

Typical Voltage Bar Graph Indication* Frequency Range
10 V to 36 V-
23 V to 83 V	--
59 V to 165 V	----
124 V to 330 V	--------
250 V to 1000 V	--------

• Bar graph indication and tone are proportional to signal strength

Accuracy (cont'd)

DM-210A and DM-510A Only

Capacitance Temperature

Range Accuracy Range Accuracy

60.00 nF ± (2.0% + 0.05 nF) -50 °C to 10

600.0 nF ± (2.0% + 0.5 nF) -58 °F to 183

6.000 μF ± (1.5% + 0.005 μF) The accu

60.00 μF ± (1.5% + 0.05 μF)

600.0 μF ± (1.5% + 0.5 μF)

3000 μF ± (2.0% + 5 μF)

°C ± (0.3% + 3 °C)
F ± (0.3% + 6 °F)

racy information is for the meter only; refer to the information sheet provided with the temperature probe (purchased separately) for its accuracy

Accuracies are for film capacitors (capacitors with negligible dielectric absorption); measurements of larger capacitors can take up to 30 seconds

DM-510A Only

AC Voltage AutoCheck™ Mode DC Voltage AutoCheck™ Mode

Range (50/60 Hz) Ac	accuracy Range Accuracy
6.000 V ± (1.4%	+ 0.005 V) 6.000 V ± (1.
60.00 V	± (1.4% + 0.05 V)
600.0 V	± (1.4% + 0.5 V)
1000 V ± (1.4%	+ 5 V)

+ 0.003 V)
60.00 V	± (1.3% + 0.03 V)
600.0 V	± (1.3% + 0.3 V)
000 V ± (1.3% + 3 V)

Input Impedance: Initial 2.5k /120pF typical at voltages up to 50~V; increases with voltage to approximately 375k at 1000 V AutoCheckTM Trigger Level: >1.0V (50 / 60Hz) typical

Input Impedance: Initial 2.5k // 120 pF typical at voltages up to 50 V; increases with voltage to approximately 375 kΩ at 1000 V AutoCheckTM Trigger Level: > + 1.0 VDC and -1.0 VDC typical

Resistance AutoCheck™ Mode Record Mode (Voltage and Current) for

Range Accuracy
600.0 Ω	± (1.2% + 1.0 Ω)
6.000 kΩ	± (1.2% + 0.010 kΩ)
60.00 kΩ	± (1.2% + 0.10 kΩ)
600.0 kΩ	± (1.2% + 1.0 kΩ)
6.000 MΩ	± (1.2% + 0.010 MΩ)
60.00 MΩ	± (1.2% + 0.10 MΩ)

recording signal maximums and minimums ≥ 100 ms in duration

Accuracy: Specified accuracy + 100 digits

Crest Capture (Voltage and Current) for Crests ≥ 5 ms in duration

Accuracy: Specified accuracy ± 150 digits

Open Circuit Voltage: 0.45 VDC typical AutoCheckTM Trigger Level: < 10.00M typical

Specifications

Display: LCD (6000) and 24-segment bar graph

Polarity: Automatic

Sampling Rate:

Numeric Display: 5 per second

Bar Graph Display: 40 per second

Temperature Coefficient: Nominal 0.15 × (specified accuracy) per ^ C

below 18^ or above 28^

Automatic Power Off: After 34 minutes of inactivity.

To disable this feature, press SELECT while turning the meter on.

Noise Rejection*:

Normal Mode Rejection Ratio >60 dB at 50 Hz and 60 Hz when measuring DCV

Common Mode Rejection Ratio >60 dB from 0 Hz to 60 Hz when measuring ACV

Common Mode Rejection Ratio >100 dB at 0 Hz, 50 Hz and 60 Hz when measuring DCV

Operating Conditions:

Temperature: 0^ to 40^ (32°F to 104°F)

Relative Humidity (non-condensing): 80% maximum for temperatures up to 31^ (88^) , decreasing linearly to 50% maximum at 40^ (104^)

Altitude: 2000m (6500') maximum

Indoor use only

Pollution Degree: 2

Storage Conditions:

Temperature: -20^ to 60^ (-4^ to 140^)

Relative Humidity (non-condensing): 0% to 80%

Remove battery.

Battery: Two 1.5 V batteries (AAA, NEDA 24A or IEC LR03)

Overload Protections:

Volts: 1050 V RMS, 1450 V peak

AutoCheck™, mV, Ω, and Others: 600 V RMS

A and mA: 0.63 A/500 V fuse, interrupting rating 50kA,1 / 4'' x 1-1/4"

A: 10 A/600 V fuse, interrupting rating 100 kA, 13/32" x 1-1/2"

Overvoltage Categories:

V Terminal: Category II 1000 V, Category III 600 V, and Category IV 300 V AC and DC

A and mA Terminal: Category III 500 VAC and 300 VDC

A Terminal: Category III 600 VAC and 300 VDC

E.M.C: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000

4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11)

*Noise rejection is the ability to reject unwanted signals, or noise.

• Normal mode voltages are AC signals that can cause inaccurate DC measurements. NMRR (Normal Mode Rejection Ratio) is a measure of the ability to filter out these signals.

• Common mode voltages are signals present at the COM and + input terminals, with respect to ground, that can cause digit rattle or offset in voltage measurements. CMRR (Common Mode Rejection Ratio) is a measure of the ability to filter out these signals.

Measurement Categories

These definitions were derived from the international safety standard for insulation coordination as it applies to measurement, control, and laboratory equipment. These measurement categories are explained in more detail by the International Electrotechnical Commission; refer to either of their publications: IEC 61010-1 or IEC 60664.

Measurement Category I

Signal level. Electronic and telecommunication equipment, or parts thereof. Some examples include transient-protected electronic circuits inside photocopiers and modems.

Measurement Category II

Local level. Appliances, portable equipment, and the circuits they are plugged into. Some examples include light fixtures, televisions, and long branch circuits.

Measurement Category III

Distribution level. Permanently installed machines and the circuits they are hard-wired to. Some examples include conveyor systems and the main circuit breaker panels of a building's electrical system.

Measurement Category IV

Primary supply level. Overhead lines and other cable systems. Some examples include cables, meters, transformers, and other exterior equipment owned by the power utility.

Statement of Conformity

Greenlee Textron Inc. is certified in accordance with ISO 9001 (2000) for our Quality Management Systems.

The instrument enclosed has been checked and/or calibrated using equipment that is traceable to the National Institute for Standards and Technology (NIST).

Maintenance

▲WARNING

Electric shock hazard:Before opening the case, remove the test leads from the circuit and shut off the unit. Failure to observe these warnings could result in severe injury or death.

▲WARNING

Electric shock hazard:

The fuses are an integral part of the overvoltage protection. When fuse replacement is necessary, refer to “Specifications” for the correct type, size, and capacity. Using any other type of fuse will void the overvoltage protection rating of the unit.

Failure to observe this warning could result in severe injury or death.

Replacing the Battery and Fuses

1. Disconnect the unit from the circuit. Turn the unit OFF.
2. Remove the rubber boot.
3. Remove the screw from the back cover.
4. Remove the back cover.
5. Replace and batteries (observe polarity) and/or fuse(s).
6. Replace the cover, screw, and rubber boot.

Cleaning

Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents.

Lifetime Limited Warranty

Greenlee Textron Inc. warrants to the original purchaser of these goods for use that these products will be free from defects in workmanship and material for their useful life, excepting normal wear and abuse. This warranty is subject to the same terms and conditions contained in Greenlee Textron Inc.'s standard one-year limited warranty.

For all Test Instrument repairs, contact Customer Service at [phone] and request a Return Authorization.

For items not covered under warranty (such as items dropped, abused, etc.), a repair cost quote is available upon request.

Note: Prior to returning any test instrument, please check replaceable batteries or make sure the battery is at full charge.

MANUEL D'INSTRUCTIONS

GREENLEE

A Textron Company

DM-200A · DM-210A · DM-510A

Tension c.a. Tension c.c.

Plage(50 Hz à 400 Hz)	Précision Plage Précision
60,00 mV ± (1,0% + 0,05 mV) 60,00 mV	± (0,2% + 0,3 mV)
600,0 mV ± (1,0% + 0,5 mV) 600,0 mV ± (0,2% + 0,3 mV)
6,000 V ± (1,0% + 0,005 V) 6,000 V ± (0,2% + 0,003 V)
60,00 V ± (1,0% + 0,05 V) 60,00 V ± (0,2% + 0,03 V)
600,0 V ± (1,0% + 0,5 V) 600,0 V ± (0,2% + 0,3 V)
1000 V ± (1,0% + 5 V) 1000 V ± (0,2% + 3 V)

Protections antisurcharge :

±(0.3%+3℃)
(0.3%+6℃)

Escala Precisión
600.0 Ω	± (0.5% + 0.4 Ω)
6.000 kΩ	± (0.5% + 0.004 kΩ)
60.00 kΩ	± (0.5% + 0.04 kΩ)
600.0 kΩ	± (0.5% + 0.4k Ω)
6.000 MΩ	± (0.7% + 0.004 MΩ)
60.00 MΩ	± (1.2% + 0.04 MΩ)

Escala Precisión		Sensitividad (onda rectangular)
5.0 Hz a 6.553 Hz ± (0.03% + 0.002 Hz)		3 V pico
6.55 Hz a 65.53 Hz ± (0.03% + 0.02 Hz)
65.5 Hz a 655.3 Hz ± (0.03% + 0.2 Hz)
0.655 kHz a 6.553 kHz ± (0.03% + 0.002 kHz)
6.55 kHz a 65.53 kHz ± (0.03% + 0.02 kHz)
65.5 kHz a 500.0 kHz ± (0.03% + 0.2 kHz)
500.0 kHz a 655.3 kHz ± (0.03% + 0.2 kHz)		5 V pico
0.655 MHz a 1.000 MHz ± (0.03% + 0.002 MHz)

C ± (0.3% + 3 °C)
± (0.3% + 6 °F)

±(0.3%+3℃)
(0.3%+6℃)
