USER MANUAL Rodent 604 WV21 GARLAND

2. Security precautions and normative 19

7. Maintenance and service 28

11. Equipment destruction /

recycling information 31

12. Warranty conditions 32

Declaration of conformity 33

Thank you for choosing this Garland machine. We are sure that you will appreciate the quality and performance of this machine, which will facilitate your task for a long period of time. Remember that this machine has the most extensive and expert technical assistance network that you can go to for the maintenance of your machine, troubleshooting and purchase of spare parts and / or accessories. ATTENTION! Read all safety warnings and all instructions. Failure to observe all of the warnings and instructions listed below can result in electric shock, fire, and / or serious injury. Cut only wood. Do not use the chainsaw for other, unforeseen purposes. For example: do not use the chainsaw to cut plastic materials, bricks, or building materials other than wood. Using the chainsaw for operations other than those intended can lead to dangerous situations. Save all warnings and instructions for future reference. If you sell this machine in the future, remember to give this manual to the new owner. The term “machine” in the warnings refers to this electrical machine with the battery connected. The term switch in the “open” position means switch disconnected and the switch in the “closed” position means switch connected. Remember that the user is responsible for accidents and damages caused to himself, third parties and things. The manufacturer will not be liable under any circumstances for damage caused by improper or incorrect use of this machine. Ref.:MTRODENT604WV21M0521V1 PUBLICATION DATE: 06/05/2021 REVISION DATE: 06/05/2021 TRANSLATION OF THE ORIGINAL MANUALEnglish English 25/84

PRECAUTIONS To avoid mishandling this machine, read all instructions in this manual before using it for the first time. All the information included in this manual is relevant to your personal safety and that of the people, animals and things around you. If you have any questions regarding the information included in this manual, ask a professional or go to the point of sale where you purchased this machine to resolve it. 2.1. USERS This machine has been designed to be manipulated by users of legal age and who have read and understood these instructions. ATTENTION: Do not allow minors to use this machine. ATTENTION: Do not allow people who do not understand these instructions to use this machine. Before using this machine, familiarize yourself with it, ensuring that you know exactly where all the controls, safety devices are and how they should be used. If you are an inexperienced user, we recommend that you carry out a minimum practice doing simple tasks and, if possible, in the company of an experienced person. ATTENTION: Only lend this machine to people who are familiar with this type of machine and know how to use it. Always provide the instruction manual together with the machine so that the user can read it carefully and understand it. This machine is dangerous in the hands of untrained users. 2.2. PERSONAL SECURITY Be alert, watch what you are doing, and use common sense when operating this machine. Keep your free hand away from the cutting area. Never touch the chain links, they are very sharp and can be cut. Always wear protective gloves while pruning. Do not use this machine when you are tired or under the influence of drugs, alcohol or medications. A moment of distraction while operating this machine can cause serious personal injury. Avoid accidental starting of the machine. Make sure the switch is in the “open” position before connecting the battery, picking up or transporting this machine. Carrying electrical machines with your finger on the switch or inserting the battery into electrical machines that have the switch in the “closed” position can put your safety at risk and cause accidents. Don’t overdo tit. Keep your feet firmly on the ground and stay balanced at all times. Always maintain proper foot support and operate the scissors only when standing on a fixed, secure and level surface. Sliding or unstable surfaces such as stairs can cause a loss of balance. Always wear safety gear. Always wear eye protection, safety gloves and non-slip boots. Keep all parts of your body away from the saw chain when the chainsaw is operating. Before starting the chainsaw, make sure that the saw chain is not in contact with any object. A moment of carelessness while operating chain saws can cause your clothing or other body parts to become entangled in the saw chain or you may be cut by the tool chain. Use extreme caution when cutting weeds and young shrubs. Fine materials can pinch the saw chain andEnglish 26/84 be thrown at you, or cause you to lose your balance under pulling. When cutting a branch that is under tension, be alert to the risk of elastic return. When the tension of the wood fibers is released, the branch, under a spring effect, can hit the operator. When transporting the chainsaw, hold the chainsaw by the handle with the machine switched off and away from body parts. When transporting or storing the chainsaw, always cover the bar with the cap. Proper handling of the chainsaw will reduce the likelihood of accidental contact with the moving saw chain.

2.3. SAFETY OF THE WORK AREA

Keep the work area clean and work in good lighting. Messy and dark areas cause accidents. Do not operate this machine in explosive atmospheres as well as in the presence of flammable liquids, gases and dust. Electric machines create sparks that can ignite dust or fumes. Keep curious and children away while operating this machine. Distractions can cause you to lose control. Make sure that children, people or animals do not enter your work area. 2.4. ELECTRICAL SAFETY Use only Garland batteries for this machine. Use only the Garland charger to charge Garland batteries. The use of a different battery or charger may cause the battery to explode and risk of fire. Be sure to connect the charger to an AC power source with a voltage between 100 and 240 Volts and a frequency of 50Hz to 60Hz. The electrical plug on the charger of this machine must match the base of the power outlet. Never modify the plug in any way. Unmodified pins and matching bases will reduce the risk of electrical shock. When using the battery charger, avoid body contact with grounded surfaces such as pipes, radiators, electric ranges, and refrigerators. There is an increased risk of electric shock if your body is grounded. Do not expose this machine, charger or battery to rain or wet conditions. The water that enters them will increase the risk of electrical discharge. Do not abuse the cord. Do not use the cord to carry, lift or unplug the charger. Keep cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock. Never use this charger with a damaged cord or plug. Before connecting the charger, check the plug and cable for damage. If you discover any damage, send your machine to a technical service for repair. If the cord is damaged or broken, unplug immediately. Damaged or tangled cords increase the risk of electric shock. Replacing the plug or power cord should always be done by the manufacturer or its technical support service. It is recommended to connect this charger to a residual differential device whose tripping current is less than or equal to 30mA. Never use a damaged, non-compliant docking station for this charger. Disconnect the charger from the power supply when not in use to prevent damage in case of mains overload.English English 27/84 Charge the battery only with the charger supplied with the machine, in a dry place with a temperature between 0º C and 40º C. Do not attempt to tamper with or open the battery and / or charger. Do not short circuit the battery and be careful when handling it so as not to accidentally short circuit it with conductive elements such as rings, bracelets, keys, etc. When the battery short-circuits, the temperature rises and can explode or burn. Do not change the battery charging polarity or reverse connections. Do not attempt to burn or incinerate the battery even if it is damaged or fully discharged. Do not leave the battery near a heat source. The battery can explode with heat or fire causing serious personal and material damage. Do not put the battery into the microwave, into the oven or pressurize it. Do not use the battery in electrostatic environments. This battery is sealed and no liquid should ever flow out of it. If the seal breaks and the liquid touches your skin, wash thoroughly with soap and water, neutralize the liquid with a weak acid such as lemon or vinegar, and go to your medical center urgently. If battery fluid touches your eyes, flush them thoroughly with water for 10 minutes and immediately seek medical attention. If the seal is damaged do not inhale the vapors produced by the battery as they may cause irritation. In case of accidental inhalation, breathe fresh air and seek urgent medical attention. Do not use the battery if it is deformed. Always disconnect the battery from the machine before performing any maintenance on the machine. Only handle this machine when it is disconnected

2.5. USE AND CARE OF THIS MACHINE

Only cut wood branches. Do not use this machine for any other purposes not intended. For example: do not use the scissors to cut plastic materials, bricks, metals. The use of the scissors for operations other than those foreseen can cause dangerous situations. Use this machine, accessories, supplies, etc. in accordance with these instructions and as planned, taking into account the working conditions and the work to be carried out. Using this machine for applications other than those intended may cause a hazardous situation. The manufacturer will not be liable under any circumstances for damage caused by improper or incorrect use of this machine. Do not force this machine. Use this machine for the correct application. Using the correct machine for the type of work to be performed will allow you to work better and safer. Do not use this machine if you cannot use it properly or cannot turn it off because the switch does not change between “closed” and “open”. Any electrical machine that cannot be controlled with the switch is dangerous and must be repaired. Keep this machine. Check that moving parts are not misaligned or locked, that there are no broken parts or other conditions that may affect the operation of this machine. Whenever this machine is damaged, repair it before use. Many accidents are caused by poorly maintained machines. Keep cutting instruments sharp and clean. ProperlyEnglish 28/84 maintained cutting instruments with sharp cutting edges are less likely to jam and easier to control. Keep the handles of this machine dry and clean. Greasy or oiled handles are slippery and cause loss of control over the machine. Disconnect the battery from the machine before making any adjustments, cleaning or storing this machine. Such preventive safety measures reduce the risk of starting this machine accidentally. Follow the instructions regarding greasing, tensioning, and chain changing accessories. A chain with incorrect tension and lubrication can break and increase the risk of kickback.

2.5.1. UNEXPECTED FORCES WHILE WORKING WITH

THE CHAINSAW Always be alert while cutting with the chainsaw and watch for possible unforeseen reaction forces. The unforeseen reaction forces that occur in a chainsaw are kickback and kickback. These forces can unbalance the user and lead to dangerous situations.

The contact of the tip of the bar can in certain cases cause a sudden reverse reaction, propelling the bar up and back towards the operator called REBOUND. A kickback of the chainsaw may occur if an object is touched by the cutting chain in the area of the tip of the bar while it is running. The contact of the chain at the tip of the bar can cause an unforeseen reaction force that can propel the tip of the bar upwards, generating a movement in the rotating chain saw that can cause the chain bar to collide with the user. . This reaction can cause loss of control of the machine and cause severe bodily harm.

2.5.1.2. FORWARD PULL

Kickback can occur when the tip or tip of the bar touches an object, or when the wood closes in and pinches the saw chain in the cutting section. A “Forward Pull” can occur when the chain stops abruptly due to being caught in the cutting area by a foreign body in the wood or because the chain is not being cut properly. The chain, when stopped, pushes the chainsaw forward which, if it is not correctly held against the branch or tree by the claw, produces an unexpected pull that can cause the user to lose control of the chainsaw, cause him to fall forward and produce severe bodily harm.

Trapping the saw chain on the top of the bar can quickly push the bar back towards the operator. The chain, when stopped, pushes the chainsaw backwards (Reverse) which, if it is not correctly held against the branch or tree by the claw, produces an unexpected push that can cause the user to lose control of the chainsaw, cause it to fall backwards and cause severe bodily harm. Any of these reactions can cause you to lose control of the saw, which can lead to a serious bodily injury. Do not rely exclusively on the safety devices built into your chainsaw. As a chainsaw user, you should take steps to eliminate the risk of accident or injury when cutting. These reaction forces result from tool misuse and / or improper operating procedures or conditions and can be avoided by taking the appropriate precautions specified below:

• Hold the saw firmly with your thumb and fingers enclosing the handle of the chainsaw and position your body and arms to allow it to resist unexpectedEnglish English 29/84 forces. Unexpected forces can be controlled by the operator, if proper precautions are taken. If you experience unexpected force, do not let go of the chainsaw and release the throttle trigger.

• Don’t extend your arm too far. This helps prevent inadvertent arm contact and allows better control of the chainsaw in unforeseen situations.

• Use only replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains can lead to chain breakage and / or unforeseen forces and injury to the user.

• Follow the instructions regarding sharpening and maintenance of the saw chain. A decrease in the depth gauge level can lead to an increase in unforeseen forces and injury to the user.

• Always be aware of where the tip of the chain bar is.

• Pay attention so that the tip of the bar does not touch any object.

• Do not cut branches with the tip of the bar.

• Make sure there are no nails or pieces of metal in the cutting area and pay special attention to nails or pieces of iron that may be around the cutting area. Also be careful when cutting hardwoods where the chain can snag causing the chain to lock up and kick back.

• Cut only one branch or piece of wood at a time.

• Be extremely cautious when driving the saw chain into a cut already started to continue.

• Do not cut with the chainsaw until you are familiar with the cutting technique.

• Do not cut branches or pieces of wood that may change position during the cut or that may close the cut while it is being made.

• Keep the chain in good condition.

• Only work if the chain is sharp and correctly tensioned.

• Never stand in the cutting plane of the chainsaw. 2.6. SERVICE Periodically have your machine serviced by a qualified repair service using only identical replacement parts. This will ensure that the safety of this electric machine is maintained.English 30/84 Do not use the machine in adverse weather conditions. Do not expose to rain. Danger and Attention. Read the instruction manual and follow the instructions and safety warnings. Always charge the battery indoor. Do not bring scissors close to cables or electrically charged items. Wear safety glasses. Wear safety gloves. Wear non-slip boots. Complies with European Standards Do not dispose of this equipment or any of its parts by throwing it in the household waste container. Dispose of these packages at an official waste collection point.

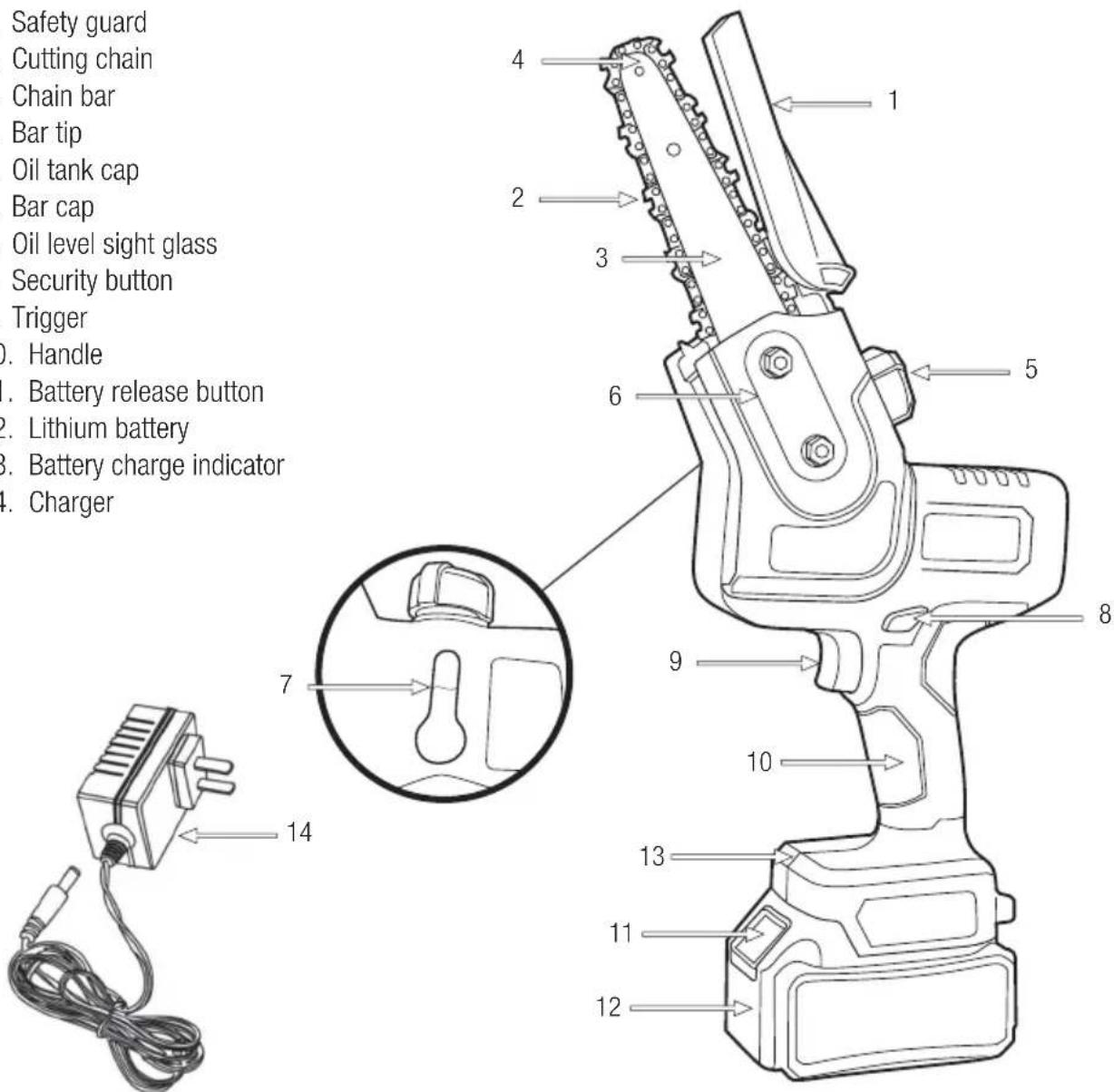

In order to ensure the safe use and maintenance of this machine, the following symbols are on the machine. Machine with Class II insulation (Triple insulation) that does not require grounding. Machine with Class II insulation (Double insulation) that does not require grounding. Keep people away from work area. Rebound risk. Direction of rotation of the chain. Cutting chain installation direction indicator.English English 31/84

This machine is designed to cut branches and logs up to Ø 30 mm. It is recommended to work at temperatures between -5 ºC and 55 ºC, at a humidity lower than 50%.

7. Oil level sight glass

11. Battery release button

The images and drawings represented in this manual are indicative and may not correspond to the actual product.

4English 32/84 5.3. TECHNICAL CHARACTERISTICS The technical characteristics can be modified without notice. Description Battery Chainsaw Brand Garland Model RODENT 604 W-V21 Maximum power (W) 650 Protection class III Degree of IP protection IPX0 Oil pump Si Oil tank capacity (ml) 200 Bar length (mm) 108 Maximum cutting diameter (mm) 100 Chain pitch 1/4” Chain thickness (mm) 1,1 Number of links 38 Chain speed (m / s) 11 Guaranteed sound level (dB (A) <100 Weight (kg) 1,32 Battery Battery Type Lithium Battery voltage (V) 21 Battery capacity (Ah) 4 Battery Weight (gr) 650English English 33/84

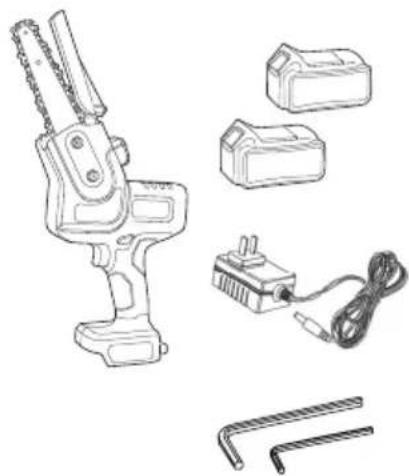

This machine includes the following items that you will find inside the box:

The chainsaw chain has very sharp teeth. Always wear protective gloves to avoid accidental cuts Make sure the machine is unplugged before doing any work on this machine. Chain bar and chain are supplied separately. To install them, follow these steps:

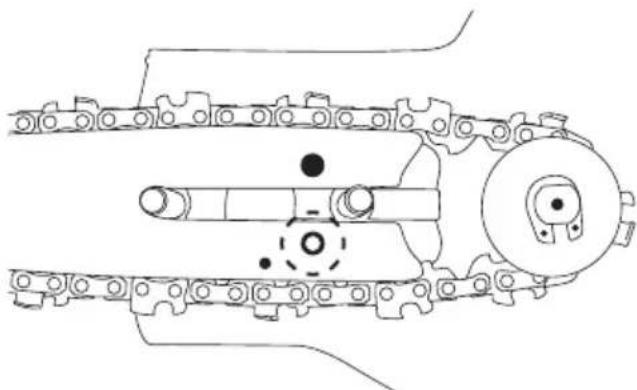

1. Unscrew the nuts of the rod cap (6) and remove it.

2. Insert the chain bar (3) by sliding it through the

guide until it stops with the first screw.

3. Place the chain around the drive sprocket and

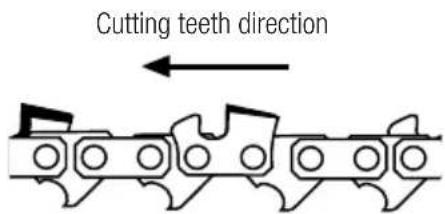

continue to pass it through the chain bar following the guide. Before mounting the guide bar with the chain, check the cutting direction of the teeth. The correct position of the chain will have the cutting edges of the teeth in the direction of rotation of the chain: Cutting teeth direction

4. Replace the bar cover (6) making sure that the

tensioning screw matches the lower hole of the chain bar (3) 6.3. BATTERY CHARGE The supply voltage and current must comply with the indications on the charger’s nameplate. Before using the battery for the first time, charge it for at least 1 hour. To charge the battery, plug the charger into the mains, connect the cable to the battery connector and the LED will light up. When the battery is fully charged the LED will change from red to green. When the battery is charged remove it from the charger. If you leave the battery in the charger and it is charged, the chargerEnglish 34/84 will turn off automatically after 2 hours, the LED continues to light green. The charging time for a fully discharged battery is 3 hours. If you insert the battery into the charger and the red and green LEDs start flashing, it means that your battery is bad or that the battery does not correspond to this charger. Recharge the battery when you notice that the power of your machine decreases. Avoid using the machine until the battery is completely discharged. Notes: - The battery will require 2 or 3 complete charge- discharge cycles until it reaches its maximum energy storage capacity. - This battery has no memory effect so it is not necessary to fully discharge it before recharging. - If you are not going to use the battery for a long period of time, charge it to the maximum, store it in a suitable place and recharge it every 30 days. - Follow the tips below to ensure that your battery’s charge capacity is maintained for as long as possible: - Avoid completely discharging the battery. Battery life will be longer if you recharge the battery when you notice that the power of your machine decreases and do not let it run out completely. - Always recharge the battery after using the machine. Do not store a discharged or half-charged battery. - Always recharge the battery inside your house and garage to preserve the battery and charger from humidity and inclement weather. - Recharge the battery at temperatures between 5º and 40º C. - Always keep the battery away from water, humid areas, heat sources and chemicals.

6.4. INSTALL THE BATTERY

Install the battery by sliding the battery along the rails until “clack” sounds. This ensures that it will remain securely connected to the machine. To remove the battery, press the release button (11) and pull out the battery.

6.5. CHECK POINTS BEFORE START-UP

Before starting work, always check that the chainsaw is working properly and that it is operating safely. Check the machine for loose parts (bolts, nuts, housings, etc ...) and damage. Tighten, repair, or replace parts that you have found to be in poor condition. Make sure there are no oil leaks or leaks. Do not use the machine if it is damaged or incorrectly set.

Use only special oil for chain saw chains. Do not use used oils or oils with impurities as this could damage the oil pump of the machine. The chain oil must be filled into the chain oil reservoir. To prevent dirt from entering the tank, clean the oil tank cap (5) before opening it. Close the oil cap (5) by tightening it and clean if oil has spilled out of the tank.English English 35/84 Note: The service life of chainsaw chains and guide bars is highly dependent on the quality of the lubricant used. Old oil must not be used! Use only environmentally friendly chain lubricant. Store chain lubricant only in containers that comply with regulations.

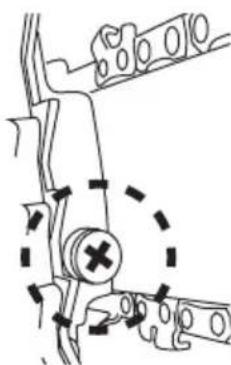

6.3.2. CHAIN TENSIONING

Always disconnect the battery from the chainsaw before doing any work on it. To avoid injury to sharp cutting edges, always wear gloves when mounting, tensioning, or checking the chain. Chain tensioning:

1. Make sure the chain is inside the guide groove of

3. Using the screwdriver, turn

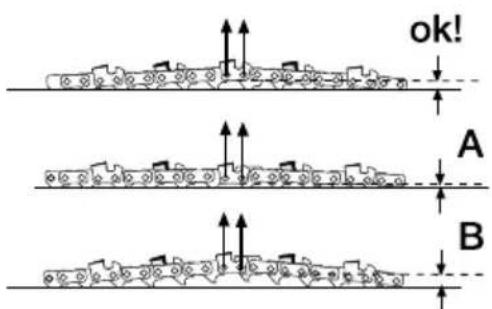

clockwise to tension the chain or counterclockwise to loosen it until the chain tension is correct. a. Example (A) corresponds to a chain that is too tight. b. Example (B) corresponds to a chain that is too loose.

Turning on the machine: Install the battery Press the battery on / off button to check the battery charge. Then press the safety button (8) and then the trigger (9) Machine disconnection: Release the trigger (9) and remove the battery Do not start and stop the machine repeatedly in a few seconds, it will put a lot of work on the engine, generate a lot of heat, and decrease the life of your engine and battery. We recommend that each time the machine stops, you wait at least 5 seconds before restarting it.

After starting the engine, accelerate the chainsaw until the chain rotates at medium speed and check if the chainsaw greases the chain, for this it will be worth observing that when placing the chainsaw as in the figure at medium speed, oil is released.English 36/84

7. USE OF THE MACHINE

Use this machine only for its intended use. Using this chainsaw for any other use is dangerous and can cause damage to the user and / or the machine. Cut only wood. Do not use the chainsaw for other, unforeseen purposes. For example: do not use the chainsaw to cut plastic materials, bricks, or building materials other than wood. Using the chainsaw for operations other than those intended can lead to dangerous situations. This chainsaw is not designed for forestry work (felling in forests). Stay away from the chainsaw chain when the engine is running. If you slip or lose your balance or fall, release the throttle trigger immediately. Do not rely solely on the safety features of this machine. Do not use this machine if you are fatigued, ill, have taken medication, narcotics, or alcohol. Do not expose this machine to rain or wet conditions. Water entering this machine will increase the risk of electric shock. Do not use this machine at night, in fog, or with reduced visibility that makes it difficult to see the work area. Lack of rest and fatigue can lead to accidents or damage. Limit the time of continuous use of this machine to 10 minutes and rest between 10 and 20 minutes between each session. Never leave this machine unattended. Do not allow anyone to enter the work area. This work perimeter must be 15 meters and it is a dangerous area. Holding the machine firmly by the handle will reduce the risk of kickback and increase your control over the machine. Never use the chainsaw when you are on a ladder, in a tree, or any other unstable location. Be careful when cutting thin branches or bushes. Thin branches can catch on the chain and be suddenly thrown off hitting you and knocking you off balance. If you are cutting a branch that is in tension, be aware of the possible rebound of the branch when making the cut. Check the condition of the tree to prevent dry branches from falling and hitting you while you are cutting. Clean the work area and remove all obstacles that could cause accidents. While cutting, do not let the tip of the chainsaw touch any log or obstacle. Remove the chainsaw from the wood with the chain still running. When cutting, always rest the claw of the chainsaw on the log. Pay extra attention when cutting wood that splinters. Splinters can be thrown in any direction. There is risk of injury. Never stand on the branch you are cutting. Always keep the chain sharp. Sharpen it as explained in this manual. If you make multiple cuts without letting go of the machine, always turn the chainsaw off between cuts.English English 37/84 Do not cut with the tip of the bar. There is a high risk of rebound in thecuts with the tip of the bar so they should never be made. Always set the machine on a flat and stable surface. Do not use accessories in this machine except those recommended by our company, as their use could cause severe damage to the user, to people near the machine and to the machine itself. Never drop the machine and never try to stop the chain by approaching a wood or obstacle.

7.1. MACHINE HOLDING AND GUIDING

While working always hold the chainsaw firmly with your hand on the handle.

7.2. SHARPENING THE CHAIN

The chainsaw chain dulls as cuts are made. If you observe any of the following symptoms it is time to sharpen the chain: - More effort is needed to make the cut. - The cutting path is not straight. - Vibrations increase. - When cutting, sawdust is produced instead of chips. To sharpen the chain, follow the instructions in point 8.2. ”Sharpening the chain”.

7.3. CUT WITH THE CHAINSAW

We recommend that you train with small branches in an easy position to gain experience before undertaking more complicated cuts. Always follow the safety rules that we indicate in this manual. Use this machine exclusively for cutting wood. Cutting any other type of material is prohibited. Do not use this machine to move objects. While cutting, use the machine gently. Use only slight downward pressure while keeping the machine at full power. The own weight of the machine will be sufficient to carry out the cut. If the chain locks, do not try to pull the saw while it is running. Stop the chainsaw and use a wedge to free the chainsaw.

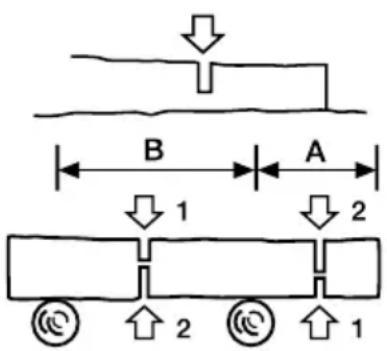

7.3.1. CUTTING A LOG RESTING ON THE GROUND

When a log is fully supported on the ground, first cut half of the log from above, then turn half a turn and cut the rest. If the log is supported on the sides (Zone B) you should make a cut from the top halfway (1) and then cut the rest from below (2). In this way you will prevent the internal tension of the log from closing the cut by blocking the chain and the bar of the chainsaw. If you are going to make a cut in a log supported by one end (Zone A) you should proceed in reverse. First cut half of the log from the bottom (1) and then finish the cut from the top (2).English 38/84

7.3.2. CUTTING THE BRANCHES OF A FELLED TREE

It is important to verify that the bouquets are not folded and / or in tension. If the branch to be cut is bent or in tension, it may jump out when you are cutting it. To cut a limb, in this case, cut ¼ of the whole limb from the side where the limb is in compression and then cut the rest of the limb from the side that is in tension (following diagram) . This will prevent the tension of the branch from closing the cut and blocking the chainsaw bar and chain.

7.3.3. CUTTING A BRANCH OF A TREE

To cut a tree limb that does not touch the ground always start with a cut of ¼ of the diameter of the branch from the bottom (1) and then cut the rest from the top (2). This way you will help the aperture of the cut and that the branch does not pull and damage the tree trunk.

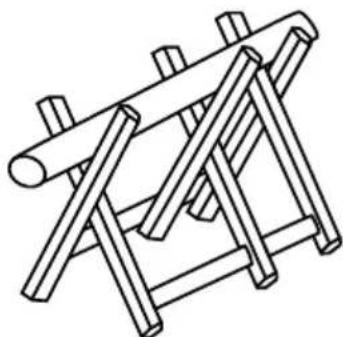

7.3.5. BRANCH CUTTING OR SMALL TRUNK CUTTING

When cutting branches or small trunks use a strong support such as an easel. Never hold the trunk by using your feet or asking someone else to hold the wood for you.

8. MAINTENANCE AND SERVICE

The removal of security mechanisms, an inappropriate maintenance, the substitution of the bar and chain with non original spares could cause severe corporal damages. Always carry out maintenance work with the machine unplugged from the mains. Carry out the following maintenance checks prior to working as well as when finishing your job to ensure the good functioning of this machine in the future.

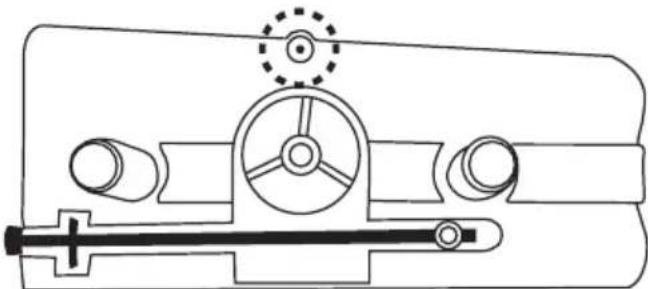

8.1. EXIT ORIFICE OF THE CHAIN OIL

Dismount the bar and check that the oil orifice is not clogged.

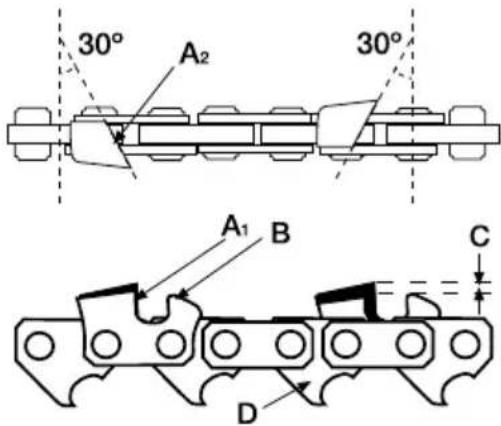

8.2. SHARPNESS OF CHAIN TEETH

Attention!: An incorrectly sharpened chain increases the risk of kick back as well as increasing the vibration level and possible accidents! To ensure that the machine cuts correctly, maintain the chain sharpened. You must also sharpen the chain if:

• You must place more pressure to cut.

• The cut is not straight.

• There is an increase of the vibration levels.

• When cutting instead of splinters you see shavings.English English 39/84 Do not forget to always use security gloves when sharpening the chain. Make sure the chain is placed correctly once it has been sharpened. Use a special file for chainsaws when sharpening the chain. Place the file between points (A) and (B) and push the file forward maintaining a 30 angle. File all the teeth of the chain in the same manner, filing forward at a 30 angle. Check the security height (C), this height must be some 0.6mm approximately. A height (C) larger than 0.6mm will cause the chain to bite the wood and will require a higher work rate from the engine and a lower height will mean that the chain will cut badly. Verify the length of the cutting teeth. All teeth must have the same length. If necessary file the teeth until all of them have the same length. 8.3. PERIODIC MAINTENANCE Do periodic maintenance inspections on the machine to guarantee an efficient use of the machine. For a complete check up, we highly recommend that you take the machine to your after sales service. Maintain the machine clean, specially the ventilating areas of the engine. Before carrying out any maintenance work, make sure that the machine is not switched to the mains. Always use original spare parts so as to guarantee the best possible performance of the machine and so as to avoid dangers and risks to the user and the machine. These spare parts should be bought at the after sales service. The use of non original spare parts can cause accidents, personal damage to the user and breakage of the machine.

8.3.1. MAINTENANCE OF THE BAR

Turn the bar regularly so that it does not only wear out from one end. The guide of the bar must always be in perfect conditions. Verify that it maintains the same thickness in all the bar. Replace the bar if necessary. Check that there no fissures and tha the level of looseness is not big. If looseness is big or it has some fissure, change the bar. When you unmount the bar, remove any wood splinters or shavings near the lubrication hole and on the guide of the bar.English 40/84

The pinion has a high level of wear. Check the pinion periodically and if you detect wear or loss of material, do not hesitate to take the machine to your after sales service.English English 41/84 Depending on the symptons that you may observe, you will be able to know the probable cause of the problem and how to solve the problem.

Problem Cause Action The engine stops when started The battery is not connected properly Connect the battery Chain brake activated Check chain brake and remove if necessary. Worn brushes or defective battery Charge the battery Poor cutting performance Chain not sharp enough Sharpen chain. Chain tension Tense the chain. Chain heats up Bad chain lubrication Check oil level and refill if necessary.English 42/84

Before transporting this machine, disconnect always the battery of the machine. Hold the machine by the handle and the battery extracted. Always transport the machine with the bar cover installed.

Store this tool in a place not accessible to children and safe so that it does not endanger any person, in a safe, dry, clean place and at a temperature between 5º C and 40º C. Always store the chainsaw with the sword covered with its protective cap. Unplug the battery from the machine before storing it and, to prevent damage to the battery, always charge it to the maximum. If you are not going to use the machine for a long period of time, recharge the battery every 30 days. Never store the discharged battery. Store batteries away from metal materials such as paper clips, coins, keys, nails, screws, or other small metal materials that may accidentally make connections between the terminals and short out. Short circuit to battery it can cause the battery to explode or burn. The battery will discharge more slowly at low temperatures. If you are going to store the machine in a closed place, empty the oil from the tank since the vapors could come in contact with a hot flame or body and ignite. If you are storing the machine for a long period of time, empty the oil in the tank, clean all parts of the machine and store the machine in a safe and dry place.

12. RECYCLING OR DISPOSAL OF

YOUR MACHINE The battery of this machine contains elements dangerous to health and the environment and must be recycled appropriately. Do not throw the battery in the trash, take it to an official collection point. waste. Dispose of your device in an environmentally friendly way. We must not get rid of the machines together with domestic garbage. Its plastic and metal components can be classified according to their nature and recycled. The materials used to pack this machine are recyclable. Please do not throw the packages in the household trash. Dispose of these packages at an official waste collection point.English English 43/84 13.1. WARRANTY PERIOD - According to the following described terms (1999/44 CE) the warranty period is 2 years from the purchase date, and it will cover faulty pieces owing to an incorrect manufacture. 13.2. EXCLUSIONS Garland warranty will not cover: - Pieces worn out due to wear and tear. - Bad use, negligence, lack of maintenance. - Failures that turn out because of an incorrect use of the product, Garland will not be responsible if the replaced parts of the machine are not from Garland and if the machine has been modified in any way. 13.3. TERRITORY - Garland warranty covers the country.

13.4. IN CASE OF INCIDENCE

- The warranty should be correctly filled in with all the information requested, and the invoice or the purchase ticket should be attached.

13. WARRANTY CONDITIONS

WARNING! TO GUARANTEE THE CORRECT FUNCTIONING OF THE MACHINE AND MAXIMUM SECURITY, WE ASK YOU TO READ THE INSTRUCTION MANUAL FULLY AND CAREFULLY PRIOR TO USING THE MACHINE.English 44/84 Who has signed below, Carlos Carballal , authorised by Productos McLand S.L., with the following address C/ La Fragua 22, 28933, Móstoles, España , declares that the products brand Garland models RODENT 604W-V21 with serial number of year 2021 on (the year of manufacture is clearly indicated on the tool identification plate, followed the serial number) and whose function is “A power-driven tool designed to cut wood with a saw chain and consisting of an integrated compact unit of handles, power source and cutting attachment, designed to be supported with one hand.”, comply with all the requirements stated by the Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC These tools also comply with the requirements of the following community directives:

• DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility (recast)

• Directive 2000/14/EC of the European Parliament and of the Council of 8 May 2000 on the approximation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors

• DIRECTIVE 2014/35/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits Power (W)= 650 Carlos Carballal Product Manager 6/05/2021 CE DECLARATION OF CONFORMITYEnglish English 45/84 NOTESFrançais 46/84
