USER MANUAL MS 1820123 Güde

Translation of the original instructions Magazine screwdriver

EC Declaration of Conformity

Starting-up the machine

Starting-up the machine

Starting-up the machine

Starting-up the machine

Starting-up the machine

Starting-up the machine

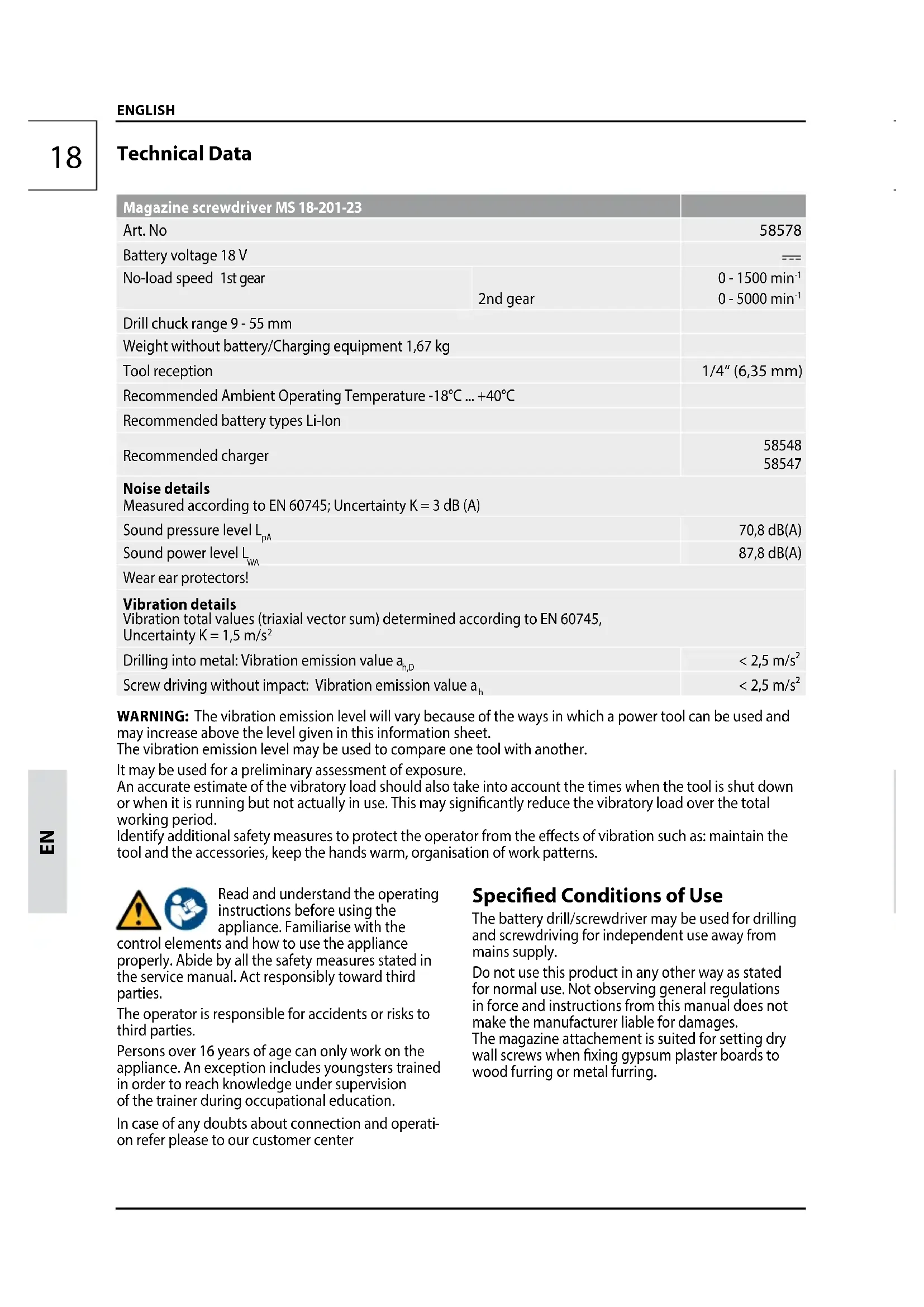

Battery voltage 18 V No-load speed 1st gear 2nd gear

Drill chuck range 9 - 55 mm Weight without battery/Charging equipment 1,67 kg Tool reception 1/4“ (6,35 mm) Recommended Ambient Operating Temperature -18°C ... +40°C Recommended battery types Li-Ion Recommended charger

Noise details Measured according to EN 60745; Uncertainty K = 3 dB (A) Sound pressure level L

Drilling into metal: Vibration emission value a h,D < 2,5 m/s² Screw driving without impact: Vibration emission value a

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and

may increase above the level given in this information sheet. The vibration emission level may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. An accurate estimate of the vibratory load shouldalso take into account the times when the tool isshut down or when it is running but not actually inuse. This may signicantly reduce the vibratoryload over the total working period. Identify additional safety measures to protect the operator from the eects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. In case of any doubts about connection and operati

on refer please to our customer center Specied Conditions of Use The battery drill/screwdriver may be used for drilling and screwdriving for independent use away from mains supply. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. The magazine attachement is suited for setting dry wall screws when xing gypsum plaster boards to wood furring or metal furring.D

Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinformation:: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s) Symbols Warning! / Caution! To reduce the risk of injury, user must read instruction manual Wear eye protective goggles ! Wear ear protectors! Take the replaceable battery from the appliance before any extension, cleaning and servicing works. Class III tool. CE marking Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

No-load speed Direct Current Battery Protect the battery against heat and re. Protect the battery against water and moisture. MAX 40°C Protect the battery against temperatures above 40°C. Li-Ion Do not throw the batteries in household waste. Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way. WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. Screwdriver safety warnings Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock. Drill safety warnings Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power tool „live“ and could give the operator an electric shock. Additional Safety and Working Instructions Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders. The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protec

tion mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner. Do not machine any materials that present a danger to health (e.g. asbestos). When working in walls ceiling, or oor, take care to avoid electric cables and gas or waterpipes. Clamp your workpiece with a clamping device. Unclamped workpieces can cause severe injury and damage. Please turn the device immediately o when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could causeD

bounce back with a high reaction moment. Determi- ne and remove the cause of the blocking of the tool used while respecting the safety instructions. The possible causes may be:

• it is tilted in the workpiece to be machined

• it has pierced through the material to be machined

• the power tool is overloaded Do not reach into the machine while it is running. Chips and splinters must not be removed while the machine is running. The insertion tool may become hot during use. WARNING! Danger of burns

• when setting the device down The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Do not use the device near ammable liquids or ga

ses. Risk of re and explosion in case of short circuit. Do not let any metal parts reach the airing slots - danger of short circuit! Electronics In case of overload, the rotational speed is being reduced until machine stops. Please note that the ma- chine will automatically accelerate back to its original operating speed if the load is removed from it. Battery Risk of re! Risk of explosion! Never use damaged, defective or deformed accu

mulators. Never open or damage the accumulator or let it fall on the ground. Never charge the battery in an environment with acids and easily ammable materials. Protect the battery against heat and re. Battery to be used at the ambient temperatures between 10°C and +40°C only. Never put the battery on heaters and do not expose it to strong sunlight for a long time. After being subject to heavy load, let the battery cool down rst. Short circuit - do not bridge the accumulator contacts with metal parts. The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage. The Güde charger to be used only to charge the battery. There can be malfunction or re if dierent chargers are used. Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing diculties. Vapours may irritate the respiratory system. Working Instructions Accumulators are supplied partially charged and must therefore be fully charged before being used for the rst time.

• Charge the accumulator when the appliance is running slowly or stops.

• A li-ion battery may be charged at any time without any shortening of its life. Charging process interrup

• A li-ion battery is protected by the Electronic Cell Protection against deep discharge.

• A signicantly shorter operating time of a charged battery means the battery life is over and the batte

ry must be replaced. Dispose of the batteries in an environmentally friendly manner. Li-ion batteries are subject to the special disposal obligation. Have any defective batteries disposed of by a specialised shop. The battery must be taken out before the appliance is scrapped. Damaged batteries may harm the environment and your health if toxic vapours or liquids leak out of such batteries. Therefore, never send a defective battery by post, etc. Please contact your local recycling centre. Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery. Maintenance Take the replaceable battery from the appliance before any extension, cleaning and servicing works. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Use only original accessories and original spare parts. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, ammable or toxic uids. For cleaning, use a damp cloth only. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www. guede.com. ENGLISHD
