USER MANUAL DEEBOT 711S ECOVACS

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We believe that your new robot will help keep your home clean and give you more quality time to do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in this Instruction Manual, please contact our Customer Service Center where a technician will be able to help you with your specific problem or question.

For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com

The company reserves the right to make technological and/or design changes to this product for continuous improvement.

Thank you for choosing DEEBOT!

Contents

1. Important Safety Instructions....4
2. Package Contents ......10
3. Operating and Programming....13
4. Maintenance....18
5. Status Indicator Light and Alarm Sounds....22
6. Troubleshooting ....23
7. Technical Specifications....26

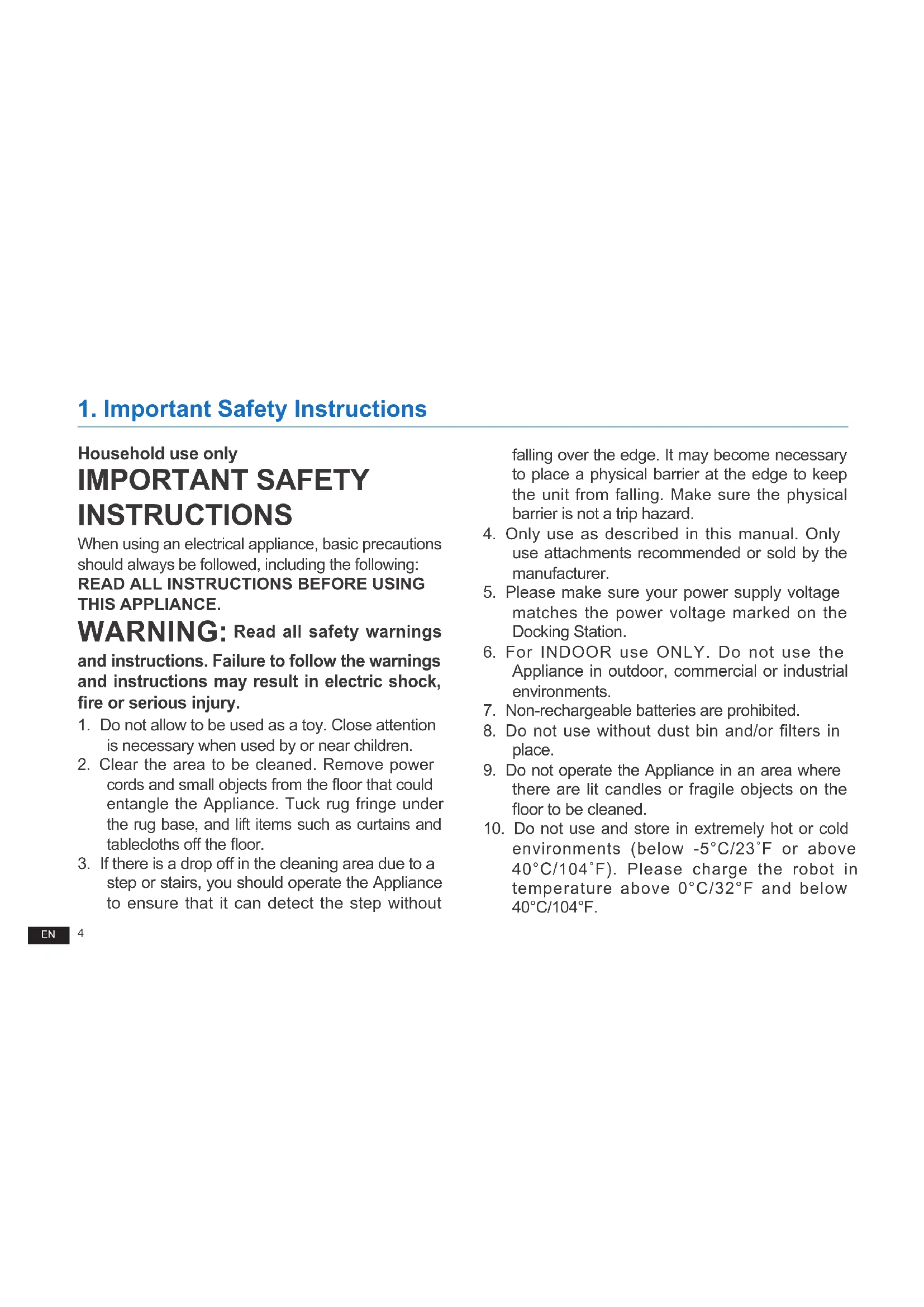

1. Important Safety Instructions

Household use only

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire or serious injury.

1. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without

falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

1. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
2. Please make sure your power supply voltage matches the power voltage marked on the Docking Station.
3. For INDOOR use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
4. Non-rechargeable batteries are prohibited.
5. Do not use without dust bin and/or filters in place.
6. Do not operate the Appliance in an area where there are lit candles or fragile objects on the floor to be cleaned.
7. Do not use and store in extremely hot or cold environments (below -5^/23^ or above 40^/104^ ). Please charge the robot in temperature above 0^/32^ and below 40^/104^ .

1. Important Safety Instructions

1. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
2. Do not operate the Appliance in a room where an infant or child is sleeping.
3. Do not use Appliance on wet surfaces or surfaces with standing water.
4. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.
5. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
6. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
7. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
8. Take care not to damage the power cord. Do not pull on or carry the Appliance or Docking Station by the power cord, use the power cord as a handle, close a door on the power cord, or

pull power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
19. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
20. Do not use the Docking Station if it is damaged.
21. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Docking Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning or maintaining the Appliance.
23. The plug must be removed from the receptacle before cleaning or maintaining the Docking Station.
24. Remove the Appliance from the Docking Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

1. Important Safety Instructions

1. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
2. Please dispose of used batteries according to local laws and regulations.
3. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
4. When not using the Docking Station for a long period of time, please unplug it.
5. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use.
6. The robot contains batteries that are only replaceable by skilled persons. To replace or remove the battery, please contact Customer Service.
7. If the robot will not be used for a long time, fully charge the robot and power OFF for storage and unplug the Docking Station.
8. Prevent unintentional starting. Ensure the switch is in the off position before connecting to battery pack, picking up or carrying the appliance.

Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

1. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
2. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
3. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
4. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion. The temperature of 130^ C can be replaced by the temperature of 265^ F.

1. Important Safety Instructions

1. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
2. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
3. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.
4. Place the cords from other appliances out of the area to be cleaned.
5. Do not operate the vacuum in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
6. Do not allow children to sit on the vacuum.

7. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

8. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

9. Do not handle plug or appliance with wet hands.

SAVE THESE INSTRUCTIONS

1. Important Safety Instructions

Federal Communications Commission (FCC) Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate this equipment.

RF exposure warning

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

1. Important Safety Instructions

User manuals for transmitters equipped with detachable antennas shall also contain the following notice in a conspicuous location:

This radio transmitter (identify the device by certification number, or model number if

Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

IMPORTANT NOTE:

Radiation Exposure Statement:

This equipment complies with “Industry Canada RSS-102 for radiation exposure limits set forth for an uncontrolled environment”.

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

To disable Wi-Fi module on DEEBOT, power the robot ON. Place the robot on the Docking Station making sure the Charging Contacts on DEEBOT and the Docking Station Pins make a connection.

Press and hold the AUTO Mode Button on the robot for 20 seconds until DEEBOT emits 3 beeps.

To enable Wi-Fi module on DEEBOT, power the robot OFF and then power ON. The Wi-Fi module is turned on when DEEBOT is restarted.

2. Package Contents

2.1 Package Contents

Simple line drawing of a circular object with a small vertical tab on top (no text or symbols)

Robot

Docking Station

(4) Side Brushes

Sponge Filter and High Efficiency Filer

Multi-Function Cleaning Tool

Instruction Manual+ Quick Start Guide
Note: Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

2. Package Contents

2.2 Product Diagram
Robot

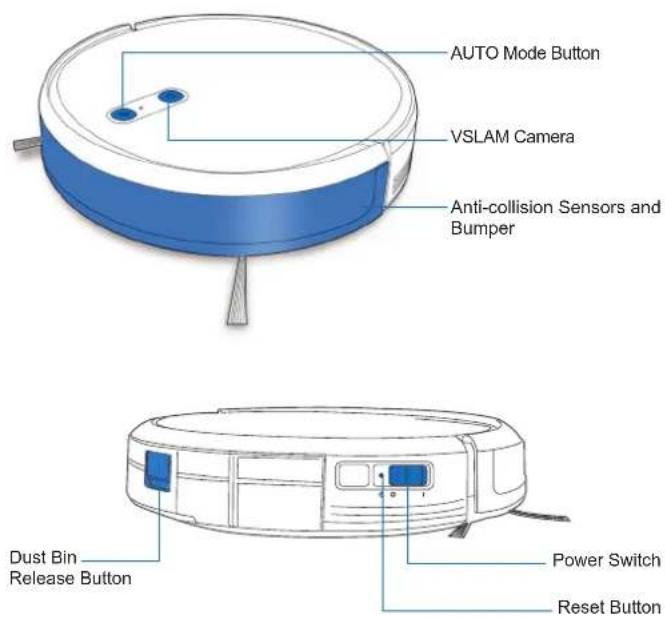

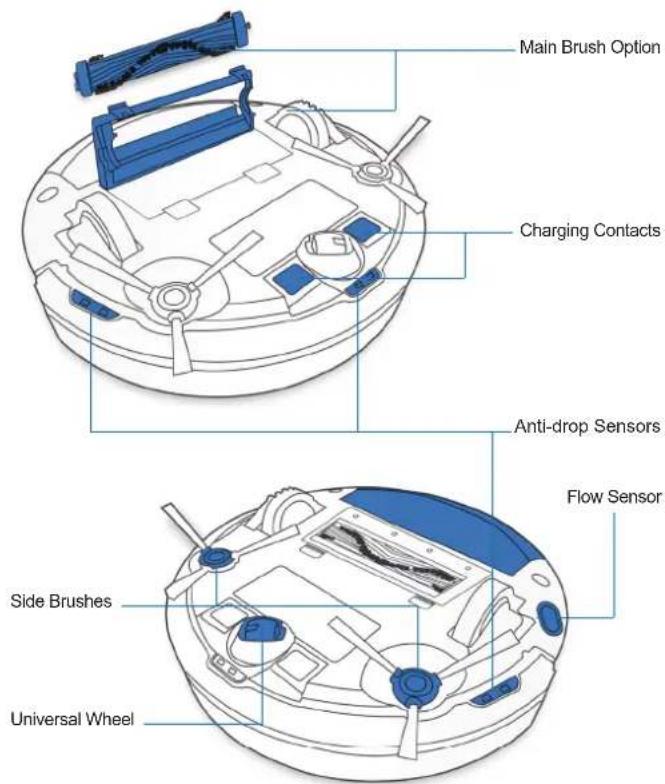

AUTO Mode Button VSLAM Camera Anti-collision Sensors and Bumper Dust Bin Release Button Power Switch Reset Button

Bottom View

Main Brush Option Charging Contacts Anti-drop Sensors Flow Sensor Side Brushes Universal Wheel

2. Package Contents

Docking Station

Infrared Signal Generator Docking Station Pins

3. Operating and Programming

3.1 Notes Before Cleaning

WARNING: Do not use DEEBOT on wet surfaces or surfaces with standing water.

Simple line drawing of a circular vacuum cleaner with attached wires and a blue X symbol (no text or labels)

Before using the product on a rug with tasseled edges, please fold the rug edges under.

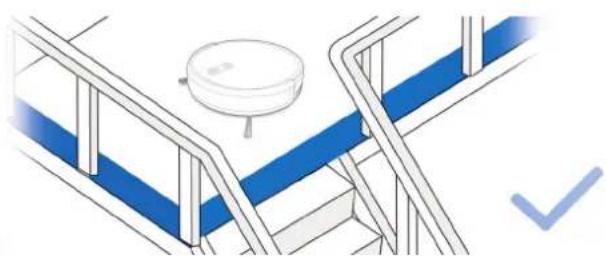

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Two hand-drawn sketches of a dining room with tables and chairs, one marked with an 'X' and the other with a checkmark (no text or symbols)

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Illustration of three types of flip-flops and a cord with a blue X mark (no text or symbols)

Remove power cords and small objects from the floor that the robot could be obstructed by.

3. Operating and Programming

3.2 Preparation

1 Remove Protective Strip

Line drawing of a robotic vacuum cleaner with a blue cable and arrow indicating motion (no text or symbols)

2 Docking Station Placement

0.5m (1.6') 0.5m (1.6') 1.5m (5')

3 Install Side Brushes

Diagram of a car interior with two propellers and a highlighted cockpit view showing engine components (no text or labels)

4 Power ON

OFF ON O I

5 Charge DEEBOT

≥ 4h OFF ON

Note: When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT automatically returns to the Docking Station to recharge itself.

3. Operating and Programming

3.3 Selecting Cleaning Mode

1 AUTO Cleaning Mode

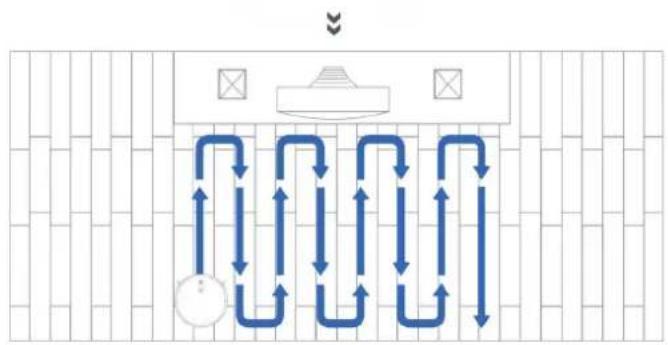

A Programmed Cleaning Pattern (optimized for hard floors) will be selected by default.

Hand holding a blue circular button with a spiral scroll, pointing at an arc (no text or symbols)


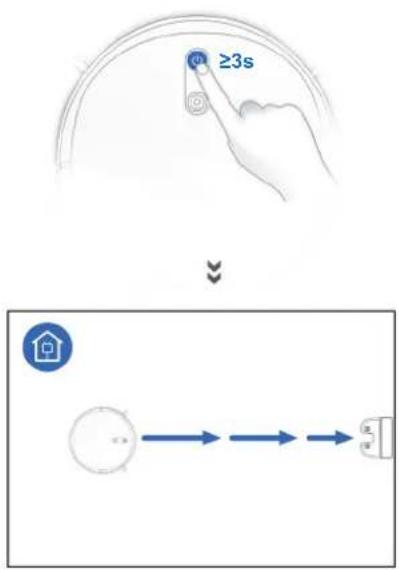

2 Return to Docking Station

≥3s

3. Operating and Programming

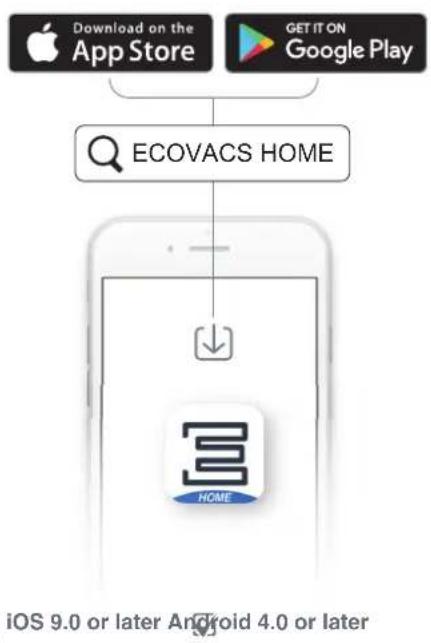

All the functions mentioned above can be enabled on the App. Download ECOVACS App to access more features, including Max Mode, Scheduled Cleaning, etc.

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

3. Operating and Programming

3.4 Pause, Wake Up, Power Off

1 Pause

Hand pointing at a blue circular button with a small square icon, against a curved arc background (no text or symbols)

Note: The robot's Control Panel stops glowing after the robot is paused for a few minutes. Press the AUTO Mode Button on DEEBOT to wake up the robot.

3 Power OFF

OFF ON O I

Note: When DEEBOT is not working, it is recommended to keep it switched ON and charging.

2 Wake Up

Hand holding a blue circular button with spiral pattern, pointing at a curved interface element (no text or symbols)

Press the AUTO button on DEEBOT to wake it up

Hand holding a blue circular button with an app icon, pointing at a curved arc (no text or symbols)

4. Maintenance

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Docking Station.

4.1 Dust Bin and Filters

Dust Bin

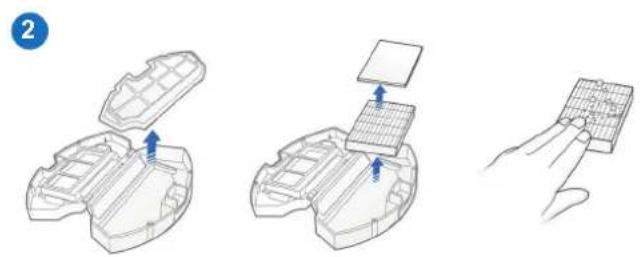

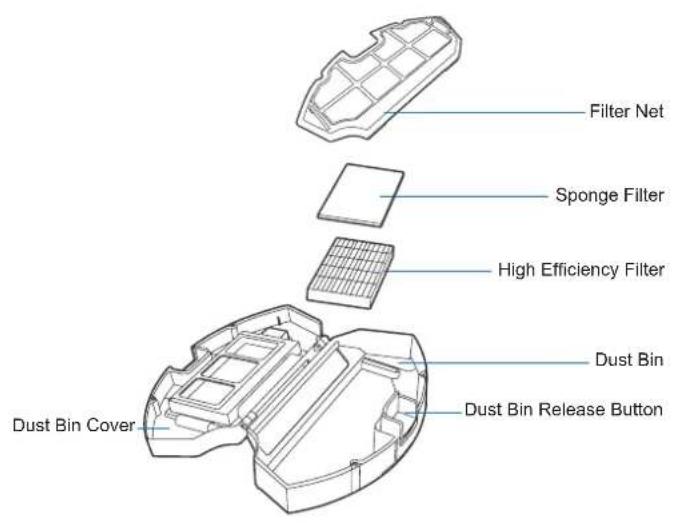

Filter Net Sponge Filter High Efficiency Filter Dust Bin Dust Bin Release Button Dust Bin Cover

Diagram showing a circular device with a blue arrow pointing to its side, and a close-up of a mechanical component above a container with blue dots (no text or symbols)

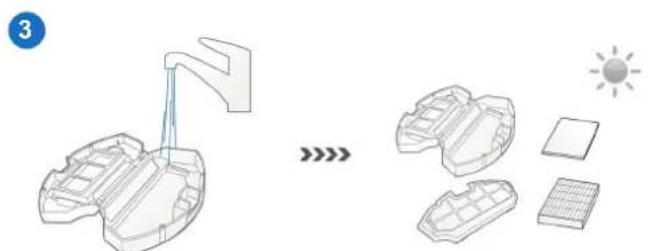

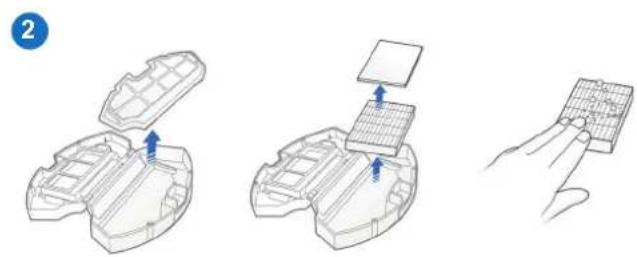

Diagram illustrating three steps of a device assembly: open casing, grid panel, and hand holding a grid.

Diagram showing a water spray system transforming into solar panels and components (no text or symbols)

4. Maintenance

4.2 Main Brush and Side Brushes

Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

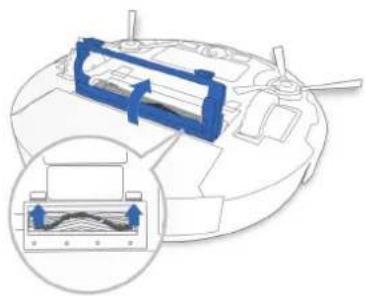

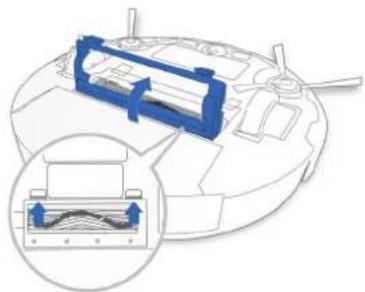

Main Brush

1

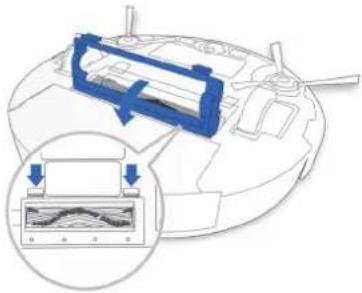

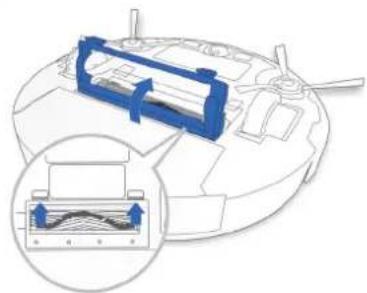

Diagram showing a mechanical component with blue annotation arrows and a magnified inset illustrating a waveform or signal processing process.

2

Diagram of a robotic device with a blue arrow indicating a specific component (no text or symbols present)

3

Line drawing of a hand holding a pen or tool with a small object inside, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Technical line drawing of a mechanical component with a blue component and an inset showing internal flow or flow patterns (no text or symbols)

4. Maintenance

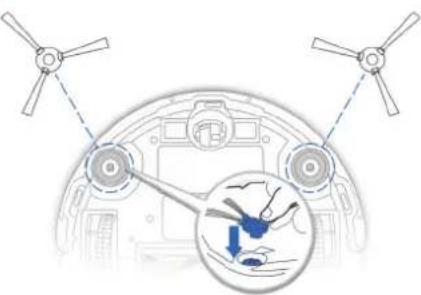

Side Brushes
1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset magnified view of a mechanical component (no text or symbols)

●

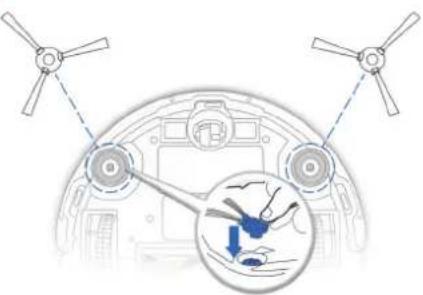

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

●

Diagram of a helicopter's interior showing two propellers and a hand holding a blue object, with no visible text or symbols.

4.3 Other Components

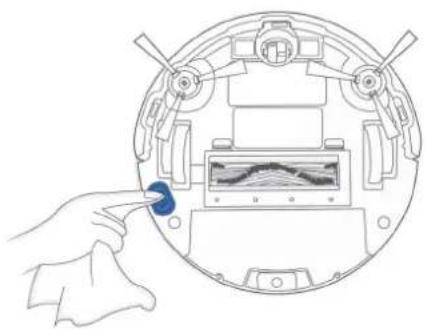

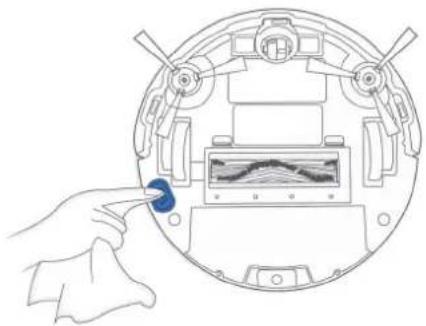

Line drawing of a hand cleaning a circular object with a blue mark (no text or symbols)

Diagram of a hand inserting a blue component into a circular device with a waveform display (no text or symbols)

4. Maintenance

Technical line drawing of a mechanical device interior with no visible text or symbols

Diagram of a hand inserting a component into a circular device with internal components (no text or symbols)

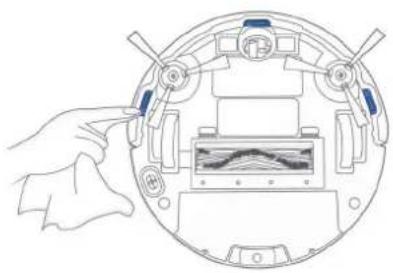

Illustration of a hand interacting with a blue robotic vacuum cleaner (no text or symbols)

Note: Before cleaning the robot's Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.

Diagram of a hand operating a device with a control panel and display panel (no text or symbols visible)

Illustration of a hand pressing a medical or laboratory device with two buttons (no text or symbols)

4. Maintenance

4.4 Regular Maintenance

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Robot Part Maintenance	Frequency Replacement Frequency
Side Brush Once every 2	weeks Every 3-6 months
Main Brush Once per week	Every 6-12 months
Sponge Filter/ High Efficiency Filter	Once per week Every 3-6 months
Universal WheelAnti-Drop SensorsBumperCharging ContactsDocking Station Pins	Once per week /

A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.

Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

5. Indicator Light and Alarm Sounds

DEEBOT will tell you something is wrong with an alarm indicator light and sounds. More detailed support is available through the ECOVACS App and online website.

Indicator Light

Scenario Indicator Light
The robot is cleaning AUTO Mode Button glows a solid WHITE
The robot is charging AUTO Mode Button flashes WHITE
The robot has low battery AUTO Mode Button glows a solid RED
The robot has a problem AUTO Mode Button flashes RED
Programmed Cleaning Pattern is enabled Cleaning Mode Switch Indicator lights up

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
1	DEEBOT is not charging.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT has not connected to the Docking Station.	Be sure that the robot's Charging Contacts have connected to the Docking Station Pins.
		The battery is completely discharged.	Re-activate the battery. Switch ON DEEBOT. Place DEEBOT on the Docking Station by hand, remove after charging for 3 minutes, repeat 3 times; then charge normally.
2	DEEBOT cannot return to the Docking Station.	The Docking Station is not correctly placed.	Refer to Section 3.2 to correctly place the Docking Station.
3	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
4	DEEBOT returns to the Docking Station before it has finished cleaning.	When the battery gets low, DEEBOT automatically switches to Return to Charger Mode and returns to the Docking Station to recharge itself.	This is normal. No solution necessary.
		Working time varies according to floor surface, room complexity and the Cleaning Mode selected.	This is normal. No solution necessary.

6. Troubleshooting

No.	Malfunction Possible Causes Solutions
5	DEEBOT does not clean automatically at the scheduled time.	Time Scheduling function is cancelled.	Program DEEBOT to clean at specific times using the ECOVACS App.
		The Continued Cleaning function is turned ON and DEEBOT has just finished cleaning the scheduled cleaning area.	This is normal. No solution necessary.
		DEEBOT is switched OFF. Switch ON DEEBOT.
		The robot's battery is low.	Keep DEEBOT switched ON and connected to the Docking Station to make sure it has a full battery to work at any time.
		The robot's Suction Intake is blocked and/or there is debris stuck in its components.	Power OFF DEEBOT, clean the Dust Bin and invert the robot. Clean the robot's Suction Intake, Side Brushes and the Main Brush as described in Section 4.
6	DEEBOT does not clean the whole area.	The cleaning area is not tidy.	Remove small objects from the floor and tidy up the cleaning area before DEEBOT starts cleaning.
7	DEEBOT is not able to connect to the home Wi-Fi network.	Incorrect home Wi-Fi username or password entered.	Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal.
		Network setup started before DEEBOT was ready.	Turn ON Power Switch. Press the RESET Button for 3 seconds. DEEBOT is ready for network setup when it plays a musical tune and its Wi-Fi Indicator light flashes slowly.
		Your smartphone's operating system needs to be updated.	Update your smartphone's operating system. The ECOVACS App runs on iOS 9.0 and above, Android 4.0 and above.

7. Technical Specifications

Model DS5G
Working Voltage 14.8V DC
Docking Station Model CH1630A
Rated Input	100-130 V AC,50/60 Hz, 0.5 A	Rated Output 20 V DC, 0.8 A

Note: Technical and design specifications may be changed for continuous product improvement.

Simple line drawing of a circular object with a small rectangular element on top (no text or symbols)

Robot

Station de charge

Simple line drawing of a circular vacuum cleaner with attached wires and a blue X symbol (no text or labels)

Isometric line drawing of a staircase with blue and white panels, no text or symbols present

Two hand-drawn sketches of a dining room with tables and chairs, one marked with an 'X' and the other with a checkmark (no text or symbols)

Three abstract line drawings: a pair of gloves, a hand holding a piece, and a coiled cord with a blue X symbol (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a blue cable and arrow indicating motion (no text or symbols)

4 Mise sous tension

OFF ON O I

2 Disposition de la station de charge

0.5m (1.6') 0.5m (1.6') 1.5m (5')

Diagram of a car interior with two propellers and a highlighted cockpit view showing engine components (no text or labels)

≥ 4h OFF ON

Hand holding a blue circular button on a curved surface (no text or symbols)

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

Hand holding a blue circular button on a curved surface (no text or symbols)

OFF ON O I

Hand holding a blue circular button with a spiral icon, pointing at it (no text or symbols present)

Hand holding a blue circular button with a spiral line above, pointing at it (no text or symbols present)

4. Entretien

Diagram showing a circular device with a blue arrow pointing to it, and a container with blue dots falling into the liquid (no text or symbols present)

Diagram illustrating three steps of a device assembly: open, grid, and press application with directional arrows.

Diagram showing a water spray system transforming into solar panels and components (no text or symbols)

4. Entretien

Diagram showing a mechanical component with blue components and a magnified inset illustrating internal flow or wave pattern.

2

3D diagram of a mechanical device with a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand holding a tool with a blue tool, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Diagram of a mechanical device with a blue component and an inset showing internal flow or mesh structure (no text or symbols)

4. Entretien

Brosses latérales

1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset showing a blue airplane flying over water (no text or symbols)

●

Line drawing of a mechanical component with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter's cockpit showing propellers and a hand holding a blue object, with no visible text or symbols.

Line drawing of a hand cleaning a circular object with a blue mark (no text or symbols)

Diagram of a hand inserting a blue component into a circular device with a waveform display (no text or symbols)

4. Entretien

Top-down schematic of a device component with a blue circular component and control knobs (no text or symbols)

Diagram of a hand inserting a component into a circular device with internal components (no text or symbols)

Illustration of a hand interacting with a blue robotic vacuum cleaner (no text or symbols)

Diagram of a hand operating a device with a control panel and display panel (no text or symbols)

Illustration of a hand pressing a medical or laboratory device with two buttons (no text or symbols)

4. Entretien

Simple line drawing of a circular object with a small rectangular cutout and a small circular mark on the top (no text or symbols)

Robot

Puerto de carga

(4) Cepillos laterales

Simple line drawing of a circular vacuum cleaner with attached wires and a blue X symbol (no text or labels)

Isometric line drawing of a staircase with blue and white panels, a circular object on top, and a checkmark (no text or symbols)

Two hand-drawn sketches of a dining room with tables and chairs, one marked with an 'X' and the other with a checkmark (no text or symbols)

Illustration of three types of flip-flops and a cord with a blue X mark (no text or symbols)

Line drawing of a robotic vacuum cleaner with a blue cable and arrow indicating motion (no text or symbols)

4 Enciéndalo

OFF ON O I

0.5m (1.6') 0.5m (1.6') 1.5m (5')

5 Cargue el DEEBOT

Diagram of a car interior with two propellers and a highlighted cockpit view showing engine components (no text or labels)

≥ 4h OFF ON

Hand holding a blue circular button on a curved surface, no text or symbols present

≥3 s ↓ → ← → →

Download on the App Store GET IT ON Google Play ECOVACS HOME iOS 9.0 or later Android 4.0 or later

Hand pointing at a blue circular button on a curved surface (no text or symbols)

OFF ON O I

Hand pointing at a blue circular button on a curved interface (no text or symbols)

Hand holding a blue circular button on a curved surface, no text or symbols present

4. Mantenimiento

Diagram showing a circular device with a blue arrow pointing to it, and a container with blue dots falling into the liquid (no text or symbols present)

Diagram illustrating three steps of a device assembly: open casing, grid panel, and screen capture.

Diagram illustrating solar heating process with battery, switch, and solar panel components (no text or symbols)

4. Mantenimiento

4.2 Cepillo principal y cepillos laterales

Diagram of a mechanical device with a blue component and a magnified inset showing internal structure (no text or symbols)

2

3D diagram of a robotic device with a blue arrow indicating a component (no text or symbols present)

3

Line drawing of a hand holding a string with a small object inserted, no text or symbols present

4

Diagram of a robotic device with a blue arrow pointing to a component (no text or symbols present)

5

Diagram of a device with a blue component and an inset showing internal wiring (no text or symbols)

4. Mantenimiento

Cepillos laterales

1

Diagram of a vehicle interior showing steering wheel, dashboard, and gear mechanism with an inset showing a blue airplane flying over water (no text or symbols)

●

Line drawing of a mechanical component with a hand holding a tool (no text or symbols)

●

Diagram of a helicopter's cockpit showing propellers and a hand holding a blue object, with no visible text or symbols.

Line drawing of a hand cleaning a circular object with a blue mark (no text or symbols)

Diagram of a hand inserting a blue component into a circular device with a waveform display (no text or symbols)

4. Mantenimiento

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a hand inserting a component into a circular device with internal components (no text or symbols)

Illustration of a hand interacting with a blue robotic vacuum cleaner (no text or symbols)

Diagram of a hand operating a device with a control panel and display panel (no text or symbols)

Illustration of a hand pressing a medical or laboratory device with two buttons (no text or symbols)

4. Mantenimiento

No. 18 You Xiang Road, Wuzhong District, Suzhou City,

Jiangsu Province, P.R.China

DS5G-050-IM2019R01
