USER MANUAL TPNH808FLA5 LG

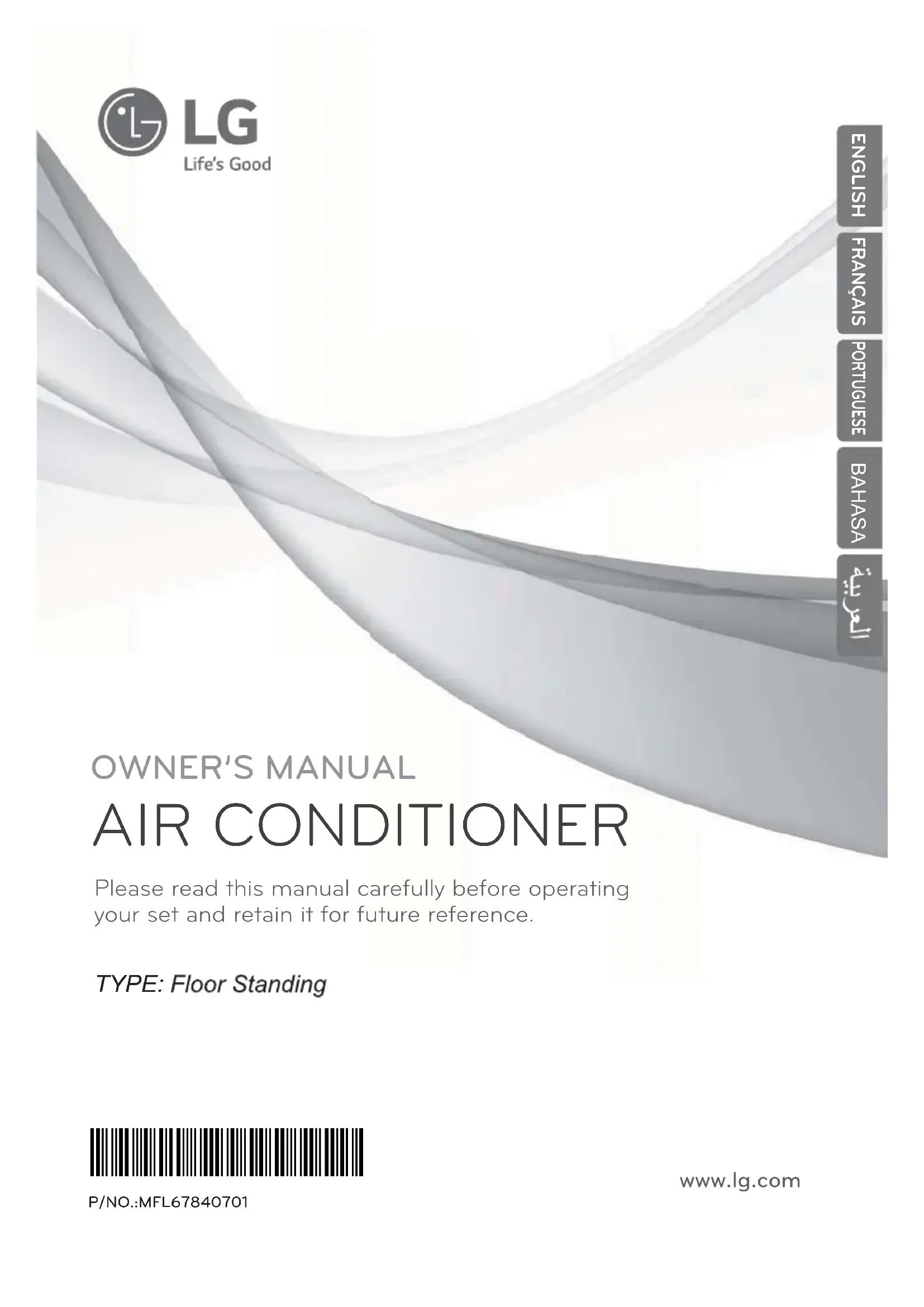

AIR CONDITIONER Please read this manual carefully before operating your set and retain it for future reference. www.lg.com

Write the model and serial numbers here:Model #Serial #You can find them on a label on the side of each unit.Dealer's NameDate Purchased Staple your receipt to this page in the event you need itto prove date of purchase or for warranty issues.

Inside you will find many helpful hints on how to use andmaintain your air conditioner properly. Just a littlepreventive care on your part can save you a great dealof time and money over the life of your air conditioner.You'll find many answers to common problems in thechart of troubleshooting tips. If you review our chart ofTroubleshooting Tips first, you may not need to call forservice at all. PRECAUTION

• Contact the authorized service technician for repair ormaintenance of this unit.• Contact the installer for installation of this unit.• The air conditioner is not intended for use by youngchildren or invalids without supervision.• Young children should be supervised to ensure thatthey do not play with the air conditioner.• When the power cord is to be replaced, replacementwork shall be performed by authorized personnel onlyusing only genuine replacement parts.• Installation work must be performed in accordancewith the National Electric Code by qualified andauthorized personnel only. Safety Precautions.................3 Operating Instructions........... Maintenance and Service ....1

7Safety PrecautionsOwner's Manual 3 Safety Precautions To prevent injury to the user or other people and property damage, the following instructionsmust be followed.ƵIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness isclassified by the following indications.ƵMeanings of symbols used in this manual are as shown below. WARNING CAUTION This symbol indicates the possibility of death or serious injury.This symbol indicates the possibility of injury or damage. Be sure not to do. Be sure to follow the instruction. WARNING ƵInstallationDo not use a defective orunderrated circuit breaker.Use this appliance on adedicated circuit.• There is risk of fire or electricshock.For electrical work, contactthe dealer, seller, a qualifiedelectrician, or an AuthorizedService Center.• Do not disassemble or repair theproduct. There is risk of fire orelectric shock.Always ground the product.• There is risk of fire or electricshock.Install the panel and thecover of control boxsecurely.Always install a dedicatedcircuit and breaker.• Improper wiring or installationmay cause fire or electric shockUse the correctly ratedbreaker or fuse.• There is risk of fire or electricshock.• There is risk of fire or electricshock.Do not modify or extend thepower cable.• There is risk of fire or electricshock.Do not install, remove, or re-install the unit by yourself(customer).• There is risk of fire, electricshock, explosion, or injury.Be cautious when unpackingand installing the product.• Sharp edges could cause injury.Be especially careful of the caseedges and the fins on thecondenser and evaporator.For installation, always contact thedealer or an Authorized Service Center.• There is risk of fire, electricshock, explosion, or injury.Do not install the product on adefective installation stand.• It may cause injury, accident, ordamage to the product.Be sure the installation areadoes not deteriorate with age.• If the base collapses, the airconditioner could fall with it,causing property damage,product failure, and personalinjury. ENGLISHSafety Precautions 4 Floor Standing-Type Air Conditioner ƵOperation Do not plug or unplug the power supply plug during operation.

• There is risk of fire or electric shock. Do not touch(operate) the product with wet hands.

• There is risk of fire or electrical shock. Do not place a heater or other appliances near the power cable.

• There is risk of fire and electric shock. Do not let the air conditioner run for a long time when the humidity is very high and a door or a window is left open

• Moisture may condense and wet or damage furniture. Take care to ensure that power cable could not be pulled out or damaged during operation.

• There is risk of fire or electric shock. Do not place anything on the power cable.

• There is risk of fire or electric shock. Do not allow water to run into electric parts. Do not store or use flammable gas or combustibles near the product.

• There is risk of fire or failure of product. Do not use the product in a tightly closed space for a long time.

• Oxygen deficiency could occur.

• It may cause There is risk of fire, failure of the product, or electric shock. When flammable gas leaks, turn off the gas and open a window for ventilation before turn the product on.

• Do not use the telephone or turn switches on or off. There is risk of explosion or fire If strange sounds, or small or smoke comes from product. Turn the breaker off or disconnect the power supply cable.

• There is risk of electric shock or fire. Stop operation and close the window in storm or hurricane. If possible, remove the product from the window before the hurricane arrives.

• There is risk of property damage, failure of product, or electric shock. Do not open the inlet grill of the product during operation. (Do not touch the electrostatic filter, if the unit is so equipped.)

• There is risk of physical injury, electric shock, or product failure. When the product is soaked (flooded or submerged), contact an Authorized Service Center.

• There is risk of fire or electric shock. Be cautious that water could not enter the product.

• There is risk of fire, electric shock, or product damage. Ventilate the product from time to time when operating it together with a stove, etc.

• There is risk of fire or electric shock. Turn the main power off when cleaning or maintaining the product.

• There is risk of electric shock. When the product is not be used for a long time, disconnect the power supply plug or turn off the breaker.

• There is risk of product damage or failure, or unintended operation. Take care to ensure that nobody could step on or fall onto the outdoor unit.

• This could result in personal injury and product damage.Safety Precautions ƵInstallation CAUTION ƵOperation Always check for gas (refrigerant) leakage after installation or repair of product.
• Low refrigerant levels may causefailure of product. Install the drain hose to ensure that water is drained away properly. Keep level even when installing the product. Do not install the product where the noise or hot air from the outdoor unit could damage the neighborhoods.
• It may cause a problem for yourneighbors. Use two or more people to lift and transport the product.
• Avoid personal injury. Do not install the product where it will be exposed to sea wind (salt spray) directly.
• It may cause corrosion on theproduct. Corrosion, particularly onthe condenser and evaporator fins,could cause product malfunction orinefficient operation. Do not expose the skin directly to cool air for long periods of time. (Don't sit in the draft.)
• This could harm to your health. Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system.
• There is risk of damage or loss of property.• A bad connection may causewater leakage.• To avoid vibration or waterleakage. Do not block the inlet or outlet of air flow.
• It may cause product failure. Use a soft cloth to clean. Do not use harsh detergents, solvents, etc.
• There is risk of fire, electric shock,or damage to the plastic parts ofthe product. Do not touch the metal parts of the product when removing the air filter. They are very sharp!
• There is risk of personal injury. Do not step on or put anything on the product. (outdoor units)
• There is risk of personal injury and Always insert the filter securely. Clean the filter every two weeks or more often if necessary.
• A dirty filter reduces the efficiencyof the air conditioner and couldcause product malfunction ordamage. Do not insert hands or other objects through the air inlet or outlet while the product is operated.
• There are sharp and moving partsthat could cause personal injury.failure of product. Do not drink the water drained from the product.
• It is not sanitary and could causeserious health issues. Use a firm stool or ladder when cleaning or maintaining the product.
• Be careful and avoid personalinjury. Replace the all batteries in the remote control with new ones of the same type. Do not mix old and new batteries or different types of batteries.
• There is risk of fire or explosion Do not recharge or disassemble the batteries. Do not dispose of batteries in a fire.
• They may burn or explode. If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote if the batteries have leaked.
• The chemicals in batteries could cause burns or otherhealth hazards. Owner's Manual 5 ENGLISHOperating Instructions Operating Instructions

1. Design for cooling and heating

2. Super energy efficiency

4. Whisper quiet operation

5. 2 cooling/heating speeds

6. Removable air filter

7. Anti-Bacteria filter

8. 3 minutes delay circuit

ROOM TEMP. SET TEMP.

ROOM TEMP. SET TEMP.

ROOM TEMP. SET TEMP.

Owner's Manual Operating Instructions Indoor Unit Controls and Indicators

1. START/STOP BUTTON

Operation starts when this button is pressed and stops when the button is pressed again.

BUTTONS Used to select the room temperature.

4. INDOOR FAN SPEED SELECTION

Used to select fan speed in two steps-low, high.

11. DUCT AIR FLOW LAMP(OPTION)

ENGLISHFloor Standing-Type Air Conditioner Cooling OperationFan Operation (Heat pump Model) Soft Dry Operation Heating Operation Cooling Operation Fan OperationSoft Dry OperationAuto Operation (Cooling Model) High Low A/CLROOM TEMP. SET TEMP.OUT DOOR A/CLROOM TEMP. SET TEMP.OUT DOOR A/CLROOM TEMP. SET TEMP. OUT DO A/CLROOM TEMP. SET TEMP. OUT DOORA/CLROOM TEMP. SET TEMP. OUT DO

Operating Instructions How to use the Operation Mode Button How to use the Fan speed Button

• Each time the Operation Mode Selection Button is pressed, the Operation Mode is shifted in the arrow direction.

• Each time the Fan speed Button is pressed, the Fan speed is shifted in the arrow direction. 8Owner's Manual

A/CLROOM TEMP. SET TEMP. OUT DOOR To raise the temperature. To lower the temperature.

Operating Instructions Cooling Operation Mode

Select Cooling Operation. Press the Operation Mode Selection Button.

Set the temperature lower than the room temperature. The temperature can be set within a range of 1 °C~30°C by 1°C.

• Each time the Button is pressed, the Fan Speed mode is shifted. (HIGH ➯ LOW)

A/CLROOM TEMP. SET TEMP. OUT DOOR

ENGLISH1 Floor Standing-Type Air Conditioner A/CLROOM TEMP. SET TEMP. OUT DOORA/CLROOM TEMP. SET TEMP. OUT DOOR To raise the temperature. To lower the temperature.

• Press the or button Operating Instructions Soft Dry Operation

Press the Start/Stop Button. Select Soft Dry Operation. Press the Operation Mode Selection Button. Set the temperature lower than the room temperature. The temperature can be set within a range of 18°C~30°C by 1°C. During softy Dry Operation

• The indoor fan speed is automatically set to low and cannot be adjusted.

To raise the temperature. To lower the temperature.

Operating Instructions Heating Operation Mode(Except Cooling Model)

Select heating Operation. Press the Operation Mode Selection Button.

Set the temperature upper than the room temperature. The temperature can be set within a range of 1 °C~30°C by 1°C.

• Each time the Button is pressed, the Fan Speed mode is shifted.

A/CLROOM TEMP. SET TEMP.

OUT DOOR A/CLROOM TEMP. SET TEMP.

OUT DOOR To raise the temperature. To lower the temperature.

• Press the or button Operating Instructions Electric Heater Operation Mode(Heat pump & Electric heater product only)

Select heating+ E/heater Operation. ❶ Press the Operation Mode Selection Button to select heating Operation. ❷ Press the E/Heater Operation Button. (When the unit operates in heating mode).

Set the temperature upper than the room temperature. The temperature can be set within a range of 1 °C~30°C by 1°C.

• Each time the Button is pressed, the Fan Speed mode is shifted.

Operating Instructions Auto Operation Mode(Cooling Model Only) During Auto Operation

• It is impossible to switch the indoor fan speed because of being already set to the best conditioner by fuzzy rule.

Select Auto Operation. Press the Operation Mode Selection Button.

Set the temperature upper or lower than the standard temperature. The temperature can be set within a range of by 1 level. (This indication will be shifted to the initial Auto Mode Display state after 4 seconds.)

When you finish the Off Timer setting, the Timer indicator lights off.

During off-timer operation if you press the Timer Button, the rest time will be displayed.

• If you press the button, the selected off timer is displayed as follows; 4Owner's Manual 1

• Each time the Button is pressed, the Fan Speed mode is shifted. Adjust air flow direction manually by moving the horizontal or vertical louvers with hand.

Select Fan Operation. Press the Operation Mode Selection Button.

After pressing the buttons it will shift immediately. After 3 seconds, it will shift. A/CLROOM TEMP. SET TEMP. L H OUT DOORA/CLROOM TEMP. SET TEMP. L H OUT DOOR After 3 seconds, it will shift. After 3 seconds, it will shift. A/CLROOM TEMP. SET TEMP. L H OUT DOORA/CLROOM TEMP. SET TEMP. L H OUT DOOR Operating Instructions

During Child Lock Operation Whenever you press any Button on Display Panel, it will immediately display “ ”, which means Display panel is Locked. All the Button on the indoor unit Display panel will not work.

Auto restart In case the power comes on again after a power failure, Auto Restarting Operation is the function to operate procedures automatically to the previous operating conditions. A/CL ROOM TEMP. SET TEMP. L H OUT DOOR A/CL ROOM TEMP. SET TEMP. L H OUT DOOR

Child Lock Operation Procedure For releasing child lock Operation Press the fan speed button and High temperature setting buttons simultaneously for 3 conds. The unit will respond with beep, Child Lock Operation will removed. Press the fan speed button and High temperature setting buttons simultaneously for 3 conds. The unit will respond with beep.Owner's Manual 1 CAUTIONCAUTION During the season When the air conditioner is not going to be used for a long time. Operation Tips Maintenance and Service Maintenance and Service Remove the Air Filter.Take hold of the tab and pull slightly forward toremove the filter.Clean. To remove the dust adhering to the filters, either use avacuum cleaner, or wash them in water and dry in theshade.• Re-insert the filter to the original position. Cleaning of the air filters. Recommended about once every two weeks Cleaning of the air conditioner

• Don’t wash with water.• Wipe with a soft dry cloth. At the end of the season Operate the air conditioner at the followingsettings for 2 to 3 hours.• Type of operation : Cooling.• Temperature setting : 30°C.This will dry out the internal mechanisms.Turn off the circuit breaker.Turn off the circuit breaker when the air conditioneris not going to be used for a long time. Dirt may collect and may cause a fire.Clean the air filters, re-insert, then operatethe air conditioner.Be sure that nothing obstructs the air outletand intake vents. At the start of the season
• Water hotter than 40°C.Could cause deformationand/or discoloration.• Volatile substances.Could damage the surfacesof the air conditioner. Never use any of the followings. Cleaning of the air cleaner. Recommended about once every three months Remove the Air Cleaner.Take hold of the tab and pull slightly forward toremove the air cleaner.Clean.• Dip the air cleaner into the water mixed withdetergent, for 20~30 minutes, and dry in the shade.• Re-insert the air cleaner to the original position. CAUTION: Before performing any maintenance, turn off the main power to the system. Do not overcool the room.This is not good for your health andwastes electricity.Make sure that the doors and windowsare shut tight.Avoid opening doors and windows asmuch as possible to keep the cool air inthe room.Keep blinds or curtains closed.Do not let direct sunshine enter the roomwhen the air conditioner is in operation.Clean the air filter regularly.Blockages in the air filter reduce theairflow and lower cooling anddehumidifying effects. Clean at least onceevery two weeks.Keep the room temperature uniform.Adjust the vertical and horizontal airflowdirection to ensure a uniform temperaturein the room.Ventilate the room occasionally.Since windows are kept closed, it is agood idea to open them and ventilate theroom now and then.

ENGLISHFloor Standing-Type Air Conditioner Maintenance and Service Check the following points before requesting repairs or service.... If the malfunction persist, please contact your dealer. Case Explanation See page Does not operate. The room has a peculiar odor. It seems that condensation is leaking from the air conditioner. Air conditioner does not operate for about 3 minutes when restarted. Does not cool or heat effectively. The air conditioner operation is noisy.

• Have you made a mistake in timer operation?

• Has the fuse blown or has the circuit breaker been tripped?

• Is the power Switch at Off?

• Is the unit at the starting of Heating Operation? If yes, Hot-start is activating.

• Is the unit in the Deicing? If yes, wait for finishing the Deicing.

• Check that this is not a damp smell exuded by the walls, carpet, furniture, or cloth items in the room.

• Condensation occurs when the airflow from the air conditioner cools the warm room air.

• This is the Protection device of the air conditioner .

• Wait about three minutes and operation will begin.

• If the airflow begins before its temperature become warm, it will cause an undesired cooling effect. In order to prevent this, the airflow will not begin until it is sufficiently warm.

• Is the air filter dirty? See air filter cleaning instructions.

• The room may have been very hot when the room air conditioner was first turned on. Allow time for it to cool down.

• Has the temperature been set incorrectly?

• Are the indoor unit's air inlet or outlet vents obstructed?

• For a noise that sounds like water flowing. -This is the sound of freon flowing inside the air conditioner unit.

• For a noise that sounds like the compressed air releasing into atmosphere. -This is the sound of the dehumidifying water being processed inside the air conditioning unit.
