USER MANUAL Airfryer Avance XL HD9742 PHILIPS

555ENGLISH IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1 Read all instructions. 2 Do not touch hot surfaces. Use handles or knobs. 3 To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid. 4 Close supervision is necessary when any appliance is used by or near children or invalids. Children should be supervised by a responsible person to ensure they do not play with the appliance. 5 Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking o parts. 6 Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. For assistance call 1-866-309-8817. 7 The use of accessory attachments not recommended by the appliance manufacturer may cause injuries. 8 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 9 Do not use outdoors. 10 Do not let cord hang over the edge of table or counter, or touch hot surfaces. 11 Do not place on or near a hot gas or electric burner, or in a heated oven. 12 Extreme caution must be used when moving an appliance containing hot oil or other hot liquids. 13 Plug the cord into the wall outlet. To disconnect, press the On/O button to turn o the appliance, then remove the plug from the wall outlet. 14 Do not use this appliance for other than intended use. 15 Use extreme caution when removing the pan, the basket, the fat reducer or the double-layer rack and disposing hot grease. 16 Do not clean with metal scouring pads. Pieces can break o the pad and touch electrical parts, creating a risk of electric shock. 17 Use only on properly grounded outlet. 18 A short power-supply (or detachable power-supply cord) should be used to reduce the risk resulting from becoming entangled in or tripping over a longer cord. 19 Extension cords may be used if care is exercised in their use. If an extension cord is used: - The marked electrical rating of the cord must be as great as the rating of the appliance. - The cord should be arranged so that it will not drape over the edge of the counter or table top where it could be pulled by children or tripped over unintentionally. - If the appliance is of grounded type, the extension cord should be a grounded-type 3-wire cord. 20 This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to t into a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If6 ENGLISH it still does not t, contact a qualied electrician. Do not attempt to modify the plug in any way. 21 Oversize foods or metal utensils must not be inserted in the appliance as they may create a re or risk of electric shock. 22 A re may occur if the appliance is covered or touching ammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation. 23 Do not place any of the following materials in the appliance: paper, cardboard, plastic, and the like. 24 Immediately unplug the appliance if you see dark smoke coming out of it. Wait for smoke emission to stop before pulling the pan out of appliance. 25 Use on a at stable, heat-resistant surface away from water or any heat source. 26 Do not leave the appliance unattended while it is operating. 27 This appliance operates at high temperatures which may cause burns. Do not touch hot surfaces, parts or the inside of the appliance while it is operating. Let the appliance cool down completely before you handle or clean it. 28 During hot air frying, hot steam is released through the hot air outlet openings. Keep your hands and face away from the steam and air outlet openings. 29 Avoid contact with moving parts. 30 This appliance works with hot air only; food is not fried in oil or fat! Never ll the pan with fat or oil. 31 This product is for household use only. 32 Never use the Airfryer without the pan, the basket and the fat reducer in place. 33 Be sure that handle is assembled and fastened properly. 34 Do not use the plug in or near a power outlet that contains an electric air freshener to prevent damage to the plug. 35 Never use light ingredients or baking paper in the appliance. 36 Never touch the inside of the appliance while it is operating. 37 Do not place the appliance on or near combustible materials such as a tablecloth or curtain. 38 Do not let the appliance operate unattended. 39 Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you pull the pan out of the appliance.

SAVE THESE INSTRUCTIONS

Consuming raw or undercooked meats, poultry, seafood, shellsh or eggs may increase your risk of foodborne illness. Make sure ingredients prepared in this appliance come out golden-yellow instead of dark brown. Remove burnt remnants. For the best results, do not fry fresh potatoes at a temperature above 180°C/350°F or beyond golden-yellow.7ENGLISH Table of Contents IMPORTANT SAFEGUARDS 5 Introduction 8 General description (Fig. 1) 8 Airfryer and accessories 9 Before rst use 9 Preparing for use 9 Placing the removable mesh bottom and fat reducer 9 Placing the EasyClick handle 10 Food table 10 Cooking table for presets 12 Using the appliance 13 Airfrying 13 Changing the cooking temperature during cooking 15 Changing the cooking time during cooking 15 Choosing the preset modes 15 Choosing the keep warm mode 16 Making home-made fries 16 Using the double-layer rack 17 Using the non-stick grill pan 17 Using the splatter-proof lid 17 Using the baking pan 18 Cleaning 18 Storage 19 Disposal 20 Troubleshooting 20 Warranty 22 Refer to the pictures on the folded pages at the front and back of the user manual.8 ENGLISH Introduction Congratulations on your purchase and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. Your new Airfryer allows you to prepare your favorite ingredients and snacks in a healthier way. The Airfryer uses hot air in combination with high-speed air circulation (TurboStar rapid air technology) and a top grill to prepare a variety of tasty dishes in a healthy, fast and easy way. Your ingredients are heated from all sides at once and there is no need to add oil to most of the ingredients. For more inspiration, recipes and information about the Airfryer, visit www.philips.com/kitchen or download the free Airfryer App for IOS® or Android™. General description (Fig. 1) a Control Panel A. Temperature button B. Temperature indication C. Time indication D. Timer button E. Power On/O button F. Keep warm button G. Keep warm indication H. Presets: frozen French fries, chicken drumstick, sh, chop/cutlet

b Air inlet c QuickControl dial d Pan e Basket release button f EasyClick handle g Air outlets h Cord storage wrap i Power cord j Fat reducer k Removable mesh bottom l Basket with removable mesh bottom m MAX indication n Basket with xed mesh bottom o Double-layer rack p Splatter-proof lid q Non-stick grill pan r Baking pan See the “Airfryer and accessories” table (Fig. 2) to see which accessories come packed in your model Airfryer.9ENGLISH Airfryer and accessories Refer to the table in Fig. 2 and see the in pack accessories for your Airfryer. The type number of your Airfryer starts with “HD97XX”. You can nd the type number on the packaging or on the bottom of the appliance. Some Airfryers and accessories may not be available in your country. To purchase, see the Philips Airfryer app or visit www.philips.com. Refer to the table below to see the type number of the accessories that would t in the digital Airfryers specied in Fig. 2. HD9925 HD9940 HD9904 Before rst use 1 Remove all packing material. 2 Remove any stickers or labels from the appliance. 3 Thoroughly clean the appliance accessories before rst use, as indicated in the cleaning table (Fig. 55). Preparing for use Placing the removable mesh bottom and fat reducer 1 Remove the pan from the appliance. (Fig. 3) 2 Put the pan with the basket on a suitable surface, press the basket release button and lift the basket out of the pan. (Fig. 4) 3 Insert the hook of the mesh bottom into the slot on the right bottom side of the basket. Push the mesh bottom down until it locks into position (‘click’ on both sides). (Fig. 5) 4 Place the fat reducer into the pan. (Fig. 6) 5 Put the basket back into the pan. (Fig. 7) Note

• Never use the pan without the basket and the fat reducer in it. 6 Slide the pan back into the appliance. (Fig. 8)10 ENGLISH Placing the EasyClick handle Warning

• Always make sure the basket and the handle have cooled down before you attach or detach the EasyClick handle. Note

• The EasyClick handle also ts to the non-stick grill pan. It helps you clean and store the appliance in an easy way. To attach the EasyClick handle: 1 Hold the basket with one hand and hold the handle with the other hand. (Fig. 9) 2 Slide the handle into the opening on the basket from below until it locks into place (‘click’). (Fig. 10) To detach the EasyClick handle: 1 Hold the basket with one hand and hold the handle with the other hand. (Fig. 11) 2 Pull gently with your nger on the red release tab while pulling the handle straight down. (Fig. 12) Food table The table below helps you select the basic settings for the types of food you want to prepare. Note

• Keep in mind that these settings are suggestions. As ingredients dier in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients. Ingredients Min.- max. amount (g/oz) Time (minut es) Tem per a ture (°C/°F) Shake/Tu rn Additional information Frozen fries 200-800 g 7-28 oz 13–27 180°C/350°F Shake halfway Home-made fries (1/2 cm / 1/4 in thick) 200-800 g 7-28 oz 14–27 180°C/350°F Shake halfway Soak 30 min. in water, dry then add 1/2 tbsp of oil. Potato wedges 200-800 g 7-28 oz 17–29 180°C/350°F Shake halfway Soak 30 min. in water, dry then add 1/2 tbsp of oil.11ENGLISH Ingredients Min.- max. amount (g/oz) Time (minut es) Tem per a ture (°C/°F) Shake/Tu rn Additional information Frozen snacks (e.g. spring rolls, chicken nuggets) 100-400 g 3.5-14 oz 8–12 200°C/400°F Turn or shake halfway For the cooking times, refer to the instructions on the packaging of the snack. Time compared to oven should be halved. Pork chops 100-500 g 3.5-17.5 oz 13–20 200°C/400°F Hamburger 100-500 g 3.5-17.5 oz 9–16 160°C/325°F Sausages 100-500 g 3.5-17.5 oz 5–17 160°C/325°F Drumsticks 100-500 g 3.5-17.5 oz 17–24 180°C/350°F Chicken breast 100-500 g 3.5-17.5 oz 12–17 180°C/350°F Quiche 300 g

22–25 160°C/325°F Use plantain bananas; cut into 5 mm / 3/16 in slices; add 1 teaspoon of oil. Cooking table for presets The grams/oz in bold represent the amount of food for which the preset is designed for. If you cook with a dierent amount, adapt the cooking time accordingly. You can also adapt the cooking time according to your personal preference in regards to doneness and browning level. The minutes in bold represent the preset cooking time on the appliance. Presets Amount (g/oz) Time (minut es) Additional information Frozen French fries (thin) 200 g/7 oz 400 g/14 oz 500 g/17.5 oz 600 g/21 oz 800 g/28 oz

Shake after half of the cooking time. If you use thicker french fries or homemade french fries, please consider a slightly longer cooking time. Chops, cutlet (about 2.5 cm/1 in thick) 100 g/3.5 oz 250 g/9 oz 500 g/18 oz

The cooking time also depends on the thickness of your chops. Thicker chops take a slightly longer cooking time. Chicken drumsticks (lower part) 300 g/10.5 oz 450 g/ 16 oz 600 g/ 21 oz 750 g/ 26.5 oz

If you cook more than one layer, you need to turn the chicken drumsticks after half of the cooking time. A whole chicken leg takes a longer cooking time . Whole at sh 200 g/7 oz 400 g/14 oz 600 g/21 oz 800 g/28 oz

Use the Airfryer non-stick grill pan. Please consider a slightly longer cooking time for thicker shes.13ENGLISH Using the appliance Airfrying Caution

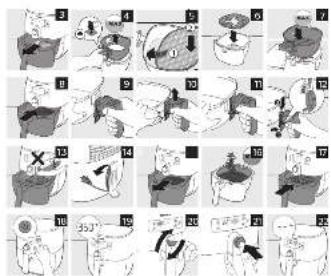

• This is an Airfryer that works on hot air. Do not ll the pan with oil or frying fat. (Fig. 13)

• Do not touch hot surfaces. Use handles or knobs. Only hold the pan by the basket handle. Handle the fat reducer with oven-safe gloves.

• This product is for household use only.

• The appliance may produce some smoke when you use it for the rst time. This is normal.

• Preheating of the appliance is not necessary. 1 Place the appliance on a stable, horizontal, level and heat-resistant surface. Note

• Do not put anything on top or on the sides of the appliance. This could disrupt the airow and inuence the frying result. Caution

• Do not place the appliance on non-heat-resistant surfaces. 2 Unwind the power cord from the cord storage wrap. (Fig. 14) 3 Put the plug in the wall outlet. 4 Remove the pan from the appliance. (Fig. 15) 5 Put the ingredients in the basket. (Fig. 16) Note

• The Airfryer can prepare a large range of ingredients. Consult the ‘Food table’ for the right quantities and approximate cooking times.

• Do not exceed the amount indicated in the ‘Food table’ section or overll the basket beyond the ‘MAX’ indication as this could aect the quality of the end result.

• If you want to prepare dierent ingredients at the same time, make sure you check the suggested cooking time required for the dierent ingredients before you start to cook them simultaneously. Home-made fries and drumsticks, for example, can be cooked simultaneously because they require the same settings. 6 Make sure the fat reducer is in the pan. Place the basket back into the pan, then slide the pan back into the appliance (Fig. 17). 7 Press the “Power On/O” button to switch on the appliance. (Fig. 18). Note

• Never use the pan without the basket and the fat reducer in place.14 ENGLISH 8 The temperature indication blinks and is set to 350°F/180°C by default. (Fig. 19) » To change the temperature, turn the QuickControl dial to the desired setting. (Fig. 20) » To conrm the temperature, push the QuickControl dial. (Fig. 21) 9 After the temperature is conrmed, the time indication “- -“starts blinking. (Fig. 22) » Turn the QuickControl dial to the desired setting. (Fig. 23) » To conrm the cooking time, push the QuickControl dial. (Fig. 24) 10 The appliance starts cooking after the cooking time has been conrmed. Tip

• To pause the cooking process, push the QuickControl dial. To resume the cooking process, push the QuickControl dial again. Note

• Some ingredients require shaking or turning halfway through the cooking time (see ‘Food table’). To shake the ingredients, push the QuickControl dial to pause cooking, remove the pan from the appliance and shake it over the sink. Then slide the pan back into the appliance, push the QuickControl dial to resume cooking. To reduce the weight, you can also remove the basket from the pan. (Fig. 25)

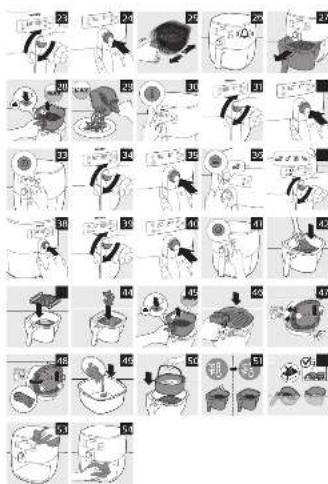

• Be careful not to press the basket release button while shaking. 11 When you hear the timer bell, the set preparation time has elapsed. (Fig. 26) Note

• Excess oil from the ingredients is collected in the bottom of the pan below the fat reducer.

• If you prepare several batches of fatty ingredients (e.g. drumsticks, sausages or hamburgers), carefully pour o any excess oil or rendered fat from pan after each batch or before shaking or replacing basket in pan. 12 Remove the pan from the appliance and place it on a heat-resistant surface. (Fig. 27) 13 Check if the ingredients are ready. Note

• If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer for a few extra minutes.

• After hot Airfrying, the pan, the basket, the fat reducer, the accessories, the housing and the ingredients are hot. Depending on the type of ingredients in the basket, steam may escape from the pan. 14 Press the basket release button and lift the basket out of the pan. (Fig. 28) 15 Empty the basket contents into a bowl or onto a plate. Always remove the basket with ingredients from the pan to serve as hot oil or rendered fat may be in the bottom of the pan. (Fig. 29)15ENGLISH Tip

• To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket. Note

• When a batch of ingredients is ready, the Airfryer is instantly ready for preparing another batch. Changing the cooking temperature during cooking 1 During cooking, press the temperature button. (Fig. 30) » To change the cooking temperature, turn the QuickControl dial to the desired setting. (Fig. 31) » To conrm the cooking temperature, push the QuickControl dial. (Fig. 32) Changing the cooking time during cooking 1 During cooking, press the timer button. (Fig. 33) » To change the cooking time, turn the QuickControl dial to the desired setting. (Fig. 34) » To conrm the cooking time, push the QuickControl dial. (Fig. 35) Choosing the preset modes 1 After the appliance is switched on, press the preset button. (Fig. 36) » The preset indication for frozen French fries starts blinking. 2 Turn the QuickControl dial to select the preset you need. (Fig. 37) 3 Push the QuickControl dial to conrm the preset. (Fig. 38) » The cooking temperature displays on the screen and the recommended cooking time blinks. » To change the cooking time, turn the QuickControl dial. (Fig. 39) Note

• Changing the temperature is not possible when using a preset mode. If you press the temperature button when selecting the preset mode the appliance will exit the preset mode. 4 Push the QuickControl dial again to conrm the cooking time, and the appliance starts cooking. (Fig. 40) Tip

• Refer to the “Cooking table for presets” to nd the suitable cooking time and more information.16 ENGLISH Choosing the keep warm mode 1 Press the keep warm button (you can activate the keep warm mode at each time). (Fig. 41) » The keep warm indication goes on. » The keep warm timer is set to 30 minutes. You cannot adjust the keep warm time. To stop the keep warm mode, simply switch o the appliance. Tip

• If food like French fries loses crispness during the keep warm mode, please either shorten the keep warm time by switching o the appliance earlier or crisp them up for 2-3 minutes at the temperature of 350°F/180°C. Note

• If you activate the keep warm mode during cooking, the appliance will keep your food warm for 30 minutes after the cooking time has elapsed.

• During the keep warm mode, the fan and heater inside of the appliance is on from time to time.

• The keep warm mode is designed to keep your dish warm immediately after it is cooked in the Airfryer. It is not meant for reheating. Making home-made fries To make great home-made fries in the Airfryer: - Choose a potato variety suitable for making fries, e.g. fresh, russet potatoes. - It is best to air fry the fries in portions of up to 500 grams/ 17.5 oz for an even result. Larger fries tend to be less crispy than smaller fries. - Shake the basket 2-3 times during the air frying process. 1 Peel the potatoes and cut into sticks (1/2cm / 1/4 in thick). 2 Soak the potato sticks in a bowl of water for at least 30 minutes. 3 Empty the bowl and dry the potato sticks with a dish towel or paper towel. 4 Pour a half tablespoon of cooking oil in the bowl, put the sticks in the bowl and mix until the sticks are coated with oil. 5 Remove the sticks from the bowl with your ngers or a slotted kitchen utensil so excess oil remains in the bowl. Note

• Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess oil from going into the pan. 6 Put the sticks in the basket. 7 Fry the potato sticks and shake the basket halfway through the air frying process. Shake 2-3 times if you prepare more than 400 g/14 oz of fries. Note

• Consult the “Food table” for the right quantities and cooking times.17ENGLISH Using the double-layer rack Use the double-layer rack to maximize your cooking space. Note

• If cooking dierent ingredients at the same time, make sure that the cooking temperature and time is the same for each type of ingredient.

• Always position meats on lower level and vegetables above to avoid cross contamination of food or unsafe transfer of meat juices or partially cooked foods. 1 Follow steps 1 to 4 of section ‘Airfrying’. 2 Put one half of the ingredients in the basket. (Fig. 42) 3 Place the double-layer rack in the basket. (Fig. 43) 4 Put the second half of the ingredients onto the double-layer rack. (Fig. 44) 5 Follow steps 6 to 14 of section ‘Airfrying’. Warning

• The double-layer rack becomes very hot during use. Wear oven gloves when you remove the double-layer rack from the basket. Using the non-stick grill pan 1 Follow steps 1 to 3 of section ‘Airfrying’. 2 Press the basket release button and lift the basket out of the pan. (Fig. 45) 3 Attach the EasyClick handle to the non-stick grill pan (see ‘Placing the EasyClick handle’). 4 Place the non-stick grill pan in the pan. (Fig. 46) 5 Put the ingredients on the non-stick grill pan. 6 Follow steps 6 to 12 of section ‘Airfrying’. 7 When nished cooking, to remove ingredients, press the release button and lift the non-stick grill pan out of the Airfryer pan and place on a heat-resistant surface. Using the splatter-proof lid Use the splatter-proof lid if you are cooking light-weight ingredients in order to keep them in the basket, fatty ingredients or to reduce the speed of browning. Note

• When you use the splatter-proof lid, you may need more time to reach the same level of browning and doneness.18 ENGLISH 1 Follow steps 1 to 5 of section ‘Airfrying’. 2 Hold the lid with the top side facing you. Insert the two hooks of the lid into the two slots on the front side of the basket. Push the lid down until it locks into position (‘click’ on both sides). (Fig. 47) 3 Proceed with step 6 to 11 of section ‘Airfrying’. 4 Carefully remove the splatter-proof lid. (Fig. 48) Warning

• The splatter-proof lid is very hot. Wear oven gloves when you remove it. 5 Proceed with step 12 to 14 of section ‘Airfrying’. Using the baking pan 1 Put the ingredients into the baking pan. (Fig. 49) 2 Follow steps 1 to 3 of section ‘Airfrying’. 3 Remove the pan from the appliance and place it on a suitable surface. Place the baking pan into the basket, and then into the pan. (Fig. 50) 4 Follow steps 6 to 14 of section ‘Airfrying’. Warning

• The baking pan becomes very hot during use. Wear oven gloves when you remove the baking pan out of the basket. Tip

• If you experience a dark browning on the top, lower the temperature.

• When you prepare cakes or breads in the baking pan, do not overll. Make sure to only partially ll the baking pan to leave enough room for the dough to rise during baking. Cleaning Warning

• Let the basket, the pan, the fat reducer, the accessories and the inside of the appliance cool down completely before you start cleaning (Fig. 51)

• Remove the fat reducer from the pan using rubber tipped tongs. Do NOT remove using your ngers as hot fat or oil collects under the fat reducer.

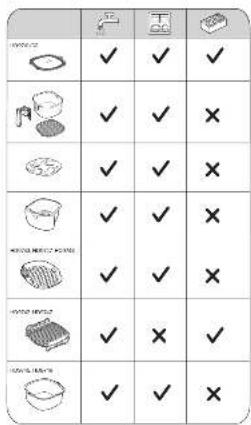

• The pan, the basket, the fat reducer and the inside of appliance have a non- stick coating. Do not use metal kitchen utensils or abrasive cleaning materials as this may damage the non-stick coating. Clean the appliance after every use. Remove oil and fat from the bottom of the pan after every use to prevent smoke.19ENGLISH 1 Press the On/O button to switch o the appliance, remove the plug from the wall outlet and let the appliance cool down for 10 minutes. Tip

• Remove the pan and the basket to let the Airfryer cool down more quickly. (Fig. 15) 2 Remove the fat reducer from the pan using rubber tipped tongs. Dispose of rendered fat or oil from the bottom of the pan. 3 Clean the pan, basket, and accessories in a dishwasher. You can also clean them with hot water, dishwashing liquid and a non-abrasive sponge. (Fig. 52) Tip

• If food residues are stuck to the pan, the fat reducer, the double-layer rack or the basket, you can soak them in hot water and dishwashing liquid for 10-15 minutes. Soaking loosens the food residues and makes it easier to remove. The quality of your dishwashing liquid determines how easy it is to remove food residues and grease. Make sure you use a dishwashing liquid that can dissolve oil and grease. If there are grease stains on the pan, the fat reducer, or the basket and you have not been able to remove them with hot water and dishwashing liquid, use a liquid degreaser.

• If necessary, food residues stuck to the heating element can be removed with a soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush, as this might damage the coating on the heating element. 4 Clean the inside of the appliance with hot water and a non-abrasive sponge. 5 Clean the heating element with a cleaning brush to remove any food residue. 6 Wipe the outside of the appliance and the control panel only with a moist cloth. (Fig. 53) 7 Clean the inside of the appliance with a moist cloth. (Fig. 54) This appliance has no other user-serviceable parts. For assistance in the U.S. or Canada only, call 1-866-309-8817. Storage 1 Unplug the appliance and let it cool down. 2 Make sure all parts are clean and dry before storing. 3 Wrap the power cord onto the cord storage wrap. Note

• Always hold the Airfryer horizontally when you carry it. Make sure that you also hold the drawer on the front part of the appliance as it can slide out of the appliance if accidentally tilted downwards. This can lead to damaging of the drawer.
