Product Type	GPS Navigation System with Car Radio
Brand	Kenwood
Model	DDX6046BT
Dimensions (approximate)	Standard 2DIN (178 x 100 x 160 mm)
Weight (approximate)	1.5 kg
Power Supply	12 V DC, negative ground
Main Functions	GPS navigation, touchscreen, Bluetooth hands-free, AM/FM radio reception, front AV input, iPod/iPhone compatible, Bluetooth hands-free kit
Connectivity	Bluetooth, AV input (RCA jack), USB port (optional), external GPS antenna
Display	Color touchscreen (size not specified, approximately 6.2 inches)
GPS	Built-in GPS receiver, external antenna included
iPod Compatibility	Yes, via adapter connection (optional accessory)
Installation	In vehicle console, mounting angle ≤ 30°, avoid direct light, heat, humidity
Safety	Use only provided screws, do not obstruct fan, professional installation recommended
Maintenance and Cleaning	Clean with a soft dry cloth, do not use chemicals
Spare Parts and Repairability	Contact Kenwood dealer for optional accessories (conversion adapter, antenna, etc.)
Fuse	Protective fuse, replace with same rating if blown
Cooling Fan	Built-in, do not block openings
Operating Temperature	Avoid extreme temperatures (not specified, estimate -10°C to +60°C)

Frequently Asked Questions - DDX6046BT KENWOOD

How to install the GPS antenna?

The GPS antenna installs inside the vehicle, preferably horizontally. Clean the surface, peel off the adhesive from the metal plate, press it firmly, then place the antenna on top. Keep it at least 30 cm away from mobile phones or other antennas to avoid interference.

Why does the screen display 'PROTECT'?

The 'PROTECT' message indicates a potential short circuit on the speaker cable or contact with the vehicle chassis. Check the speaker connections to resolve the issue.

How to connect an iPod?

The iPod can be connected via an optional conversion adapter. Consult your Kenwood dealer for the accessory suitable for your model. Ensure the device is turned off before connecting the iPod.

Is it mandatory to perform initial setup after installation?

Yes, after installation, perform the initial setup following the instructions in the user manual. This allows the device to be configured correctly and to acquire GPS signals for the first time.

What to do if the fuse blows?

If the fuse blows, first check that the cables are not touching and causing a short circuit. Then replace the fuse with one of the same rating. Never use a fuse of a different value.

How to install the Bluetooth microphone?

The microphone attaches to the dashboard or windshield pillar. Clean the surface, remove the protective film from the double-sided adhesive, place the microphone and point it towards the driver. Keep it away from mobile phones to avoid interference.

The device does not turn on, what to check?

Check the power connections: ignition wire (red) to a source activated by the ignition key, battery wire (yellow) to a permanent source. Ensure the fuse is not blown and the ground is properly connected.

How to perform a reset?

Press the reset button on the device with a thin object (like a pen). This restores factory settings. Perform this operation after installation or in case of malfunction.

Can non-provided screws be used for installation?

No, use only the screws provided with the device. Using inappropriate screws could damage the device or cause malfunction.

Why is GPS reception slow on first start?

The first acquisition of GPS signals may take several minutes. Make sure the vehicle is outdoors, away from tall buildings and trees. Once signals are acquired, subsequent starts will be faster.

USER MANUAL DDX6046BT KENWOOD

MANUEL D'INSTALLATION

*Accessory of DNX6960/ DNX6160/DNX6020EX/ DNX6460BT/DDX616/ DDX6046BT.

*Accessory of DNX6960/ DNX6160/DNX6020EX/ DNX5160.

+This accessory is used when connecting an external device to AV-IN jack on the front panel of this unit. For how to use this accessory, refer to the instruction manual of this unit.

1. To prevent a short circuit, remove the key from the ignition and disconnect the battery.

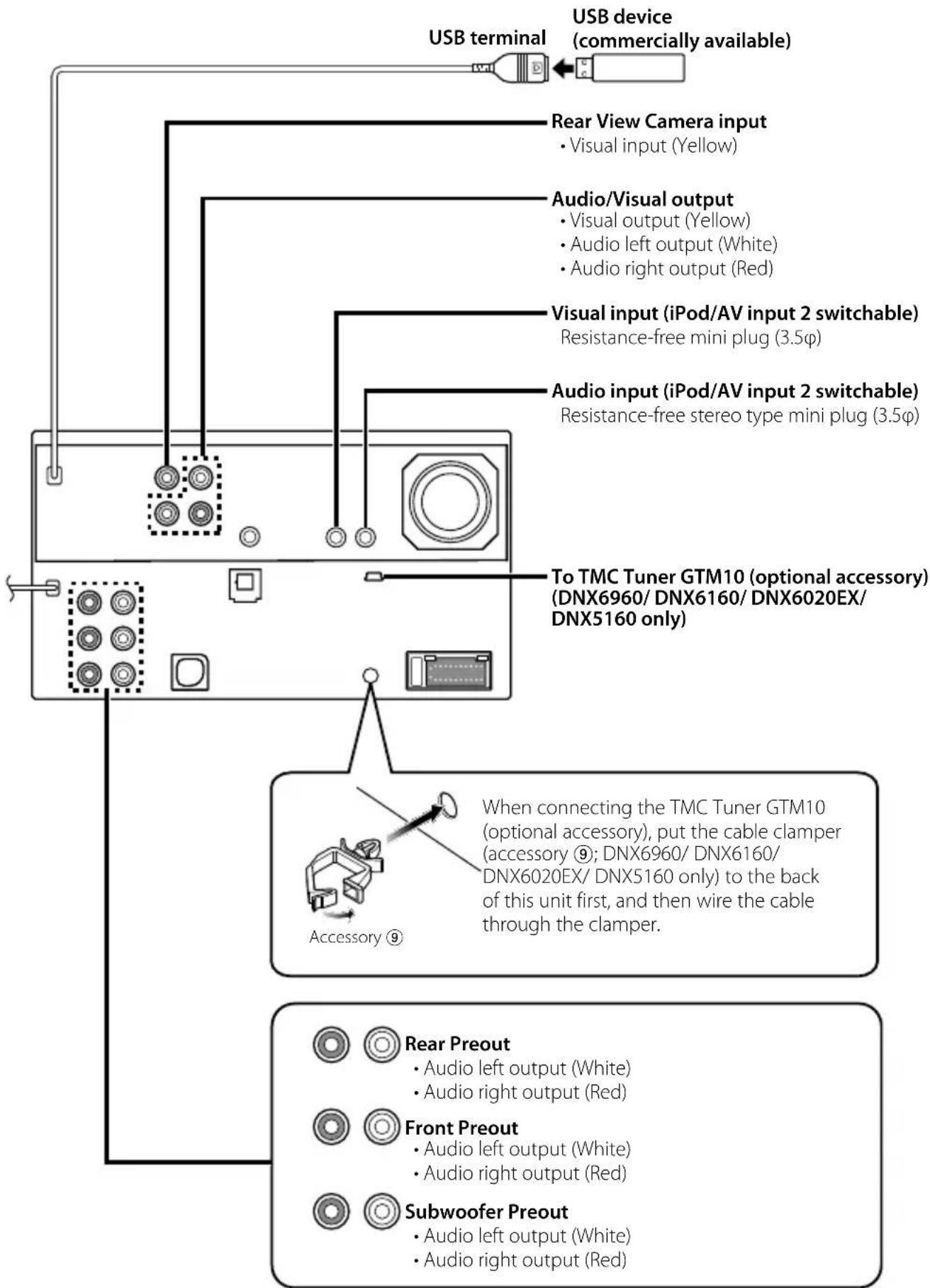

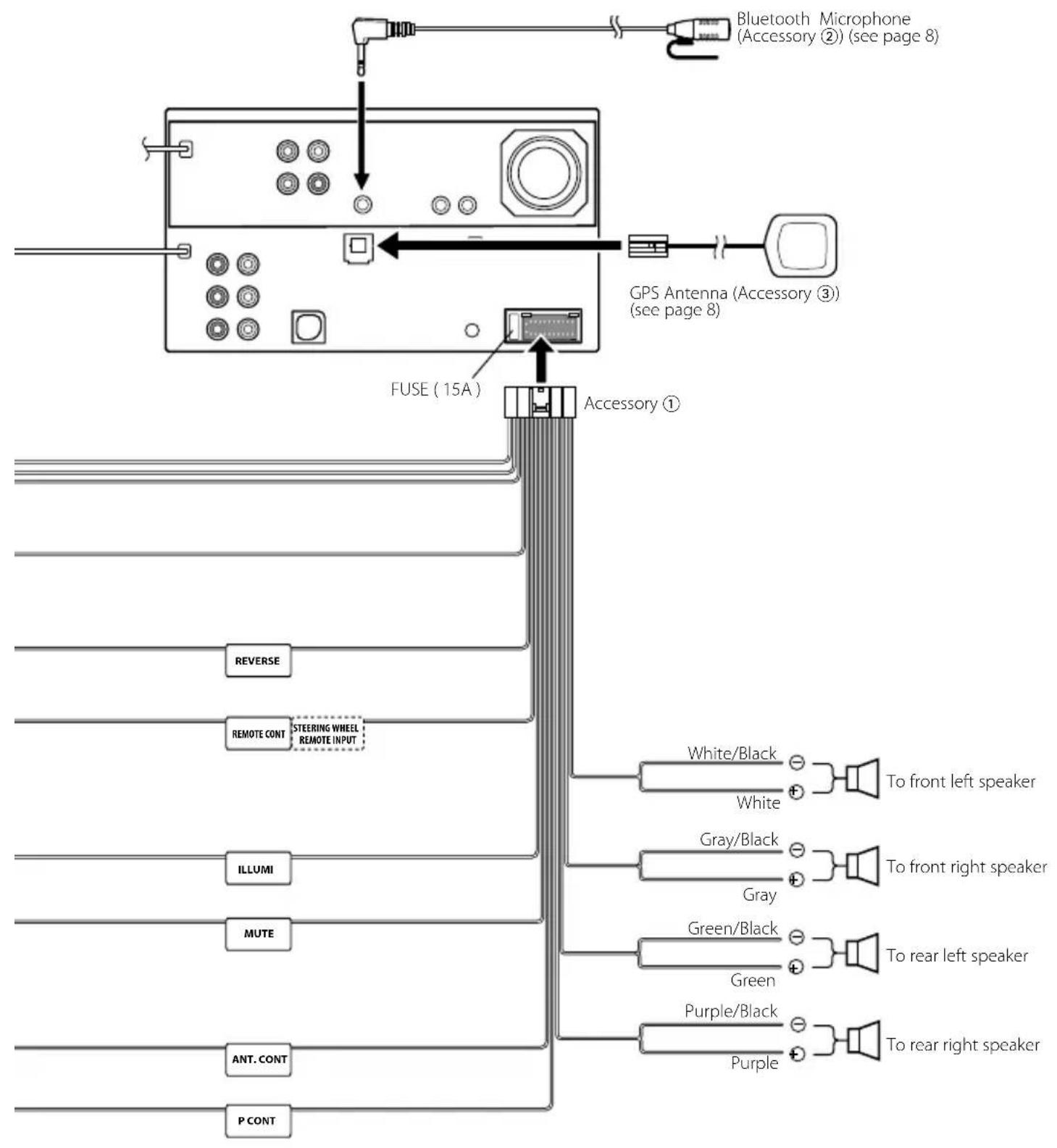

2. Make the proper input and output wire connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the following order: ground, battery, ignition.
5. Connect the wiring harness connector to the unit.
6. Install the unit in your car.
7. Reconnect the battery.
8. Press the reset button.
9. Perform the Initial Setup. (Refer to the Instruction Manual.)

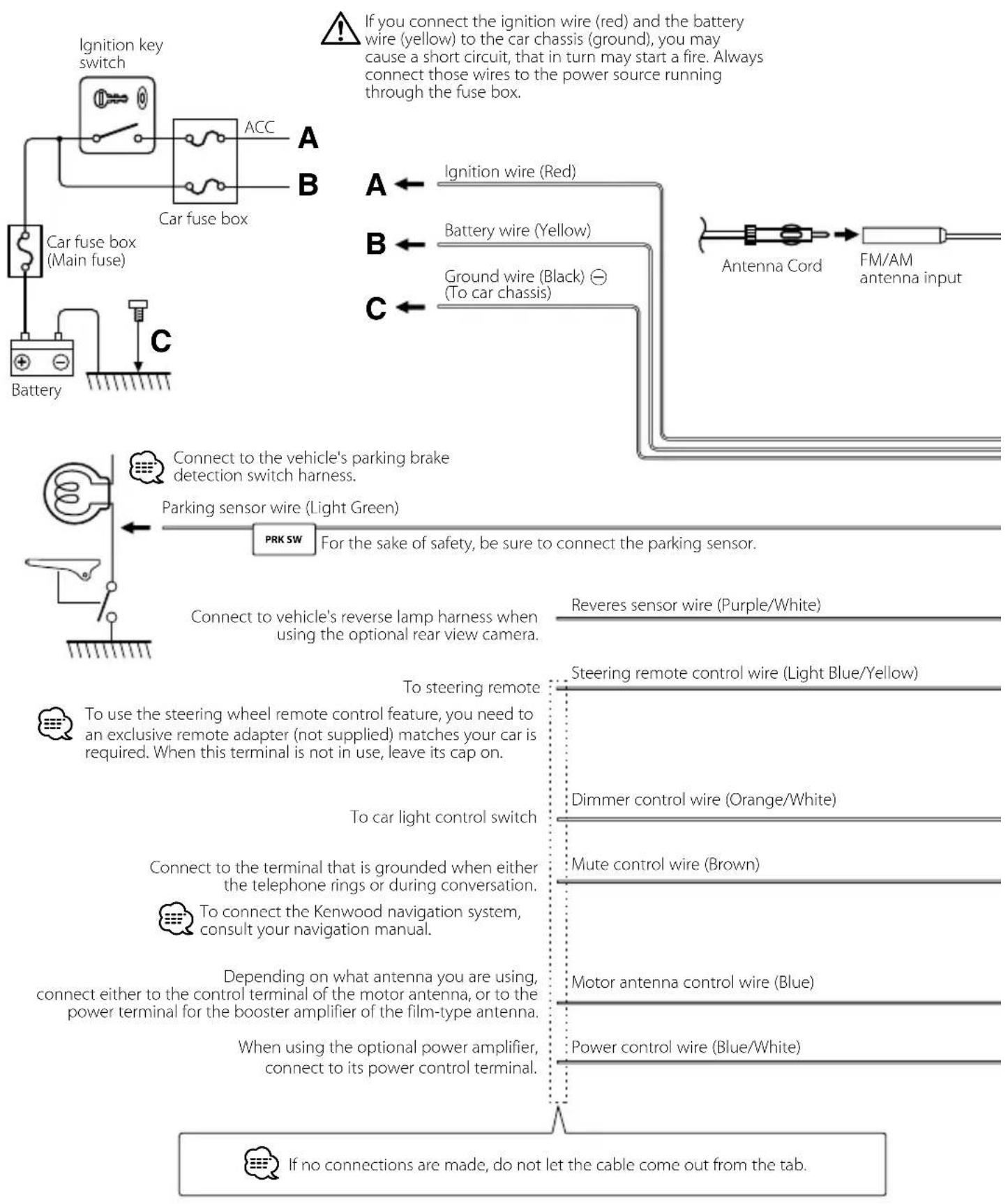

WARNING

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse.

Acquiring GPS Signals

The first time you turn on DNX SERIES, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition. After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

After the Installation

After the installation, perform the Initial Setup by referring to the instruction manual.

#

• Mounting and wiring this product requires skills and experience. For safety's sake, leave the mounting and wiring work to professionals.
  Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON ("PROTECT" is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car's ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren't touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the connector of the left speaker to a front output terminal, do not connect the connector to a rear output terminal.
  After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30^ or less.

• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

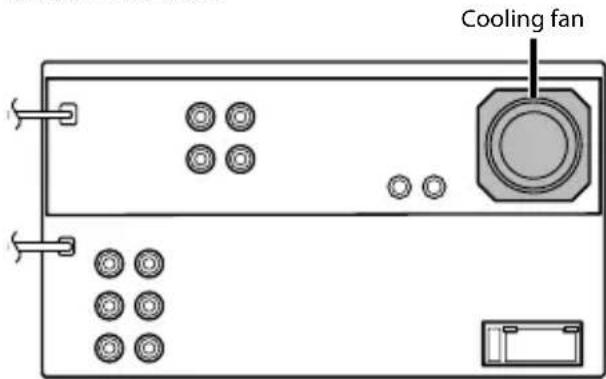

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.

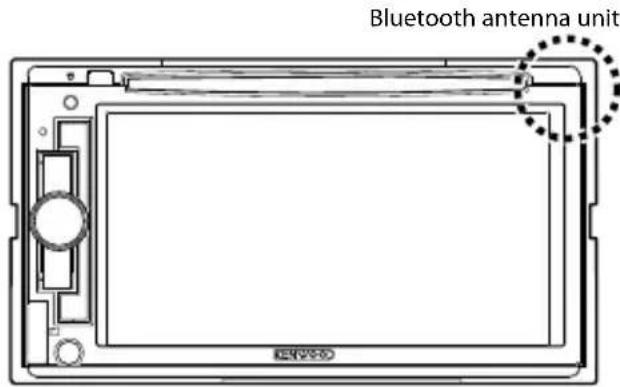

• Reception may drop if there are metal objects near the Bluetooth antenna. (DNX6960/ DNX6160/ DNX6020EX/ DNX6460BT/ DDX616/ DDX6046BT only)

CAUTION

Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot.

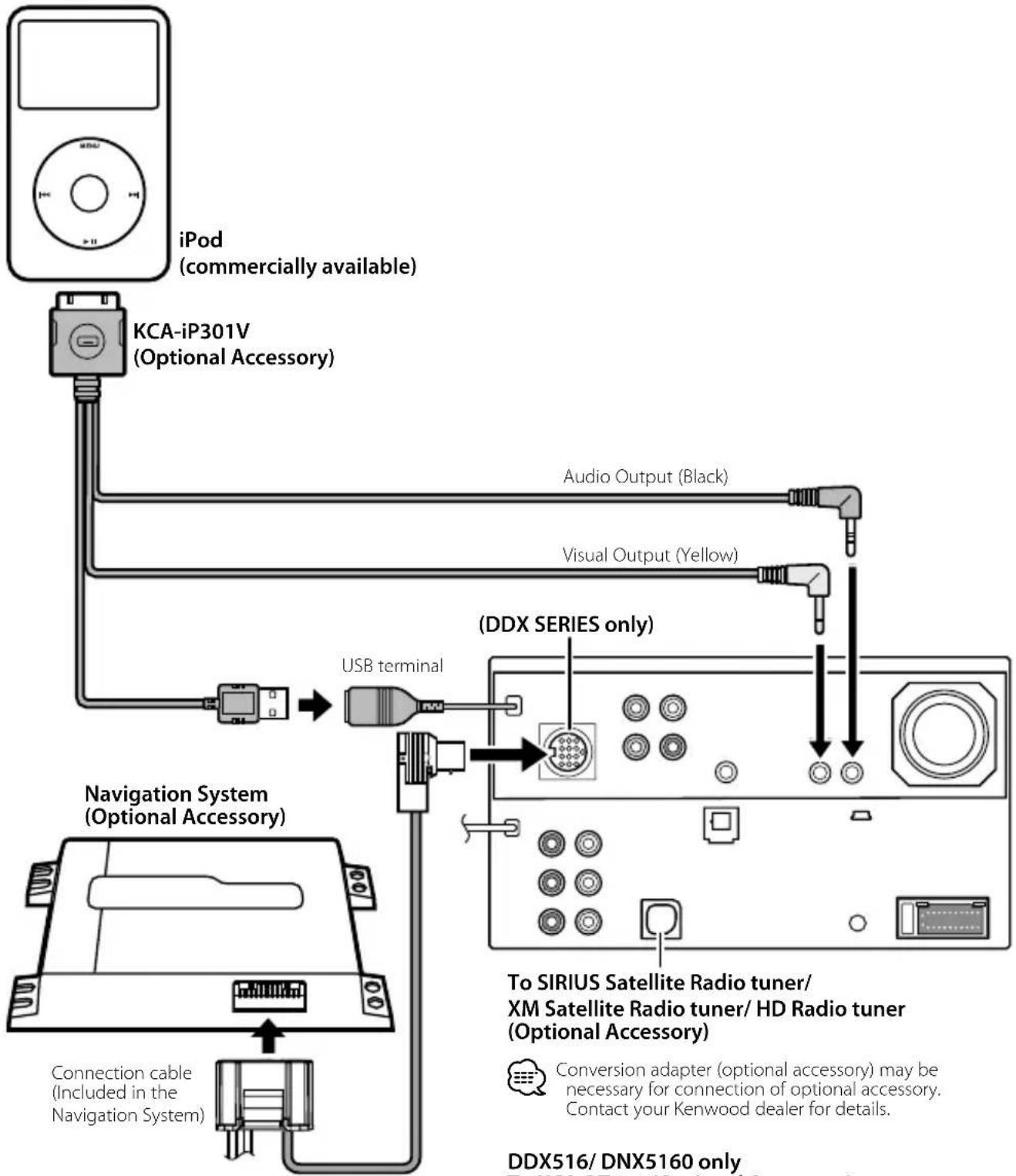

Navigation units that can be connected to this unit. (As of December, 2009):

KNA-G610
KNA-G630

For latest information, access the www.kenwood.com/cs/ce/.

Conversion adapter (optional accessory) may be necessary for connection of optional accessory. Contact your Kenwood dealer for details.

DDX516/ DNX5160 only To KCA-BT200 (Optional Accessory)

Installing the GPS Antenna (DNX SERIES only)

GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals.

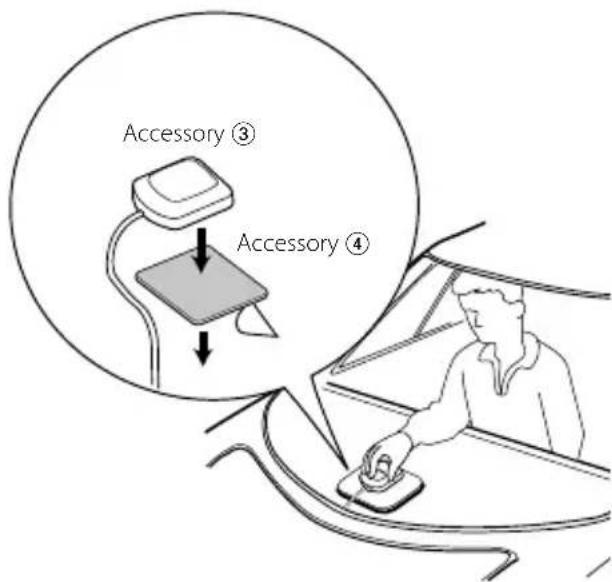

To mount the GPS antenna inside your vehicle:

1. Clean your dashboard or other surface.
2. Peel the backing off of the adhesive on the bottom of the metal plate (accessory ④).
3. Press the metal plate (accessory 4) down firmly on your dashboard or other mounting surface. You can bend the metal plate (accessory 4) to conform to a curved surface, if necessary.
4. Place the GPS antenna (accessory ③) on top of the metal plate (accessory ④).

#

• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance.

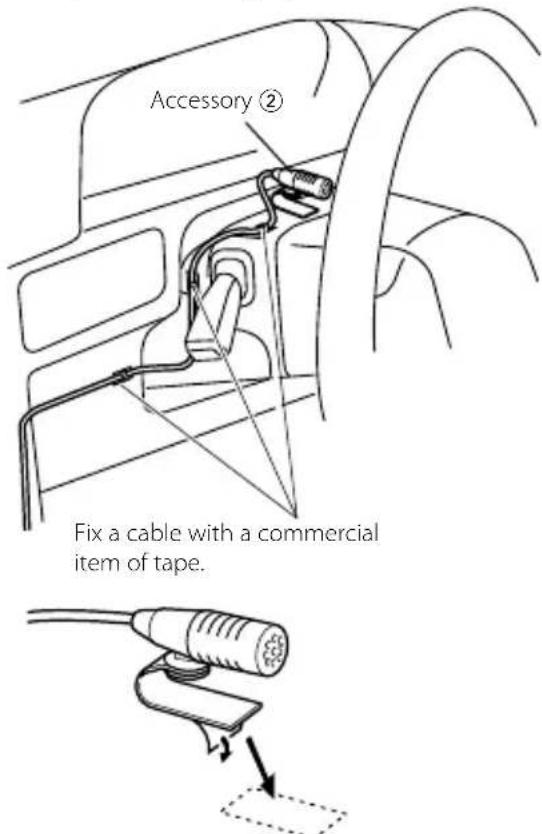

Installing the Microphone Unit (DNX6960/ DNX6160/ DNX6020EX/ DNX6460BT/ DDX616/ DDX6046BT only)

1. Check the installation position of the microphone (accessory ②).
2. Remove oil and other dirt from the installation surface.
3. Install the microphone.
4. Wire the cable up to the unit with it secured at several positions using tape or the like.

Peel the release coated paper of double-face adhesive tape to fix on the place shown above.

Adjust the direction of the microphone to the driver.

• Install the microphone as far as possible from the cell phone.

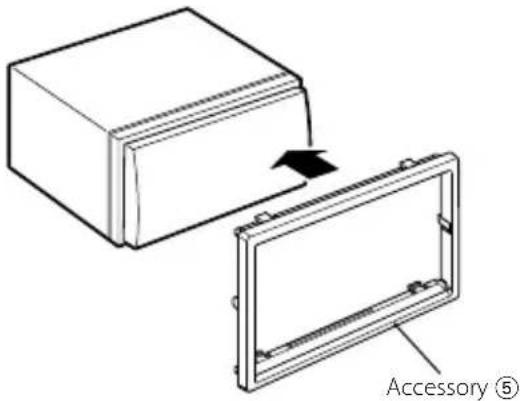

Installing the Escutcheon

1. Attach accessory ⑤ to the unit.

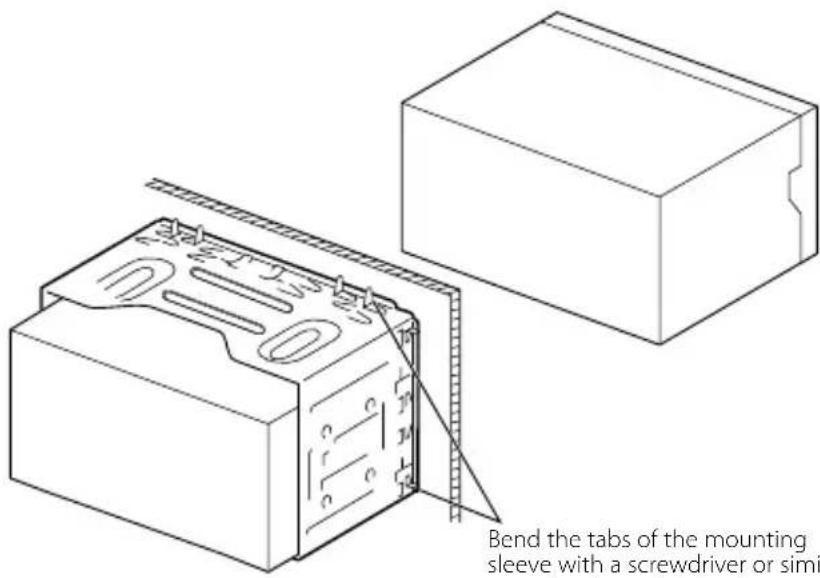

Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip).

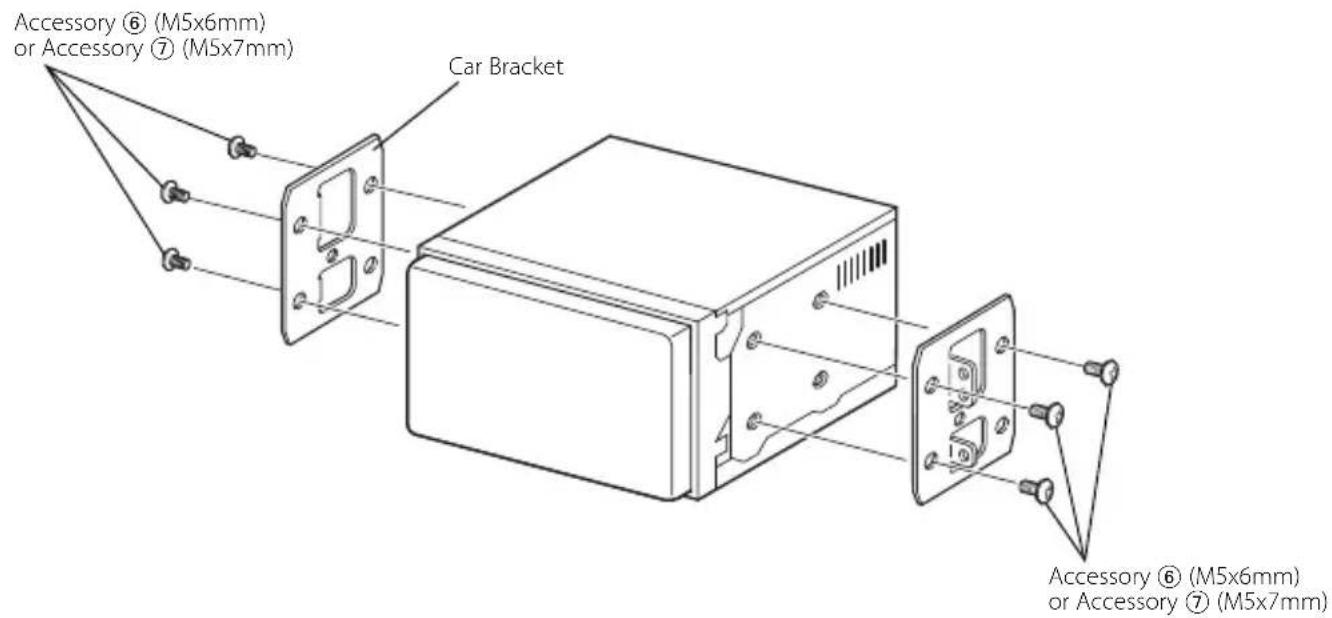

Installation on Toyota, Nissan or Mitsubishi Car using Brackets

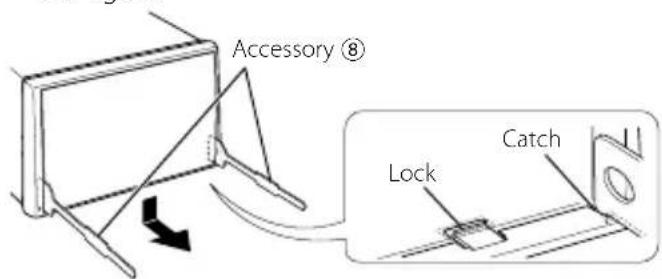

Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool ⑧ and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure.

• The frame can be removed from the top side in the same manner.
• When the lower level is removed, remove the upper two locations.

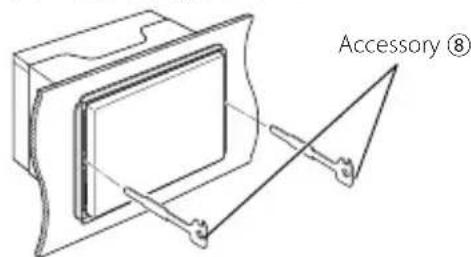

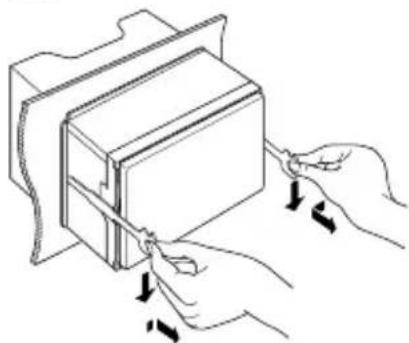

Removing the Unit

1. Remove the hard rubber frame by referring to the removal procedure in the section .
2. Insert the two removal tools ⑧ deeply into the slots on each side, as shown.

1. Lower the removal tool toward the bottom, and pull out the unit halfway while pressing towards the inside.

• Be careful to avoid injury from the catch pins on the removal tool.
• Pull the unit all the way out with your hands, being careful not to drop it.
