Introduction

Thank you very much for purchasing a TASCAM RC-SS150 DIRECT PLAY REMOTE.

This flash start remote control unit for SS-R250N and

SS-CDR250N models allows intuitive operation with a color LCD.

Please read this manual thoroughly before using the unit so that you understand correct operating procedures and can use its functions fully. We hope that you enjoy using this unit for many years.

Please keep this manual so that you can refer to it at any time. A digital copy of this manual can also be downloaded from our website (http://teac-global.com/).

Features

• Intuitive operation enabled by a color LCD surrounded by 12 flash start buttons
• LCD shows file names, time counters, level meters and operation status
• Lists can be switched and each one can have up to 96 sound source entries (8 pages with 12 each)
  Color LCD with adjustable brightness
• Buttons with less operation noise used
  Solid design with metal body can endure long-term use
  Operation power can be supplied by SS-R250N/SS-CDR250N unit (RS-232C connection cable included)

Included items

This product includes the following items.

Take care when opening the package to avoid damaging the items. Keep the packing materials for transportation in the future.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Main unit 1
RS-232C 5m (16.4') connection cable
- Owner's Manual (this manual) including warranty

Conventions used in this manual

In this manual, we use the following conventions:

• Buttons, connectors and other parts of the unit and external devices are indicated like this: LOAD [TIME DISPLAY]
  Text displayed on the LCD display of the unit and external devices appears like this: ON. Information displayed on the connected unit is shown in the same way.
  Additional information is provided as necessary as tips, notes and cautions.

TIP

These are tips about how to use the unit.

NOTE

These provide additional explanations and describe special cases.

CAUTION

Failure to follow these instructions could result in injury, damage to equipment or lost recording data, for example.

Precautions for placement

• The operating temperature should be between 5^ and 35^ (41°F and 95°F).
• Do not install in the following types of places. Doing so could degrade the sound quality and/or cause malfunctions.
• Places with significant vibrations or that are otherwise unstable
  Near windows or other places exposed to direct sunlight
  Near heaters or other extremely hot places
• Extremely cold places
• Places with bad ventilation or high humidity
• Very dusty locations
• Use this unit on a level surface.
• Do not place this product on top of a powered amplifier or other equipment that emits heat.

Beware of condensation

If the unit is moved from a cold to a warm place, or used immediately after a cold room has been heated or otherwise exposed to a sudden temperature change, condensation could occur. Should this happen, leave the unit for one or two hours before turning the unit on.

Cleaning the unit

To clean the unit, wipe it gently with a soft dry cloth. Do not wipe with chemical cleaning cloths, paint thinner, ethyl alcohol or other chemical agents to clean the unit as they could damage the surface.

Once every five years, please contact the store where you purchased this unit or TASCAM customer support service for internal cleaning. If the unit is not cleaned for a long time and dust is allowed to accumulate inside it, fire or malfunction could result. Cleaning is more effective when conducted before the humid season. Please check with us about the cost of internal cleaning.

Using the TEAC Global Site

You can download this Owner's Manual and the Reference Manual necessary for this unit from the TEAC Global Site (http:// teac-global.com/).

1. Open the TEAC Global Site (http://teac-global.com/).
2. In the TASCAM Downloads section, click the desired language to open the Downloads website page for that language.

NOTE

If the desired language does not appear, click Other Languages.

1. Click the product name in the "Search by Model Name" section to open the Downloads page for that product.
2. Select and download the Owner's Manual and the Reference Manual that are needed.

User registration

Customers in the USA, please visit the TASCAM website (http://tascam.com/) to register as a user online.

Names of Parts

Top panel

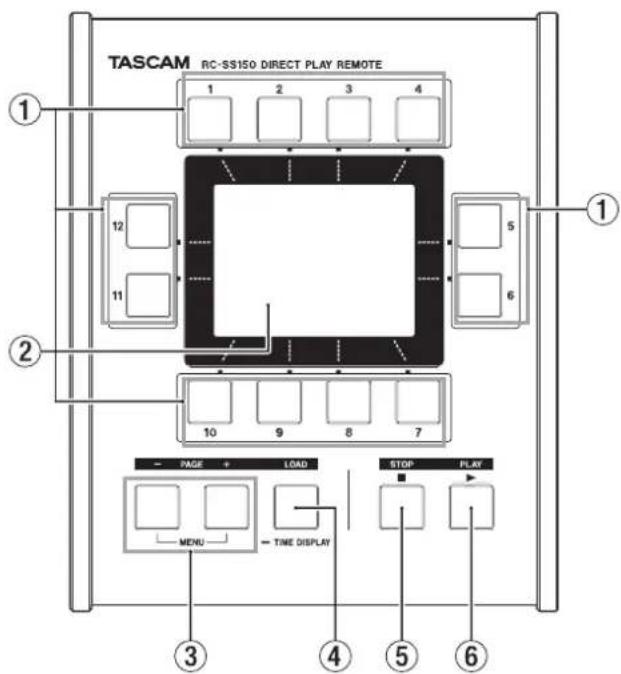

1 1-12 (flash playback) buttons

Press these button when the Home Screen is open to start playback of the tracks assigned to them.

If a track has been flash loaded, playback will start immediately (flash playback).

If it has not been flash loaded, playback will start in the ordinary manner.

When a Menu Screen is open, turn to select items and setting values.

When the playlist selection screen is open, turn to select playlists.

② Color display

This 3.5-inch TFT color display has a 320 × 240 resolution. It shows various types of information.

NOTE

The display is produced with extremely high-precision manufacturing technologies. At least 99.99% of the pixels operate as specified. On rare occasions, a pixel might misfire or appear as a red or black dot, but this is not a malfunction.

③ PAGE - / + [MENU] buttons

Use these buttons when the Home Screen is open to change the page.

Tracks are assigned to flash playback buttons on each page. Changing the page also changes the assigned tracks.

For details about assigning tracks, see "6 - Editing the playlist" in the SS-R250N/SS-CDR250N Owner's Manual. Press the + button to open the next page. Press when the last page is shown to open the first page.

Press the - button to open the next page. Press when the first page is shown to open the last page.

When the Home Screen is open, press the - and + buttons at the same time to open the Menu Screen.

When the Menu Screen is open, the brightness of the color display can be changed.

When the playlist selection screen is open, use these buttons to change the page if there are more than 12 playlists. Press the - and + buttons at the same time to return to the Menu Screen.

NOTE

This unit can be used to operate audio sources numbered 1-96 (8 pages with 12 each) within the set play area.

④ LOAD [TIME DISPLAY] button

Press and hold this button when the Home Screen is open to flash load if the SS-R250N/SS-CDR250N unit is in a play mode that enables flash loading.

Press this button when the Home Screen is open to switch the time display between showing the elapsed time from the track beginning and the remaining time to the track end. Press this button when the playlist selection screen is open to flash load the selected playlist.

When the Menu Screen is open, press this button to return to the Home Screen.

STOP button

Press to stop playback.

⑥ PLAY button

Press when stopped or in playback standby to start playback.

Rear panel

⑦ RS-232C connector

Use the included RS-232C cable to connect this to an SS-R250N or SS-CDR250N.

CAUTION

Always turn the SS-R250N/SS-CDR250N unit power off before connecting or disconnecting the cable. Connecting the cable with the power on could damage the unit.

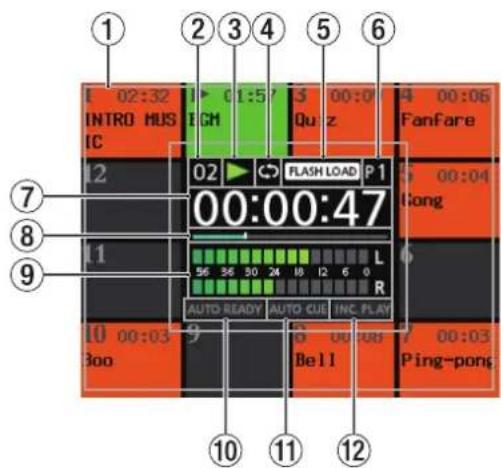

Home Screen

① Flash playback information

The track number or number within the playlist is shown in the top left.

If a track is assigned to a flash playback button, the track length (hours: minutes) and title will be shown.

If flash-loaded, it will appear orange. If not flash-loaded, it will appear gray.

If it cannot be played back, it will appear red.
When in playback standby, it will blink orange.

During playback, it will light green and the track number will be replaced with . During playback, the time (hours: minutes) will show either the elapsed time from the start of the track or the remaining time until the end of the track. It will show the one not being shown by the time counter.

② Track number

This shows the track number or number within the playlist of the track being played.

③ Transport status

This icon shows the current transport status.

Icon Meaning
	Playing back
	In playback standby
	Stopped
	Searching forward
	Searching backward

④ Repeat status

Icon Meaning
	When repeat playback is on, the icon appears white.
	When repeat playback is off, the icon appears gray.

⑤ Flash loading status

Icon Meaning
FLASH LOAD	The flash start function that allows the instant playback of tracks that have been registered in advance is enabled. The icon appears white.
FLASHload	The flash start function is disabled The icon appears unlit.

⑥ Page number

This shows the number of the page, which can be switched using the PAGE - / + [MENU] buttons. The numbers of the assigned tracks or numbers within the playlist shown on each page are as follows.

Page	Assigned track numbers or playlist numbers
P1	1-12
P2	13-24
P3	25-36
P4	37-48
P5	49-60
P6	61-72
P7	73-84
P8	85-96

Time counter

For the current track, this shows the elapsed time from the beginning or the remaining time to the end (hours: minutes: seconds).

Press and hold the load button when the Home Screen is open to switch between showing the elapsed time from the beginning and the remaining time to the end.

NOTE

This setting (whether the elapsed time from the beginning or the remaining time to the end is shown) is retained even when the power is off.

⑧ Time bar

This shows the current playback position. What is shown depends on the time counter display mode.

Time counter display mode	Meaning Bar display	lay
Elapsed time from track beginning	Current playback position relative to track length	Lengthens from left end toward right end
Remaining time to track end		Shortens from left end toward right end

9 Level meters

These show the playback levels.

10 Auto Ready status

Icon Meaning
AUTO READY	When Auto Ready is set to ON, this icon appears white.
AUTO READY	When Auto Ready is set to OFF, this icon appears unlit.

1 Auto Cue status

Icon Meaning
AUTO CUE	When Auto Cue is set to ON, this icon appears white.
AUTO CUE	When Auto Cue is set to OFF, this icon appears unlit.

⑫ Incremental playback status

Icon Meaning
INC.PLAY	When Incremental Playback is set to ON, this icon appears white.
INC.PLAY	When Incremental Playback is set to OFF, this icon appears unlit.

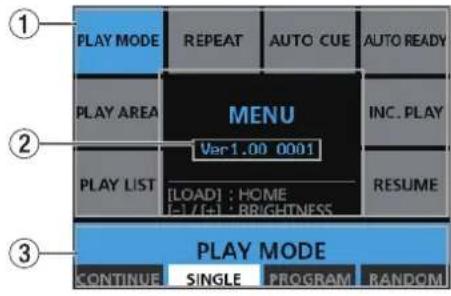

Menu Screen

When the Home Screen is open, press the PAGE [MENU] - and + buttons at the same time to open the Menu Screen. You can confirm and change settings related to direct play (flash) starting on the SS-R250N/SS-CDR250N.

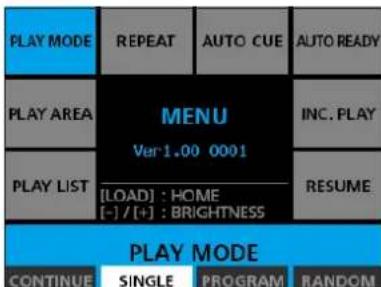

PLAY HODE selected

① Menu items

When the Menu Screen is opened, menu items replace the flash playback information of the Home Screen. The menu items assigned to buttons 1-6 and 11-12 are as follows.

Button	Menu item Function
1	PLAY MODE	Playback mode setting
2	REPEAT	Repeat playback function setting
3	AUTO CUE	Auto Cue setting
4	AUTO READY	Auto Ready setting
5	INC PLAY	Incremental playback setting
6	RESUME	Resume playback setting
11	PLAY LIST	Playlist selection
12	PLAY AREA	Play area setting

② System version

This shows the system firmware version of this unit.

③ Menu item selection area

This shows the set option for the selected menu item. Options assigned to buttons 7-10 are shown.

Menu Screen operations

You can perform the following operations on this screen.

Electing an item:

Press the corresponding menu item button. The selected item appears blue.

■onfirming/changing a setting:

The current setting for the selected menu item appears white in the menu item selection area.
To change the setting, press a button (7-10) for a menu item selection.

PLAY MODE selected

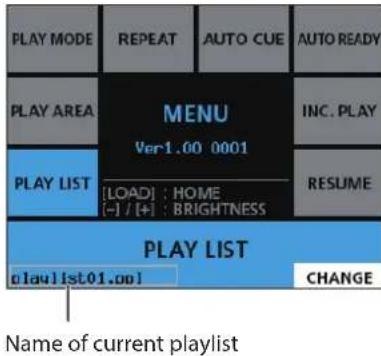

If PLAY LIST is selected, however, this area will appear as follows. Press the 7 (CHANGE) button to open the playlist selection screen.

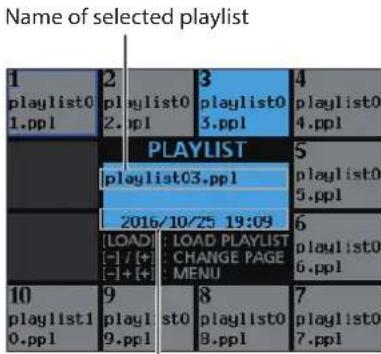

On the playlist selection screen, a list of playlists appears in place of the flash playback information items of the Home Screen. The selected playlist appears blue, and the current playlist appears framed in blue.

Press button 1-12 to select a playlist, and press the LOAD [TIME DISPLAY] button to set the selected playlist as the current playlist and return to the Home Screen.

Use the PAGE [MENU] - and + buttons to change the page if there are more than 12 playlists.

Date selected playlist saved

Example with 10 playlists

NOTE

The playlists are shown in the order that they are managed on the SS-R250N/SS-CDR250N unit. The order that they are shown cannot be changed.

Returning to the Home Screen:

When the Menu Screen is open, press the LOAD [TIME DISPLAY] button. You can also press the PAGE [MENU] - and + buttons at the same time to return to the Home Screen. Even when the playlist selection screen is open, you can press the PAGE [MENU] - and + buttons at the same time to return to the Home Screen.

Adjusting the display brightness

You can adjust the display brightness as necessary. When the Menu Screen is open, use the PAGE [MENU] - and + buttons to adjust the brightness of the display.

NOTE

The display brightness setting is retained even when the unit is turned off.

Checking the operation time

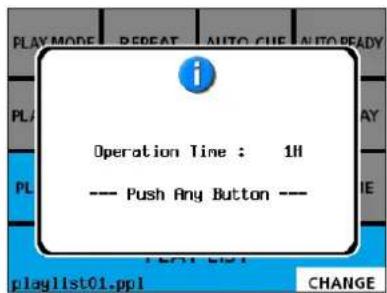

When the menu screen is open, while pressing the LOAD [TIME DISPLAY] button, press the STOP button to open a pop-up message like the one shown below that shows the operation (powered) time of the unit.

Press any button to close the pop-up message.

Making connections

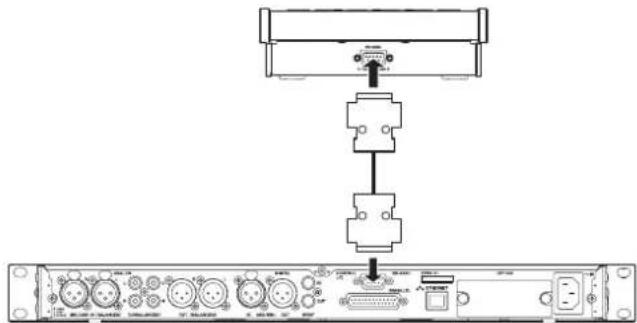

Connect the RS-232C connector on the back of this unit to the RS-232C connector on the SS-R250N/SS-CDR250N unit with the included RS-232C connection cable.

CAUTION

Always turn the SS-R250N/SS-CDR250N unit power off before connecting or disconnecting the cable. Connecting the cable with the power on could damage the unit.

Making communication settings on the connected unit

To use this unit, the following communication settings must be made on the connected unit.

When connected to an SS-R250N/SS-CDR250N

1. Press the MENU [JOG] button on the SS-R250N/SS-CDR250N to open the Menu Screen.

2. Select the RS-232C item on the REMOTE page to open the RS-232C screen.

1. Set the items on the RS-232C screen to the following values.

RC-232C screen item	Option
BAUD RATE 57600 bps
PARITY BIT NON
STOP BIT 1
DATA LENGTH 8

1. After you complete setting all the items, press the HOME/ DISPLAY button on the SS-R250N/SS-CDR250N to return to the Home Screen.

Messages

The following is a list of the pop-up messages.

Refer to this list if one of these pop-up messages appears on the RC-SS150 and you want to check the meaning or determine a proper response.

Message Meaning and response
Cannot Change Now Currently Playing.	This item cannot be changed during playback.
Cannot Change Now Currently Recording.	This item cannot be changed during recording.
Cannot use Flash Load and Playback. Playlist has no tracks.	Since no tracks have been added to the playlist, flash-loading and playback are not possible.
Cannot use Flash Load and Direct Play in Random playback mode.	Flash loading and direct playback cannot be used when in random playback mode.
Communication is not available. Cannot communicate with Main Unit.	This unit cannot communicate with the connected unit. Check the communication settings on the connected unit. Check the connection with the connected unit.
Flash Loading ...	Flash-start data is being loaded.
Loading Playlist ...	A playlist is being loaded.
Operation failed.	The operation could not be completed for some reason.

General

Power supply voltage

DC12V (supplied by SS-R250N/SS-CDR250N unit)

Power consumption

1.30W or less

Dimensions

176× 59× 215mm width × height × depth

Weight

1.1kg

Operating temperature range

5-35°C/41-95°F

Connection (RS-232C serial port)

Connector: 9-pin D-sub (female, inch-standard)

Connection cable: 9-pin D-sub straight cable

(15 m or less)

Transmission speed: 57600 bps

Data bits: 8-bit

Parity: None

Stop bit: 1

No flow control

Pin number	Signal name
1	NC
2 TxD
3 RxD
4	NC
5 Ground
6	NC
7	NC
8	NC
9 Power +12V

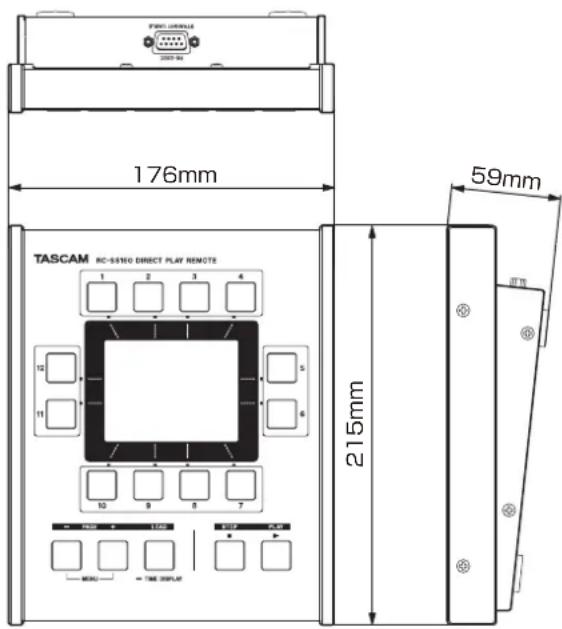

Dimensional drawings

• Illustrations in this manual might differ in part from actual products.
  In order to improve the products, specifications and appearance could be changed without prior notice.

PRECAUTIONS DE SECURITE IMPORTANTES

Pour le Canada

THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.

Responsible: TEAC AMERICA, INC.

③ Tasten PAGE -/+ [MENU]

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.

WHAT IS AND IS NOT COVERED

Except as specified below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.
2. Damages resulting from accident, misuse, abuse or neglect.
3. Damage resulting from failure to perform basic daily maintenance and/or calibration or otherwise
   resulting from failure to follow instructions contained in your owner's manual.
4. Damage occurring during shipment of the product. (Claims must be presented to the carrier)
5. Damage resulting from repair or attempted repair by anyone other than TEAC or an authorized TASCAM service station.
6. Damage resulting from causes other than product defects, including lack of technical skill,

competence, or experience of the user.

1. Damage to any unit which has been altered or on which the serial number has been defaced, modified or is missing.

WHO MAY ENFORCE THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

LENGTH OF WARRANTY

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted to ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer.

You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTYIS

Any implied warranties, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC's liability for any defective product is limited to repair or replacement of the product, at TEAC's option. TEAC shall not be liable for:

1. Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss: or
2. Any other damages, whether incidental, consequential or otherwise.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

To locate an Authorized Service Center in Your Area

CALL 1-800-447-8322

< Europe>

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

These warranty provisions in Japanese are valid only in Japan.

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. If you have a warranty claim or request, please contact the dealer where you bought the product.
该保证书赋予了顾客特定的合法权利，并且因国家，州或省等地域的不同，顾客可能拥有其他权利。如需申请或要求保修，请与购买本产品的销售店进行联系。
If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAM Distributor in your country. A list of TASCAM Distributors can be found on our website at http://teac-global.com/

Address/Adresse/Adresse

Indirizzo/Direccion/住所
