USER MANUAL VLS3BT TASCAM

D01279600A VL-S3BT Powered Desktop Monitors ENGLISH FRANÇAIS ESPAÑOL DEUTSCH ITALIANO

• TASCAM is a trademark of TEAC CORPORATION, registered in the U.S. and other countries.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TEAC CORPORATION is under license.

• © 2013 CSR plc and its group companies. The aptX® mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.

• Other company names, product names and logos in this document are the trademarks or registered trademarks of their respective owners.TASCAM VL-S3BT

Owner’s Manual Compliance Statement and information This product has the function of broadband trans- mitter using 2.4 GHz Band. Use frequency range: 2400 MHz - 2480 MHz Maximum output power: Bluetooth® Class2 (less than 2.5 mW) CAUTION Use only in the country where you purchased the product.

• Authorization of wireless devices are different in countries or regions.

• Depending on the country, restrictions on the use of Bluetooth wireless technology might exist. CAUTION Changes or modifications to this equipment not expressly approved by TEAC CORPORATION for compliance could void the user’s authority to operate this equipment. Radiation Exposure requirements This equipment meets the regulation, which is recog- nized internationally, for the case of human exposure to radio waves generated by the transmitter.

Model for U.S.A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Labeling of authorization

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. a) Reorient or relocate the receiving antenna. b) Increase the separation between the equipment and receiver. c) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. d) Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement.

Model for Canada Compliance of radio transmitter This device complies with Industry Canada's license- exempt RSSs. Operation is subject to the following two conditions: (a) This device may not cause interference; and (b) This device must accept any interference, including interference that may cause undesired operation of the device. Labeling of authorization

Compliance of interference This Class B digital apparatus complies with Canadian ICES-003. Labeling of compliance

CAN ICES-3(B)/NMB-3(B)4

TASCAM VL-S3BTRadiation Exposure requirementsThe device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

Model for EUR Hereby, TEAC Corporation declares that the radio equipment type VL-S3BT is in compliance with Directive 2014/53/EU., and the other Directives, and Commission Regulations.The full text of the EU declaration of conformity is available at the following internet address: Please contact us by e-mail.http://tascam.eu/en/kontakt.htmlEU Importer: TEAC Europe GmbHBahnstrasse 12, 65205 Wiesbaden-Erbenheim, GermanyRadiation Exposure requirementsThis equipment complies with EN.62311; Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields; the harmonised standard of DIRECTIVE 2014/53/EU. IMPORTANT SAFETY INSTRUCTIONS 1 Read these instructions.2 Keep these instructions.3 Heed all warnings.4 Follow all instructions.5 Do not use this apparatus near water.6 Clean only with dry cloth.7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11 Only use attachments/accessories specified by the manufacturer.12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13 Unplug this apparatus during lightning storms or when unused for long periods of time.14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.• The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.• The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.• Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.• If you are experiencing problems with this product, contact TEAC for a service referral. Do not use the product until it has been repaired.TASCAM VL-S3BT

• Do not expose this apparatus to drips or splashes.

• Do not place any objects filled with liquids, such as vases, on the apparatus.

• Do not install this apparatus in a confined space such as a book case or similar unit.

• The apparatus should be located close enough to the AC outlet so that you can easily grasp the power cord plug at any time.

• If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.

• CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type. IN USA/CANADA, USE ONLY ON 120 V SUPPLY.

For European Customers Disposal of electrical and electronic equipment (a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via designated collection facil- ities appointed by the government or the local authorities. (b) By disposing of the electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment. (c) Improper disposal of waste equipment can have serious effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment. (d) The crossed out wheeled dust bin symbol indicates that electrical and electronic equipment must be collected and disposed of separately from household waste. (e) The return and collection systems are available to the end users. For more detailed information about disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment. Contents Compliance Statement and information ...................... 3

Introduction Thank you very much for purchasing the TASCAM VL-S3BT Powered Desktop Monitors. Before using these monitors, read this Owner's Manual carefully so that you will be able to use them correctly and enjoy having them for many years. After you have finished reading this manual, please keep it in a safe place for future reference. You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/). Features

• 3-inch (76.2mm) woofer

• Built-in volume control

• Built-in Bluetooth audio receiver capable of receiving high-quality audio using SBC, AAC and aptX® decoding Included items This product includes the following items. Take care when opening the package not to damage the items. Keep the box and packing materials for transportation in the future. Please contact us if any of these items are missing or have been damaged during transportation.

• Owner’s Manual (this document) including warranty ................................................. × 1 CAUTION Always use the included AC adapter (PS-P1524E) when using this unit. Never use the included AC adapter with any other device. Doing so could cause damage, fire or electric shock. Conventions used in this manual The following conventions are used in this manual.

• Buttons, connectors and other physical parts of this unit are written using a bold font like this: Power switch.

• Equipment that can be connected to this unit using Bluetooth, including computers and portable audio devices, are called “Bluetooth devices”.

• As necessary, additional information is provided under TIP, NOTE and CAUTION headings. TIP These are tips about how to use the unit. NOTE These provide additional explanations and describe special cases. CAUTION Failure to follow these instructions could result in injury, damage to equipment or lost recording data, for example. Precautions for placement and use

• The operating temperature range of this unit is 5–35 °C.

• Do not install this unit in the following types of locations. Doing so could degrade the sound quality and/or cause malfunctions. Places with significant vibrations Near windows or other places exposed to direct sunlight Near heaters or other extremely hot places Extremely cold places Places with bad ventilation or high humidity

• To enable good heat dissipation, do not place anything on top of the unit.

• Do not place the unit on top of a power amplifier or other device that generates heat.

• If this unit is placed near a power amplifier or other device with a large transformer, it could cause a hum. If this occurs, increase the distance between this unit and the other device.

• This unit could cause color irregularities on a TV screen or noise from a radio if used nearby. If this occurs, use this unit farther away.

• This unit might produce noise if a mobile phone or other wireless device is used nearby to makeTASCAM VL-S3BT

calls or send or receive signals. If this occurs, increase the distance between this unit and those devices or turn them off. Beware of condensation If the unit is moved from a cold to a warm place, or used after a sudden temperature change, there is a danger of condensation; vapor in the air could condense on the internal mechanism, making correct operation impossible. To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it. Cleaning the unit Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration. Bluetooth® overview This unit has a built-in Bluetooth audio receiver, allowing it to output the audio playback of a computer or portable audio device that supports Bluetooth. CAUTION Operation and connection of this unit's Bluetooth functions with all Bluetooth devices are not guaranteed. Transmission conditions This is a Class 2 Bluetooth transmission output device. It has an approximate transmission range of 10 m, but this distance can vary due to the interference of obstacles and electromagnetic waves. An obstacle between this unit and another Bluetooth device could interfere with Bluetooth transmission. If this occurs, remove the obstacle. Moreover, the use of a wireless LAN (IEEE802.11b/g) or microwave oven in the same operating environment could also interfere with Bluetooth transmission. If this occurs, stop using that equipment or move this unit and the Bluetooth device at least 10 m away from it. Profiles This unit supports the following Bluetooth profile.

• A2DP (Advanced Audio Distribution Profile) Bluetooth devices must support A2DP in order to transmit audio via Bluetooth. Even if they have the same Bluetooth profile, however, different Bluetooth devices can have different functions depending on their specifications. Codecs This unit supports the following A2DP codecs and automatically selects one of them during audio transmission.

• aptX It will select the appropriate codec to use according to the codec support of the Bluetooth device and transmission conditions. NOTE You cannot use buttons, for example, to select the codec. Due to the nature of Bluetooth wireless technology, playback from this unit will start slightly later than when triggered from the Bluetooth device. Content protection This unit supports SCMS-T content protection during audio transmission, enabling the playback of protected audio. Transmission security This unit supports security functions during Bluetooth transmission according to the Bluetooth standards, but the invisibility of transmission is not guaranteed. Our company will take absolutely no responsibility if data is leaked during Bluetooth transmission. Using the TEAC Global Site You can download this Owner’s Manual necessary for this unit from the TEAC Global Site (http://teac-global. com/).

2. In the TASCAM Downloads section, click the

desired language to open the Downloads website page for that language.8

NOTE If the desired language does not appear, click Other Languages.

3. Click the product name in the “Search by Model

Name” section to open the Downloads page for that product.

4. Select and download the Owner’s Manual and

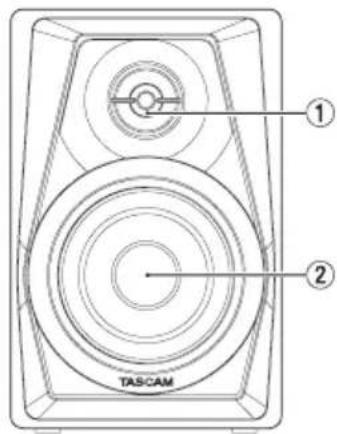

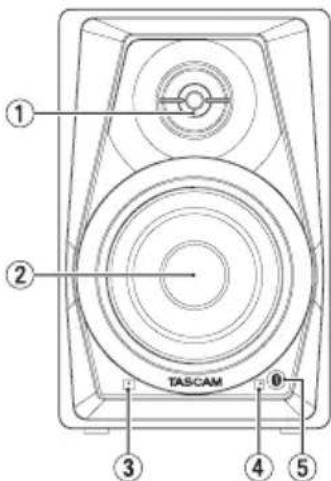

the Reference Manual that are needed. User registration Customers in the USA, please visit the TASCAM website (http://tascam.com/) to register as a user online. Names and functions of parts Front panel Active unit Passive unit 1 Tweeter unit 2 Woofer unit 3 STANDBY/ON indicator 4 Bluetooth indicator The lighting of this indicator shows the status of the connection with the other Bluetooth device. Indicator lighting Meaning Unlit Not connected Lit Connected Blinking Pairing 5 Bluetooth PAIRING button Rear panel Active unit Passive unit 6 Bass reflex port 7 VOLUME knob 8 RCA pin input jacks 9 Stereo mini input jack 0 STANDBY/ON switch q Speaker output terminal (OUTPUT TO RIGHT) Connect to passive unit w DC IN 15V connector e Speaker input terminal (INPUT FROM LEFT) Connect to active unitTASCAM VL-S3BT

• When unpacking the speaker units, do not hold them by their tweeters or woofers.

• Connect signal cables and power cords so that they will not become caught on anything.

• Before turning the built-in amplifier on, minimize the volume of the input signal. Turning it on while inputting a loud signal could damage the speaker.

• Do not continuously use it for a long time at a loud volume. Doing so could harm your hearing.

• Use power cords, power outlets, audio signal cables and connectors that are undamaged and free of wiring shorts and other defects.

• Set the power switch to STANDBY before connecting the power cord.

• Do not input signals other than audio signals.

• Before connecting an audio signal to this unit, confirm that the level of the input signal is minimized and the power switch of the built-in power amplifier is set to STANDBY.

• Always use the correct polarity. Connections

1. Set the power switch to STANDBY.

2. Connect the included AC adapter (PS-P1524E) to

the speaker and then to the power supply.

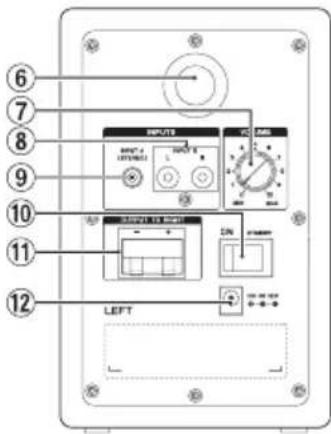

3. Use the included connection cable (RCA–6.3mm

(1/4”) standard TS jack) to connect the input jack(s) of the active unit to the output device.

4. Use the included speaker cable to connect the

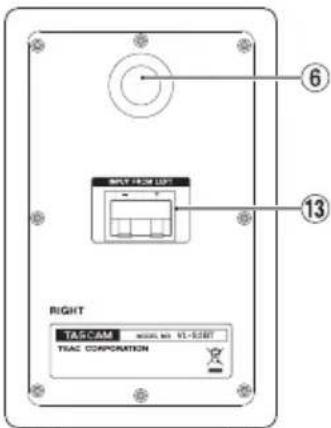

output terminal of the active unit to the input terminal of the passive unit. Installation Installing speakers correctly is extremely important. The volume of low frequencies will seem to change according to the positions where the speakers are installed. Test various installation positions to find the best places for maximizing the capabilities of the speakers.

• Place the active unit to the left and the passive unit to the right.

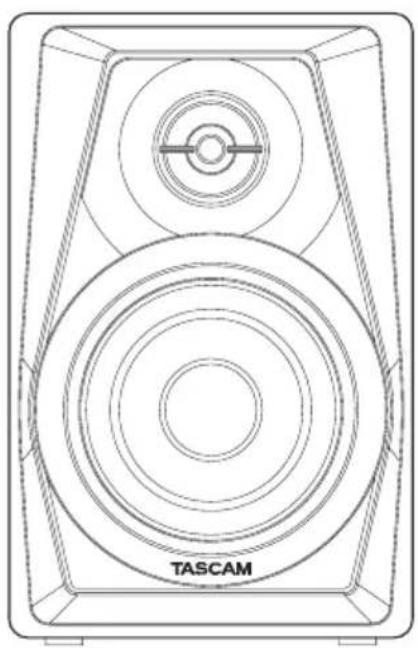

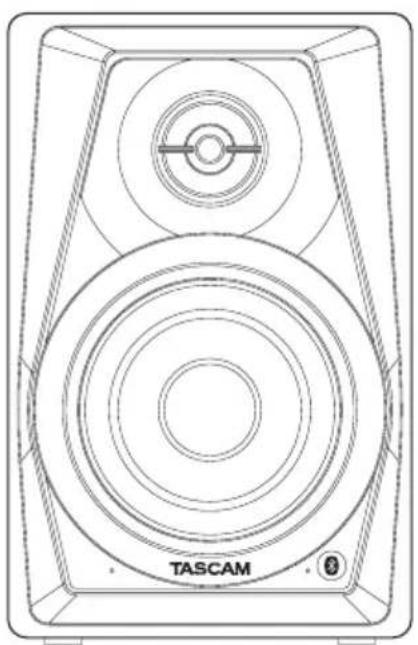

• Place the speakers so that they form an equilateral triangle with the listening position. LEFT: Active unit RIGHT: Passive unit

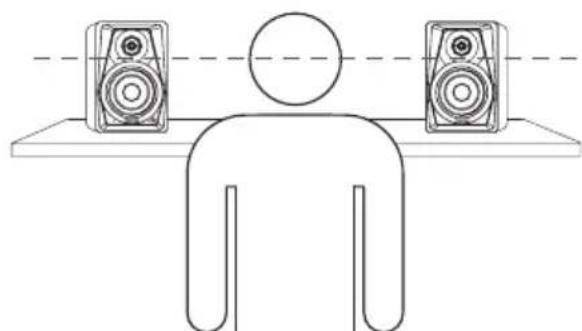

• Install each speaker so that the top of its woofer is at ear height.

• Do not install speakers near mirrors, glass or other surfaces that reflect sound. Do not place anything between the speakers and the listening position.10

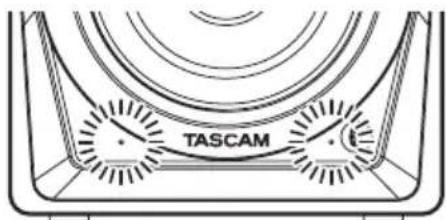

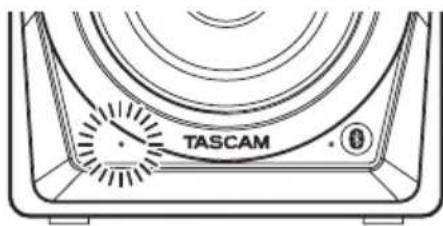

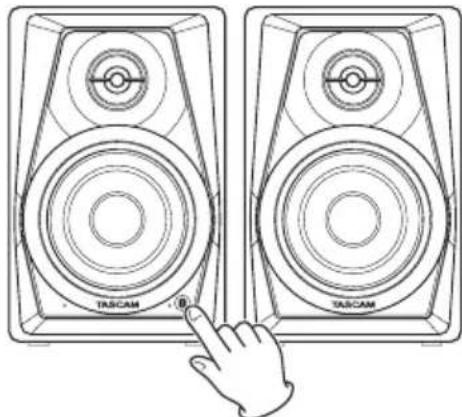

Switching the input source You can select whether the audio this unit outputs is the audio from a line input (RCA pin input jacks or stereo mini input jack) or the audio received by Bluetooth.Press the Bluetooth PAIRING button to switch between the input sources.

When a line input source is selected Indicator LightingSTANDBY/ON indicator LitBluetooth indicator Unlit

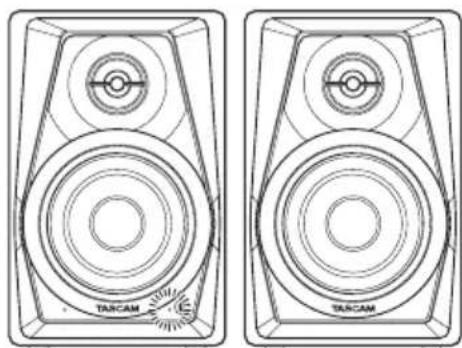

When a Bluetooth input source is selected Indicator LightingSTANDBY/ON indicator LitBluetooth indicator Lit BlinkingCAUTIONWhen switched to Bluetooth input, if no Bluetooth device is paired and connected, the Bluetooth indicator will blink, showing it is ready for pairing. Playing back from a Bluetooth device These speakers can output the audio playback of devices that support Bluetooth (A2DP), including computers and portable audio devices. Pairing Follow the procedures below to pair with the Bluetooth device in order to communicate with it. NOTE Pairing also requires setting the Bluetooth device.For details about how to do this, refer to the operation manual of that Bluetooth device.1. Press the Bluetooth PAIRING button on the speaker.The Bluetooth indicator flashes, showing that pairing is possible.2. On the other Bluetooth device, select “VL-S3BT” (this speaker).After pairing succeeds, the Bluetooth indicator stops blinking and stays lit, showing that connection with that device is complete.TASCAM VL-S3BT

Ending a paired connection Follow the procedures below to end a paired connection from this unit.1. Press and hold the Bluetooth PAIRING button for at least two seconds.2. The Bluetooth indicator blinks, showing that the paired connection has ended and pairing is possible again. Troubleshooting If you are having trouble with the operation of this product, please try the following before seeking repair.If these measures do not solve the problem, please contact the store where you bought the unit or TEAC customer support (see back page).

The speakers will not turn on.

• Confirm that the included AC adapter (PS-P1524E) is securely connected to both the outlet and the DC connector.

• Check the connection with the playback device again.• Check the VOLUME knob.

The sound drops out or there is noise.

• Confirm that the connection cables do not have contact issues.• Is a wireless LAN, other Bluetooth device, microwave oven or similar equipment nearby?Keep those devices at a distance whenever possible.• Keep the Bluetooth device close to these speakers when using them together. Try changing the location of the Bluetooth device or the speakers.• If applications other than the audio playback app are running on a smartphone, the sound could drop out. In this case, stop applications other than the audio playback app from running.

Cannot connect or communication is interrupted.

• Confirm that the Bluetooth device power is on and that its Bluetooth function is also on.• Is the Bluetooth device too far away? Is there a wall or other obstacle between the device and the speakers?If the Bluetooth device is behind the speakers, the speakers themselves could block communi-cation.Try changing the location of the Bluetooth device or the speakers.• Turn the speakers STANDBY and ON again.• Remove the VL-S3BT pairing from the other Bluetooth device, and follow the procedures in “Pairing” on page 10 again.

Pairing is not possible.

• Confirm that the connected Bluetooth device supports A2DP.• Confirm that the Bluetooth device that you want to connect is in a state that allows it to communicate. For details, check the operation manual of that Bluetooth device.• Turn the power off for both the speakers and the Bluetooth device. Turn them both on and try pairing them again.• Turn off Bluetooth devices other than the one that you are trying to pair to the speakers.• Remove the VL-S3BT pairing from the other Bluetooth device, and pair them again.12

Specifications General

Maximum effective output (distortion: 10%) 14W + 14W

Frequency response 80 Hz–22 kHz

Crossover frequency 8 kHz

Bluetooth Bluetooth version: 4.0Output class: Class 2(Unobstructed communi-cation distance: about 10 m*)Supported profile: A2DPSupported A2DP codecs: SBC, AAC and aptXSupported A2DP content protection: SCMS-T*This communication distance is an estimate. The communication distance might differ depending on the surrounding environment and wave conditions.

Dimensions 110 × 170 × 138 mm (width × height × depth, excluding protrusions)

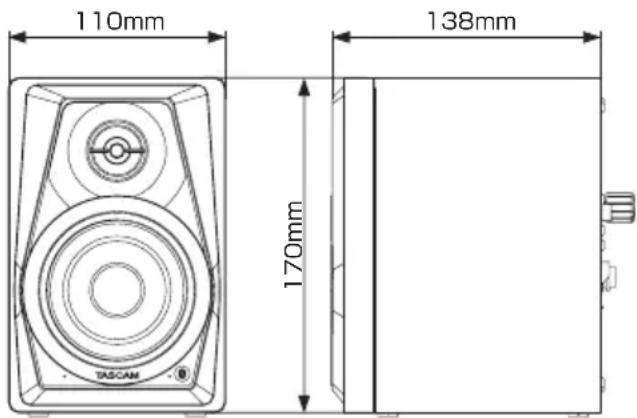

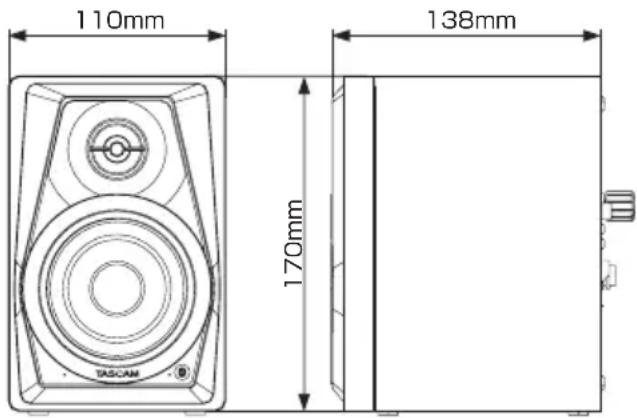

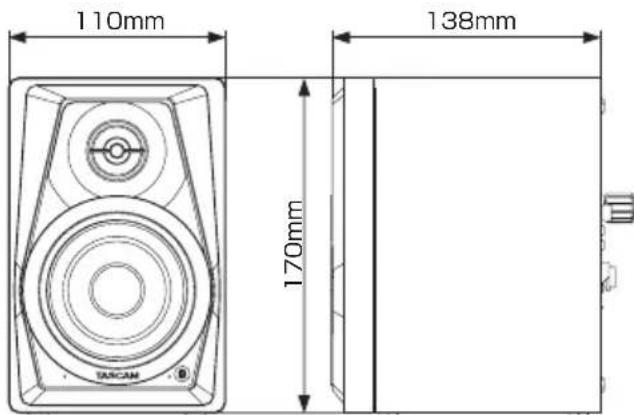

Weight Active unit: 1.1 kgPassive unit: 1.0 kg Dimensional drawing 110mm138mm 170mm• Illustrations in this manual might differ in part from the actual product.• Specifications and external appearance might be changed without notification to improve the product.TASCAM VL-S3BT

Model for U.S.A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Labeling of authorizationFCC ID: XEG-VLS3BTThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-ference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful inter-ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.a) Reorient or relocate the receiving antenna.b) Increase the separation between the equipment and receiver.c) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.d) Consult the dealer or an experienced radio/TV technician for help.Radiation Exposure requirementsThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency Exposure Guidelines.

Involucro Tipo bass reflex

Except as specied below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.

2. Damages resulting from accident, misuse, abuse

3. Damage resulting from failure to perform

basic daily maintenance and/or calibration or otherwise resulting from failure to follow instructions contained in your owner’s manual.

4. Damage occurring during shipment of the

product. (Claims must be presented to the carrier)

5. Damage resulting from repair or attempted

repair by anyone other than TEAC or an authorized TASCAM service station.

6. Damage resulting from causes other than

product defects, including lack of technical skill, competence, or experience of the user.

7. Damage to any unit which has been altered or

on which the serial number has been defaced, modied or is missing.

WHO MAY ENFORCE THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted to ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer. You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTIES

Any implied warranties, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC’s liability for any defective product is limited to repair or replacement of the product, at TEAC’s option. TEAC shall not be liable for:

Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss; or

2. Any other damages, whether incidental,

consequential or otherwise. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. To locate an Authorized Service Center in Your Area

These warranty provisions in Japanese are valid only in Japan.

< In other countries/areas > This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. If you have a warranty claim or request, please contact the dealer where you bought the product. 该保证书赋予了顾客特定的合法权利，并且 因国家，州或省等地域的不同，顾客可能拥 有其他权利。如需申请或要求保修，请与购 买本产品的销售店进行联系。 If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAM Distributor in your country. A list of TASCAM Distributors can be found on our website at: http://teac-global.com/ WARRANTY
