USER MANUAL Fusion Pro 8770 NOVY

2.1 Packaging material

2.2 Disposal of old appliance

2.3 Disposal of (rechargeable) batteries

2.4 Tips for reducing energy consumption and

3 USING THE APPLIANCE

3.1 First use of the appliance

4.1 Operating the device

4.2 Turning the extraction on and o

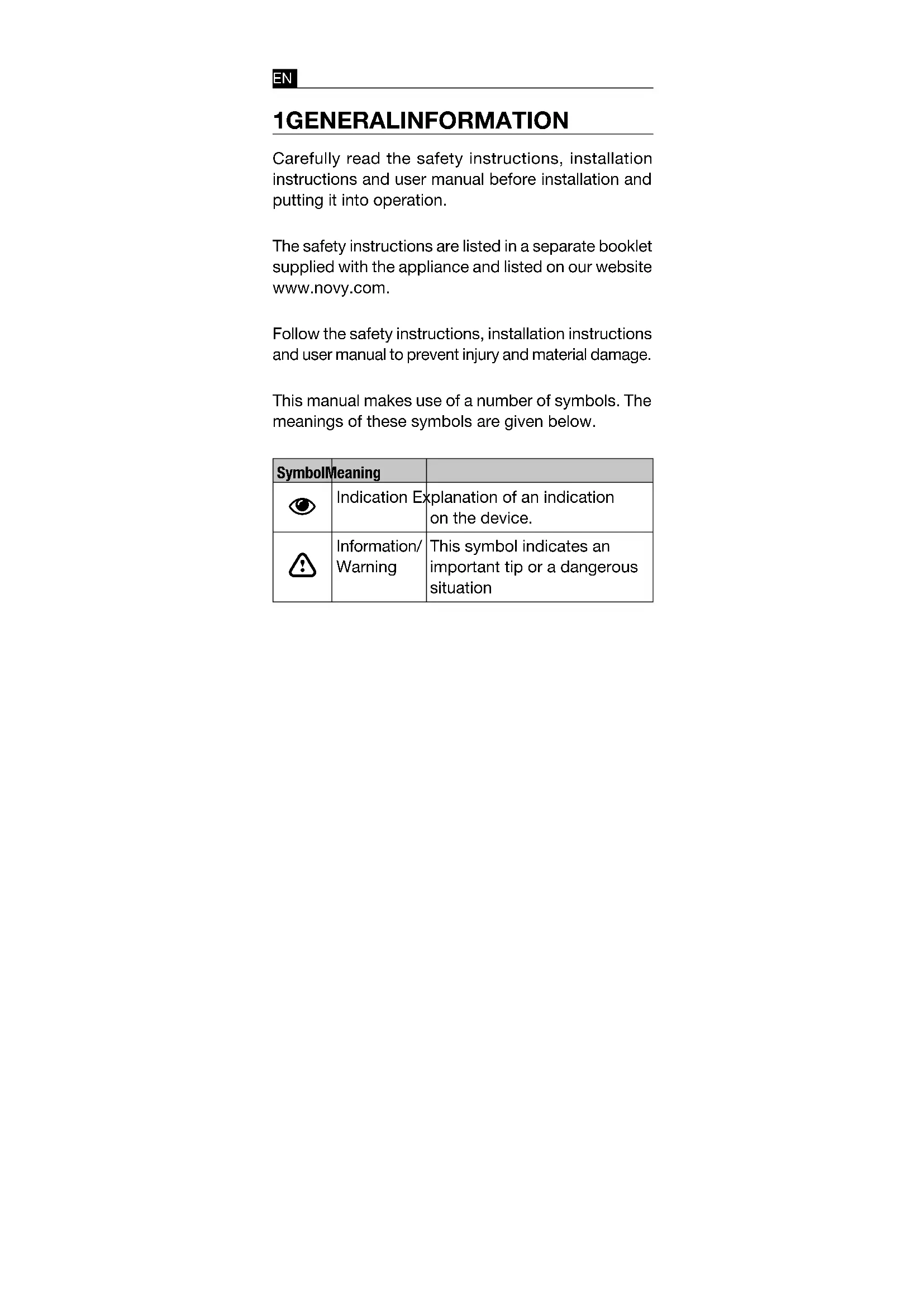

1 GENERAL INFORMATION Carefully read the safety instructions, installation instructions and user manual before installation and putting it into operation. The safety instructions are listed in a separate booklet supplied with the appliance and listed on our website www.novy.com. Follow the safety instructions, installation instructions and user manual to prevent injury and material damage. This manual makes use of a number of symbols. The meanings of these symbols are given below. Symbol Meaning

Indication Explanation of an indication on the device.

Information/ Warning This symbol indicates an important tip or a dangerous situation– 52 –

2.1 Packaging material

This appliance is protected against damage during transport by packaging. The materials used are not hazardous to the environment and are suitable for recycling. Ensure environmentally-friendly disposal of the packaging.

2.2 Disposal of old appliance

Your appliance also contains many materials that can be recycled. Therefore, used appliances should be separated from other waste. The recycling of appliances organised by your manufacturer is in this way carried out under the best conditions, in accordance with European Direc- tive 2012/19/EU on electrical and electronic waste. Ask your municipality or your salesperson about the closest collection point for your old appliance. Keep old appliances out of the reach of children.

2.3 Disposal of (rechargeable) batteries

(Rechargeable) Batteries should be disposed of in an environmentally friendly manner. Do not dispose of the (rechargeable) batteries in the household rubbish. Ask your local authority or retailer for the nearest collection point for (rechargeable) batteries. Keep (rechargeable) batteries out of the reach of children.– 52 – – 53 –

2.4 Tips for reducing energy consumption

and increasing eciency The new appliance is exceptionally efficient and economical with energy. Some tips follow below for making your appliance even more energy-ecient. − Switch the appliance on at the lowest speed when you start cooking to adjust the relative humidity andeliminate cooking odours.

Only use the highest speed when absolutely necessary.

Keep the appliance filter/filters clean to optimise grease and odour filtering eciency.

Switch to higher power in good time if much vapour is released. This is more ecient than using the ap- pliance for a long time, and catching vapour already spread in the kitchen.

Do not allow the appliance to unnecessarily ventilate after cooking. − Switch the lighting o when leaving the kitchen or if the kitchen is already light enough. − Ensure adequate air supply in the room, so that the appliance can operate eciently and economically. − Put lids on the pots to reduce cooking vapours and condensation.

Switch on the appliance a few minutes before start- ing to cook for eective extraction of the cooking vapours. − Make use of the delay position if the appliance has one. The instructions for the delay position are set out in these directions for use. − Avoid all draughts above the cooking surface.

Position your cooking utensils in such a way that ris ing vapour is directed under the extraction surface of the hood. − Cooking with induction: set the intensity of the ap- pliance and hob as low as possible in order to limit excess vapour.– 54 –

3 USING THE APPLIANCE

3.1 First use of the appliance

Scan your QR code on the warranty sticker and register your device. − Remove all visible stickers before first use.

4 CONTROLS AND FUNCTIONS

4.1 Operating the device

4.2 Turning the extraction on and o

Turning the extraction on o Open the rotating valve by turning it towards you to eectively remove cooking vapours. Press button ➊ to turn on the extractor. The extractor always starts in the function last used (lighting and/ or motor). Turning the extraction o with delay mode To set delay mode press key ➊ once. The first indicator light flashes, the other indicator lights come on at the last position set. After 10 minutes the motor and lighting automatically switch o. The delay time is set by default to 10 minutes in ex- traction mode. It is advised to always fully allow this function towork.– 54 – – 55 –

show positions one to three.

shows the Power position. The Power position is only used if there are strong odours, or a lot of smoke or vapour. Its use must be kept to a minimum because of the large extraction of air in this position.

The Power position automatically goes back to speed three after 6 minutes.

The motor has a thermal switch that switches the motor o with overheating. After cooling the motor will switch on again.

Determining the cause of overheating is re- quired. This can be caused for example by a pan fire, theimpeller motor being blocked or an object getting in the exhaust opening and causing it to bepartly or fully blocked. Auto-Stop To avoid the extractor hood from staying on, the motor is automatically switched o after 3 hours (only if in 3 hours operation has not been changed). The extractor hood lighting stays on.– 56 –

Turning the lighting on and o To turn the lighting on or o press ➍. The light works independent of the motor. When switching the lighting on it will always go to full power and can also be used when the fan is switched

Dimming the LED lighting When the LED lighting is switched on you can dim it by keeping key ➍ pressed.

If recirculation is selected programming must takeplace once. This programming function activates the replacement indicator of the monoblock recirculation filter and the delay time is changed. Activating programming − The motor must be switched o − Press the

keys at the same time for 3 seconds until the red LED flashes 5 times. 3 sec The following functions then operate:

Replacement indicator of the monoblock filter is activated. After a set time a red indicator light on theappliance shows that the monoblock filter must be replaced. − The delay time is set to 30 minutes (instead of the default 10 minutes).

Use the delay time of 30 minutes so the cookingodours can be properly removed by the monoblock filter. Read paragraph 5.3 for more information about re- placement of the monoblock recirculation filter.– 56 – – 57 –

Deactivating programming − The motor must be switched o − Press

at the same time for 3 seconds until the 3rd green LED flashes 3 times. 3 sec The delay time is again set to 10 minutes (instead of 30 minutes) and cleaning indicator for recirculation is switched o.

The cooker hood has the InTouch function. If you have an induction hob from Novy with InTouch, you can operate the extraction hood from the hob. Visit the website for the dierent models of induction hobs with InTouch. Turning the InTouch function on and o

The InTouch function is o by default. To connect the cooker hood to a Novy induction hob with InTouch, the InTouch function must first be switched on on the cooker hood. The InTouch function is o by default. The function can be switched on by pressing the ➊ and ➌ keys at the same time for 3 seconds. The 2nd and 3rd LEDs flash 3 times to confirm (theap- pliance must be switched o). 3 sec To switch the InTouch function o press the ➊ and ➋ keys at the same time for 3 seconds and the 2nd and 4th LEDs flash 3 times to confirm. (The appliance must be switched o).

Turning o the InTouch function on the cooker hood results in the connection between cooker hood and Novy induction hob with InTouch and/or remote control is also disabled.– 58 – – 59 –

Programming InTouch on the induction plate − Connect the plate to the mains supply.

Touch simultaneously the keys and on the induction plate until you hear a beep signal (prox. 7 sec.).

Wait until the cooker hood illumination begins to flashing OR you hear a "click" sound when you have an extractor hood without lighting (Be patient, this can betake a while). − Does the light blink or you hear the "click" sound; press immediately on any InTouch key or

or on the induction hob.

You will hear a "beep" signal to indicate the link between the two devices. Now you can operate the hood with the keys on the induction plate. You can find more information about using the InTouch functions in the InTouch manual for the hob. The InTouch function between cooker hood and hob works with a fixed code. If the set code disrupts other transmitters, another code can be selected. There are 10 dierent codes. A remote control is required to change the code. More information on reprogramming with the remote control can be found in the manual of the remote control.

You can obtain a remote contol from a dealer which you can find on the Novy website. Article number remote control : 840029.– 58 – – 59 –

Follow all instructions as described in the Conditions for Safety and Use section.

Follow the cleaning instructions below for a longer working life and optimal operation of the appliance.

Allow the lighting to cool down suciently before you start cleaning the extractor hood.

Never use aggressive, abrasive or chlorin- ated products.

Do not use a high pressure or steam cleaner. Stainless steel Clean with a cleansing tissue with mild cleaning agent then dry with a soft cloth. Maintenance of the stainless steel can be performed with the Novy cleaner (906060). If you use another stainless steel cleaner, we recom- mend testing it first on an inconspicuous area (inside) of the hood and waiting 24 hours to see the result. If you do not notice anything abnormal, you can clean your hood with this product. Coated parts of the extractor hood The extractor hood can be cleaned with a damp cleansing tissue and a mild cleaning agent. Glass Glass parts of the extractor hood can be cleaned with asoft cloth and a glass cleaner.– 60 –

If the following instructions are not carried out, serious soiling can cause a fire hazard. Indication cleaning grease filter

Indication: 4 flashing indicator lights

sec After 20 cooking hours 4 flashing indicator LEDs show that the grease filter must be cleaned. Reset the cleaning indicator

When you replace the grease filter after cleaning, it is sucient to press the

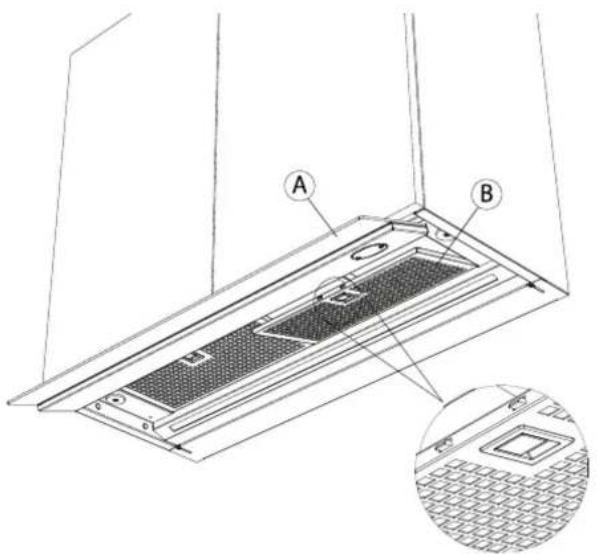

key for 5 seconds toagain set the indicator. 5 sec If you do not do this the indicator light will continue to flash when switching on the extractor hood. Accessing the grease filter − Protect the hob. − Open the rotating valve A.

You can take the grease filter B from the hood by pulling the handle on the filter. − The filter will come down.– 60 – – 61 –

Cleaning the grease filter The metal grease filter can be cleaned by hand or in adishwasher. We recommend cleaning the grease filterby hand. Cleaning the filter by hand:

Immerse the filter in a solution of boiling water to which a liquid detergent has been added.

Do not use aggressive, acidic or alkaline cleaning products. − Use a brush for cleaning. − Then rinse the filters with warm water under a tap and allow them to dry. Cleaning the filter in a dishwasher: − Use a customary dishwasher detergent.

Do not put the saturated grease filters together with crockery in the dishwasher. − Select a programme with a low temperature (max

When cleaning in a dishwasher the filter may discolour as a result of the salt content. This does not aect its operation. Replacing the grease filters − Before replacing the grease filter, clean the edges of the part in the extractor hood in which the filter isplaced. − Grasp the filter with 2 hands. − Make sure that the lock or the lip on the filter is on the bottom side.

Insert the back of the filter in the opening, press the filter upwards at the front and make sure it clicks tight.

You can obtain a new grease filter from adealer which you can find on the Novy website. Article number grease filter: - 60 cm: 1x 680021 - 90 cm: 2x 680020 - 120 cm: 2x 680021– 62 –

When selecting recirculation, always set the recircula- tion mode on the extractor hood (see paragraph 2.4). If recirculation is chosen a monoblock recirculation filter is fitted in the extractor hood behind the grease filter. Replacement indicator monoblock recirculation filter

Indication: red indicator light stays on 5 sec5 sec After a set time a red indicator light on the appliance shows that the monobloc filter must be replaced. Reset the replacement indicator

The motor must be on. When you fit the new monobloc filters, it is sucient to press the

keys for 5 seconds at the same time to reset replacement indication. 5 sec Accessing the monoblock recirculation filter Remove the Monoblock recirculation filter:

Open the rotating valve with both hands and remove the aluminium grease filter from the hood (5.2).

The Monoblock recirculation filter is located in its opening in the cooker hood. Remove it from the cooker hood. Place the monoblock recirculation filter

Open the rotating valve with both hands and remove the aluminium grease filter from the hood (5.2).

Place the monoblock recirculation filter is its opening in the cooker hood.

Replace the aluminium grease filter and close the rotating valve.

You can obtain a new monoblock filter from adealer which you can find on the Novy website. Article number monoblock filter: 680400.– 62 – – 63 –

Fault: In the event of a fault, please do not hesitate to contact our after sales service: www.novy.com/contact. Choose you country. For a proper and prompt handling, the after sales ser- vice needs to know the model number of your device. This information can be found on sticker on the inner frame of the extractor hood. This becomes visible as soon as you take the filter(s) out of the extractor hood.– 64 –

EXPLANATION ACTION INDICATION REMARKSwitching on the engine Switching o the motor with delay mode

Green LED flashesEngine stays on for10 minutesSwitching o the motor without delay mode 2 x

Engine goes o immediatelyIncrease engine speed Decrease engine speed Lighting on Dimming the lightingContinue to press

Recirculation on for 3 SecondsRed LED flashes 5x! Motor must beswitched o !Recirculation o for 3 SecondsThird green LED flashes 5x! Motor must beswitched on !Reset cleaning indicatorgrease filters for 5 SecondsReset replacement indicatormonoblock for 3 SecondsRed LED flashes 3x! Motor must beswitched on !InTouch on for 3 Seconds2nd en 3th LED flashes ! Motor must beswitched o !InTouch o➊ + ➋for 3 Seconds2nd en 4th LED flashes! Motor must beswitched o !– 64 – – 65 –
