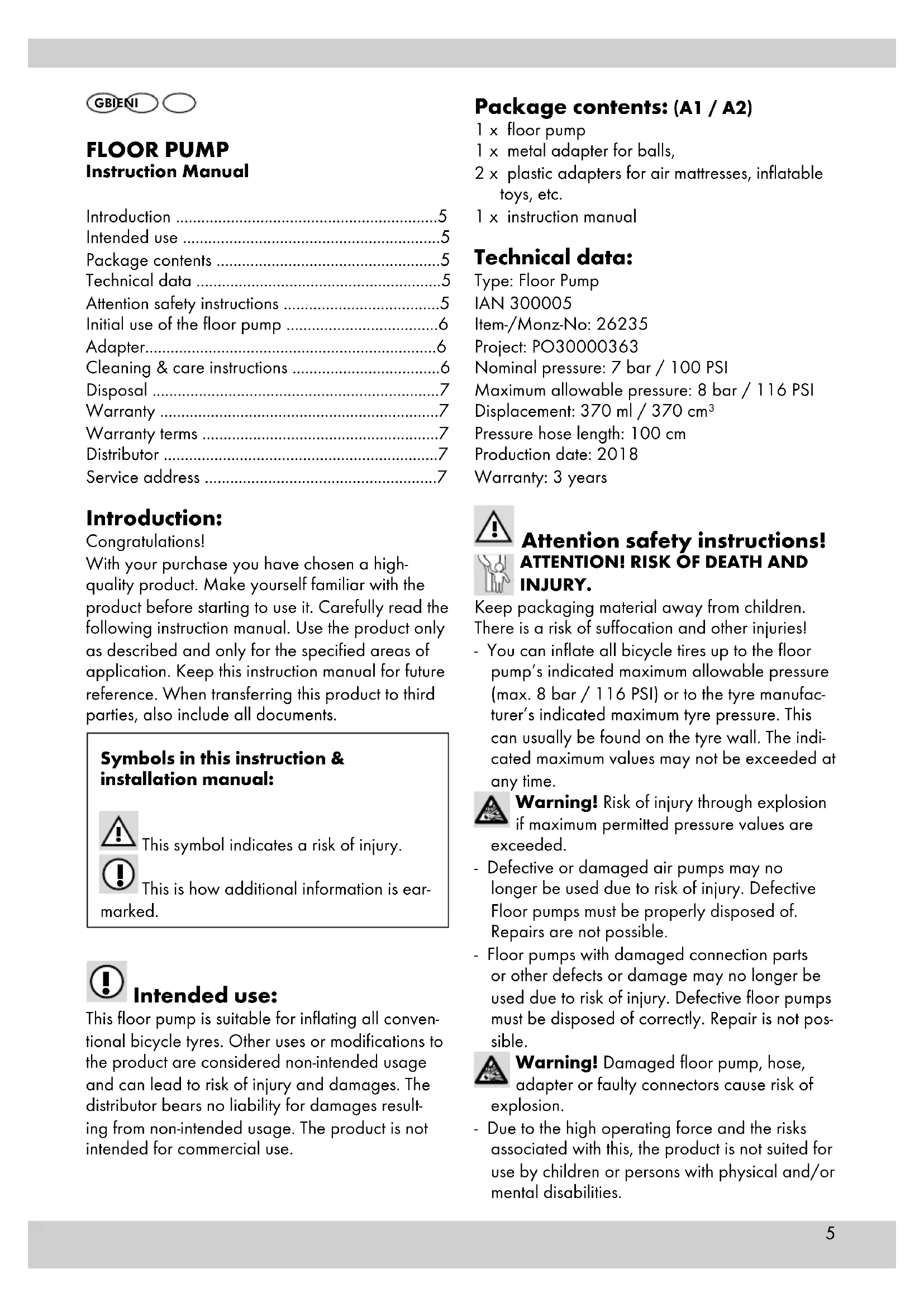

Introduction:

Congratulations!

With your purchase you have chosen a high-quality product. Make yourself familiar with the product before starting to use it. Carefully read the following instruction manual. Use the product only as described and only for the specified areas of application. Keep this instruction manual for future reference. When transferring this product to third parties, also include all documents.

Symbols in this instruction & installation manual:

This symbol indicates a risk of injury.

This is how additional information is ear-ed.

Intended use:

This floor pump is suitable for inflating all conventional bicycle tyres. Other uses or modifications to the product are considered non-intended usage and can lead to risk of injury and damages. The distributor bears no liability for damages resulting from non-intended usage. The product is not intended for commercial use.

Package contents: (A1 / A2)

1 x floor pump
1 x metal adapter for balls,
2 x plastic adapters for air mattresses, inflatable toys, etc.
1 x instruction manual

Technical data:

Type: Floor Pump

IAN 300005

Item-/Monz-No: 26235

Project: PO30000363

Nominal pressure: 7 bar / 100 PSI

Maximum allowable pressure: 8 bar / 116 PSI

Displacement: 370 ml / 370 cm³

Pressure hose length: 100 cm

Production date: 2018

Warranty: 3 years

Attention safety instructions! ATTENTION! RISK OF DEATH AND INJURY.

Keep packaging material away from children. There is a risk of suffocation and other injuries!

- You can inflate all bicycle tires up to the floor pump's indicated maximum allowable pressure (max. 8 bar / 116 PSI) or to the tyre manufacturer's indicated maximum tyre pressure. This can usually be found on the tyre wall. The indicated maximum values may not be exceeded at any time.

Warning! Risk of injury through explosion if maximum permitted pressure values are exceeded.

- Defective or damaged air pumps may no longer be used due to risk of injury. Defective Floor pumps must be properly disposed of. Repairs are not possible.

- Floor pumps with damaged connection parts or other defects or damage may no longer be used due to risk of injury. Defective floor pumps must be disposed of correctly. Repair is not possible.

Warning! Damaged floor pump, hose, adapter or faulty connectors cause risk of corrosion.

- Due to the high operating force and the risks associated with this, the product is not suited for use by children or persons with physical and/or mental disabilities.

Warning! Please note that the pump plunger and pump cylinder become very over longer periods of pumping due to the tion between them. For this reason, you could only grasp the floor pump on the pump handle after pumping in order to avoid burns.

- Due to the risk of injury, a defective or damaged floor pump may never be used.

Warning! Some bicycle valves do not allow pressure display. For your own safety, ase check the air pressure with a calibrated nometer (i.e. at a fuel station).

Initial use of the floor pump: (B1 / B4)

(B1) Place the floor pump on a level and stable surface.

(B2) There must be no kinks in the pump hose. (B3) During pumping, please always position yourself with both feet on the foot plate of the floor pump to ensure it won't fall over.

(B4) Operate the pump handle in a smooth and even manner and not too quickly.

(B5) There is a red pointer in the middle of anometer. This red pointer can serve as an all mark for the desired pressure. The red pointer to the desired pressure disfor this purpose.

Please note that the set mark only serves as orientation and does not influence the air pressure!

Adapter: (C1)

The floor pump has been provided with a pump head with a reversible valve adapter. As delivered, the pump head has been set to use the SCHRADER (large opening) adapter. To switch to using the DUNLOP/PRESTA adapter (smaller opening), flip the lever (A) upwards horizontally. Do NOT pull the lever. Unscrew the valve adapter from the pump head. Turn the valve adapter so that the larger opening will be screwed into the pump head (b).

Note: screw the valve adapter slowly onto the pump head to prevent it from tilting during screwing.

Adapter: (C1)

(1) E.g. balls

(2) E.g. air mattresses

(3) E.g. inflatable boats

(4) To inflate inner tubes with schrader valves e.g. mountain bikes, trolleys and trailers.
(5) To inflate inner tubes with blitz valves, e.g. city/trekking bicycles
(6) For inflating inner tubes with a presta valve, e.g. on racing bicycles and mountain bikes.
(7) Pump head (To lock in place, please fold down the lever of the pump head.) (Valves (4), (5), (6) not included)

Inflating tyres with a schrader valve: (C2)

First remove the dust protection cap (1). Insert the pump head with the large opening into the valve (2). To lock in place, please fold down the lever of the pump head (3).

Inflating tyres with a blitz valve: (C3)

First remove the dust protection cap (1). Insert the pump head with the small opening into the valve (2). To lock in place, please fold down the lever of the pump head (3).

Inflating tyres with a presta valve: (C4)

First remove the dust protection cap (1). Detach the valve nut (2a-2c). Insert the pump head with the small opening into the valve (3). To lock in place, please fold down the lever of the pump head (4).

Inflating air mattresses, inflatable toys, etc.: (C5)

First open the valve plug (1). Select the appropriate plastic adapter and insert it into the large opening of the pump head (2). To lock in place, please fold down the lever of the pump head (3). Now insert the plastic adapter into the object to be inflated (4).

Inflating balls: (C6)

Insert the metal adapter in the large opening of the pump head (1). To lock in place, please fold down the lever of the pump head (2). Now insert the metal adapter into the ball (3).

Cleaning & care instructions:

• clean with a damp cloth
• do not immerse in water
• regularly inspect the floor pump's screw joints for secure attachment before use
• the floor pump is maintenance-free.

- Store the floor pump in a cool, dry place protected from UV light.

Disposal:

Packaging is made of 100 % environmentally-friendly materials that can be disposed of at your local recycling point.

Please enquire with your community or municipal administration regarding possibilities for the disposal of the product.

Warranty:

Warranty of the Monz Handelsgesellschaft International MBH & CO. KG.

Dear customer, this device comes with a three-year warranty, valid from the date of purchase. In case of defects of this product, you will have legal rights towards the seller of this product. These legal rights shall not be limited by our warranty as set out below.

Warranty terms:

The warranty term starts on the date of purchase. Please keep the original receipt in a safe place. This document is required as proof of purchase. If within a period of three years following the date of purchase, this product displays material or manufacturing defects, we shall - at our discretion - repair or replace the product free of charge. This warranty assumes that within a period of three years the defective device and the proof of purchase (receipt) are submitted and that a brief written description of the defect, including when it occurred, is provided.

If the defect is covered by our warranty, you shall receive a repaired or a new product. The repair or exchange of the product does not commence a new warranty term.

Distributor:

54292 Trier / Germany

Service address:

MONZ SERVICE CENTER

c/o Teknihall Elektronik GmbH

Breitefeld 15, 64839 Münster / Germany Hotline: 00800 / 68546854 (free of charge, mobile networks may vary)

E-Mail: [e-mail] E-Mail: [e-mail]

Dated: 12/2017

54292 Trier / Germany

Serviceadresse:

MONZ SERVICE CENTER

c/o Teknihall Elektronik GmbH

Breitefeld 15, 64839 Münster / Germany

Hotline: 00800 / 68546854 (gratis, mobilnet kan variere)

E-Mail: [e-mail]
