Product type	Speaker simulator
Brand	Palmer
Model	PDI03 JB
Category	Audio equipment
Type	Passive (no power supply)
Number of channels	1
Input	1 x unbalanced 6.35 mm jack
Outputs	1 x balanced XLR, 1 x unbalanced 6.35 mm jack
Output impedance	600 ohms
Controls	Attenuator (0/12/24 dB), voicing (Deep/Normal/Flat, Bright/Normal/Mellow), JB selector (Medium/Heavy)
Built-in load	No (requires speaker or external load)
Transformer isolation	Yes
Housing material	Steel sheet
Finish	Paint
Dimensions (W x D x H)	140 x 95 x 50 mm
Weight	Approximately 0.5 kg (estimation)
Maintenance	Dry cloth only
Safety	Do not open, no user-serviceable parts, use only with appropriate load

Frequently Asked Questions - PDI03 JB Palmer

How to connect the Palmer PDI03 JB to an amp?

Connect the speaker output of your amplifier to the INPUT (6.35 mm jack) using a quality instrument cable. Then connect the THW output to your cabinet or speaker with a speaker cable. You can use the BALANCED (XLR) and UNBALANCED (jack) outputs simultaneously.

Can I use the PDI03 JB without a speaker?

No, unless you connect a suitable dummy load (like the Palmer PDI06) to the THW output. Without a speaker or load, you risk seriously damaging your amplifier. No load is needed if you use the PDI03 JB with a preamp or pedal.

What is the function of the JB selector?

The JB selector (exclusive to the PDI03 JB model) acts like an overdrive pedal: it adds a mid boost and slight bass cut. In MEDIUM position, the boost is broad; in HEAVY position, it is narrower and more pronounced, delivering a powerful and present sound.

How to adjust the input attenuator?

Set the ATTENUATOR selector according to the source: 24 dB position for amps up to 200 W, 12 dB for amps up to 10 W, 0 dB for line-level preamps and instrument pedals.

What cables to use with the PDI03 JB?

Use high-quality 6.35 mm jack instrument cables for unbalanced inputs/outputs, a speaker cable for the THW output to the cabinet, and a microphone XLR cable for the balanced output.

Does the PDI03 JB require power?

No, the Palmer PDI03 JB is a passive device. It does not require any mains or battery power.

How to clean the Palmer PDI03 JB?

Use a dry cloth to clean the device. Never use liquids or abrasive products.

What to do if the device does not work properly?

Turn off the device immediately and unplug it if powered. Check connections and cables. If the problem persists, contact an authorized repair service. Never open the device yourself.

Is the PDI03 JB compatible with tube amps?

Yes, it is designed to be connected between the amplifier and the cabinet. Ensure you set the attenuator correctly and always have a load (speaker or suitable dummy load) connected to the THW output to avoid damaging the amp.

What is the warranty period for the Palmer PDI03 JB?

Adam Hall offers a manufacturer's warranty of 2 years from the date of purchase against defects in parts or workmanship. The warranty is non-transferable and does not cover normal wear, accidental damage, or unauthorized modifications.

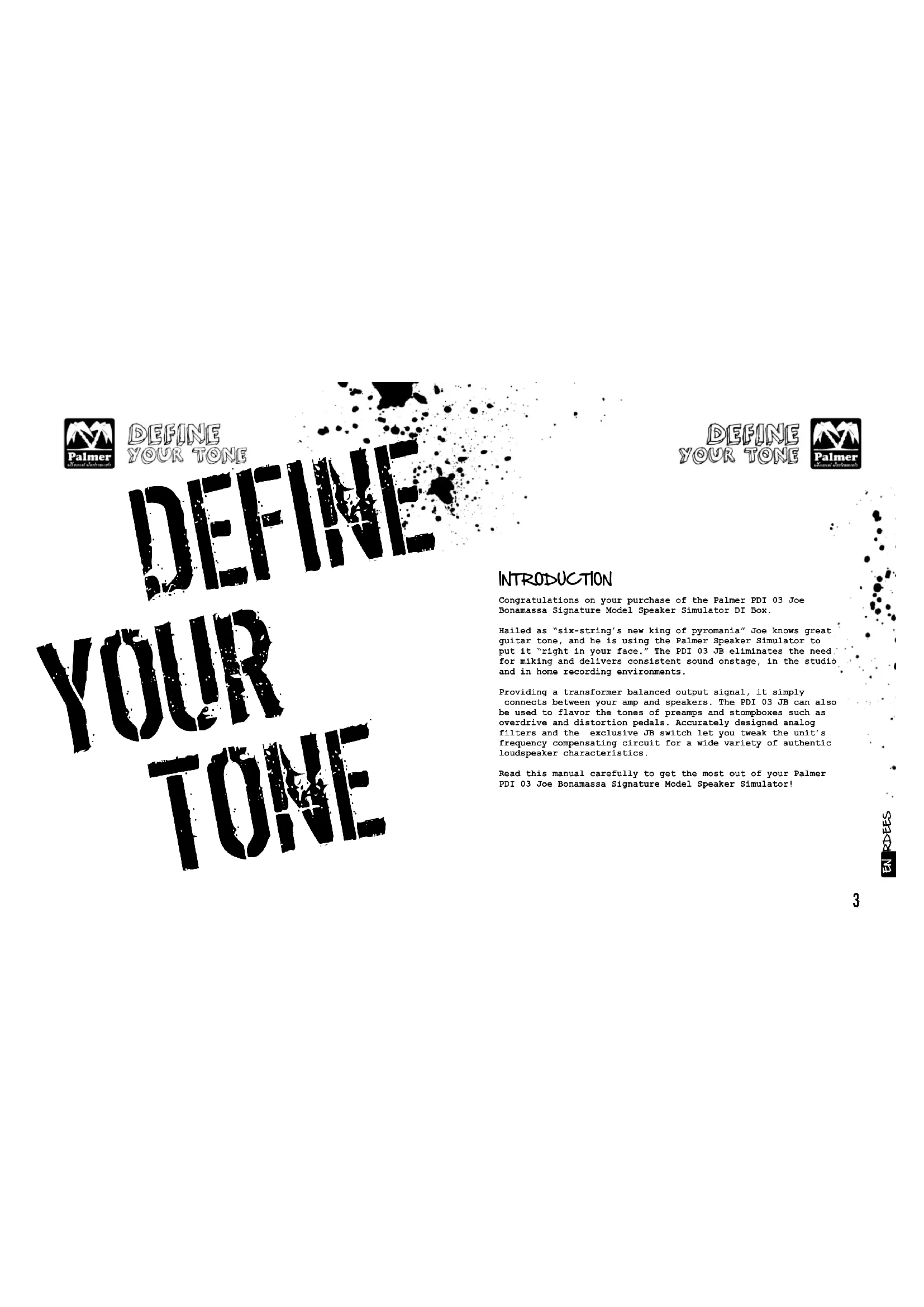

USER MANUAL PDI03 JB Palmer

Congratulations on your purchase of the Palmer PDI 03 Joe Bonamassa Signature Model Speaker Simulator DI Box.

Hailed as "six-string's new king of pyromania" Joe knows great guitar tone, and he is using the Palmer Speaker Simulator to put it "right in your face." The PDI 03 JB eliminates the need for miking and delivers consistent sound onstage, in the studio and in home recording environments.

Providing a transformer balanced output signal, it simply connects between your amp and speakers. The PDI 03 JB can also be used to flavor the tones of preamps and stomboxes such as overdrive and distortion pedals. Accurately designed analog filters and the exclusive JB switch let you tweak the unit's frequency compensating circuit for a wide variety of authentic loudspeaker characteristics.

Read this manual carefully to get the most out of your Palmer PDI 03 Joe Bonamassa Signature Model Speaker Simulator!

DEFINE YOUR TONE

DEFINETHYOUR TONE

SAFETY INFORMATION

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below. Do not expose this equipment to flammable materials, fluids or gases.
12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
13. Make certain that objects cannot fall into the device
14. Use this equipment only with the accessories recommended and intended by the manufacturer.
15. Do not open or modify this equipment.
16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries.
18. If your equipment is no longer functioning properly, if fluids

or objects have gotten inside the equipment or if it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

1. Clean the equipment using a dry cloth.
2. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/ cardboard.
3. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT Connects TO THE POWER MAINS:

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

DEFINE YOUR TONE

DEFINETHYOUR TONE

1. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
2. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre.
3. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
4. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.
5. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

CAUTION

Never remove the cover, because otherwise there may be a risk of electric shock. There are no user serviceable parts inside. Have repairs carried out only by qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user tothe presence of uninsulated „dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions.

CAUTION-HIGH VOLUME LEVELS WITH AUDIOPRODUCTS!

This equipment is intended for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks.

Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers.

employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB.

CAUTION IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS

1. Do not look into the beam from a distance of less than 40~cm 2. Do not stare into the beam for extended periods at short-to-medium distances.
2. Do not view the beam directly with optical instruments such as magnifiers.
3. Under some circumstances, stroboscopic effects may trigger epileptic seizures in sensitive individuals! For this reason, persons who suffer from epilepsy should always avoid places where strobe lights are used.

676767

DEFINE YOUR TONE

DEFINETHYOUR TONE

PANEL

PANEL DESCRIPTION

ATTENUATOR

Before making any connections set this switch to match the PDI 03 JB to your input source. Select the 24 dB setting for amplifiers with a maximum output of 200 watts, switch to 12 dB for low-wattage amps with a maximum output of 10 watts, or use the 0 dB setting for line level preamps and instrument level pedals.

2 INPUT

Connect the speaker output of your amplifier to this jack using a quality 14 plug loudspeaker cable. To connect preamps and pedals use a quality 14 plug instrument cable.

3THRJ

Connect this jack to your guitar speaker or cabinet using a quality 14 plug loudspeaker cable.

WARNING: FOR DIRECT RECORDING FOR YOUR AMP WITHOUT A LOUD-speAKER OR CABINET, CONNECT A DUMMY LOAD WITH EQUIVALENT OHMS RATING TO THIS JACK (E.G. THE PALMER PDI 06).

NEVER USE THE PALMER PDI 03 JB WITHOUT A SPEAKER OR SUITABLE LOAD CONNECTED TO THIS JACK TO PREVENT SEVERE DAMAGE TO YOUR AMP!

NOTE: NO LOAD IS REQUIRED WHEN USING THE PDI 03 JB WITH PREAMPS AND PEDALS.

BALA

This XLR output provides a transformer balanced feed of the frequency compensated signal for DI. Connect the XLR socket to the microphone input of a mixing console, recording gear or soundcard using a quality microphone cable.

DEFINE YOUR TONE

DEFINETHYOUR TONE

5 UNBALANCED

This 14 output provides an unbalanced feed of the frequency compensated signal, e.g. for further processing. Use a quality 14 plug instrument cable to connect this jack to any outboard equipment.

NOTE: THE BALANCED AND UNBALANCED OUTPUTS CAN BE USED SIMULTANEOUSLEY.

6 DEEP-NORMAL-FLAT VOICING SWITCH

This 3-position switch adjusts the low frequency filter. Select the DEEP setting for a strong bottom end similar to that of a closed-back cabinet, NORMAL for linear response or FLAT for open-back cabinet characteristics with a moderate bass cut.

7 BRIGHT-NORMAL-MELLOW VOICING SWITCH

This 3-position switch adjusts the mid to high frequency filter. Select the BRIGHT setting for a clear, cutting high end similar to a guitar played straight into the mixing desk. NORMAL for linear response or MELLOW for a rich, warm tone with a smooth treble roll-off.

JB SWITCH

This 3-position switch is exclusive to the PDI 03 JB and best described as the kind of effect that classic overdrive pedals have on your guitar's frequency response: it adds a midrange bump to your signal that goes with a gradual bass roll-off. Select the MEDIUM position for a wide mid boost and the HEAVY setting for a more pronounced narrow peak. The JB switch adds presence, focus and cutting power to bring your guitar sound to the fore.

NOTE: THE DUAL FILTER AND JB SWITCHES ARE HIGHLY INTERACTIVE BY DESIGN. THE SETTING DESCRIPONS ABOVE ARE ROUGH GUIDELINES ONLY. TRY THEM ALL!

SPECIFICATIONS

Product Type: Speaker Simulator

Type: passive

Channels: 1

Input Type unbalanced

Inputs: 1

Input Connectors: 6.3 mm Jack

Output Type: balanced

Outputs: 1

Output Connectors: XLR, 6.3 mm Jack

Output Impedance: 600 Ohm(s)

Controls: Attenuator, Voicing (Deep- Normal-Flat, Bright-Normal- Mellow), JB Switch

Dummy Load: No

Voicing Filter: Yes

Power Attenuator: No

Transformer Isolated Outputs: Yes

Cabinet Material: sheet steel

Cabinet Surface: powder coated

Width: 140 mm

Depth: 95 mm

Height: 50 mm

10

11

DEFINE YOUR TONE

DEFINETHYOUR TONE

MANUFACTURER'S WARRANTY

This warranty extends to the Palmer branded product you purchased from Adam Hall. The statutory warranty rights against the vendor shall not be affected by this warranty. Rather, this warranty gives you additional independent claims against Adam Hall.

With this warranty, Adam Hall ensures that products you have purchased from Adam Hall or Adam Hall partners, under normal use, are free of defects in material or workmanship for a period of 5 years from the date of purchase, or 2 years from the date of purchase for tube amplifiers and guitar cabinets. The warranty period begins on the date of purchase. In order to assert a claim for warranty service, the proof of date of purchase is provided by the receipt bearing the date of purchase or the date of purchase on the delivery note. You are entitled to warranty service under the conditions and provisions set out in this document, if a repair within the warranty period is required.

This warranty applies only to the original purchaser of the products supplied by Adam Hall and is not transferable to any person to whom the property is transferred by the original purchaser. Within the warranty period, the defective parts or the product from Adam Hall will be repaired or replaced. Under the terms of this warranty, all the replaced or removed components become the property of Adam Hall.

In the unlikely event that a product acquired from Adam Hall, repeatedly exhibits a defect, Adam Hall may decide, at its discretion, to replace this product with a comparable product of at least the same performance.

Adam Hall does not guarantee that the operation of this product will be uninterrupted or error-free. Adam Hall accepts no responsibility for any damage due to incorrect compliance with the instructions received in the delivery.

This warranty does not extend to: - wearing parts (eg battery, tube
- devices that have had their serial number removed or damaged, or failed as a result of an accident
- inappropriate or abusive use or other external causes - devices that were not used in accordance with the operating parameters defined in the user documentation shipped with the product
- devices that have been repaired using parts not made or distributed by Adam Hall
- devices that have been serviced, modified or repaired by someone other than Adam Hall or an authorised service partner.

These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased. This warranty is valid only within Europe. Outside of Europe please contact our official distributors.

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any components that malfunction under conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim, and cannot be rescinded or changed by

12 1312 1312 13

DEFINE YOUR TONE

DEFINETHYOUR TONE

anyone. This limitation of liability will be effective even if you have advised Adam Hall or an authorized representative of Adam Hall of the possibility of any such damages, but not, however, in the event of claims for damages in connection with personal injuries.

This manufacturer's warranty grants you specific rights; depending on jurisdiction (nation or state), you may be entitled to additional claims. You are advised to consult applicable state or national laws for a full determination of your rights.

REQUESTING WARRANTY SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

ECDECLARATION OF CONFORMITY

The equipment marketed by Adam Hall complies (where applicable) with the essential requirements and other relevant specifications of Directives 1999/5/EC (R&TE), 2004/108/EC (EMC) und 2006/95/EC (LVD). Additional information can be found at www.adamhall.com.

PROPER DISPOSAL OF THIS PRODUCT

(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)

(Valid in the European Union and other European countries with waste separation)

This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable economic activity.

14 1514 1514 15

Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal

ENVIRONMENTAL PROTECTION AND ENERGY CONSERVATION
