USER MANUAL TXSR353 ONKYO

For detailed descriptions of this unit, see the "Operating Instructions". (En)

http://www.onkyo.com/manual/txsr353/en.pdf

Front Speakers, Center Speaker

Front speakers output front stereo sound and a center speaker outputs center sound such as dialogs and vocals.

The optimal positioning is for front speakers to be at ear height. Center speaker should be set up facing the listening position.

Fr

The optimal positioning is just above ear height.

Fr

Subwoofer reproduces bass sounds and creates rich sound field.

Place it anywhere in the front of the listening position. Placing it between the center speaker and either of the front speakers enables more natural playback of music sources.

Fr

Caissondebasse

Supplied Accessories

Accessoires fournis
Accosorios suministrados

En/Fr/Es:Back Cover/Cache arrriere/

Cubierta trasera

Speaker / Enceinte / Altavoz

1-2 Speaker cable/Cable d'enceinte/Cable de altavoz, 3-4 Subwoofer cable/Cable du caisson de basse/Cable de subwoofer

En

The power cord must be connected only after all other connections are completed.

Connect speakers with 6Ω to 16Ω impedance. Match the + and - terminals on this unit with the + and - terminals on the speakers when connecting. After all connections are complete, make speaker settings in "Automatic Speaker Setting (AccuEQ Room Calibration) ( 12) ".

Fr

Make sure the exposed wires of the speakers do not stick out of the speaker terminals when connecting. If the exposed wires of the speakers touch the rear panel or the + and - wires touch each other, the protection circuit will be activated.

Fr

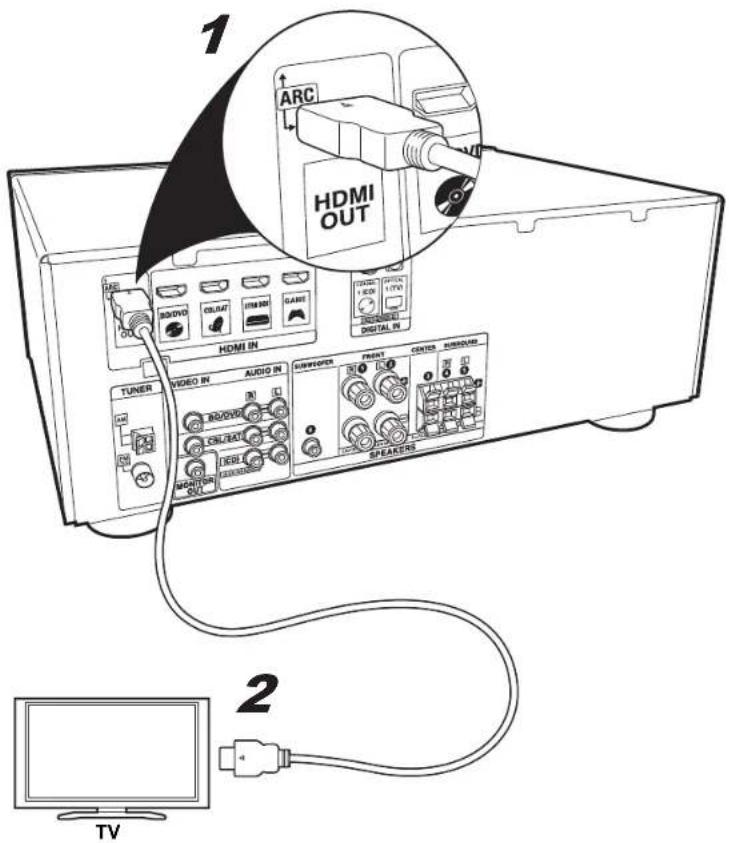

TV-1 (ARC TV) / TV-1 (TV ARC) / TV-1 (TV ARC)

HDMI IN (ARC)

En

This describes the connections for a TV that supports the ARC (Audio Return Channel) feature. With this connection, set ARC to ON in "HDMI Setup ( 12) ". To hear audio from the TV, press TV on the remote control.

This unit does not support linked operations with other devices.
Please refer to the TV's operation manual for directions on connections and setup for the TV.

Fr

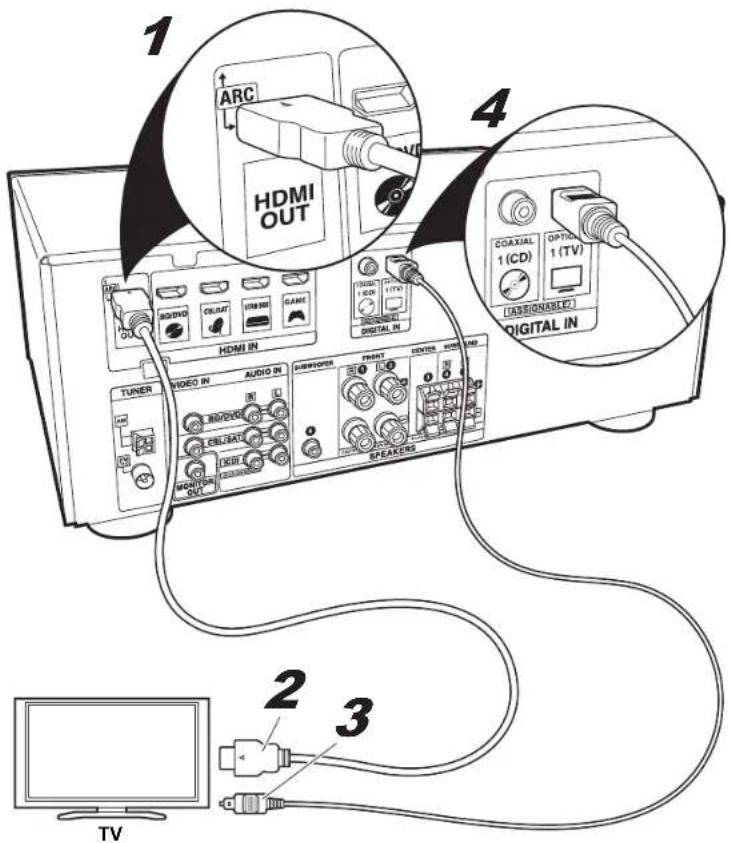

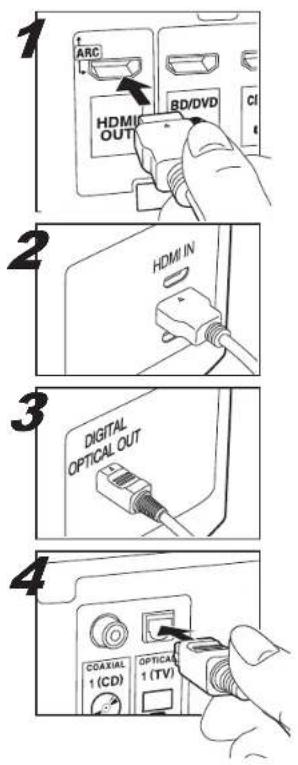

TV-2 (Non-ARC TV) / TV-2 (TV Non-ARC) / TV-2 (TV no ARC)

1-2 HDMI cable/Cable HDMI/Cable HDMI, 3-4 Optical cable/Cable optique/Cable optico

En

This describes the connections for a

TV that does not support the ARC

(Audio Return Channel) feature.

Connect using an optical cable along with a HDMI cable.

To hear audio from the TV, press TV on the remote control.

Please refer to the TV's operation manual for directions on connections and setup for the TV.

Fr

To play the player, press INPUT SELECTOR on the remote control with the same name as the jack to which you connected the player so that the input on the unit is selected.

This unit does not support linked operations with other devices.

Fr

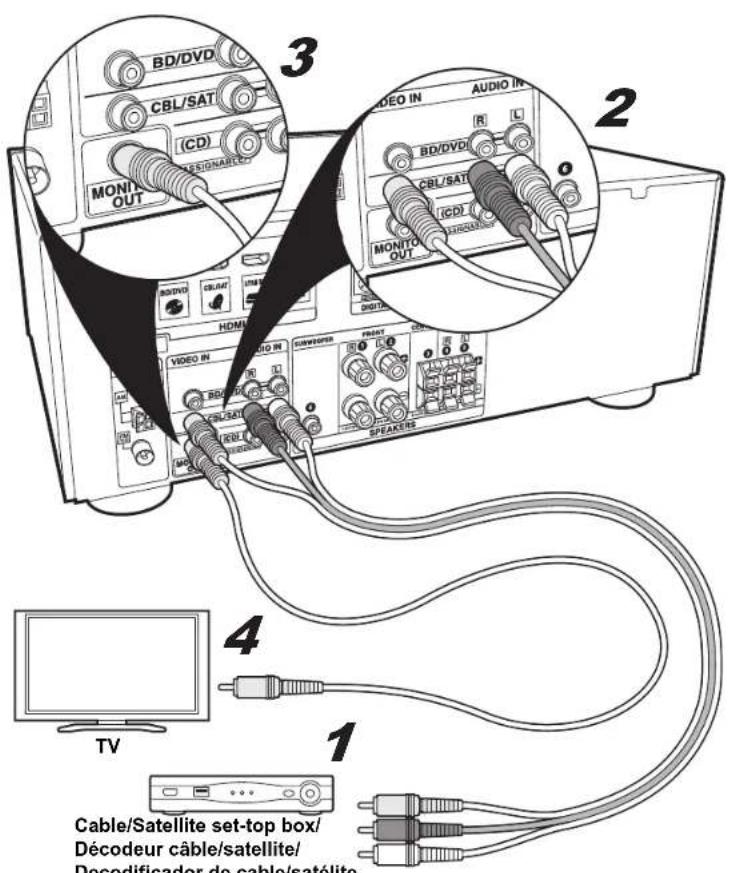

AV Component (Non-HDMI) / Appareil AV (Non-HDMI) / Componente AV (No HDMI)

1-2 Analog audio/video cable/Cable audio/video analogue/Cable de audio/video anlogico, 3-4 Analog video cable/Cable video analogue/Cable de video anlogico

En

When making this connection, the setup screen for this unit is not displayed on the TV. Perform the settings while looking at the display on this unit.

To play the player, press INPUT SELECTOR on the remote control with the same name as the jack to which you connected the player so that the input on the unit is selected.

Fr

Connect using a coaxial cable or analog audio cable.

To play the player, press CD on the remote control.

Fr

Move the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the FM wire antenna to a wall.

Fr

Connect the power cord to the power outlet after completing all other connections. Switch between on and standby using 口 RECEIVER on the remote control or ON/STANDBY on the main unit.

Fr

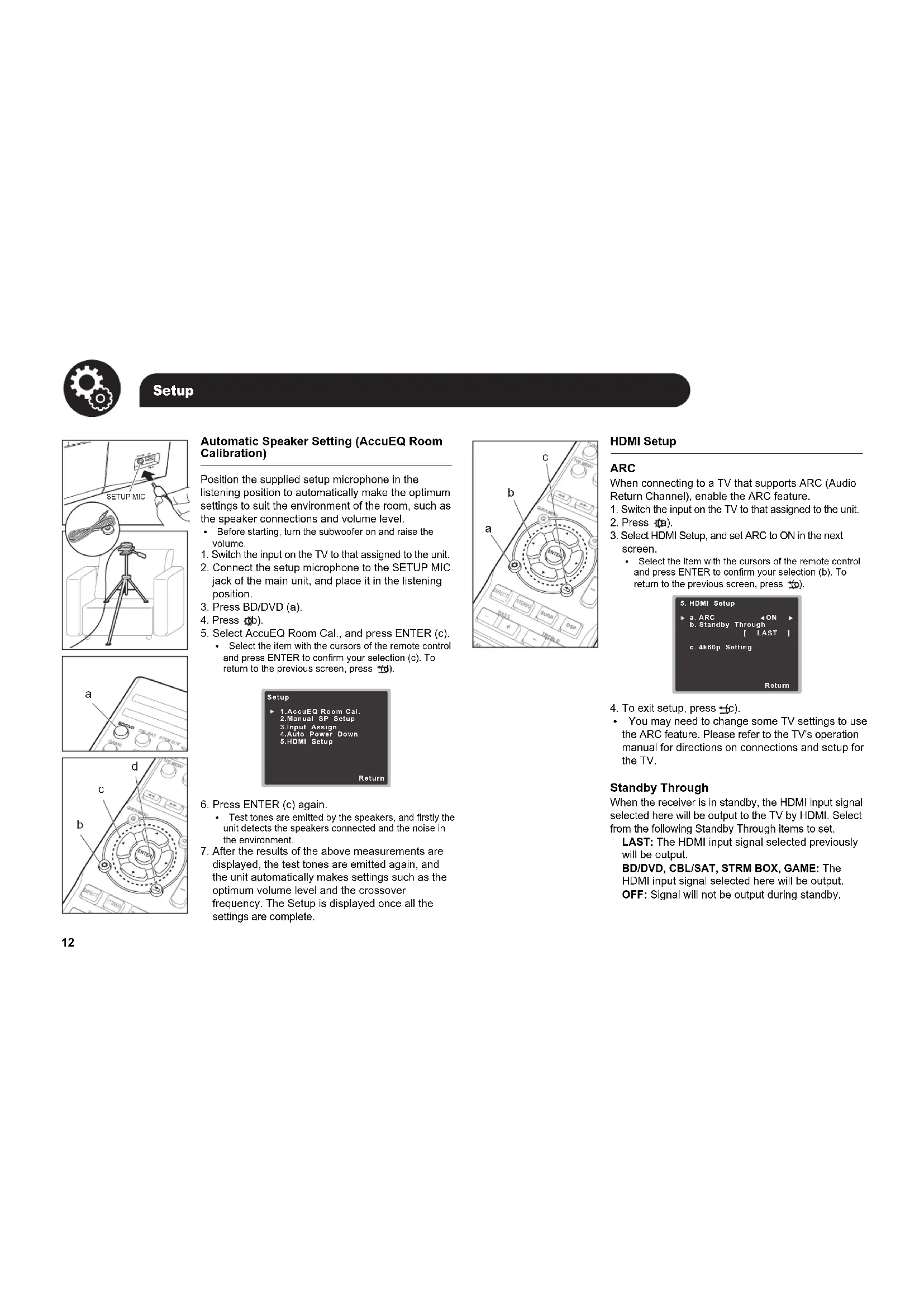

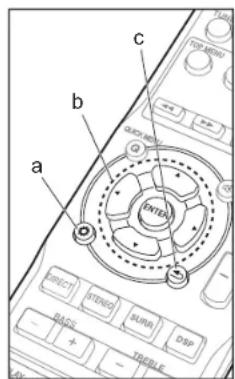

Automatic Speaker Setting (AccuEQ Room Calibration)

Position the supplied setup microphone in the listening position to automatically make the optimum settings to suit the environment of the room, such as the speaker connections and volume level.

Before starting, turn the subwoofer on and raise the volume.

1. Switch the input on the TV to that assigned to the unit.

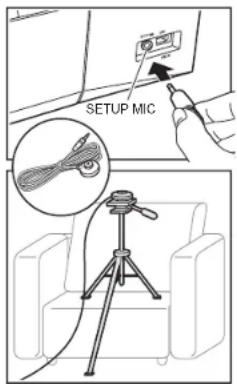

2. Connect the setup microphone to the SETUP MIC jack of the main unit, and place it in the listening position.

3. Press BD/DVD (a).

4. Press

5. Select AccuEQ Room Cal., and press ENTER (c).

6. Select the item with the cursors of the remote control and press ENTER to confirm your selection (c). To return to the previous screen, press

1. Press ENTER (c) again.
2. Test tones are emitted by the speakers, and firstly the unit detects the speakers connected and the noise in the environment.
3. After the results of the above measurements are displayed, the test tones are emitted again, and the unit automatically makes settings such as the optimum volume level and the crossover frequency. The Setup is displayed once all the settings are complete.

HDMI Setup

ARC

When connecting to a TV that supports ARC (Audio Return Channel), enable the ARC feature.
1. Switch the input on the TV to that assigned to the unit.
2. Press a).
3. Select HDMI Setup, and set ARC to ON in the next screen.

• Select the item with the cursors of the remote control and press ENTER to confirm your selection (b). To return to the previous screen, press to.

1. To exit setup, press c).

2. You may need to change some TV settings to use the ARC feature. Please refer to the TV's operation manual for directions on connections and setup for the TV.

Standby Through

When the receiver is in standby, the HDMI input signal selected here will be output to the TV by HDMI. Select from the following Standby Through items to set.

LAST: The HDMI input signal selected previously will be output.

BD/DVD, CBL/SAT, STRM BOX, GAME: The

HDMI input signal selected here will be output

OFF: Signal will not be output during standby.

Playback

Basic Playback

1. Switch the input on the TV to that assigned to the unit.
2. Press INPUT SELECTOR (a) on the remote control with the same name as the jack to which you connected the player to switch the input.
3. Start play on the player.
   4.Use VOL + / - (b) to adjust the volume.
4. You can switch the audio to suit the connected cable. Press AUDIO SEL (c) to select H (HDMI cable), C1 (coaxial cable), O1 (optical cable), or A (analog audio cable).

Listening To the Radio

1. Press TUNER (a).
2. Press BAND (b) several times to select either AM or FM.
3. Press and hold TUNING+ or TUNING- (c) for about a second to start automatic tuning to a radio station. Tuning stops when one is found.

You can preset up to 30 stations.

1. Tune into the AM/FM radio station you want to register.
2. Press EDIT (d) so that the preset number on the display flashes.
3. Press PRESET+ or PRESET- (e) to select a number between 1 and 30 while the preset number is flashing.
4. Press ENTER (f) to confirm.

To select a preset radio station, press TUNER (a) then press PRESET + or PRESET - (e).

PRES

FM 8750 Mhz 01

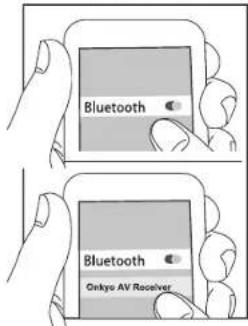

BLUETOOTH® Playback

You can wirelessly enjoy music files stored in a smartphone or other BLUETOOTH-enabled device. The coverage area is about 33 feet (10 meters).

Note that connection is not always guaranteed with all BLUETOOTH-enabled devices.
1. Press BLUETOOTH (a).
2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH-enabled device.
3. On the screen, etc., of the BLUETOOTH-enabled device, select "Onkyo AV Receiver". After a short time "CONNECT" is displayed and pairing is completed.

If a password is requested, enter "0000".
4. Play some music on the BLUETOOTH-enabled device. Increase the volume of the BLUETOOTH-enabled device to an appropriate level.

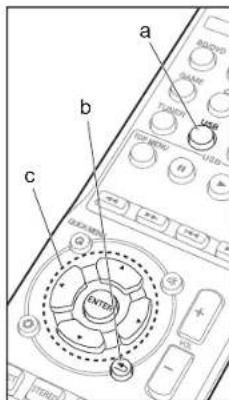

Playing a USB Device

Play music files on a USB storage device. This unit supports play of WMA/MP3/MPEG-4 AAC music files.

Note that operation is not guaranteed with all USB storage devices.
1. Switch the input on the TV to that assigned to the unit.
2. Press USB (a).
3. Connect the USB storage device to the USB port on the main unit.

Play of the first file starts automatically when the USB storage device is detected.

1. To play another file, press b) to display the list of files and folders on the TV, then use the cursors to select and ENTER to confirm (c).
   If characters that cannot be read are recorded on the USB file, they are replaced with marks.

About Listening Modes

The default setting is for the All Ch Stereo mode to be selected which plays a stereo image from the front and rear, irrespective of the input audio format.

SURR button (a)

You can select the Dolby Digital and DTS listening modes. When the input signal is multi-channel, the listening mode switches to Dolby Digital or DTS-HD MasterAudio, for example, to suit the input audio format. When the input signal is 2-channel, you can select the DOLBY PLII MOVIE/MUSIC/GAME and NEO:6 CINEMA/MUSIC listening modes which expand playback to 5.1 channels.

DIRECT button (b)

You can select the DIRECT mode that shuts down circuits and processing that affect sound quality, such as the tone control circuits. In this case, speakers play the sound field according to the number of channels in the input signal, so there would be output from only the front speakers for a 2-channel signal, for example.

STEREO button (c)

You can select the STEREO mode to playback only from the front speakers and subwoofer.

DSP button (d)

You can select original surround modes such as the All Ch Stereo and TV Logic modes.

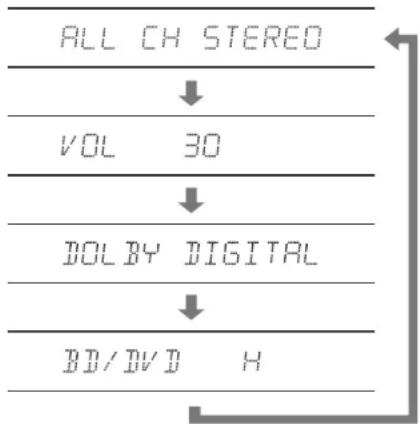

Press (e) several times to check various settings in the following order: listening mode volume input audio format input source.

You can also see which audio format is being input by checking the indicators in the lower part of the display.

DTS HD 96/24 NEOS HOHD+PLI

This unit is compatible with the following digital audio formats. (with HDMI connection)

Dolby Digital
- Dolby Digital Plus
Dolby TrueHD
DTS
DTS 96/24
- DTS Express
- DTS-HD MasterAudio
- PCM (32 kHz to 192 kHz sampling frequencies)
SACD (DSD 2ch only)
DVD Audio (including 192 kHz)

Important: The listening modes may not be available depending on the current source, settings and status of the receiver.

1. When you see RESET? appear in the display, press SURROUND. OK? shows in the display.

2. Press DSP to confirm.

Troubleshooting

• When a sound can not be heard from center and rear speakers, press SURR or DSP to change listening modes.
  E.g.) Press DSP for several times to select All Ch Stereo.
  In order to listen to the audio from the source component that is connected to this receiver, press AUDIO SEL to select H (HDMI cable), C1 (coaxial cable), O1 (optical cable), or A (analog audio cable).

• If there is no sound from the subwoofer: When the front speaker is set to LARGE then, in some cases, no sound may come from the subwoofer. Change the front speaker setting to SMALL or change the subwoofer to PLUS and the sound should be restored.
  If the power suddenly turns off:

• Check that there are no loose strands of speaker wire touching the rear panel or another set of wires. If so, re-attach the speaker wires, making sure there are no stray strands.

• When Auto Power Down is set, the power automatically turns off at the set time.
• We will not accept responsibility for any damage arising from the connection of equipment manufactured by other companies.

Resetting the Main Unit

Use this procedure to reset all the receiver's settings to the factory default. Use the front panel controls to do this.

1. Switch the receiver into standby.
2. While holding down STEREO, press and hold

ON/STANDBY for about two seconds.
