USER MANUAL TXNR777 ONKYO

What's in the box....2

Part Names 3

Part Names 3

Install 7

Installation procedure....7

Step1: Speaker Layout....8

Step2: Connect the Speakers.... 14

Step3: Connect the TV & AV Components.... 16

Initial Setup 23

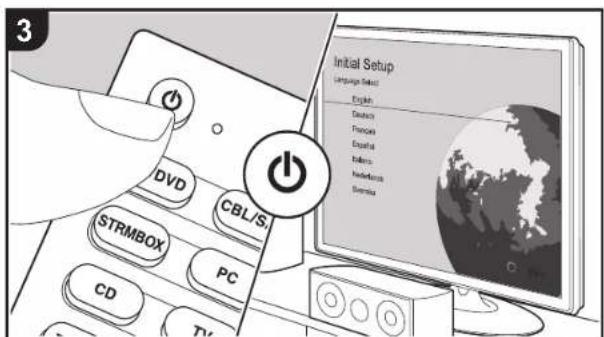

Initial Setup with Auto Start-up Wizard.... 23

Playback 25

AV Component Playback 25

BLUETOOTH ^® Playback....25

Network Functions.... 26

USB Storage Device 27

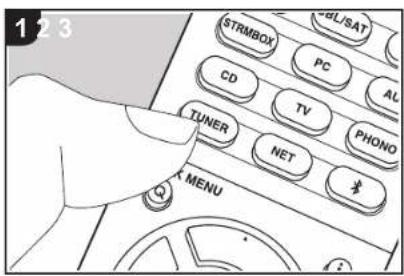

Listening to the AM/FM Radio....28

Multi-zone....30

Listening Mode.... 31

For details about the Network Functions and listening modes, and

information regarding the advanced settings, refer to the

Advanced Manual available on our website.

http://www.onkyo.com/manual/txnr777/adv/en.html

Illustration showing a person using a radio to clean the front panel, with no text or symbols present.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols)

> Before Start > Part Names > Install > Initial Setup > Playback

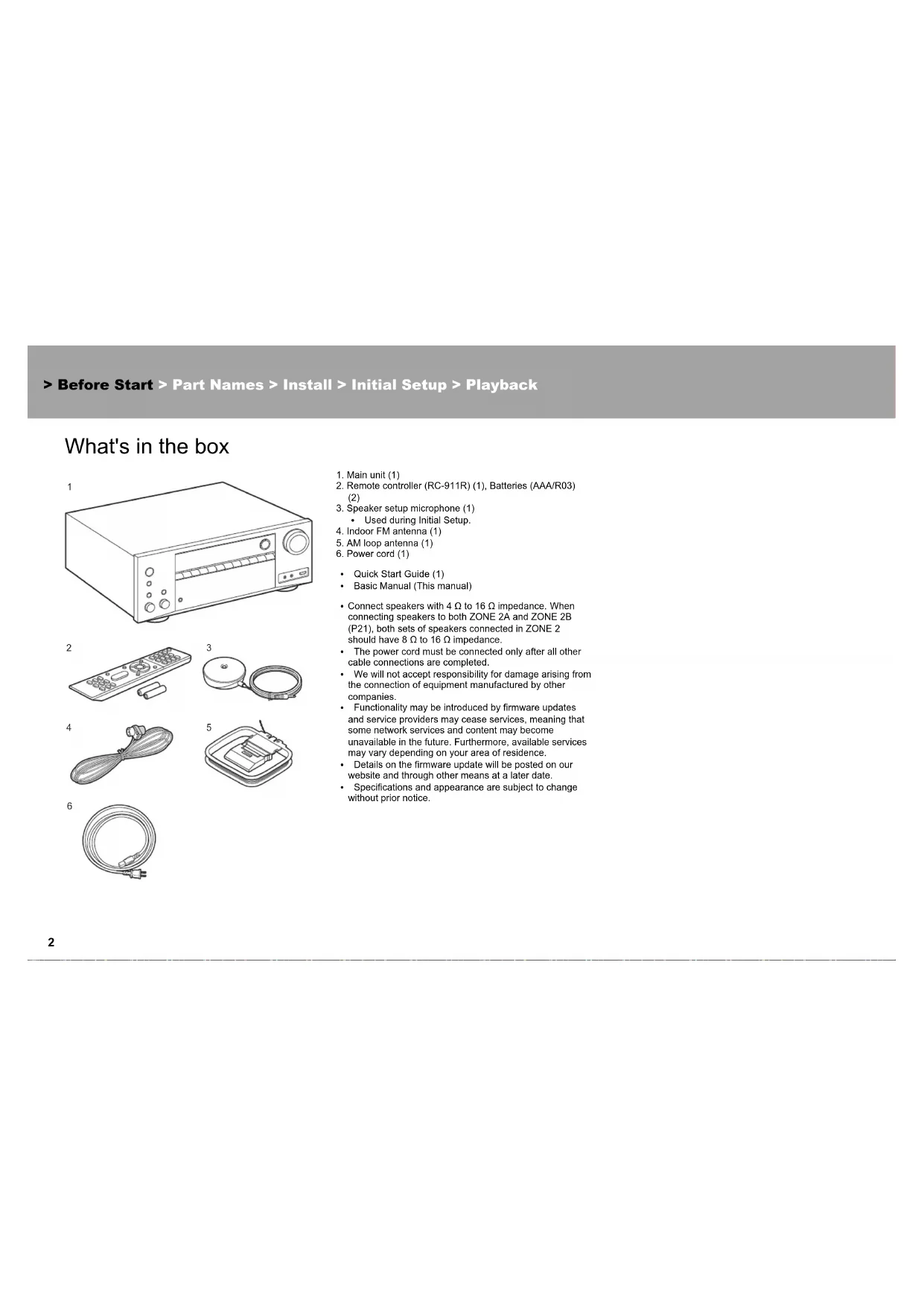

What's in the box

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Illustration of a remote control with batteries and a coiled cable (no text or symbols)

Two technical illustrations: one of a bundle cable, the other of a device with wires and components (no text or symbols)

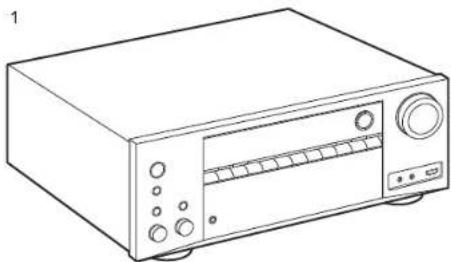

1. Main unit (1)
2. Remote controller (RC-911R) (1), Batteries (AAA/R03) (2)
3. Speaker setup microphone (1) • Used during Initial Setup.
4. Indoor FM antenna (1)
5. AM loop antenna (1)

6. Power cord (1)

7. Quick Start Guide (1)
   • Basic Manual (This manual)

8. Connect speakers with 4 Ω to 16 Ω impedance. When connecting speakers to both ZONE 2A and ZONE 2B (P21), both sets of speakers connected in ZONE 2 should have 8 Ω to 16 Ω impedance.
9. The power cord must be connected only after all other cable connections are completed.
10. We will not accept responsibility for damage arising from the connection of equipment manufactured by other companies.
11. Functionality may be introduced by firmware updates and service providers may cease services, meaning that some network services and content may become unavailable in the future. Furthermore, available services may vary depending on your area of residence.
    • Details on the firmware update will be posted on our website and through other means at a later date.
12. Specifications and appearance are subject to change without prior notice.

Before Start > Part Names > Install > Initial Setup > Playback

(^)You can find details in the Advanced Manual.

Part Names

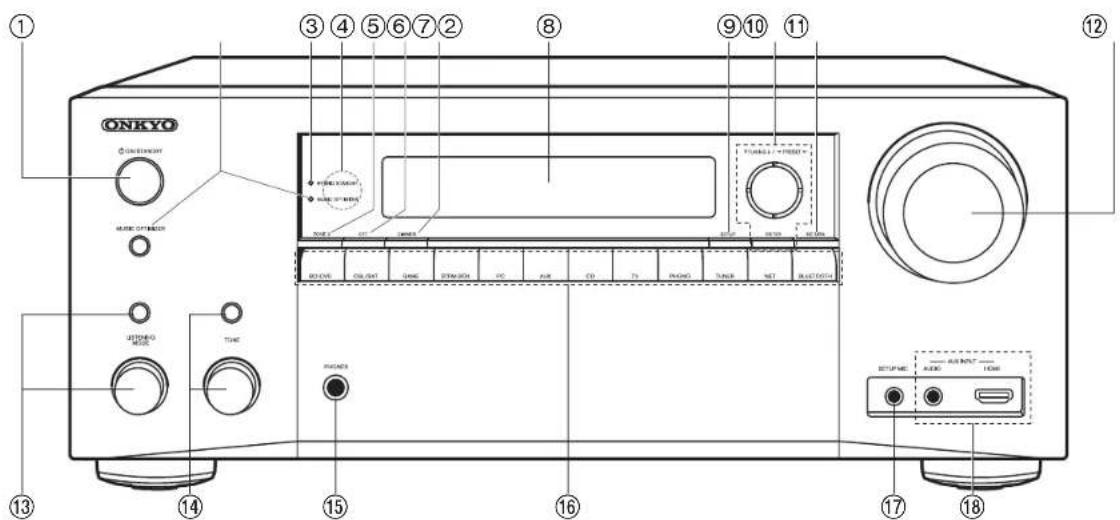

ONKYO 3 4 5 6 7 2 8 9 10 11 12 3 4 5 6 7 8 MUSIC ORDER POTER MOUNT RANGE TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSDS TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD N TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD S TURSD MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT MOUNT

Front Panel

1. ON/STANDBY button
2. MUSIC OPTIMIZER button/indicator: Turns on/off the Music Optimizer function that provides better sound quality for compressed audio.
3. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features are enabled that continue to work when this unit is in standby, such as HDMI Standby Through and Network Standby.
4. Remote control sensor: Receives signals from the remote controller.

- The signal range of the remote controller is within about 16°/5 m, at an angle of 20° on the perpendicular axis and 30° to either side.

1. ZONE 2 button: Controls the multi-zone function (P30).
2. OFF button: Switches the multi-zone function off (P30).
3. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be

turned off completely.

1. Display (P4)
2. SETUP button: You can show advanced setting items on the TV and display to provide you with an even better experience. (*)
3. Cursor buttons (▲ / ▼ / ◀ / ▶) and ENTER button: Select the item with the cursors and press ENTER to confirm. Use them to tune to stations when using TUNER (P28).
4. RETURN button: Returns the display to the previous state.
5. MASTER VOLUME
6. Press the LISTENING MODE button (above) repeatedly to select a category from "Movie/TV", "Music", "Game", then turn the LISTENING MODE dial (below) to change the mode (P31). (*)

> Before Start > Part Names > Install > Initial Setup > Playback

(^)You can find details in the Advanced Manual.

1. You can adjust the sound quality of the front speakers. Press the TONE button (above) repeatedly to select the item to adjust from "Bass" and "Treble", and turn the TONE dial (below) to adjust.
2. PHONES jack: Headphones with a standard plug (∅1/4"/6.3 mm) are connected.
3. Input selector buttons: Switches the input to be played.
4. SETUP MIC jack: The supplied speaker setup microphone is connected.
5. AUX INPUT AUDIO/HDMI jack: Connect a video camera, etc., using a stereo mini plug cable (∅1/8"/3.5 mm) or a HDMI cable.

① ② NET USD HOME DIGITAL, https://data.org/10.00000000000000000000000000000000000000000000000000000000000000000000000000 ③ ④ ⑤ ⑦ ⑦

Display

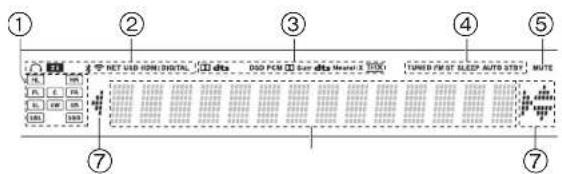

1. Speaker/Channel display: Displays the output channel that corresponds to the selected listening mode.

2. Lights in the following conditions. ☐: When headphones are connected.

Z2: When ZONE 2 is on. *: When connected by BLUETOOTH.

: When connected by Wi-Fi. NET: When "NET" is selected with the input selector and the unit is connected to the network. It will flash if the connection to the network is not correct.

USB: When "NET" is selected with the input selector and the unit is connected by USB and the USB device is selected. Flashes if the USB is not properly connected.

HDMI: When HDMI signals are input and the HDMI input is selected. DIGITAL: When digital signals are input and the digital input is selected.

1. Lights according to the type of input digital audio signals and the listening mode.

2. Lights in the following conditions. TUNED: Receiving AM/FM radio.

FM ST: Receiving FM stereo. SLEEP: When the sleep timer is set. (*) AUTO STBY: Auto Standby is on. (*)

1. Flashes when muting is on.

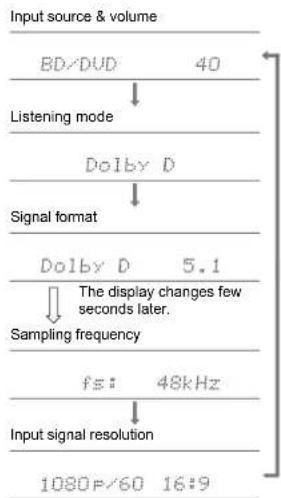

2. Displays various information of the input signals. Characters that cannot be displayed on this unit are replaced with asterisks ( * ).

- When playing back software which has been encoded in Dolby Digital, Dolby Digital Plus and Dolby TrueHD, sometimes you may see a brief message which will read "DialogNorm: X dB" (X being a

numeric value). For example, if you see the following message: "DialogNorm:+4 dB", to keep the overall output level at THX calibrated loudness, just turn down the volume control by 4 dB.

1. This may light when performing operations with the "NET" input selector.

Before Start > Part Names > Install > Initial Setup > Playback

(^)You can find details in the Advanced Manual.

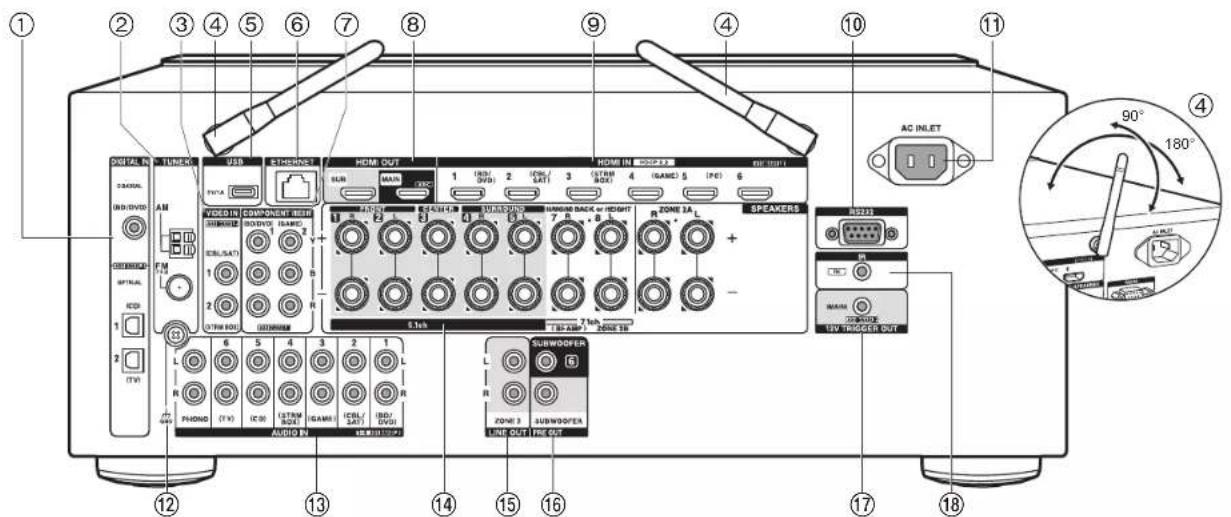

1 2 3 4 5 6 7 8 9 4 10 11 DIGITAL IN TURKEY USB ETHERONET HOME OUT HOME IN STOPPAN EUTRIN USB MAX 1 (USB/2) 2 (USB/3) 3 (USB/4) 4 (GAM) 5 (PG) 6 VDDI IN COMPONENT REACH 1.5x 2.0x 3.0x 4.0x 5.0x 6.0x 7.0x 8.0x 9.0x 10.0x 11.0x SPEAKERS BOS23 AC INLET 12 13 14 15 16 17 18 AUDIO IN SUBWOOFER R ZONE 3 SUBWOOFEA LINE OUT FRE OUT PHONE (TV) (ICB) (STROM BOX) (GAME) (ICBL/SAT) (DVD/DVD) SUNDOORI R R 5.1ns 7.1ns 8.0ns 9.0ns 10.0ns 11.0ns 12.0ns 13.0ns 14.0ns 15.0ns 16.0ns 17.0ns 18.0ns 90° 180°

Rear Panel

1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals with a digital optical cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminal: The supplied antennas are connected.
3. VIDEO IN jacks: Input the AV component video signals with an analog video cable.
4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH wireless technology enabled device. Adjust their angles according to the connection status.
5. USB port: A USB storage device is connected so that music files stored in it can be played. You can also supply power (5 V/1 A) to USB devices with a USB cable.
6. ETHERNET port: Connect to the network with an Ethernet cable.
7. COMPONENT VIDEO IN jacks: Input the AV component video signals with a component video cable. (Compatible only with 480i or 576i resolution.)
8. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected

to a monitor such as a TV or projector.

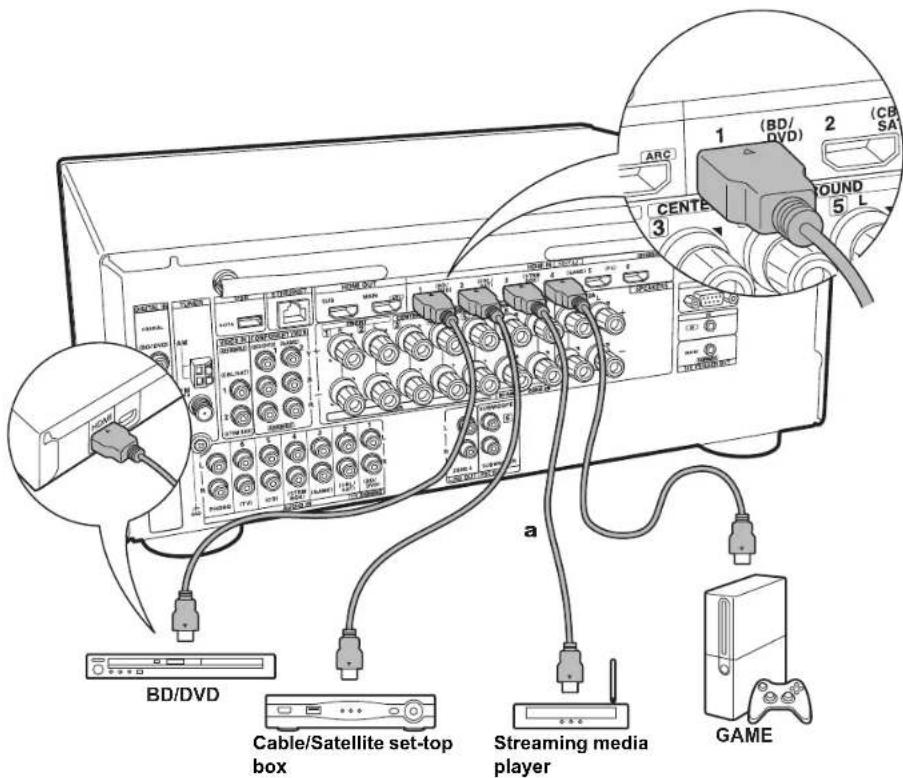

1. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to an AV component.
   10.RS232 port: For connection to the home control system. (*)
2. AC INLET: The supplied power cord is connected.
3. GND terminal: The ground wire of the turntable is connected.
4. AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
5. SPEAKERS terminals: Use a speaker cable to connect multichannel speakers for the main room and speakers for a separate room (ZONE 2). (Compatible with banana plugs)

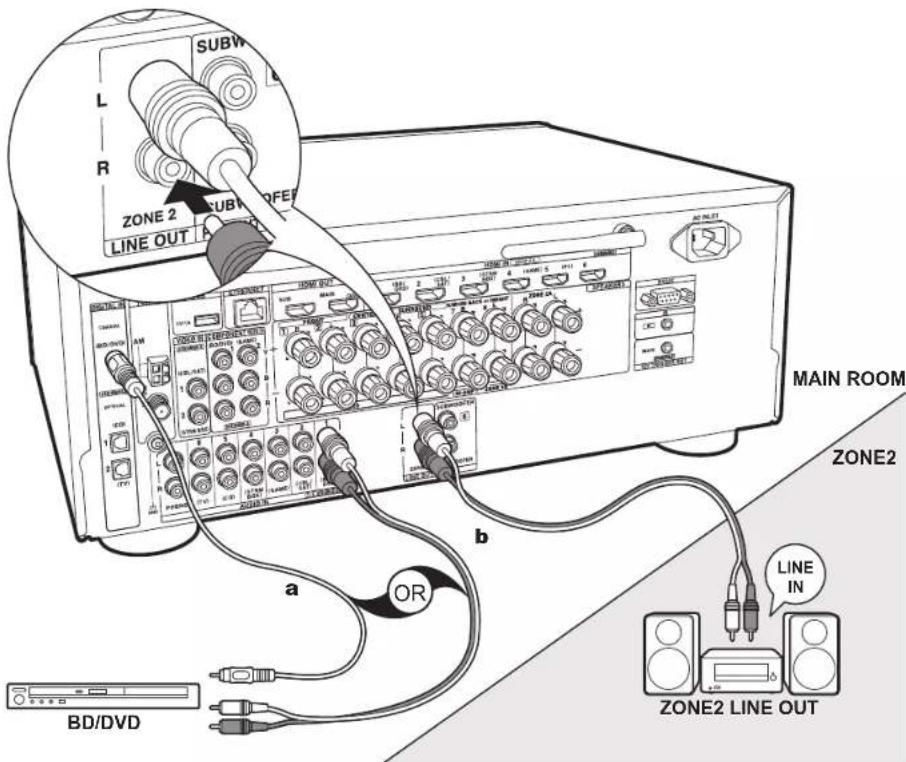

6. ZONE 2 LINE OUT jack: Output audio signals with an analog audio cable to a pre-main amplifier in a separate room (ZONE 2).

> Before Start > Part Names > Install > Initial Setup > Playback

(^)You can find details in the Advanced Manual.

1. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable. Up to two powered subwoofers can be connected. The same signal is output from each of the SUBWOOFER PRE OUT jacks.
   17.12V TRIGGER OUT jack: Allows you to connect a device with 12V trigger input jack to enable link operation between the device and the unit. (*)
2. IR IN port: Allows you to connect a multiroom remote control kit. (*)

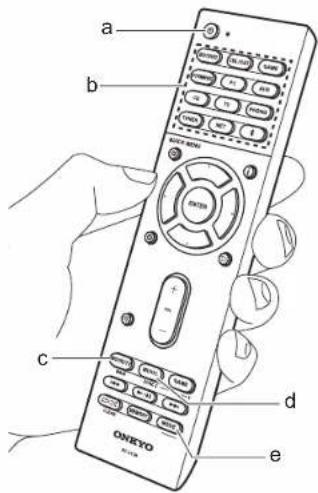

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ ONKYO RC-111R BD/DVD CBL/SAT GAME STRIMBOX PC AUX CD TV PHONO TUNER NET $ QUICK MENU ENTER + - MOVIE/TV MUSIC GAME MAIN ZONE 3 C/C MEMORY MODE CLEAR

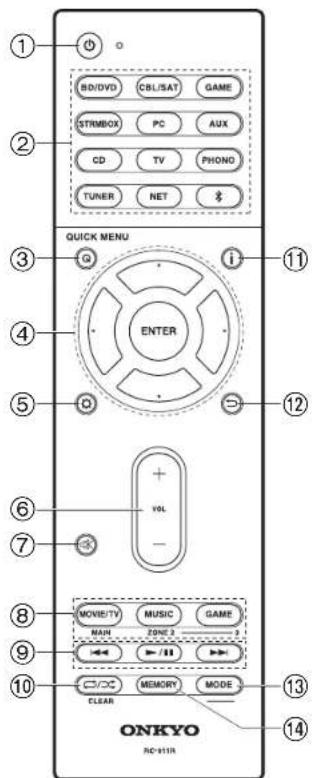

Remote Controller

1. ON/STANDBY button

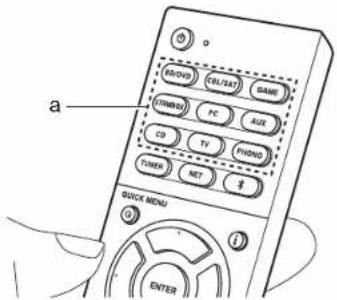

2. Input selector buttons: Switches the input to be played.

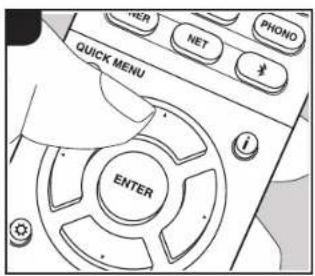

3. Q (QUICK MENU) button: Settings such as "Tone" and "Level" can be made quickly during play on the TV screen. "Other" has settings to switch the speakers given priority for output and to switch HDMI output (P16). (*)
4. Cursor buttons and ENTER button: Select the item with the cursors and press ENTER to confirm your selection. When the folder or file lists are not shown on one screen on the TV, press ◀/▶ to change the screen.
5. Button: You can show advanced setting items on the TV and display to provide you with an even better experience. (*)
6. Volume buttons
7. button: Temporarily mutes audio. Press again to cancel muting.

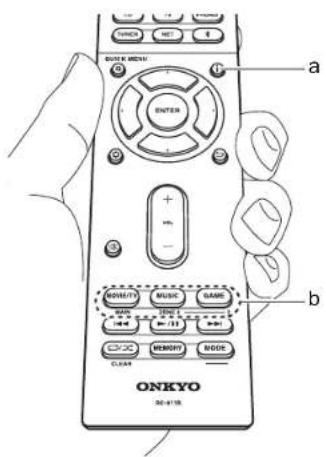

8. LISTENING MODE buttons: Allows you to select the listening mode (P31). (*) MAIN/ZONE 2 buttons: Controls the multi-zone function (P30). (The ZONE 3 button is not used with this unit.)
9. Play buttons: Used for play operations when playing Music Server or USB.
10. 📄/ ✗ button: You can start repeat/random play of the Music Server or USB. Each time you press the button, the mode switches from 1( tracks repeat), to ☐ (folder repeat), to ☑ (random). CLEAR button: Deletes all characters you have entered when entering text on the TV screen.
11. i button: Switches the information on the display.
12. ➕ button: Returns the display to the previous state.

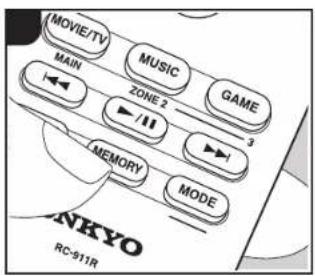

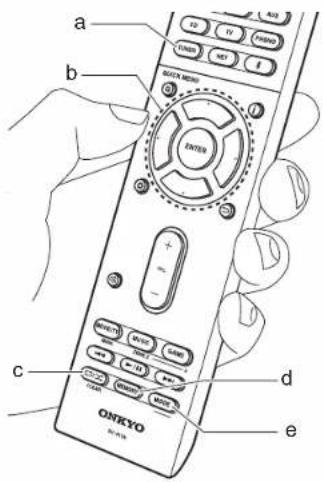

    13.MODE button: Switches tuning to an AM/FM station between automatic tuning and manual tuning (P28), and also used to control the multi-zone feature (P30).
13. MEMORY button: Used to register AM/FM radio stations.

Tips

When the remote controller isn't working: The remote controller may have switched to the mode for controlling ZONE 2. While holding down MODE, press MAIN for 3 seconds or more until the remote indicator flashes once to switch it to the mode to control the main room.

Before Start > Part Names > Install > Initial Setup > Playback

Installation procedure

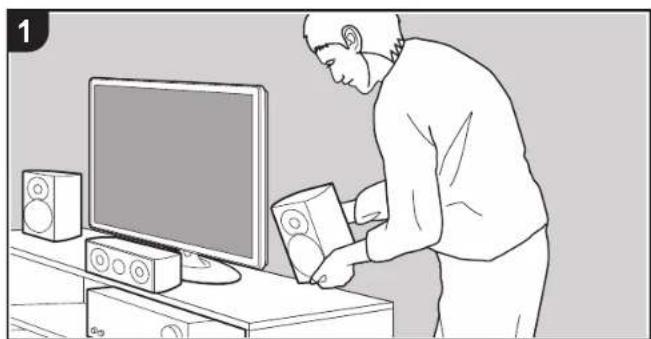

Illustration of a person installing or adjusting a CD on a TV set, with no visible text or symbols.

Line drawing of a person using a speaker on a stand (no text or symbols)

Line drawing of a person using a computer monitor with cable (no text or symbols)

This unit can be used in a number of ways, depending on the layout of the speakers you are installing, and the connections made to external devices. Read the following to help make the installation process smoother.

Step1: Speaker Layout

Select the speaker layout that suits the types of speakers you have and the conditions they will be used in from the choices presented on pages P8 to P12, then install the speakers by referring to the illustrations and explanations on the relevant page. Speaker layouts include systems that use surround back speakers, systems that use height speakers, and systems that use Bi-Amping speakers. Also refer to the combinations available in "Speaker combinations" on P13.

Step2: Connect the Speakers

To connect the speaker systems to this unit, refer to P14 if you are using a speaker layout described on one of P8 to P11, and to P15 to use a speaker layout using Bi-Amping speakers described on P12. The connection process will be smoother if you refer to the illustrations and explanations and prepare the required cables before hand.

Step3: Connect the TV & AV Components

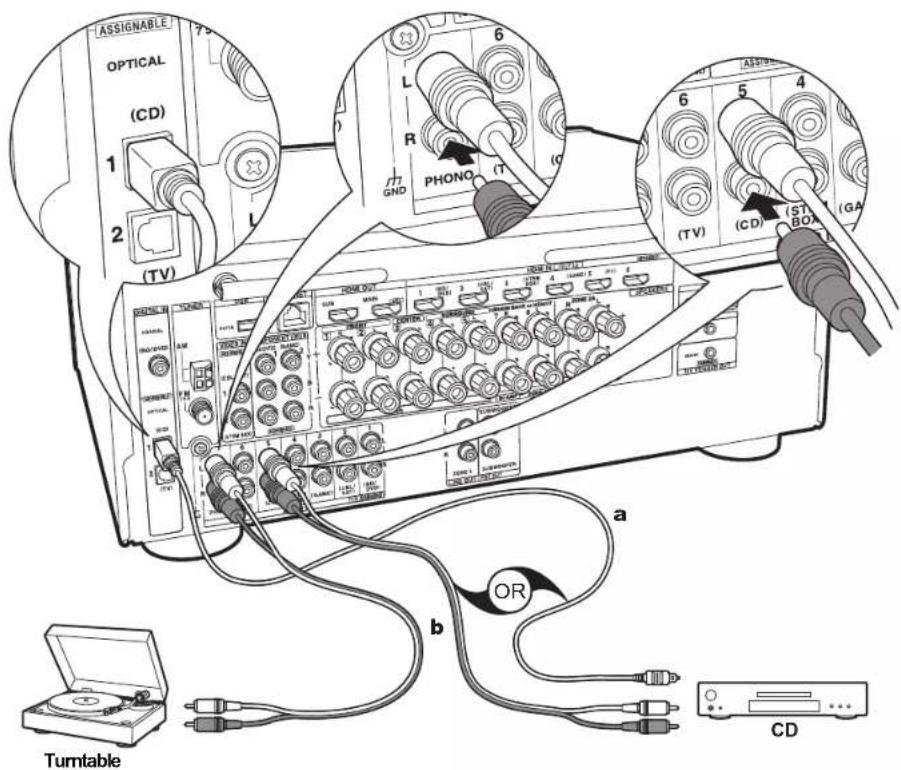

Refer to P16 to P22 to connect your external devices such as your TV, Blu-ray Disc Player, and also supplied accessories such as the antennas. Also, P20, P21 introduces the Multi-zone Connection option that allows you to play audio into rooms other than the main room. The connection process will be smoother if you refer to the illustrations and explanations, confirm the connection types on the external devices, and prepare the required cables before hand.

Before Start > Part Names > Install > Initial Setup > Playback

Step1: Speaker Layout

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ *1: 22° to 30', *2: 90° to 110', *3: 135' to 150' *1 *2 *3

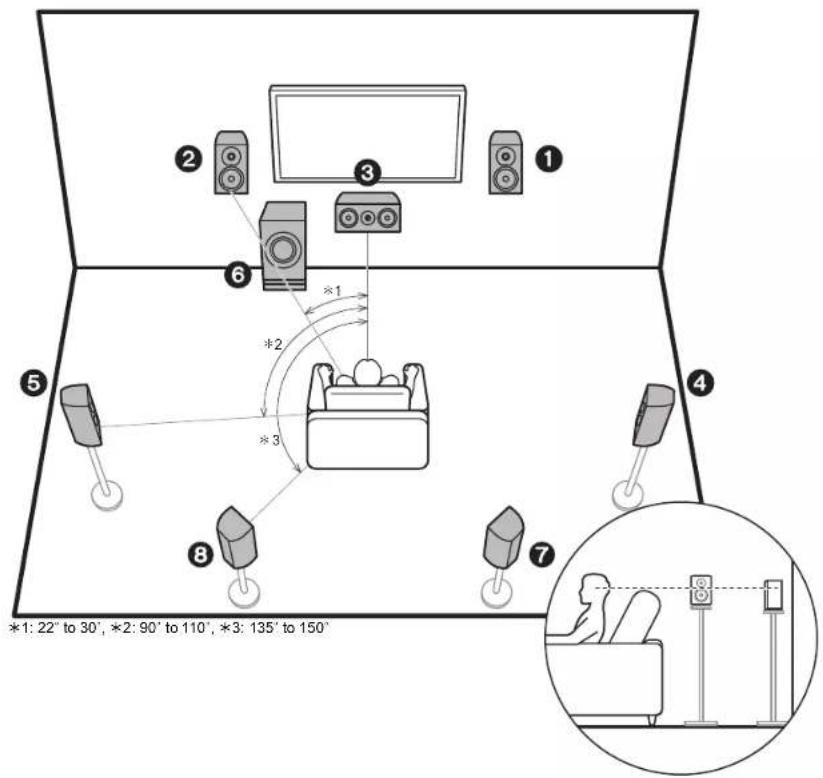

7.1 Channel System

Front speakers output front stereo sound and a center speaker outputs center sound such as dialogs and vocals. Surround speakers create back sound field. Powered subwoofer reproduces bass sounds and creates rich sound field.

This basic 5.1 Channel System with surround back speakers added is called a 7.1 Channel System. The connection of surround back speakers improves the sense of envelopment and connectivity of sound created by the back sound field and provides a more real sound field. Furthermore, by installing surround back speakers, you can select the Dolby Atmos listening mode, which realizes the most up-to-date 3D sound, when the input format is Dolby Atmos.

The front speakers should be positioned at ear height, while the surround speakers should be positioned just above ear height. Center speaker should be set up facing the listening position. Placing the powered subwoofer between the center speaker and a front speaker gives you a natural sound even when playing music. The optimal positioning is for surround back speakers to be at ear height.

• If you are including surround back speakers in the setup, surround speakers are required.
• "Speaker combinations" (P13) introduces some detailed examples of speaker combinations.

1,2 Front Speakers

3 Center Speaker
4.5 Surround Speakers
6 Powered Subwoofer
7,8 Surround Back Speakers

Before Start > Part Names > Install > Initial Setup > Playback

3' (0.9 m) or more *1: 22' to 30', *2: 120' 3' (0.9 m) or more

5.1.2 Channel System-1

(Front High Speakers/Rear High Speakers)

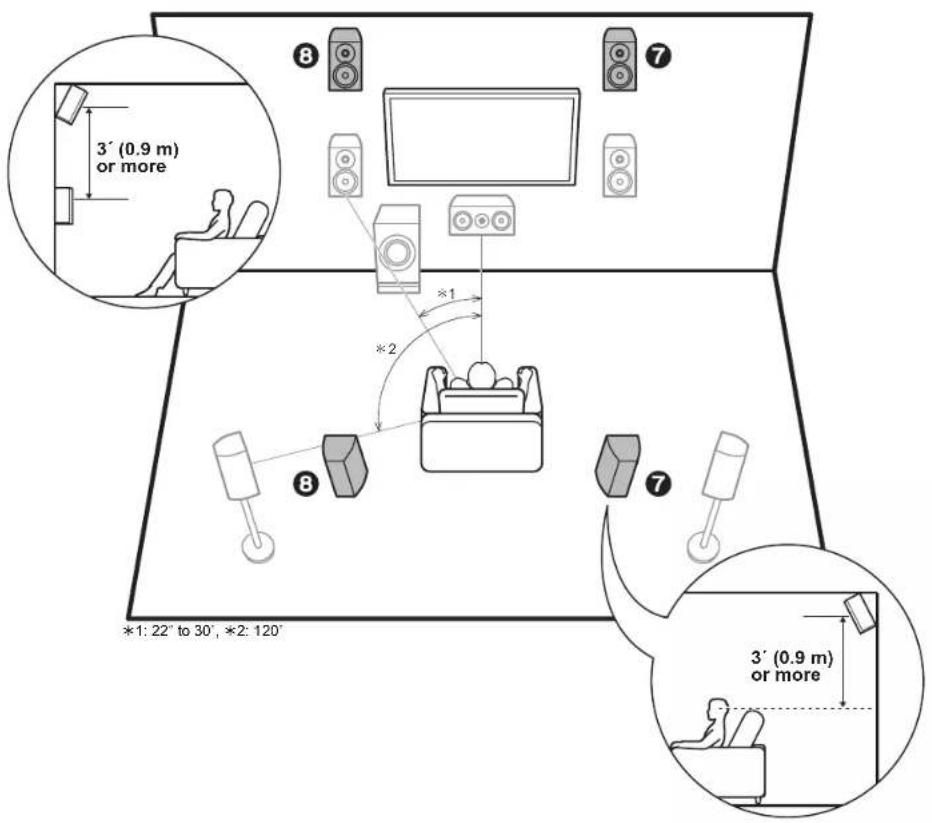

This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of front height speakers or rear high speakers, which are both types of height speakers. By installing height speakers, you can select the Dolby Atmos listening mode, which realizes the most up-to-date 3D sound including overhead sounds, when the input format is Dolby Atmos. Front high speakers or rear high speakers should be situated at least 3°/0.9 m higher than the front speakers. Front high speakers should be situated directly above the front speakers and the distance between the rear high speakers should match the distance between the front speakers. Both should be set up facing the listening position.

- "Speaker combinations" (P13) introduces some detailed examples of speaker combinations.

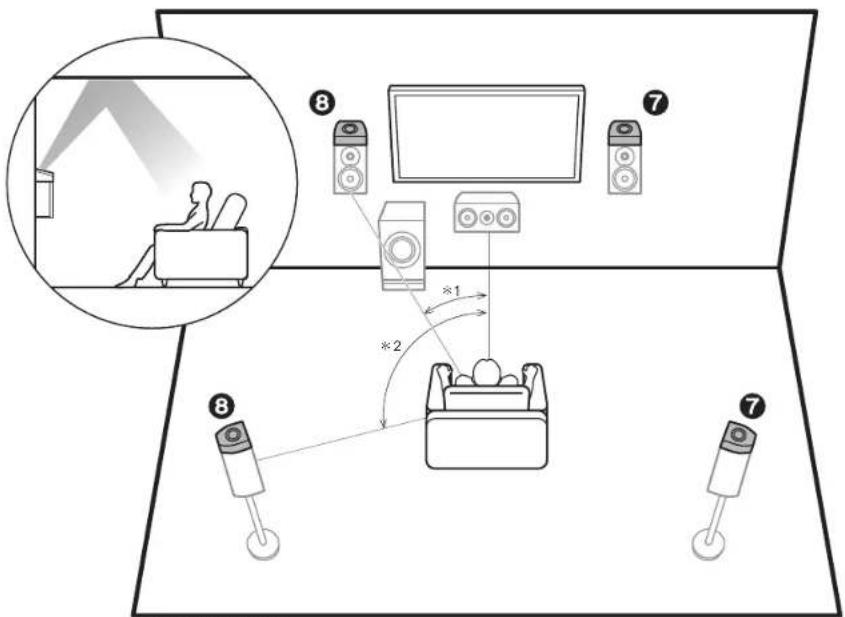

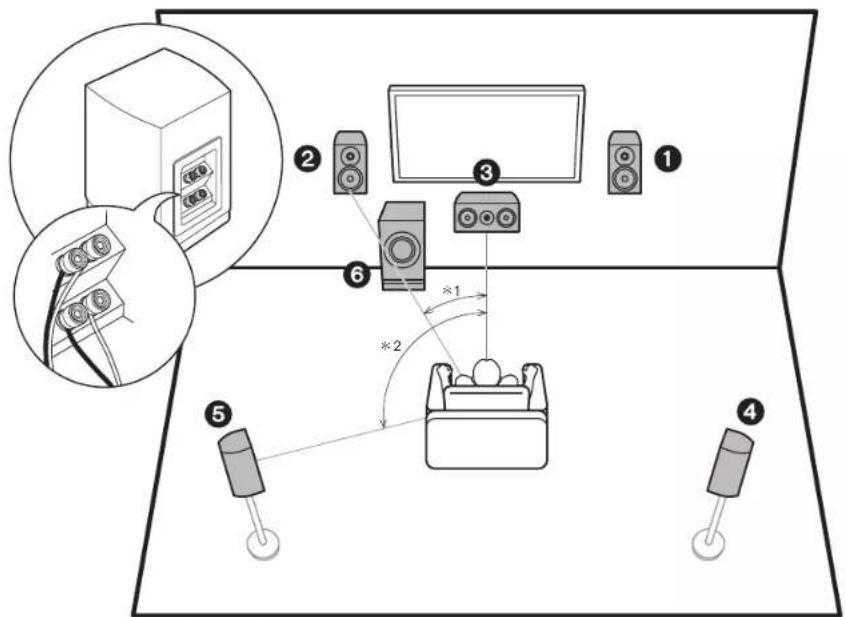

7,8 Height Speakers

Choose one of the following:

- Front High Speakers

• Rear High Speakers

Before Start > Part Names > Install > Initial Setup > Playback

8 7 8 7 7 7 *3 *2 *1 *1: 30° to 55°, *2: 65° to 100°, *3: 125° to 150°

5.1.2 Channel System-2 (Ceiling Speakers)

This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of top front speakers, top middle speakers, or top rear speakers, which are types of height speakers. By installing height speakers, you can select the Dolby Atmos listening mode, which realizes the most up-to-date 3D sound including overhead sounds, when the input format is Dolby Atmos. Fit top front speakers on the ceiling forward of the seating position, top middle speakers on the ceiling directly above the seating position, and top rear speakers on the ceiling behind the seating position. The distance between each pair should match the distance between the two front speakers.

• Dolby Laboratories recommends placing this type of
height speakers to obtain the best Dolby Atmos effect.
- "Speaker combinations" (P13) introduces some detailed examples of speaker combinations.

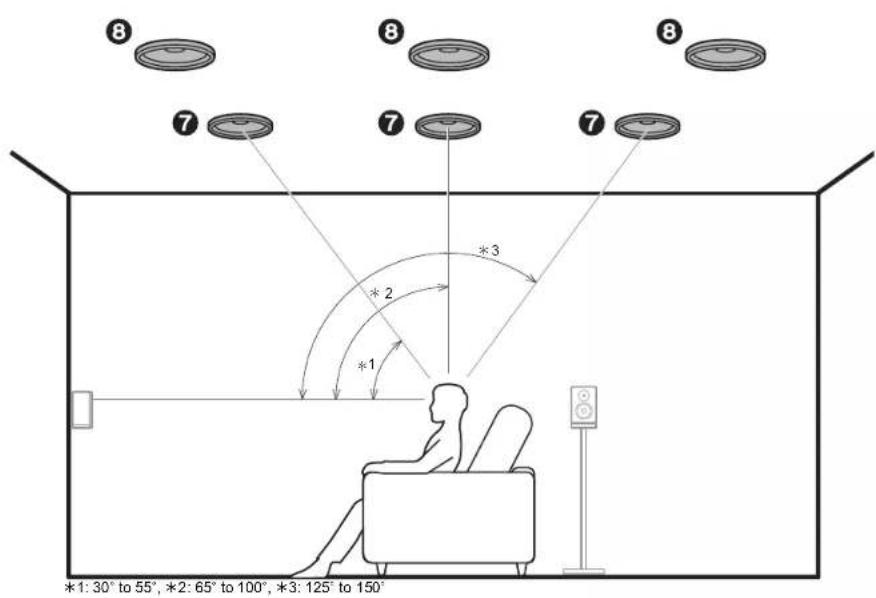

7,8 Height Speakers

Choose one of the following:

• Top Front Speakers
• Top Middle Speakers
• Top Rear Speakers

Before Start > Part Names > Install > Initial Setup > Playback

*1: 22" to 30", *2: 120"

5.1.2 Channel System-3

(Dolby Enabled Speakers (Dolby Speakers))

This is a basic 5.1 channel system consisting of front speakers, a center speaker, surround speakers, and a powered subwoofer, with the addition of Dolby enabled speakers (front) or Dolby enabled speakers (surround), which are both types of height speakers. Dolby enabled speakers are special speakers designed to face the ceiling so that sound is heard after bouncing off the ceiling so that sound appears to be coming from overhead. By installing height speakers, you can select the Dolby Atmos listening mode, which realizes the most up-to-date 3D sound including overhead sounds, when the input format is Dolby Atmos.

Place them either above the front speakers or above the surround speakers.

"Speaker combinations" (P13) introduces some detailed examples of speaker combinations.

7,8 Height Speakers

Choose one of the following:

Dolby Enabled Speakers (Front)

• Dolby Enabled Speakers (Surround)

Before Start > Part Names > Install > Initial Setup > Playback

Diagram illustrating a setup with labeled components including speakers, TV, and display devices, showing connections between numbered items.

*1: 22" to 30', *2: 120'

Bi-Amping the Speakers

With a 5.1 channel system, it is possible to connect front speakers that support Bi-Amping to improve the quality of the bass and treble. Bi-Amping compatible speakers need their terminals for the tweeters connected to one amplifier and their terminals for woofers connected to another amplifier, so it is not possible to connect height speakers and surround back speakers with this connection. Other than front speakers, you can also connect a center speaker, surround speakers, and a powered subwoofer.

- "Speaker combinations" (P13) introduces some detailed examples of speaker combinations.

1,2 Front Speakers (Bi-Amping)
3 Center Speaker
4,5 Surround Speakers
6 Powered Subwoofer

Before Start > Part Names > Install > Initial Setup > Playback

Speaker combinations

- In any of the combinations, up to two powered subwoofers can be connected.

Speaker Channels FRONT CENTER SURROUND				SURROUND BACK HEIGHT Bi-AMP		ZONE 2 (ZONE SPEAKER) (P21)
2.1 ch	✓				✓ (*1)	✓ (*1, 2)
3.1 ch	✓	✓			✓ (*1)	✓ (*1, 2)
4.1 ch	✓		✓		✓ (*1)	✓ (*1, 2)
5.1 ch	✓	✓	✓		✓ (*1)	✓ (*1, 2)
6.1 ch	✓		✓	✓ (*3)		✓
7.1 ch	✓	✓	✓	✓ (*3)		✓
2.1.2 ch	✓				✓ (*4)	✓
3.1.2 ch	✓	✓			✓ (*4)	✓
4.1.2 ch	✓		✓		✓ (*4)	✓
5.1.2 ch	✓	✓	✓		✓ (*4)	✓

(*1) You can select Bi-AMP or ZONE SPEAKER.
(*2) You can connect two sets of ZONE SPEAKER; ZONE 2A and ZONE 2B.
(*3) No sound is played from the surround back speakers when playing audio from ZONE SPEAKER.
(*4) No sound is played from the height speakers when playing audio from ZONE SPEAKER.

Before Start > Part Names > Install > Initial Setup > Playback

Step2: Connect the Speakers

1/2" (12 mm) a b ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

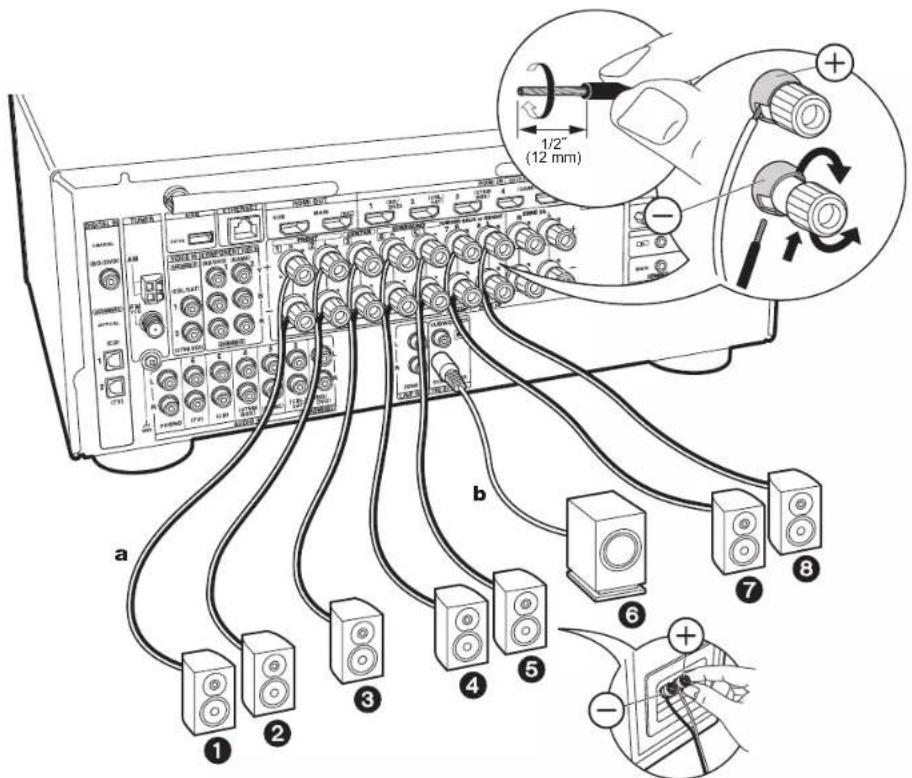

a Speaker cable, b Subwoofer cable

Standard Connections (Pages 8 to 11)

Up to two powered subwoofers can be connected. The same signal is output from each of the SUBWOOFER PRE OUT jacks.

Setup

• Settings for the speaker configuration you have connected need to be made in "1. AccuEQ Room Calibration" in Initial Setup (P23).
• If any of the connected speakers have an impedance of 4 Ω or more to less than 6 Ω, after completing Initial Setup, you need to make some settings in the Setup menu. Press On the remote controller, select "2. Speaker" - "Configuration" and set "Speaker Impedance" to "4ohms".

SUB MAN T1 EXAC S2 B D B

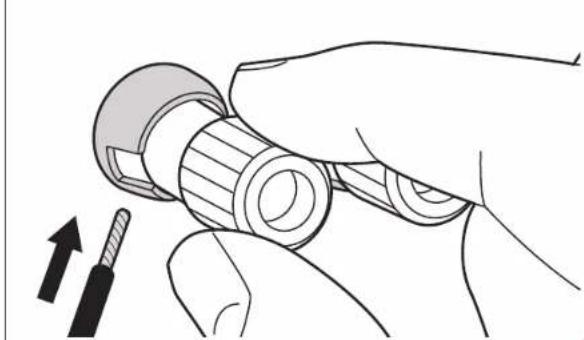

Make sure the exposed wires of the speakers do not stick out of the speaker terminals when connecting. If the exposed wires of the speakers touch the rear panel or the + and - wires touch each other, the protection circuit will be activated.

Before Start > Part Names > Install > Initial Setup > Playback

1/2" (12 mm) a For high- frequency For low- frequency

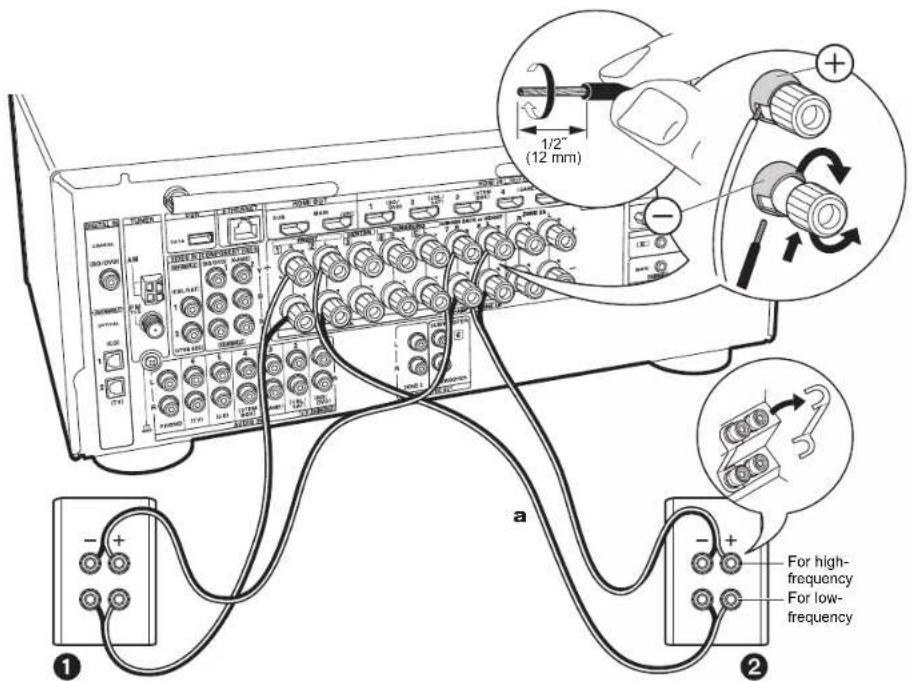

a Speaker cable

Connecting with Bi-Amping Speakers (Page 12)

Make sure you remove the jumper bar fitted between the woofer jacks and tweeter jacks of the front speakers. Refer to "Standard Connections (Pages 8 to 11)" (P14) to connect the center speaker, surround speakers, and powered subwoofer.

- Also refer to the instruction manual for your speakers when using connections for Bi-Amping.

Setup

• Settings for the speaker configuration you have connected need to be made in "1. AccuEQ Room Calibration" in Initial Setup (P23).
• If any of the connected speakers have an impedance of 4 Ω or more to less than 6 Ω, after completing Initial Setup, you need to make some settings in the Setup menu. Press on the remote controller, select "2. Speaker" - "Configuration" and set "Speaker Impedance" to "4ohms".

SUB MAN ELECTRIC CEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

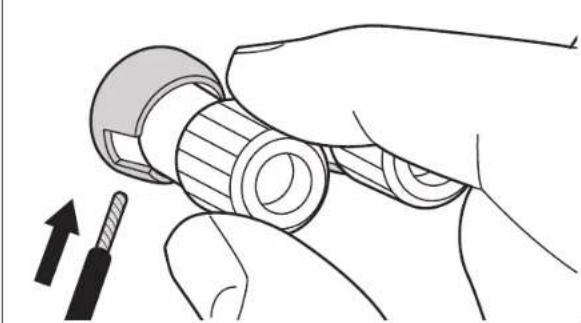

Make sure the exposed wires of the speakers do not stick out of the speaker terminals when connecting. If the exposed wires of the speakers touch the rear panel or the + and - wires touch each other, the protection circuit will be activated.

Before Start > Part Names > Install > Initial Setup > Playback

Step3: Connect the TV & AV Components

(CD) 1 2 (TV) L R *2 HDMI OUT MAIN FRONT B 1 4 R 2 HDMI OUT MAIN FRONT a b (ARC) HDMI IN TV

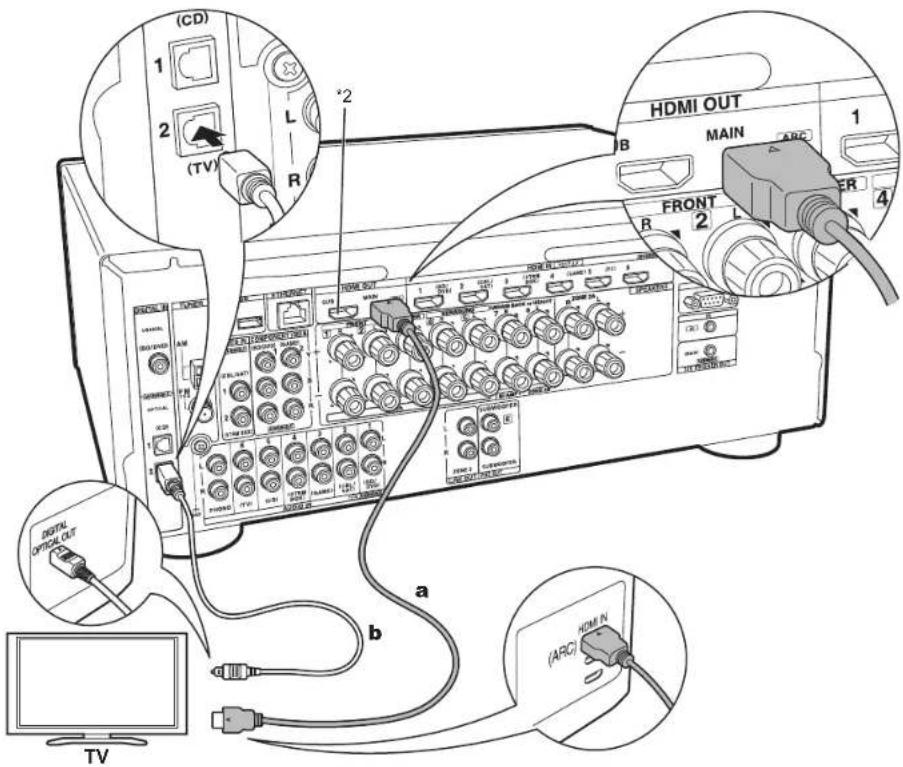

a HDMI cable, b Digital optical cable

1. Connect the TV

To ARC TV

For a TV that supports the ARC (Audio Return Channel) (*1) feature, use an HDMI cable and connect according to illustration "a". Choose an HDMI IN jack on the TV that supports ARC when connecting.

Setup

- Settings are required to use the ARC function. Select "Yes" in "5. Audio Return Channel" (P24) in the Initial Setup.

- Refer to the instruction manual for the TV for TV connections and instructions regarding settings for CEC features and audio output.

To Non-ARC TV

For a TV that does not support the ARC (Audio Return Channel) feature (*1), connect both the HDMI cable in illustration "a" and the digital optical cable in "b". If the TV doesn't have a DIGITAL OPTICAL OUT jack, use an analog audio cable and connect the TV's ANALOG AUDIO OUT jack to the AUDIO IN TV jack on this unit.

• Connection with a digital optical cable is not necessary if you will watch TV through a device such as a cable set-top box (that is, not use a tuner built into the TV) that you have connected to the input jack on this unit.
  (*1) The ARC feature: This feature transfers TV audio signals via HDMI cable so that you can play the audio from the TV through this unit. Connection to an ARC compatible TV is complete with one HDMI cable. Refer to the instruction manual for your TV to see if it supports ARC.
  (*2) Another TV or projector can be connected to the HDMI OUT SUB jack. Press Q (P6) on the remote control and use "Other" - "HDMI Out" to switch between MAIN and SUB. Note that this jack does not support ARC.

Before Start > Part Names > Install > Initial Setup > Playback

BD/DVD Cable/Satellite set-top box Streaming media player GAME CENTE 1 (BD/ DVD) 2 (CB SA) ROUND 5 L a

a HDMI cable

2. Connect the HDMI AV Component

This is an example of connection with an AV component that has an HDMI jack. With connection to an AV component that conforms with the CEC (Consumer Electronics Control) standard, you can use features such as the HDMI CEC feature (*) that links with the input selector, and the HDMI Standby Through feature which allows you to play video and audio from AV components on the TV even when this unit is in standby mode.

- To play 4K or 1080p video, use a high speed HDMI cable.

Setup

- When "Yes" is selected for "5. Audio Return Channel" in Initial Setup (P24), the HDMI CEC function and HDMI Standby Through function are automatically enabled. If "No, Skip" is selected, settings are required in the Setup menu after Initial Setup is complete. Press On the remote controller and make the settings in "5. Hardware" - "HDMI".

- To enjoy digital surround sound including Dolby Digital, audio output should be set to "Bitstream output" on the connected Blu-ray Disc player or other device.

(*)The HDMI CEC feature: You can control features such as linking input switching with the input selector and players conforming to the CEC standard, switching audio to output it from the TV or from this unit, and adjusting the volume using the remote controller of a CEC-compliant TV, and automatically switching this unit to standby when the TV is turned off.

Before Start > Part Names > Install > Initial Setup > Playback

DIGITAL IN COAXIAL (BD/DVD) AM ASSIGNABLE COMPONENT VIDEO IN (CBL/SAT) 1 2 + 1 B R 2 1 (CBL/ SAT) (BD/ DVD) 1-8 ASSIGNABLE a b OR c BD/DVD

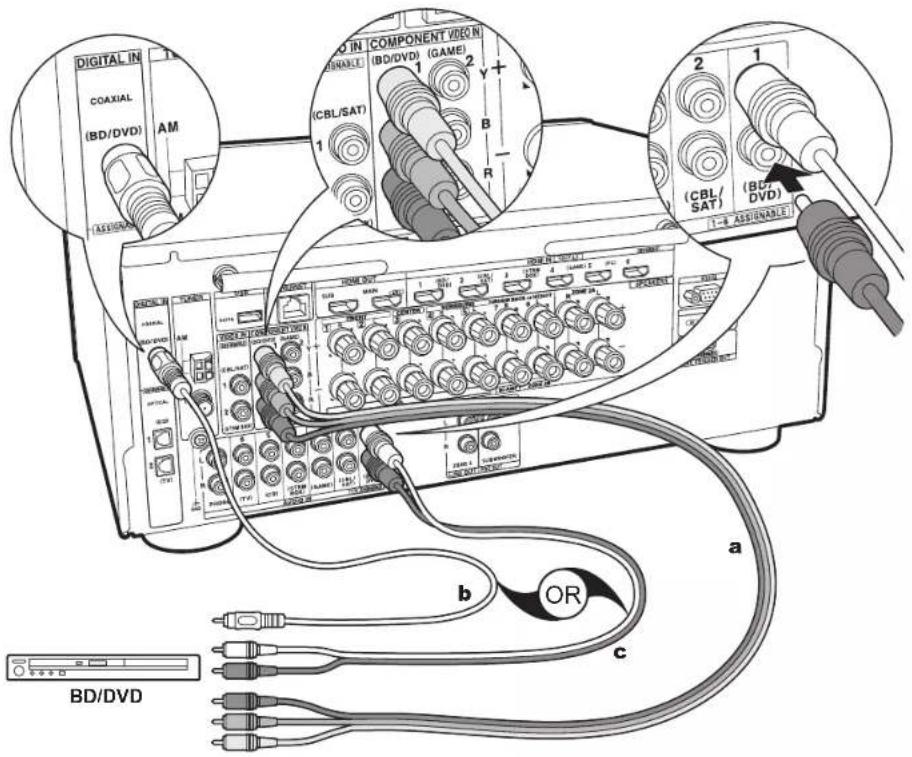

a Component video cable, b Digital coaxial cable, c Analog audio cable

3. Connect the Non-HDMI AV Component

This is an example of connection with an AV component that does not have an HDMI jack. Make the connections to the AV component to match the jacks it has. When video input connection is to the BD/DVD jack, the audio input connection should also be to the BD/DVD jacks, and so on, so that you connect the video input jacks to the jacks with the same name as the audio input jacks.

Note that video signals input to the VIDEO IN jack or the COMPONENT VIDEO IN jack will be converted to HDMI video signals and then output from the HDMI OUT jack.

• To enjoy digital surround playback in formats such as Dolby Digital, you need to make a connection for audio signals with a digital coaxial cable or a digital optical cable.
• It is possible to change assignment of the input jacks you see in the illustration at left, so you can also connect to any jack other than BD/DVD. For details, see the Advanced Manual.

Setup

• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i resolution. When you connect to the COMPONENT VIDEO IN jacks, set the output resolution of the player to 480i or 576i. Select interlace if there is no option for 480i, etc. If your player does not support 480i or 576i output, use the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, audio output should be set to "Bitstream output" on the connected Blu-ray Disc player or other device.

Before Start > Part Names > Install > Initial Setup > Playback

ASSIGNABLE OPTICAL (CD) 1 2 (TV) 6 L R GND PHONO T 6 5 4 (TV) (CD) ST BOA (GA) a b OR Turntable CD

a Digital optical cable, b Analog audio cable

4. Connect the Audio Component

Example of a connection with an audio component.

Connect a CD player using a digital optical cable or analog audio cable. You can also connect a turntable that has an MM-type cartridge to the PHONO jack.

- If the turntable has a built-in audio equalizer, connect it to another AUDIO IN jack. Further, if the turntable uses an MC type cartridge, install an audio equalizer compatible with the MC type cartridge between the unit and the turntable, then connect to any AUDIO IN jack other than the PHONO jack.

If the turntable has a ground wire,
connect it to the GND terminal of this unit.

Before Start > Part Names > Install > Initial Setup > Playback

SUBW L R ZONE 2 SUBW R LINE OUT MAIN ROOM ZONE2 a OR b BD/DVD LINE IN ZONE2 LINE OUT

a Digital coaxial cable, b Analog audio cable

5. Multi-zone Connection-1 (ZONE 2 LINE OUT)

You can enjoy 2ch audio in the separate room through speakers connected to a pre-main amplifier by, for example, playing a Blu-ray Disc player in 7.1 ch in the main room (where this unit is located) and listening to internet radio in the separate room (ZONE 2).

Connect the ZONE 2 LINE OUT jacks of the unit and the LINE IN jacks of the pre-main amplifier in a separate room with an analog audio cable.

- DSD and Dolby TrueHD audio signals are not output to ZONE 2 when selected with the "NET" input selector.

Connections with an AV component

When outputting the audio of an externally connected AV component to ZONE 2, you need to connect using a digital coaxial cable, digital optical cable, or analog audio cable.

Setup

- Settings are required in Initial Setup, "4. Multi Zone Setup" (P24) to enjoy this feature.

- The audio from externally connected AV components can only be played in ZONE 2 when the audio is analog or 2ch PCM audio. If you have connected to this unit with a digital coaxial cable or digital optical cable, it may be necessary to change the audio output of the AV component to PCM output.

Before Start > Part Names > Install > Initial Setup > Playback

ZONE 2B ZONE 2A (Also act as the SURROUND BACK or HEIGHT jacks) MAIN ROOM a OR b BD/DVD R L R ZONE 2A L ZONE 2 SPEAKER A ZONE 2 SPEAKER B

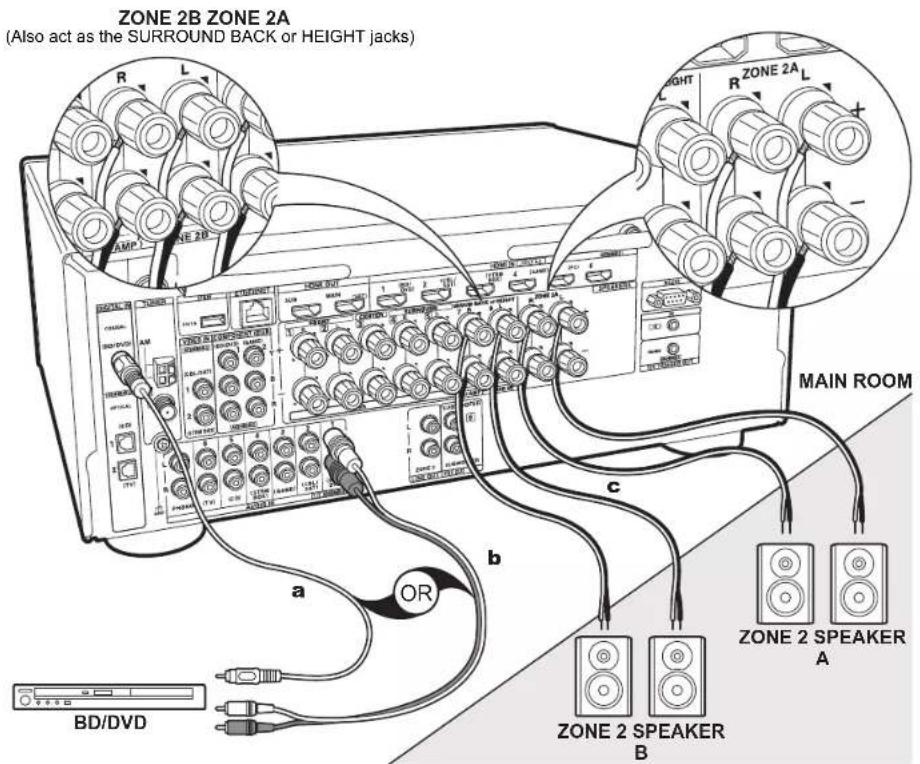

a Digital coaxial cable, b Analog audio cable, c Speaker cable

6. Multi-zone Connection-2 (ZONE SPEAKER)

You can enjoy 2ch audio in the separate room by, for example, playing a Blu-ray Disc player in the main room (where this unit is located) and listening to internet radio through the speakers in the separate room (ZONE 2). You can connect up to two speaker systems and output the same audio. To connect one speaker system, use the ZONE 2A jacks, and to connect two speaker systems, use the ZONE 2B jacks in addition to the ZONE 2A jacks. When connecting two speaker systems, all speakers to be connected to the ZONE 2AB jacks must have an impedance of 8 to 16Ω.

- You cannot use ZONE SPEAKER if you have connected the front speakers using Bi-Amping connection.

- Please note that it is not possible to connect to the ZONE 2B jacks when surround back speakers or height speakers are connected.

- No sound is played from the surround back speakers or the height speakers when playing audio from ZONE SPEAKER.

Connections with an AV component

When outputting the audio of an externally connected AV component to ZONE 2, you need to connect using a digital coaxial cable, digital optical cable, or analog audio cable.

Setup

- Settings are required in Initial Setup, "4. Multi Zone Setup" (P24) to enjoy this feature.

- To use the ZONE 2A+B output, set "Zone Speaker" in "1. AccuEQ Room Calibration" (P23) in Initial Setup to "Zone 2A + B".

- The audio from externally connected AV components can only be played in ZONE 2 when the audio is analog or 2ch PCM audio. If you have connected to this unit with a digital coaxial cable or digital optical cable, it may be necessary to change the audio output of the AV component to PCM output.

Before Start > Part Names > Install > Initial Setup > Playback

Diagram of an electronic device with labeled components including AM, FM, and power input/output ports, showing connections and wiring.

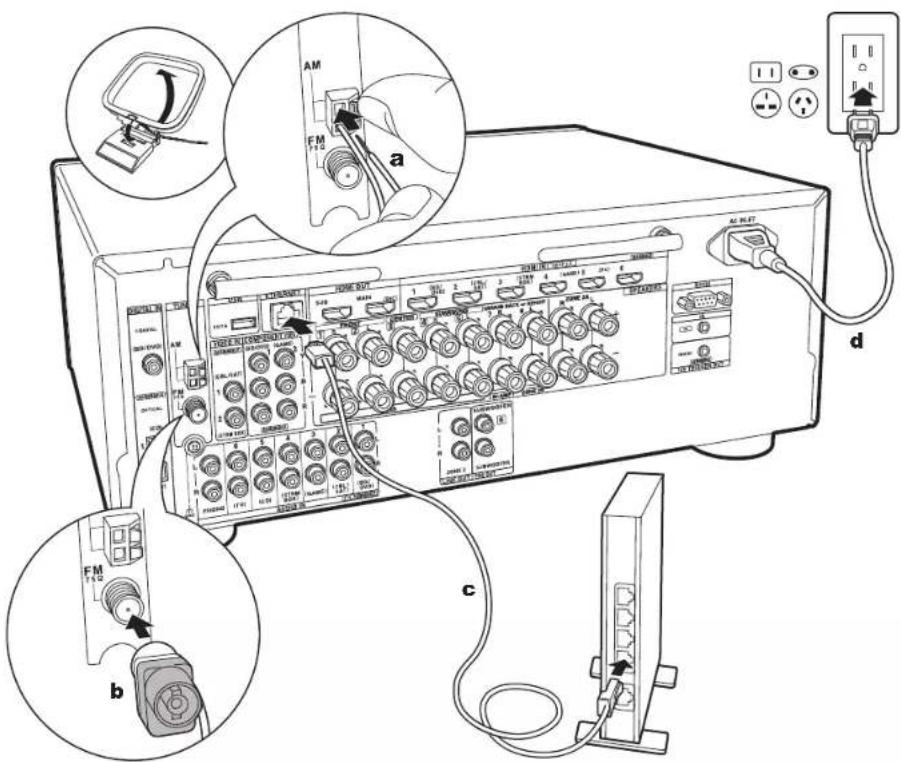

a AM loop antenna, b Indoor FM antenna, c Ethernet cable, d Power cord

7. Connect Other Cables

Antenna Hookup

Move the antenna around while playing the radio to find the position with the best reception. Use a thumb tack or similar to attach the indoor FM antenna to a wall.

Network Hookup

Connect this unit to the network using wired LAN or Wi-Fi (wireless LAN). You can enjoy network features such as internet radio by connecting the unit to the network. If you connect by wired LAN, connect with an Ethernet cable to the ETHERNET port as shown in the illustration. To connect by Wi-Fi, then after selecting "Wireless" in "3. Network Connection" (P24) in Initial Setup, select the desired setting method and follow the onscreen instructions to configure the connection.

Power Cord Hookup

This unit includes removable power cords. Connect the power cord to the power outlet after completing all other connections. Connect the power cord to AC INLET of the unit and then connect to the outlet. Always disconnect the outlet side first when disconnecting the power cord.

Before Start > Part Names > Install > Initial Setup > Playback

Initial Setup with Auto Start-up Wizard

INPUT Inputs TV ►HDMI 1 HDMI 2 HDMI 3

Illustration of hands installing or adjusting a battery pack with internal components (no text or symbols visible)

3 Initial Setup Language Select English Database Foreign External Internet Information System

Initial Setup Starts Automatically

When you turn the unit on for the first time after purchasing it, Initial Setup is automatically shown on the TV to enable you to make settings required for startup using simple operations following onscreen guidance.

1. Switch the input on the TV to that assigned to the unit.
2. Put batteries into the remote controller of this unit.
3. Press ⏻ on the remote controller to turn the unit on.
4. Select the item with the cursors of the remote controller and press ENTER (a) to confirm your selection. To return to the previous screen, press ☐b).

a b

- If you terminate the procedure on the way or want to change a setting made during Initial Setup, press ☐ on the remote controller, select "7. Miscellaneous" – "Initial Setup", and press ENTER.

■ 1. AccuEQ Room Calibration

Place the supplied speaker setup microphone in the listening position, measure the test tones emitted by the speakers, then the unit automatically sets the optimum volume level for each speaker, the crossover frequencies, and the distance from the listening position. This also automatically adjusts the equalizers for the speakers and enables correction of distortion caused by the acoustic environment of the room.

- Calibration takes between 3 and 12 minutes to be completed. The speakers emit the test tone at high volume during measurement, so be careful of your surroundings.

> Before Start > Part Names > Install > Initial Setup > Playback

Keep the room as quiet as possible during measurement.

• If you have connected a subwoofer, check the power and volume of the subwoofer. Set the subwoofer volume to more than halfway.
• If the power of this unit suddenly turns off, the wires in the speaker cables may have touch the rear panel or other wires and tripped the protection circuit. Twist the wires again properly and make sure they do not stick out of the speaker terminals when connecting.
• When using THX certified speakers, THX recommends setting the crossover frequency to "80Hz(THX)". It is also recommended to manually adjust the settings for each speaker to suit the specific characteristics of each room.
• Place the supplied speaker setup microphone in the listening position, and connect to the SETUP MIC jack on the main unit.

SETUP MIC SETUP MIC SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP SETUP

When putting the speaker setup microphone on a tripod, refer to the illustration when putting it in place.

1. Select the connected speaker configuration.

The image on the screen changes as you choose the number of channels in "Speaker Channels", so refer to it when performing the settings.

1. Test tones are emitted by the speakers, and firstly the unit detects the speakers connected and the noise in the environment.
2. After the results of the above measurements are displayed, select "Next", press ENTER on the remote controller, and the test tones are emitted again, and the unit automatically makes settings such as the optimum volume level and the crossover frequency.
3. When the measurement is completed, the measurement result is displayed. Press the cursors ◀/▶ on the remote controller to check the settings. Press ENTER when "Save" is selected to save the settings.
4. Select whether to enable or disable the equalizer function that corrects for distortion caused by the acoustic environment of the room. If this is to be enabled, then normally you should select "On (All Channels)", and to disable just the front speakers you should select "On (Except Front Left / Right)".
5. Disconnect the speaker setup microphone.

■ 2. Source Connection

Check that each input source is connected correctly. Follow the guidance, select the input you want to confirm, start play of the selected player, and confirm that the images appear on the TV and that sound is played.

■ 3. Network Connection

Set up Wi-Fi connection with an access point such as a wireless LAN router. There are the following two methods of connecting by Wi-Fi:

"Scan Networks": Search for an access point from this unit. Find out the SSID of the access point beforehand. "Use iOS Device (iOS7 or later)": Share the iOS device's Wi-Fi settings with this unit.

If you select "Scan Networks", there are a further two choices of connection method. Check the following.

"Enter Password": Enter the password (or key) of the access point to connect.

"Push Button": If the access point has an automatic connection button, you can connect without entering a password.

- If the SSID of the access point is not displayed, then in the screen listing the SSIDs, select "Other..." with the cursor on the remote controller and press ENTER, then follow the onscreen instructions.

Keyboard Input

To switch between upper and lower case, select "A/a" on the screen and press ENTER. To select whether to mask the password with "*" or display it in plain text, press MEMORY on the remote controller. Press CLEAR to delete all the input characters.

- A confirmation screen asking you to agree to the privacy policy is displayed during network setting. Select "Accept" and press ENTER to indicate agreement.

■ 4. Multi Zone Setup

When you want to enjoy audio in a room other than the main room, set the audio output method for the separate room (ZONE 2). If you have connected speakers in a separate room with speaker cable, select "Using AV Receiver". If you have connected a pre-main amplifier in a separate room with an analog audio cable, select "with External Premain Amplifier".

■ 5. Audio Return Channel

If you have connected a TV that supports ARC, select

"Yes". This unit's ARC setting turns on and you can listen to the TV's audio through this unit.

If you select "Yes", the HDMI CEC function is enabled and power consumption increases during standby.

> Before Start > Part Names > Install > Initial Setup > Playback

AV Component Playback

INPUT Inputs TV HDMI 1 HDMI 2 HDMI 3

2 BD/ DVD CBL/SAT RMBOX PC AL CD TV PHONO TUNER

Basic Operations

You can play the audio from AV components such as Blu-ray Disc players through this unit.

- When a TV is connected to the HDMI OUT SUB jack, press Q (P6) on the remote controller and use "Other" - "HDMI Out" to switch between MAIN and SUB.

Perform the following procedure when the unit is on.

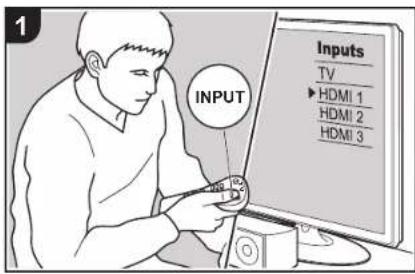

1. Switch the input on the TV to that assigned to the unit.
2. Press the input selector (a) on the remote controller with the same name as the jack to which you connected the player to switch the input. For example, press BD/DVD to play the player connected to the BD/DVD jack. Press TV to listen the TV's sound. To play a device connected to the AUX INPUT AUDIO/HDMI jack on the front panel, press AUX.

- When the CEC link function works, the input switches automatically when you have connected a CEC compliant TV and player to this unit using HDMI connection.

1. Start play on the AV component.

a F5/0VDD CBL/SAT GAME OTMBOU PC AUX CD TV PHONO TOMO NET $ QUICK MENU ENTER

BLUETOOTH® Playback

1 BL/SAT GAME PC Aux CD TV PHONO ER NET i

Bluetooth Onkyo TX-NR777

Illustration of a hand holding a tablet with a play button (no text or symbols)

You can wirelessly play music on a smartphone or other BLUETOOTH wireless technology enabled device. Perform the following procedure when the unit is on.

Pairing

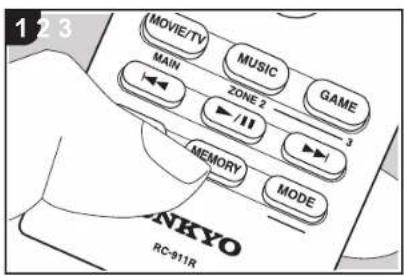

1. When you press the button, "Now Pairing..." is displayed on this unit's display, and the pairing mode is enabled.

Now Pairing...

1. Enable (turn on) the BLUETOOTH function of the BLUETOOTH wireless technology enabled device, then select this unit from amongst the devices displayed. If a password is requested, enter "0000".

2. This unit is displayed as "Onkyo TX-NR777 XXXXXX".
   • To connect another BLUETOOTH wireless technology enabled device,

press and hold ✦ until "Now Pairing..." is displayed, then perform step 2. This unit can store the data of up to 8 paired devices.

- The coverage area is 48'15 m. Note that connection is not always guaranteed with all BLUETOOTH wireless technology enabled devices.

Playing Back

1. Perform the connection procedure on the BLUETOOTH wireless technology enabled device.
   The input on this unit automatically switches to "BLUETOOTH".
2. Play music. Increase the volume of the BLUETOOTH wireless technology enabled device to an appropriate level.
3. Due to the characteristics of BLUETOOTH wireless technology, the sound produced on this unit may slightly be behind the sound played on the BLUETOOTH wireless technology enabled device.

> Before Start > Part Names > Install > Initial Setup > Playback

Network Functions

INPUT Inputs TV ►HDMI 1 HDMI 2 HDMI 3

2 G3D/DVD CRL/SAT GAME STRIMBOX PC AUX CD TV PHONO NET $

3 + tunein pandover sotify sMEEZE

Basic Operations

By connecting this unit to the network you can enjoy internet radio services such as Tuneln, streaming from Spotify Connect, and wireless playback using AirPlay® features. Furthermore, you can use the Music Server feature to stream music files stored on PCs or NAS devices that support the home network feature. The basic operations for Network Functions are introduced in the Basic Manual. For more advanced operations, see the Advanced Manual. There may also be additional network functions provided through firmware updates for this unit. Also see the Advanced Manual for information about new features.

• The network needs to be connected to the internet in order to play internet radio services.
• Depending on the internet radio service, the user may need to register from their computer first.
  • To enable Spotify Connect, install the

Spotify application on your smartphone or tablet and create a Spotify premium account.

– Refer to the following for Spotify settings: www.spotify.com/connect/

• The network servers compatible with the Music Server feature are those PCs with players installed that have the server functionality of Windows Media® Player 11 or 12, or NAS that are compatible with home network functionality. Note that with PCs, only music files registered in the library of Windows Media® Player can be played.
• You may need to make some settings on the PC in advance to use Windows Media® Player 11 or 12 with the Music Server feature.

Perform the following procedure when the unit is on.

1. Switch the input on the TV to that assigned to the unit.
2. Press NET (a) on the remote controller

to display a list of Network Functions on the TV.

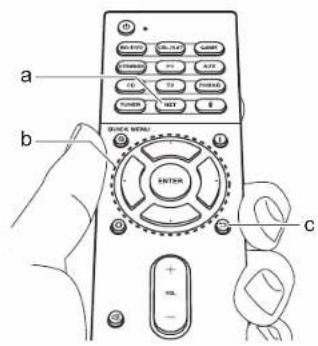

1. Select the Network Function with the cursors of the remote controller and press ENTER (b) to confirm your selection.
   With internet radio services, follow the on-screen instructions, using the cursors to select radio stations and programs, then press ENTER to play. With Spotify or AirPlay, select this unit with your smartphone to play. With Music Server, select the server with the cursors, then select the desired music file and press ENTER to play.
   To return to the previous screen, press (c).

a b C + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

> Before Start > Part Names > Install > Initial Setup > Playback

USB Storage Device

INPUT Inputs TV ►HDMI 1 HDMI 2 HDMI 3

2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

3 DVD CBL/SAT GAA STRMBOX PC AUX CD TV PHONO NET

4 + tunein penderor sidy AMETER

Basic Operations

You can play music files stored on a USB storage device.

Perform the following procedure when the unit is on.

1. Switch the input on the TV to that assigned to the unit.
2. Plug your USB storage device with the music files into the USB port of this unit's rear panel.
3. Press NET (a) on the remote controller to display the network service list screen.
4. With the cursors on the remote controller, select "USB", and then press ENTER (b).
5. If the "USB" indicator flashes on the display, check whether the USB storage device is plugged in properly.

6. Do not unplug the USB storage device while "Connecting..." is appeared on the display. This may cause data corruption or malfunction.

7. Press ENTER on the remote controller again in the next screen. The list of folders and music files on the USB storage device are displayed. Select the folder with the cursors and press ENTER to confirm your selection.

8. With the cursors on the remote controller, select the music file, and then press ENTER to start playback.

• To return to the previous screen, press ⊃ (c).

- The USB port of this unit conforms with the USB 2.0 standard. The transfer speed may be insufficient for some content you play, which may cause some interruption in sound.

• Operation cannot be guaranteed for all USB storage devices.

- This unit can use USB storage devices that comply with the USB mass storage class standard. The unit is also compatible with USB storage devices using the FAT16 or FAT32 file system formats.

a b c INTOR QUICK MENU

> Before Start > Part Names > Install > Initial Setup > Playback

Listening to the AM/FM Radio

1 2 3 STRMBOX PC AL CD TV PHONO TUNER NET X MENU

You can receive AM and FM radio stations on this unit with the built-in tuner. Perform the following procedure when the unit is on.

MOVIE/TV MAIN MUSIC ZONE 2 GAME MEMORY MODE

ST" indicator lights.

QUICK MENU ENTER

When FM broadcasts reception is poor: Perform the procedure for "Tuning Manually" in the following section. Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

■ Tuning into a Radio Station

Tuning Automatically

1. Press TUNER (a) on the remote controller repeatedly to select either "AM" or "FM" on the display.
2. Press MODE (e) on the remote controller, so that the "TunMode: Auto" is displayed on the display.

TunMode: Auto

1. When you press the cursors ▲ / ▼ buttons (b) on the remote controller, automatic tuning starts, and searching stops when a station is found. When tuned into a radio station, the "TUNED" indicator on the display lights. When tuned into an FM stereo station, the "FM

Tuning Manually

Note that if you tune manually, the reception for FM broadcasts will be monaural rather than stereo, irrespective of the sensitivity of the reception.

1. Press TUNER (a) on the remote controller repeatedly to select either "AM" or "FM" on the display.

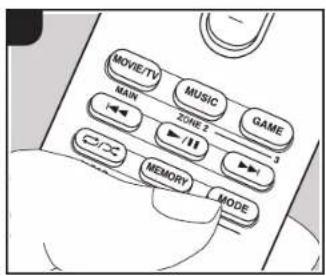

2. Press MODE (e) on the remote controller, so that the "TunMode: Manual" is displayed on the display.

TunMode:Manual

1. While pressing the cursors ▲ / ▼ (b) on the remote controller, select the desired radio station.

• The frequency changes by 1 step each time you press the cursors ▲ /
▼. The frequency changes continuously if the button is held down and stops when the button is released.

Frequency step setting:

Press the button, the cursor buttons and ENTER on the remote controller to select "7. Miscellaneous" - "Tuner" - "AM/FM Frequency Step" and select the frequency step for your area. Note that when this setting is changed, all radio presets are deleted.

a b RACK Media ENTER c ONKYO d e

> Before Start > Part Names > Install > Initial Setup > Playback

1 2 3 MOVIE/TV MAIN MUSIC ZONE 2 GAME MEMORY MODE NKYO RC-811R

LOCK MENU ENTER

(MOVIE/TV) MAIN MUSIC ZONE 2 GAME MEMORY MODE NKYO RC-811R

■ Presetting a Radio Station

It allows you to register up to 40 of your favorite AM/FM radio stations.

Registration Procedure

After tuning into the AM/FM radio station you want to register, perform the following procedure.

1. Press MEMORY (d) on the remote controller so that the preset number on the display flashes.

FM 87.5 MHz

1. While the preset number is flashing (about 8 seconds), repeatedly press the cursors ◀/▶ (b) on the remote controller to select a number between 1 and 40.
2. Press MEMORY again on the remote controller to register the station. When registered, the preset number stops flashing. Repeat this procedure for

all of your favorite AM/FM radio stations.

Selecting a Preset Radio Station

1. Press TUNER (a) on the remote controller.
2. Press cursors ◀/▶ (b) on the remote controller to select a preset number.

Deleting a Preset Radio Station

1. Press TUNER (a) on the remote controller.
2. Press cursors ◀ / ▶ (b) on the remote controller to select the preset number to delete.
3. After pressing MEMORY (d) on the remote controller, press CLEAR (c) while the preset number is flashing to delete the preset number. When deleted, the number on the display goes off.

> Before Start > Part Names > Install > Initial Setup > Playback

Multi-zone

You can enjoy audio in the separate room by, for example, playing a Blu-ray Disc player in the main room (where this unit is located) and listening to internet radio in the separate room (ZONE 2).

• DSD and Dolby TrueHD audio signals are not output to ZONE 2 when selected with the "NET" input selector.
• You can only select the same inputs for the main room and separate room with the "NET" or "BLUETOOTH" input selector. If you have "NET" selected in the main room and then select "BLUETOOTH" in the separate room, the main room also switches to "BLUETOOTH". You cannot select different stations for the main room and separate room with the AM/FM radio.
• If ZONE 2 is on, power consumption during standby becomes larger than normal.

Perform the following procedure when the

unit is on.

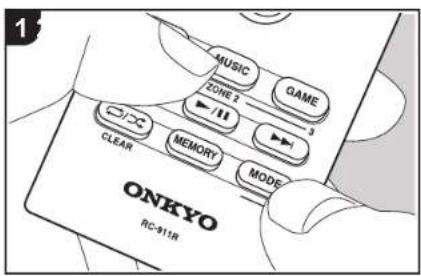

1. While holding down MODE (e) on the remote controller, press ZONE 2 (d) for 3 or more seconds until the remote indicator blinks twice.

2. The remote controller switches to the mode for controlling ZONE 2.

3. Point the remote controller at the main unit and press ⏻ (a).

"Z2" lights on the main unit display.

[Unreadable]

1. Press the input selector button (b) of the input to be played in the separate room.

2. On the main unit, after pressing ZONE 2, within 8 seconds press the input selector button to select the input to be played in the separate room. To play the same source in the main room and separate room, press ZONE 2 on the main unit twice.

3. Volume adjustment is done on the pre-

main amplifier for the separate room when connected via ZONE 2 LINE OUT. When outputting from ZONE speakers, adjust with volume buttons on the remote controller.

• To control on the main unit, press ZONE 2 and adjust with the MASTER VOLUME control within 8 seconds.

To turn off the function:

Press ⏻ while in the mode for controlling ZONE 2 on the remote controller. Alternatively press OFF on the main unit.

Playing in ZONE 2 only:

If you turn the unit to standby during multi-zone playback, the Z2 indicator is dimmed and the playback mode is switched to playback in a separate room only. Setting ZONE 2 to on while this unit is in standby will also switch the playback mode to the same setting.

i

To return the remote controller to main room control mode: While holding down MODE on the remote controller, press MAIN (c) for 3 seconds or more until the remote indicator flashes once.

a b c d e ONKYO

> Before Start > Part Names > Install > Initial Setup > Playback

Listening Mode

This unit is equipped with a variety of listening modes, and you can select the optimum listening mode for movies, TV, music, and games using MOVIE/TV, MUSIC, and GAME (b). The basic operations are introduced in the Basic Manual. For more details, see the Advanced Manual.

- The listening mode last selected for the source is remembered for each of the MOVIE/TV, MUSIC, and GAME buttons. If content you play is not supported by the listening mode you selected last, the listening mode that is standard for that content is selected automatically.

ONKYO 30-4128

Dolby Digital/DTS Modes

When the input signal is a digital surround format such as Dolby Digital or DTS, you can select the listening mode that suits the input signal. Dolby Digital is displayed for Dolby Digital and DTS-HD Master Audio is displayed for DTS-HD Master Audio. The output is Stereo for 2-channel input signals.

Direct

This listening mode can be selected for all input signals. It shuts down processing that affects sound quality to deliver a playback sound quality closer to sources. Speakers play the sound field according to the number of channels in the input signal, so there would be output from only the front speakers for a 2 ch signal, for example. Note that the sound quality cannot be adjusted if this mode is selected.

Dolby Surround/DTS Neural:X

These listening modes allow you to expand the playback signal to 5.1 channels or 7.1 channels to suit the connected speaker configuration when the input signal is 2 channels or 5.1 channels.

THX surround modes

Multiple surround speakers are installed in movie theaters so that the moviegoer is enveloped in a natural surround sound. Even with just two surround speakers, the THX Cinema mode achieves, with the high-quality technology developed by THX, the same kind of breadth of sound you would get in a movie theater along with the

natural flow of timbre with the sound field towards the front. Also available are modes such as THX Music, THX Games. Note that the sound quality cannot be adjusted if this mode is selected.

Original Surround Modes

You can select listening modes such as the All Ch Stereo mode where a stereo image is played from both the front and the rear, and Orchestra (only with the MUSIC button) which is best for playback of classical and opera pieces.

Checking the Input Format and Listening Mode

Press (a) on the remote controller several times to switch the display of the main unit as follows.

DOLBY ATMOS

DOLBY VISION

COMPATIBLE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Surround, Dolby Vision and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

THX and the THX logo are trademarks of THX Ltd., registered in the U.S. and other countries. THX CERTIFIED SELECT and the THX SELECT application icon are trademarks of THX Ltd.

THX Select

Before any home theater component can be THX Select certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Select logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Select requirements define hundreds of parameters, including power amplifier performance, and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance. All these record receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

Re-Equalization and the "Re-EQ" logo are trademarks of THX Ltd.

THX SELECT THX RECOMMENDED USE Medium Home Theaters or Living Rooms THX CERTIFICATION FEATURES Extended Bandwidth and Flat Frequency Response High Output, Low Distortion Design at 10 ft Listening Distance. Conforms to THX Base Management Requirements. THX PERFORMANCE NOTES Capable of THX Reference Level in a room up to 2,000 cubic feet (57 cubic meters). THX.COM THX

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

CERTIFIED

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance®.

AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

pandora®

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

Bluetooth

The BLUETOOTH ^2 word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

The Spotify software is subject to third party licenses found here: https://developer.spotify.com/esdk-third-party-licenses/

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows 7, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

Theater-Dimensional

"Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of Onkyo Corporation.

*All other trademarks are the property of their respective owners.*

Illustration showing a person using a computer to switch a radio, with no visible text or symbols.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

2

3

4

6

① ② NET USD HOME DIGITAL, https://data.org/10.000000000000000000000000000000000000000000000000000000000000000000000000000 ③ ④ ⑤ ⑦ ⑦

Afficheur

① DIGITAL THINKS USB EXTENSORT HDMI OUT RONE IN 2000/19 DC IN 1 AC INLET ④ 3.0V/100V DVD/DVD AM VIDEO IN COMPONENT RED BODYING BANZEN ICBL/SAT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 SPEAKERS R2223 R TBC MAIN ON/OFF 12 V TRIGGER OUT SUBWODER L G R ICBL/32F7 ICBL/32F8 ICBL/32F9 ICBL/32F10 ICBL/32F11 ICBL/32F12 ICBL/32F13 ICBL/32F14 ICBL/32F15 ICBL/32F16 ICBL/32F17 ICBL/32F18 ICBL/32F19 ICBL/32F20 ICBL/32F21 ICBL/32F22 ICBL/32F23 ICBL/32F24 ICBL/32F25 ICBL/32F26 ICBL/32F27 ICBL/32F28 ICBL/32F29 ICBL/32F30 ICBL/32F31 ICBL/32F32 ICBL/32F33 ICBL/32F34 ICBL/32F35 ICBL/32F36 ICBL/32F37 ICBL/32F38 ICBL/32F39 ICBL/32F40 ICBL/32F41 ICBL/32F42 ICBL/32F43 ICBL/32F44 ICBL/32F45 ICBL/32F46 ICBL/32F47 ICBL/32F48 ICBL/32F49 ICBL/32F50 ICBL/32F51 ICBL/32F52 ICBL/32F53 ICBL/32F54 ICBL/32F55 ICBL/32F56 ICBL/32F57 ICBL/32F58 ICBL/32F59 ICBL/32F60 ICBL/32F61 ICBL/32F62 ICBL/32F63 ICBL/32F64 ICBL/32F65 ICBL/32F66 ICBL/32F67 ICBL/32F68 ICBL/32F69 ICBL/32F70 ICBL/32F71 ICBL/32F72 ICBL/32F73 ICBL/32F74 ICBL/32F75 ICBL/32F76 ICBL/32F77 ICBL/32F78 ICBL/32F79

Panneau arrière

Illustration of a person installing or adjusting a CD on a TV set, with no visible text or symbols.

Line drawing of a person using a speaker on a stand (no text or symbols)

Line drawing of a person using a power cord device on a wall-mounted device (no text or symbols visible)

3' (0.9 m) or more *1: 22' à 30', *2: 120' 3' (0.9 m) or more

Système 5.1.2 - 1

Diagram illustrating a setup with labeled components including speakers, TV, and display devices, showing connections between numbered items.

*1: 22" à 30", *2: 120"

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force vectors

Technical diagram showing mechanical assembly with labeled parts and directional arrows indicating motion or force vectors

(CD) 1 2 (TV) L R *2 HDMI OUT MAIN ARC FRONT R 2 DIGITAL OPTICAL OUT TV a b (HDMI IN (ARC)

5. Raccordement multizone-1 (ZONE 2 LINE OUT)

6. Raccordement multizone-2 (ZONE SPEAKER)

Diagram of an electronic device with labeled components including AM, FM, and power connections, showing wiring and control panel layout.

Illustration of hands assembling a battery pack with internal components (no text or symbols)

3 Initial Setup Language Select English Germanic Frenchian Spanish English Germanic Germanic DVD CBL/S STRIMBOX PC CD TV

SETUP MIC SETUP MIC SETUP METER SETUP METER SETUP METER

■ 2. Source Connection

Illustration of a hand holding a tablet device with a play button (no text or symbols visible)

2 MO/DVD CBL/SAT GAME STRMBOX PC AUX CD TV PHONO NET ‡

3 + tunein pandover sotify sMiE26

Commandes de base

www.spotify.com/connect/

Dolby Surround/DTS Neural:X

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Surround, Dolby Vision and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

THX and the THX logo are trademarks of THX Ltd., registered in the U.S. and other countries. THX CERTIFIED SELECT and the THX SELECT application icon are trademarks of THX Ltd.

THX Select

Before any home theater component can be THX Select certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Select logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Select requirements define hundreds of parameters, including power amplifier performance, and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance. All these record receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

Re-Equalization and the "Re-EQ" logo are trademarks of THX Ltd.

THX SELECT THX RECOMMENDED USE Medium Home Theaters or Living Rooms THX CERTIFICATION FEATURES Extended Bandwidth and Flat Frequency Response High Output, Low Distortion Design at 10 ft Listening Distance. Conforms to THX Base Management Requirements. THX PERFORMANCE NOTES Capable of THX Reference Level in a room up to 2,000 cubic feet (57 cubic meters). THX.COM THX

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

CERTIFIED

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance®.

AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

pandora®

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

Bluetooth

The BLUETOOTH ^2 word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

The Spotify software is subject to third party licenses found here: https://developer.spotify.com/esdk-third-party-licenses/

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows 7, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

Theater-Dimensional

"Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of Onkyo Corporation.

*All other trademarks are the property of their respective owners.*

Illustration showing a person using a radio to clean the front panel, with no text or symbols present.

Illustration of a hand holding a mechanical component with an arrow indicating direction (no text or symbols present)

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

2

3

4

6

Line drawing of a person installing or adjusting a CD on a TV set, with no visible text or symbols.

Line drawing of a person using a speaker on a stand (no text or symbols)

Line drawing of a person using a computer monitor with cable (no text or symbols)

3' (0.9 m) or more *1: 22' a 30', *2: 120' 3' (0.9 m) or more

5.1.2 Sistema de canal 1 (altavoces altos delanteros/altavoces altos traseros)

Diagram illustrating a setup with labeled components including speakers, TV, and display devices, showing connections between numbered items.

*1: 22" a 30", *2: 120"

SUB MAIN FL B R S B 2 1 3

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force vectors

Diagram of an electronic device showing connections between labeled components including ABC, center, sound, and CD/DVD ports with cable routing.

SUBW L R ZONE 2 SUBW OFFER LINE OUT MAIN ROOM ZONE2 a OR b LINE IN BD/DVD ZONE2 LINE OUT

a Cable coaxial digital, b Cable de audio analógico

5. Conexión multizona-1 (ZONE 2 LINE OUT)

Diagram of an electronic device with labeled components including AM, FM, and power input/output ports, showing connections and wiring.

Illustration of hands inserting a battery into a device (no text or symbols visible)

3 Initial Setup Language Select English Germanic Frenchian Spanish English Germanic Germanic DVD CBL/S STRIMBOX PC CD TV

Initial Setup se inicia automáticamente

SETUP MIC SETUP MIC SETUP MIC

■ 2. Source Connection

Illustration of a hand holding a tablet device with a play button (no text or symbols visible)

3 STRAWBICK PC AUX CD TV PHONG NET #

4 +tunein pandewar toxify AMETER

Operaciones básicas

Dolby Surround/DTS Neural:X

Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, Dolby Surround, Dolby Vision and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

THX and the THX logo are trademarks of THX Ltd., registered in the U.S. and other countries. THX CERTIFIED SELECT and the THX SELECT application icon are trademarks of THX Ltd.

THX Select

Before any home theater component can be THX Select certified, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Select logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come. THX Select requirements define hundreds of parameters, including power amplifier performance, and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance and integrated amplifier performance. All these record receivers also feature proprietary THX technologies (e.g., THX Mode) which accurately translate movie soundtracks for home theater playback.

Re-Equalization and the "Re-EQ" logo are trademarks of THX Ltd.

THX SELECT THX RECOMMENDED USE Medium Home Theaters or Living Rooms THX CERTIFICATION FEATURES Extended Bandwidth and Flat Frequency Response. High Output, Low Distortion Design at 10 ft Listening Distance. Conforms to THX Base Management Requirements. THX PERFORMANCE NOTES Capable of THX Reference Level in a room up to 2,000 cubic feet (57 cubic meters). THX.COM THX

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

CERTIFIED

The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance ^® .

AirPlay, iPad, iPhone, iPod, iPod classic, iPod nano and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

iPad Air and iPad mini are trademarks of Apple Inc.

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance.

AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later.

pandora®

PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.

Bluetooth

The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

The Spotify software is subject to third party licenses found here: https://developer.spotify.com/esdk-third-party-licenses/

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Windows 7, Windows Media, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.

Theater-Dimensional

"Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of Onkyo Corporation.

*All other trademarks are the property of their respective owners.*

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. For Dealer, Service, Order and all other Business Inquiries: Tel: [phone] Fax: [phone] http://www.us.onkyo.com/

For Product Support Team Only: 1-800-229-1687 http://www.us.onkyo.com/

Gutenbergstrasse 3, 82178 Puchheim, Germany Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom Tel: [phone] Fax: [phone] For Product Support only: [phone] http://www.uk.onkyo.com/en/

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE For Product Support only: [phone] http://www.fr.onkyo.com/fr/

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong. Tel: [phone] Fax: [phone] http://www.hk.onkyo.com/

302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032, Tel: [phone] Fax: [phone] http://www.cn.onkyo.com/

Please contact an Onkyo distributor referring to Onkyo SUPPORT site. http://www.intl.onkyo.com/support/

The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.

(C) Copyright 2017 Onkyo & Pioneer Corporation Japan. All rights reserved. Onkyo group has established its Privacy Policy, available at [http://www.onkyo.com/privacy/] Printed in Malaysia / Imprimé en Malaisie

SN 29402781A

F1710-1
