USER MANUAL Cadorna Milk GAGGIA

Exterior view of a black Gaggia CADORNA MUX milk cream machine with water filter and control panel (no visible text or symbols on main body)

ENGLISH

FRANÇAIS

GAGGIA CADORNA

MILK

RI9603 (SUP 049EP)

Operating instructions

Mode d'emploi

CE

Control panel / Bandeau de commande

Hot water / Eau chaude

Water / Eau 150 ml

First installation / Première installation

03 ① ②

Line drawing of a printer with paper feed and paper tray (no text or symbols)

Welcome OK Feedback Help Cancel

LANGUAGE ENGLISH

LANGUAGE ITALIANO

Illustration of a 3D printer or printer with a box and paper tray, no visible text or symbols

Simple line drawing of a rectangular container with a piping and a small outlet, no text or symbols present.

Illustration of a printer or printer with a paper airplane being inserted, showing no text or symbols.

Line drawing of a sewing machine with a cup and handle (no text or symbols)

13 G WATER CIRCUIT to start press >> My Water 4200 Home 5000 1000

14 In the next steps we will set the correct water hardness level

Illustration of hands holding a ruler and a measuring tool (no text or symbols visible)

1 sec.

1 min.

18 WATER HARDNESS 1

19 WATER HARDNESS 2

Are you sure you want to select 2 zone red?

Illustration of a printer with an upward arrow indicating motion (no text or symbols)

Illustration of a hand pouring granular material into a device (no text or symbols visible)

Capp in Cup system / Système Capp in Cup

23

Diagram showing a mechanical component with a screw and a downward arrow, no text or symbols present

Illustration of a coffee maker using a spoon to press down a cup (no text or symbols visible)

Illustration of a hand holding a small object with a pointed tip, possibly a tool or device (no text or symbols visible)

Line drawing of a mechanical device with hands and gears (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Illustration of a toilet with lid and side arm (no text or symbols)

Simple line drawing of a trash bin with a lid and handle, no text or symbols present

English 6

Français 39

6 English

Table of Contents

Important safety information ____9

Machine Overview (Fig.2) 12

Control Panel and Display 13

Control panel overview (Fig. 1) 13
Multifunction buttons 13

First Installation 14

Manual rinse cycle 14
Measuring water hardness 15

INTENZA+ Water Filter 15

Installing the INTENZA+ water filter 16
Replacing the INTENZA+ water filter 16

Types of Beverage 17
Espresso tray 17
Brewing Coffee 18

Brewing coffee from whole coffee beans 18
Brewing coffee using pre-ground coffee 18

Preparation of Frothed-milk Based and Coffee Beverages 19

How to assemble the Capp in Cup system 19
Dispensing frothed-milk based and coffee beverages 20

Dispensing Hot Water 21

Beverage Customisation and Profile Creation 21

Customisation 21
Creating a profile 22

Coffee Grind Settings 23

Cleaning and Maintenance 24

Cleaning table 24

Cleaning of the Capp in Cup system 26
Cleaning the brew group 27

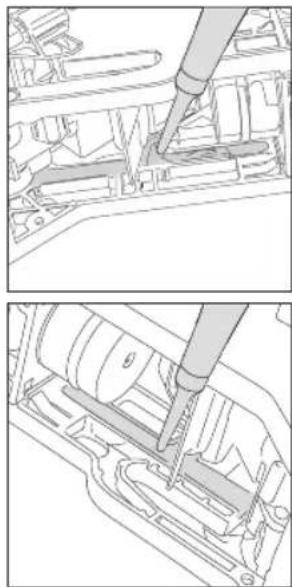

Lubricating the brew group 29

Descaling 30

Descaling procedure 30
What to do if the descaling process is interrupted 31

Various Settings 32

Language 32
Water filter 32
Timer stand-by 32
Water hardness 33
Measurement units 33
Beverages counter 33
Restore factory settings 33

Error Code Key 34
Troubleshooting 35
GAGGIA Accessories 37
Technical Specifications 38

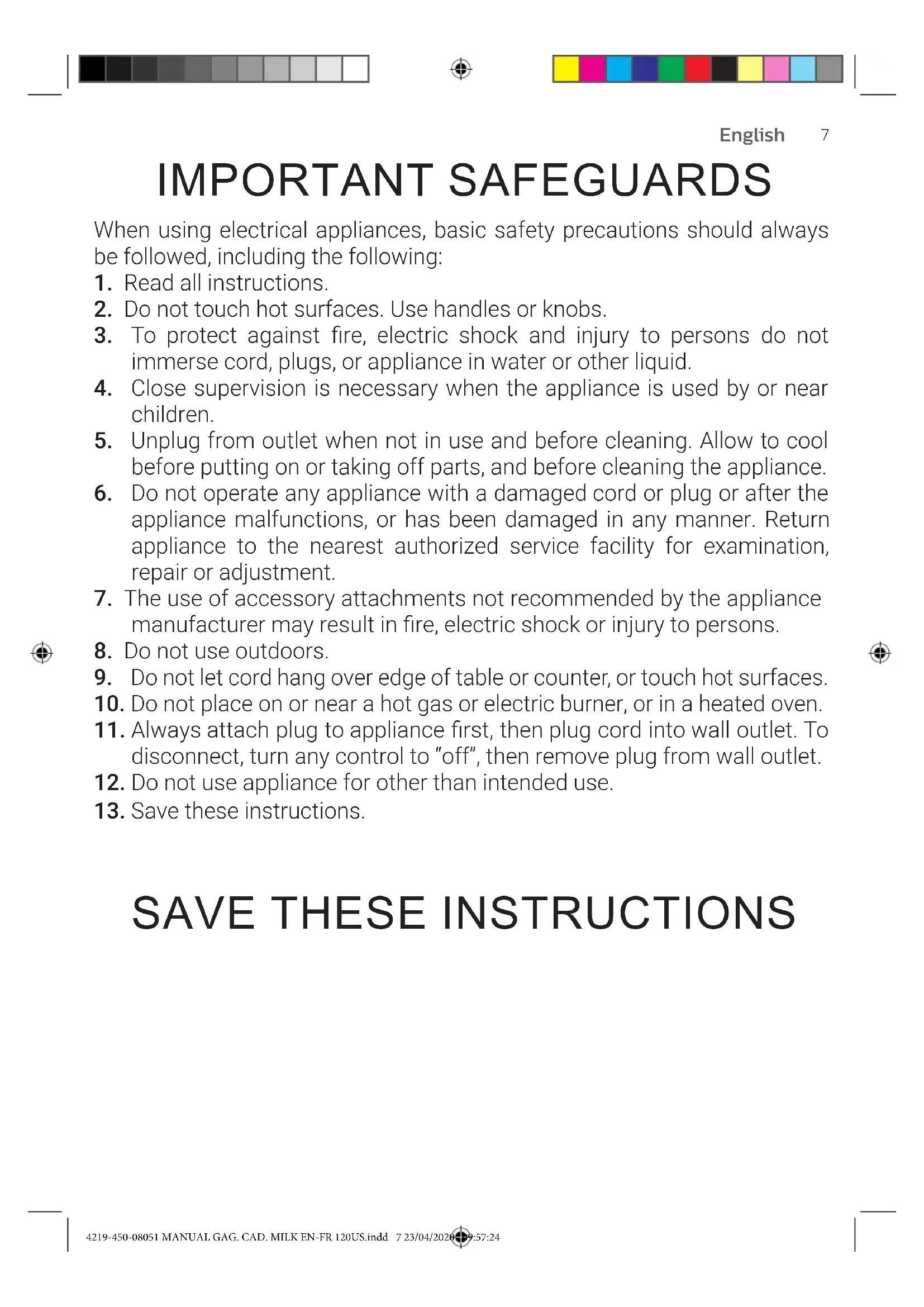

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.

SAVE THESE INSTRUCTIONS

8 English

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1. Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to be provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
B. Longer detachable power-supply cords or extension cords are available and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,

1. The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance
2. If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

Important safety information

This machine is equipped with safety features. Nevertheless, read and follow the safety instructions carefully and only use the machine as described in these instructions, to avoid accidental injury or damage due to improper use of the machine. Keep this safety booklet for future reference.

Warning

General

• Check if the voltage indicated on the machine corresponds to the local mains voltage before you connect the appliance.
• Connect the machine to an earthed wall socket.
• Do not let the power cord hang over the edge of a table or worktop and do not let it touch hot surfaces.
• To avoid the danger of electric shock, never immerse the machine, mains plug or power cord in water or any other liquid.
• Do not pour liquids on the power cord connector.
• To avoid the danger of burns, keep body parts away from hot water jets produced by the machine.
• Do not touch hot surfaces. Use handles and knobs.
• Switch off the machine with the main switch located on the back (if present) and remove the mains plug from the wall socket:
  • If a malfunction occurs.
• If you are not going to use the appliance for a long time.
  • Before you clean the machine.
• Pull at the plug, not at the power cord.
• Do not touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord or the machine itself is damaged.
• Do not make any modifications to the machine or its power cord.
• Only have repairs carried out by a service center authorized by Gaggia to avoid a hazard.
• The machine should not be used by children younger than 8 years old.
• This machine can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and if they understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the machine and its cord out of the reach of children aged less than 8 years.
• Children should be supervised to ensure that they do not play with the machine.
• Never insert fingers or other objects into the coffee grinder.
• Be careful when you dispense hot water.

English

Dispensing may be preceded by small jets of hot water. Wait until the end of the dispensing cycle before you remove the hot water dispensing spout.

Caution

General

• This machine is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments.
• Always put the machine on a flat and stable surface. Keep it in upright position, also during transport.
• Do not place the machine on a hotplate or directly next to a hot oven, heater or similar source of heat.
• Only put roasted coffee beans in the bean hopper. Putting ground coffee, instant coffee, raw coffee beans or any other substance in the coffee bean hopper may cause damage to the machine.
• Let the machine cool down before you insert or remove any parts. The heating surfaces may retain residual heat after use.
• Never fill the water tank with warm, hot or sparkling water, as this may cause damage to the water tank and the machine.
• Never use souring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the machine. Simply use a soft cloth dampened with water.
• Descale your machine regularly. The machine indicates when descaling is needed. Not doing this will make your appliance stop working properly. In this case repair is not covered by your warranty.
• Do not keep the machine at temperatures below 0^ C/32°F. Water left in the heating system may freeze and cause damage.
• Do not leave water in the water tank when you are not going to use the machine for a long period of time. The water can become contaminated. Use fresh water every time you use the machine.
• Never use any accessories or parts from other manufacturers or that Gaggia does not specifically recommend. If you use such accessories or parts, your warranty becomes invalid.
• Regular cleaning and maintenance prolongs the lifetime of your machine and ensures optimum quality and taste of your coffee.
• The machine is exposed continuously to moisture, coffee and scale. Therefore it is very important to regularly clean and maintain the machine as described in the user manual and shown on the website. If you do not perform these cleaning and maintenance procedures, your machine eventually may stop working. In this case repair is not covered by warranty.
• Do not clean the brew group in the dishwasher and do not use washing-up liquid or a cleaning agent to clean it. This may cause the brew group to malfunction and may have a negative effect on the coffee taste.
• Do not dry the brew group with a cloth to prevent fibers from collecting inside the brew group.
• Never drink the solution dispensed during the descaling process.

English

• Only put preground coffee into the preground coffee compartment. Other substances and objects may cause severe damage to the machine. In this case, repair is not covered by your warranty.
• The machine shall not be placed in a cabinet when in use.

Machines with automatic milk frother / cappucinatore / Capp in Cup system —

Warning

• To avoid the danger of burns, be aware that dispensing steam or hot water may be preceded by small jets of hot water. Never touch the hot water/steam dispensing spout with bare hands, as it may become very hot. Use the appropriate protective handle only.
• During dispensing make sure that the spout of the "Capp in Cup" system, if present, is oriented towards the cup and not towards yourself.
• Never drink the solution dispensed during the monthly cleaning procedure of the automatic milk frother.

Caution

• For hygienic reasons, make sure that the outer surface of the hot water/steam dispensing spout is clean.
• After frothing milk, quickly clean the automatic milk frother by dispensing a small quantity of hot water. Follow the cleaning instructions in the user manual.
• Be careful, the hot water/steam dispensing spout could be hot if the machine has recently been used.
• Do not push the rubber fitting too far on the hot water/steam dispensing spout when you insert it. In this case, the automatic milk frother would not work correctly as it would not be able to suck up milk.

Electromagnetic fields (EMF)

This machine complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Recycling

• This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).
• Follow your country's rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.

Warranty and support

For service or support, contact your local dealer or an authorized service center. Contact details are included in the warranty booklet supplied separately or visit www.gaggia.com or www.gaggia.it.

12 English

Congratulations on purchasing the Gaggia Cadorna Milk!

This easy-to-use machine guarantees excellent coffee drinks, every day. With its intuitive interface, you can choose from among 10 beverages, customise them and save them to the 4 available profiles, where they can be instantly brought up whenever you want.

Before being packed, each of our high-quality machines undergoes rigorous testing in our laboratories to ensure it works perfectly. Because real coffee is used during testing, some residue may remain. This does not compromise the integrity of the product: it is a brand new machine.

Please read the whole manual carefully before you install, use or clean your machine. Before using it for the first time, please read carefully the safety manual provided separately and store it for future use.

Machine Overview (Fig.2)

1 Coffee bean container lid 15 Steam tube

2 Coffee bean container 16 Steam wand protection

3 Power cord socket 17 Spout Capp in Cup system

4 Water tank 18 Power cord

5 Pre-ground coffee compartment 19 Lubricant

6 Coffee grinder adjustment knob 20 Pre-ground coffee measuring scoop

7 Control panel 21 Water hardness tester

8 Adjustable coffee dispensing spout 22 Service door

9 Coffee pucks container 23 Coffee residues drawer

10 Drip tray 24 Brew group

11 Drip tray grid 25 Main body Capp in Cup system

12 “Full drip tray” indicator 26 Milk suction tube

13 Espresso tray 27 Milk carafe lid

14 Handle of Capp in Cup system 28 Milk carafe

English

Control Panel and Display

This coffee machine features an easy-to-use, intuitive display. Please see below for an in-depth explanation of each button.

Control panel overview (fig. 1)

1/2 MULTIFUNCTION buttons		Selects the function shown on the display.
3	ON/OFF button	To switch the machine on or off.
4	MY FAVOURITES button	Opens the personal profiles menu.
5	HOME button	Opens the beverage menu.
6	CLEAN/SETTING button	Opens the cleaning and settings menu.
7	START/STOP button	Starts/stops the dispensing of the selected beverage, or starts/stops the procedure indicated on the display.

Note: the MY FAVOURITES♡, HOME 🔒, CLEAN/SETTING 🔊️ buttons are also ESC buttons. You can exit any screen shown on the display at any time by pressing one of these buttons, which will then bring you back to their initial menu.

Multifunction buttons

Use the multifunction buttons at the sides of the display to select the feature or beverage indicated on the screen.

Note: To make the reading of this manual easier, <> means <>.

BOMINESE CORPINE COFFICE NO LUTTER BONIONALO

14 English

150 mm 6 inches 150 mm 6 inches 150 mm 6 inches 150 mm 6 inches 150 mm 6 inches

First Installation

Before using the machine, it is essential to follow a few simple steps, clearly described in the explanatory drawings found in the quick guide at the beginning of this instruction manual.

Note: To make the best-tasting coffee, you should brew 5 coffees initially to allow the machine to complete its self-adjustment.

Warning: Do not use the steam wand protection as a handle, use the appropriate classic pannarello handle.

Manual rinse cycle

When first installing the machine or after a long period of its inactivity, it is necessary to prime the water circuit through the manual rinse cycle.

FRYSTAGE EXIST → FRYSTAGE LET BE VACADELIC

1 Place a container under the coffee dispensing spout, browse through the pages and select "ESPRESSO LUNGO".

Screenshot of a coffee machine interface with control buttons and a hand pointing to the button.

2 Press the "button without adding pre-ground coffee.

User interface screenshot showing navigation buttons with icons and a cursor pointing to the button

3 Press the START/STOP ▷□ button to start dispensing, the machine will dispense hot water.

Diagram of a coffee maker's seatbelt with a screwdriver and lever, showing no text or symbols

4 Empty the container and remove the Capp in Cup system from the steam wand.

5 Place the container under the steam wand and select the "HOT WATER" beverage.

6 Press the START/STOP ▷□ button to commence dispensing.

7 Empty the container and repeat steps 6 to 7, until the water tank is empty.

8 At the end of this operation, fill the water tank again up to the MAX level. The machine is now ready for use.

English

Measuring water hardness

You'll need to set the water hardness when you install your machine.

Take the water hardness measuring strip that you find in the box and follow the steps shown on the display during installation. To adjust the water hardness setting later, press the CLEAN/SETTING 🎨 button, select " SETTINGS ", and then " WATER HARDNESS " from the settings menu.

1 sec.

1 Immerse the water hardness measuring strip in a glass of water for 1 second. Remove the strip from the water and wait 1 minute.
2 Note how many squares turn red.
3 Use the green "√" and "^" buttons to select the water hardness according to the table below. Confirm the setting by pressing "√".

Small red squares	Value to set Water hardness INTENZA+
	1 very soft water A
	2 soft water A
	3 hard water B
	4 very hard water C

3D line drawing of a mechanical component with a flanged top and side protrusions (no text or symbols)

INTENZA+ Water Filter

We recommend using the INTENZA+ water filter to limit the formation of limescale. This ensures the machine will last longer and the aroma of your coffee will be better.

Water is an essential element in brewing coffee: it is therefore extremely important to ensure it is always filtered adequately.

The INTENZA+ water filter prevents the formation of mineral deposits, improving the quality of the water.

16

English

Installing the INTENZA+ water filter

Remove the small white filter from the water tank and store it in a dry place.

Illustration of a hand holding a pen above a glass with a circular object underneath (no text or symbols)

Immerse the INTENZA+ water filter vertically (with the opening pointing up) in cold water and gently press its sides to let any air bubbles out.

Line drawing of hands holding a mechanical component with a labeled dial (no text or symbols present)

Remove the INTENZA+ water filter from the water. Set the machine according to the detected water hardness (see the "Measuring water hardness" chapter) and the letters found on the filter base:

A = soft water - 1 or 2 small squares

B = hard water (standard) - 3 small squares

C = very hard water - 4 small squares

Place the INTENZA+ filter in the water tank, ensuring it is correctly in place. Refill the water tank and place it in its compartment.

Follow the instructions shown on the display to activate the filter.

Note: you can pause the filter activation procedure by pressing the START/STOP ▷□ button. To resume the procedure, press the START/STOP ▷□ button again.

Filter expired, replace or disable it

Replacing the INTENZA+ water filter

When the INTENZA+ water filter runs out, the display will show an alarm message.

1 Replace or deactivate by pressing the CLEAN/SETTING button, and then the "SETTINGS" button.

2 Select the "WATER FILTER" button.

3 Select " REPLACE " to change the filter or " DISABLE " if you do not intend to use the filter. Confirm with the " √ button.

Follow the instructions shown on the display to activate the filter correctly.

WATER FILTER REPLACE

Types of Beverage

Beverage name Description

Ristretto A ristretto, served in a small cup, is an espresso whose brewing time is shorter than a regular espresso. As such, a ristretto is a shorter shot and lower in caffeine.

Espresso The espresso is known around the globe as true "Italian coffee". Served in a small cup, its unmistakable characteristics are a full and intense aroma and a top layer of compact, natural crema. It is the result of the hot-water pressurised extraction process invented by Achille Gaggia in 1938.

Espresso lungo An espresso lungo is an espresso shot with a longer extraction time. It is more diluted, with a different aromatic intensity and a higher caffeine content. It is served in a medium-sized cup.

Coffee Coffee is a beverage prepared with a greater quantity of water than an espresso shot. It has a lighter aroma and is served in a medium-large cup.

Americano An Americano is a long, less intense coffee drink prepared by combining hot water and espresso.

Cappuccino The cappuccino is an Italian classic, among the most loved in the world. It is prepared with espresso, milk and a milk froth, which must be no less than 1 cm thick. It is served in a large cup.

Café au lait A café au lait is a beverage composed of equal parts coffee and milk. This can even be enriched by a thin layer of milk froth. It is served in a large cup.

Latte macchiato A latte macchiato is prepared with hot milk, one part milk froth and a small quantity of espresso. It is served in a tall, transparent glass to allow the separation of the three different layers to be seen.

Frothed milk Frothed milk is used to make cappuccinos, latte macchiatos and several other beverages. The result is a compact, homogeneous layer of milk froth.

Hot water Hot water can be used to prepare hot teas, infusions and instant beverages.

Line drawing of a mechanical device with a slide inserted into the base (no text or symbols)

Espresso tray

This machine was designed to guarantee flawless results, from a traditional espresso to a number of different beverages. If you wish to try a traditional Italian espresso, with a delicious layer of natural crema on the surface, we recommend using the "Espresso Tray", which has been specifically designed for and integrated into the machine. This tray makes it possible to use traditional espresso cups, ensuring the perfect height from the spout for compact, homogeneous crema and dispensation without messy splashes.

Tip: useful also when preparing a cappuccino in traditional cup.

18

English

Brewing coffee

Brewing coffee from whole coffee beans

Warning: always use whole coffee beans when making espresso. Do not put any pre-ground, unroasted, freeze-dried or instant coffee in the coffee bean container, as they may damage the machine.

Tip: Preheat the cups with hot water to enjoy a hotter coffee.

Line drawing of a coffee machine with a cup and side panel (no text or symbols)

1 Remove the espresso tray, place an espresso cup beneath the coffee dispensing spout, raising or lowering it according to the size of the cup being used. Press the HOME button to bring up the beverage menu.

Scanned interface of a coffee shop control panel with icons and a hand cursor pointing to a button

2 Browse the various pages to find and select the desired beverage.

Color Temperature Temperature BENSSO

3 Once the beverage is selected, it is possible to prepare two cups at the same time using the "button, except the AMERICANO.

User interface screenshot showing a keyboard with icons and a hand pointing to a button labeled 'OK'.

4 Finally, press the START/STOP ▷□ button to begin dispensing the coffee.

Note: you can interrupt the brewing at any time by pressing the START/STOP ▷□ button.

If you wish to customise the settings of a specific beverage, please refer to the "Beverage customisation" chapter.

Brewing coffee using pre-ground coffee

Use the measuring scoop provided to insert the correct dose in the pre-ground coffee compartment.

Line drawing of a hand using a hammer to press or brush over a machine (no text or symbols)

1 Lift the lid of the pre-ground coffee compartment and add one level measuring scoop of pre-ground coffee.

Warning: do not insert anything other than pre-ground coffee in the pre-ground coffee compartment, as it may damage the machine.

2 Place a cup under the coffee dispensing spout and select the desired beverage.

English

OK H:1 M E EXPRESSO

3 Press the "button.

Note: the "pre-ground coffee" function cannot dispense two cups of coffee at the same time, and it disables the aroma setting, both of which are possible with coffee beans only.

4 Press the START/STOP ▷ button to start dispensing the coffee.

If you wish to customise the settings of a specific beverage, please refer to the "Beverage customisation" chapter.

Note: you can interrupt the brewing at any time by pressing the START/STOP ▷□ button.

Preparation of frothed-milk based and coffee beverages

How to assemble the Capp in Cup system

Note: Before preparing any milk-based beverage, make sure that the Capp in Cup system is correctly installed on the machine.

Diagram of a coffee maker with an upward arrow indicating growth (no text or symbols present)

1 Fix the spout to the Capp in Cup system main body.

Diagram of a car interior showing a plug inserted into a container with an upward arrow indicating motion (no text or symbols present)

2 Insert the Capp in Cup system in the rubber handle on the steam wand until it is locked in position.

Line drawing of a mechanical device with a lever and control panel (no text or symbols)

Tip: If you need to fill the water tank without removing the Capp in Cup system, please position the system as shown to avoid splashes on your worktop.

20 English

Dispensing frothed-milk based and coffee beverages

Tip: use cold milk (at a temperature of around 5 °C) with a protein content of at least 3% to ensure optimum results for the froth. You can use either whole milk or semi-skimmed milk. You can also use skimmed milk, soy milk or lactose-free milk.

Illustration of a hand pouring liquid into a container with a lid, showing mechanical components (no text or symbols)

1 Lift the carafe lid and pour the milk into the carafe: the milk level must be between the minimum (MIN) and the maximum (MAX) level indicators shown on the carafe.

Simple line drawing of a mechanical device with a lever and handle (no text or symbols)

2 Insert the suction tube of the main body of the Capp in Cup system into the milk carafe until it reaches the carafe bottom.

Diagram of a laboratory setup with a beaker, tubing, and control panel (no visible text or labels)

3 Place a cup or a glass under the coffee dispenser and the Capp in Cup system.

4 Press the HOME button and choose the desired beverage from the menu.

• Press the button corresponding to the desired beverage.
• Press the START/STOP ▷□ button to dispense the selected beverage.

5 The machine will dispense a default amount of frothed milk and coffee into the cup or glass. The coffee or the frothed milk may be dispensed first, depending on the beverage selected.

If you wish to customise the settings of a specific beverage, please refer to the "Beverage Customisation" chapter.

6 After dispensing your frothed-milk and coffee beverages, it is best to complete the quick cleaning procedure of the milk circuit within 10 seconds. However, the procedure can also be carried out at a later time by opening the cleaning menu via the CLEAN/SETTING 🎨 button. Press the "CLEAN" button and select the "QUICK CLEAN" button Then, follow the instructions shown on the display.

Note: you carry out a quick cleaning at least once a day and that you rinse the Capp in Cup system spout with running water.

Press the START/STOP ▷□ button to confirm, or "→" to carry out the procedure at a later time.

FILLING WATER CIRCUIT to start press DO #闪闪击点 #POT #CAVICATING STAIN STOP

English

Dispensing Hot Water

Warning: when the machine starts preparing hot water, the hot water dispensing spout may spray steam and hot water.

Line drawing of a kitchen appliance with a cylindrical item on a base (no text or symbols)

1 Remove the Capp in Cup system and place a container under the steam wand.

Scanned interface showing a control panel with coffee cups and buttons, plus a finger pointing to the button.

2 Press the HOME button, browse the windows displayed through the green buttons " & and " until you find the hot water icon.

3 Press the "HOT WATER" button. Finally, press the START/STOP ▷□ button to commence dispensing.

Note: you can interrupt the brewing at any time by pressing the START/STOP ▷□ button.

If you wish to customise the settings please refer to the "Customisation" chapter.

Beverage Customisation and Profile Creation

This machine makes it possible to modify the settings of a beverage according to your preferences and save it to one of four available profiles.

Customisation

1 Press the HOME button.

2 Select your beverage.

3 All the settings that can be adjusted and/or selected are displayed on the screen. Based on the type of beverage, you can adjust and/or select:

• the amount of coffee and milk;
• the temperature of the coffee;
• the dispensing of two cups at the same time;
• the use of pre-ground coffee;
• the intensity of the aroma (only when using coffee beans);

COFFEE 30 ml TEMP medium ESPRESSO

22 English

ESPRESSO COFFEE 30 ml

COFFEE OK MINI MINI MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK OK MINI MINI OK AK

Screenshot of a coffee machine interface with control buttons and a hand cursor pointing to the button

1 2 3 4 5

12.5 X-9 LW 1.0x3 HAPP 500 OK/OKT my favourite HOME clean/soft

4 Once the "COFFEE" or "MILK" button has been pressed, use the green "+and" "buttons to select the desired amount. Press "√" to confirm and return to the previous screen, where the new quantity will be displayed.

5 Press the "TEMP" button several times to adjust the temperature of the beverage from among the following options:

• low;
• medium;
• high;

6 Press " 🔍 " to prepare two cups, or " 🔍 " to prepare a single cup. The picture of the beverage in the centre of the display will indicate the number of cups selected.

Note: this function is not available for beverages with milk, AMERICANO and the HOT WATER.

7 Press the "💡" button to activate the use of pre-ground coffee.

Note: this function only allows the dispensing of one coffee at a time.

8 To adjust the aroma intensity, press "###". Each time you press the button, the aroma intensity changes by one degree. The display shows the chosen intensity.

1 Very light
2 Light
3 Normal
4 Strong
5 Very strong

Note: this function is not available for pre-ground coffee.

9 Once the drink has been customised, you can save it in a specific profile by pressing the "button.
10 Choose the profile where you wish to save the beverage from the 4 available.

Creating a profile

There are two ways to create a profile:

- Using the HOME button, as described in the "Beverage customisation" chapter, points 9 and 10;

- Using the MY FAVOURITES ♥ button, as follows:

1 Press the MY FAVOURITES ♥ button.

English

CHOOSE YOUR PROFILE

NEC DRINK

OK Cancel Finish Finish

SHEE ME AND BING

CHOOSE YOUR PROFILE

Pure electrical circuit lines without any symbols

2 Select your preferred profile colour.
3 Press the "ADD DRINK" button.
4 The beverage screens will be displayed. Select the beverage that you want to save to your profile and customise it by following steps 3 to 8 in the "Beverage customisation" chapter.
5 Press "to save the customised beverage to your profile. At this point, you can dispense the beverage or exit the menu by pressing one of the ESC buttons (HOME 📋, MY FAVOURITES♥, CLEAN/SETTING 🔊).

The saved beverage is now present in the list of your preferences and marked with a small heart in the same colour as the selected profile.

Note: Once used, the "profile icon will change colour."

6 The beverage saved in the profile can be modified using the "EDIT" button, or deleted using the "DELETE" button.

Note: It is not possible to save the beverage from the HOME menu via the MY FAVOURITES button. Instead, use the "button, otherwise you will lose the settings you have just applied.

Coffee Grind Settings

You can adjust the grind setting using the grinder adjustment knob on the coffee bean container. The ceramic coffee grinder guarantees perfect, even grinding for the preparation of every cup of coffee. The aroma is thus preserved, ensuring the perfect flavour every time.

Note: you can only adjust the grind setting while the machine is grinding the coffee beans. The difference in flavour will be noticeable after 2-3 cups of coffee have been brewed.

Warning: to avoid damaging the coffee grinder, do not rotate the grinder adjustment knob more than one notch at a time.

1 Place a cup under the coffee dispensing spout.
2 Remove the lid of the coffee bean container.

24 English

Diagram showing a hand using a screwdriver to press down a component, with a circular dial labeled '10' and a magnified view of the component.

3 Prepare an espresso as described in the "Brewing coffee from coffee beans" chapter.
4 While the machine is grinding the coffee, place the end of the handle of the pre-ground coffee measuring scoop on the coffee grinder adjustment knob, located in the coffee bean container. Use the handle of the measuring scoop to press and rotate the knob to the left or right, one notch at a time.
5 You can select from 10 grinding settings, from fine to course. The smaller the notch, the stronger and richer the coffee.

Note:

• Coarse grind: lighter taste, for dark roasted coffee blends (5-10);
• Fine grind: stronger taste, for light roasted coffee blends (1-5);

Cleaning and Maintenance

Regular cleaning and maintenance keep the machine in perfect condition and ensure perfect coffee flavour, a constant coffee flow and excellent milk froth. Please refer to the following table to know when and how to clean the removable parts of the machine. For more detailed information, please read the relevant chapters.

Cleaning table

Part description When to clean How to clean

Capp in Cup System After use Start the "QUICK CLEAN" process following the

displayed instructions. Disassemble and wash the Capp in Cup system spout under running water.

Daily Wash the milk carafe or place it in the fridge by

positioning the milk suction tube as shown in the figure.

Line drawing of a square container with a handle and a small mark on the side (no text or symbols)

Monthly Start the "DEEP CLEANING" process by following

the instructions described in the chapter "Cleaning of the Capp in Cup system with Philips' milk circuit cleaner product". Remove the Capp in Cup system and wash all the components under running water.

English

Part description When to clean How to clean

Brew group Weekly Remove the brew group and clean it under running water.
	Depending on usage See the "Cleaning and lubricating the brew group" chapter.
	Monthly Clean the brew group with the Gaggia coffee oil remover to remove any oily coffee residue
Drip tray full When the red indicator emerges from the grid of the drip tray		Empty the drip tray and clean it under running water.
Coffee pucks container	Whenever the machine requires it Empty the coffee pucks container and clean it under running water. Ensure that the machine is switched on during this procedure, or the coffee pucks container will not reset.
Water tank Weekly Clean it under running water.
Pre-ground coffee compartment/coffee outlet duct	Weekly Clean the upper part using the handle of a spoon, as shown below.
Espresso tray Depending on usage Remove the espresso tray, and clean it with running water. It can also be washed in the upper tray of a dishwasher.

Cleaning of the Capp in Cup system

Capp in Cup system cleaning programs

The machine has two programmes for cleaning the Capp in Cup system: quick clean and deep clean. Both programmes can be selected using the

CLEAN/SETTING 🎨 button then pressing the "CLEAN" button.

Quick clean is also proposed after dispensing a milk-based beverage. For both programmes, follow the instructions shown on the display

- Quick clean programme

The quick clean programme includes the cleaning of the milk circuit with hot water.

- Deep clean programme

The deep clean programme for the Capp in Cup system includes the careful cleaning of the whole milk circuit using the Philips "Milk circuit cleaner" product.

Accurate cleaning of the Capp in Cup system under running water \_\_\_\_

Warning: the steam wand may be hot after use.

1 Remove the Capp in Cup system from the steam wand (fig. 23).
2 Remove the rubber handle from the steam wand. (fig. 24).
3 Remove the spout from the Capp in Cup system (fig. 25).
4 Remove the suction tube from the main body of the Capp in Cup system (fig. 26).
5 To disassemble the main body:
- hold it tight from the sides as shown (fig. 27);
- pull and extract the left part as shown (fig. 28);
6 Remove the rubber lid (fig. 29).
7 Remove the milk carafe (fig. 30).
8 Wash all the components under running water.
9 After cleaning, reassemble all the components by following the same procedure in reverse order.

English

Cleaning the brew group

Warning: do not wash the brew group in the dishwasher and do not use dish-washing detergents, since they may cause the malfunctioning of the brew group and alter the coffee flavour.

Removing the brew group

1 Turn off the machine and disconnect the power cord.
2 Remove the coffee pucks container and open the service door.
3 Remove the coffee residues drawer.

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly with labeled parts and a magnified inset highlighting component ①

4 Press the PUSH lever (1) and pull the handle of the brew group (2) to remove it from the machine.

Hand inserting a small component into a computer monitor (no text or symbols visible)

Mechanical assembly diagram showing a piston pouring liquid into a housing (no text or labels)

Cleaning the brew group under running water

1 Clean the coffee outlet duct thoroughly with a spoon handle or with another round-tipped kitchen utensil.

2 Thoroughly rinse the brew group using lukewarm water. Carefully wash the upper filter.

3 Let the brew group air dry.

Note: to avoid the build-up of fibres in its interior, do not dry the brew group with cloth.

28 English

Cleaning the brew group with coffee cleaning tablets -

SAGGIA SAUROZ Producing product and other products SAGGIA SAUROZ Producing product and other products SAGGIA SAUROZ Producing product and other products SAGGIA SAUROZ Producing product and other products

Warning: use only Gaggia tablets for removing oily coffee residue.

1 Place a container under the coffee dispensing spout.

2 Press the CLEAN/SETTING 🎨 button and select the "CLEAN" button shown on the display.
3 Select "BREW GROUP CLEANING" and press the START/STOP ▷□ button to launch the cleaning procedure.
4 Follow the instructions shown on the display to correctly clean the brew group.
5 The procedure will take approximately 5 minutes. The START/STOP ▷□ button can be used to suspend and then resume the procedure.

OK Cancel TRECO

Reinserting the brew group

1 Before reinserting the brew group into the machine, ensure that the two yellow reference indicators on the side coincide. If this is not the case, perform the following step:

PUSH

Make sure that the lever is in contact with the base of the brew group.

Technical line drawing of a mechanical component (no text or symbols visible)

2 Make sure that the yellow locking hook of the brew group is in the right position.

Technical diagram of a mechanical assembly with a checkmark indicating selection (no text or symbols present)

To correctly position the hook, push it upwards to the highest possible position.

English

Diagram of a mechanical device with a cross mark indicating a specific component (no text or symbols present)

If the hook is still in the lower position, this means it has not been correctly positioned.

3 Reinsert the brew group in the machine along the side guides until it locks in the right position with a click.

Warning: do not press the PUSH lever.

4 Close the service door.

Lubricating the brew group

In order to ensure the perfect performance of the machine, it is necessary to lubricate the brew group. Refer to the following table for the frequency of lubrication.

Frequency of use	Number of beverages prepared daily	Frequency of lubrication
Low 1-5 Every 4 months
Regular 6-10 Every 2 months
High >10 Every month

Technical line drawing of a mechanical assembly with no visible text or symbols

1 Turn off the appliance and disconnect the power cord.
2 Remove the brew group and rinse it using lukewarm water (see the "Cleaning the brew group under running water" chapter).
3 Apply a thin layer of the lubricant provided around the inserting pin on the lower part of the brew group.

30

English

Technical line drawings of mechanical components, showing assembly and disassembly (no text or symbols)

4 Apply a thin layer of lubricant to the guides, on both sides (see figure).
5 Reinsert the brew group (see the "Reinserting the brew group" chapter).

Note: you can use the lubricant tube multiple times.

Descaling

Descaling procedure

Descaling needs to be carried out when the machine signals it.

Use only the Gaggia descaling solution designed to guarantee the machine's excellent performance. The use of other products could damage the machine and leave residue in the water. Failure to descale the machine will void the warranty.

RAGGIA 100 gm 200 gm 300 gm 400 gm 500 gm 600 gm 700 gm 800 gm 900 gm 1000 gm

1 Remove the Capp in Cup system if it is mounted on the machine.
2 Press the CLEAN/SETTING 🎨 button and select the "CLEAN" button shown on the display.

- Press the "DESCALING" button, then press the START/STOP ▷□ button.

Close Check Clear Close Check Clear Close OK Close OK

3 Remove the drip tray and the coffee pucks container, empty them, and insert them in the machine again.
4 Remove the water tank and empty it. Remove the INTENZA+ filter, if present.

English

CALC CLEAN

5 Empty the entire bottle of Gaggia descaling solution into the water tank and fill the tank with water up to the CALC CLEAN notch. Reinsert it in the machine.

6 Place a large container (1.5l) under the steam tube and the coffee spout.
7 Follow the instructions shown on the display to launch the descaling procedure. This procedure lasts approximately 25 minutes and consists of a descaling cycle and a rinse cycle, carried out with dispensing at regular intervals.
8 Once the descaling cycle is complete, rinse the water tank, and water circuit, following the instructions shown on the display.
9 Replace the INTENZA+ filter into the water tank.

Note: it is possible to pause and resume the procedure at any time by pressing the START/STOP ▷□ button.

Warning: when the descaling procedure is active, the brew group cannot be removed. Wait for the descaling process to end, then remove the brew group.

What to do if the descaling process is interrupted

You can exit the descaling procedure by pressing the ON/OFF button on the control panel. If the descaling procedure is interrupted before its completion, proceed as follows:

1 Empty the water tank and wash it thoroughly.
2 Fill the water tank with fresh water up to the CALC CLEAN notch and switch the machine on again. The machine will warm up and perform an automatic rinse cycle.
3 Before preparing any beverage, perform a rinsing cycle as described in the specific chapter.

Note: if the procedure has not been completed, it will be necessary to carry out another descaling procedure as soon as possible.

32 English

Various Settings

By pressing the CLEAN/SETTING 🔊 button and selecting " SETTINGS " on the display, it is possible to reset or modify several machine parameters including:

• Language
• Water filter
• Timer stand-by
• Water hardness
• Measurement units
• Beverage counter
• Restore factory settings

Language

When the language setting icon is selected, the list of available languages will be displayed.

Languages available

ITALIAN DUTCH HUNGARIAN

ENGLISH DANISH BULGARIAN

GERMAN GREEK CZECH

FRENCH POLISH SLOVAK

SPANISH RUSSIAN LITHUANIAN

PORTUGUESE ROMANIAN

LOGIC DATA DATA SELECT DATA SELECT DATA

Water filter

When "WATER FILTER" is selected, follow the instructions on the display and those described under the "Installing the INTENZA+ water filter" and "Replacing the INTENZA+ water filter" chapters.

User interface screenshot showing a finger pressing a button with icons and text labels in Chinese

Timer stand-by

When "TIMER STAND-BY" is selected, the timer can be set to:

• 15 min
  -30min
• 60 min
• 180 min

English

Water hardness

With "WATER HARDNESS" selected, follow the instructions on the display and those described under the "Measuring water hardness" chapter.

Measurement units

By selecting "MEASUREMENT UNITS":

it is possible to set the measurement units to "ml" or "oz".

START START LETTER START

Beverage counter

It is possible to display the number of cups of each beverage that have been dispensed since the first operation of the machine. These numbers cannot be reset.

Restore factory settings

It is possible to restore the machine to the default factory settings. The machine will require a secondary confirmation before proceeding. All the parameters will be reset except those relating to the profiles (MY FAVOURITES♥) and the beverage counter.

34 English

Simple white double-ended wrench icon on dark background (no text or symbols)

Error Code Key

The list below reports the error codes that the display can show, their meanings and how to solve the problem. If the indicated solutions are ineffective because the display keeps showing the error code icon and the machine does not function correctly, or if further error codes are displayed, please contact an authorised service centre or your local vendor.

The contact info is listed on www.gaggia.com and www.gaggia.it.

Error code Problem Cause Possible solution

01 The coffee grinder is clogged.	The coffee outlet duct is clogged.	Remove the power cord and remove the brew group. Clean the coffee outlet duct thoroughly using a spoon handle. Switch the appliance on again.
03 - 04 A problem occurred in the brew group.	The brew group is dirty or not well lubricated.	Switch off the machine using the power button. Remove the brew group and clean it thoroughly. (Refer to the "Cleaning the Brew Group" chapter)
	The brew group is not positioned correctly.	Switch off the machine using the power button. Remove the brew group and reinsert it. Ensure that the brew group is in the correct position before inserting it. Refer to the "Reinserting the brew group" chapter.
05 A problem occurred in the water circuit.	There is air in the water circuit.	Remove and reinsert the tank in the machine a couple of times. Make sure you insert the tank correctly in the machine. Check that the water tank seat is clean.
		If you use an "INTENZA+" filter: pull out the filter from the water tank and shake it to remove all air from the filter. Then reinsert the "INTENZA+" filter into the water tank.
14 The machine is overheated.	There may be multiple causes.	Switch off the machine and switch it on again after 30 minutes. Perform this operation 2 or 3 times.

Troubleshooting

This chapter summarises the most common problems you may encounter while using the machine. If you are unable to resolve the problem using the information given below, visit the FAQ sections on www.gaggia.com or www.gaggia.it or contact the Customer Service Centre in your country.

Problem Cause Solution

The machine does not switch on.	The machine is not connected. Check that the power cord has been inserted correctly.
The drip tray fills quickly.	This is normal. The machine uses water to rinse the internal circuit and the brew group. Part of the water flows through the internal system directly into the drip tray.	Empty the drip tray when the red indicator emerges from the grid of the drip tray.Tip: Place a cup under the dispensing spout to gather the rinse water.
The display continuously shows the "coffee pucks container full" icon.	The coffee pucks container has been emptied when the machine was off.	Always empty the coffee pucks container when the machine is on. If you empty the coffee pucks container when the machine is off, the coffee cycle counter does not reset. In this case, the display shows the icon even if the container is not full.
	The coffee pucks container has been put back too quickly.	Always wait about 5 seconds when you replace the coffee pucks container. This way, the counter will reset to zero.
The machine says to empty the coffee pucks container even if the container is not full.	The machine has not reset the counter last time the coffee pucks container has been emptied.	Always wait about 5 seconds when you replace the coffee pucks container. This way, the coffee grounds counter will reset to zero.
		Always empty the coffee pucks container when the machine is on. If you empty the coffee pucks container when the machine is off, the coffee cycle counter does not reset.
Impossible to remove the brew group.	The brew group is not in the correct position.	Close the service door. Switch the machine off and then back on. Wait for the display to show the ready message, then remove the brew group.
The coffee pucks container has not been removed.		Remove the coffee pucks container before removing the brew group.

English

Problem Cause Solution

The brew group cannot be inserted.	The brew group is not in the correct position.	The brew group has not been positioned correctly before being placed back. Ensure that the lever is in contact with the base of the brew group and that the hook of the brew group is in its correct position. See the "Reinserting the brew group" chapter.
		To reset the machine: put the coffee pucks container back in place. Do not insert the brew group. Close the service door with the coffee pucks container inserted, then unplug and plug in the power cord. Then try to reinsert the brew group and switch on the machine.
The espresso does not have enough crema or it is watery.	The coffee grinder is set to a coarse grinding.	Adjust the coffee grinder to a finer setting.
The machine is performing	the self-adjustment.	Dispense several cups of coffee so that the machine regulates itself automatically.
The coffee outlet duct is clogged.	Clean the coffee outlet duct with a spoon as described in the "Cleaning the brew group under running water" chapter.
The coffee dispensed is not hot enough.	The set temperature is too low. Check the menu settings.	Set the menu temperature to "MAX".
The machine grinds the coffee beans, but the coffee is not dispensed.	The coffee grinder is set to a too fine grinding.	Adjust the coffee grinder to a coarser setting.
	The coffee dispensing spout is blocked.	Dispense a long coffee from pre-ground coffee but without actually adding pre-ground coffee.
	The nozzles of the coffee dispensing spout are blocked.	Clean the nozzles of the coffee dispensing spout with a small bottlebrush.
Coffee is dispensed slowly or by drips.	The coffee grinder is set to a too fine grinding.	Adjust the coffee grinder to a coarser setting.
The nozzles of the coffee dispensing spout are blocked.		Clean the nozzles of the coffee dispensing spout with a small bottlebrush.
The machine circuit is clogged by limescale.		Descale the machine.
The milk does not froth.	The Capp in Cup system is dirty or not correctly inserted. Or, the system has not been correctly installed in all its components.	Clean the Capp in Cup system as indicated in the "Deep Cleaning" chapter under running water and re-install it in the right way.
Make sure all components have been correctly.		assembled.
The type of milk used is not suitable for foaming.		The amount and the quality of froth vary depending on the type of milk.

English

Problem Cause Solution

The "INTENZA+" filter cannot be inserted.	Remove the air from the filter. Let the air bubbles flow out of the filter.
The tank still contains some water. Empty the water tank before installing the filter.
	The rubber seal is not inserted on the "INTENZA+" filter.	Check the packaging and insert the seal on the "INTENZA+" filter.
There is some water under the machine.	The drip tray is too full and has spilled over.	Empty the drip tray when the red indicator emerges from the grid of the drip tray. Always empty the drip tray before starting the descaling procedure.

GAGGIA Accessories

Coffee and accessories are available through authorised centres (Italy), or distributors in your country.

GAGLA WATER DROPPER 100g

Inteniza™ GACOVA

GAGGIA (H. L. 2017) Dialysis product in the first two days Guggia® Product name: Guggia® Product type: double Product size: 500 gm Product quality: 90% of the product Product quality: 90% of the product Product quality: 90% of the product

Warning sign with red diamond and exclamation mark, indicating a hazard warning about safety or hazard.

Descaling product INTENZA+ water filter Coffee oil remover Milk circuit cleaner

(Philips)

GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO GAGGIA MILKANO

Range of coffee available in beans and pre-ground: 100% Arabica / Intense / Decaffeinated

English

Technical Specifications

Nominal voltage - Power rating - Power supply	See data plate on the inside of the service door
Housing material Thermoplastic type
Dimensions 260 x 380 x 440 mm
Weight 9 kg
Power cord length 1200 mm
Control panel Front panel
Cup size Up to 150 mm
Water tank 1.8 litres - Removable type
Coffee bean container capacity 250 g
Coffee pucks container capacity 10
Pump pressure 15 bar
Boiler Stainless steel boiler
Safety devices Thermal Fuse

Table des matières

Screenshot of a coffee machine control interface with Chinese labels and a hand pointing to the button

Screenshot of a software interface with navigation buttons and a hand pointing to a button labeled 'OK', accompanied by icons for home, home, home control, and control buttons.

Diagram of a washing machine interior showing a bulb, valve, and base (no text or symbols)

3D rendered mechanical component with a flanged top and tapered end (no text or symbols)

Illustration of a hand pouring liquid into a glass with a submerged object (no text or symbols)

Line drawing of a hand holding a mechanical component with a circular component labeled 'AIC' (no text or symbols beyond label)

WATER FILTER REPLACE

52 Français

Types de boisson

Nom de la boisson Description

Line drawing of a mechanical device with a handle and control panel (no text or symbols)

Espresso tray

Line drawing of a coffee machine with a cup and side table (no text or symbols)

OK Cancel Take Take OK Save As Save As OK

User interface screenshot showing navigation buttons with icons and a hand pointing to a button

Line drawing of a hand using a tool to brush a dark substance into a machine (no text or symbols)

Screenshot of a coffee machine interface with control buttons and a hand pointing to the button

Diagram of a coffee maker with an upward arrow indicating growth (no text or symbols present)

Diagram of a car interior showing a valve, hose, and cup (no text or symbols)

Line drawing of a mechanical device with a lever and control panel (no text or symbols)

Diagram showing a container pouring liquid into a plastic bag (no text or symbols present)

Simple line drawing of a mechanical device with a lever and handle (no text or symbols)

Laboratory setup with a gas collection bottle and control panel (no visible text or labels)

Line drawing of a coffee machine with a cylindrical container and control panel (no text or symbols)

COFFEE 30 ml TEMP medium ESPRESSO

ESPRESSO COFFEE 30 ml

CHOOSE YOUR PROFILE

AIDS DRINK

Screenshot of a coffee machine control panel showing sliders and buttons with icons for adding coffee into a coffee cup.

点击此处添加

Français

CHOOSE YOUR PROFILE

C3' C4' →

Diagram showing a hand using a screwdriver to press a component, with a circular dial labeled '10' and a magnified view of the component.

Remarque :

Illustration of a spoon pressing into a container with an inset diagram showing a mechanical component (no text or symbols)

Line drawing of a machine with a handle and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

Français

Technical diagram showing mechanical assembly with labeled parts and a magnified inset highlighting a specific component.

Hand inserting a component into a device (no text or symbols visible)

Mechanical assembly diagram showing fluid flow from a pipe through a housing component (no text or labels)

SAGGIA BISLAND Rating: 100% Product: 100% Rating: 100% Product: 100% Rating: 100% Product: 100%

Technical diagram of a mechanical gear assembly with a circular component highlighted (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical diagram of a mechanical device with a checkmark indicating selection (no text or symbols present)

Diagram of a mechanical component with a cross mark indicating a dislocation or failure (no text or symbols present)

Technical line drawing showing mechanical assembly and component alignment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

CALC CLEAN

Simple white wrench icon on dark background, no text or symbols present

GACCA Plus-1000 Product Description: Product name: plus- GACCA Plus-1000 Product description: plus- GACCA Plus-1000 Product name: plus- GACCA Plus-1000 Product description: plus- GACCA Plus-1000 Product name: plus- GACCA Plus-1000 Product description: plus- GACCA Plus-1000 Product name: plus- GACCA Plus-1000 Product description: plus- GACCA Plus-1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus - GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000 Product description: plus- GACCA Plus 1000 Product name: plus- GACCA Plus 1000

Warning sign with red diamond and exclamation mark, indicating a hazard warning about safety or hazard.

Milk circuit cleaner (Philips)

GAGGIA MALABETH ESPRESSO SALADULTA GAGGIA MALABETH ESPRESSO SALADULTA GAGGIA MALABETH ESPRESSO SALADULTA GAGGIA MALABETH ESPRESSO SALADULTA GAGGIA MALABETH ESPRESSO SALADULTA

GAGGIA S.p.A. reserves the right to make any necessary modification.

Sede Legale/Registered Office

Piazza A. Diaz, 1

20123 Milano - Italia

Capitale Sociale Euro 104.000 i.v.

REA MI1387376 - R.I. Cod.Fisc. 02069680367

Part. IVA : IT-13054780153

www.gaggia.it

www.gaggia.com

GAGGIA

MILANO
