USER MANUAL WIS 7030 PEF WHIRLPOOL

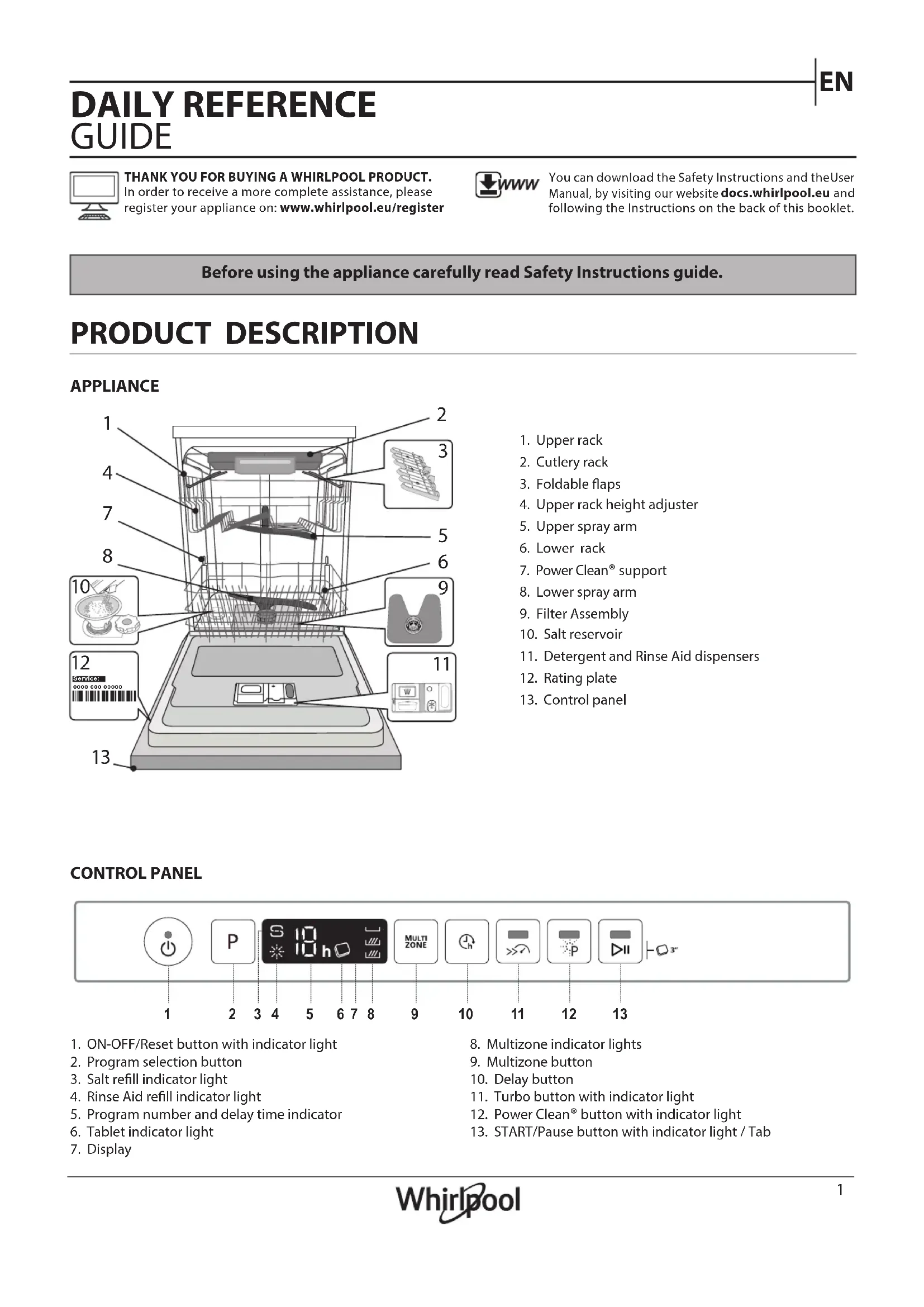

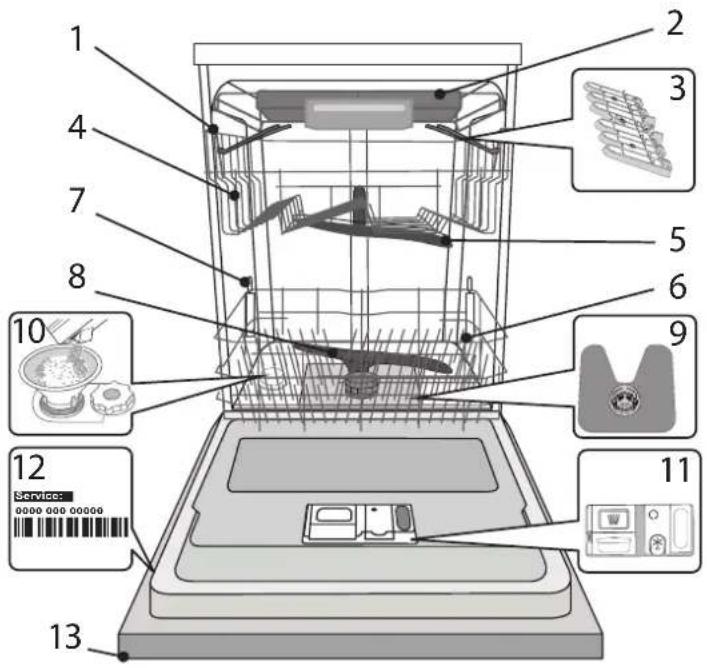

Before using the appliance carefully read Safety Instructions guide. APPLIANCE PRODUCT DESCRIPTION DAILY REFERENCE GUIDE THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive a more complete assistance, please register your appliance on: www.whirlpool.eu/registerYou can download the Safety Instructions and the User Manual, by visiting our website docs.whirlpool.eu and following the Instructions on the back of this booklet.1. ON-OFF/Reset button with indicator light2. Program selection button3. Salt rell indicator light4. Rinse Aid rell indicator light5. Program number and delay time indicator6. Tablet indicator light7. Display8. Multizone indicator lights9. Multizone button10. Delay button11. Turbo button with indicator light12. Power Clean® button with indicator light13. START/Pause button with indicator light / Tab CONTROL PANEL 0000 000 00000 Service:

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine’s functional components.• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY. • It is important to set the water hardness.The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be lled when the SALT REFILL indicator light in the control panel is lit.1. Remove the lower rack and unscrew the reservoir cap (anticlockwise). 2. Only the rst time you do this: ll the salt reservoir with water.

3. Position the funnel (see gure) and ll the salt

reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out. 4. Remove the funnel and wipe any salt residue away from the opening.Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).Whenever you need to add salt, it is mandatory to complete the pro-cedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory sets the default value for the water hardness. • Switch on the appliance by pressing the ON/OFF button.• Switch o the appliance by pressing the ON/OFF button.• Hold down button P for 5 seconds, until you hear a beep.• Switch on the appliance by pressing the ON/OFF button.• The current selection level number and the salt indicator light both ash.

• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).• Switch o the appliance by pressing the ON/OFF button.Setting is complete!As soon as this procedure is complete, run a program without loading.Only use salt that has been specically designed for dishwashers.After the salt has been poured into the machine, the SALT REFILL indi-cator light switches o.If the salt container is not lled, the water softener and the heating element may be damaged as a result of limescale accumulation.Using of Salt is recommended with any type of dishwasher deter-gent. Water Hardness Table Level °dH German degrees °fH French degrees°Clark English degrees 1 Soft 0 - 6 0 - 10 0 - 7 2 Medium 7 - 11 11 - 20 8 - 14 3 Average 12 - 16 21 - 29 15 - 20 4 Hard 17 - 34 30 - 60 21 - 42 5 Very hard 35 - 50 61 - 90 43 - 62

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be lled when the RINSE AID REFILL indicator light in the control panel is lit.1. Open the dispenser B by pressing and pulling up the tab on the lid.2. Pour in the rinse aid (max.110 ml), making sure it does not overow from the dispenser. If this happens, clean the spill immediately with a dry cloth. 3. Press the lid down until you hear a click to close it.NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satised with the drying results, you can ad-just the quantity of rinse aid used.• Switch the dishwasher on using the ON/OFF button.• Switch it o using the ON/OFF button.• Press button P three times - a beep will be heard.• Switch it on using the ON/OFF button.• The current selection level number and rinse aid indicator light ash.

• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it o using the ON/OFF buttonSetting is complete!If the rinse aid level is set to ZERO (ECO), no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid. A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specic to the model, please follow instruction above to check this for your machine.• If you see bluish streaks on the dishes, set a low number (1-2).• If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.1. When measuring out the detergent refer to the mentioned earlier infor-mation to add the proper quantity. Inside the dispenser D there are indi-cations to help the detergent dosing. 2. Remove detergent residues from the edges of the dispenser and clo-se the cover until it clicks.3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place. The detergent dispenser automatically opens up at the right time according to the program.If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.Usage of detergent not designed for dishwashers may cause mal-function or damage to the appliance.

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com Pre-treatment of the dishes is not needed before any of the programs.*) Not all options can be used simultaneously. **) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min. Program Drying phase Natural- Dry Available options

Duration of wash program (h:min)

Water consumption (litres/cycle) Energy consumption (kWh/cycle)

0:50 8.0 0.85 PROGRAMS TABLE PROGRAMS DESCRIPTION Instructions on wash cycle selection. 1 ECO Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most ecient programme in terms of its combined energy and water consumption, and that it is used to assess complian-ce with the EU Ecodesign legislation. 2 6th SENSE ® For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated. 3 INTENSIVE Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items). 4 MIXED Mixed soil. For normally soiled dishes with dried food residues.

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time. 6 CRYSTALS Program for delicate items, which are more sensitive to high temperatu-res, for example glasses and cups. 7 RAPID 30’ Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase. 8 SILENT Suitable for night-time operation of the appliance. Ensures optimal cle-aning and drying performance with the lowest noise emission. 9 SANITIZING Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher. 10 PREWASH Use to refresh crockery planned to be washed later. No detergent to be used with this program. 11 SELF-CLEAN Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specic deter-gents designed for dishwasher maintenanceNotes:Please note that cycle Rapid 30’ is dedicated for lightly soiled dishes.4

OPTIONS AND FUNCTIONS

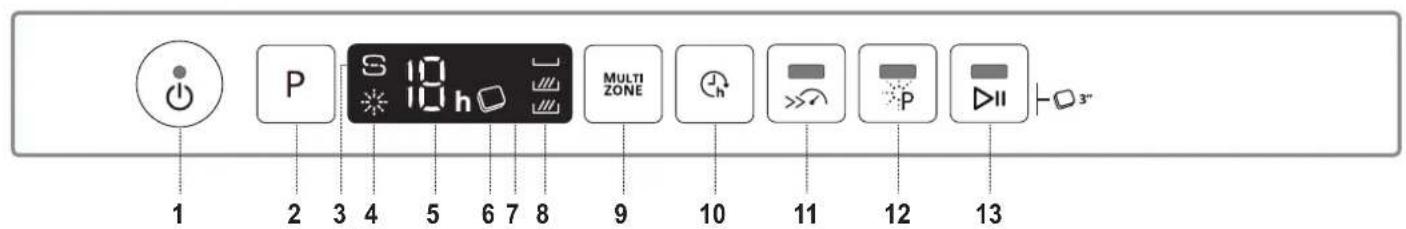

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED ashes rapidly 3 times and beeps will sound. The option will not be enabled. OPERATION INDICATOR A LED light projected on the oor indicates that the dishwasher is working. One of the following operating modes can be selected: a) Disabled function. b) When the cycle starts the light goes on for few seconds, stays o during the cycle and ashes at the end of the cycle. c) The light stays on during the cycle and ashes at the end of the cycle (default mode). If the delayed start was set, the light goes on either for the rst few seconds or the entire duration of the countdown, based on whether mode b) or c) was set. The light goes o every time the door is opened. To select the mode you prefer, switch on the machine, hold down button P until one of the three letters appears on the display, press button P until you reach the desired letter (or mode), hold down button P to conrm the selection. Note: If NaturalDry is active and it opens the door, then Operation Indicator will not ash at the end of cycle. MULTIZONE If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent. Select the program and then press the MULTIZONE button: the indicator over the button lights up and the symbol of the chosen rack will appear on the display. By default the appliance washes dishes in all racks. To wash only the specic rack, press this button repeatedly: shown on the display (only lower rack) shown on the display (only upper rack) shown on the display (only cutlery rack) shown on the display (option is OFF and the appliance will wash dishes in all racks). Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser. NaturalDry NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying per- formance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on. As additional steam protection, special designed protection foil is added together with the dishwasher. To see how to mount protection foil please refer to (INSTALLATION GUIDE). NaturalDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu pressing and holding P

2. You are currently in Light Control Menu (please refer to OPERATION

INDICATOR description), if you don’t want to change anything please press and hold P button ( until one of the two letters appears on the display).

3. You switched to NaturalDry Control Menu, you could change status

of NaturalDry functionality by pressing P button: E – enabled d – disabled To conrm the change and exit from the Control Menu please press and hold P button (3 sec). DELAY The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding symbol «h»

appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.

2. Select the wash program, press the START/PAUSE button

and within 4 seconds close the door: the timer will begin counting down.

3. Once this time has elapsed, the indicator light «h» switches

o and the wash cycle begins. To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches o. The DELAY function cannot be set once a wash cycle has been started. TABLET (Tab) This setting allows you to optimize the performance of the program according to the type of detergent used. Press the START/PAUSE button for 3 seconds (the correspon- ding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose). If you use powder or liquid detergent, this option should be o. POWER CLEAN® Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specic area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN (the indicator lights up). TURBO This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels. After selecting the program, press the TURBO button and the indicator light will switch on. To deselect the option, press the same button again.1

OPTIONS ET FONCTIONS

CAUSES POSSIBLES SOLUTIONS

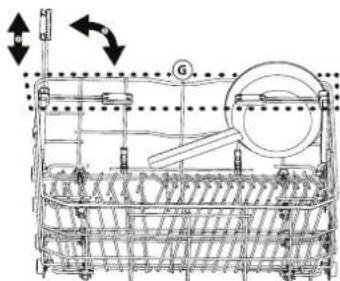

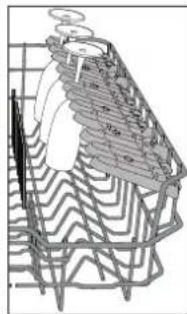

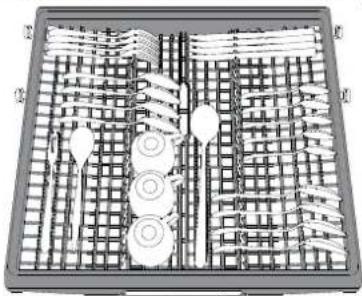

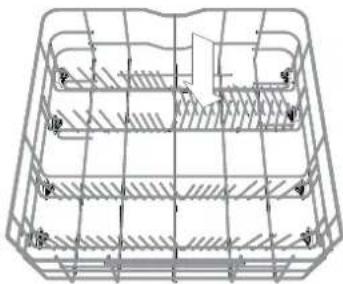

The side foldable aps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable aps by inserting the stem of each glass into the corresponding slots.Depending on the model: – to unfold the aps there is needed to slide it up and rotate or release it from the snaps and pull it down. – to fold the aps there is needed to rotate it and slide aps down or pull it up and attach aps to the snaps. LOWER RACK For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.(loading example for the lower rack) POWER CLEAN® Power Clean® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN® on the panel. How to use Power Clean®:1. Adjust the Power Clean® area G folding down the rear plate hol-ders to load pots.2. Load pots and casseroles inclined vertically in Power Clean® area. Pots have to be inclined towards the power water jets. CUTLERY RACK The third rack was designed to house the cutlery.Arrange the cutlery as shown in the gure.A separate arrangement of the cutlery makes collection easier after washing and improves wa-shing and drying performance.Knives and other utensils with sharp edges must be positioned with the blades facing downwards.The geometry of the rack makes it possible to place such small items as coee cups in the area in the middle. UPPER RACK Load delicate and light dishes: glasses, cups, saucers, low salad bowls.(loading example for the upper rack) ADJUSTING THE HEIGHT OF THE UPPER RACK The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip--up supports by creating more space upwards and avoid collision with the items loaded into lower rack. The upper rack is equipped with a Upper Rack height adjuster (see gure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.We strongly recommend that you do not ad-just the height of the rack when it is loaded.NEVER raise or lower the basket on one side only.6 DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by press- ing the P button. Select the desired options (see OPTIONS AND FUNCTIONS).

Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec. When the program starts you hear a single beep. If the door was not closed within 4sec., the alarm sound will be played. In this case, open the door, press START/Pause button and close the door again within 4 sec.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the ashing of the wash cycle number on the display. Open the door and switch o the appliance by pressing the ON/OFF button. Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one. The machine will switch o automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with wa- ter before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, pro- vided that it has only just begun: open the door, press and hold the ON/OFF button, the machine will switch o. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; Start the wash cycle by pressing START/Pause button (led is lit) and closing the door within 4 sec.

ADDING EXTRA CROCKERY

Without switching o the machine, open the door (START/Pause led starts blinking) (be ware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was in- terrupted. ACCIDENTAL INTERRUPTIONS If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 sec., the cycle will resume from the point at which it was interrupted.

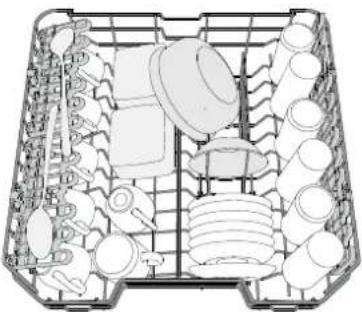

TIPS Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water. Arrange the crockery so that it is held in place rmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the wa- ter to reach every surface and ow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer

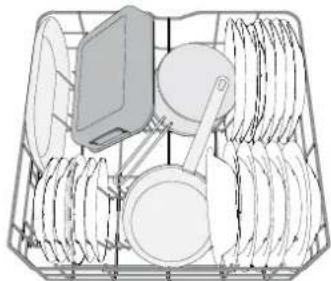

arms from rotating. Place any small items in the cutlery basket. Very soiled dishes and pans should be placed in the lower basket be- cause in this sector the water sprays are stronger and allow a higher washing performance. After loading the appliance, make sure that the sprayer arms can rotate freely. UNSUITABLE CROCKERY

• Wooden crockery and cutlery.

• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.

• Parts in synthetic material which do not withstand high temperatures.

• Copper and tin crockery.

• Crockery soiled with ash, wax, lubricating grease or ink. The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.

• Use a delicate detergent suitable for crockery

• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufac- turer’s instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.

• In order to maximize dishwasher eciency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the man- ufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), illing up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.

• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. HYGIENE To avoid odour and sediment which can be accumulated in the dish- washer please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.7

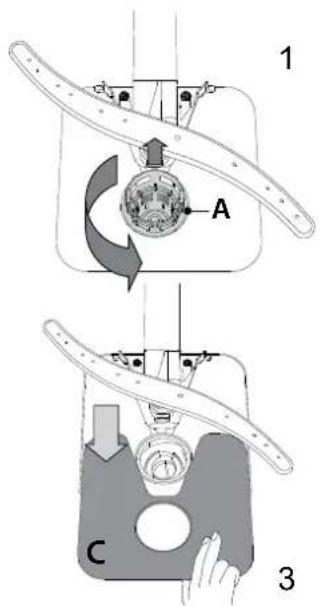

CLEANING THE FILTER ASSEMBLY

Regularly clean the lter assembly so that the lters do not clog and that the waste water ows away correctly.Using dishwasher with clogged lters or foreign objects inside ltration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.The lter assembly consists of three lters which remove food residues from the washing water and then recirculate the water.The dishwasher must not be used without lters or if the lter is loose.At least once per month or after each 30 cycles, check the lter assembly and if necessary clean it thoroughly under running water, using a no-n-metallic brush and following the instructions below:

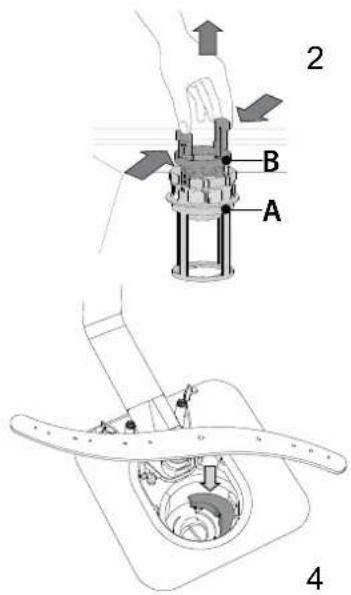

1. Turn the cylindrical lter A in an anti-clockwise direction and pull it

2. Remove the cup lter B by exerting a slight pressure on the side

3. Slide out the stainless-steel plate lter C (Fig 3).

4. In case you nd foreign objects (such as broken glass, porcelain,

bones, fruit seeds etc.) please remove them carefully.

5. Inspect the trap and remove any food residues. NEVER REMOVE the

wash-cycle pump protection (black detail) (Fig 4).After cleaning the lters, re-place the lter assembly and x it in position correctly; this is essential for maintaining the ecient operation of the dishwasher.CLEANING THE WATER INLET HOSEIf the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and da-mage the dishwasher.

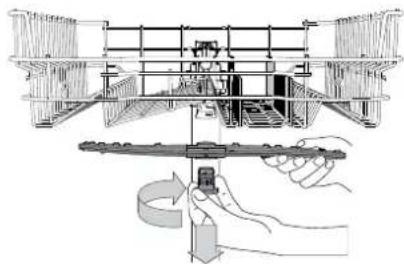

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommen-ded that you check the arms from time to time and clean them with a small non-metallic brush.To remove the upper spray arm, turn the plastic locking ring in clockwise direection. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.The lower spray arm may be removed by pulling it upwards.WATER SOFTENING SYSTEM Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning eciency. This system regenerates itself with salt, therefore it is required to rell salt container when empty. Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness lev- el set to 3. Regeneration process starts in nal rinse and nishes in drying phase, before cycle ends. • Single regeneration consumes: ~3.5L of water; • Takes up to 5 additional minutes for the cycle; • Consumes below 0.005kWh of energy.

PROBLEMS POSSIBLE CAUSES SOLUTIONS

Salt indicator is lit Salt reservoir is empty. (After rell the salt indica- tor may remain lit for several wash cycles). Rell reservoir with salt (for more information - see page 2). Adjust water hardness - see table, page 2. Rinse aid indicator is lit Rinse aid dispenser is empty. (After rell the rinse aid indicator may remain lit for several wash cycles). Rell dispenser with rinse aid (for more information - see page 2). The dishwasher won’t start or does not respond to commands. The appliance has not been plugged in properly. Insert the plug into the socket. Power outage. For safety reasons, dishwasher will not re-start automatically when power returns. Open dishwasher door, press START/Pause button and close the door within 4 seconds. The dishwasher door is not closed. NaturalDry pin is not pulled in. Vigorously push the door until you hear the “click”. Cycle is interupted by door opening for more than 4 seconds. Press START/Pause and close the door within 4 seconds. It does not respond to commands. Display shows: 9 or 12 and On/O LED is blin- king rapidly Switch o the appliance by pressing the ON/OFF button, switch it back on after approxi- mately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in. The dishwasher won’t drain. Display shows: 3 and On/O LED is blinking rapidly The wash cycle has not nished yet. Wait until the wash cycle nishes. The drain hose is bent. Check that the drain hose is not bent (see INSTALATION INSTRUCTION). The sink drain pipe is blocked. Clean the sink drain pipe. The lter is clogged up with food residues. Clean the lter (see CLEANING THE FILTER ASSEMBLY). The dishwasher makes excessive noise. The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS). An excessive amount of foam has been produced. The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent. The dishes are not clean. The crockery has not been arranged properly. Arrange the crockery correctly (see LOADING THE RACKS). The spray arms cannot rotate freely, being hinde- red by the dishes. Arrange the crockery correctly (see LOADING THE RACKS). The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE). An excessive amount of foam has been produced. The detergent has not been measured out correctly or it is not suitable for use in dishwa- shers (see FILLING THE DETERGENT DISPENSER). The cap on the rinse aid compartment has not been shut correctly. Make sure the cap of the rinse aid dispenser is closed. The lter is soiled or clogged. Clean the lter assembly (see CARE AND MAINTENANCE). There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR). The dishwasher does not ll the water. Display shows: H, 6 and On/O LED is blinking rapidly No water in the water supply or the tap is closed. Make sure there is water in the water supply or the tap running. The inlet hose is bent. Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot. The sieve in the water inlet hose is clogged; it is necessary to clean it After having carried out the verication and cleaning, turn o and turn on the dishwa- sher and restart a new program. Dishwasher nishes the cycle prema- turely. Display shows: 15 and On/O LED is blinking rapidly Drain hose positioned too low or siphoning into home sewage system. Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary. Air in water supply. Check water supply for leaks or other issues letting air inside. 400011667232B 03/2023 jk - Xerox Fabriano Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code and visiting our website: docs.whirlpool.eu

• Visiting our website: parts-selfservice.whirlpool.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product’s ide tication plate. The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu. IEC 436

In case your dishwasher doesn’t work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specic Regulation requirements.
