USER MANUAL CSSHD1 SONY

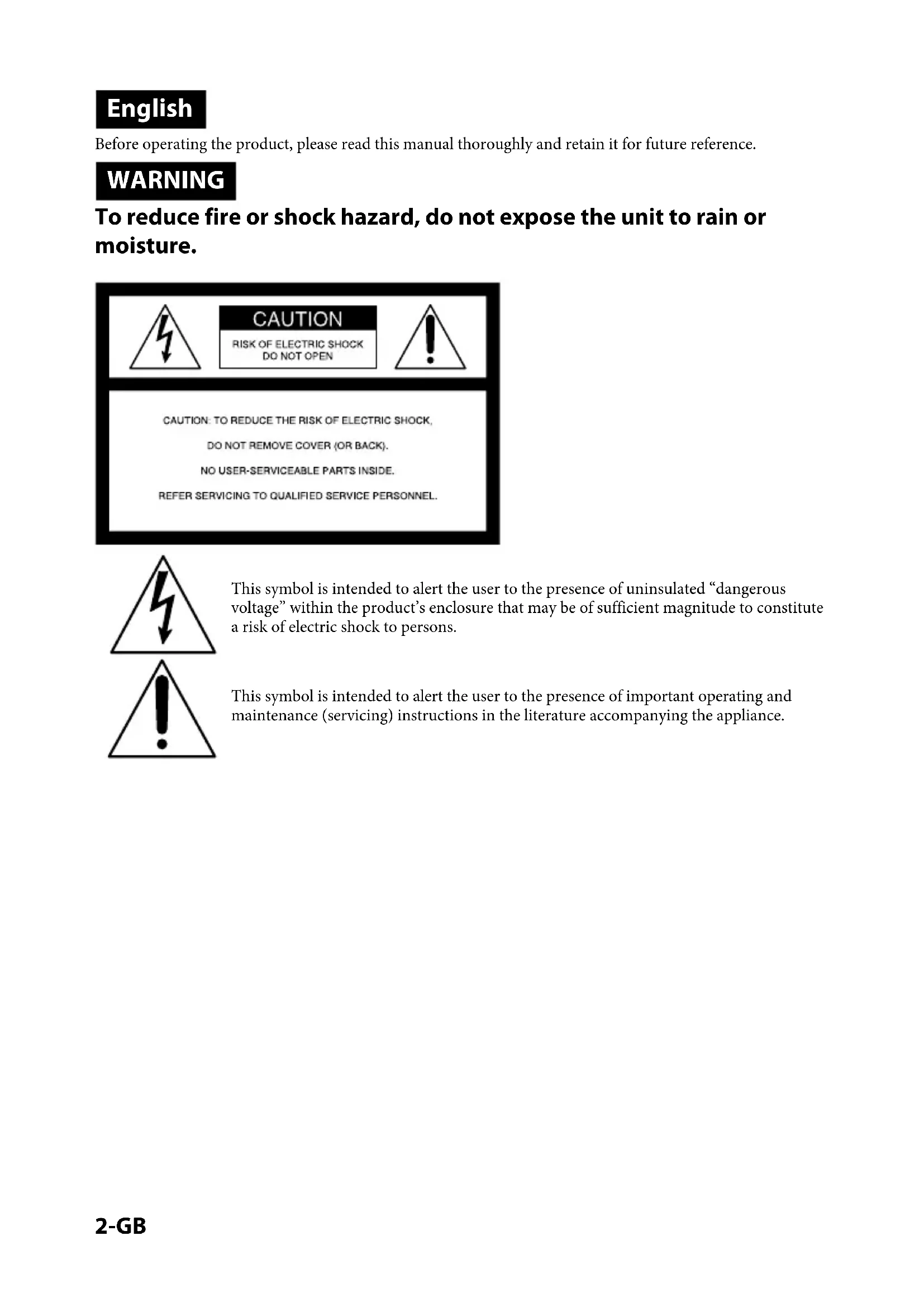

Mode d’emploi2-GB English  Before operating the product, please read this manual thoroughly and retain it for future reference. WARNING  To reduce fire or shock hazard, do not expose the unit to rain or  moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.3-GB IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them. Use Power Sources This set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of electrical power supplied to your home, consult your dealer or local power company. For those sets designed to operate from battery power, or other sources, refer to the operating instructions. Polarization This set may be equipped with a polarized ac power cord plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized plug by forcing it in. Overloading Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock. Object and Liquid Entry Never push objects of any kind into the set through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the set. Attachments Do not use attachments not recommended by the manufacturer, as they may cause hazards. Cleaning Unplug the set from the wall outlet before cleaning or polishing it. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the set. Installation Water and Moisture Do not use power-line operated sets near water − for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Power-Cord Protection Route the power cord so that it is not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the plugs, receptacles, and the point where the cord exits from the appliance. Accessories Do not place the set on an unstable cart, stand, tripod, bracket, or table. The set may fall, causing serious injury to a child or an adult, and serious damage to the set. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer. Ventilation The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable operation of the set, and to protect it from overheating, these slots and openings must never be blocked or covered. Never cover the slots and openings with a cloth or other materials. Never block the slots and openings by placing the set on a bed, sofa, rug, or other similar surface. Never place the set in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided. Do not place the set near or over a radiator or heat register, or where it is exposed to direct sunlight.

–4-GB Lightning For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power-line surges. Service Damage Requiring Service Unplug the set from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power cord or plug is damaged or frayed. If liquid has been spilled or objects have fallen into the set. If the set has been exposed to rain or water. If the set has been subject to excessive shock by being dropped, or the cabinet has been damaged. If the set does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the set to normal operation. When the set exhibits a distinct change in performance − this indicates a need for service. Servicing Do not attempt to service the set yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. Replacement parts When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.

• –5-GB For Customers in the U.S.A. Safety Check Upon completion of any service or repairs to the set, as the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the set is in safe operating condition. your nearest Sony service station. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules. Notice on the supplied AC Adaptor for customers in the United   Kingdom A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience. Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS1362, (i.e., marked with or mark) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.6-GB  For Customers in Europe This product has been tested and found compliant with the limits sets out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet). Attention The electromagnetic field at the specific frequencies may influence the picture and sound of this unit. Disposal of Old Electrical & Electronic Equipment (Applicable in the  European Union and other European countries with separate collec- tion systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative conse- quences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.7-GB Table of contents Notes on using the Cyber-shot Station p. 8
• Features p. 9
• Trademarks p. 9
• Identifying the parts p. 10
• Set up p. 11
• Placing the camera on the Cyber-shot Station p. 12

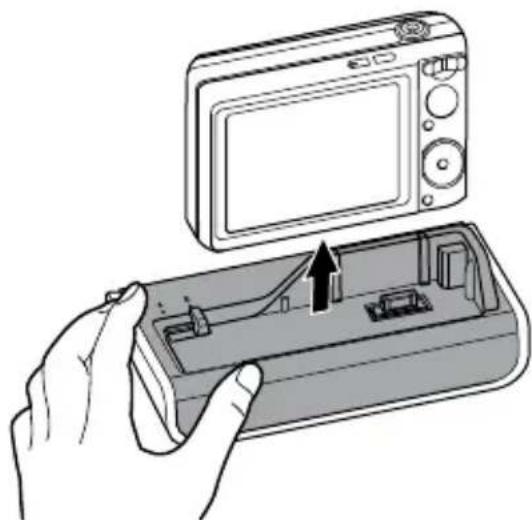

• Removing the camera from the Cyber-shot Station p. 12
• Charging the battery pack p. 12
• Viewing images on a TV screen p. 13
• Slide Show p. 14
• Care and maintenance p. 14
• Changing the battery of the Remote Control p. 14
• Troubleshooting p. 15

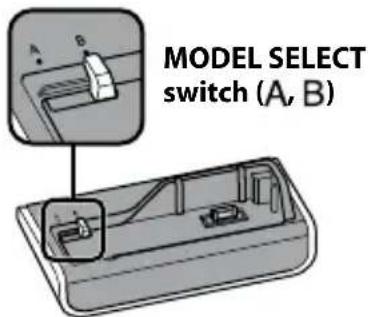

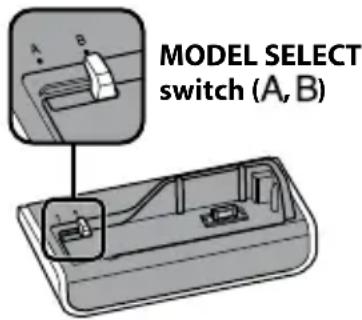

• Specifications -GB Notes on using the Cyber-shot Station Refer to the operating instructions for your camera as well as this manual. The Cyber-shot Station is not a dust-proofed, moist-proofed, or water proofed product. About the MODEL SELECT switch The Cyber-shot Station allows you to attach your camera by setting the MODEL SELECT switch ( , ). See page 11 for further details. The MODEL SELECT switch is set to when purchased. Be sure to set the MODEL SELECT switch to the designated position before use, or it may cause a malfunction of your camera or the Cyber- shot Station. p. 168

Do not use or keep the Cyber-shot Station in locations subject to the following conditions: Locations with extremes of temperature The temperature in closed automobiles during summer may be extremely hot, causing deformation or malfunction of the Cyber-shot Station. Locations under direct sunlight or near heaters This may cause deformation or a malfunction of the Cyber-shot Station. Locations subject to vibration Locations subject to strong magnetism Precautions:  Even if the CHARGE lamp is not lit, the unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet (wall socket). If some trouble occurs while using the unit, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket). Use the nearest wall outlet to get the AC Adaptor plugged in. If any malfunctions occur using the product, unplug the AC Adaptor to cut off the power source. The set is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the set itself has been turned off. Do not use the AC Adaptor placed in a narrow space, such as between a wall and furniture. Do not use the Cyber-shot Station in locations that are subject to strong radio waves or radiation. Images may not be played back properly. Avoid other metalic objects to contact with the connecting parts of the Cyber-shot Station and the power cord. It may cause a short circuit. Recording contents cannot be compensated for if playback is not possible due to damaged “Memory Stick Duo”, a malfunction of your camera or the Cyber-shot Station, etc.

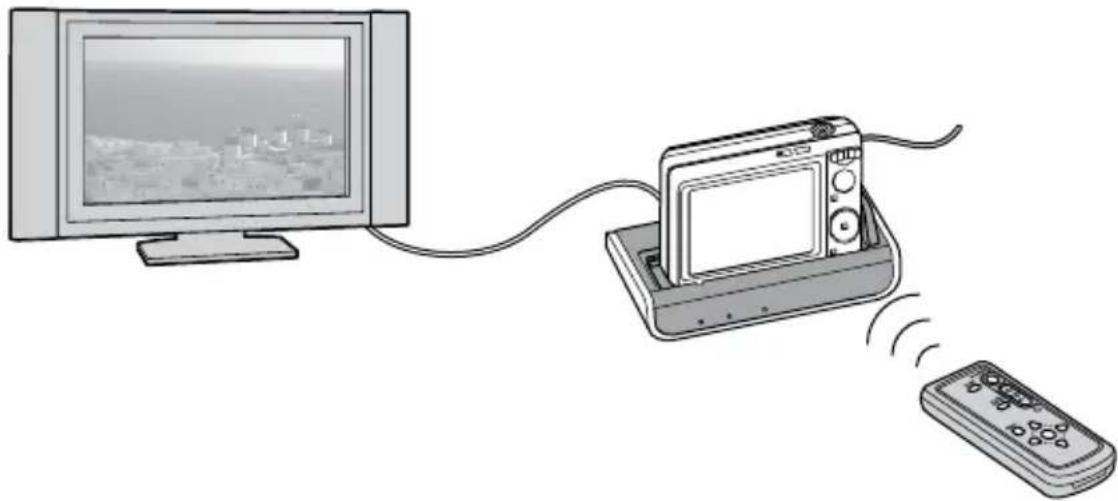

9-GB Features The CSS-HD1 can be used with the DSC-T100, DSC-T25, DSC-T20, DSC-W200, DSC-W90, DSC-W85, and DSC-W80 digital still cameras. Not all digital still cameras are available in all countries. When you place a digital still camera (here in after referred to as the “camera”) on the Cyber-shot Station, you can use the Cyber-shot Station in the following way. You can view the high definition images of the camera by connecting the Cyber-shot Station to the high definition TV. You can easily view images on a TV screen with the wireless remote control. Using the remote control, you can operate the followings: Viewing images Slide Show Playback zoom You can easily start Slide Show by only pressing the SLIDE SHOW button on the remote control. The Cyber-shot Station can charge the battery pack inside the camera faster than the battery charger supplied with the camera. Trademarks and “Cyber-shot Station” are trademarks of Sony Corporation. “Memory Stick Duo” is a trademark of Sony Corporation. In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers. However, the

marks are not used in all cases in this manual.

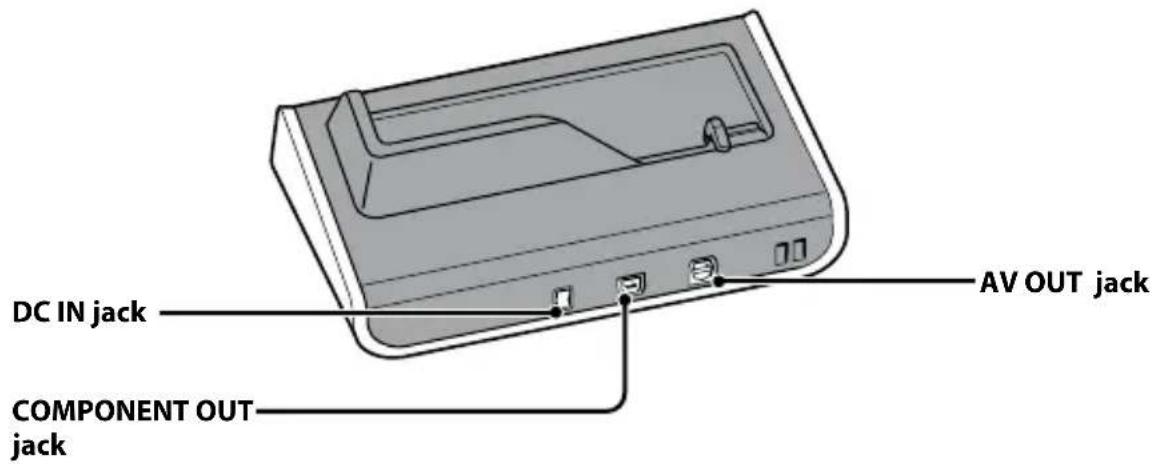

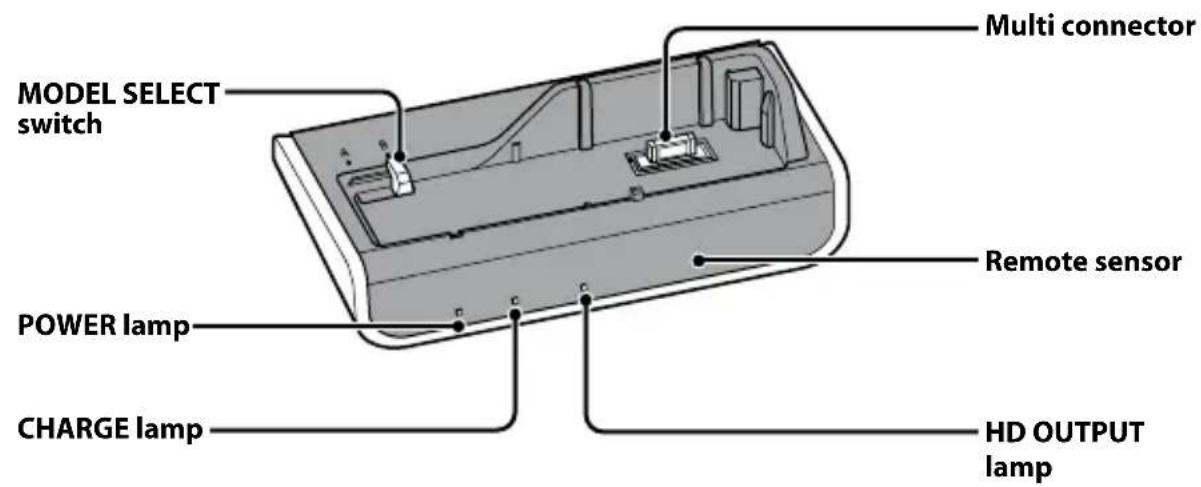

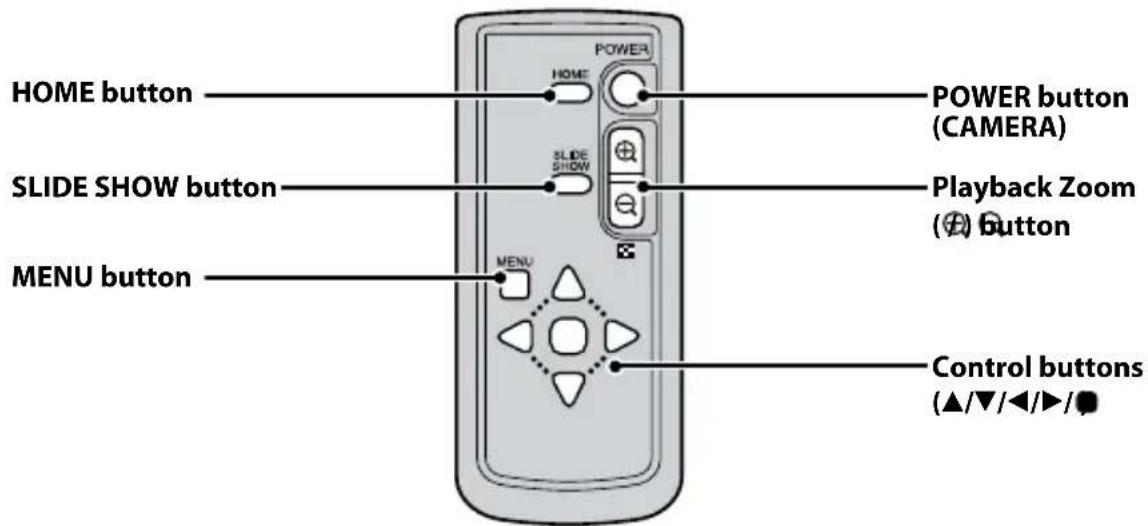

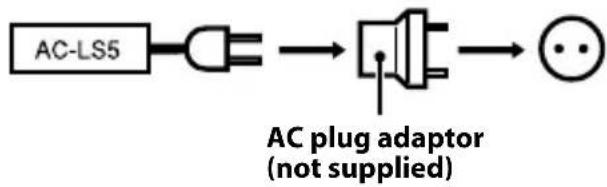

10-GB Identifying the parts Cyber-shot Station MODEL SELECT  switch POWER lamp CHARGE lamp Multi connector Remote sensor HD OUTPUT  lamp DC IN jack COMPONENT OUT  jack AV OUT  jack Remote Control HOME button SLIDE SHOW button MENU button POWER button  (CAMERA) Playback Zoom   ( / ) button Control buttons  (//// )11-GB To use your Cyber-shot Station abroad   - Power sources You can use the Cyber-shot Station and the AC Adaptor (supplied) in any country or region where the power supply is within 100 V to 240 V AC 50/60 Hz. Use a commercially available AC plug adaptor, if necessary, depending on the design of the wall outlet (wall socket). AC plug adaptor (not supplied) Do not use an electronic transformer (travel  converter), as this may cause a malfunction. Preparing the remote control Notes on the remote control The remote control is powered by a button type lithium battery (CR2025) installed at the factory. An insulation sheet is inserted to avoid the battery exhaustion. Remove the insulation sheet before using the remote control for the first time. Insulation sheet Point the remote sensor of the Cyber-shot Station away from strong light sources such as direct sunlight or overhead lightings. Otherwise, the remote control may not function properly. The remote control range is less than five meters (for indoor use). Point the remote control at the remote sensor of the Cyber-shot Station. Try adjusting the angle of the remote control if you cannot operate the Cyber-shot Station.

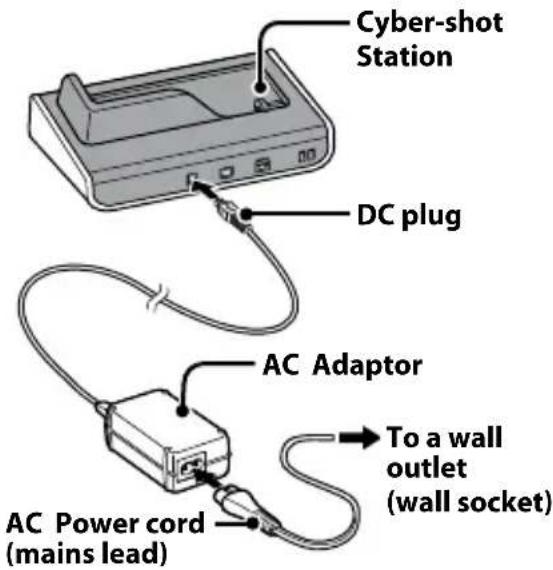

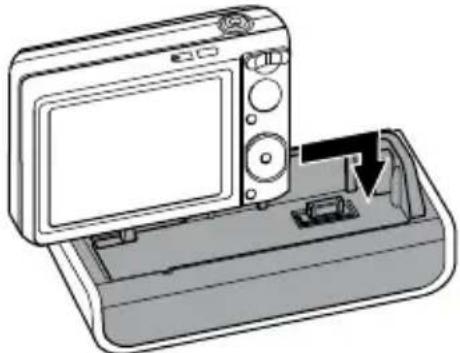

2  Connect the AC Adaptor to the DC IN jack  of the Cyber-shot Station. To a wall  outlet  (wall socket) Cyber-shot Station DC plug AC  Adaptor AC  Power cord (mains lead)12-GB Placing the camera on the  Cyber-shot Station  Remove the Adaptor ring, the Conversion lens,  etc. from the camera. Attach the camera as shown below. Insert the “Memory Stick Duo” into the camera. When you use data in the internal memory, do not insert the “Memory Stick Duo” into the camera. Be sure to turn off the camera before placing it on or removing it from the Cyber-shot Station. Tips You can attach the camera to the Cyber-shot Station smoothly by alignning the camera to the right corner of the Cyber-shot Station. Make sure that the camera is securely attached to the Cyber-shot Station. Removing the camera from  the Cyber-shot Station  Hold the Cyber-shot Station down when you remove the camera from the Cyber-shot Station. Notes When removing the camera, make sure to lift the camera straight up. It may damage the camera or the Cyber-shot Station when some extra is added to the front or the sides.

Charging the battery pack  Place the camera with the battery pack  inserted on the Cyber-shot Station. Charging starts automatically. The CHARGE lamp of the Cyber-shot Station lights up. When the camera is turned on, the Cyber-shot Station stops charging the battery pack. When the charging reaches to Normal charge*, the CHARGE lamp goes off. Recording and playback time with Normal charge

approximately 90% of Full charge. For the time of the full-charge for a completely discharged battery at the temperature of 25 °C (77 °F), see the table below. DSC-T100, DSC-T25, DSC-T20, DSC-W200, DSC-W90, DSC-W85, DSC-W80 Approx. 230 minutes It may take longer to charge, depending on the charging condition and environment. If CHARGE lamp fails to light or blinks for more than 10 seconds, refer to “Troubleshooting”. Notes After attaching the camera to the Cyber-shot Station, the CHARGE lamp may blink for 3 to 10 seconds. This indicates communication between the camera and the Cyber-shot Station, and it is not a malfunction. Charging temperature The temperature range for charging is 0 °C to 40 °C (32 °F to 104 °F). However, to provide maximum battery efficiency, the recommended temperature range when charging is 10 °C to 30 °C (50 °F to 86 °F). On battery life The battery life is limited. Battery capacity decreases little by little as you use it more and more, and as time passes. If the battery operating time seems shortened considerably, a probable cause is that the battery pack has reached the end of its life. Buy a new battery pack. The battery life varies according to how it is stored and the operating conditions and environment in which each battery pack is used.

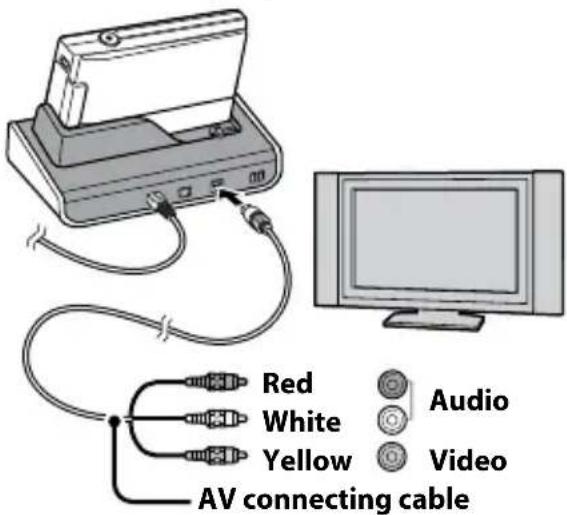

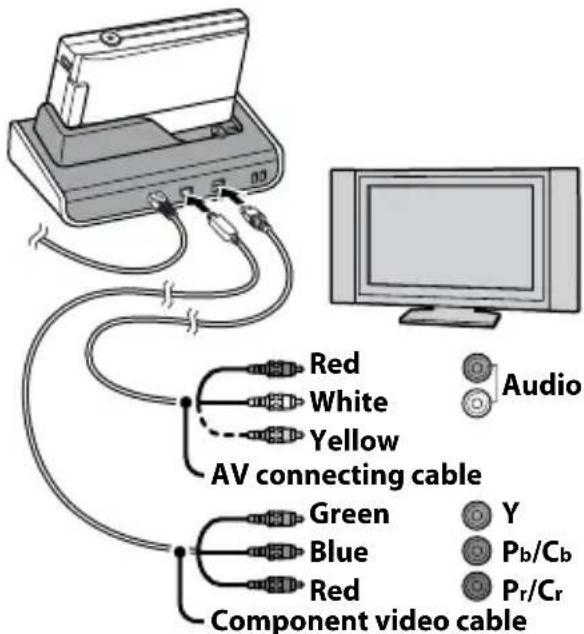

13-GB Viewing images on a TV  screen  You can playback images by connecting to the TV with the AV connecting cable (supplied) or the Component video cable (supplied). 1  Connect the Cyber-shot Station with the AV  connecting cable. Connect the AV connecting cable (supplied) to the AV OUT jack of the Cyber-shot Station and the audio/video input jacks of the TV. AV connecting cable Red White Yellow Audio Video To connect the Cyber-shot Station with  the Component video cable and the AV  connecting cable Connect the Component video cable to the COMPONENT OUT jack and the component video input jacks of the TV, and connect the AV OUT jack and the audio input jacks of the TV. Refer to the operating instructions supplied with the TV for connection. Component video cable AV connecting cable Red White Yellow Audio Green Blue Red

Turn off both the camera and the TV before connecting the Cyber-shot Station and the TV with the Component video cable and the AV connecting cable. The signal format to be output via the COMPONET OUT jack depends on the camera. To view the 1080i format images, you need the TV compatible with 1080i format. The Audio to be output via the AV out jack is monaural. When both the Component video cable and the AV connecting cable is connected, the images will be output via the COMPONENT OUT jack, not via the AV OUT jack. The Cyber-shot Station is not compatible with the S-VIDEO connecting cable. 2  Turn on the power by pressing the    (playback) button of the camera or the  POWER button on the remote control. Notes The buttons on the camera or the remote control may not function immediately after the camera is attached to the Cyber-shot Station. This occurs when the camera is booting up and is not a malfunction. Wait for about 10 seconds. 3  Turn on the TV and set the TV/Video switch  to “Video”. 4  Press / on the Control buttons of the  remote control to select the image. You can also select the image by pressing / on the Control buttons of the camera. The Cyber-shot Station is compatible with both NTSC and PAL TV systems. For further details, see the operating instructions supplied with the camera.

Slide Show You can playback a series of still images and movies recorded with your camera by only pressing the SLIDE SHOW button on the remote control. 1  Turn on the power by pressing the    (playback) button of the camera or the  POWER button on the remote control. 2  Press the SLIDE SHOW button on the  remote control. To cancel Slide Show Press the SLIDE SHOW button on the remote control again. You can change the settings of Slide Show ([Interval], [Image], and [Repeat] etc.) with the settings on the camera. For further details, refer to the operating instructions supplied with the camera. Care and maintenance Clean the Cyber-shot Station with a soft cloth slightly moistened with water, and wipe the surface with a dry cloth. Do not use any type of solvent such as thinner, alcohol or benzine as this may damage the surface. Changing the battery of the  Remote Control WARNING  Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire. When the lithium battery becomes weak, the operating distance of the Remote Commander may shorten, or the Remote Commander may not function properly. In this case, replace the battery with a Sony CR2025 lithium battery. Use of another battery may present a risk of fire or explosion. For the State of California, USA only Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate Perchlorate Material: Lithium battery contains perchlorate.

15-GB Troubleshooting If any problems occur with your products, refer to the following solutions. If the problem persists, contact your Sony dealer.   Symptom  Cause/Solution Unable to charge the battery pack (when the CHARGE lamp fails to light) The camera is turned on. Turn the camera off. The AC Adaptor is disconnected. Connect the AC Adaptor properly. The camera is not placed on the Cyber-shot Station correctly. Place the camera correctly. The battery pack is not installed correctly. Install the battery pack correctly. The battery pack is completely charged. The battery pack installed into the camera is inapplicable. Install the battery pack compatible with your camera.

The CHARGE lamp blinks fast, or blinks for more than 10 seconds The battery pack installed into the camera is inapplicable. Install the battery pack compatible with your camera. The connection is not correct. Remove the camera from the Cyber-shot Station and reconnect the AC Adaptor. After the CHARGE lamp goes off, place the camera on the Cyber-shot Station.

Unable to turn on the camera, or it suddenly gets turned off The camera is not placed on the Cyber-shot Station correctly. Place the camera correctly. The AC Adaptor is disconnected. Connect the AC Adaptor properly.

The images/sounds cannot be played back on a TV The connection is not correct. The audio cannot be output when only the Component video cable is connected. Connect the AV connecting cable to the audio jack correspond to the component video jack. The Component video out setting of the camera is not correct. Refer to the operating instructions supplied with the camera, and set the [COMPONENT] setting correctly.

The images cannot be output via the AV connecting cable The Component video cable is connected to the Cyber-shot Station and the TV. Unplug the Component video cable from the Cyber-shot Station.

Buttons on the remote control do not work, and no operations can be performed The AC Adaptor is disconnected. Connect the AC Adaptor properly. The battery in the remote control is dead. Replace the battery with a new one.

Unable to attach the camera on the Cyber-shot Station The MODEL SELECT switch is not set to its designated position. Set the MODEL SELECT switch to the designated position.
