USER MANUAL Bravia KD49X7052 SONY

For useful information about Sony products

https://www.sony.eu/support

BRAVIA

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guia de referência	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční příručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referință	RO
Информация за продукта	BG
Обдньóс авафорáç	GR
Başvuru Kılavuzu	TR

To attach the Table-Top Stand, refer to the Setup Guide.

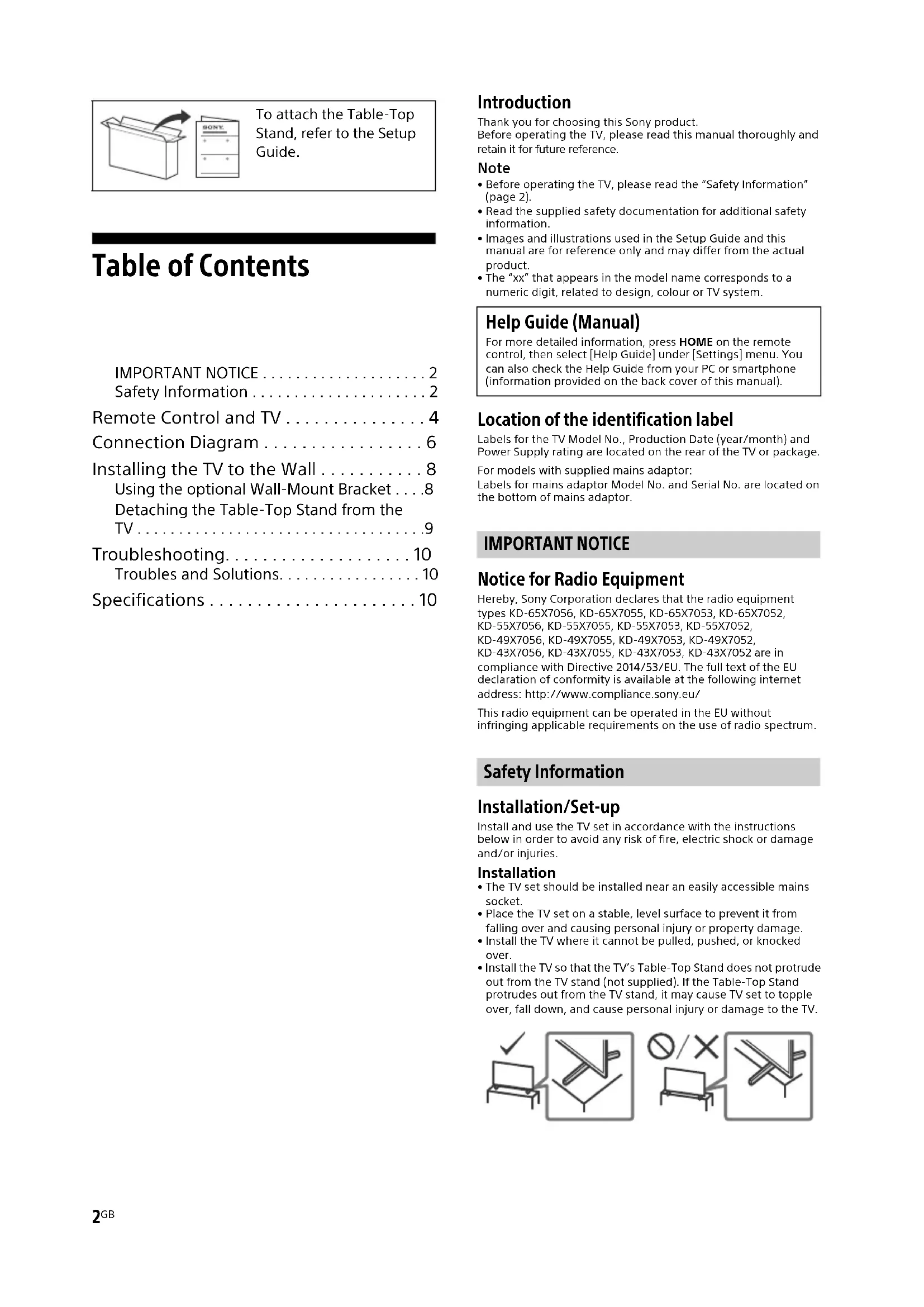

Table of Contents

IMPORTANT NOTICE....2
Safety Information 2
Remote Control and TV 4
Connection Diagram....6
Installing the TV to the Wall ..... 8
Using the optional Wall-Mount Bracket . . . .8
Detaching the Table-Top Stand from the TV....9
Troubleshooting....10
Troubles and Solutions....10
Specifications....10

Introduction

Thank you for choosing this Sony product.

Before operating the TV, please read this manual thoroughly and retain it for future reference.

Note

• Before operating the TV, please read the "Safety Information" (page 2).
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Help Guide (Manual)

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual).

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

For models with supplied mains adaptor:

Labels for mains adaptor Model No. and Serial No. are located on the bottom of mains adaptor.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052,

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052, KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  • Install the TV where it cannot be pulled, pushed, or knocked over.

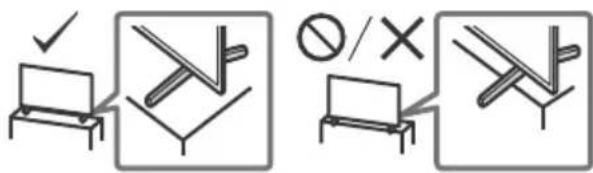

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Diagram illustrating three different types of electrical circuitry: check, no/×, and switch symbols.

• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:
  — Wall-Mount Bracket: SU-WL450
• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model.
  Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

8 mm - 12 mm Screw (M6) Wall-Mount Bracket TV's rear cover

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

Line drawing of two human figures carrying a large rectangular object (no text or symbols)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

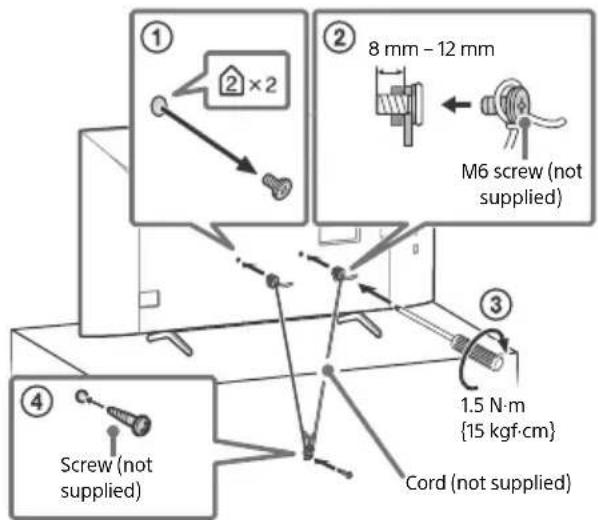

Topple prevention KD-65X70xx

① ② ×2 ② 8 mm - 12 mm M6 screw (not supplied) ③ 1.5 N·m {15 kgf·cm} Cord (not supplied) ④ Screw (not supplied)

KD-55X70xx / 49X70xx / 43X70xx

8 mm - 12 mm M6 screw (not supplied) 1.5 N·m {15 kgf·cm} Screw (not supplied) Cord (not supplied)

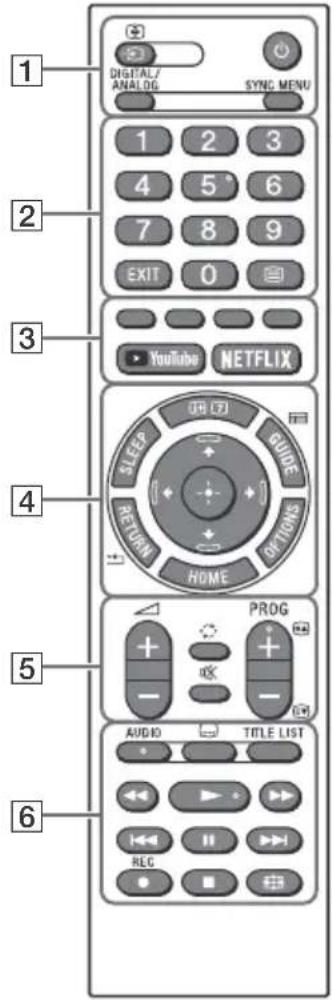

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

1 DIGITAL/ ANALOG SYNC MENU 2 1 2 3 4 5° 6 7 8 9 EXIT 0 3 YouTube NETFLIX 4 SLEEP GUIDE RETURN OPTIONS HOME 5 PROG - - AUDIO TITLE LIST 6

1 - (Input select/Text hold)

In TV mode: Display and select the input source.

In Text mode: Hold the current page.

(TV standby)

DIGITAL/ANALOG

Switch between digital and analogue input.

SYNC MENU

Display the BRAVIA Sync Menu.

For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

2 Number buttons

EXIT

Text

Display text information.

3 Colour buttons

YouTube (Only on limited region/country/TV model)

NETFLIX (Only on limited region/country/TV model)

4 i? (Info / Text rev

Display information.

SLEEP

Press repeatedly until the TV displays the time in minutes ([Off]/[15 min]/[30 min]/[45 min]/[60 min]/[90 min]/[120 min]) that you want the TV to remain on before shutting off. To cancel the sleep timer, press SLEEP repeatedly until [Off] appears.

GUIDE/

Display the Digital EPG (Electronic Programme Guide).

RETURN/

OPTIONS

Display a list that contain shortcuts to some setting menus.

The listed options vary depending on the current input and content.

HOME

↑/↓/←/→/⊕

On screen menu navigation and selection.

5 ∠+/- (Volume)

○ (Jump)

※ (Mute)

PROG +/-/▲/▼

In TV mode: Select the channel.

In Text mode: Select the next (☐) or previous (☑) page.

6 AUDIO

Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

TITLE LIST (Not available for Italy)

Display the Title list.

◀/▶/▶/◀/■/▶/■

Operate media contents on the TV and connected BRAVIA Sync-compatible device. This key also can be used to operate VOD (Video on Demand) service playback. Availability is depend on VOD service.

● REC (Not available for Italy)

Record the currently viewed programme on the USB HDD.

(Wide Mode)

Adjust the screen display. Press repeatedly to select the desired wide mode.

KD-65X70xx

+ - 0 7 8

KD-55X70xx / 49X70xx / 43X70xx

8 0 7

7 ⏻ (Power)

8 Remote Control sensor / LED indicator

Note

• If subtitles are selected and the user launches a digital text application via 'text' key, subtitles may, under certain circumstance stop being displayed. When the user exits the digital text application, subtitle decoding will resume automatically.
• Make sure that the TV is completely turned off before unplugging the mains lead.
• To disconnect the TV from the mains completely, pull the plug from the mains socket.
• Please wait for a while when perform input selection to change to other input.

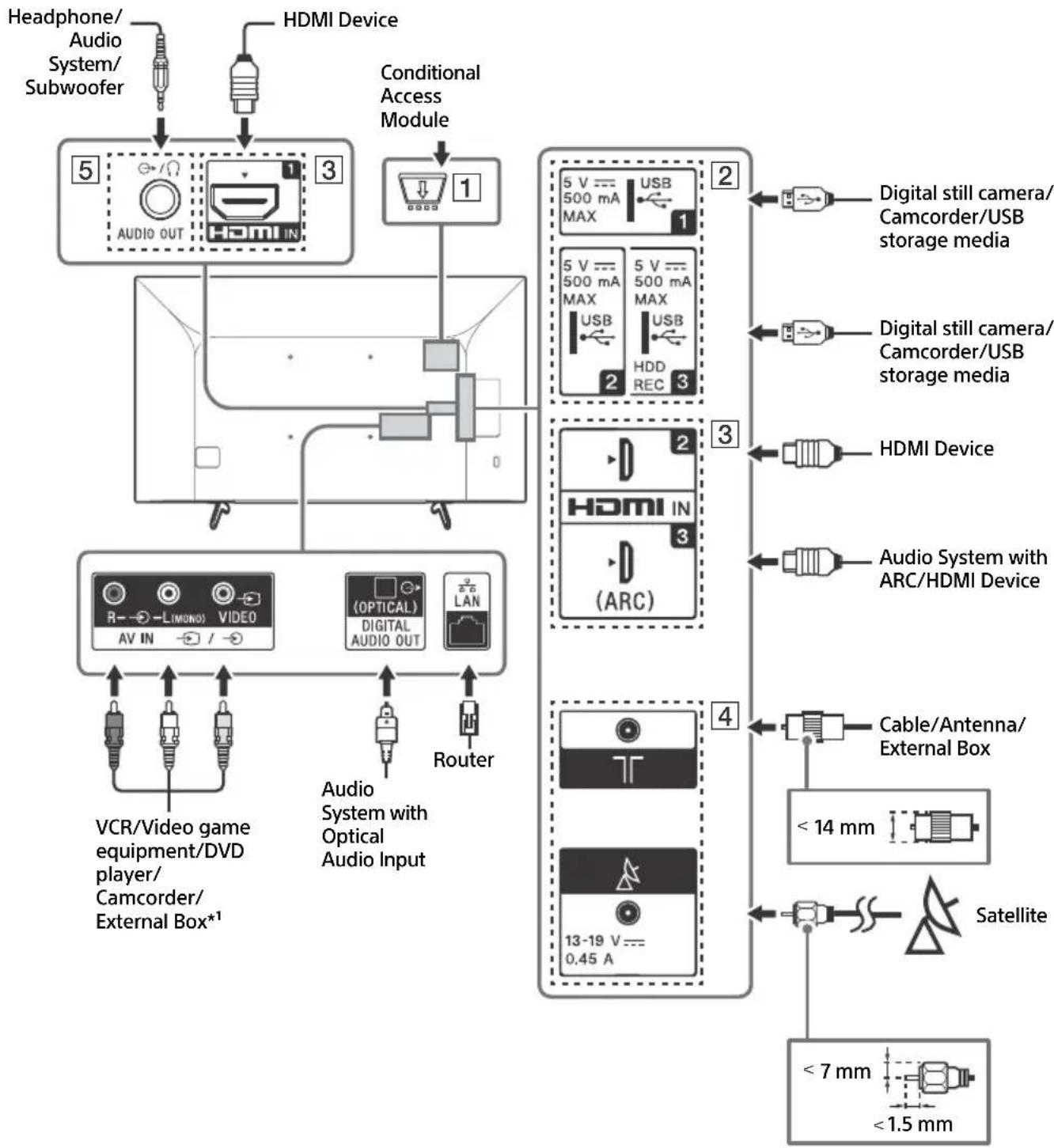

Connection Diagram

You can connect a wide range of optional equipment to your TV.

Note

- Terminals, labels and functions may vary depending on region/country/TV model.

1 CAM (Conditional Access Module)

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.
• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.
  • CAM is not supported in some countries/areas. Check with your authorised dealer.
• A CAM message may appear when you switch to a digital programme after using the Internet video.

2 USB1/2, USB3 (HDD

• Connecting a large USB device may interfere with other connected devices beside it.
• When connecting a large USB device, connect to the USB 1 port.
• Connect a USB HDD device to the USB 3 port.

3 HDMI IN 1/2/3

- HDMI interface can transfer the digital video and audio on a single cable.

< 12 mm < 21 mm

• HDMI IN 2/3

To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format].

For details of supported formats, refer to the "Specifications" in this manual (page 10-11).

• HDMI IN 3 ARC (Audio Return Channel)

Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

HDMI OUT (ARC)

REC)\*

4 (RF input), (Satellite input)\* 2

- Connections for terrestrial/cable and satellite.

5 AUDIO OUT

• Supports 3-pole stereo mini jack only.
- To listen to the TV's sound through the connected equipment, press HOME, then select [System Settings] → [Setup] → [AV Setup] → [Headphone/Audio Out] and then select the desired item.

Note

*1 For an external device which has only SCART AV OUT, use a SCART-RCA adaptor.
*2 Only on limited region/country/TV model.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall.

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV's weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall.

When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket.

Note

• Be sure to store the removed screws in a safe place, keeping them away from children.
• If the Table-Top Stand is attached to the TV, detach the Table-Top Stand beforehand. See the Setup Guide and follow in reverse order the steps to detach the Table-Top Stand.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. (KD-49/43X70xx only)

For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

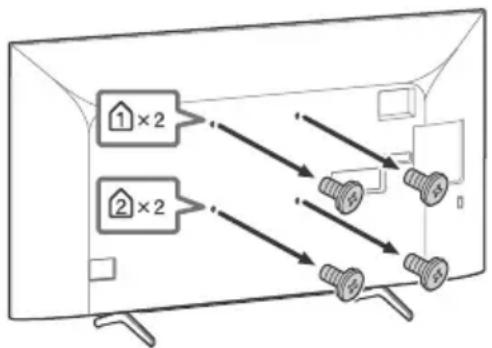

KD-65X70xx

Remove the screws from the rear of the TV.

1×2 2×2

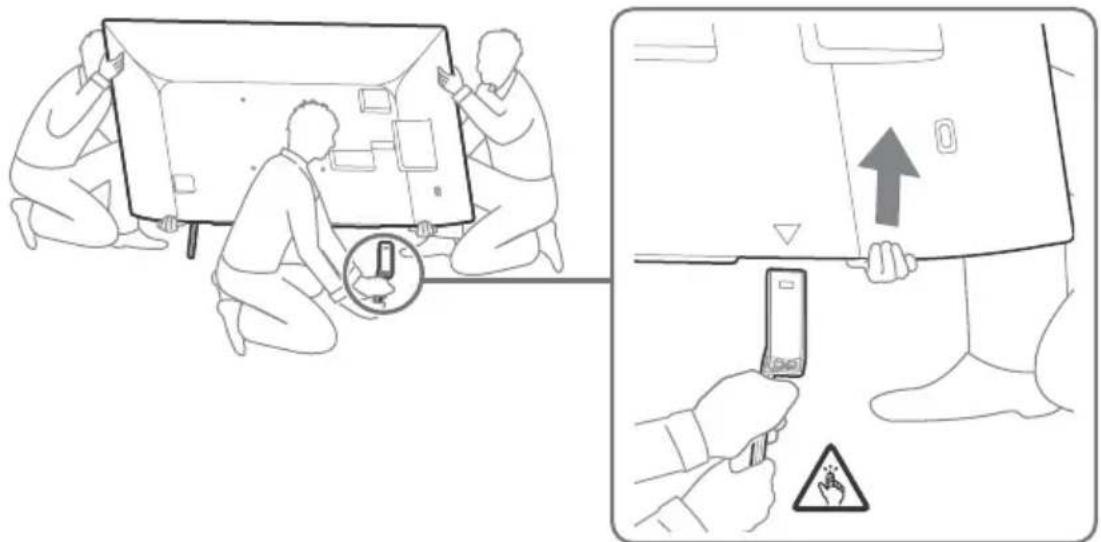

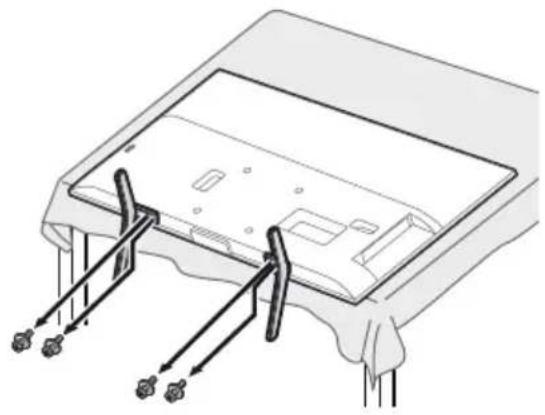

Detaching the Table-Top Stand from the TV

KD-65X70xx

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  • Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  • Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

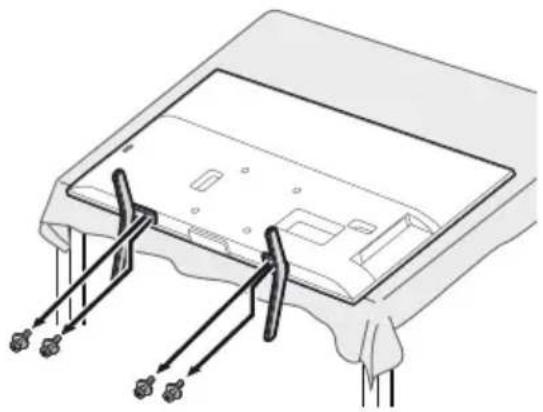

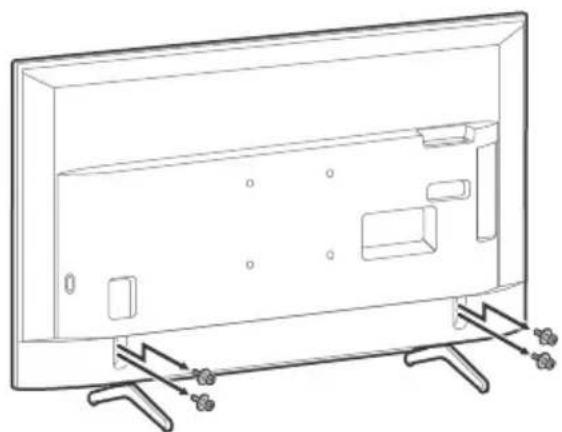

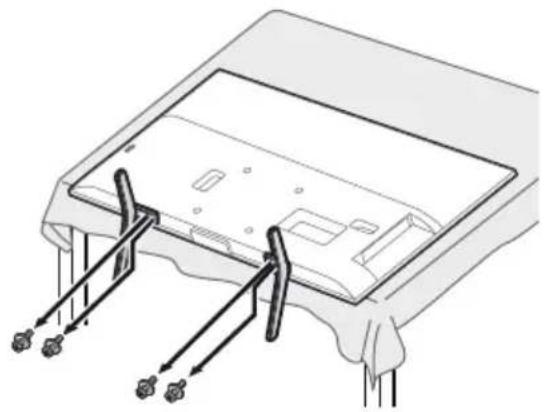

KD-55X70xx KD-49X70xx / 43X70xx

Line drawing of a flat-screen TV with visible sound effect and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and ports (no text or symbols)

Troubleshooting

When the LED indicator is flashing red, count how many times it flashes (interval time is three seconds).

If the LED indicator flashes red, reset the TV by disconnecting the mains lead from the TV for two minutes, then turn on the TV.

If the problem persists, contact your dealer or Sony service centre with the number of times the LED indicator flashes red (interval time is three seconds). Press ⏻ on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre.

Troubles and Solutions

No picture (screen is dark) and no sound

• Check the antenna (aerial)/cable connection.
• Connect the TV to the mains socket, and press ⏻ on the TV or the remote control.

Picture contours are distorted

- Change the current setting of [Film Mode]* to other settings.

The TV turns off automatically (the TV enters standby mode)

• Check if the [Sleep Timer]* is activated.
• Check if the [Duration]* is activated by [On Timer]* or [Photo Frame Settings]*.
• Check if the [Idle TV Standby]* is activated.

Some input sources cannot be selected

- Select [AV Preset]* and select [Always]* of the input source.

Some programmes cannot be tuned

- Check the antenna (aerial)/cable connection.

The remote control does not function

- Replace the batteries.

The TV surrounds become warm

• When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand.
  * For more detailed information, press HOME on the remote control, then select [Help Guide] under [Settings] menu.

Specifications

System

Panel system

LCD (Liquid Crystal Display) Panel, LED Backlight

TV system

Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C

DVB-T2*1

Analogue: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Digital: MPEG-2 MP@ML/HL, H.264/MPEG-4 AVC MP/HP@L5.0,

H.265/HEVC MP/Main10@L5.1 (4K 60fps)

Channel coverage

Depending on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite*1: IF Frequency 950-2,150 MHz

Sound output

10 W + 10 W

Wireless technology

Protocol IEEE 802.11b/g/n

Frequency band(s)

Wireless LAN (IEEE 802.11b/g/n)
Frequency range Output	Power
2400-2483.5 MHz < 20.0	dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna*

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single Cable

Distribution EN50494.

- / - A V I N

Video/Audio input (phono jacks)

HDMI IN 1/2/3 (support 4K resolution, HDCP

2.3-compatible)*2

Video:

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

Two channel linear PCM: 32/44.1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (HDMI IN 3 only)

Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Audio, DTS)

Headphone, Audio output, Subwoofer

1, 2, 3 (HDD REC) (Function not available in

Italy)

USB port 1, 2 and 3 support High Speed USB (USB 2.0)

CAM (Conditional Access Module) slot

- - C - DC IN 19.5 V (models with supplied mains adaptor

only)

Mains adaptor input

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

except models with supplied mains adaptor

220 V - 240 V AC, 50 Hz

models with supplied mains adaptor only

19.5 V DC with mains adaptor

Rating: Input 220 V - 240 V AC, 50 Hz

Energy Efficiency Class

KD-65X70xx: A

KD-55X70xx: A

KD-49X70xx: A

KD-43X70xx: A

Screen size (measured diagonally) (Approx.)

KD-65X70xx: 163.9 cm / 65 inches

KD-55X70xx: 138.8 cm / 55 inches

KD-49X70xx: 123.2 cm / 49 inches

KD-43X70xx: 108.0 cm / 43 inches

Power consumption

In [Standard] mode

KD-65X70xx: 151 W

KD-55X70xx: 110 W

KD-49X70xx: 75 W

KD-43X70xx: 66 W

In [Vivid] mode

KD-65X7056 / 65X7055: 256 W

KD-65X7053 / 65X7052: 245 W

KD-55X7056 / 55X7055: 184 W

KD-55X7053 / 55X7052: 173 W

KD-49X7056 / 49X7055: 115 W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055: 100 W

KD-43X7053 / 43X7052: 97 W

Annual energy consumption ^3

KD-65X70xx: 220 kWh per year

KD-55X70xx: 161 kWh per year

KD-49X70xx: 110 kWh per year

KD-43X70xx: 96 kWh per year

Standby power consumption*4*5

0.50 W

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB 1/2/3

5 V ---, 500 mA MAX

Dimensions (Approx.) (w × h × d)

with Table-Top Stand

KD-65X70xx: 146.3 × 90.4 × 34.0 cm

KD-55X70xx: 124.1 × 78.1 × 34.0 cm

KD-49X70xx: 110.1 × 70.2 × 28.6 cm

KD-43X70xx: 97.0 × 62.8 × 28.6 cm

without Table-Top Stand

KD-65X70xx: 146.3 × 84.5 × 8.0 cm

KD-55X70xx: 124.1 × 72.1 × 7.9 cm

KD-49X70xx: 110.1 × 64.5 × 5.7 cm

KD-43X70xx: 97.0 × 57.0 × 5.7 cm

Mass (Approx.)

with Table-Top Stand

KD-65X70xx: 21.4 kg

KD-55X70xx: 16.3 kg

KD-49X70xx: 12.4 kg

KD-43X70xx: 10.2 kg

without Table-Top Stand

KD-65X70xx: 20.5 kg

KD-55X70xx: 15.4 kg

KD-49X70xx: 11.9 kg

KD-43X70xx: 9.7 kg

Others

Optional accessories

Wall-Mount Bracket: SU-WL450

Operating temperature: 0 °C - 40 °C

Operating humidity: 10 % - 80 % RH (non-condensing)

*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.
*2 HDMI IN 2 and HDMI IN 3 support High-Quality HDMI formats such as 4K 60p/50p 4:2:0 10 bit, 4:4:4, 4:2:2.
*3 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*4 Specified standby power is reached after the TV finishes necessary internal processes.
*5 Standby power consumption will increase when your TV is connected to the network.

Note

• Do not remove the dummy card or cover (availability depends on TV model) from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.
• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.

Notes on Digital TV function

- Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

- This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Notes on HDR (High Dynamic Range) (Only on limited region/country/TV model)

• Compatible with all HDR PS4 Game titles via HDMI and HDR videos of built-in Netflix and YouTube App only. (See Sony support website for more information).
• HDR image signal specifically means HDR10 Media Profile format (commonly referred to as HDR10).
• Compatibility with all HDR content is not guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.
• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.
• Wi-Fi Protected Setup™ is a trademark of Wi-Fi Alliance.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.
  • Netflix is a registered trademark of Netflix, Inc.
• "YouTube" and the "YouTube logo" are registered trademarks of Google LLC.
• "BRAVIA", and BRAVIA Sync are trademarks or registered marks of Sony Corporation.
• "Blu-ray Disc", "Blu-ray" and "Blu-ray Disc" logo are trademarks of Blu-ray Disc Association.
• "PlayStation" is a registered trademark and "PS4" is a trademark of Sony Interactive Entertainment Inc.
• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

For satellite models only:

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• All other trademarks are the property of their respective owners.

Diagram illustrating three different types of mechanical or structural assembly methods, marked with check and no/x symbols.

Line drawing of two human figures carrying a rectangular device (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

https://www.sony.eu/support

KD-65X70xx

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with connectors and ports, no text or symbols present

Dépannage

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio

DIGITAL AUDIO OUT (OPTICAL)

KD-65X7052, KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052, KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052,

Diagram illustrating three different types of electrical circuitry: check, no/×, and crossed-out with a switch.

Illustration of two silhouetted figures holding a rectangular box (no text or symbols)

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and ports (no text or symbols)

Digital: UHF/VHF/Cable

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

PCM lineal de dos canales: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (sólo HDMI IN 3)

PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)

AUDIO OUT (minitoma estéreo)

Auricular, salida de audio, Altavoz de graves

Diagram illustrating three different types of electrical circuitry: check, no/unknown, and switch symbols.

Illustration of two human figures carrying a rectangular box (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device rear panel with connectors and arrows indicating internal components (no text or symbols)

Problemen oplossen

Audio: Tweekanaals lineaire PCM: 32/44,1/48 kHz 16/20/24 bits, Dolby Audio, DTS

ARC (Audio Return Channel) (alleen HDMI IN 3)

Tweekanaals lineaire PCM: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating three different types of electrical circuitry: check, no/×, and crossed-out, with corresponding schematic symbols.

Illustration of two silhouetted figures carrying a rectangular box (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device's internal structure with arrows indicating assembly or connection points (no text or symbols present)

Störungsbehebung

DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating three different types of mechanical or structural interventions, marked with check, no/× symbols, and crossed-out brackets.

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing or adjusting a device, with instructions and safety symbols present.

2 Repita o passo anterior e remova o outro lado do Suporte de Mesa do Televisor.

Nota

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and ports (no text or symbols)

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz).

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Áudio:

PCM linear de dois canais: 32/44,1/48 kHz 16/20/24 bits,

Dolby Audio, DTS

ARC (Audio Return Channel) (Apenas nos modelos

HDMI IN 3)

PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits,

Dolby Audio, DTS)

AUDIO OUT Ⓞ (Mini-tomada estéreo)

Auscultador, saída de áudio, subwoofer

Diagram illustrating three different types of electrical circuitry: check, no/×, and crossed-out with a switch.

Illustration of two silhouetted figures holding a rectangular box (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with arrows indicating ports or connections (no text or symbols present)

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

PCM lineare due canali: 32/44,1/48 kHz 16/20/24 bit, Dolby Audio, DTS

ARC (Audio Return Channel) (solo HDMI IN 3)

PCM lineare due canali: 48 kHz 16 bit, Dolby Audio, DTS → DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating three different types of mechanical or structural assembly methods, marked with check and no/x symbols.

Illustration of two human figures carrying a large rectangular object (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with connectors and ports, no text or symbols present

Felsökning

DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.

KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052,

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052,

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052.

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 er i

Diagram showing correct and incorrect viewing instructions for a TV screen, with checkmark indicating the correct view.

Safety warning symbols including no checkmark, crossed-out X, and broken diagonals

Illustration of two silhouetted figures carrying a rectangular device (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound effect and connectors (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection (no text or symbols present)

Fejlfinding

I [Standard] tilstand

KD-65X70xx: 151 W

KD-55X70xx: 110 W

KD-49X70xx: 75 W

KD-43X70xx: 66 W

I [Kraftig] tilstand

KD-65X7056 / 65X7055: 256 W

KD-65X7053 / 65X7052: 245 W

KD-55X7056 / 55X7055: 184 W

KD-55X7053 / 55X7052: 173 W

KD-49X7056 / 49X7055: 115 W

KD-49X7053 / 49X7052 / 43X7056 / 43X7055: 100 W

KD-43X7053 / 43X7052: 97 W

Diagram showing a monitor and a bracket with checkmark indicators, likely illustrating a basic electronics or lighting setup.

Safety warning symbols including no checkmark, crossed-out cross, and broken diagonals

Illustration of two human figures carrying a large rectangular object (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection (no text or symbols present)

Vianmääritys

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.

Diagram illustrating three different mechanical or electrical protection states: check, no/unknown, and disinjed state.

Illustration of two human figures carrying a large rectangular object (no text or symbols visible)

(Teksting-innstilling)

https://www.sony.eu/support

KD-65X70xx

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound effect and mounting bracket (no text or symbols)

Diagram of a device's internal structure with arrows indicating assembly or connection (no text or symbols present)

NO

Feilsøking

Tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM: 48 kHz 16 biter, Dolby Audio, DTS)

AUDIO OUT Ⓜ (minijack, stereo)

Hodetelefon, lydutgang, subwoofer

Mål (ca.) (b × h × d)

med bordstativ

KD-65X70xx: 146,3 × 90,4 × 34,0 cm

KD-55X70xx: 124,1 × 78,1 × 34,0 cm

KD-49X70xx: 110,1 × 70,2 × 28,6 cm

KD-43X70xx: 97,0 × 62,8 × 28,6 cm

uten bordstativ

KD-65X70xx: 146,3 × 84,5 × 8,0 cm

KD-55X70xx: 124,1 × 72,1 × 7,9 cm

KD-49X70xx: 110,1 × 64,5 × 5,7 cm

KD-43X70xx: 97,0 × 57,0 × 5,7 cm

Vekt (ca.)

med bordstativ

KD-65X70xx: 21,4 kg

KD-55X70xx: 16,3 kg

KD-49X70xx: 12,4 kg

KD-43X70xx: 10,2 kg

uten bordstativ

KD-65X70xx: 20,5 kg

KD-55X70xx: 15,4 kg

KD-49X70xx: 11,9 kg

KD-43X70xx: 9,7 kg

Annet

Tilleggsutstyr

Veggmonteringsbrakett: SU-WL450

Diagram illustrating three different types of electrical circuitry: check, no/unknown, and crossed-out, with corresponding schematic symbols.

Illustration of two human figures carrying a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and arrows indicating assembly or connection (no text or symbols)

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

Audio:

DIGITAL AUDIO OUT (OPTICAL)

KD-65X7056, KD-65X7055, KD-65X7053, KD-65X7052,

KD-55X7056, KD-55X7055, KD-55X7053, KD-55X7052,

KD-49X7056, KD-49X7055, KD-49X7053, KD-49X7052,

KD-43X7056, KD-43X7055, KD-43X7053, KD-43X7052 jsou v

Diagram illustrating three different types of mechanical or electrical components with checkmark and prohibition symbols

Line drawing of two human figures holding a rectangular box (no text or symbols)

Diagram showing a device with labeled components: a horizontal bar, a connector, and a vertical indicator with plus and minus signs.

7 ⏻ (Napájení)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with arrows indicating ports or connections (no text or symbols present)

Řešení problémů

DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating three different types of electrical circuitry: check, no/×, and crossed-out with a switch.

Illustration of two silhouetted figures carrying a large rectangular box (no text or symbols)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible rear panel and support legs (no text or symbols)

Diagram of a device's internal structure with arrows indicating flow or movement, no text or symbols present

Riešenie problémov

ARC (Audio Return Channel) (Len model HDMI IN 3)

Dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, DTS DIGITAL AUDIO OUT (OPTICAL)

Digitálny optický konektor (dvojkanálový lineárny PCM: 48 kHz 16 bitov, Dolby Audio, DTS)

Diagram illustrating three different mechanical or electrical hazard symbols: check, no/unknown, and correct/incorrect.

Illustration of two silhouetted figures carrying a large rectangular object (no text or symbols visible)

Diagram showing a device with labeled components: a horizontal bar, a connector, and a vertical indicator with plus, minus, and control buttons.

7 ⏻ (Bekapcsolás)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and ports (no text or symbols)

HU

Hibaelhárítás

INFORMATIE IMPORTANTĂ 2

INFORMATIE IMPORTANTĂ

Observatie cu privire la echipamentul radio

Diagram illustrating three different types of electrical circuitry: check, no/unknown, and switch symbols.

Line drawing of two silhouetted figures holding a rectangular box (no text or symbols)

< 12 mm < 21 mm

- HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound effect and connectors (no text or symbols)

Technical line drawing of a device casing with internal components and directional arrows indicating assembly or connection (no text or symbols)

RO

Depanare

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.

Diagram illustrating three different types of electrical circuitry: check, no/×, and switch symbols.

Illustration of two silhouetted figures holding a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device rear panel with connectors and arrows indicating internal components (no text or symbols)

BG

ARC (Audio Return Channel) (camo HDMI IN 3)

Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS

DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS)

AUDIO OUT (Стерео мини жак)

Diagram illustrating three different types of electrical circuitry: check, no/×, and switch symbols.

Illustration of two silhouetted figures carrying a large rectangular object (no text or symbols visible)

< 12 mm < 21 mm

• HDMI IN 2/3

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a smartphone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Diagram of a device's internal structure with connectors and ports, no text or symbols present

GR

4096 × 2160p (24, 50, 60 Hz), 3840 × 2160p (24, 25, 30, 50,

60 Hz), 1080p (30, 50, 60 Hz), 1080/24p, 1080i (50, 60 Hz),

720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

'Ηχος:

→ DIGITAL AUDIO OUT (OPTICAL)

Diagram illustrating three different types of mechanical or electrical components with checkmark and prohibition symbols

Illustration of two human figures carrying a rectangular device (no text or symbols visible)

< 12 mm < 21 mm

- HDMI IN 2/3

https://www.sony.eu/support

KD-65X70xx

Diagram illustrating a procedure for installing a device, showing steps from lifting to adjusting the panel and holding a phone.

Line drawing of a flat-screen TV with visible sound waves and connectors (no text or symbols)

Technical line drawing of a device rear panel with connectors and arrows indicating assembly or connection (no text or symbols)

TR

Sorun Giderme

Dijital: UHF/VHF/Kablolu

→ DIGITAL AUDIO OUT (OPTICAL)

- Vewd® Core. Copyright 1995-2020 Vewd Software AS. All rights reserved.
