IAN 310831 - Diving mask CRIVIT - Free user manual and instructions

Product Type	Snorkeling Mask with Snorkel
Brand	Crivit
Model	IAN 310831
Available Sizes	S/M and L/XL (nose-to-chin distance: 10–11.5 cm for S/M, 11.5–13 cm for L/XL)
Mask Material	High-quality flexible plastic, water and heat resistant
Field of Vision	Panoramic "Total View"
UV Protection	100% (screen absorbs all UV rays)
Splash-Proof System	Dry-Top with internal Aquastop float (closes upon submersion)
Flush Valve	Yes, for water expulsion by blowing
Strap	Easy-Fit, adjustable on both sides
Camera Mount	Yes, included with fixing nut
Intended Use	Surface snorkeling only. Not suitable for diving.
Snorkel Category	Category A (for people with large lung capacity)
Standard	EN1972:2015 Category A
Certification	CE (PPE Regulation 2016/425/EU), tested by TÜV Rheinland (notified body 0197)
Manufacturing Date	01/2019
Warranty	3 years from date of purchase
Package Contents	Mask with strap, snorkel, camera mount, storage pouch, user manual
Cleaning	Rinse with fresh water after each use; air dry
Storage	In a dry, clean place at room temperature
Safety Precautions	Do not use for intensive swimming; do not dive; do not look directly at the sun; avoid heat buildup
After-Sales Service (France)	Tel.: [phone], Email: [e-mail]

Frequently Asked Questions - IAN 310831 CRIVIT

How to choose the correct mask size?

Measure the distance between the root of your nose and the bottom of your chin, with mouth closed. For a distance of 10 to 11.5 cm, choose size S/M; for 11.5 to 13 cm, choose L/XL. Ensure the mask is watertight by placing it on your face without the snorkel and inhaling: it should stay in place.

Can I use this mask for scuba diving?

No, this mask is designed exclusively for surface snorkeling. It is not suitable for diving as no decompression system is provided. Use it only at the water surface.

How to attach the snorkel to the mask?

Position the snorkel onto the mask frame until it clicks into place. To remove, press the frame button and pull the snorkel off.

How to expel water that has entered the mask?

The mask has a flush valve. Breathe out quickly and forcefully inside the mask to expel water through the valve.

Can I install prescription lenses in the mask?

Yes, if you need vision correction, you can have prescription lenses installed by an optician or a specialized dealer. Follow their advice to avoid damaging the mask.

How to clean and maintain the mask?

After each use, remove the snorkel and rinse both parts with fresh water. Let them dry completely. Never use harsh detergents. Store the mask in a dry, clean place at room temperature.

Does the mask protect against UV rays?

Yes, the screen offers 100% UV protection, absorbing all harmful ultraviolet rays. However, avoid looking directly at the sun.

Is this mask suitable for children?

No, this mask is category A, designed for people with large lung capacity. It is not recommended for children. For children, choose a category B product.

What does the Aquastop system mean?

The snorkel is equipped with an Aquastop system with an internal float. In case of accidental submersion, the float closes the snorkel to prevent water from entering. Before each use, ensure the float moves freely.

What is the lifespan of the mask and what does the warranty cover?

The mask should be replaced no later than five years after the manufacturing date (01/2019). The warranty is 3 years from the date of purchase and covers material and manufacturing defects. Keep the receipt.

USER MANUAL IAN 310831 CRIVIT

www.lidl-service.com PDF online

SCHNORCHELMASKE

SNORKEL MASK

MASQUE DE SNORKELING

DE AT CH

SCHNORCHELMASKE

Gebrauchsanweisung

FR BE

MASQUE DE SNORKELING

Instructions for use

NL BE

SNORKELMASKER

Gebruiksaanwijzing

CZ

BRÝLE NA ŠNORCHLOVÁNÍ

Návod k obsluze

CE

IAN 310831

DE AT CH GB IE FR

BE NL PL CZ SK

A 1 2 3

Diagram of a device with a vertical component being inserted into a base, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a person using a device to lift a helmet, showing motion arrows (no text or symbols)

Line drawing of a mechanical device with a handle and connector, showing assembly steps (no text or symbols)

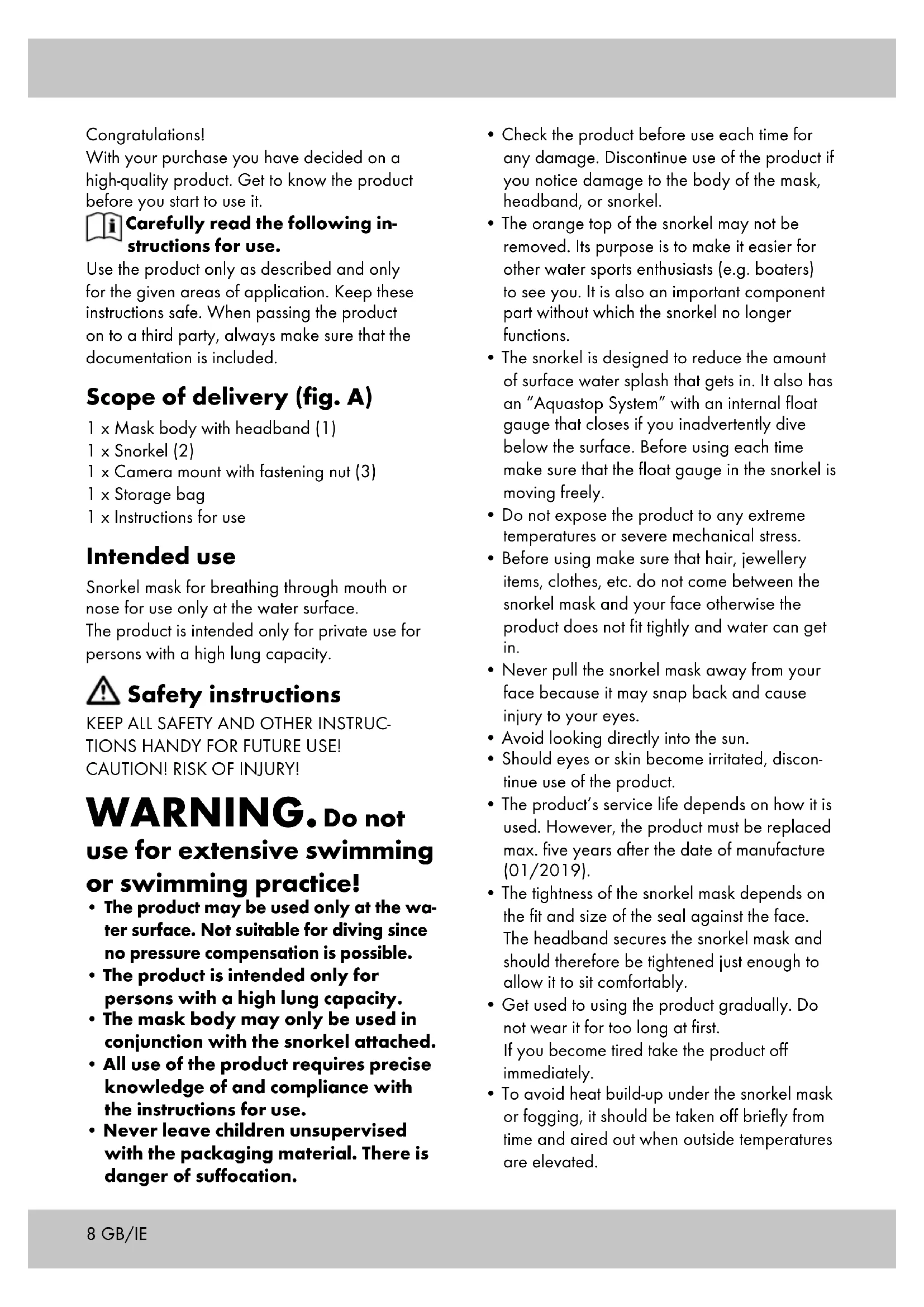

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

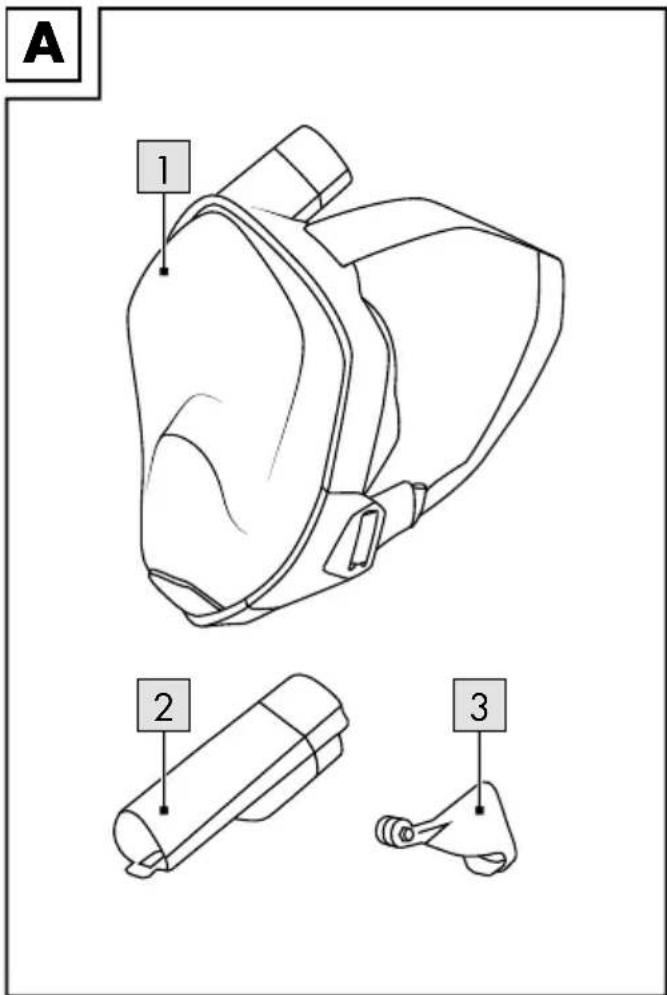

Scope of delivery (fig. A)

1 x Mask body with headband (1)
1 x Snorkel (2)
1 x Camera mount with fastening nut (3)
1 x Storage bag
1 x Instructions for use

Intended use

Snorkel mask for breathing through mouth or nose for use only at the water surface.

The product is intended only for private use for persons with a high lung capacity.

Safety instructions

KEEP ALL SAFETY AND OTHER INSTRUCTIONS HANDY FOR FUTURE USE! CAUTION! RISK OF INJURY!

WARNING. Do not use for extensive swimming or swimming practice!

• The product may be used only at the water surface. Not suitable for diving since no pressure compensation is possible.
  • The product is intended only for persons with a high lung capacity.
• The mask body may only be used in conjunction with the snorkel attached.
• All use of the product requires precise knowledge of and compliance with the instructions for use.

• Never leave children unsupervised with the packaging material. There is danger of suffocation.

• Check the product before use each time for any damage. Discontinue use of the product if you notice damage to the body of the mask, headband, or snorkel.

• The orange top of the snorkel may not be removed. Its purpose is to make it easier for other water sports enthusiasts (e.g. boaters) to see you. It is also an important component part without which the snorkel no longer functions.
• The snorkel is designed to reduce the amount of surface water splash that gets in. It also has an "Aquastop System" with an internal float gauge that closes if you inadvertently dive below the surface. Before using each time make sure that the float gauge in the snorkel is moving freely.
• Do not expose the product to any extreme temperatures or severe mechanical stress.
• Before using make sure that hair, jewellery items, clothes, etc. do not come between the snorkel mask and your face otherwise the product does not fit tightly and water can get in.
• Never pull the snorkel mask away from your face because it may snap back and cause injury to your eyes.
• Avoid looking directly into the sun.
• Should eyes or skin become irritated, discontinue use of the product.
• The product's service life depends on how it is used. However, the product must be replaced max. five years after the date of manufacture (01/2019).
• The tightness of the snorkel mask depends on the fit and size of the seal against the face. The headband secures the snorkel mask and should therefore be tightened just enough to allow it to sit comfortably.
• Get used to using the product gradually. Do not wear it for too long at first. If you become tired take the product off immediately.
• To avoid heat build-up under the snorkel mask or fogging, it should be taken off briefly from time and aired out when outside temperatures are elevated.

General information

CE The CE symbol confirms conformity with the PPE Regulation 2016/425/EU. Tested at TÜV Rheinland LGA

Products GmbH, Tillystr. 2, D-90431 Nuremberg, Germany, Notified Body: 0197. Full conformity declaration is available under http://www.conformity.delta-sport.com/

Date of manufacture (month/year): 19

Symbols used

Total View Panoramic Lens - Extra-wide field of vision

Easy Fit - Easily adjustable headband

100% UV protection - The lens absorbs 100% of harmful UV rays

Dry Top protects against water splash entering

High-quality elastic plastic highly water- and heat-resistant

WARNING. For use only at the water surface!

WARNING. Do not use for diving!

Integrated camera mount

For use by people with a high lung capacity

EN1972:2015 (Class A)

Note: Snorkel sizes are divided into two categories.

Class A is suitable for use by people with a high lung capacity.

Class B is suitable for use by people with a low lung capacity (e.g. children).

General intended use

The product serves as a visual aid when snorkelling and protects the eyes from direct contact with water.

To facilitate snorkelling and to make it easier to move forwards we recommend the use of fins.

Size selection

	S/M(SM-5789-S/M)	10 - 11.5cm
	L/XL(SM-5790-L/XL)	11.5 - 13cm

Measure the distance from the bridge of your nose to the bottom of your chin with your mouth closed and select the product size accordingly.

Note: To check the product's fit put the product on without the snorkel. Place your hand on the snorkel connection and breathe in. If the product presses against your face, it is tight.

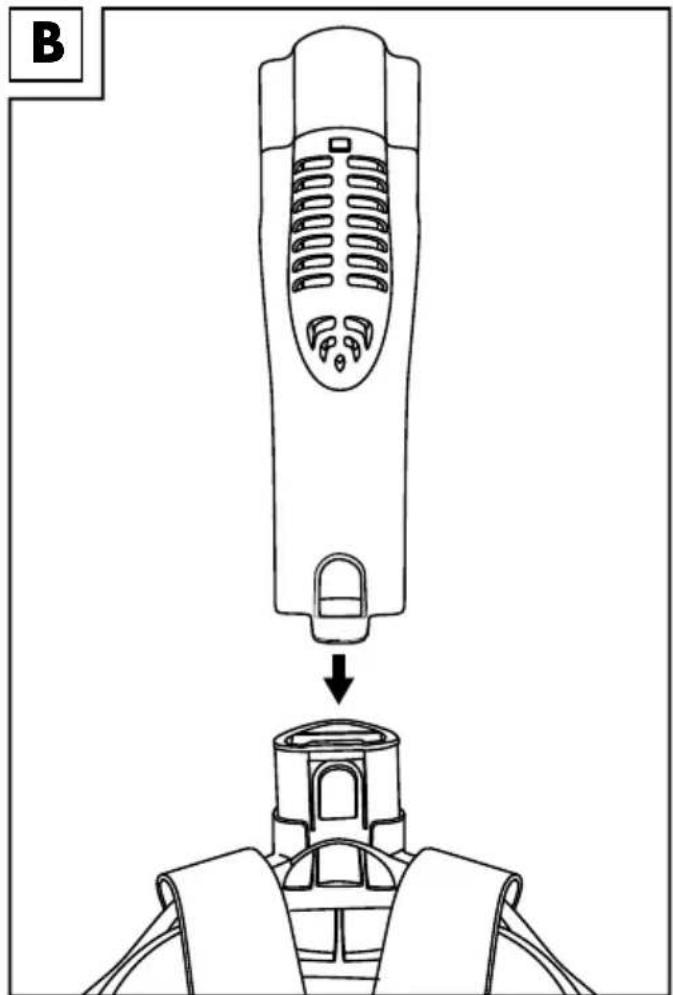

Attaching the snorkel (fig. B)

Attach the snorkel to the frame of the mask until it snaps in securely.

Removing the snorkel

Press the button on the mask frame and pull the snorkel off.

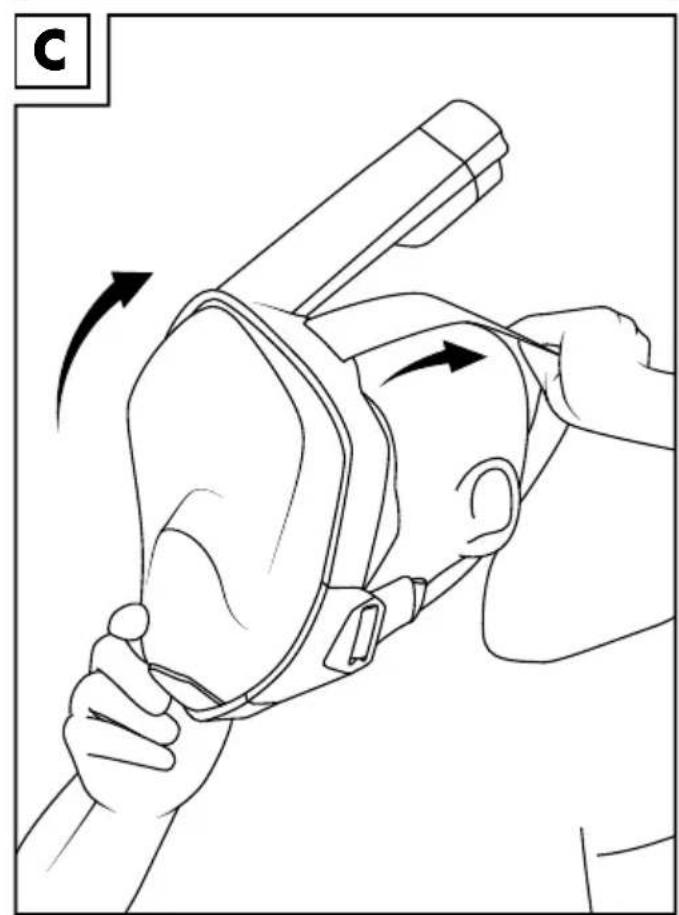

Putting on the snorkel mask (fig. C)

• Loosen both ends of the headband. With one hand hold the snorkel mask in front of your face.
• With the other hand carefully guide the headband behind the back of your head. Pull evenly on both ends of the headband until the mask sits firmly and comfortably. Make sure that the snorkel mask seals tight and that no water can enter.

Removing water

If some water gets into the product despite the splash protection, you can remove it from the product by pumping the blow-out valve quickly and vigorously to blow it out.

Removing the snorkel mask

Loosen both ends of the headband. Carefully pull the headband off from the back of your head over your forehead.

Correcting vision defects

Should you wish to minimise a vision defect by putting in corrective lenses, contact a specialised dealer or your optician.

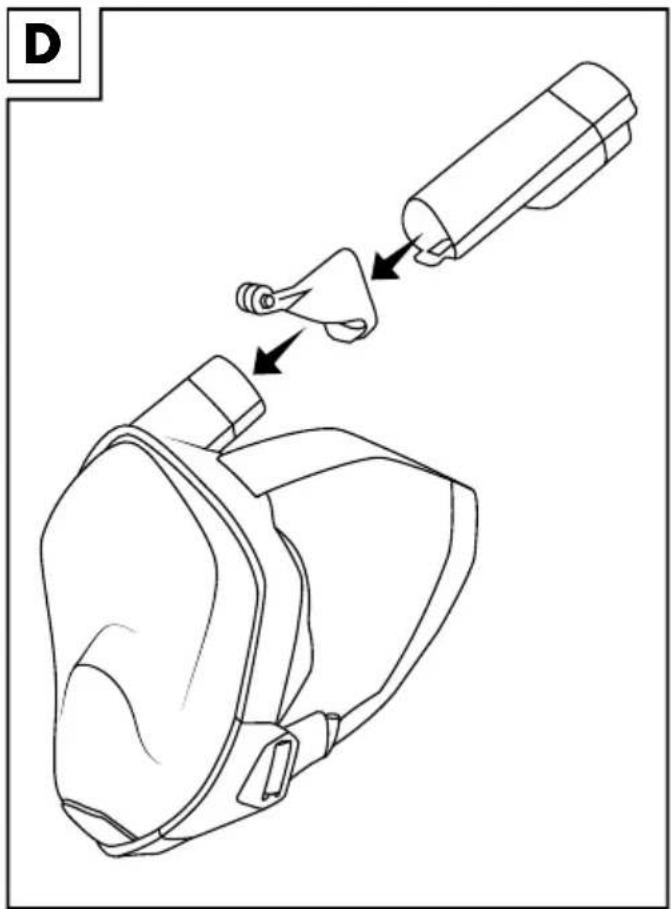

Attaching the camera mount (fig. D)

To use the product with the camera mount, proceed as follows:

Remove the snorkel. Push the camera mount onto the snorkel and attach the snorkel to the mask frame. Attach your camera (not included in scope of delivery) to the camera mount.

Cleaning, care, storage

• Take the snorkel off the body of the mask and rinse both parts after use each time with clean water. Then let them dry properly.
• Always store the product clean and dry at room temperature.
- IMPORTANT! Never use abrasive detergents to clean.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling.

The code consists of the recycling symbol - which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 310831

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
