IAN 282720 - Uncategorized CRIVIT - Free user manual and instructions

Brand	Crivit
Model	IAN 282720
Product type	Full snorkeling mask with tube
Intended use	Breathing at water surface only, for persons with high lung capacity
Size S/M	Eye-to-chin distance: 10-11.5 cm
Size L/XL	Eye-to-chin distance: 11.5-13 cm
Package contents	1 mask body, 1 snorkel, 1 storage bag, 1 instruction manual
Material	High-quality elastic plastic, water and heat resistant
Main functions	Splash-proof dry top, panoramic field of vision, 100% UV protection, adjustable Easy-Fit elastic, purge valve to drain water
Safety	Surface use only, not suitable for diving; check condition before each use; do not use if damaged
Care and cleaning	Clean with fresh water after use, let dry completely, store in a temperate place
Warning	Do not expose to extreme temperatures or mechanical stress; do not leave children unattended
Lifespan	Replace at the latest 5 years after manufacturing date (02/2017)
Warranty	3 years from date of purchase, covering material and manufacturing defects
Spare parts	Available at www.delta-sport.com, section Service - Lidl spare parts service
Customer service France	Tel.: [phone], Email: [e-mail]
Customer service Belgium	Tel.: [phone] (0.15 EUR/min), Email: [e-mail]
Recycling	Product recyclable, dispose of according to local regulations

Frequently Asked Questions - IAN 282720 CRIVIT

How to choose the right mask size?

Measure the distance between your eyes and your chin. For a distance of 10 to 11.5 cm, choose size S/M. For 11.5 to 13 cm, choose L/XL.

Can I use this mask for scuba diving?

No, this mask is designed only for surface use. It does not allow the pressure compensation necessary for diving.

How to attach the snorkel to the mask?

Place the snorkel onto the mask frame until it snaps firmly into place. To remove it, press the button on the frame.

How to put on and adjust the mask?

Loosen both ends of the elastic strap. Hold the mask in front of your face, then bring the strap behind your head. Pull evenly on both ends until you achieve a firm and comfortable fit.

What to do if water enters the snorkel?

Blow briefly and forcefully into the snorkel. The purge valve located at the bottom of the snorkel allows water to be expelled.

How to clean and maintain the mask?

Remove the snorkel from the mask. Clean both parts with fresh water, let them dry completely, then store in a temperate place. Do not use harsh cleaning agents.

Does this mask protect against UV?

Yes, the mask lens offers 100% UV protection against ultraviolet rays.

What is the lifespan of the product?

The lifespan depends on usage, but it is recommended to replace the item at the latest five years after its manufacturing date (indicated on the product, e.g., 02/2017).

How to obtain spare parts?

Spare parts are available on the website www.delta-sport.com, section Service - Lidl spare parts service.

What are the warranty conditions?

The product comes with a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the receipt. For any claims, contact customer service.

USER MANUAL IAN 282720 CRIVIT

Black snuffless face shield with visible branding and a stylized logo (no text or symbols)

www.lidl-service.com

SCHNORCHELMASKE

SNORKEL MASK

MASQUE DE SNORKELING

DE AT CH

SCHNORCHELMASKE

Gebrauchsanweisung

FR BE

MASQUE DE SNORKELING

Instructions for use

NL BE

SNORKELMASKER

Gebruiksaanwijzing

ES

MÁSCARA DE ESNÓRQUEL

Diagram of a device with a vertical component being inserted into a base, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a person using a device to interact with another person (no text or symbols present)

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

Scope of delivery

1 x Mask body
1 x Snorkel
1 x Storage bag
1 x Instructions for use

Correct use

Snorkel mask for breathing through your mouth or nose for use on the surface of the water only. The product is designed for private use by persons with a high lung capacity.

Safety notes

KEEP ALL SAFETY NOTES AND INSTRUCTIONS FOR FUTURE REFERENCE! CAUTION! RISK OF INJURY!

• The product may only be used on the surface of the water. Not suitable for diving under water as pressure equalisation is not possible.
• The product is designed for persons with high lung capacity.
• The mask body may only be used in conjunction with the attached snorkel.

• Any handling of the product requires exact knowledge of and adherence to the instructions for use.

• Never leave children with the packaging material without supervision. There is a risk of suffocation.

• Check the product for any damage before each use. Cease use of the product if you find damage.
• The orange-coloured dry-top on the snorkel allows you to be seen by passing boats. Therefore you should never use the snorkel without the coloured top. The orange-coloured dry-top also serves as splash protection and protects the snorkel from water splashes entering it.
• Before each use please ensure that the float in the snorkel can move freely.
• Cease use of the product if the headband or the snorkel is damaged or the mask body is defective.
• Do not expose the product to extreme temperatures or heavy mechanical loads.
• Before use please ensure that no hair, jewellery, clothing etc. is located between the snorkel mask and your face as this will prevent the product from forming a seal and water can then enter the mask.
• Never pull the snorkel mask away from your face as this could spring back and cause injury to your eyes.
• Avoid looking directly into the sun.
• Cease use of the product if eye and skin irritations occur.
• The lifespan of the product depends on its use. However the product must be exchanged five years after the date of manufacture (02/2017) at the latest.

General notes

The CE symbol confirms conformity of PPE Directive 89/686/EEC.

Date of manufacture (month/year): 17

Symbols used

Total-view-panorama lens - large field of view

Easy-fit - Easily adjustable headband

100% UV-protection - s absorbs 100% of ing UV-rays

Dry-top protects from splashes g the snorkel

High-quality elastic plastic with sistance to water and heat.

For use by persons with high capacity

Warning: Only for use on the surface water! ing: Not for use while diving!

General purpose

The product serves as a vision aid while snorkelling and protects your eyes from direct contact with the water.

Size selection

	S/M	10 - 11.5cm
	L/XL	11.5 - 13cm

Measure the distance from your eyes to your chin and select the size of the product accordingly.

Attaching the snorkel (figure A)

Attach the snorkel to the frame of the mask until it clicks firmly into place.

Removing the snorkel

Press the button on the frame of the mask and pull the snorkel off.

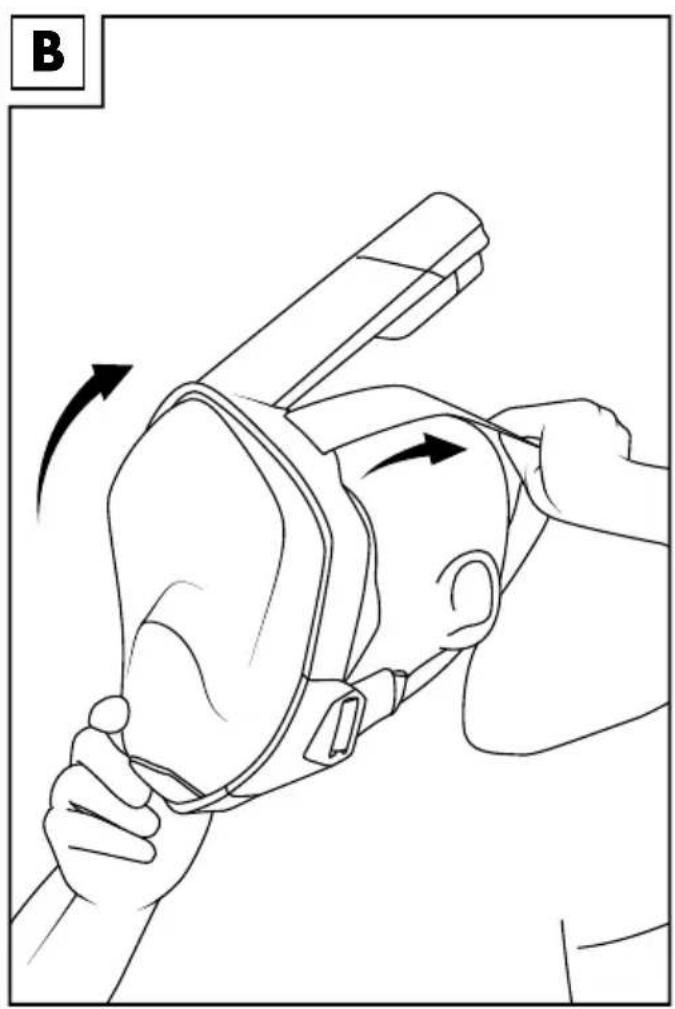

Putting on the snorkel mask (figure B)

• Loosen both ends of the headband. Hold the snorkel mask in front of your face with one hand.
• Use the other hand to carefully guide the headband behind the back of your head. Pull evenly on both ends of the headband until the mask fits tightly and comfortably. Please ensure that the snorkel mask forms an airtight seal and no water can penetrate.

Removing the water

If water does enter the product, despite splash protection, then you can remove it from the mask by blowing briefly but forcefully out of the purge valve.

Removing the snorkel mask

Loosen both ends of the headband. Pull the headband carefully off the back of your head and over your forehead.

Correcting defects of vision

If you would like to reduce a defect of vision with stick-on lenses, please obtain this information from your specialist retailer or optician.

Cleaning, care, storage

• Remove the snorkel from the mask body and clean both parts with fresh water after each use. Then leave both to dry completely.
  • Always store the product in clean and dry conditions at room temperature.
• Never clean the product with aggressive cleaning agents, just wipe it clean using a dry cleaning cloth.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

3-Year Warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 282720

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service
