Foldable Minibike - Fitness Equipment TUNTURI - Free user manual and instructions

Product type	Mini folding exercise bike
Brand	Tunturi
Model	Foldable Minibike
Use	Legs and arms for aerobic training
Resistance	Adjustable by tension knob
Pedals	Non-slip footrests
LCD counter	Functions: SCAN, TIME, COUNT, TOTAL COUNT, CAL
Power supply	1 AAA battery (easy replacement)
Folding	Fold the front and rear tubes after use
Material	Steel and plastic
Maximum user weight	100 kg (estimated)
Noise level	Silent
Maintenance	Check bolt tightness before each use
Safety	Use on a flat surface; keep children and pets away
Included accessories	User manual, pedals, tension knob
Spare parts	Full list in the manual (ref. 1 to 24)
Warranty	2 years (depending on retailer)

Frequently Asked Questions - Foldable Minibike TUNTURI

How to assemble the Tunturi Foldable Minibike?

Extend the front tube and the rear tube until you hear a click, then secure the button on top of the counter. Refer to the manual for details.

How to adjust the resistance?

Turn the tension knob (button under the counter) to increase or decrease resistance during exercise.

How to use the device for arms?

Place the minibike on a non-slip table, sit comfortably and pedal with your hands. Adjust the distance to avoid elbow hyperextension.

How to replace the counter battery?

If the screen does not light up, remove the LCD panel by pulling it upwards. Replace the battery with an AAA battery and put the unit back in place.

How to fold the minibike for storage?

Press the ball lock pin, fold the front tube then the rear tube. The minibike folds easily for compact storage.

What are the functions of the LCD counter?

The counter displays time (TIME), step count (COUNT), cumulative total (TOTAL COUNT) and calories (CAL). Press the button to scroll, hold 3s to reset.

Can I use the minibike standing up?

No, the device must only be used in a seated position. Do not stand on it. Use it on a flat, stable surface.

How to clean and maintain the device?

Clean with a damp cloth and dry. Regularly check bolt tightness. Store in a dry place, away from moisture.

What is the maximum weight the device supports?

The manual does not specify a limit, but for safe use, it is recommended not to exceed 100 kg.

The counter turns off by itself, is that normal?

Yes, the computer turns off automatically after 4 minutes of inactivity to save battery. Reset by pedaling or pressing the button.

USER MANUAL Foldable Minibike TUNTURI

Black and silver outdoor exercise bike with adjustable arms and legs (no text or symbols visible)

OWNER'S MANUAL

TUNTURI®

FITNESS & FUN

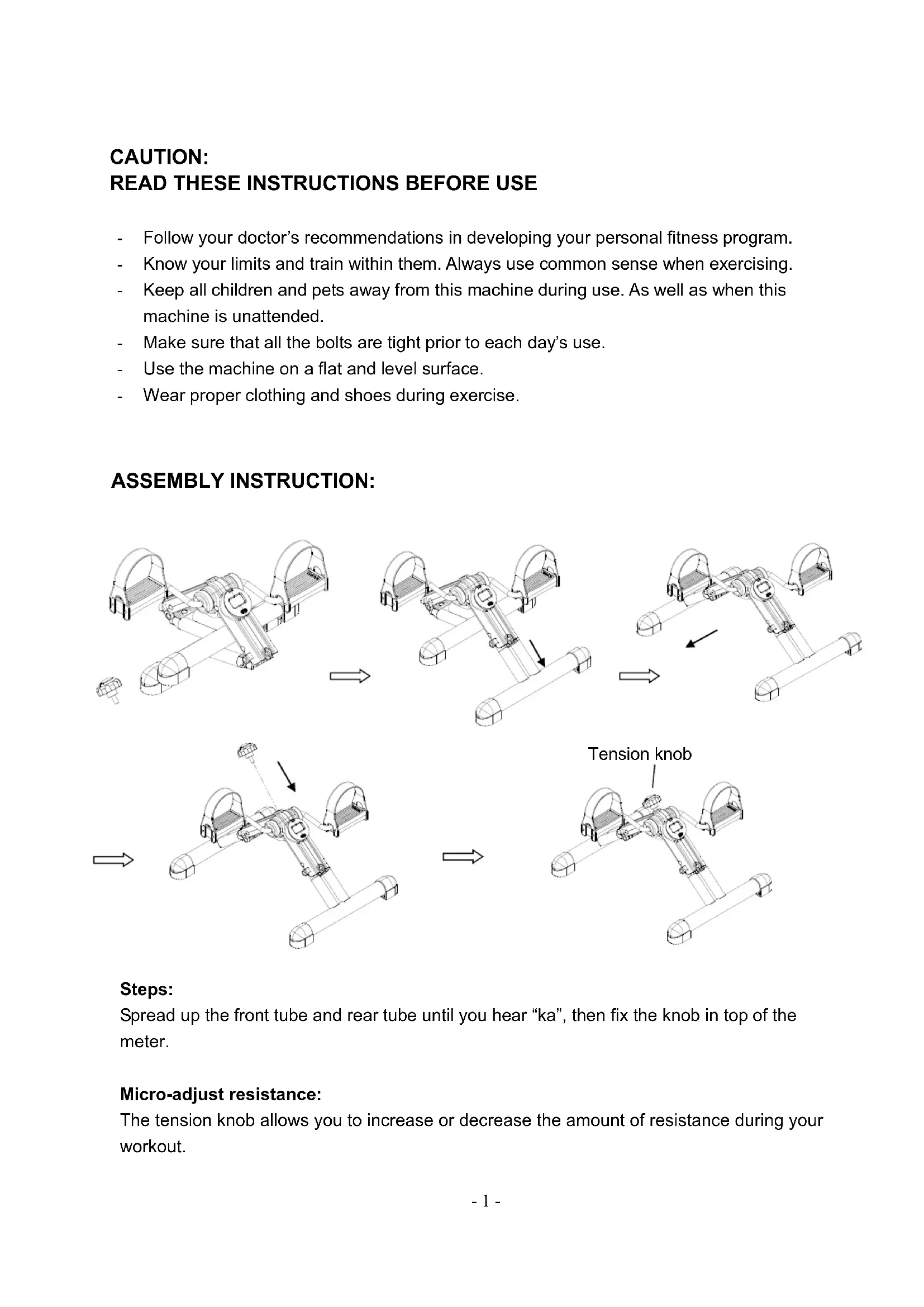

CAUTION:

READ THESE INSTRUCTIONS BEFORE USE

• Follow your doctor's recommendations in developing your personal fitness program.
• Know your limits and train within them. Always use common sense when exercising.
• Keep all children and pets away from this machine during use. As well as when this machine is unattended.
• Make sure that all the bolts are tight prior to each day's use.
• Use the machine on a flat and level surface.
• Wear proper clothing and shoes during exercise.

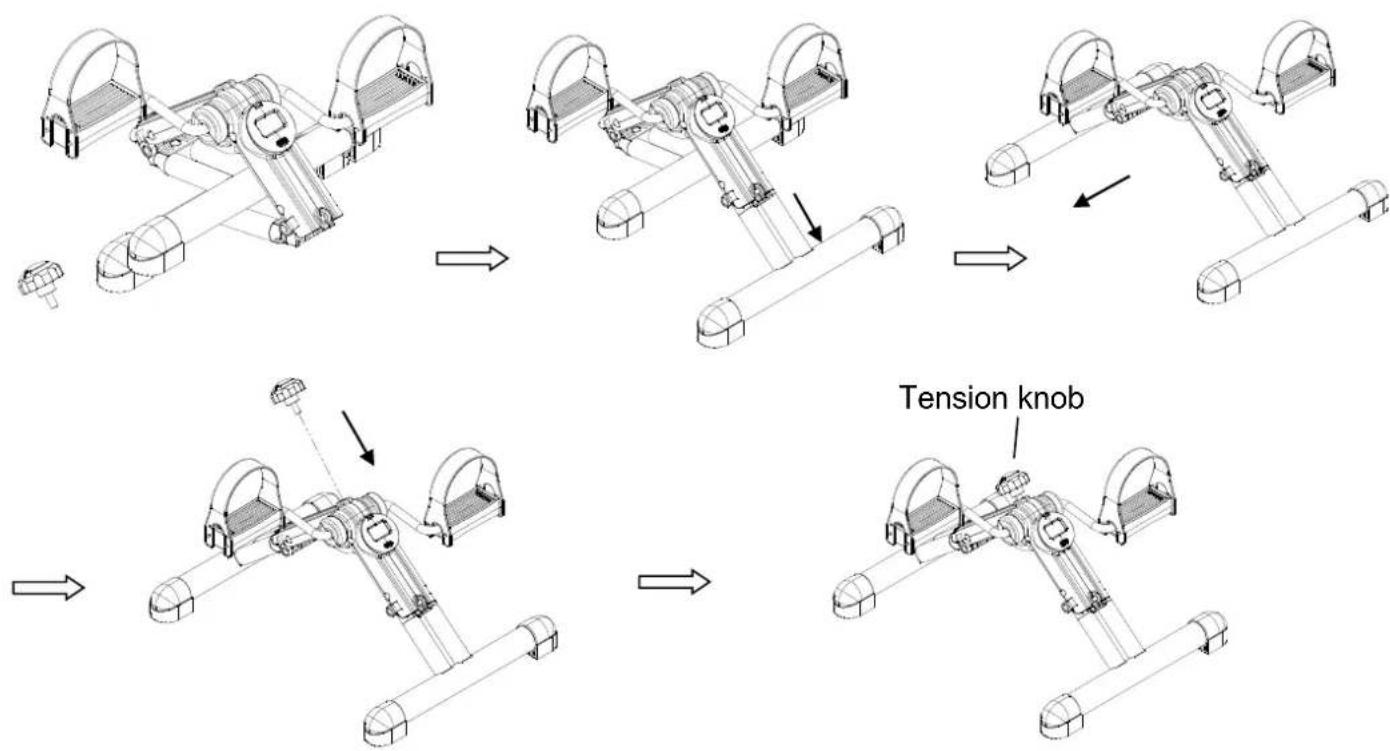

ASSEMBLY INSTRUCTION:

Steps:

Spread up the front tube and rear tube until you hear "ka", then fix the knob in top of the meter.

Micro-adjust resistance:

The tension knob allows you to increase or decrease the amount of resistance during your workout.

OPERATIONS: Press the button under the LCD to select each function. Hold the button for 3 seconds to reset all values to 0. Triangles on the LCD point to activated functions. The computer turns off automatically after 4 minutes of inactivity.

SCAN: automatically displays each function in sequence.

TIME: counts exercise time from 0:00 to 99:59 in one-second increments.

COUNT: counts the number of strides taken during each workout.

TOTAL COUNT: counts the number of accumulative strides taken during workout.

CAL: calculates the estimated number of calories burned during workout.

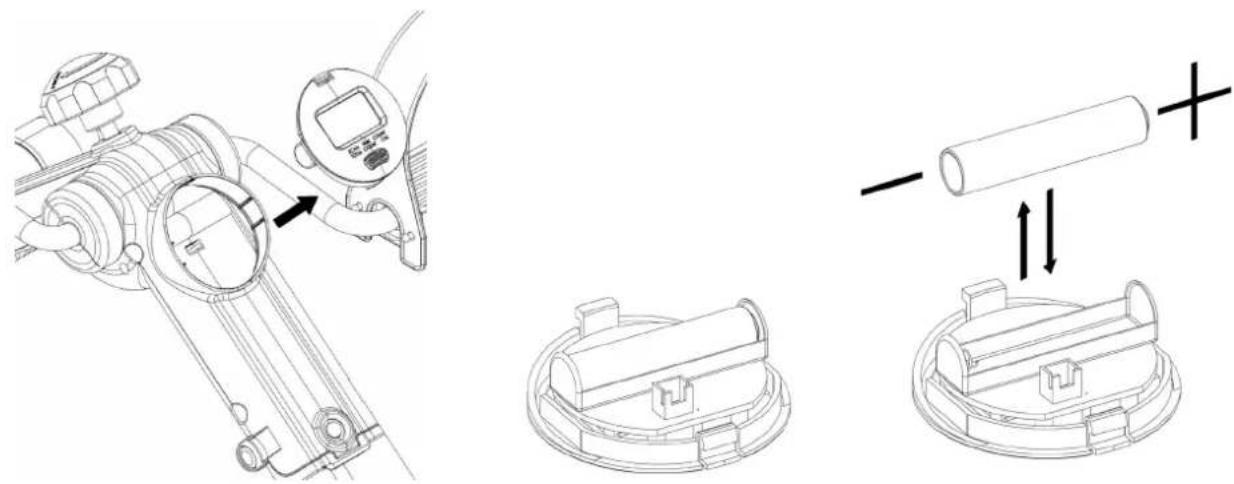

REPLACEMENT OF BATTERY:

If the computer does not turn on when you begin exercising, the battery may need to be replaced.

1. Grasp the LCD face panel and pull it straight up. The computer unit slide out from main unit.
2. Remove the battery from battery compartment and replace it with a fresh AAA battery.
3. Replace the computer unit in the main unit. Ensure the LCD panel is properly oriented.

EXERCISES:

This device can be used for both your legs and arms for an excellent aerobic workout. To use as a bicycle, place on the floor in a location where pedaling motion is unencumbered. Make sure surface is level and made of a non-slippery material. To use for your arms, place on level table or desk with non-slippery surface.

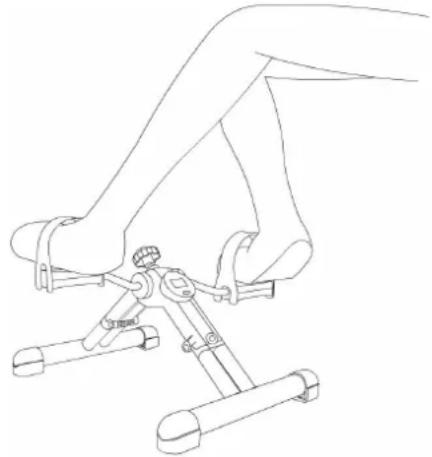

Leg Exercise

For use as a lower body device - secure the device on a non-slippery surface prior to use and sit comfortably in a chair with the device directly in front of you such that the knee joint is not flexed less than 90°. It is important that the user wears a rubber soled shoe when on this device so he/she does not slip off the pedals during the exercise.

• Once you have positioned yourself correctly in a sturdy chair, put your feet in the pedals and slowly begin pedaling the Mini Bike.
• For balance, you can hold either side of the chair/seat or place your hands on your knees.
• To increase or decrease resistance, turn resistance knob in appropriate direction.

Do not stand on the unit to exercise, only exercise at seated position. Make sure the seat does not move or pivot.

Line drawing of a person's lower legs and foot using a stationary exercise machine (no text or symbols)

Arm Exercise

When using this device for upper body exercise, it should be placed directly in front of the user on a table top, and the user should be seated in a comfortable chair such that they can easily reach the pedals without hyperextension (over straightening) the elbow joint. This can be accomplished by either placing a seat cushion on top of the seat or by moving the device closer to the user. Hold the pedals in your hands and turn using shoulders, arms and wrists.

Line drawing of a person using a stationary exercise machine (no text or symbols)

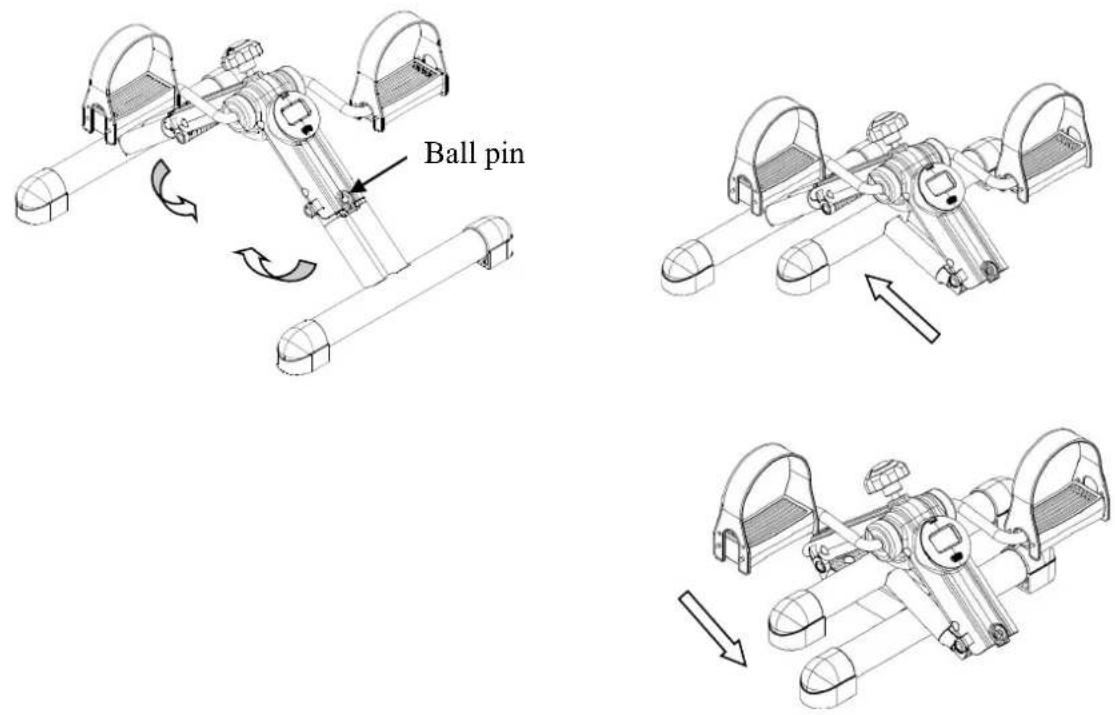

STORAGE:

For storage, please press the ball pin and fold up the front tube, then rear tube.

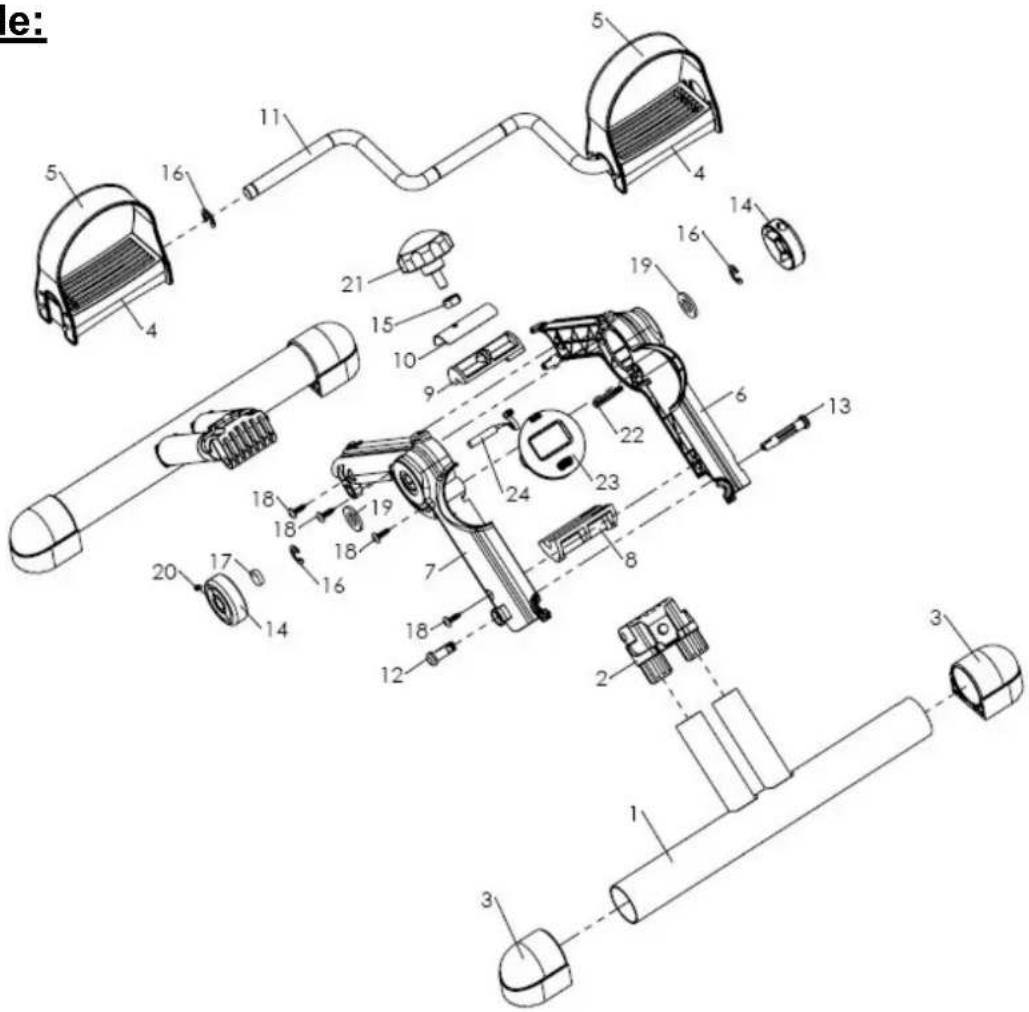

Explode:

Parts list:

Part No.	Description	Qty	Part No.	Description	Qty
1	Main base	2	13	Fixed pin	2
2 Connector 1 14 Magnet		seat 2
3	Tube Cap	1	15	Nut M8	1
4 Footrest 2 16 E Ring 4
5	Belted	2	17	Magnet	1
6 Shell – R 1 18 Bolt M5		x 15 4
7	Shell – L	1	19	Washer M12	2
8	Brake – A	1 20	Bolt M3 x 10 2
9	Brake – B	1	21	Knob	1
10	Curved plate	1 22	Fixed pin 1
11	Crank	1	23	Computer	1
12	Fixed pin	2 24		Sensor 1

Tunturi Fitness

P.O. Box 60001

NL-1320 AA ALMERE

www.tunturi.com

MINI BIKE OPVOUWBAAR

Exterior view of a black and silver outdoor exercise bike with adjustable arms (no text or symbols visible)

GEBRUIKERSHANDLEIDING

TUNTURI®

FITNESS & FUN

Let op: LEES DEZE INSTRUCTIES VOOR GEBRUIK AANDACHTIG DOOR

OEFENINGEN:

Line drawing of a person's lower legs and foot using a stationary exercise machine (no text or symbols)

Line drawing of a person using a stationary exercise machine (no text or symbols)

OPBERGEN:

KLAPPBARES MINI-FAHRRAD

Black and silver outdoor exercise bike with adjustable arms and legs (no text or symbols visible)

TUNTURI®

FITNESS & FUN

ACHTUNG:

Technical line drawing of a mechanical assembly with three views: top shows a digital display, side shows internal components, and bottom shows a cylindrical component (no text or symbols)

ÜBUNGEN:

Line drawing of a person using a stationary exercise machine (no text or symbols)

LAGERUNG:

Black and silver outdoor exercise bike with adjustable arms and legs (no text or symbols visible)

EXERCISES:

Line drawing of a person's foot and legs with a foot-mounted exercise machine (no text or symbols)

Exercice de bras

Line drawing of a person using a stationary exercise machine (no text or symbols)

STOCKAGE:
