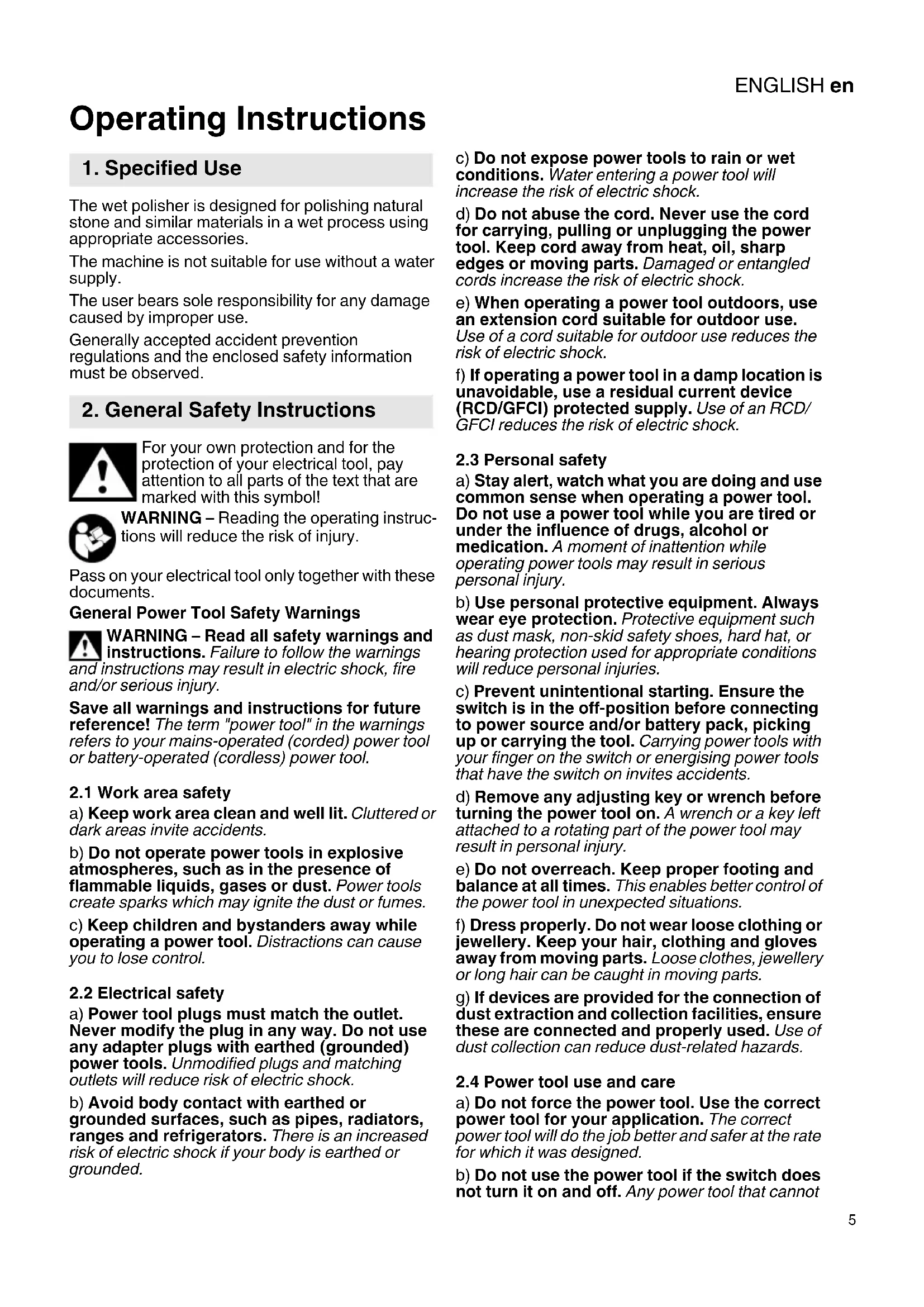

Operating Instructions The wet polisher is designed for polishing natural stone and similar materials in a wet process using appropriate accessories. The machine is not suitable for use without a water supply. The user bears sole responsibility for any damage caused by improper use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. For your own protection and for the protection of your electrical tool, pay attention to all parts of the text that are marked with this symbol! WARNING – Reading the operating instruc- tions will reduce the risk of injury. Pass on your electrical tool only together with these documents. General Power Tool Safety Warnings WARNING – Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference! The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

2.1 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2.2 Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD/GFCI) protected supply. Use of an RCD/ GFCI reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

2.4 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot

2. General Safety InstructionsENGLISHen

be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

3.1 Safety Warnings Common for Grinding,

Sanding, Wire Brushing, Polishing or Abrasive Cutting-Off Operations: a) This power tool is intended to function as a polisher. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. b) Operations such as grinding, sanding, wire brushing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury. c) Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. d) The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. e) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. f) Treaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If a power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtering particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from

work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.

I) Never lay the power tool down until the

accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing

and excessive accumulation of powdered metal may cause electrical hazards. o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.

3.2 Kickback and Related Warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use the auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken. b) Never place your hand near the rotating accessory. Accessory may kickback over your hand. c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

3.3 Safety Warnings Specific for Polishing:

Do not allow any loose portion of the polishing bonnet or its attachment strings to spin freely. Tuck away or trim any loose attachment strings. Loose and spinning attachment strings can entangle your fingers or snag on the workpiece.

3.4 Additional Safety Instructions

Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation. Use elastic cushioning layers if they have been supplied with the abrasive and if required. Observe the specifications of the tool or accessory manufacturer! Accessories must be stored and handled with care in accordance with the manufacturer's instructions. Ensure that accessories are installed in accordance with the manufacturer's instructions. The tool continues running after the machine has been switched off. The workpiece must lay flat and be secured against slipping, e.g. using clamps. Large workpieces must be sufficiently supported. If accessories with threaded inserts are used, the end of the spindle may not touch the base of the hole on the grinding tool. Make sure that the thread in the accessory is long enough to accommodate the full length of the spindle. The thread in the accessory must match the thread on the spindle. See page 3 and chapter 12. Technical Specifications for more information on the spindle length and thread. Always wear protective goggles. Conductive dust may collect inside the machine during the process. This can lead to the transfer of electrical energy onto the machine housing. This can mean a temporary danger of electric shocks. This is why it is necessary when the machine is running to blow compressed air through the rear ventilation slots of the machine regularly, frequently and thoroughly. Here, the machine must be held firmly. When working in dusty conditions, ensure that ventilation openings are not blocked. If it becomes necessary to remove dust, first disconnect the power tool from the mains supply (use non-metallic objects) and avoid damaging internal components. Damaged, eccentric or vibrating tools must not be used. Pull the plug out of the socket before making any adjustments, converting or servicing the machine. Avoid inadvertent starts by always unlocking the switch when the plug is removed from the mains socket or in case of a power cut. Metabo S-automatic safety clutch. When the safety clutch responds, switch off the machine immediately! A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle. Additional Warnings: California Prop 65 08_2018 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,

• Crystalline silica from bricks and cement and WARNINGENGLISHen

other masonry products, and

• Arsenic and chromium from chemicallytreated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. Symbols on the tool: ......... Class II Construction V............. volts A............. amperes Hz........... hertz .../min ..... revolutions per minute ~ ............. alternating current ............ alternating current /direct current n ............. rated speed The "C" and "US" indicators adjacent to the CSA Mark signify that the product has been evaluated to the applicable CSA and ANSI/ UL Standards, for use in Canada and the U.S., respectively. See page 2. 1 Shut-off cock 2 Connection piece 3 Water hose (1/2“) with standard self-locking quick connector 4 Ground Fault Circuit Interuptor (GFCI) 5 TEST button 6 RESET button 7 Pilot light 8 Spindle 9 Additional handle 10 Front protective cap (removable) 11 Spindle locking button 12 Sliding on/off switch 13 Electronic signal indicator 14 Threaded holes on gear housing 15 Thumb screws 16 Locking discs 17 Polishing disc (with velcro-type fastening) * 18 Support plate (with velcro-type fastening) * 19 Speed adjustment wheel

• depending on equipment/not in scope of delivery

5.1 Attaching the additional handle

Always work with the additional handle attached (9)! Fit the additional handle as shown (see illustration A, page 2). - Fit locking discs (16) to the left and right of the gear housing. - Fit the additional handle (9) on the gear housing. - Insert the thumb screws (15) to the left and right of the additional handle (9) and turn gently. - Adjust the additional handle to the required angle (9). - Manually tighten the thumb screws (15) to the left and right.

Before plugging in, check that the rated mains voltage and mains frequency, as stated on the rating label, match with your power supply. The machine must only be connected to a socket that has been properly earthed in accordance with regulations. Regularly check the cable and the plug on the power tool and have them repaired by the Metabo after sales service team if damaged. If an extension cord is needed, it must be a three- core lead with a protective (earth) contactor that is properly connected to both the plug and the coupler of the cord. When working outdoors, only use the correspondingly marked extension cable approved for this purpose. Regularly check extension cables and replace if damaged. Extension cables must be suitable for the power rating (see Technical Specifications). If using a roll of cable, always roll up the cable completely.

5.3 Earth leakage circuit breaker (

GFCI) The machine must only be used with the GFCI (4) supplied. Check the GFCI (4) as described before each machine use. - Connect the machine to the power supply. The pilot light (7) lights up. - Push the TEST button (5). The pilot light (7) should go out. - Press the RESET (6)again to use the machine. The machine must not be used if you push the TEST button (5) and the pilot light (7) does not go out. Have a qualified electrician check the machine. Do not use the ground fault circuit interuptor to switch the machine on or off.

See illustration b, page 2. Position A = Shut-off cock (1) closed Position B = Shut-off cock (1) open

5.5 Water connection

Regularly check that the shut-off cock, hoses, seals and connection pieces are functioning correctly.

5. Assembly, Commissioning

Use only clean tap water. The water pressure must not exceed 6 bar. Only use the machine when it properly connected to the water supply. Do not allow water within the vicinity of the machine or close to people in the working area. Always position the machine so that no water can enter the machine or come in contact with electrical components. - Ensure that the shut-off cock (1) is closed. - Ensure that the water tap to the water supply is closed. - Fit a water hose (1/2“) with a standard self-locking quick connector to the connection piece (2) until it locks into place. - Open the water tap to the water supply. To remove the hose, close the water tap to the water supply and then open the shut-off cock (1) to release the pressure in the hose. When removing the hose, make sure that no water enters the machine. Close the shut-off cock (1).

5.6 Fitting/Removing the accessory

Press in the spindle locking knob (11) only when the spindle is stationary! To fit: - Press in the spindle locking button (11) and turn the spindle (8) by hand until you feel the spindle locking button engage. - Manually screw on the support plate (18) (with velcro-type fastening), turning clockwise. - Simply press the polishing disc (17) (with velcro- type fastening) so that the polishing disc (17) and support plate (18) are perfectly aligned. To remove

- Press the spindle locking button (11). - Manually unscrew the support plate (18), turning anticlockwise (apply a flat wrench to the spanner flat of the plate if necessary).

• The speed can be preset via the setting wheel (19) and is infinitely variable. Positions 1-6 correspond approximately to the following no-load speeds: 1 p. 1750
• / min 4 p. 4050
• / min 2 p. 2700
• / min 5 p. 4800
• / min 3 p. 3500
• / min 6 / min The VTC electronics make material-compatible work possible and an almost constant speed, even under load. p. 5400

6.2 Switching On and Off

Switch on first, then guide the accessory towards the workpiece. The machine must not be allowed to draw in additional dust and shavings. When switching the machine on and off, keep it away from dust deposits. After switching off the machine, only place it down when the motor has come to a standstill. Avoid inadvertent starts: always switch the tool off when the plug is removed from the mains socket or if there has been a power cut. In continuous operation, the machine continues running if it is forced out of your hands. Therefore, always hold the machine with both hands using the handles provided, stand in a safe position and concentrate. Switching on: Push the slide switch (12) forward. For continuous activation, now tilt downwards until it engages. Switching off: Press the rear end of the slide switch (12) and release.

6.3 Working instructions

To start work: - Set up the water connection (see chapter 5.5) - Test the GFCI (see chapter 5.3). - Open the shut-off cock (1): water flows from the spindle (8). - If necessary, adjust the speed. Switch on the machine.

Fit the accessory on the tool

- Apply moderate pressure on the machine and move it to and fro across the surface. To finish work: - Remove the accessory from the tool. - Switch off the machine and allow it to come to a standstill. - Close the shut-off cock (1). - Store away the machine. The pilot light (7) does not go out when the TEST button (5) is pressed. Unplug. You must not use the machine! Have a qualified electrician check the machine. The GFCI (4) switches off the machine repeatedly when it is turned on. Unplug. You must not use the machine! Have a qualified electrician check the machine. The electronic signal display (13) lights up and the load speed decreases. The coil temperature is too high! Run the machine in idling until the electronics signal indicator switches off. Motor cleaning: blow compressed air through the rear ventilation slots of the machine regularly, frequently and thoroughly. Here, the machine must be held firmly. Use only genuine Metabo accessories. Use only accessories which fulfil the requirements and specifications listed in these operating instructions.

8. Cleaning, Maintenance

See page 4. A Diamond cling-fit polishing discs B Support plate with velcro-type fastening For a complete range of accessories, see www.metabo.com or the main catalogue. Repairs to electrical tools must be carried out by qualified electricians ONLY! The plug and cord (incl. GFCI) must only be replaced by Metabo or Metabo's customer service team. Contact your local Metabo representative if you have Metabo power tools requiring repairs. For addresses see www.metabo.com. You can download a list of spare parts from www.metabo.com. Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories. Explanation of details on page 3. Subject to changes serving technical progress.

max =Maximum support plate diameter

t, max =Maximum torque M =Spindle thread l =Length of the grinding spindle n* =No-load speed (maximum speed)

• =Speed at rated load

• High-energy, high-frequency interference can cause speed fluctuations of up to 20%, which subside when the interference disappears. Machine in protection class I The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).
