USER MANUAL DML801 MAKITA

• Only for EU countries Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: READ ALL INSTRUCTIONS.

1. Before using battery cartridge, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type of

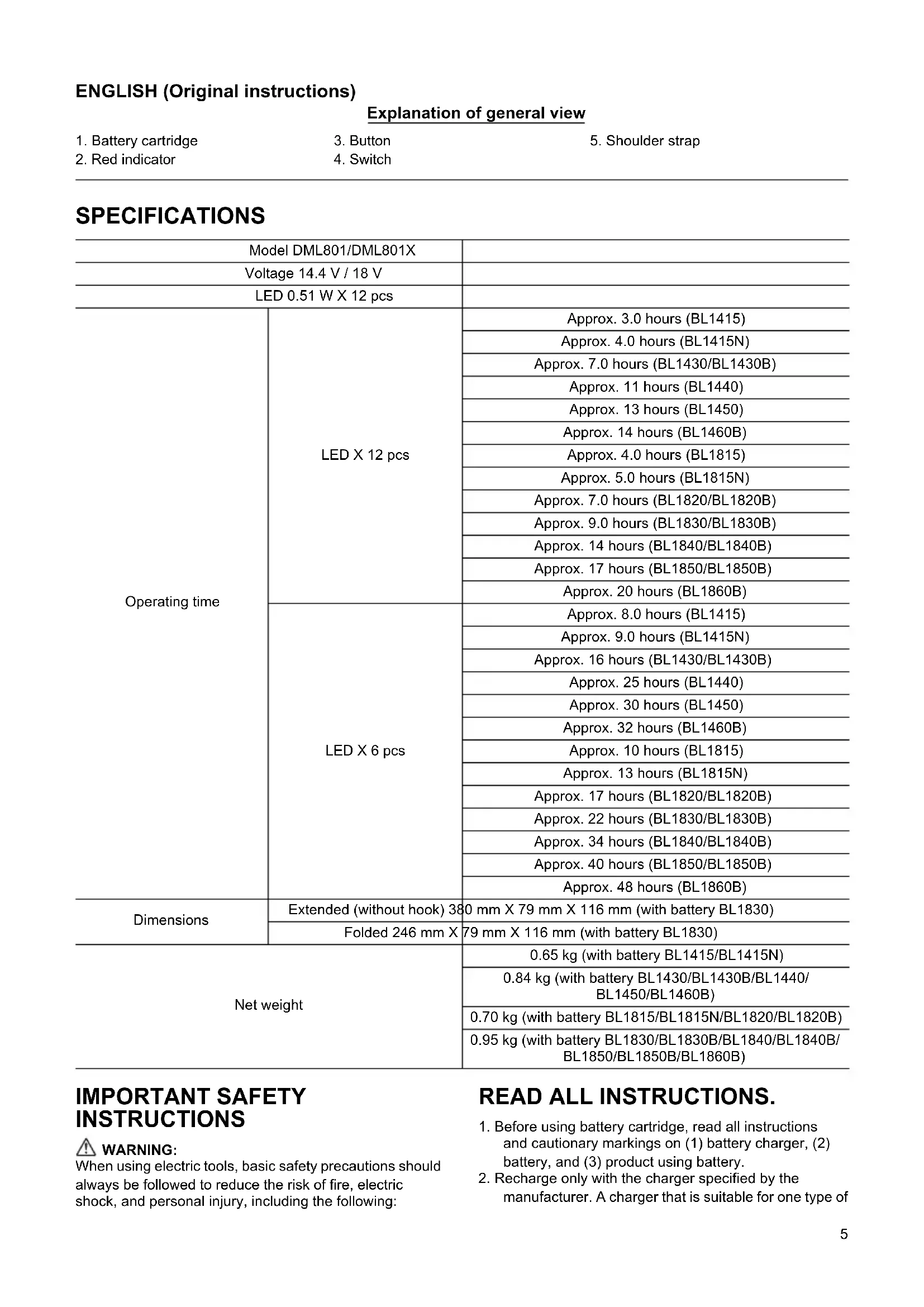

Model DML801/DML801X Voltage 14.4 V / 18 V LED 0.51 W X 12 pcs Operating time LED X 12 pcs Approx. 3.0 hours (BL1415) Approx. 4.0 hours (BL1415N) Approx. 7.0 hours (BL1430/BL1430B) Approx. 11 hours (BL1440) Approx. 13 hours (BL1450) Approx. 14 hours (BL1460B) Approx. 4.0 hours (BL1815) Approx. 5.0 hours (BL1815N) Approx. 7.0 hours (BL1820/BL1820B) Approx. 9.0 hours (BL1830/BL1830B) Approx. 14 hours (BL1840/BL1840B) Approx. 17 hours (BL1850/BL1850B) Approx. 20 hours (BL1860B) LED X 6 pcs Approx. 8.0 hours (BL1415) Approx. 9.0 hours (BL1415N) Approx. 16 hours (BL1430/BL1430B) Approx. 25 hours (BL1440) Approx. 30 hours (BL1450) Approx. 32 hours (BL1460B) Approx. 10 hours (BL1815) Approx. 13 hours (BL1815N) Approx. 17 hours (BL1820/BL1820B) Approx. 22 hours (BL1830/BL1830B) Approx. 34 hours (BL1840/BL1840B) Approx. 40 hours (BL1850/BL1850B) Approx. 48 hours (BL1860B) Dimensions Extended (without hook) 380 mm X 79 mm X 116 mm (with battery BL1830) Folded 246 mm X 79 mm X 116 mm (with battery BL1830) Net weight

0.65 kg (with battery BL1415/BL1415N)

0.84 kg (with battery BL1430/BL1430B/BL1440/

0.70 kg (with battery BL1815/BL1815N/BL1820/BL1820B)

0.95 kg (with battery BL1830/BL1830B/BL1840/BL1840B/

BL1850/BL1850B/BL1860B)6 battery pack may create a risk of fire when used with another battery pack.

3. Use a power source with the voltage specified on the

nameplate of the charger.

4. Do not attempt to use a step-up transformer, an

engine generator or DC power receptacle.

5. Charge the battery cartridge with room temperature at

10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it.

6. When battery pack is not in use, keep it away from

other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause sparks, burns, or a fire.

7. After charging or before attempting any maintenance

or cleaning, unplug the charger from the power source.

8. This battery holder part is not waterproof. Do not use it

in damp or wet locations. Do not expose it to rain or snow. Do not wash it in water.

9. Do not touch the inside of the flashlight head with

tweezers, metal tools, etc.

10. Under abusive conditions, liquid may be ejected from

the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

11. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material. (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

12. If electrolyte gets into your eyes, rinse them out with

clear water and seek medical attention right away. It may result in loss of your eyesight.

13. Be careful not to drop or strike battery.

14. Do not incinerate the battery cartridge even if it is

severely damaged or is completely worn out. The battery cartridge can explode in a fire. CAUTION:

1. When the tool is not in use, always switch off and

remove the battery cartridge from the tool.

2. Do not store the tool and battery cartridge in locations

where the temperature may reach or exceed 50°C (122°F).

3. Do not give the tool a shock by dropping, striking, etc.

4. Do not expose the light to eyes continuously. It may

5. Do not cover or clog the lit tool with cloth or carton,

etc. Covering or clogging it may cause a flame.

6. Do not disassemble the charger or battery cartridge;

take it to a qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

7. Use the tools only with specifically designated battery

packs. Use of any other battery packs may create a risk of injury and fire.

8. If operating time has become excessively shorter, stop

operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

9. Do not use a damaged battery.

10. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

11. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

12. If any problem develops, consult your nearest Makita

Service Center or dealer. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by Makita Authorized Service Center.

13. Charge the battery cartridge once in every six months

if you do not use it for a long period of time. SAVE THESE INSTRUCTIONS. FUNCTIONAL DESCRIPTION Charging Charge the battery cartridge with the Makita charger before use. Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.

• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.

• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly. Battery protection system The protection system is equipped, which automatically cuts off the output power for its long service life. The light goes off during operation when the remaining battery capacity gets low. This is caused by the activation of protection system and does not show the light trouble. Remove the battery cartridge from the light and charge it. Switch action (Fig. 2) CAUTION:

• Do not look in the LED light or see the source of light directly. The LED light has a cycle of the three-ways status as follows.7 Head angle The head can be turned in seven stages for every 45°. (90° to the right and 180° to the left) (Fig. 3) And the head angle can be folded between 0 and 180° for every 30°. (Fig. 4) Strap Install the strap on the tool. (Fig. 5) Metal hook Pivot the metal hook upright before using it. (Fig. 6) The hook can be turned at 360°. (Fig. 7) MAINTENANCE CAUTION:

• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. The accessories or attachments should be used only in the proper and intended manner.

• Makita genuine battery and charger NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country. Switch action Light status 1st press All LED lights are on. 2nd press Only 6 LED lights are on. 3rd press All LED lights are off.8 FRANÇAIS (Instructions d’origine) Descriptif SPÉCIFICATIONS
