USER MANUAL 230iB HUSQVARNA

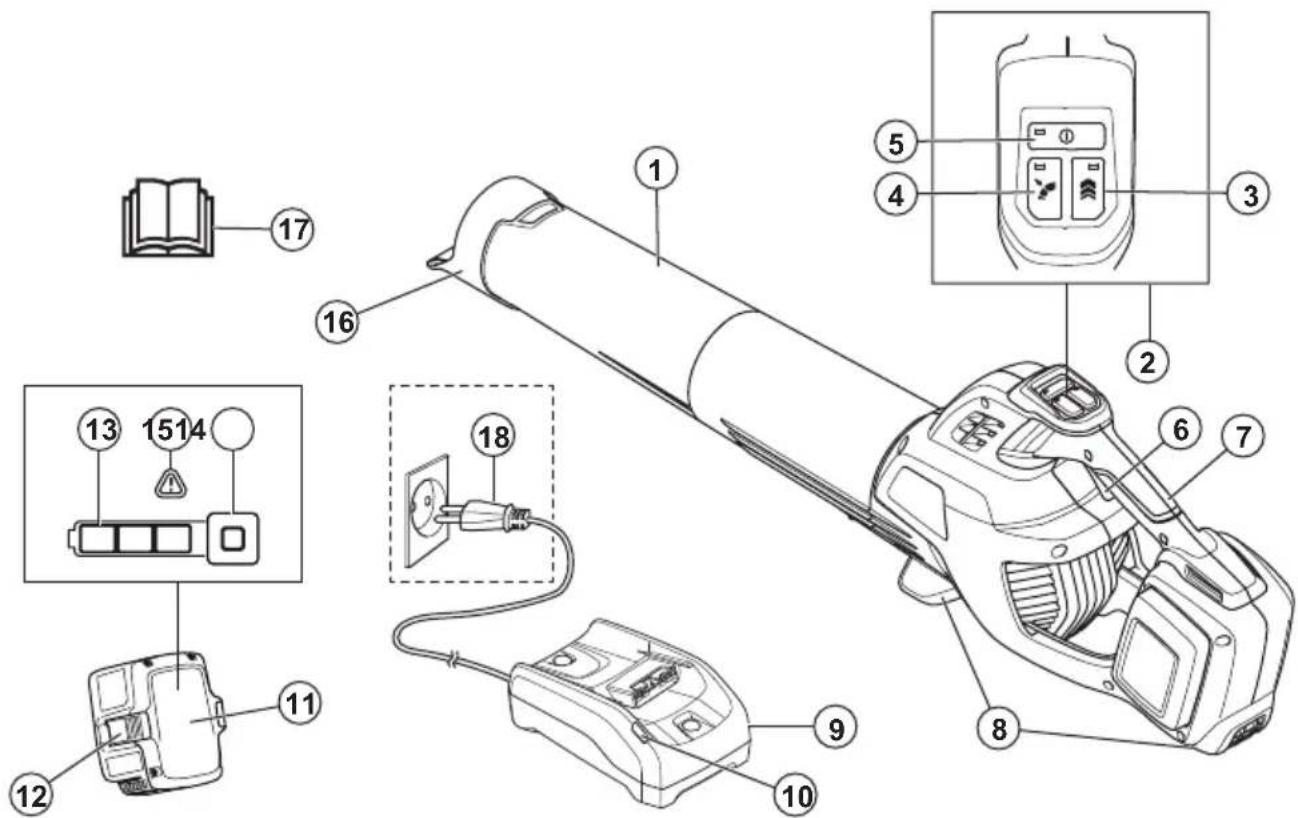

10.Power and warning indicator 11.Battery 12.Battery release button 13.Battery status indicator 14.Warning indicator (error LED) 15.Battery indicator button 16.Scraper tool 17.Operator's manual 18.Power plug Product description The Husqvarna 230iB is a blower model with an electric motor. We have a policy of continuous product development and therefore reserve the right to modify the design and the appearance of the products without prior notice. 2 1516 - 003 - 10.08.2022Intended use This product is designed for blowing leaves and other debris from lawns, pathways, asphalt roads and the like. Symbols on the product WARNING! Risk of serious injury or death to the operator or others. Be careful and use the product correctly. Read the operator's manual carefully and understand the instructions before operation of the product. Use approved hearing protection and approved eye protection. If the environment contains dust, use a breathing mask. Use approved protective boots and gloves. Wear long sleeves and pants. Do not wear jewelry when you operate the product. Keep hair above shoulders. Do not leave, store or use in the rain or in wet conditions. Direct current. The product or package of the product is not domestic waste. Recycle it at a recycling station for electrical and electronic equipment. The blower operator must ensure that no people or animals come closer than 15 metres. When several operators are working at the same site a safety distance of at least 15 metres must be in effect. The blower can forcibly throw objects that can bounce back. This can result in serious eye injuries if the recommended safety equipment is not used. yyyy wwxxxxx The rating plate shows serial number. yyyy is the production year, ww is the production week. California Proposition 65 Manufacturer Husqvarna AB Husqvarna Professional Products, Inc 9335 Harris Corners Pkwy, Charlotte, NC 28269, USA Product liability As referred to in the product liability laws, we are not liable for damages that our product causes if:

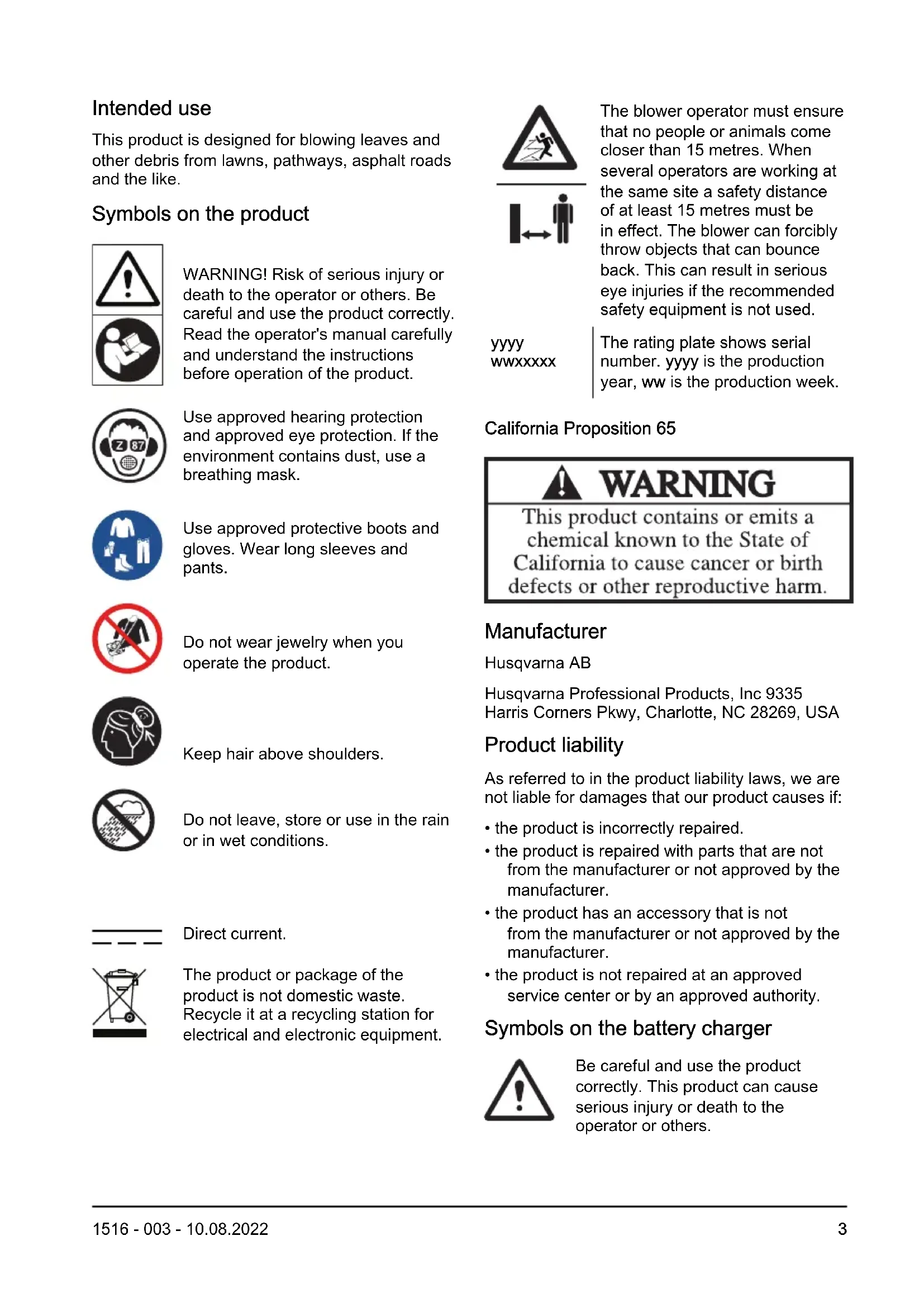

• the product is incorrectly repaired.

• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.

• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.

• the product is not repaired at an approved service center or by an approved authority. Symbols on the battery charger Be careful and use the product correctly. This product can cause serious injury or death to the operator or others. 1516 - 003 - 10.08.2022 3Read the operator's manual carefully and make sure that you understand the instructions before use. The product agrees with the applicable EC directives. The product or package of the product is not domestic waste. Recycle it at an applicable disposal location for electrical and electronic equipment. Use and keep the battery charger indoors only. Note: Other symbols/decals on the battery charger refer to certification requirements for some commercial areas. Safety Safety definitions Warnings, cautions and notes are used to point out specially important parts of the manual.

there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed. CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed. Note: Used to give more information that is necessary in a given situation. IMPORTANT SAFETY INSTRUCTIONS

safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Introduction

safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

READ ALL INSTRUCTIONS

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

• Do not charge the product outdoors.

• Only use the charger supplied by the manufacturer to recharge. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

• Do not incinerate the appliance even if it's severely damaged.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Only use the product as described in this manual.

• Only use the manufacturers recommended attachments.

1516 - 003 - 10.08.2022• If the appliance is not working as it should, has been dropped, is damaged, is left outdoors or dropped into water, return it to a service center.

• Do not handle charger, including charger plug, and charger terminals with wet hands.

• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce the air flow.

• Use extra care when cleaning on stairs.

• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. General power tool safety warnings Check before starting

• Inspect the working area. Remove all loose objects, such as stones, broken glass, nails, steel wire, string etc. that could be thrown out.

• Always remove the battery to prevent the machine being started by accident. Always disconnect the battery before any maintenance on the machine.

• Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.

• Only use original spare parts.

• The machine operator must ensure that no people or animals come closer than 15 metres while working. When several operators are working in the same area the safety distance should be at least 15 metres.

• Do an overall inspection of the machine before use, see maintenance schedule.

• National or local regulations may regulate the use. Comply to given regulations. Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Keep bystanders away.

• This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Never allow children or other persons not trained in the use of the machine and/or the battery to use or service it. Local laws may regulate the age of the user.

• Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m (50 ft.). Stop the machine immediately if anyone approaches.

• Store the equipment in a lockable area so that it is out of reach of children and unauthorized persons.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

• Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your coordination.

• Wear personal protective equipment. See instructions under the heading "Personal protective equipment".

• Always remove the battery when passing the machine to another person.

• Keep in mind that it is you, the operator that is responsible for not exposing people or their property to accidents or hazards. Power tool use and care

• Never use a machine that has been modified in any way from its original specification. Never use the machine near explosive or flammable materials.

• Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.

• Only use original spare parts. 1516 - 003 - 10.08.2022 5• Always ensure that ventilation openings are kept clear of debris.

• All covers, guards and handles must be fitted before starting.

• Only use the machine in daylight or in other well-lit conditions.

• Never use the machine in bad weather, for instance in fog, in rain, damp or in wet locations, strong winds, intense cold, risk of lightning, etc. Extremely hot weather may cause overheating of the machine. Operation in bad weather is tiring and can lead to dangerous conditions, for instance slippery surfaces.

• If the machine starts vibrating abnormally, stop the machine and remove the battery.

• Walk, never run. General safety instructions

warning instructions that follow before you use the product.

• Incorrect or careless use of the product can turn it into a dangerous tool that can cause serious or even fatal injury to the operator or others. You must read and understand the contents of this operator's manual.

• Under no circumstances may the design of the product be modified without the permission of the manufacturer. Never use a product that has been modified in any way from its original specification and always use original accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others. Your warranty may not cover damage or liability caused by the use of non-authorized accessories or replacement parts.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Remove the battery from the product during charging. Safety instructions for operation

warning instructions that follow before you use the product.

• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.

• Never use the product in bad weather, for instance in fog, in rain, strong winds, intense cold, etc.

• Do not allow children to use or be in the vicinity of the product. Since the product is easy to start, children may be able to start it if they are not kept under full surveillance. This can mean a risk of serious personal injury. Disconnect the battery when the product is not under close supervision.

• Ensure that no people or animals come closer than 15 metres (50 ft.) while you work. When several operators are working in the same area the safety distance should be at least 15 metres. Otherwise there is a risk of serious personal injury. Stop the product immediately if anyone approaches. Never swing the product around without first checking behind you to make sure that no one is within the safety zone.

• Make sure that you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etcetera) in case you have to move suddenly. Take great care when you work on sloping ground.

• Keep a good balance and a firm foothold at all times. Do not overreach.

• Listen out for warning signals or shouts when you wear hearing protection. Always remove your hearing protection as soon as the product stops.

• Show consideration to persons in your surroundings by avoiding using the product at unsuitable times, such as late in the evening or early in the morning. Follow local regulations and ordinances.

• Use the product with the lowest possible airflow. It is seldom necessary to use full airflow, and many work procedures can be done at half airflow. A lower airflow means

1516 - 003 - 10.08.2022less noise and less dust, and it is also easier to keep control over the rubbish collected together/moved.

• Use a rake or a brush to release rubbish stuck to the ground.

• Hold the opening of the blower as close to the ground as possible.

• Observe your surroundings. Direct the product away from persons, animals, play areas, cars etc..

• Minimize the blowing time by lightly wetting dusty areas or using spray equipment.

• Be aware of the wind direction. Work with the wind to make your work easier.

• Stop the product and remove the battery if the product starts to vibrate abnormally.

• Using the blower to move large piles is time consuming and creates unnecessary noise.

• Clean up afterwards. Make sure that you have not blown rubbish into someone's garden.

• Do not run with the product.

• The powerful currents of air can move objects at such a speed that they can bounce back and cause serious eye injuries.

• Do not direct the airflow towards people or animals.

• Stop the motor before you assemble or dismantle accessories or other parts.

• Keep all parts of your body away from hot surfaces.

• Never put the product down when it is activated unless you have it in clear sight.

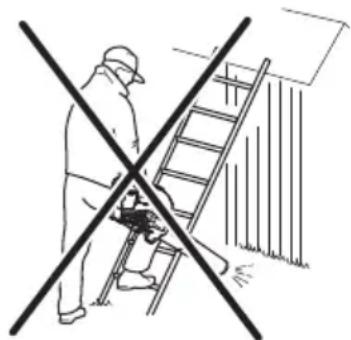

• The blower must not be used while on a ladder or scaffolding.

• Do not use the product unless you are able to call for help in case of an accident.

• Watch out for thrown objects. Stones, rubbish, etc., can be thrown up into the eyes causing blindness or serious injury.

• Use a residual-current device (RCI) for increased security. A residual-current device is fitted to protect operators in case an electrical fault should occur.

• This product is renowned for its low vibration load. Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists.

• Only use the product for the purpose it was intended for.

• It is not possible to cover every conceivable situation you can face. Always exercise care and use your common sense. Avoid all situations which you consider to be beyond your capability. If you still feel uncertain about operating procedures after reading these instructions, you should consult an expert before continuing. Personal protective equipment

warning instructions that follow before you use the product.

• Always use approved personal protective equipment when you use the product. 1516 - 003 - 10.08.2022 7Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

• Long term exposure to noise can result in damaged hearing. In general, battery powered products are relatively quiet but damage can result from a combination of noise level and long usage. Husqvarna recommends that operators use hearing protectors when using products for a longer coherent time of a day. Continual and regular users should have their hearing checked regularly.

Hearing protectors limit the ability to hear sounds and warning signals.

• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USA or EN 166 in EU countries.

• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.

• Keep first aid equipment close at hand.

• A breathing mask should be used when there is a risk of dust. Safety devices on the product

warning instructions that follow before you use the product.

• In this section the product’s safety features, its purpose and how checks and maintenance should be carried out to ensure that it operates correctly. See instructions under the heading Introduction on page 2 to find where these parts are located on your product.

• The life span of the product can be reduced and the risk of accidents can increase if product maintenance is not carried out correctly and if service and/or repairs are not carried out professionally. If you need further information please contact your nearest servicing dealer.

• Never use a product with defective safety components. The product's safety equipment must be inspected and maintained as described in this section. If your product fails any of these checks, contact your service agent to get it repaired.

• All servicing and repair work on the product requires special training. This is especially true of the product′s safety equipment. If your product fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your product is not a servicing dealer, ask him for the address of your nearest service agent.

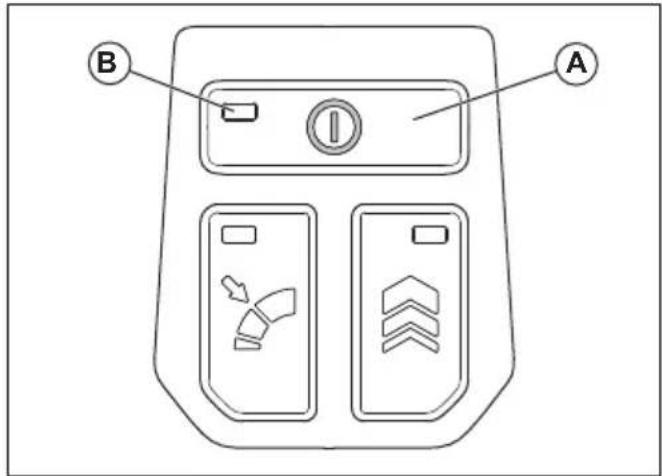

• Push and hold the power button (A).

a) The product is on when the LED (B) is on. b) The product is off when the LED (B) is off. To do a check of the power trigger

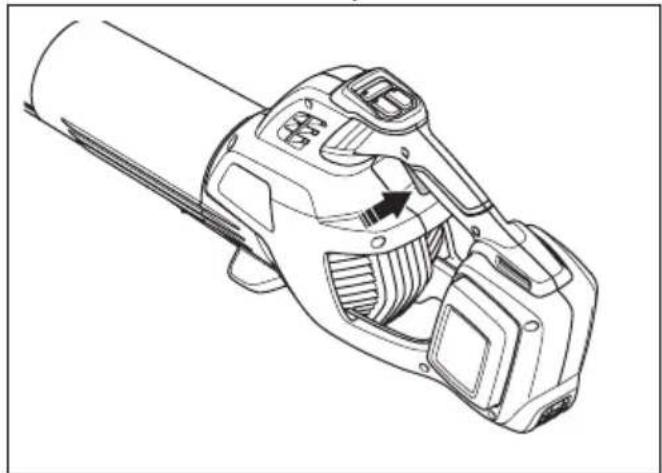

• Push and release the power trigger to make sure that it moves freely. Battery safety

warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.

• Do not use non-rechargeable batteries.

• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.

• Handle batteries carefully in order not to cause a short circuit with conducting materials such as rings, bracelets, and keys. The battery or conductor can overheat and cause burn injuries.

• Do not put objects into the air slots of the battery.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130 °C / 265 °F may cause explosion.

• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.

• Keep the battery away from rain and wet conditions.

• Keep the battery away from microwaves and high pressure.

• Do not try to disassemble or break the battery.

• Do not open or mutilate the battery. Released electrolyte is corrosive and can cause damage to the eyes or skin. It is poisonous if swallowed.

• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.

• Use the battery in temperatures between -10 °C (14 °F) and 40 °C (114 °F).

• Do not clean the battery or the battery charger with water. See To clean the product, the battery and the battery charger on page 14

• Do not use a defective or damaged battery.

• Keep batteries in storage away from metal objects such as nails, coins, jewelry.

• Keep the battery away from children. Battery charger safety

warning instructions that follow before you use the product.

• Risk of electrical shock or short circuit if the safety instructions are not obeyed.

• Use an approved grounded mains socket that is not damaged.

• Only use Husqvarna branded chargers.

• Do not try to disassemble the battery charger.

• Do not use a defective or damaged battery charger. 1516 - 003 - 10.08.2022 9• Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.

• Keep all cables and extension leads away from water, oil and sharp edges. Make sure that the cable is not caught between doors, fences or similar.

• Do not use the battery charger near flammable materials or materials that can cause corrosion. Make sure that the battery charger is not covered. Pull out the plug to the battery charger if there is smoke or fire.

• Only charge the battery indoors in a location with good airflow and away from sunlight. Do not charge the battery outdoors. Do not charge the battery in wet conditions.

• Only use the battery charger where the temperature is between 5 °C (41 °F) and 40 °C (104 °F). Use the charger in an environment which has a good airflow, dry and free from dust.

• Do not put objects into the cooling slots of the battery charger.

• Do not connect the battery charger terminals to metal objects as this can short circuit the battery charger.

• Use approved wall sockets that are not damaged. Safety instructions for maintenance

warning instructions that follow before you do maintenance on the product.

• Remove the battery before you do maintenance, other checks or assemble the product.

• The operator must only do the maintenance and servicing shown in this operator's manual. Speak to your servicing dealer for maintenance and servicing of a larger extension.

• Keep all nuts, bolts and screws tight to be sure the product is in safe working condition.

• Replace worn or damaged parts.

• If you do not do maintenance, it decreases the life cycle of the product and increases the risk of accidents.

• Special training is necessary for all servicing and repair work, especially for the safety devices on the product. If not all checks in this operator's manual are approved after maintenance, speak to your servicing dealer. We guarantee that there are professional repairs and servicing available for your product.

• Only use original spare parts. SAVE THESE INSTRUCTIONS Assembly Introduction This section describes how to assemble and adjust the product.

WARNING: Before you assemble

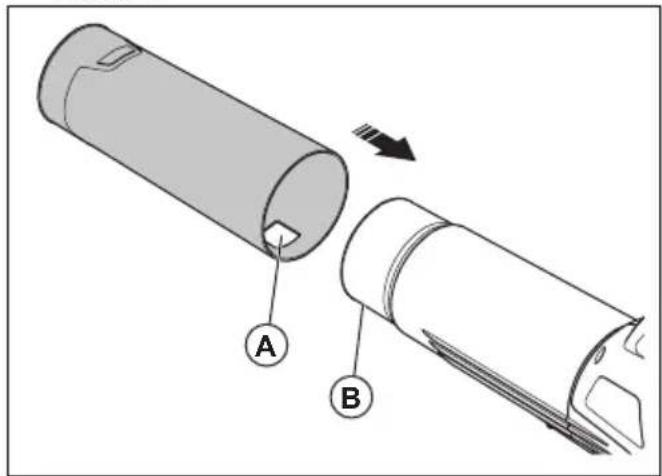

the product, read the safety chapter and the assembly instructions. To assemble the blower tubes Note: Apply water-based lubricant on the end of the tubes to make assembly easier. 10 1516 - 003 - 10.08.2022• Attach the blower nozzle to the tube until the tab (B) goes into the hole (A). Make sure that the blower nozzle and the tube are locked together.

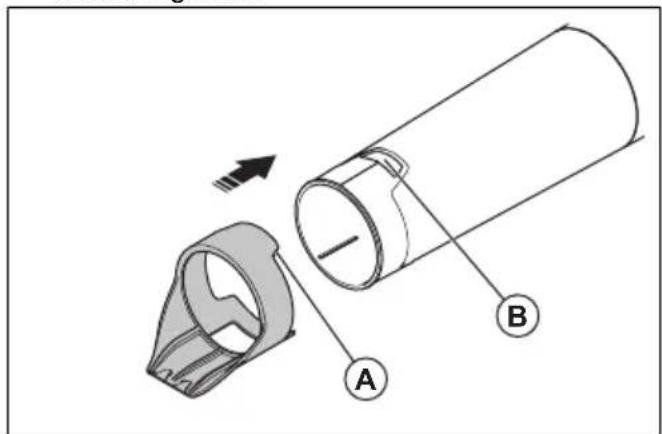

To attach the scraper tool The scraper tool can be used to loosen leaves and other unwanted material for easier cleaning.

• Attach the scraper tool to the blower nozzle until the tab (A) goes into the hole (B). Make sure that the scraper tool and the tube are locked together.

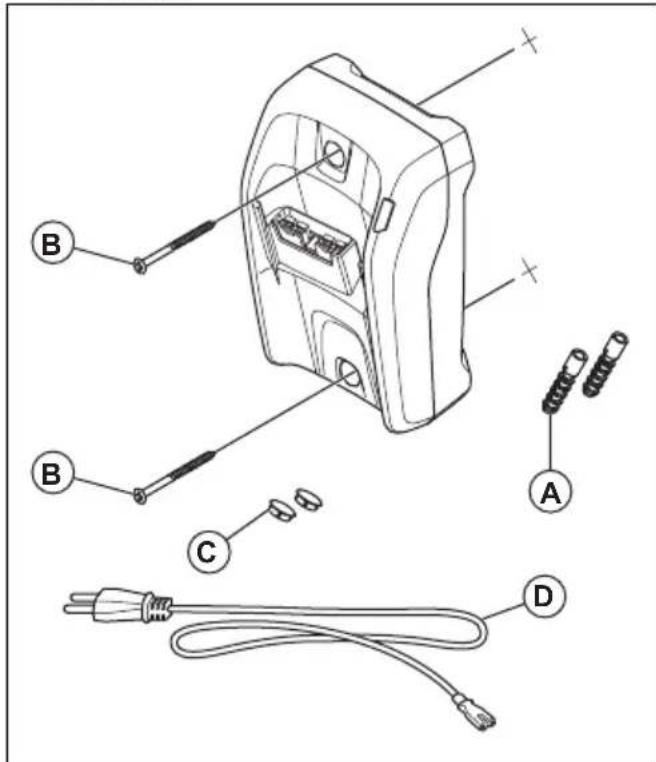

To install the battery charger on the wall CAUTION: Do not use an electric screwdriver to install the battery charger to the wall. An electric screwdriver can cause damage to the battery charger.

1. Install the battery charger on the wall with

the 2 screws (B). Use wall plugs (A) if it is necessary.

3. Connect the power cord to the battery charger

and a mains socket. Operation Introduction

WARNING: Read and understand

the safety chapter before you use the product. To do a function check before you use the product

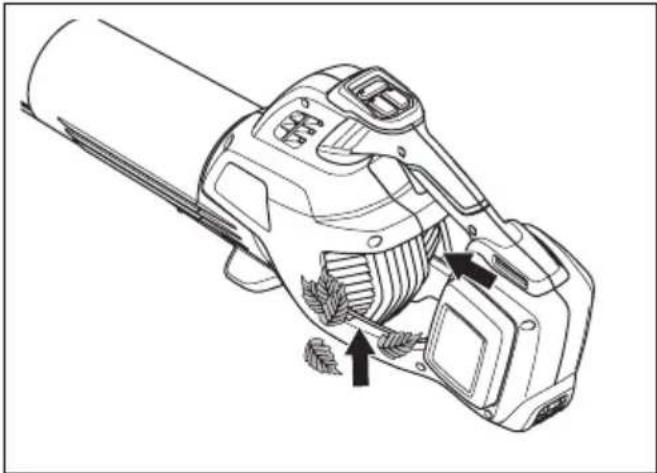

1. Do a check of the air inlet for dirt and cracks.

Use a brush and clean off grass and leaves from the product.

2. Make sure that the product works correctly.

3. Do a check of all nuts and screws and make

sure that they are tight. To connect the battery charger

WARNING: Only use the battery

charger in ambient temperatures between 5°C/41°F and 40°C/104°F. 1516 - 003 - 10.08.2022

111. Connect the battery charger to the voltage

and frequency that is specified on the rating plate.

2. Put the plug in a grounded power outlet. The

LED on the battery charger flashes red 1 time and green 1 time. To charge the battery CAUTION: Make sure that the battery, the battery charger and the terminals on the battery are clean and dry. Do not put the battery in the battery charger if it is dirty or wet.

1. Connect the battery charger to a power outlet.

The charging LED flashes red 1 time and green 1 time. CAUTION: Only connect the battery charger to a power outlet with the voltage and frequency specified on the rating plate.

2. Connect the battery to the battery charger.

The charging LED comes on.

3. Remove the battery from the battery charger

when it is fully charged. Push the battery indicator button for battery status. When all the LED indicators come on, the battery is fully charged.

4. Pull the power plug to disconnect the battery

charger from the power outlet. Do not pull the power cord. To connect the battery to the product

1. Make sure that the battery is fully charged.

2. Slide the battery into the battery holder of the

product. The battery must slide easily, if not, it is not installed correctly.

3. Press the lower part of the battery and

push it in as far as it will go into the battery compartment. The battery will lock into position when you hear a click.

4. Make sure that the latches snap in place

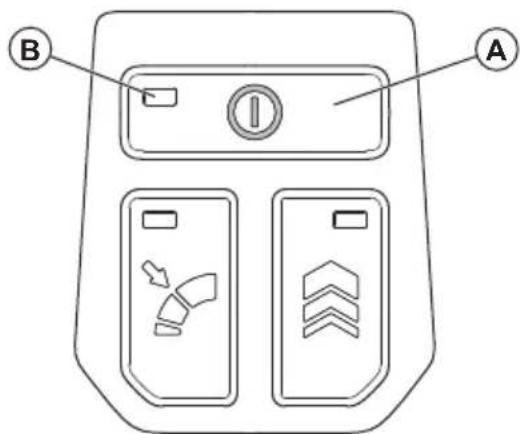

correctly. To start the product

1. Push and hold the power button (A) until the

green LED light (B) comes on.

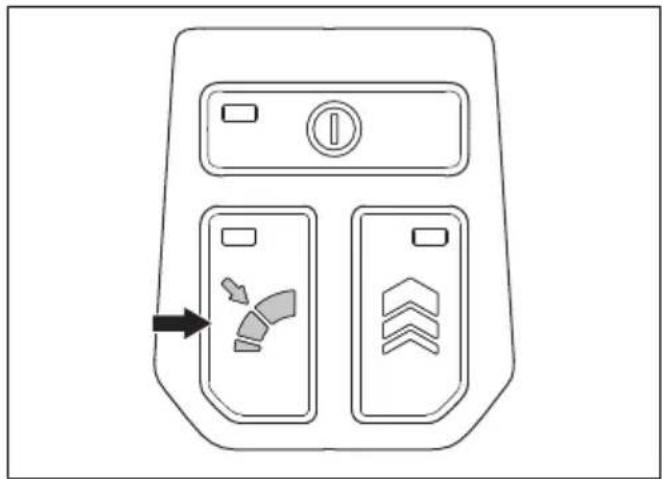

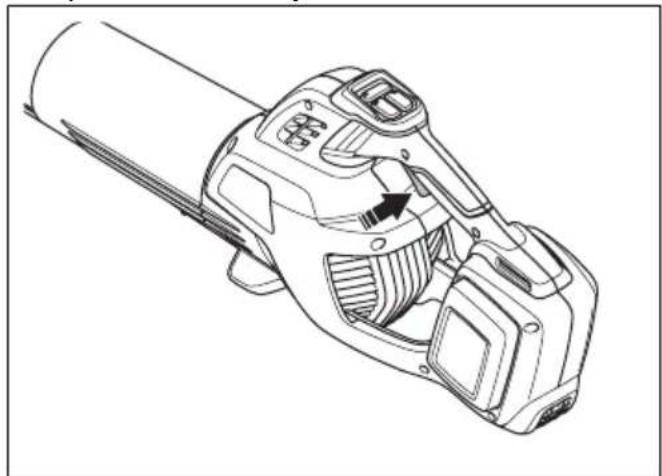

2. Use the power trigger to control the speed.

1. Release the power trigger.

2. Push and hold the power button until the

green LED light comes off.

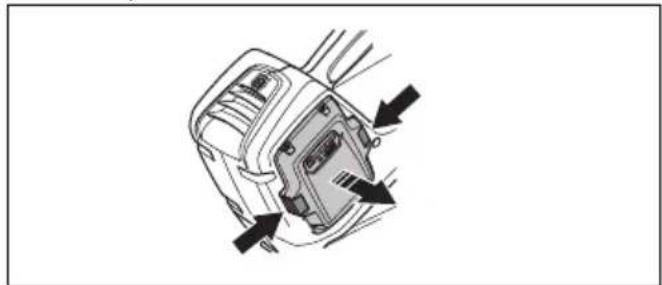

1516 - 003 - 10.08.20223. Remove the battery from the product. Push the two release buttons and pull out the battery. To set the optimal airflow for your work

1. Push the power trigger and hold it at the

optimal airflow for your work.

2. Push the cruise control button to set the

selected airflow. The LED comes on.

3. Continue to operate the product without the

power trigger pushed.

4. Push the cruise control button again to stop

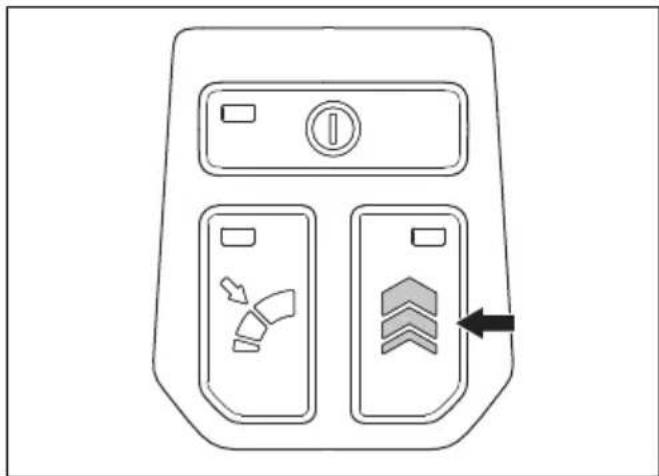

the cruise control function. To temporarily increase the airflow

1. Start the product. Refer to

To start the product on page 12

2. Push the power boost button to get the

maximum airflow. The LED comes on.

3. Release the power boost button to use the

product with the initial air flow. Maintenance Introduction

WARNING: Before you do any

maintenance work you must read and understand the safety chapter. Maintenance schedule

WARNING: Remove the battery

before you do maintenance. 1516 - 003 - 10.08.2022 13The following is a list of the maintenance steps that you must do on the product. Maintenance Daily Weekly Monthly Clean the outside of the machine with a clean and dry cloth. Never use water.

Keep handles dry, clean and free from oil and grease. X Make sure that the power button works correctly and is not damaged. X Make sure the power trigger is functioning properly with regard to safety.

Check that nuts and screws are tight. X Check that the battery is intact. X Check the battery's charge. X Check that the release buttons on the battery works and locks the battery into the machine.

Check that the battery charger is intact and functional. X Check that all connections are intact and free from dirt. X Check the connections between the battery and the machine and also check the connection between battery and the battery charger.

To do a check of the air intake

1. Make sure that the air intake is not blocked.

2. Stop the product and remove leaves or

unwanted material if it is necessary. CAUTION: A blocked air intake decreases the blowing capacity of the product and increases the work temperature of the motor. If the motor becomes too hot, it can result in motor failure. To examine the battery and the battery charger

1. Examine the battery for damages, for example

2. Examine the battery charger for damages, for

3. Make sure that the connection cord of the

battery charger is not damaged and that there are no cracks in it. To clean the product, the battery and the battery charger

1. Clean the product with a dry cloth after use.

2. Clean the battery and battery charger with a

dry cloth. Keep the battery guide tracks clean.

3. Make sure that the terminals on the battery

and the battery charger are clean before the battery is put in the battery charger or the product. 14 1516 - 003 - 10.08.2022Troubleshooting Keypad Keypad Possible faults Possible action Green LED flashing Low battery power. Charge the battery. Battery Condition Possible faults Possible procedure The battery warning LED flashes. Temperature deviation, the battery is too cold or too hot to use. Let the battery cool down or move it indoors to warm it up. When the battery has the correct temperature, it can be used again. Use the battery in ambient temperatures between -10 °C (14 °F) and 40 °C (104 °F). The battery is empty. Charge the battery. The battery warning LED comes on. Permanent battery error. Speak to your dealer. Battery charger Condition Possible faults Possible procedure The charging LED is red. Permanent battery charg- er error. Speak to your dealer. The charging LED flash- es red. Temperature deviation, the battery is too cold or too hot to use or charge. Let the battery cool down or warm it up. When the battery has the correct temperature, it can be used or charged again. Use the battery charger in ambient temperatures between 5 °C (41 °F) and 40 °C (104 °F). The charging LED flash- es green. The charging LED flash- es red. Faulty battery Speak to your dealer Transportation, storage and disposal Transportation and storage

• The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

• Obey the special requirement on package and labels for commercial transportation, including by third parties and forwarding agents. 1516 - 003 - 10.08.2022 15• Speak to a person with special training in dangerous material before you send the product. Obey all applicable national regulations.

• Use tape on open contacts when you put the battery in a package. Put the battery in the package tightly to prevent movement.

• Remove the battery for storage or transportation.

• Put the battery and the battery charger in a space that is dry and free from moisture and frost.

• Do not keep the battery in an area where static electricity can occur. Do not keep the battery in a metal box.

• Put the battery in storage where the temperature is between 5°C/41°F and 25°C/ 77°F and away from open sunlight.

• Put the battery charger in storage where the temperature is between 5 °C/41 °F and 45°C/ 113°F and away from open sunlight.

• Use the battery charger only when the surrounding temperature is between 5°C/41°F and 40°C/104°F.

• Charge the battery 30% to 50% before you put it in storage for long periods.

• Put the battery charger in storage in a space that is closed and dry.

• Keep the battery away from the battery charger during storage. Do not let children and other not approved persons to touch the equipment. Keep the equipment in a space that you can lock.

• Clean the product and do a full servicing before you put the product in storage for a long time.

• Use the transportation guard on the product to prevent injuries or damage on the product during transportation and storage.
