578BTF - Leaf blower HUSQVARNA - Free user manual and instructions

Product Type	Leaf blower
Brand	Husqvarna
Model	578BTF
Dimensions (L x W x H)	328 x 493 x 498 mm (without pipe)
Dry Weight	10.5 kg
Fuel Tank Capacity	2.2 L
Engine Type	Air-cooled 2-cycle gasoline engine
Cylinder Displacement	75.6 cm³
Operating Engine Speed	2000 - 7200 rpm
Fuel Consumption	1.95 L/h
Air Volume (ANSI B175.2)	25 m³/min
Max. Air Velocity with Standard Nozzle	92 m/s
Fuel Mixture (Husqvarna oil)	1:50 (2%) petrol/oil
Fuel Mixture (other oil)	1:33 (3%) petrol/oil
Spark Plug	NGK CMR7H (gap 0.6-0.7 mm)
Muffler	With spark arrestor mesh
Ignition System	Digital ignition
Carburetor Type	Rotary
Air Filter	Half wet (clean every 40 hours)
Vibration Damping System	Yes
Safety Distance	At least 15 m
Warranty Period	6 months (12 months from production)

Frequently Asked Questions - 578BTF HUSQVARNA

What type of fuel and oil mixture does the Husqvarna 578BTF require?

Use unleaded petrol (min 90 octane) mixed with two-stroke oil. For Husqvarna oil, mix at 1:50 (2%); for other quality oils, mix at 1:33 (3%). Never use outboard or four-stroke oil.

How do I start the leaf blower when the engine is cold?

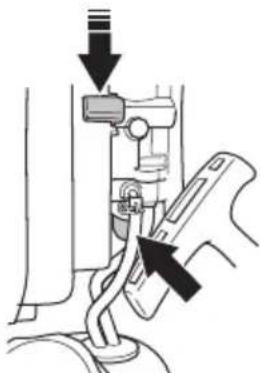

Set the stop switch to start position (about one third open). Move the choke control to closed position. Press the primer bulb until fuel fills it. Place the machine on the ground, hold it with your left hand (not foot), and pull the starter handle firmly until the engine starts. Then return choke to run position.

What is the correct spark plug gap for the 578BTF?

The correct electrode gap is 0.6-0.7 mm. Use only NGK CMR7H spark plugs. Check and adjust the gap regularly, and replace the spark plug as per maintenance schedule.

How often should I clean the air filter?

Clean the air filter every 40 hours of operation, or more frequently in dusty conditions. Wash it in warm soapy water, dry, and optionally oil it with special filter oil. Replace if damaged.

What is the safety distance I must maintain from people and animals?

Keep a safety distance of at least 15 meters from people and animals. When multiple operators work together, maintain the same distance between each other.

How do I clean the spark arrestor mesh in the muffler?

Remove the exhaust duct and spark arrester. Pull out the spark arrestor mesh and clean it with a wire brush. Replace if defective. Clean monthly or as per maintenance schedule.

Can I use E10 ethanol-blended petrol in the 578BTF?

Yes, E10 (max 10% ethanol) is acceptable. Do not use higher ethanol blends as they can cause lean running and engine damage.

What should I do if the machine fails to start after several attempts?

If the engine is flooded (overchoked), open the choke and pull the starter rope repeatedly. Also check the spark plug for fouling or wetness, clean or replace it, and ensure the fuel mixture is correct.

What personal protective equipment is required when using the blower?

Always wear hearing protection, approved eye protection, sturdy non-slip boots, heavy long pants, long-sleeve shirt, and gloves when necessary. Use a breathing mask if dust is present.

How do I adjust the idle speed on the carburetor?

Ensure the air filter is clean and cover fitted. Use the adjustment screw on the upper edge of the carburetor. The factory idle speed is 2000 rpm. Adjust as needed but do not exceed the recommended range.

USER MANUAL 578BTF HUSQVARNA

操作手册 Operator's manual

578BTF

Simple line drawing of an open book enclosed in a circle (no text or symbols)

Please read the operator's manual carefully and make sure you understand the instructions

before using the machine.

Chinese (2-23)

English (24-45)

符号说明

符号

吹风机构造图示说明

Line drawing of a person in protective gear using a portable air purifier (no text or symbols)

燃油安全须知

一般安全预防措施

- 在下列情况下，切勿启动机器：

Illustration of a person wearing a shoulder strap and holding a bandage, with arrows indicating force or movement (no text or symbols)

拉紧边带，以使压力均匀分布在肩膀上。

Line drawing of a person wearing a shirt with two shoulder straps and a trowel, no text or symbols present

注意！

Line drawing of a mechanical component or bracket (no text or symbols)

Line drawings of two types of safety goggles, one front view and one side view (no text or symbols)

- 穿上坚固的防滑靴。

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

Line drawing of a mechanical component with a circular base and curved top (no text or symbols)

- 附近应备有急救箱。

机器的安全设备

Line drawing of a hand holding a tool or object with an arrow indicating direction (no text or symbols)

拆下点火线和火花塞，以进行检查和维护。

安全须知

减振系统

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

安全须知

减振系统

Technical line drawing of a mechanical assembly with no visible text or symbols

- 检查确保减震垫无损坏，且安装牢固。

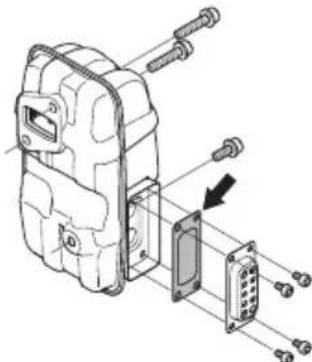

消音器

- 切勿使用消音器出现故障的机器。

Diagram of a device with a diagonal line crossing through it, no text or symbols present.

Technical diagram of an electrical connector with internal components and mounting holes (no text or labels)

Illustration of a person spraying a spray gun with a mounted device, no text or symbols present

Line drawing of a person using a shoveling machine to clean grass and shrubs (no text or symbols)

Illustration of a person climbing a ladder with a cross symbol (no text or symbols present)

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Technical line drawing of a mechanical assembly with springs and connectors (no text or symbols)

Technical line drawing of a mechanical component with a black arrow indicating a detail (no text or symbols present)

燃油处理

燃油

Illustration of a person holding an infant, no text or symbols present

Diagram of a mechanical device with arrows indicating force or connection points (no text or symbols present)

Line drawing of a person's legs and foot using a mechanical device (no text or symbols)

千万不可将启动器拉绳绕在手上。

Simple line drawing of a hand holding a tool or object with an arrow indicating direction (no text or symbols)

维护

概述

火花挡网的拆卸流程如下：

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

Illustration of three steps of a cleaning or packaging procedure: pouring liquid into a container, handling a sample, and pressing a cloth (no text or symbols present)

肩带

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Always wear:

• Hearing protection
  • Approved eye protection

This product is in accordance with applicable EC directives.

Gloves should be worn when necessary.

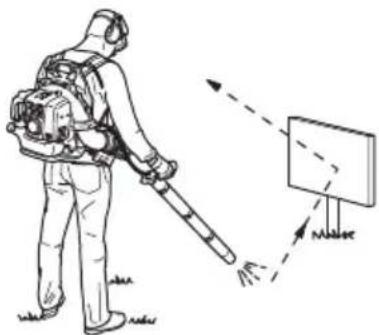

The blower can forcibly throw objects that can bounce back. This can result in serious eye injuries if the recommended safety equipment is not used.

The blower operator must ensure that no people or animals come closer than 15 metres.

When several operators are working at the same site a safety distance of at least 15 metres must be in effect.

A breathing mask should be used when there is a risk of dust.

Keep all parts of your body away from hot surfaces.

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in the Technical data chapter and on the label.

Other symbols/decals on the machine refer to special certification requirements for certain markets.

Switch off the engine by moving the stop switch to the STOP position before carrying out any checks or maintenance.

Always wear protective gloves.

Regular cleaning is required.

Visual check.

Protective goggles or a visor must be worn.

Refuelling.

Choke lever in "open position".

Choke lever in "closed position".

CONTENTS

Contents

KEYTO SYMBOLS

Symbols 24

CONTENTS

Contents 25

Note the following before starting: 25

INTRODUCTION

Dear Customer, 26

WHAT IS WHAT?

What is what on the blower? 27

GENERAL SAFETY PRECAUTIONS

General 28

SAFETY INSTRUCTIONS

Personal protective equipment 30

Machiné's safety equipment 30

Checking, maintaining and servicing the machine's safety equipment 31

General working instructions 32

ASSEMBLY

Assembling the blow pipe and control handle ..... 35

FUEL HANDLING

Fuel 36

Fueling 37

STARTING AND STOPPING

Starting and stopping 38

MAINTENANCE

General 39

Carburettor 39

Muffler 39

Cooling system 39

Air intake screen 40

Spark plug 40

Air filter 40

Shoulder strap 41

Maintenance schedule 42

Troubleshooting schedule 43

TECHNICAL DATA

Technical data 44

LIMITEDWARRANTY

Limited warranty 45

Note the following before starting:

Please read the operator's manual carefully.

WARNING! Long-term exposure to noise can result in permanent hearing impairment. So always use approved hearing protection.

WARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use original accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

WARNING! A blower is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries. It is extremely important that you read and understand the contents of this Operator's manual.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

The machine is designed for removal of combustible material and to control smaller grass fires.

For customer information and assistance, contact us at our website: www.husqvarna.com

INTRODUCTION

Dear Customer,

Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.

Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and gardening, as well as for the building and construction industry. Husqvarna's aim is also to be at the front edge for ergonomics, usability, security and environmental protection. That is the reason why we have developed many different features to add to our products within these areas.

We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service workshop.

It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator's manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator's manual is passed on to the buyer.

Thank you for using a Husqvarna product.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

WHAT IS WHAT?

What is what on the blower?

1 Frame
2 Harness
3 Engine cover
4 Fan shell
5 Air intake screen
6 Fan
7 Air cleaner
8 Starter handle
9 Fuel tank
10 Pad
11 Spark plug

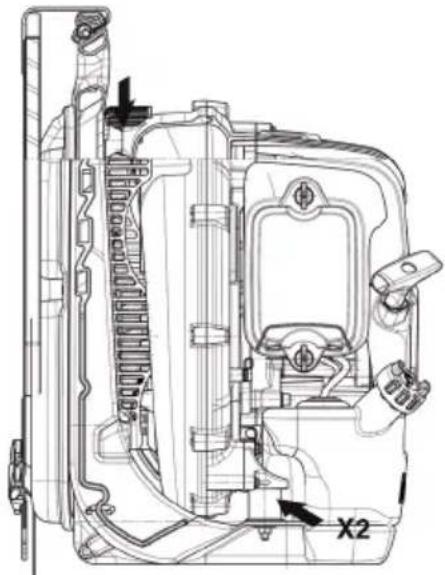

12 Vibration damping system
13 Choke control

14 Control handle/Operating handle

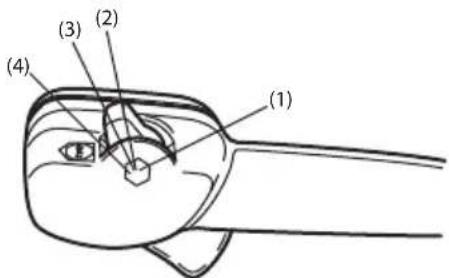

15 Stop switch with throttle position setting
16 Throttle trigger
17 Elbow
18 Clamp
19 Flexible hose
20 Control pipe
21 Clamp
22 Intermediate pipe
23 Blow pipe
24 Operator's manual
25 Combination spanner

GENERAL SAFETY PRECAUTIONS

General

WARNING! All use on an open flame creates risk of personal injury. The machine is intended to be used to fight small grass fires and used by staff trained in fire protection.

IMPORTANT!

The machine is designed for removal of combustible material and to control smaller grass fires.

Carry out an overall inspection of the machine before use. See the maintenance schedule.

Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.

Wear personal protective equipment. See instructions under the "Personal protective equipment" heading.

Never use a machine that has been modified in any way from its original specification.

Never use a machine that is faulty. Carry out the safety checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the Maintenance heading.

All covers and guards must be fitted before starting. Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

The blower operator must ensure that no people or animals come closer than 15 metres. When several operators are working at the same site a safety distance of at least 15 metres must be in effect.

Never allow children to use the machine.

Never allow anyone else to use the machine without first ensuring that they have read and understood the contents of the operator's manual.

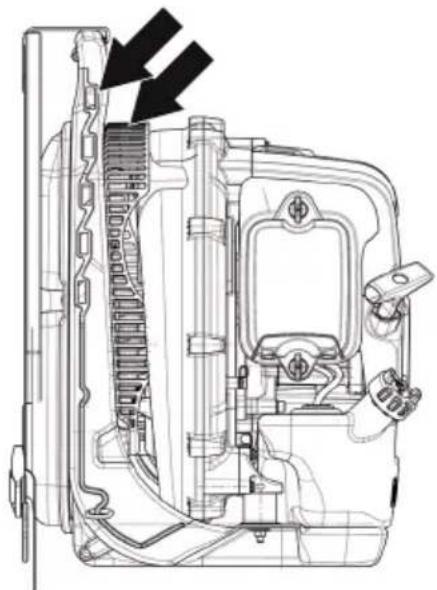

Always check for any objects that may block the air intake screen before beginning work.

Never remove the air intake screen.

In case of emergency, release yourself from the machine by opening the waist and chest belt and let the machine fall backwards.

Always contact local authorities and make sure you are following applicable directives.

Keep all parts of your body away from hot surfaces.

Always contact local authorities and make sure you are following applicable directives.

Never touch the spark plug or ignition cable while the engine is running.

WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this machine.

Starting

• Never start the machine indoors. Exhaust fumes can be dangerous if inhaled.
• Observe the surroundings and ensure that no people or animals can come into contact with the blower.
• Place the machine on the ground, press the machine body against the ground with your left hand (NOTE! Not your foot). Now grasp the starter handle with your right hand and then pull quickly and firmly.

Line drawing of a person in protective gear operating a portable device (no text or symbols)

Fuel safety

• Always use a fuel container with an anti-spill valve.
- Never refuel the machine while the engine is running. Always stop the engine and let it cool for a few minutes before refuelling.
• Make sure there is plenty of ventilation when refuelling or mixing fuel (petrol and 2-stroke oil).
- Avoid all skin contact with fuel. Fuel is a skin irritant and may even cause skin changes.
- Move the machine at least 3 m from the refuelling point before starting it.

GENERAL SAFETY PRECAUTIONS

• Never start the machine:

• If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.
• If you have spilled fuel on yourself or your clothes, change your clothes. Wash any part of your body that has come in contact with fuel. Use soap and water.
• If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• Store and transport the machine and fuel so that there is no risk of any leakage or fumes coming into contact with sparks or open flames, for example, from electrical machinery, electric motors, electrical relays/ switches or boilers.
• When storing and transporting fuel always use approved containers intended for this purpose.
• When storing the machine for long periods the fuel tank must be emptied. Contact your local petrol station to find out where to dispose of excess fuel. Empty the fuel tank and press the primer until all fuel has been emptied. Remove the spark plug and drop a spoon of 2-stroke oil in the cylinder. Turn over the engine a few times and then put the spark plug back in place.
• Ensure the machine is cleaned and that a complete service is carried out before long-term storage.
• Secure the machine during transport.
• Store the machine in a dry, cool, well-aired and dust-free location. Store the machine out of reach of children.

WARNING! Take care when handling fuel. Bear in mind the risk of fire, explosion and inhaling fumes.

Adjusting the harness

WARNING! The harness must always be worn when working with the machine. Failure to do so means you will be unable to manoeuvre safely and this can result in injury to yourself or others.

A correctly adjusted harness and machine significantly facilitates the work. Adjust the harness to give the best working position.

Line drawing of a person wearing a shoulder strap and holding a tool, with arrows indicating movement or force direction (no text or symbols)

Tighten the side straps so that the pressure is evenly distributed across the shoulders.

Line drawing of a person wearing a shoulder strap with two black arrows pointing to the torso (no text or symbols)

NOTE!

In case of malfunction on the machine or any other emergency situation that requires you to free yourself from the machine, open the buckles on the harness and let the machine fall backward.

SAFETY INSTRUCTIONS

Personal protective equipment

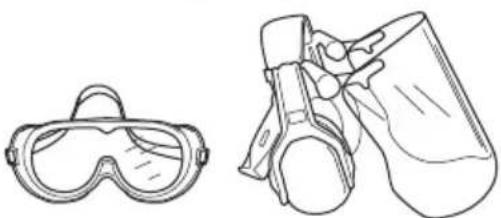

WARNING! You must use approved personal protective equipment whenever you use the machine. Personal protective equipment cannot eliminate the risk of injury but it will reduce the degree of injury if an accident does happen. Ask your dealer for help in choosing the right equipment. Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

WARNING! Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.

• Gloves should be worn when necessary.

- Wear hearing protection that provides adequate noise reduction.

Line drawing of a mechanical device with no visible text or symbols

• Always wear approved eye protection. If you use a visor then you must also wear approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USA or EN 166 in EU countries. Blows from branches or objects that are thrown can damage the eyes.

Line drawings of two types of safety goggles: one with a full visor and the other with binoculars (no text or symbols)

- Wear sturdy, non-slip boots.

Line drawing of a pair of boots with visible tread pattern and buckles (no text or symbols)

• Always wear heavy, long pants, boots, gloves, and a long-sleeve shirt. To reduce the risk of injury associated with objects being drawn into rotating parts, do not wear loose clothing, scarves, jewelry, etc. Secure hair so it is above shoulder level.

- A breathing mask should be used when there is a risk of dust.

Line drawing of a mechanical component with no visible text or symbols

• Always have a first aid kit nearby.

Machine's safety equipment

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the "What is what?" section to locate where this equipment is positioned on your machine.

WARNING! Never use a machine that has faulty safety equipment! Carry out the inspection, maintenance and service routines listed in this section.

Stop switch

Use the stop switch to switch off the engine.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Remove the ignition cable and the spark plug to carry out inspection and maintenance.

SAFETY INSTRUCTIONS

Vibration damping system

Your machine is equipped with a vibration damping system that is designed to minimize vibration and make operation easier.

Technical line drawing of a mechanical assembly with labeled component X2 (no readable text or symbols)

WARNING! Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.

Muffler

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

In countries that have a warm and dry climate there is a significant risk of fire. Consequently, we have equipped the muffler with a spark arrestor mesh mounted inside the muffler.

Technical diagram of an electrical connector with internal components and wiring (no text or labels)

For mufflers it is very important that you follow the instructions on checking, maintaining and servicing your machine. See instructions under the heading Checking, maintaining and servicing the machine's safety equipment.

WARNING!

Bear in mind that: Engine exhaust fumes contain carbon monoxide, which can cause carbon monoxide poisoning. For this reason you should not start or run the machine indoors, or anywhere that is poorly ventilated.

The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

WARNING! The inside of the muffler contain chemicals that may be carcinogenic. Avoid contact with these elements in the event of a damaged muffler.

Checking, maintaining and servicing the machine's safety equipment

WARNING! All servicing and repair work on the machine requires special training. This is especially true of the machine's safety equipment. If your machine fails any of the checks described below you must contact your service agent. When you buy any of our products we guarantee the availability of professional repairs and service. If the retailer who sells your machine is not a servicing dealer, ask him for the address of your nearest service agent.

Stop switch

- Start the engine and make sure the engine stops when you move the stop switch to the stop setting.

Line drawing of a mechanical tool or grip with an arrow indicating direction (no text or symbols)

SAFETY INSTRUCTIONS

Vibration damping system

- Check the vibration damping units regularly for cracks or deformation. Replace them if damaged.

Technical line drawing of a mechanical assembly with no visible text or symbols

- Check that the vibration damping element is undamaged and securely attached.

Muffler

- Never use a machine that has a faulty muffler.

Symbol of a device with a diagonal line crossing through it, enclosed in a circle (no text or symbols present)

- Regularly check that the muffler is securely attached to the machine.

Technical diagram of an electronic device showing internal components and connectors (no text or labels)

- The muffler on your machine is equipped with a spark arrestor mesh; this must be cleaned regularly. See the heading Muffler in the Maintenance chapter. A blocked mesh will cause the engine to overheat and may lead to serious damage. Never use a muffler with a defective spark arrestor mesh.

WARNING! Never use a machine with faulty safety equipment. The machine's safety equipment must be checked and maintained as described in this section. If your machine fails any of these checks contact your service agent to get it repaired.

Air filter

Never use the leaf blower without an air filter or with a damaged or deformed filter element as unfiltered, dusty air can quickly destroy the engine.

General working instructions

IMPORTANT! This section considers basic safety rules when working with blowers. If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.

Show consideration to persons in your surroundings by avoiding using the machine at unsuitable times, such as late in the evening or early in the morning. Reduce the noise levels by limiting the number of equipment units used simultaneously. Read through and follow the simple directions so that you disturb your surroundings as little as possible.

- Use the blower with the lowest possible throttle. It is seldom necessary to use full throttle, and many work procedures can be done at half throttle. A lower throttle means less noise and less dust, and it is also easier to keep control over the rubbish collected together/moved.

- Use a rake or a brush to release rubbish stuck to the ground.

- Hold the opening of the blower as close to the ground as possible. Utilise the entire length of the blow pipe to keep the air current close to the ground.

- Clean up afterwards. Make sure that you have not blown rubbish into someone's garden. Dispose of debris in trash receptacles.

SAFETY INSTRUCTIONS

- Use the machine during normal working hours to avoid unnecessary noise. Avoid working early in the morning or late at night.

WARNING! Be aware of your surroundings. If anyone approaches your work area, set the throttle control to the lowest throttle until the person is at a safe distance. Direct the blower away from people, animals, play areas, open windows and cars etc.

Basic safety rules

• No unauthorised persons or animals may be present in the working area, which is 15 metres.
• Allow the engine to cool before refuelling.
• Keep all parts of your body away from hot surfaces.
• If the machine catches fire or other emergency occurs which forces you to release yourself from the machine, open the harness straps and let the machine fall backwards.
• The powerful currents of air can move objects at such a speed that they can bounce back and cause serious eye injuries.

Illustration of a person spraying a device with a magnified view showing spray (no text or symbols)

• Do not direct the air jet towards people or animals.
• Stop the engine before assembling or dismantling accessories or other parts.
• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and can lead to dangerous conditions, e.g. slippery surfaces.
• Minimise the blowing time by lightly wetting dusty areas or using spray equipment.
• Reduce water consumption by using blowers instead of water hoses for different applications around the lawn and garden, such as lattices, screens, grills, porches, etc
• Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move

suddenly. Take great care when working on sloping ground.

Line drawing of a person using a shoveling machine to clean grass, with trees in the background (no text or symbols)

• Never put the machine down with the engine running unless you have it in clear sight.
• Engine exhaust fumes contain carbon monoxide, which can cause carbon monoxide poisoning. For this reason you should not start or run the machine indoors, or anywhere that is poorly ventilated.
• The blower must not be used while on a ladder or scaffolding, or in high places (such as roofs). Their work could result in severe injury.

Illustration of a person walking with a ladder and crossed-out hand (no text or symbols)

- CAUTION! Do not use the machine unless you are able to call for help in the event of an accident.

Basic working techniques

WARNING! Watch out for thrown objects. Always wear eye protection. Stones, rubbish, etc. can be thrown up into the eyes causing blindness or serious injury. Keep unauthorised persons at a distance. Children, animals, onlookers and helpers should be kept outside the safety zone of 15 m. Stop the machine immediately if anyone approaches.

WARNING! Always stop the engine before cleaning.

- This blower is a backpack type, and is carried using a shoulder harness while operating. It is operated and controlled with the handle on the tube using the right hand.

SAFETY INSTRUCTIONS

- The speed of the air jet is regulated by means of the throttle. Select the speed best suited for respective tasks.

You can set the throttle position using the "stop switch" and by doing so not need to hold your finger on the throttle all the time you are using the blower. Full throttle is obtained when the control is held back fully.

Line drawing of a mechanical tool or grip with an arrow indicating direction (no text or symbols)

- Check that the air intake is not blocked, for example, by leaves or rubbish. A clogged air intake reduces the machine's blowing capacity and increases the engine's working temperature, which can result in engine failure. Stop the engine and remove the object.

Technical line drawing of a mechanical assembly with no visible text or symbols

• Be aware of the wind direction. Work with the wind to make your work easier.
  • Using the blower to move large piles is time consuming and creates unnecessary noise.
• Keep a good balance and a firm foothold.
• When work is finished the machine should be stored vertically.

ASSEMBLY

Assembling the blow pipe and control handle

- Connect the blower and control pipe with the flexible hose. Clamp both ends of the flexible hose in place. Use the accompanying hardware.

1 Flexible hose
2 Control pipe
3 Clamp
4 Clamp

CAUTION! Lubricate the pipes a little to facilitate assembly.

• Fasten the handle holder with the ring to the control pipe and tighten the knob on the holder. Please make sure to align the handle holder with the convex of the control pipe.
• Adjust the position and angle to achieve a comfortable working position, and tighten.
• Use the clamp to fasten the cabling to the flexible hose.

Technical line drawing of a mechanical assembly with spring and connecting rod (no text or symbols)

- Connect the straight pipe and pipe end. Push the pipes together and turn them so they lock.

Transport mode

Possible to hang the pipes with the ring on handle holder to the strap on right shoulder harness.

Technical line drawing of a mechanical assembly with a black arrow indicating a downward motion (no text or symbols present)

FUEL HANDLING

Fuel

CAUTION! The machine is equipped with a two-stroke engine and must always be run using a mixture of petrol and two-stroke oil. It is important to accurately measure the amount of oil to be mixed to ensure that the correct mixture is obtained. When mixing small amounts of fuel, even small inaccuracies can drastically affect the ratio of the mixture.

WARNING! Always ensure there is adequate ventilation when handling fuel.

Petrol

CAUTION! Always use a good quality petrol/oil mixture (at least 90 octane).

• The lowest recommended octane rating is 90. If you run the engine on a petrol with a lower octane rating than 90 this can cause knocking. This leads to an increased engine temperature, which can result in serious engine damage.
• When working at continuous high revs a higher octane rating is recommended. Use good quality unleaded petrol.

Ethanol blended fuel, E10 may be used (max 10% ethanol blend). Using ethanol blends higher than E10 will create lean running condition which can cause engine damage.

Two-stroke oil

• For best results and performance use HUSQVARNA two-stroke oil, which is specially formulated for our two-stroke engines. Mixture 1:50 (2%).
• If HUSQVARNA two-stroke oil is not available, you may use another two-stroke oil of good quality that is intended for air cooled engines. Contact your dealer when selecting an oil. Mixing ratio 1:33 (3%).
• Never use two-stroke oil intended for water-cooled outboard engines, sometimes referred to as outboard oil.
• Never use oil intended for four-stroke engines.

Petrol, litre	Two-stroke oil, litre
	2% (1:50) 3% (1:33)
5 0,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60

Mixing

• Always mix the petrol and oil in a clean container intended for fuel.
• Always start by filling half the amount of the petrol to be used. Then add the entire amount of oil. Mix (shake) the fuel mixture. Add the remaining amount of petrol.
- Mix (shake) the fuel mixture thoroughly before filling the machine's fuel tank.

• Do not mix more than one month's supply of fuel at a time.
• If the machine is not used for some time the fuel tank should be emptied and cleaned.

Fueling

WARNING! Taking the following precautions, will lessen the risk of fire:

Refuel in a well ventilated area. Never fuel the machine indoors.

Do not smoke or place hot objects near fuel.

Always shut off the engine before refuelling.

Always stop the engine and let it cool for a few minutes before refuelling.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Tighten the fuel cap carefully after refuelling.

If you have spilled fuel on it. Wipe off the spillage and allow remaining fuel to evaporate.

Always move the machine away from the refuelling area and source before starting.

- Move the machine at least 3 m from the refuelling point before starting it.

- Clean the area around the fuel cap. Contamination in the tank can cause operating problems.

- Ensure that the fuel is well mixed by shaking the container before filling the tank.

- Check the fuel level before each use and leave space for the fuel to expand, because the heat from the engine and the sun may otherwise cause the fuel to expand and overflow.

STARTING AND STOPPING

Starting and stopping

WARNING! Always move the machine away from the refuelling area and source before starting. Place the machine on a flat surface.

Make sure no unauthorised persons are in the working area. Otherwise there is a risk of serious personal injury. The safety distance is 15 meters.

The machine may only be started in its complete design. If the machine is started without all the guards fitted there is a risk of personal injuries.

Cold engine

Ignition: Set the stop switch to the start position. About one third open. (2)

1 Full throttle
2 About one third open.
3 Idle speed
4 Stop switch

It is not allowed to set the stop switch in full throttle position.

Choke: Set the choke control in the choke position.

Mechanical assembly diagram showing a lever mechanism with arrows indicating direction (no text or symbols present)

Primer bulb: Press the air purge repeatedly until fuel begins to fill the bulb. The bulb need not be completely filled.

Warm engine

Use the same starting procedure as for a cold engine but without setting the choke control in the choke position.

Starting

Hold the body of the machine on the ground using your left hand (CAUTION! Not with your foot!). Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord.

Line drawing of a person's lower body using a mechanical device (no text or symbols visible)

Never twist the starter cord around your hand.

Repeat pulling the cord until the engine starts. When the engine starts, return choke control to run position.

CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

NOTE!

Air is released as soon as the engine is started, even when idling.

When the engine fails to start after several attempts due to overchocking, open the choke and repeat pulling the rope.

Set the required engine speed with the throttle control.

1 Full throttle
2 About one third open.
3 Idle speed
4 Stop switch

Stopping

The engine is stopped by moving the stop switch to the stop position.

Line drawing of a mechanical tool or grip with an arrow indicating direction (no text or symbols)

MAINTENANCE

General

Remove the ignition cable and the spark plug to carry out inspection and maintenance. Keep all parts of your body away from hot surfaces.

Carburettor

Adjustment of the idle speed

Before any adjustments are made, make sure that the air filter is clean and the air filter cover is fitted.

The factory idle speed setting is 2,000 rpm. Use the adjustment screw at the upper edge of the carburettor if the idle speed has to be adjusted.

Muffler

The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may cause fire if directed against dry and combustible material.

The muffler is equipped with a special spark arrestor mesh. The spark arrestor mesh should be cleaned once a month. This is best done with a wire brush.

To remove the spark arrestor mesh proceed as follows:

• Remove the exhaust duct (4, 5).
• Remove the spark arrester (3).
• Pull out the spark arrestor mesh and clean using a wire brush. Replace the spark arrestor mesh if it is defective.

CAUTION! Never use a machine with a defective muffler. Check regularly that the muffler is complete and secured correctly. (1), (2) Tighten the screws. 8-10Nm

Check that the spark arrester and the exhaust duct are screwed in place correctly (5). Tighten to 2-3 Nm.

WARNING! The muffler gets very hot during use and remain so for some time after stopping. This also applies at idle speed. Contact can result in burns to the skin. Remember the risk of fire!

Cooling system

To keep the working temperature as low as possible the machine is equipped with a cooling system.

The cooling system consists of:

• Cooling fins on the cylinder.

• Air intake screen

Clean the cooling system with a brush once a week, more often in demanding conditions. A dirty or blocked cooling system results in the machine overheating which causes damage to the piston and cylinder. Check that the nozzles are not blocked.

MAINTENANCE

Air intake screen

Check that the air intake is not blocked on all sides including the underside, for example, by leaves or rubbish. A clogged air intake reduces the machine's blowing capacity and increases the engine's working temperature, which can result in engine failure. Stop the engine and remove the object.

Technical line drawing of a mechanical device interior with no visible text or symbols

WARNING! Never use the blower if the screen is not in place. Before use, check that the screen is in place and undamaged.

Spark plug

The spark plug condition is influenced by:

• Incorrect carburettor adjustment.
• An incorrect fuel mixture (too much or incorrect type of oil).
• A dirty air filter.

These factors cause deposits on the spark plug electrodes, which may result in operating problems and starting difficulties.

Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0,6-0,7 mm or

replace the spark plug. Check that the spark plug is fitted with a suppressor.

CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

Air filter

The air filter must be regularly cleaned to remove dust and dirt in order to avoid:

• Carburettor malfunctions.
- Starting problems.
- Loss of engine power.
- Unnecessary wear to engine parts.
• Excessive fuel consumption.

Clean the filter every 40 hours, or more regularly if conditions are exceptionally dusty.

Avoid contact with hot surfaces on muffler, cylinder etc. Contact can result in burns to the skin.

Cleaning the air filter

Remove the air filter cover and take out the filter. Wash it clean in warm, soapy water.

Technical line drawing of a mechanical device with internal components and a separate housing (no text or symbols)

If the machine is used in dusty conditions the air filter should be soaked in oil. See instructions under the heading Oiling the air filter.

An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced

MAINTENANCE

with a new one at regular intervals. A damaged air filter must always be replaced.

- Refit the air filter and air filter cover.

Oiling the air filter

Always use special filter oil. Filter oil contains a solvent to make it spread evenly through the filter. You should therefore avoid skin contact.

Put the filter in a plastic bag and pour the filter oil over it. Knead the plastic bag to distribute the oil. Squeeze the excess oil out of the filter inside the plastic bag and pour off the excess before fitting the filter to the machine. Never use common engine oil. This would drain through the filter quite quickly and collect in the bottom.

Illustration showing three steps of a cleaning or inspection procedure: pouring liquid into a container, handling a sample, and handling a cloth (no text or symbols present)

Shoulder strap

If the shoulder strap is damaged, it may break while in use and the machine may fall causing personal injury. Follow the instructions below to replace the shoulder strap.

1 Remove the clamp from the strap.
2 Run the end of the strap through the hanger.
3 Refit the clamp to the strap.

WARNING! Check that the thick round pin in the clamp is inserted in the strap. If it is inserted incorrectly it may lead to personal injury.

MAINTENANCE

Maintenance schedule

Below you will find some general maintenance instructions. If you need further information please contact your service workshop.

Maintenance	Daily maintenance	Weekly maintenance	Monthly maintenance
Clean the outside of the machine. X
Check that the throttle control functions safely. X
Check that the stop switch works correctly. X
Clean the air filter. Replace if necessary. X
Check that nuts and screws are tight. X
Check that there are no fuel leaks from the engine, tank or fuel lines.	X
Check the fuel filter for contamination and the fuel hose for cracks or other defects. Replace if necessary.	X
Clean or replace the spark arrestor mesh on the muffler (only applies to mufflers without a catalytic converter).	X
Check that all sides of the air intake screen are not blocked. X
Check the starter and starter cord. X
Check that the vibration damping elements are not damaged. X
Clean the outside of the spark plug. Remove it and check the electrode gap. Adjust the gap to 0,6-0,7 mm or replace the spark plug. Check that the spark plug is fitted with a suppressor.		X
Clean the machine's cooling system. X
Clean the outside of the carburettor and the space around it. X
Check all cables and connections. X
Replace the spark plug. Check that the spark plug is fitted with a suppressor.			X
Check and clean the spark arrestor mesh on the muffler (only applies to mufflers fitted with a catalytic converter).			X
Clean the fuel tank. X

MAINTENANCE

Troubleshooting schedule

Starting failure

Inspection Probable cause Steps
Fuel tank Incorrect fuel type Drain	it and use correct fuel.
Fuel filter Clogged fuel filter		Clean the fuel filter and its surrounding components.
Carburettor adjustment Out of normal range. Adjust to normal range
Sparkin (no spark)	Spark plug is fouled/wet Clean/replace spark plugs
	Plug gap is incorrect	Check that spark plug is clean and properly gapped.
Spark plug Disconnected Retighten the spark plug

Engine starts but does not keep running/hard restart.

Inspection Probable cause Steps
Fuel tank Incorrect fuel type Drain	it and use correct fuel.
Carburettor adjustment Out of normal range. Adjust to normal range
Muffler, cylinder (exhaust port) Carbon is built-up		Remove any carbon deposits in the muffler's inlet and outlet and in the cylinder's exhaust port.
Air filter A dirty air filter.		Clean the air filter. Replace if necessary.
Cylinder fin, fan cover	Clogged with dust.	Regular cleaning is required.

TECHNICAL DATA

Technical data

Model 578BTF
Dimensions (L*W*H), mm** 328*493*498
Weigh dry*, kg 10,5
Volume fuel tank, liter 2,2
Engine type Air-cooled 2-cycle gasoline engine
Cylinder displacement, cm ^3	75,6
Air filter Half wet
Carburettor Rotary
Ignition system Digital ignition
Spark plug NGK CMR7H
Muffler Spark arrestor mesh
Operating engine speed, rpm 2000-7200
Fuel consumption, liter/h 1,95
Air volume*, cu.m/min 25
(ANSI B175.2)
Max. air velocity with standard nozzle, m/s:	92
(ANSI B175.2)

* With standard pipe. ** Without pipe
Specification are subject to change without notice.

Limited warranty

Limited warranty

Should any failure occur on the product under normal operating conditions within the applicable warranty period, the

Husqvarnaauthorized dealer.

WARRANTY PERIOD: Six (6) months after purchased by end-user subject to 12 months from produced month. (30 days if used for rental purpose)

THE PURCHASER SHALL BEAR COSTS OF TRANSPORTING THE UNIT TO AND FROM THE Husqvarna DEALER.

THE PURCHASER SHALL NOT BE CHARGED FOR DIAG NOSTIC LABOR WHICH LEADS TO THE DETERMINATION THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAG NOSTIC WORK IS PERFORMED AT THE Husqvarna DEAL ER.

THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE PERFORMANCE OF THE REQUIRED MAINTENANCE AS DEFINED BY THE MANUFACTURER IN THE OWNER/OPERATOR MANUAL.

ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE, OR WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION TO THE EFFECT OF REPAIR OR "REPLACE AS NECESSARY" SHALL BE WARRANTED FOR THE WARRANTY PERIOD. ANY WARRANTED PART WHICH IS SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE SHALL BE WARRANTED FOR THE PERIOD OF TIME UP TO THE FIRST SCHEDULED REPLACEMENT POINT FOR THE PART.

ANY REPLACEMENT PART THAT IS EQUIVALENT IN PERFORMANCE AND DULABILITY MAY BE USED IN NON-WARRANTY MAINTENANCE OR REPAIRS, AND SHALL NOT REDUCE THE WARRANTY OBLIGATION OF THE

COMPANY.

a yb the company is a partner for power and to deliver ENGINE COMPONENTS CAUSED BY THE FAILURE OF A WARRANTED PART STILL UNDER WARRANTY.

THE WARRANTY DOES NOT APPLY TO THOSE UNITS WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF INSTRUCTION LISTED IN THE OWNER/OPERATOR MANUAL

- FOR PROPER USE AND MAINTENANCE OF THE UNITS - ACCIDENT MISHANDLING, ALTERATION, ABUSE, IM PROPER LUBRICATION, USE OF ANY PARTS OR ACCES SORIES OTHER THAN THOSE SPECIFIED BY THE COM

- PANY, OR OTHER CAUSES BEYOND THE COMPANY'S CONTROL.

- THIS WARRANTY DOES NOT COVER THOSE PARTS REPLACED BY NORMAL WEAR OR HARMLESS CHANGES IN THEIR APPEARANCE.

THERE ARE NO OTHER EXPRESS WARRANTIES.

ANY IMPLIED WARRANTY is limited to the duration of the limited warranty. Otherwise, this limited warranty is in lieu of all other expressed or implied warranties, including any warranty of FITNESS FOR A PARTICULAR PURPOSE OR USE and any implied warranty MERCHANTABILITY otherwise applicable to this product.

LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE UNDER ANY AND ALL WARRANTIES ARE EXCLUDED.

IF YOU NEED TO OBTAIN MORE INFORMATION, PLEASE CALL YOUR NEAREST SERVICE CENTER, OR CHECK PLEASE Husqvarna WEB SITE http://www.husqvarna.com

CN - 原始说明书

GB - Original instructions

1156854-94

2014-06-06
