Product type	Microwave with grill
Brand	Candy
Model	MIC20GDFGH
Capacity	20 liters
Microwave power	800 W (estimated)
Grill power	1000 W (estimated)
Power supply	230 V ~ 50 Hz
Dimensions (W x D x H)	Approximately 46 x 38 x 28 cm
Weight	Approximately 11 kg
Main functions	Microwave cooking, grill, combi, weight defrost, delayed start, clock
Power levels	6 levels (100%, 80%, 60%, 40%, 20%, 0%)
Control type	Buttons and rotary knob
Display	Digital LED
Timer	Up to 95 minutes
Child lock	Lock by long press on Start/Stop
Turntable	Glass, removable
Interior materials	Stainless steel or paint (estimated)
Care and cleaning	Wipe with a damp cloth and mild detergent; turntable dishwasher safe
Spare parts	Glass turntable, roller ring, grill heating element (via authorized service)
Repairability	Repairs reserved for a qualified specialist
General information	Freestanding appliance, do not build-in; ISM class B

Frequently Asked Questions - MIC20GDFGH CANDY

How to set the clock on the Candy MIC20GDFGH microwave oven?

Press the CLOCK button. Turn the MENU/COOKING TIME knob to set the hour (12 or 24h format). Press CLOCK again to confirm the hour, then set the minutes in the same way and confirm.

How to activate the child lock?

Press and hold the START/STOP button for 3 seconds until a beep sounds and the lock icon appears on the display. To deactivate, press and hold the same button again for 3 seconds.

What utensils can I use in this microwave?

Use heat-resistant glass, ceramic or microwave-safe plastic containers. Avoid metal, recycled paper and aluminum foil (except in very small amounts at 2 cm from the walls). For grill, only heat-resistant glass and ceramic are suitable.

How to defrost food with this oven?

Press WEIGHT DEFROST. Use the WEIGHT button to enter the weight (100 g to 1800 g). Press EXPRESS START. The oven will stop halfway to allow you to turn the food, then restart.

How to use the grill function?

Press the GRILL button. Turn the knob to set the cooking time (max 95 min). Press EXPRESS START. Ideal for thin meats, sandwiches or gratins.

What to do if the oven does not work?

Check that the appliance is properly plugged in, the door is closed correctly and the lock is engaged. Check the fuse or circuit breaker. If nothing works, contact a qualified technician.

How to clean the inside of the microwave?

Turn off and unplug the appliance. Wipe the walls with a damp cloth and mild detergent. For odors, heat water with lemon for 5 min then wipe. The glass turntable and roller ring are dishwasher safe.

Can I program cooking in advance?

Yes, use the DELAYED START function. First set the desired cooking program, then press DELAYED START and set the start time. Make sure the clock is correct.

What is the maximum power and how to adjust it?

The maximum power is 100%. Press POWER LEVEL repeatedly to choose between 100%, 80%, 60%, 40%, 20% or 0% (ventilation only). The level is displayed on the screen.

How to use the combined function (microwave + grill)?

Press the COMBI button to select COMBI1 (microwave + grill). Set the cooking time with the knob then press EXPRESS START. The maximum time is 95 minutes.

USER MANUAL MIC20GDFGH CANDY

Please read these instructions carefully before installing and operating the oven.

Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent), b. Hinges and latches (broken or loosened), c. Door seals and sealing surfaces.

1. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

CONTENTS

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 1 SPECIFICATIONS 2 BEFORE YOU CALL FOR SERVICE 2 INSTALLATION 2 GROUNDING INSTRUCTIONS 3 RADIO INTERFERENCE 3 IMPORTANT SAFETY INSTRUCTIONS 4 MICROWAVE COOKING PRINCIPLES 6 UTENSILS GUIDE 6 PART NAMES 6 CONTROL PANEL 8 HOW TO SET THE OVEN CONTROLS 9

Child Lock 9 Setting clock time 9 Microwave Cooking 9 Quick Start 9 Grill Cooking 10 Combination 10 Weight Defrost 10 Preset Function 10 Auto Cooking 10

CLEANING AND CARE 12

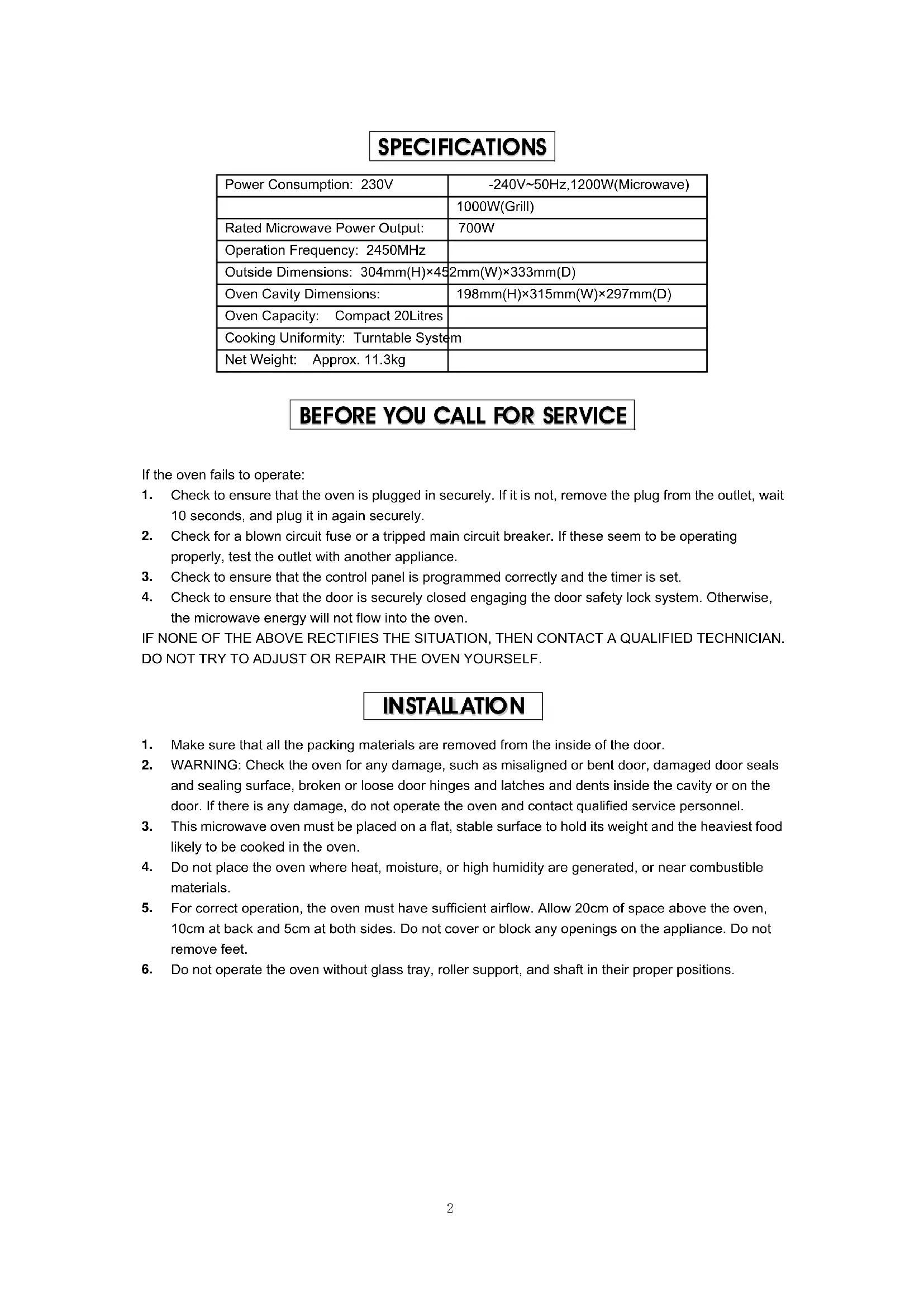

SPECIFICATIONS

Power Consumption: 230V	-240V~50Hz,1200W(Microwave)
	1000W(Grill)
Rated Microwave Power Output:	700W
Operation Frequency: 2450MHz
Outside Dimensions: 304mm(H)×45	2mm(W)×333mm(D)
Oven Cavity Dimensions:	198mm(H)×315mm(W)×297mm(D)
Oven Capacity: Compact 20Litres
Cooking Uniformity: Turntable System
Net Weight: Approx. 11.3kg

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20 cm of space above the oven, 10 cm at back and 5 cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray, roller support, and shaft in their proper positions.
7. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
8. The socket must be readily accessible so that it can be easily unplugged in an emergency.
9. Do not use the oven outdoors.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver. Fig. 5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
7. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper containers, check the oven frequently to avoid the possibility of ignition. b. Remove wire twist-ties from paper or plastic bags before placing the bag in the oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use. 8. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode. 9. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. 10. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. 11. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended. 12. Pierce foods with heavy skins such as potatoes, whole squashes, apples, and chestnuts before cooking. 13. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving to avoid burns. 14. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. 15. Utensils should be checked to ensure that they are suitable for use in a microwave oven. 16. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation that involves the removal of any cover which gives protection against exposure to microwave energy.

1. This product is a Group 2 Class B ISM equipment. The definition of Group 2 contains all ISM (Industrial, Scientific, and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. The microwave oven is only used freestanding.
5. WARNING: Do not install the oven over a range cooktop or other heat-producing appliance. If installed, it could be damaged and the warranty would be void.
6. The accessible surfaces may be hot during operation.
7. The door or the outer surface may get hot when the appliance is operating.
8. The temperature of accessible surfaces may be high when the appliance is operating.
9. The appliance shall be placed against a wall.
10. The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
11. Children should be supervised to ensure that they do not play with the appliance.
12. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
13. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
14. The microwave oven is for household use only and not for commercial use.
15. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
16. Please secure the turntable before you move the appliance to avoid damages.
17. Caution: It is dangerous to repair or maintain the appliance by anyone other than a specialist because under these circumstances the cover has to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service centre.
18. The microwave oven is intended for defrosting, cooking and steaming of food only.
19. Use gloves if you remove any heated food.
20. Caution! Steam will escape when opening lids or wrapping foil.
21. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
22. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook. Fig. 5. Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful not to use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

COOKWARE	MICROWAVE		GRILL
Heat-Resistant Glass Yes Yes	Yes
Non Heat-Resistant Glass No No	No
Heat-Resistant Ceramics Yes Yes	Yes
Microwave-Safe Plastic Dish Yes	No No
Kitchen Paper Yes No No
Metal Tray No Yes	No
Metal Rack	No Yes	No
Aluminum Foil & Foil Containers	No Yes	No

COMBI

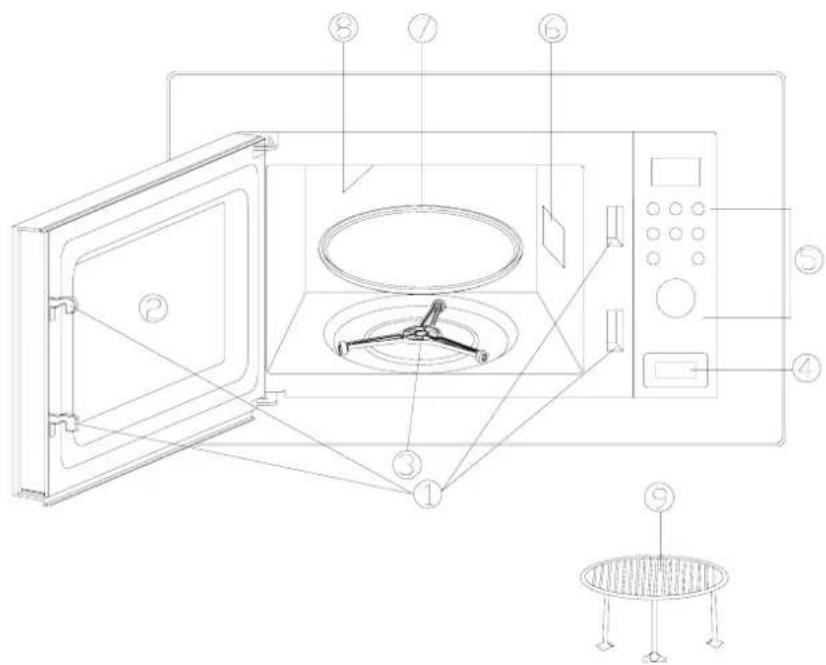

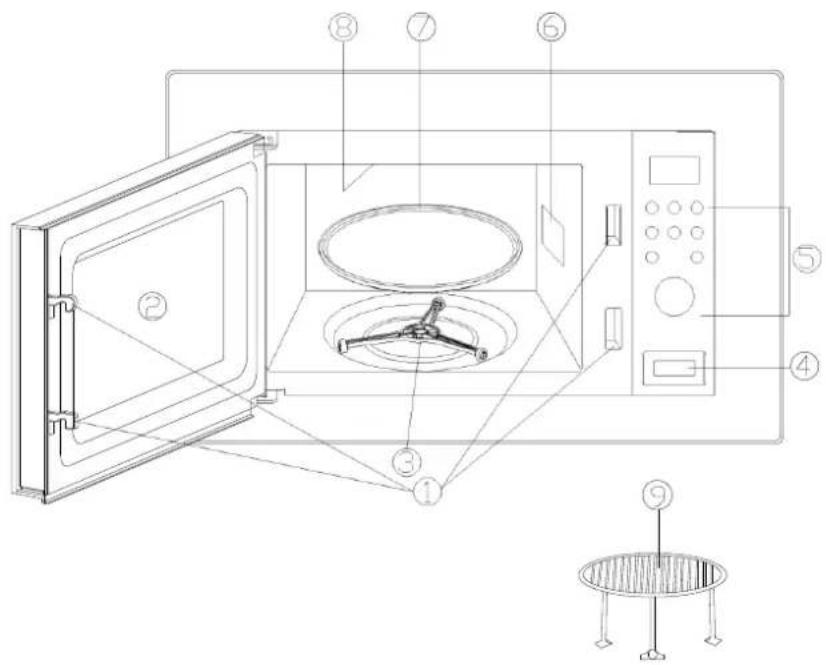

PART NAMES

1. Door Safety Lock System
2. Oven Window
3. Turntable Support
4. Door Release Button
5. Control Panel
6. Wave Guide (Please do not remove the mica plate covering the wave guide)
7. Glass Turntable
8. Grill Heater
9. Metal Rack

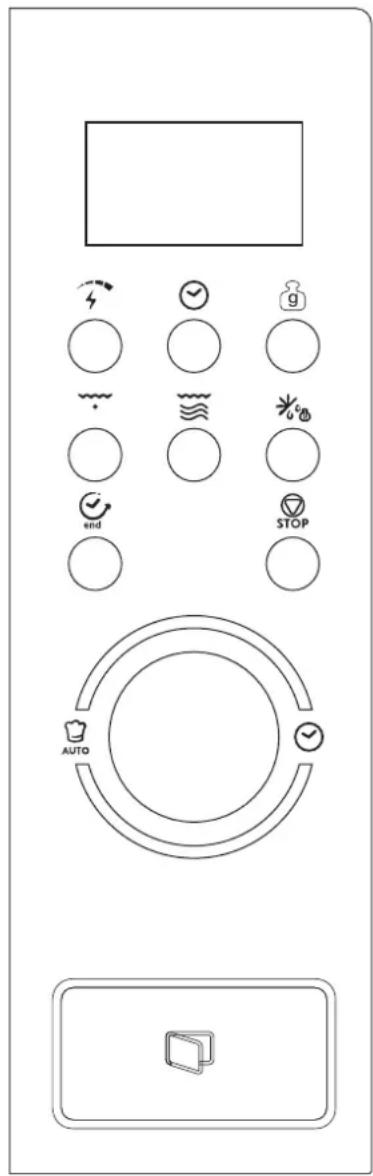

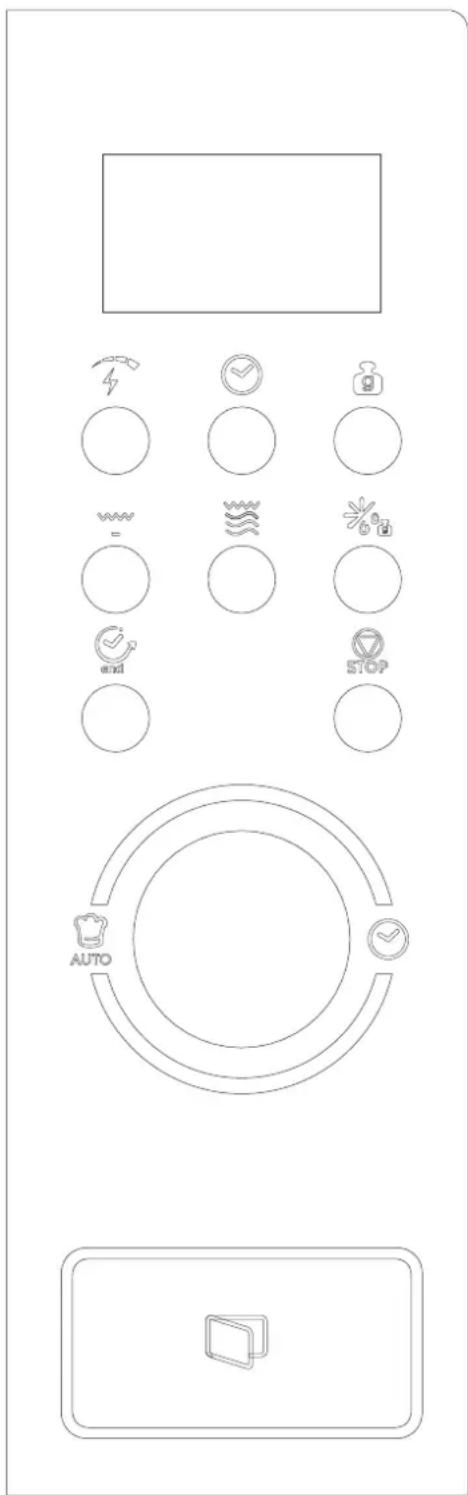

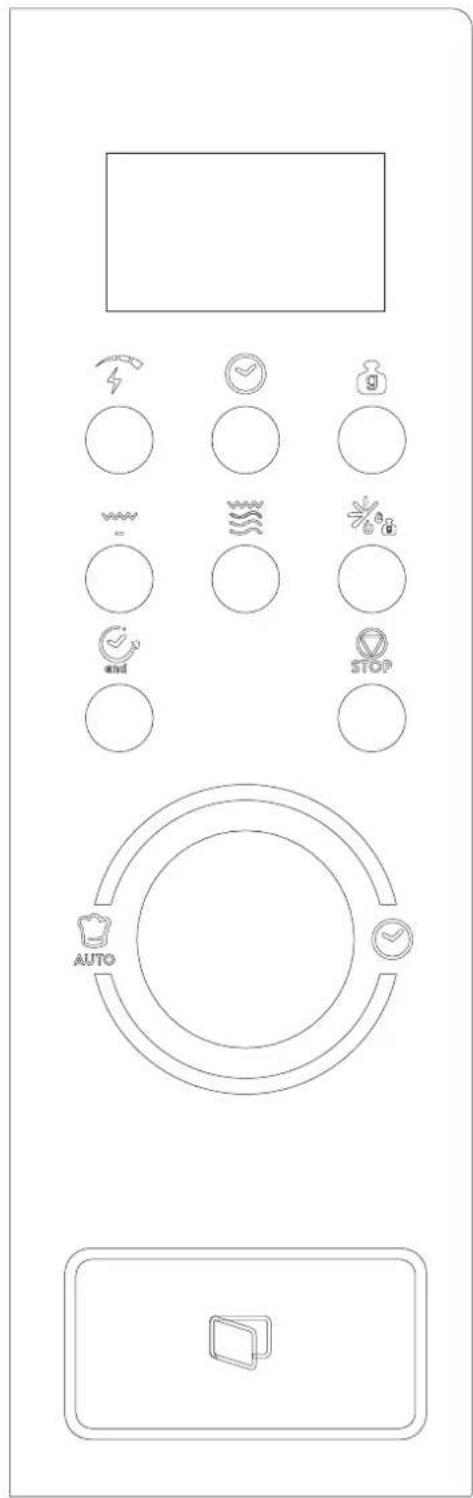

CONTROL PANEL

- MENU ACTION SCREEN

POWER LEVEL

• CLOCK

WEIGHT ADJUST

GRILL

COMBI.

WEIGHT DEFROST

- PRESET

- PAUSE/CANCEL

- MENU/TIME (knob)

- Start/QUICK START (MENU/TIME)

Cooking time, power, action indicators, and clock time are displayed. Press this button a number of times to set microwave cooking power level. Press this button to set oven clock. Press to specify food weights or number of servings. Press this button to set a grill-cooking program. Cooking with combined microwave and grill power. Press to set defrost program based on the weight entered. Press to program a cooking program which starts at an appointed time automatically. Press to cancel setting or reset the oven before setting a cooking program. Press once to temporarily stop cooking, or twice to cancel cooking altogether. It is also used for setting child lock. Turn the knob to enter time. Turn the knob to select an auto-cooking menu. Press once to start a cooking program. Simply press it a number of times to set cooking time and cook immediately at full power level.

HOW TO SET THE OVEN CONTROLS

CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven cannot be operated while the CHILD LOCK is set.

To set the CHILD LOCK: Press and hold the PAUSE/CANCEL button for 3 seconds, a beep sounds and lock indicator lights.

TO CANCEL THE CHILD LOCK: Press and hold the PAUSE/CANCEL button for 3 seconds until lock indicator on display turns off.

SETTING CLOCK TIME

This is 12 or 24 hour cycle clock and you can choose it by pressing CLOCK button. To check the time, press the CLOCK button, then the time will be displayed for a while on the display screen.

FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. Press CLOCK button.
2. Turn MENU/TIME knob to set hour digit "08".
3. Press CLOCK button once to confirm the hour setting.
4. Turn MENU/TIME to set minute digit “30”.
5. Press CLOCK button once to confirm the setting.

MICROWAVE COOKING

The longest cooking time is 95 minutes.

For example, suppose you want to cook for 10 minutes at 60% of microwave power.

1. Press POWER LEVEL button a number of times to set 60%.

Press POWER LEVEL button	COOKING POWER
once	100%
twice	80%
3 times 60%
4 times 40%
5 times 20%
6 times 00%

1. Turn MENU/TIME knob to 10:00.
2. Press START/QUICK START.

QUICK START

The maximum cooking time you can enter is 10 minutes.

The oven will cook food quickly at HIGH power (100% power output) for quick start cooking program. Just press the START/QUICK START a number of times to set cooking time, the oven starts working

immediately at full power.

GRILL COOKING

The longest cooking time is 95 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes.

For example, suppose you want to grill for 12 minutes.

1. Press GRILL button.
2. Turn the MENU/TIME knob to 12:00.
3. Press START/QUICK START.

COMBINATION

The longest cooking time is 95 minutes.

FOR EXAMPLE: Suppose you want to set combination 1 cooking for 25 minutes.

1. Press COMBI. button to show COMBI1.
2. Turn MENU/TIME knob to 25:00.
3. Press START/QUICK START.

WEIGHT DEFROST

The oven allows to defrost food based on the weight entered by user. The defrosting time and power levels are automatically set once the food category and the weight are programmed. The frozen food weight ranges from 100g to 1800g.

FOR EXAMPLE: Suppose you want to defrost 600g of shrimp.

1. Press WEIGHT DEFROST button.
2. Press WEIGHT ADJUST to select weight of food to be defrosted.
3. Press START/QUICK START.

NOTE: The oven stops during defrosting to let the user turn food over for uniform defrosting and then press START/QUICK START to defrost for the remaining time.

PRESET FUNCTION

For example: Suppose the present time is 9:00, and you want the oven to start a cooking program at 11:30.

1. Enter a desired cooking program.
2. Press PRESET button once.
3. Turn MENU/TIME knob to set hour digit 11:00.
4. Press PRESET button once.
5. Turn MENU/TIME knob to set minute to show 11:30.
6. Press PRESET once.

NOTE: Before using the function, please confirm the oven clock time is correct. In preset mode, the preset time can be seen by pressing PRESET pad, if press PAUSE/CANCEL pad when the display shows the time, the function is cancelled.

AUTO COOKING

For the following foods or cooking operations, you do not need to input cooking power and time. Try to

focus on telling the oven what you want to cook and how much the food weighs. The oven starts to work after you press the START/QUICK START.

You may need to turn food over at the middle of cooking time to obtain uniform cooking.

For example:

1. In waiting mode, turn the MENU/TIME dial anti-clockwise to select the food code to specify the food to be cooked.
2. Press the WEIGHT ADJUST button a number of times to indicate the desired weight.
3. Press the START/QUICK START button.

Auto cooking menu

Code	Food		1. For milk/coffee and potato, the screen will show the number of serving instead of food weight when pressing WEIGHT ADJUST button. 2. For item 07, 08, 09 in the list, the oven stops during cooking, and beeps to remind you to open the door and turn the food over for uniform cooking. 3. The result of auto cooking depends on factors such as voltage fluctuation, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. 4. For Spaghetti, add boiling water before cooking.
01	Milk/Coffee	(200ml/cup)
02	Rice (g)
03	Spaghetti (g)
04	Potato (each 230g)
05	Auto Reheat (g)
06	Fish (g)
07	Chicken (g)
08	Beef/Mutton (g)
09	Skewered Meat (g)

CLEANING AND CARE

1. Turn off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak, or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on the sides, the door seals, and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the control panel, leave the oven door open to prevent the oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions, and it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or in a dishwasher. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the particular disposal center provided by the municipalities.
13. When the microwave oven with grill function is first used, it may produce slight smoke and smell. This is a normal phenomenon because the oven is made of a steel plate coated with lubricating oil, and the new oven will produce fumes and odor generated by burning the lubricating oil. This phenomenon will disappear after a period of using.

MICROWAVE OVEN WITH GRILL

Microwave oven User manual

Before installing and using this microwave oven, please read this manual carefully.

Brown = LIVE

RADIO INTERFERENCE

If the oven does not work:

1. Check that the mains plug is inserted into the socket. If the mains plug is not inserted securely, remove it from the socket, wait 10 seconds and insert it again securely.
2. Check that the fuse or the circuit breaker has not tripped. If these devices are in working condition, check the outlet by plugging in another device.
3. Check the correctness of programming and the control settings of the timer.
4. Check that the door closes tightly and that the safety locking system engages. If this does not happen, the microwave energy will not be supplied inside the oven.

If none of the above actions solve the problem, contact a qualified specialist.

It is forbidden to attempt to adjust or repair the oven yourself.

INSTALLATION

1. Check that all packaging materials have been removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as dents or bent hinges, damaged door seals and sealing surfaces, broken or loose door hinges and latches, as well as cracks inside the oven cavity. If any damage is found, the oven must not be used; contact a specialist for servicing.
3. This microwave oven must be placed on a flat, stable surface that can support its weight and the weight of the heaviest foods to be cooked in the oven.
4. The oven must not be installed in places where heat, moisture, or high humidity may accumulate, or near flammable materials.
5. For proper operation, the oven must have sufficient air circulation. Leave a space of 20 cm above, 10 cm behind, and 5 cm on both sides. Do not cover or block the ventilation openings on the appliance. Do not remove the oven's feet.
6. It is forbidden to use the oven without the turntable, roller ring, and shaft in place.
7. Check that the power cord is not damaged and that it does not run under the oven, over hot surfaces, or near sharp edges.
8. The electrical outlet should be within reach so that the electrical plug can be quickly inserted in an emergency.
9. It is forbidden to use the device in wet rooms.

GROUNDING INSTRUCTIONS

The device must be grounded. This device is equipped with a power cord that has a grounding plug with a grounding conductor. It should be plugged into an electrical outlet that is properly installed and grounded. In the event of a short circuit, grounding reduces the risk of electric shock by providing an escape route for the electric current. It is recommended that the electrical circuit for using this device be a separate circuit. Using high voltage is dangerous and can lead to fire or other undesirable phenomena, which could damage the device.

WARNING: Improper use of the grounding electrical plug can lead to electric shock.

Installation

1. If you have any questions regarding grounding or the use of the electrical cord, consult a qualified electrician or service technician. 2. Neither the manufacturer nor the seller is responsible for damage to the device or injuries to persons arising from failure to follow the rules for making electrical connections.

The wires in the main cable of this device are colored differently for identification:

Green and yellow = Ground

Blue = Neutral

Brown = Live

RADIO INTERFERENCE

The device is capable of generating interference with radio receivers, televisions, or similar equipment.

If interference occurs, it can be reduced or eliminated by taking the following measures:

1. Clean the ventilation surface of the device.
2. Change the orientation of the receiving antenna of the radio receiver or the television.
3. Move the receiver away from the receiving device.
4. Remove the receiver from the receiving device.
5. Plug the device into a different outlet so that the receiver and the device are connected to different circuits.

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND SAVE FOR FUTURE USE.

When using electrical appliances, basic safety precautions should always be followed, including the following:

Displays cooking time, power, operating indicators, and time on the clock.

- POWER LEVEL

Press this button the required number of times to select the power level when cooking food in microwave mode.

- CLOCK

Press this button to set the clock.

WEIGHT ADJUSTMENT 9

Press this regulator to select the weight of the food product or the number of servings.

- GRILL

Press this button to select the "grill" cooking mode.

KOMEN.

Satisfaction when cooking with the microwave and at the same time.

DEFROST BY WEIGHT

Press to select the defrost program according to the selected weight.

PRE-SETTING

Select the automatic start program for the cooking process.

PAUSE/CANCEL

Press to cancel the settings and reset the oven to the initial settings before setting the cooking program.

Press once to pause cooking temporarily, or twice to cancel cooking.

The button is also used for setting the child lock.

- MENU/TIME KNOB

Turn the knob to set the time.

Turn the knob to select the automatic cooking mode.

- START/QUICK START (MENU/TIME)

Press once to start the cooking program.

Press the button several times to set the cooking time. The appliance will start at maximum power.

SETTING THE CONTROLS

CHILD LOCK

Used to prevent the use of the oven by small children without supervision. The display will show the lock indicator, and the oven cannot be used until the child lock is deactivated.

To set the child lock: Press and hold the PAUSE/CANCEL button for 3 seconds, a short beep will sound, and the indicator will light up.

To cancel the child lock: Press and hold the PAUSE/CANCEL button for 3 seconds until the indicator on the display disappears.

SETTING THE CLOCK

Select the 12- or 24-hour cycle by pressing the CLOCK button. To check the time, press the CLOCK button. The time will appear on the display for a few seconds.

For example: Suppose you need to set the time for 8:30.

1. Press the CLOCK button.
2. Turn the MENU/TIME dial to show 08.
3. Press the CLOCK button once to confirm the set time.
4. Turn the MENU/TIME dial to show 30.
5. Press the CLOCK button once to confirm the setting.

COOKING IN MICROWAVE MODE

The maximum cooking time is 95 minutes.

For example, you need to cook rice for 10 minutes at 60% power.

1. Press the POWER LEVEL button several times until 60% appears.

Нажmente коньу UPOBEHB MOULTHOCTN	MOULTHOCTь ПИ ПИГOTOBЛECHIN
Одin pa3	100%
Двajды 80%
3 pa3a 60%
4 pa3a 40%
5 pa3 20%
6 pa3 00%

1. Turn the MENU/TIME dial to 10:00.
2. Press the START/QUICK START button.

Quick start

The maximum cooking time is 10 minutes.

With the "Quick Start" program, the oven cooks food quickly at high power (100%). Select the cooking time by pressing the START/QUICK START button the corresponding number of times; the oven will start working immediately at full power.

COOKING IN "GRILL" MODE

The maximum cooking time is 95 minutes. Grilling is especially suitable for thin pieces of meat, steaks, chopped cutlets, fillets, sausages, or pieces of chicken. This mode is also suitable for cooking hot sandwiches or dishes and for browning.

For example, you need to set the following program:

1. Press the GRILL button.
2. Turn the MENU/TIME dial to 12:00.
3. Press the START/QUICK START button.

COMBINATION MODE

The total cooking time is 95 minutes.

For example: suppose you need to set cooking in combination mode 1 for 25 minutes.

1. Press the COMBI button so that COMBI 1 appears on the display.
2. Turn the MENU/TIME knob to 25:00.
3. Press the START/QUICK START button.

DEFROST BY WEIGHT

This function allows you to defrost food based on the weight selected by the user. The defrosting time and power level are set automatically after selecting the type of food and its weight. The weight of the frozen food ranges from 100 to 1800 g.

For example: suppose you need to defrost 600 g of shrimp.

1. Press the DEFROST BY WEIGHT button.
2. Press the WEIGHT ADJUST button to select the weight of the food to be defrosted.
3. Press the START/QUICK START button.

NOTE: In the middle of the cycle, the oven stops so that the user can turn the food over to the other side, and then press the START/QUICK START button again to finish defrosting.

SETTING THE DELAYED START FUNCTION

For example: suppose it is currently 9:00, and you want the oven to start working at 11:30.

1. Select the desired cooking program.
2. Briefly press the MENU/TIME button until 11:00 is displayed to set the time in hours.
3. Turn the MENU/TIME knob until 11:00 is displayed to set the time in hours.
4. Briefly press the MENU/TIME button to confirm the preliminary setting.
5. Turn the MENU/TIME knob until 11:30 is displayed to set the time in minutes.
6. Briefly press the MENU/TIME button to confirm the preliminary setting.

Automatic cooking method

SERVICE AND MAINTENANCE

For servicing household appliances, contact authorized service centers.

Service centers:

Russia

Moscow: LLC "MmP Service" (495) 7440014; Saint Petersburg: LLC "Vatka-Service" (812) 3270470, 3712464; Voronezh: CJSC "Berkut" (4732) 701670; Izhevsk: LLC "Raduga" (3412) 904903; Kazan: LLC "TC

"ATremontiruem Vs" (843) 5554992, 5554927; Krasnodar: IP Rudenko S.V. (8612) 521281, 521160;

Krasnoyarsk: CJSC "Vlinzol" (391) 2296595, 2019288, 2018922; Nizhny Novgorod: IP Korytina M.V.

(831) 4123601, 4163141; Novosibirsk: LLC "PISKO Lentr" (383) 3531167, 3522099, 2866235;

Chelyabinsk: LLC "RembytTekhnika" (351) 2393926

Republic of Belarus

Minsk: LLC "TTF Vyatka-Service" (375) 2037239, (375) 2268873; UE "ZIP-DIVO" (375) 172658675

Republic of Kazakhstan

Astana: TOO "Askon-7" (7172) 35228; Almaty: TOO "Askon-7" (727) 2330303

The full list of service centers can be found on the website www.candy.ru in the "Support" section, or by calling [phone]

The manufacturer is not responsible for any printing errors contained in these instructions, and reserves the right to improve the quality of its own products, leaving the main technical characteristics unchanged.

CANDY

Model: MIC20GDFBA

38900096

MIC20GDFGH

38900097

MICROWAVE OVEN WITH GRILL

Microwave oven

User manual

Before installing and using this microwave oven, please read this user manual carefully.

IMPORTANT SAFETY INSTRUCTIONS

SETTING THE WEIGHT

Press the button to set the cooking program on the grill.

COMBI.

Cooking when combining microwave.

• DEFROSTING BY WEIGHT

Press to set the defrosting program according to the entered weight.

DELAYED START

Press to program cooking that starts automatically at the set time.

• PAUSE/STOP

Press to pause the setting or reset the oven before setting the cooking program.

Press once to temporarily stop cooking, or twice to completely stop cooking.

It is also used for setting the child lock.

MENU/TIME (dial knob)

Turn the knob to set the time.

Turn the knob to select the auto-cook menu.

START/QUICK START (MENU/TIME)

Press once to start the cooking program.

Press it several times to set the cooking time and cook immediately at full power.

CHILD LOCK

Child lock

Use this function to lock the control panel to prevent small children from using it. The lock indicator will appear on the display, and it will be impossible to use the oven while the child lock function is activated. To activate the child lock: press and hold the PAUSE/CANCEL button for 3 seconds, a beep will sound and the lock indicator will light up.

To cancel the child lock: press and hold the PAUSE/CANCEL button for 3 seconds. The lock indicator will turn off.

Setting the clock

The clock can be set to 12 or 24-hour mode. You can choose it by pressing the CLOCK button. To check the time, press the CLOCK button; the time will be displayed for a few seconds on the display. EXAMPLE: Suppose you want to set the cooking time to 8:30.

1. Press the CLOCK button.
2. Turn the MENU/TIME regulator to set the hour "08".
3. Press the CLOCK button once to confirm the hour setting.
4. Turn the MENU/TIME regulator to set the minutes "30".
5. Press the CLOCK button once to confirm the setting.

Maximum cooking time 95 minutes.

For example, if you want to cook porridge for 10 minutes at 60% microwave power.

1. Press the POWER LEVEL button several times to set 60%.

НатOMICITY KONKNU PIBEHь ПOTУЖHOCTI	ПOTУЖИсть пригоруваши якii
ODIN pa3	100%
ДBA pa3N	80%
3 pa3N	60%
4 pa3N	40%
5 pa3iB	20%
6 pa3iB	00%

1. Turn the MENU / TIME regulator to 10:00.
2. Press the START / QUICK START button.

Quick start

Maximum cooking time you can enter - 10 minutes.

It will cook as quickly as possible at high power (100% output power) according to the quick start program for cooking dishes. Just press the START / QUICK START button several times to set the cooking time, it will start working immediately at full power.

Maximum cooking time 95 minutes. Cooking food on the grill is suitable for thin slices of meat, fish fillets, cutlets, sausages, chicken drumsticks. It is also suitable for sandwiches and dishes in a pan.

For example, suppose you want to cook on the grill for 12 minutes.

1. Press the GRILL button.
2. Turn the MENU / TIME regulator to 12:00.
3. Press the START / QUICK START button.

Combination

Make the main dish for 95 minutes.

EXAMPLE: Suppose you want to cook and combine 1 dish for 25 minutes.

1. Press the COMBINE button so that the dish is combined.
2. Turn the MENU/TIME regulator to 25:00.
3. Press the START / QUICK START button.

Defrosting by weight

Allows you to defrost products by the weight entered by the user. The defrosting time and power level are set automatically, as long as the product category and weight are programmed. The weight of the frozen dish ranges from 100 g to 1800 g.

EXAMPLE: Suppose you want to defrost 600 g of cream.

1. Press the DEFROST BY WEIGHT button.
2. Press the SET button to select the weight of the dish you will defrost.
3. Press the START / QUICK START button.

Menu for automatic cooking of dishes

1. Check that the cable is not damaged and does not pass under sharp edges or hot surfaces.
2. The contact must be clean so that the device can be disconnected in an emergency.
3. Do not use the device outdoors.

EARTHING INSTRUCTIONS

This device must be earthed. This device is equipped with a cable with an earthing conductor and an earthing plug. The plug must be connected to a wall contact that is properly installed and earthed. In case of improper connection of the earthing, there is a risk of electric shock, with the incoming wire carrying electric current. It is preferable to use a separate circuit that serves only this device. Using high voltage is dangerous and may cause injury or damage to the device.

WARNING: Improper use of the earthing plug can lead to a risk of electric shock.

Safety

1. If you have questions regarding the earthing or electrical instructions, consult a qualified electrician or service personnel.
2. Neither the manufacturer nor the dealer assumes any responsibility for damage to the device or personal injury caused by failure to follow the procedures for making the electrical connection.

The wires in the main cable are colored according to the following code:

Green-yellow = EARTH

Blue = NEUTRAL

Brown = PHASE

RADIO INTERFERENCE

Operation of the device may cause interference to radios, televisions, or similar equipment. In case of interference, it can be reduced or eliminated by the following measures:

1. The microwave oven must be placed on a flat, stable surface.
2. Place the receiving antenna of the radio receiver or television.
3. Move the microwave oven, taking into account the receiver. 4. Move the microwave oven further away from the receiver.
4. Plug the microwave oven into a different outlet, so that the receiver and the oven are on different circuits.

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use the appliance only for its intended purpose as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not intended for industrial or laboratory use.
3. Do not use the oven when it is empty.
4. Do not use the appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
5. WARNING: When the appliance is used in combination mode, children should only use the oven under adult supervision due to the generated temperatures.
6. WARNING: Allow the appliance to be used by children only when they have been given instructions on how to use the oven safely and understand the hazards of improper use.
7. To reduce the risk of fire in the oven cavity: a. When heating food in plastic or paper containers, check the oven frequently to see if they are flammable.
8. Remove wire twist-ties from paper or plastic bags before placing them in the oven. b. If you see smoke, turn off or unplug the appliance and keep the door closed to stifle any flames. c. Do not use the cavity for storage. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
9. WARNING: Food and drinks should not be heated in the appliance, as it is possible to explode.
10. Microwave heating of drinks may cause delayed boiling, therefore care must be taken when handling the container.
11. Do not store food in the container. The hot appliance may damage parts of the surface and containers may cause burns.
12. Do not heat it with a lid and tightly sealed containers, as it is possible to explode after microwave heating.
13. Pierce foods with thick skins, such as potatoes, whole squash, apples, and chestnuts, before cooking.
14. The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before serving, to avoid burns.
15. Containers may become hot due to heat transferred from the food. It may be necessary to use oven mitts to handle the container.
16. Containers must be checked to ensure they are suitable for use in a microwave oven.
17. WARNING: It is dangerous for anyone other than a trained person to carry out any service or repair operation that involves the removal of a cover that gives protection against exposure to microwave energy.
18. This product is ISM equipment of group 2, class B. In the definition for group 2, this includes all ISM (industrial, scientific, medical) equipment in which radio frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the processing of material, and EDM equipment. Equipment of class B is suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network that supplies electricity to residential buildings.
19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
20. Children must be supervised to ensure that they do not play with the appliance.
21. The microwave oven must be used only freestanding.
22. WARNING: The furnace must be installed by qualified personnel only, according to the instructions. Otherwise, it may be damaged and the warranty will become invalid.
23. The heating surface may become hot during operation.
24. The door and the heating surface may become hot during operation.
25. The temperature of the heating surface may be high during operation.
26. The device must be placed against a wall.
27. The device must not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
28. Children must be supervised to ensure they do not play with the device.
29. WARNING: If the door or the seal is damaged, the furnace must not be used until it has been repaired by a competent person.
30. The instructions indicate that the device is not intended for use with external timers or remote control systems.
31. The microwave furnace is intended for household use only, not for industrial environments.
32. Never disconnect the power cord by pulling on it; always grip the plug firmly to maintain the minimum distance from the wall for air circulation.
33. Always secure the door before moving the device to avoid damage.
34. Caution: It is dangerous to repair or service the surface of the device by anyone who is not a professional, as in these cases it is necessary to remove the cover that guarantees protection against microwave radiation. This is important for replacing the power cord or lighting. In these cases, send the device to a service center.
35. The microwave furnace is intended only for heating, cooking, and defrosting food.
36. Use oven mitts when removing hot food.
37. Warning! When opening the lid, steam may escape and cause burns.
38. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

If smoke is emitted, switch off or unplug the appliance and keep the lid closed to stifle any flames.

1. MICROWAVE COOKING PRINCIPLES

Arrange food carefully. Place thickest areas towards outside of dish.

1. Watch cooking time. Cook for the shortest time indicated and add more as needed. Food overcooked can smoke or ignite.
2. Stir food during cooking. Stirring redistributes heat and helps to cook food evenly.
3. Turn food over during microwave cooking, especially poultry and hamburgers, to speed up cooking. Larger foods, like roasts, should be turned at least once.
4. Halfway through cooking, rearrange food, for example meatballs, from top to bottom and from center of dish to edge.
5. COOKING UTENSILS

The ideal material for microwave cookware is transparent to microwaves, allowing energy to pass through and heat the food.

1. Microwaves cannot pass through metal, so do not use metal utensils or those with metal parts.
2. When microwaving, use products made from recycled paper, as they may contain small metal particles that could cause sparks or fires.
3. It is recommended to use the built-in shelves instead of square/right ones, because the food in the oven is usually prepared in advance.
4. You can use the telescopic runners to remove the food from the oven before it is fully cooked. But do not pull them out too far and leave a distance of 2.54 cm (1 inch) between the runners and the front of the oven.

The list below is a guide to help you choose the correct shelves.

ГOTВAPСБДОBE	МИКРОВБЛПИ	ГРИЛ	KOMБИНРАНО
Öгейнорно сбкло	Да	Дa	Дa
Öбиknовено сбкло	He	He	He
Öгейнорен поцелан	Дa	Дa	Дa
Пл actмасов сбд, похODяш 3a МИКРОВБЛNOВа Фурна	Дa	He	He
Кухненска xарtnя	Дa	He	He
Метална тава	He	Дa	He
Метална скара	He	Дa	He
Алуминец bo Фолно и сбдove OT takова	He	Дa	He

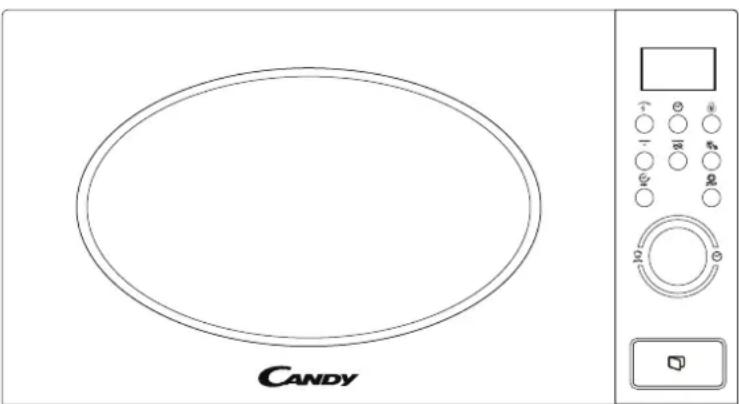

PART NAMES

1. Door locking system 2. Door hinges 3. Support grid 4. Door handle 5. Control panel 6. Ventilation (do not cover the vent when the oven is in use) 7. Glass grid 8. Heating element 9. Metal tray

CONTROL PANEL

SCREEN WITH OPERATING FUNCTIONS

Display cooking time, power, and indicators for functions and hours.

POWER LEVEL

Press the button repeatedly to set the power level for cooking with microwaves.

TIMER

Press the button to set the timer of the oven.

TEMPERATURE REGULATION

Press to set the temperature of the food or the number of servings.

PNI

Press the button to set the program for cooking rice.

COMMENTED

Cooking with the combined power of the microwave and grill.

DEFROSTING BY TIME

Press to set the program for defrosting based on the entered time.

PRE-SET PROGRAMMING

Press to select the cooking program, which starts automatically at a set time.

PAUSE/CANCEL

MENU/TIME (Clock)

START/QUICK START (MENU/TIME)

Press to cancel the setting or to turn off the oven before setting the cooking program. Press briefly to temporarily stop cooking or to cancel cooking completely. Use it to set the child lock. Turn the knob to set the time. Turn the knob to select the menu for automatic cooking. Press the knob to start the cooking program. Press repeatedly to set the cooking time and start cooking immediately with full power.

SETTING THE OVEN CONTROLS

CHILD LOCK

Use to prevent small children, who are not under supervision, from operating the oven. The child lock indicator will appear on the display and the oven will not operate while the child lock is set.

Setting the child lock: Press and hold the knob for each button for PAUSE/CANCEL until the child lock indicator lights up.

Press the button for 3 seconds to lock the oven for cleaning, until the lock indicator on the display goes out.

SETTING THE CLOCK

The clock can be set to 12- or 24-hour format by pressing the clock button. To check which format is set, press the clock button and the time will be displayed briefly on the display.

EXAMPLE: Let's say you want to set the oven clock to 8:30.

1. Press the clock button.
2. Turn the MENU/TIME knob to set the hour "08".
3. Press the clock button again to confirm the hour setting.
4. Turn the MENU/TIME knob to set the minutes "30".
5. Press the clock button again to confirm the minute setting.

COOKING WITH MICROWAVE

The maximum cooking time is 95 minutes.

For example, if you want to cook for 10 minutes at 60% microwave power.

1. Press the POWER button several times to set 60%.

The list below is a general guide to help you select the correct utensils.

POSUDE	MIK R O T A L A S	GRILL	KOMBINOVANO
Vatrostalno staklo	Da	Da	Da
Neotpornno stakleno posude	Ne	Ne	Ne
Vatrostalna Keramika Da		Da	Da
Otporne plastične posude	Da	Ne N	e
Kuhinjski papir Da	N	e	Ne
Metalne posude	Ne	Da N	e
Metalne rešetke N	e	Da N	e
Aluminijumska folija	Ne	Da	Ne

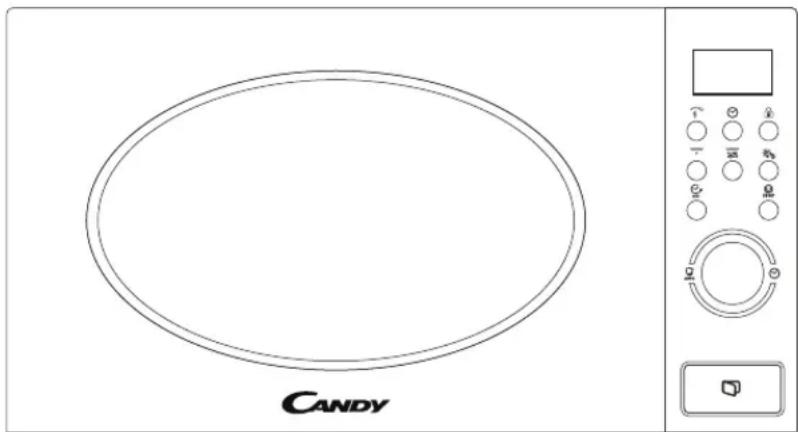

PARTS

1. Door safety lock system
2. Microwave oven window
3. Turntable rotation system
4. Door opening buttons
5. Control panel
6. Waveguide (please do not remove the plate from this part of the oven interior)
7. Rotating plate
8. Grill heater
9. Metal rack

CONTROL PANEL

DIGITAL DISPLAY

Cooking time, power, operation indicators, and time are shown on the display.

POWER LEVEL
