USER MANUAL ArenaMatch AM80 BOSE

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

WARNING/CAUTIONS

This symbol on the product means there are important operating and maintenance instructions in this guide.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do NOT make unauthorized alterations to this product.
  Only use the mounting hardware supplied with this product.
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
• Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around Bose speakers, and associated mounting hardware, during installation. The use of such hydrocarbon based lubricants, solvents or cleaning agents on or around the mounting anchors and screws can lead to degradation of the plastic material, possibly resulting in cracking and premature failure of the product.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
• The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could compromise the system's integrity and create a dangerous falling hazard.
• The M6 and M10 threaded inserts are made of stainless steel. Exposure to chlorine could cause corrosion of the M6 and M10 threaded inserts that may not be detected through an annual inspection, creating a dangerous falling hazard. Therefore, do not suspend ArenaMatch loudspeakers using the M6 and M10 stainless steel inserts in environments where chlorine is present, such as indoor pools, indoor water parks, hot tub rooms, saunas, and steam rooms.

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete Declaration of Conformity can be found at www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0	0
Metal Parts X 0 0 0 0	0 0 0 0
Plastic Parts X 0 0 0 0	0 0 0 0
Speakers X 0 0 0 0 0	0 0 0
Cables X 0 0 0 0 0	0
This table is prepared in accordance with the provisions of SJ/T 11364. O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.						15
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: ArenaMatch DeltaQ Array Loudspeaker , Type designation: 794042
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenylethers (PBDE)
PCBs	-∞	○	○	○	○
Metal Parts	-∞	○	○	○	○
Plastic Parts	○	○○	○		○	○
Speakers	-∞	○	○	○	○
Cables	-∞	○	○	○	○
Note 1: “o” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer. Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose, ArenaMatch, and DeltaQ are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit PRO.BOSE.COM.

Importateur pour la Chine: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Rying Road, China (Shanghai) Pilot Free Trade Zone

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No.353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Importatore per il Messico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F.

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de Mexico, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 Mexico, D.F.

Gegevens importeur en service-informatie: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

Optional Accessories 12

Inspection & Maintenance. 13

Maintaining Weather Resistance 13

Recommended Tools 13

Specifications 14

Product Dimensions 14

ArenaMatch AM10. 14

ArenaMatch AM20 14

ArenaMatch AM40 15

Working Load Limits. 15

ArenaMatch Full-range Modules (AM10, AM20, AM40) 15

Input Panel Wiring 16

Passive Crossover (Low-impedance) 16

Passive Crossover with 70V/100V Transformer 16

Bi-amp 16

Securing the Wiring 17

Attaching the Input Panel Cover 17

Recommended Amplifier Power 18

Recommended Signal Processing 18

System Design Software 18

Technical Specifications 19

AM10 19
AM20 21
AM40 23

Overview

Bose Professional ArenaMatch array modules are outdoor-rated, sound-reinforcement loudspeakers with DeltaQ array technology designed for high-SPL installations that require both high-quality music playback and exceptional vocal intelligibility in every seat, such as sports stadiums, arenas, and outdoor entertainment venues.

DeltaQ technology allows full-range modules in both point-source and line array configurations, with choice of 10^ , 20^ , or 40^ vertical coverage with field-changeable waveguides available in 60^ , 80^ , or 100^ horizontal coverage. For many projects, this technology can reduce box count, array weight, installation time, and system costs.

Product Features

DeltaQ technology: next-generation array technology that allows different "Q" (directivity) for each module in array to customize coverage and reduce box count.

Outdoor direct-exposure rating: weather-resistant, exterior-grade plywood enclosure, 3-layer stainless-steel grille, and input cover with gland-nut cable termination for direct-exposure outdoor installs.

High SPL: six (6) Bose EMB2S compression drivers on CADS manifold with 14-inch neodymium, high excursion woofer allows peak output of up to 145 dB SPL in arrays.

High Intelligibility: large-format waveguides with DeltaQ array summation provide excellent vocal clarity and high speech transmission (STI) scores even with high audience background noise.

Choice of 9 coverage patterns: DeltaQ technology allows both point-source and line array applications for consistent sound quality from main arrays to zone-fill seating areas.

Passive or Bi-amp or 70/100V inputs: integrated passive crossover and 70/100V transformer provide choice of single-amp direct, bi-amp direct, or transformer coupled inputs.

Replaceable waveguides: horizontal coverage may be changed by replacing factory-installed waveguides with accessory kits.

Versatile suspension system: M12 threaded inserts, with internal steel link bars, allow use with Bose accessory hardware or integrator-supplied custom frames for array suspension. Accessory U-bracket available for single-module wall, ceiling, or lighting-pole mounting.

Bose PowerMatch DSP preset: PowerMatch amplifier and ControlSpace processors include DSP preset.

EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings

ArenaMatch Array Modules

ArenaMatch AM10 full-range module with 10^ vertical coverage. Available with 60^ , 80^ , or 100^ horizontal waveguide pre-installed.

AM10/60

AM10/80

AM10/100

ArenaMatch AM20 full-range module with 20^ vertical coverage. Available with 60^, 80^ , or 100^ horizontal waveguide pre-installed.

AM20/60

AM20/80

AM20/100

ArenaMatch AM40 full-range module with 40^ vertical coverage. Available with 60^, 80^ , or 100^ horizontal waveguide pre-installed.

AM40/60

AM40/80

AM40/100

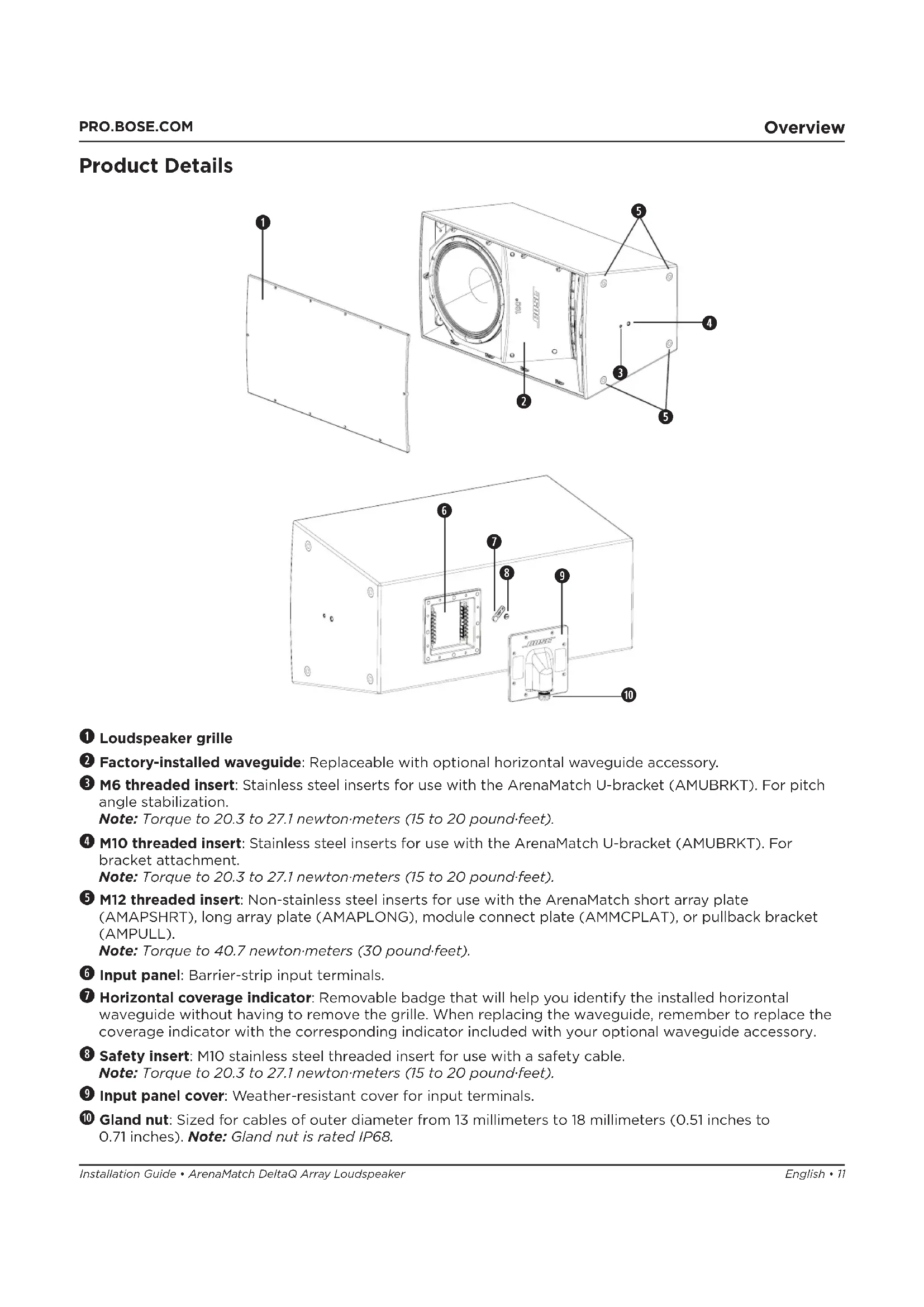

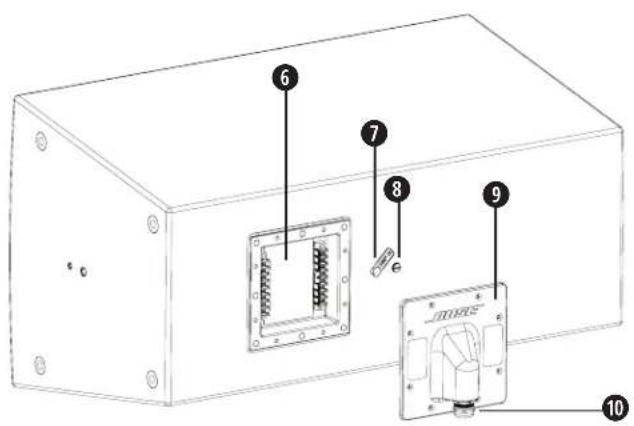

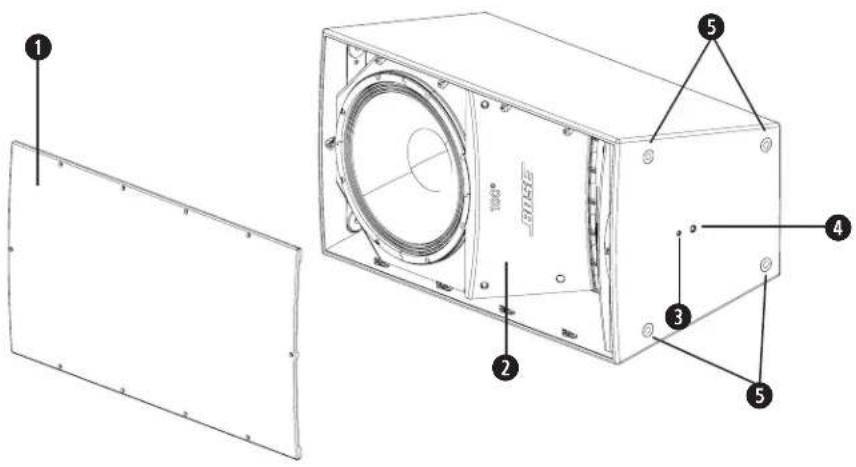

Product Details

Loudspeaker grille
2 Factory-installed waveguide: Replaceable with optional horizontal waveguide accessory.
M6 threaded insert: Stainless steel inserts for use with the ArenaMatch U-bracket (AMUBRKT). For pitch angle stabilization.

Note: Torque to 20.3 to 27.1 newton-meters (15 to 20 pound-feet).

M10 threaded insert: Stainless steel inserts for use with the ArenaMatch U-bracket (AMUBRKT). For bracket attachment.

Note: Torque to 20.3 to 27.1 newton-meters (15 to 20 pound-feet).

M12 threaded insert: Non-stainless steel inserts for use with the ArenaMatch short array plate (AMAPSHRT), long array plate (AMAPLONG), module connect plate (AMMCPLAT), or pullback bracket (AMPULL).

Note: Torque to 40.7 newton-meters (30 pound-feet).

Input panel: Barrier-strip input terminals.

Horizontal coverage indicator: Removable badge that will help you identify the installed horizontal waveguide without having to remove the grille. When replacing the waveguide, remember to replace the coverage indicator with the corresponding indicator included with your optional waveguide accessory.

Safety insert: M10 stainless steel threaded insert for use with a safety cable.

Note: Torque to 20.3 to 27.1 newton-meters (15 to 20 pound-feet).

Input panel cover: Weather-resistant cover for input terminals.
Gland nut: Sized for cables of outer diameter from 13 millimeters to 18 millimeters (0.51 inches to 0.71 inches). Note: Gland nut is rated IP68.

Optional Accessories

ArenaMatch DeltaQ array loudspeakers include four M12 threaded inserts per side, designed to be used with optional ArenaMatch rigging accessories. Additionally, the M10 and M6 inserts on each side are designed to be used with the optional ArenaMatch U-bracket accessory. Refer to the ArenaMatch Array Rigging guide at PRO.BOSE.COM for more information regarding design and installation.

Note: Always confirm safe working load limits with exact array configurations, pitch angles, and connection points using approved array design software. See the ArenaMatch product page at PRO.BOSE.COM for a complete list of approved array design software.

Note: All lifting operations require two individuals positioned on each side of the loudspeaker.

The following accessories are available and designed for use only with ArenaMatch loudspeaker array modules. For more information about individual accessories, please view the installation guide for your chosen accessory at PRO.BOSE.COM.

Array Plates (AMAPSHRT) (AMAPLONG)

Use the array plates to secure the top module of an array to building structures.

Pullback Bracket (AMPULL)

Use the pullback bracket to secure the bottom module of an array to building structures and adjust the overall angle of the array. Pullback brackets can be used on both the top and bottom of an array.

Module Connect Plate (AMMCPLAT)

Use the module connect plate to secure two ArenaMatch loudspeaker modules together.

Spreader Bar (AMASPRD)

Use the spreader bar to provide alternate attachment points to help position the array in the final installation location.

U-bracket (AMUBRKT)

Use the U-bracket to secure a single ArenaMatch loudspeaker module to ceiling or wall building structures.

Note: The mounting accessories listed above have not been assessed to EN 54-24 specifications.

Waveguides (AMWG)

Field-changeable waveguides allow adjustment of horizontal coverage pattern.

Note: See the ArenaMatch Waveguide installation guide for a full list of waveguide models.

Inspection & Maintenance

WARNING: The loudspeaker and all mounting components must be inspected annually by a qualified professional who is trained and certified in suspending loudspeaker systems. All rigging parts and components used in the suspension of the loudspeaker system should be visually inspected for signs of cracking, bending, water damage, corrosion, de-lamination, or any other condition that could compromise the system's integrity and create a dangerous falling hazard.

WARNING: The M6 and M10 threaded inserts are made of stainless steel. Exposure to chlorine could cause corrosion of the M6 and M10 threaded inserts that may not be detected through an annual inspection, creating a dangerous falling hazard. Therefore, do not suspend ArenaMatch loudspeakers using the M6 and M10 stainless steel inserts in environments where chlorine is present, such as indoor pools, indoor water parks, hot tub rooms, saunas, and steam rooms.

Maintaining Weather Resistance

ArenaMatch loudspeakers are rated for direct-exposure outdoor installations. To maintain weather resistance, please observe the following precautions:

1. Before, during, and after installation, check the surface of the loudspeaker enclosure to ensure that the factory-applied, weather-resistant coating has not been damaged.
2. During install, angle the loudspeaker at least 5^ downward to reduce the potential of rain compromising the performance of the loudspeaker.
3. All mounting holes must be sealed off with steel screws (included with applicable accessories) or the included plastic plugs (pre-installed).
4. The gland nut that secures the loudspeaker cable is factory sealed. Do not remove the gland nut or the weather-resistant seal will be broken.
5. The loudspeaker is rated for direct-exposure installations, which means the grille is designed to withstand normal and wind-driven rain. The grille is not designed to withstand direct spraying of water from a hose or pressure washer.

CAUTION: If the above instructions are not observed, the weather-resistant integrity of your ArenaMatch loudspeaker could be compromised.

For fire and evacuation notification applications, environmental rated to IP33C per EN 54-24. For general purpose audio installation applications, environmental rated to IP55 per EN60529.

Recommended Tools

The following tools are recommended for assembly of an ArenaMatch loudspeaker array:

Flathead screwdriver

2 Phillips-head screwdriver

18-millimeter socket or wrench

14-millimeter socket or wrench

5-millimeter hex key

Specifications

Product Dimensions

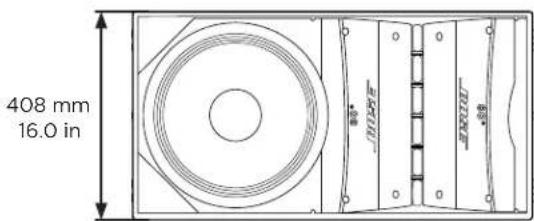

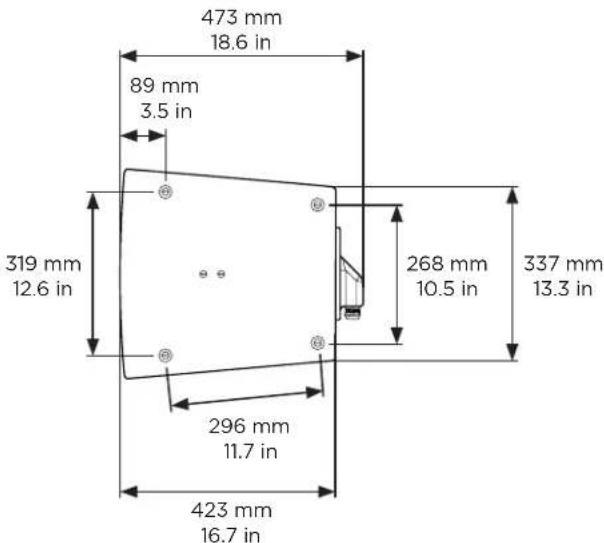

ArenaMatch AM10

Product net weight: 36.3kg (80.0 lb)

Top View

Side View

Front View

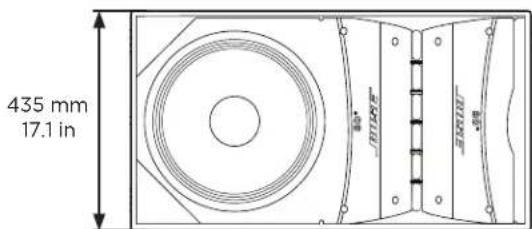

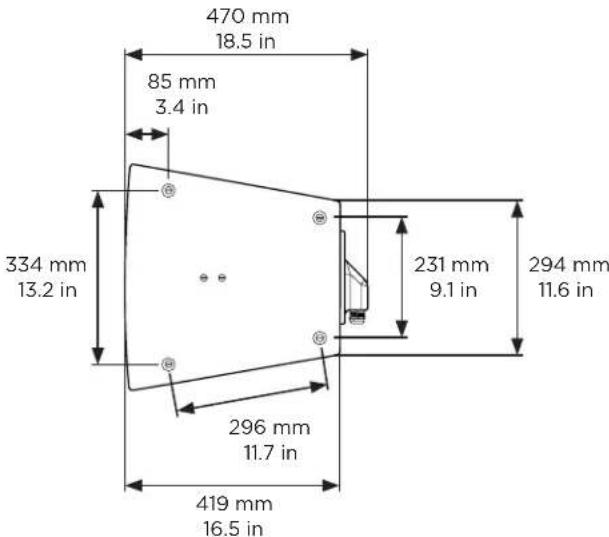

ArenaMatch AM20

Product net weight: 36.2kg (79.7 lb)

Top View

Side View

Front View

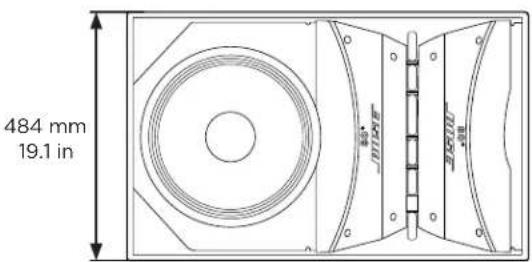

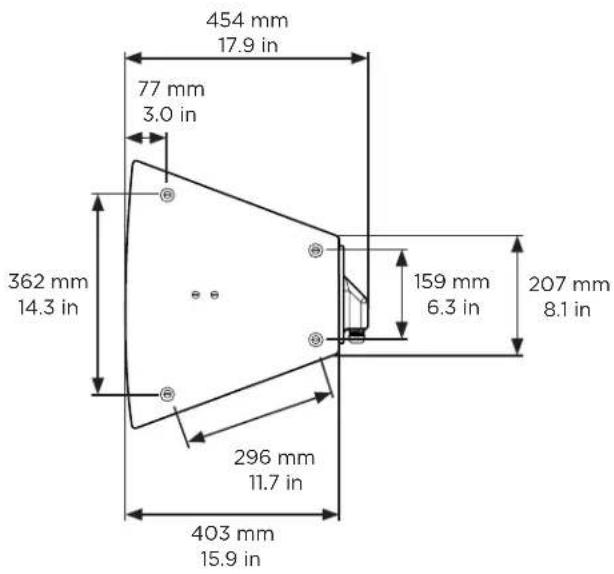

ArenaMatch AM40

Product net weight: 34.9kg (76.9 lb)

Top View Side View

Front View

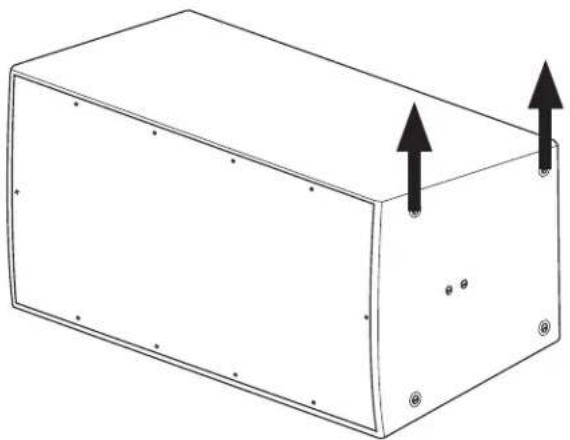

Working Load Limits

All values listed are per suspension point.

ArenaMatch Full-range Modules (AM10, AM20, AM40)

Front and Rear Rigging
WLL = 360 kg (800 lb)

Input Panel Wiring

Input connector terminals are available for passive, bi-amp, or 70V/100V transformer configurations. All ArenaMatch loudspeaker modules are shipped in the passive mode with transformer bypassed.

Note: The ArenaMatch AM10, AM20, and AM40 loudspeakers are designed to work with a maximum of 10 AWG (5.3 mm²) size wire.

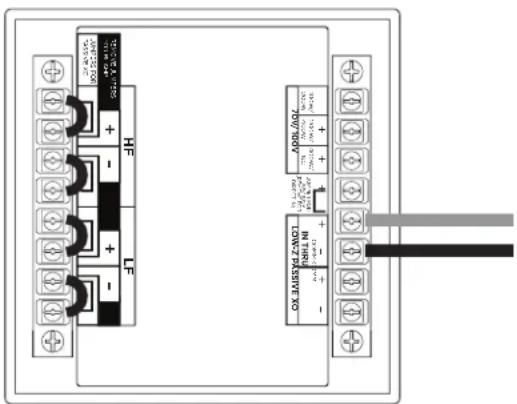

Passive Crossover (Low-impedance)

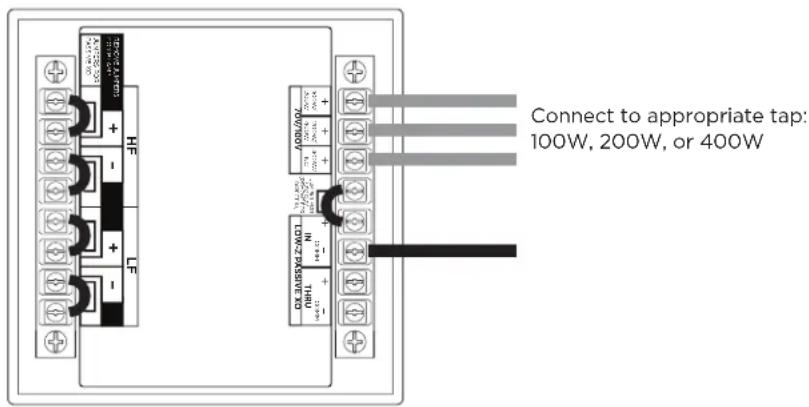

Passive Crossover with 70V/100V Transformer

Your wiring can be adjusted to switch tap settings: 100W/200W, 200W/400W, or 400W/NC.

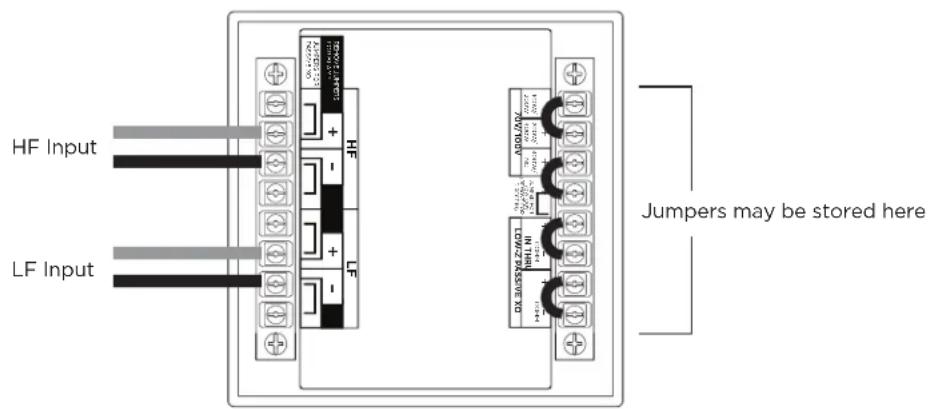

Bi-amp

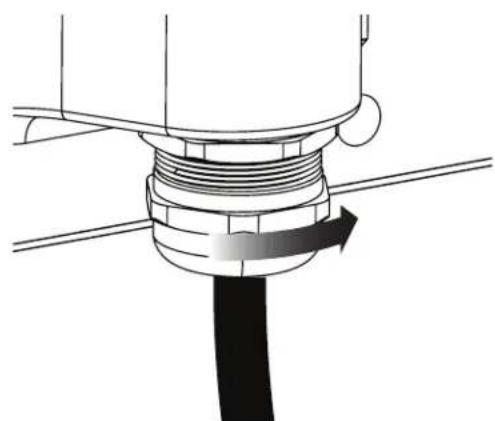

Securing the Wiring

Feed the wiring through the gland nut on the bottom of the input panel. Once you are done wiring your loudspeaker, rotate the gland nut clockwise to seal the wire after attaching the input cover (see Attaching the Input Panel Cover section). Tighten the gland nut by hand until the wire is held firmly in place, then tighten the gland nut an additional quarter turn. Do not over-tighten.

CAUTION: If the gland nut is not properly fastened, water could get into the input panel and damage the loudspeaker.

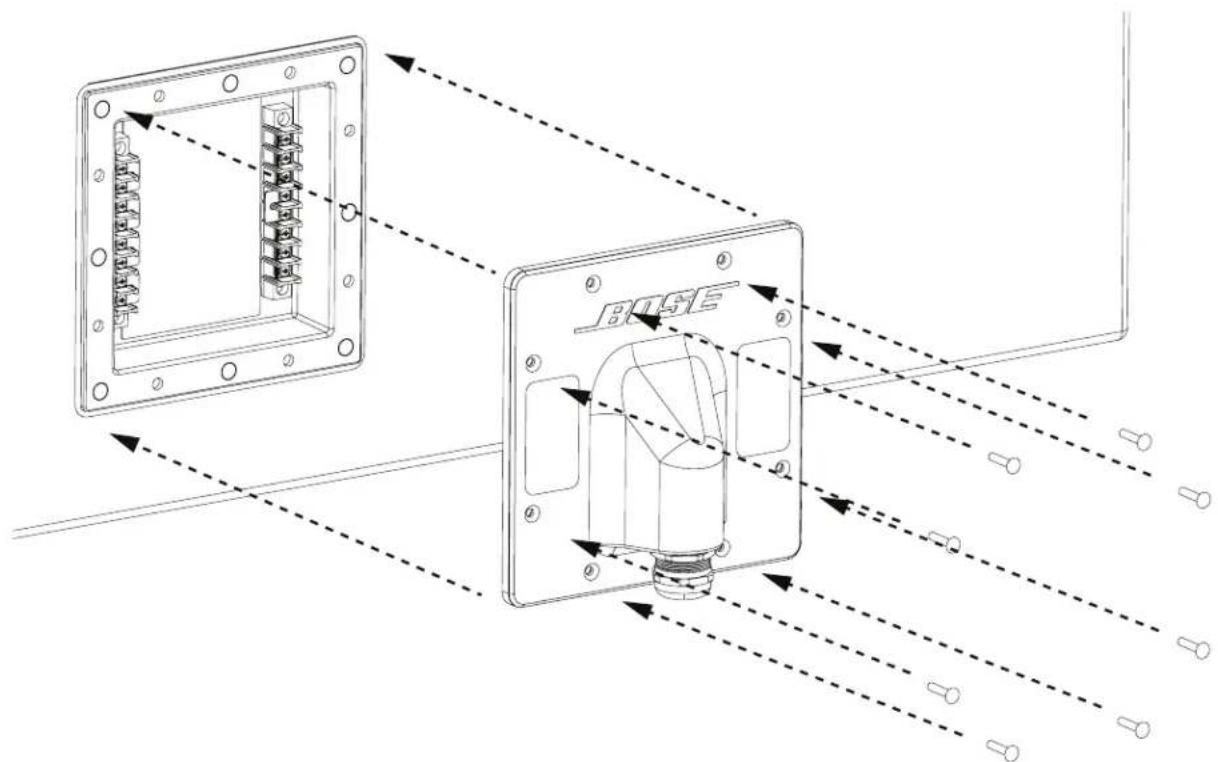

Attaching the Input Panel Cover

ArenaMatch full-range modules are shipped with the rear input panel cover not installed. Once you've made input wiring connections, secure the cover over the input panel with the included eight screws.

Note: The input cover can be rotated to support four different orientations. Always be sure the gland nut and wiring are facing downward.

Recommended Amplifier Power

Selecting the proper amplifier size for a given loudspeaker requires analysis of the transducer long-term (or RMS) power rating, dynamic range of the input-source material (crest factor), desired sound pressure levels, and other factors. As a general guideline, to optimize ArenaMatch system performance, the following amplifier configurations are recommended.

Input Configuration Nominal Impedance Amp Power Rating

Bi-amp, LF 8 Ω 600 W to 1200 W

Bi-amp, HF 8 Ω 150 W to 300 W

Low-Z Passive 8 Ω 750 W to 1500 W

Recommended Signal Processing

Digital signal processing (DSP) equipment is required for infrasonic protection, crossover (for bi-amp configuration), equalization, and voltage limiting protection.

Recommended loudspeaker DSP presets are available in Bose ControlSpace Designer software for both biamp and passive-crossover input configurations and are designed for use with Bose PowerMatch configurable professional amplifiers and ControlSpace ESP and EX processor hardware (sold separately).

System Design Software

Always confirm safe working load limits with exact array configurations, pitch angles, and connection points using approved array design software. See PRO.BOSE.COM for a complete list of approved array design software. ArenaMatch loudspeakers are also compatible with ControlSpace Designer. Make sure to download the most current version of ControlSpace Designer.

Technical Specifications

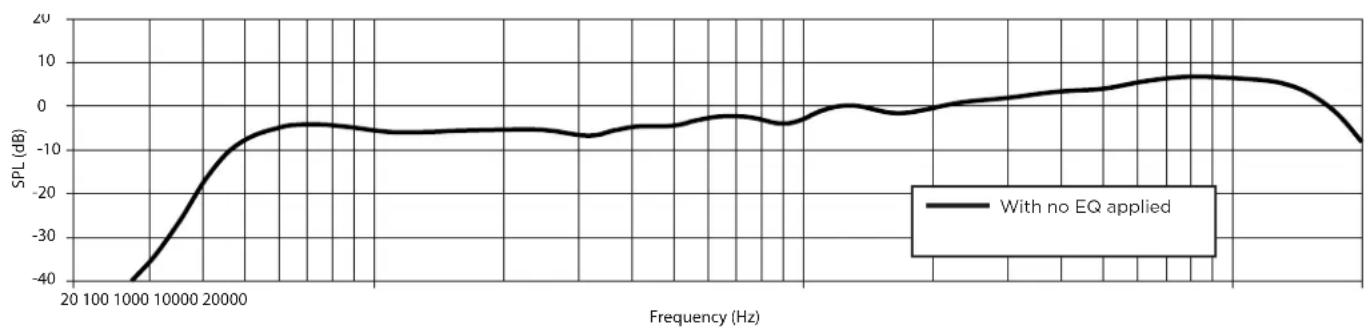

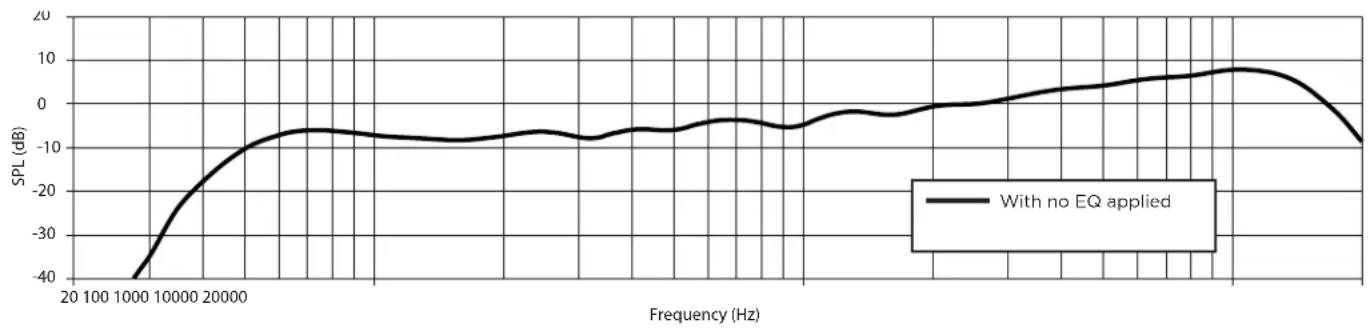

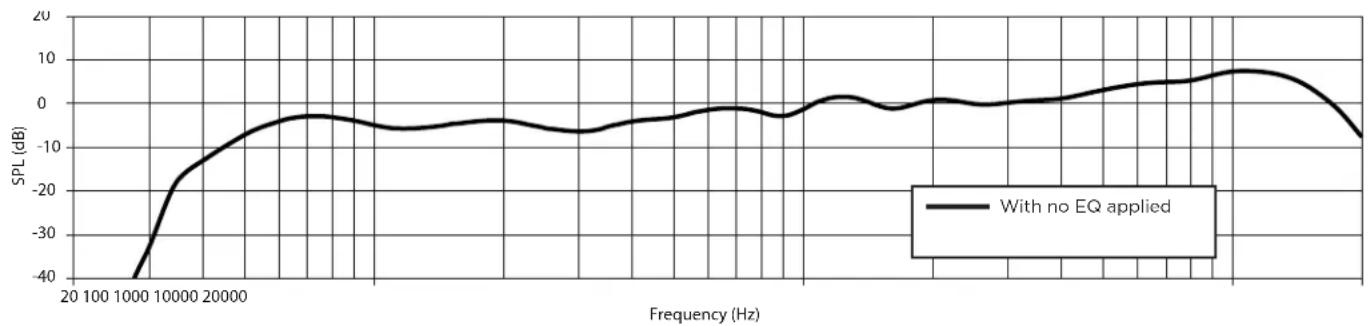

AM10

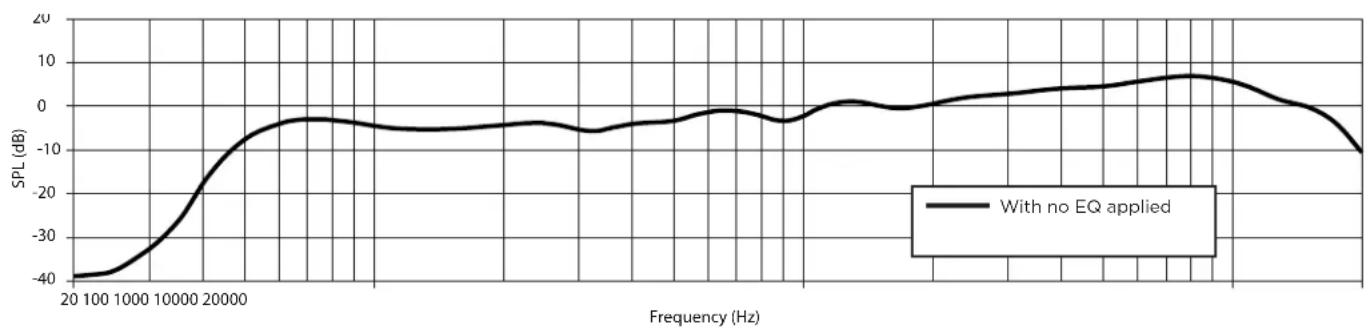

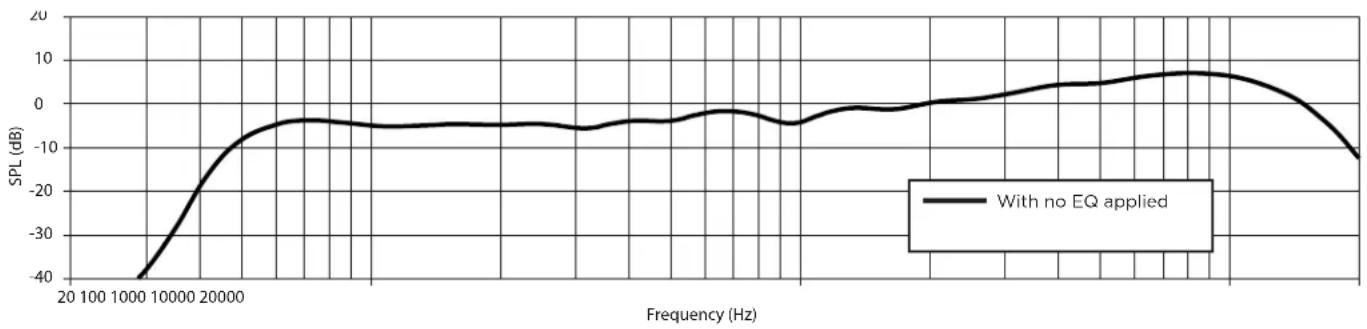

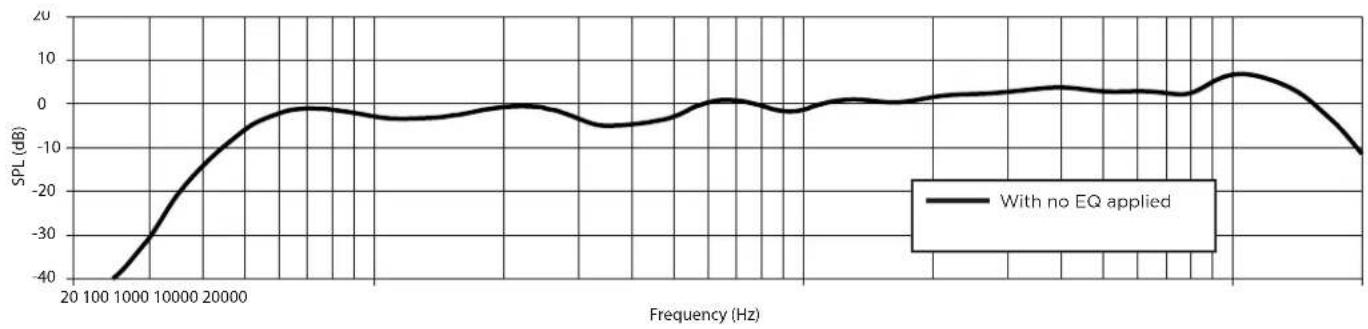

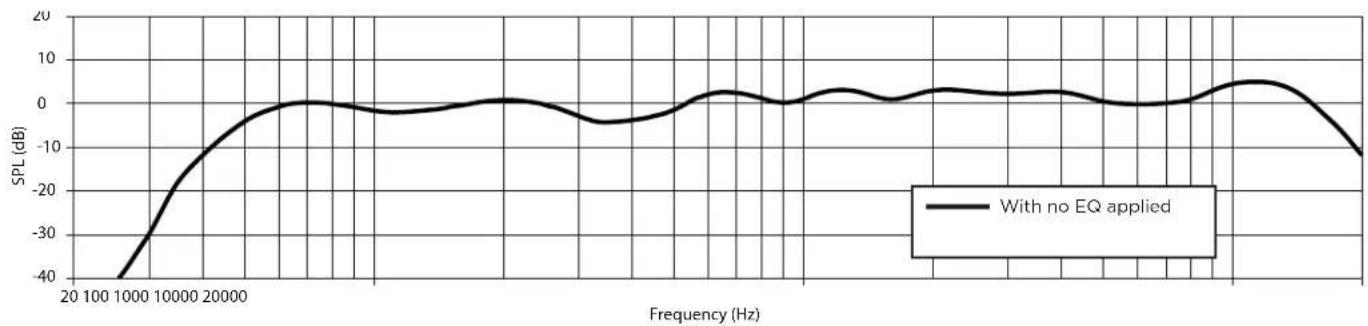

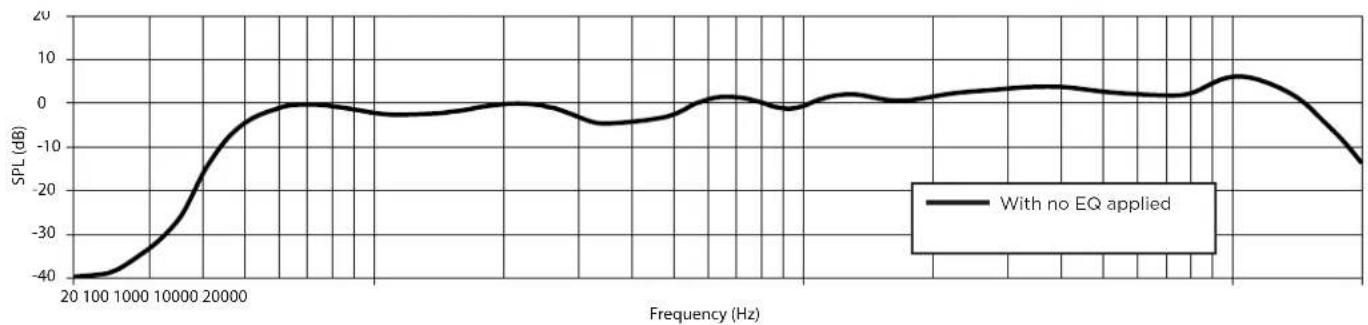

Footnotes

Single Module Performance

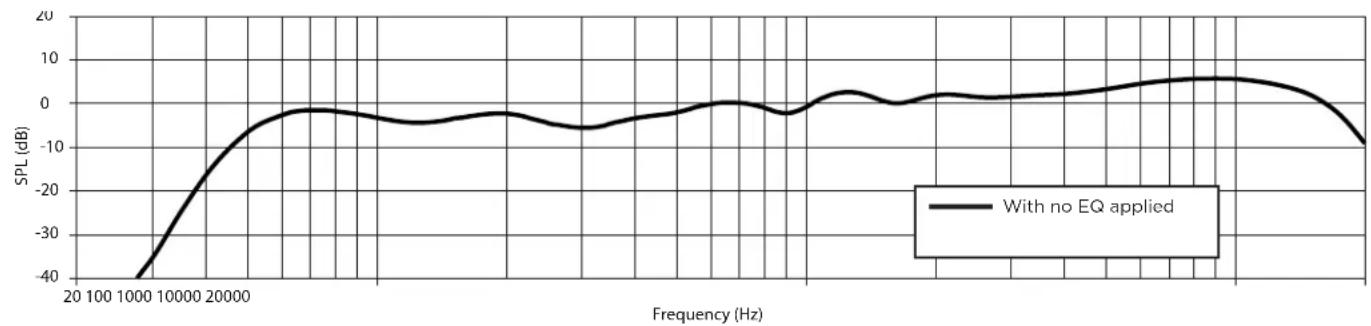

Frequency Response (-3 dB)1	65 Hz to 16 kHz
Frequency Range (-10 dB) 55 Hz to 18 kHz
Nominal Coverage Pattern (H × V)	60° × 10° (AM10/60) or 80° × 10° (AM10/80) or 100° × 10° (AM10/100)
Recommended High-pass Filter 60 Hz with minimum 12 dB / octave
Crossover 950 Hz internal passive or external bi-amp (Bose ControlSpace presets)
70V/100V transformer tap settings2	70V: 100W (50 Ω), 200W (25 Ω), 400W (13 Ω); 100V: 200W (50 Ω), 400W (25 Ω)
	Bose Extended Lifecycle Test3				AES Transducer Test4
	LF (bi-amp)	HF (bi-amp)	Low-Z Passive	LF (bi-amp)	HF (bi-amp)	Low-Z Passive	LF (bi-amp)	HF (bi-amp)	Low-Z Passive
Power Handling, long-term continuous	600 W	150 W	750 W	1000 W	250 W	1250 W
Power Handling, peak	2400 W	600 W	3000 W	4000 W	1000 W	5000 W
	AM10/60		AM10/80		AM10/100
	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive
Sensitivity (SPL / 1 W @ 1 m)5	94 dB	107 dB	100 dB	94 dB	106 dB	99 dB	94 dB	105 dB	96 dB
Calculated max. SPL @ 1 m (Bose power test)6	122 dB	129 dB	129 dB	122 dB	127 dB	128 dB	122 dB	127 dB	127 dB
Calculated max. SPL @ 1 m (2-hour power test)	124 dB	131 dB	131 dB	124 dB	130 dB	130 dB	124 dB	129 dB	129 dB
Calculated max. SPL @ 1 m (Bose power test), peak	128 dB	135 dB	135 dB	128 dB	134 dB	134 dB	128 dB	133 dB	133 dB
Calculated max. SPL @ 1 m (2-hour power test), peak	130 dB	137 dB	137 dB	130 dB	136 dB	136 dB	130 dB	135 dB	135 dB
EN 54-24 Certified Ratings7	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive
Sensitivity (1 W @ 4 m)	87.7 dB	87.7 dB	86.8 dB	86.8 dB	86.8 dB	86.0 dB	86.0 dB	86.0 dB
Measured max. SPL @ 4 m	112.1 dB	115.3 dB	111.8 dB	114.4 dB	111.0 dB	111.0 dB	111.0 dB	113.7 dB
Coverage Angle Octave Band (Hz)	500	1000	2000	500	1000	2000	4000	500	1000	2000	4000
Horizontal Coverage	137°	108°	75°	54°	136°	98°	82°	78°	140°	93°	94°
Vertical Coverage	125°	75°	30°	19°	123°	69°	29°	17°	125°	72°	31°
Passive Nominal Impedance	8 Ω
Rated Noise Voltage / Transformer Rated Noise Power	100V / 400W
Transducers
Low Frequency	1 × Bose LF14 neodymium 14-inch woofer (4-inch voice coil)
High Frequency	6 × Bose EMB25 titanium-diaphragm, neodymium compression drivers (2-inch voice coil)
Nominal Impedance	Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Physical
Enclosure Material	Exterior-grade birch plywood
Finish	Two-part polyurea coating, black
Grille	Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental8	Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24)
Connectors	Barrier strips: passive in/through, bi-amp, and 70V/100V, with cover
Suspension/Mounting	8 × M12 non-stainless steel threaded inserts (4 per side); 2 × M10 stainless steel threaded inserts (1 per side); 2 × M6 stainless steel threaded inserts (1 per side); 1 × M10 stainless steel threaded insert, rear safety connection
Dimensions (H × W × D)	409 × 783 × 420 mm (16.1 × 30.8 × 16.5 in)
Net Weight	36.3 kg (80 lb)
Shipping Weight	43.5 kg (96 lb)
Accessories	U-bracket, array suspension kits, waveguide kits

1. Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Frequency response graphs display SPL axis with 0 dB line referenced to sensitivity SPL value.
2. Impedance measurements were recorded with the 60^ waveguide installed, per EN 54-24.
3. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
4. AES standard 2-hour duration with IEC system noise.
5. Sensitivity measured in anechoic environment with recommended bandpass and EQ.
6. Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
7. The specifications data was measured in an anechoic chamber, free-field. Reference plane is on the grille surface. Reference axis is perpendicular to center of grille surface. Horizontal plane is containing the reference axis and parallel to the horizontal axis defined by longest enclosure dimension.
8. Tested to IP55 per EN60529 when used in General Purpose Audio installation, not for Fire and Evacuation notification applications. Notified Body certified by UL per the EN54-24 standard for an IP33C rating, acceptable for use in a Fire and Evacuation Notification System application.

AM10 Frequency Response (60^ waveguide)

AM10 Frequency Response (80^ waveguide)

AM10 Frequency Response (100° waveguide)

AM20

Single Module Performance
Frequency Response (-3 dB)1	65 Hz to 16 kHz
Frequency Range (-10 dB) 55 Hz to 18 kHz
Nominal Coverage Pattern (H × V)	60° × 20° (AM20/60) or 80° × 20° (AM20/80) or 100° × 20° (AM20/100)
Recommended High-pass Filter 60 Hz with minimum 12 dB / octave
Crossover 950 Hz internal passive or external bi-amp (Bose ControlSpace presets)
70V/100V transformer tap settings2	70V: 100W (50 Ω), 200W (25 Ω), 400W (13 Ω); 100V: 200W (50 Ω), 400W (25 Ω)
	Bose Extended Lifecycle Test3				AES Transducer Test4
	LF (bl-amp)	HF (bl-amp)	Low-Z Passive		LF (bl-amp)	HF (bl-amp)	Low-Z Passive
Power Handling, long-term continuous	600 W	150 W	750 W		1000 W	250 W	1250 W
Power Handling, peak	2400 W	600 W	3000 W		4000 W	1000 W	5000 W
	AM20/60			AM20/80			AM20/100
	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive
Sensitivity (SPL / 1 W @ 1 m)5	94 dB	106 dB	99 dB	94 dB	105 dB	98 dB	94 dB	104 dB	97 dB
Calculated max. SPL @ 1 m (Bose power test)6	122 dB	128 dB	128 dB	122 dB	127 dB	127 dB	122 dB	126 dB	126 dB
Calculated max. SPL @ 1 m (2-hour power test)	124 dB	130 dB	130 dB	124 dB	129 dB	129 dB	125 dB	128 dB	128 dB
Calculated max. SPL @ 1 m (Bose power test), peak	128 dB	134 dB	134 dB	128 dB	133 dB	133 dB	128 dB	132 dB	132 dB
Calculated max. SPL @ 1 m (2-hour power test), peak	130 dB	136 dB	136 dB	130 dB	135 dB	135 dB	130 dB	134 dB	134 dB
EN 54-24 Certified Ratings7	100V/400W			100V/400W			100V/400W		Low-Z Passive
Sensitivity (1 W @ 4 m)	86.5 dB			86.5 dB			86.4 dB		85.1 dB
Measured max. SPL @ 4 m	112.0 dB			111.6 dB			114.2 dB		110.7 dB
Coverage Angle Octave Band (Hz)	500	1000	2000	4000	500	1000	2000	4000	500
Horizontal Coverage	136°	112°	78°	56°	136°	108°	82°	79°	137°
Vertical Coverage	118°	77°	27°	19°	117°	73°	27°	18°	119°
Passive Nominal Impedance	8 Ω
Rated Noise Voltage / Transformer Rated Noise Power	100V / 400W
Transducers
Low Frequency	1 × Bose LF14 neodymium 14-inch woofer (4-inch voice coil)
High Frequency	6 × Bose EMB25 titanium-diaphragm, neodymium compression drivers (2-inch voice coil)
Nominal Impedance	Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Physical
Enclosure Material	Exterior-grade birch plywood
Finish	Two-part polyurea coating, black
Grille	Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental#	Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN54-24)
Connectors	Barrier strips: passive in/through, bi-amp, and 70V/100V, with cover
Suspension/Mounting	8 × M12 non-stainless steel threaded inserts (4 per side); 2 × M10 stainless steel threaded inserts (1 per side); 2 × M6 stainless steel threaded inserts (1 per side); 1 × M10 stainless steel threaded insert, rear safety connection
Dimensions (H × W × D)	437 × 783 × 416 mm (17.2 × 30.8 × 16.4 in)
Net Weight	36.2 kg (80 lb)
Shipping Weight	43.3 kg (95 lb)
Accessories	U-bracket, array suspension kits, waveguide kits

Footnotes

1. Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Frequency response graphs display SPL axis with 0 dB line referenced to sensitivity SPL value.
2. Impedance measurements were recorded with the 60^ waveguide installed, per EN 54-24.
3. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
4. AES standard 2-hour duration with IEC system noise.
5. Sensitivity measured in anechoic environment with recommended bandpass and EQ.
6. Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
7. The specifications data was measured in an anechoic chamber, free-field. Reference plane is on the grille surface. Reference axis is perpendicular to center of grille surface. Horizontal plane is containing the reference axis and parallel to the horizontal axis defined by longest enclosure dimension.
8. Tested to IP55 per EN60529 when used in General Purpose Audio installation, not for Fire and Evacuation notification applications. Notified Body certified by UL per the EN 54-24 standard for an IP33C rating, acceptable for use in a Fire and Evacuation Notification System application.

AM20 Frequency Response (60^ waveguide)

AM20 Frequency Response (80^ waveguide)

AM20 Frequency Response (100° waveguide)

AM40

Single Module Performance
Frequency Response (-3 dB)1	65 Hz to 16 kHz
Frequency Range (-10 dB) 55 Hz to 18 kHz
Nominal Coverage Pattern (H × V)	60° × 40° (AM40/60) or 80° × 40° (AM40/80) or 100° × 40° (AM40/100)
Recommended High-pass Filter 60 Hz with minimum 12 dB / octave
Crossover 950 Hz internal passive or external bi-amp (Bose ControlSpace presets)
70V/100V transformer tap settings2	70V: 100W (50 Ω), 200W (25 Ω), 400W (13 Ω); 100V: 200W (50 Ω), 400W (25 Ω)
	Bose Extended Lifecycle Test3				AES Transducer Test4
	LF (bl-amp)	HF (bl-amp)	Low-Z Passive	LF (bl-amp)	HF (bl-amp)	Low-Z Passive	LF (bl-amp)	HF (bl-amp)	Low-Z Passive
Power Handling, long-term continuous	600 W	150 W	750 W	1000 W	250 W	1250 W
Power Handling, peak	2400 W	600 W	3000 W	4000 W	1000 W	5000 W
	AM40/60		AM40/80		AM40/100
	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive	LF	HF	Low-Z Passive
Sensitivity (SPL / 1 W @ 1 m)5	94 dB	103 dB	98 dB	94 dB	102 dB	97 dB	94 dB	101 dB	96 dB
Calculated max. SPL @ 1 m (Bose power test)6	122 dB	125 dB	127 dB	122 dB	124 dB	126 dB	122 dB	123 dB	125 dB
Calculated max. SPL @ 1 m (2-hour power test)	124 dB	127 dB	129 dB	124 dB	126 dB	128 dB	124 dB	125 dB	127 dB
Calculated max. SPL @ 1 m (Bose power test), peak	128 dB	131 dB	133 dB	128 dB	130 dB	132 dB	128 dB	129 dB	131 dB
Calculated max. SPL @ 1 m (2-hour power test), peak	130 dB	133 dB	135 dB	130 dB	132 dB	134 dB	130 dB	131 dB	133 dB
EN 54-24 Certified Ratings7	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive	100V/400W	Low-Z Passive
Sensitivity (1 W @ 4 m)	84.3 dB	84.6 dB	84.1 dB	84.4 dB	83.7 dB	83.7 dB
Measured max. SPL @ 4 m	110.8 dB	112.9 dB	110.8 dB	113.0 dB	110.1 dB	112.3 dB
Coverage Angle Octave Band (Hz)	500	1000	2000	4000	500	1000	2000	4000
Horizontal Coverage	148°	125°	91°	67°	148°	118°	95°	86°	149°	112°
Vertical Coverage	114°	70°	35°	39°	112°	67°	33°	36°	113°	69°
Passive Nominal Impedance	8 Ω
Rated Noise Voltage / Transformer Rated Noise Power	100V / 400W
Transducers
Low Frequency	1 × Bose LF14 neodymium 14-inch woofer (4-inch voice coil)
High Frequency	6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers (2-inch voice coil)
Nominal Impedance	Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω
Physical
Enclosure Material	Exterior-grade birch plywood
Finish	Two-part polyurea coating, black
Grille	Powder-coated perforated stainless steel, acoustic foam, stainless steel mesh
Environmental#	Rated for direct-exposure outdoor installations (IP55 per EN60529; IP33C per EN 54-24)
Connectors	Barrier strips: passive in/through, bi-amp, and 70V/100V, with cover
Suspension/Mounting	8 × M12 non-stainless steel threaded inserts (4 per side); 2 × M10 stainless steel threaded inserts (1 per side); 2 × M6 stainless steel threaded inserts (1 per side); 1 × M10 stainless steel threaded insert, rear safety connection
Dimensions (H × W × D)	489 × 783 × 400 mm (19.3 × 30.8 × 15.8 in)
Net Weight	34.9 kg (77 lb)
Shipping Weight	42.2 kg (93 lb)
Accessories	U-bracket, array suspension kits, waveguide kits

Footnotes

1. Frequency response and range measured on-axis in anechoic environment with recommended bandpass and EQ. Frequency response graphs display SPL axis with 0 dB line referenced to sensitivity SPL value.
2. Impedance measurements were recorded with the 60^ waveguide installed, per EN 54-24.
3. Bose extended-lifecycle test using pink noise filtered to meet IEC268-5, 6-dB crest factor, 500-hour duration.
4. AES standard 2-hour duration with IEC system noise.
5. Sensitivity measured in anechoic environment with recommended bandpass and EQ.
6. Maximum SPL calculated using sensitivity and power ratings, exclusive of power compression.
7. The specifications data was measured in an anechoic chamber, free-field. Reference plane is on the grille surface. Reference axis is perpendicular to center of grille surface. Horizontal plane is containing the reference axis and parallel to the horizontal axis defined by longest enclosure dimension.
8. Tested to IP55 per EN60529 when used in General Purpose Audio Installation, not for Fire and Evacuation notification applications. Notified Body certified by UL per the EN 54-24 standard for an IP33C rating, acceptable for use in a Fire and Evacuation Notification System application.

AM40 Frequency Response (60° waveguide)

AM40 Frequency Response (80^ waveguide)

AM40 Frequency Response (100^ waveguide)

2531

Bose Corporation

100 The Mountain Rd, Framingham, MA 01701

20

DOP 429257-4

EN 54-24: 2008

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

ArenaMatch AM10

Provided options:

Type B

For DOP 429257-4, see pro.Bose.com/AM10DOP_UK

2531

Bose Corporation

100 The Mountain Rd, Framingham, MA 01701

20

DOP 429257-5

EN 54-24: 2008

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

ArenaMatch AM20

Provided options:

Type B

For DOP 429257-5, see pro.Bose.com/AM20DOP_UK

2531

Bose Corporation

100 The Mountain Rd, Framingham, MA 01701

20

DOP 429257-6

EN 54-24:2008

Loudspeaker for voice alarm systems for fire detection and fire alarm systems for buildings

ArenaMatch AM40

Provided options:

Type B

For DOP 429257-6, see pro.Bose.com/AM40DOP_UK
