USER MANUAL IAN 314815 AURIOL

Usage and safety instructions

Preliminary note Congratulations on the purchase of your new alarm clock. You have chosen a high quality appliance. The manual is part of the appliance. It contains important safety, usage and disposal information. Please read all usage and safety instructions before using the appliance. Please only use the appliance as described and for the described uses. If you sell or give this alarm clock to someone else it is very important to also include this manual. Please keep the packaging and the instruction manual for future reference. Intended use This electronic device is intended for time display and the described additional features. Any other use or modification of the electronic device does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use. Scope of delivery Please note: Check the scope of delivery after purchase. Please ensure that all parts are included and undamaged.

1 x Instruction manual Technical specifications Batteries: 3 x 1.5 V AAA R03/LR03 - Symbol for direct voltage Important safety information Important safety information for users

WARNING! RISK OF INJURY! This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation. Important safety information for the batteries

RISK OF EXPLOSION! Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. Never attempt to recharge non-rechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. Improper use of the battery can lead to explosion or leakage. If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of-

clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage. Placing the clock securely The alarm clock is not intended for use in rooms with high humidity (example: bath room). Make sure that: no direct heat sources (i.e. electric blankets) influence the device; no direct sunlight reaches the device; contact with splashing or dripping water must be avoided (don’t place any items filled with liquids, i.e. vases, onto or next to the device); the device doesn’t stand near magnetic fields (i.e. speakers); no foreign objects penetrate the housing; candles and other open flames must be kept away from this product at all times to prevent the spread of fire.

The alarm clock can be placed upright by using the fold-out stand

or placed under your pillow.

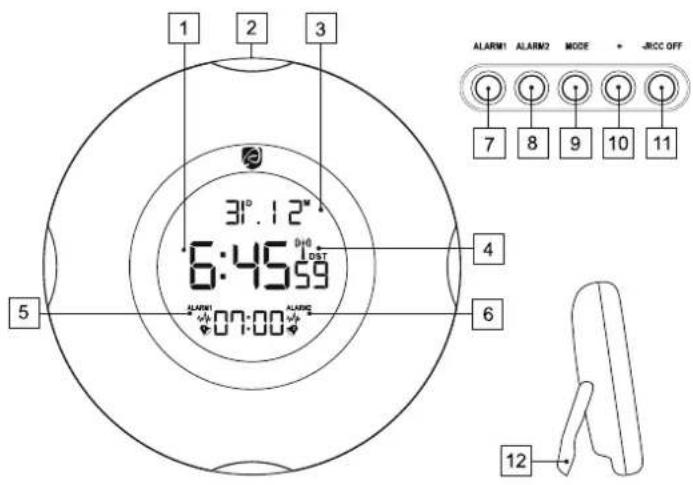

Display and controls-

1 Time 7 ALARM1 button 2 Light/snooze 8 ALARM2 button 3 Date 9 MODE button 4 Radio control signal/DST 10 + - buttons 5 ALARM1 display 11 -/RCC OFF button 6 ALARM2 display 12 Foldable stand Setup Remove the protective film from the display of the alarm clock. Open the battery compartment on the backside of the device and insert three 1.5V AAA R03/LR03 batteries in the correct polarity. Close the battery compartment. Radio time signal reception starts automatically after inserting the batteries and the alarm clock will beep once. The radio tower indicator 4 will blink on the display. This process can take 3-10 minutes. Note: Please do not move the alarm clock during the reception process. The alarm clock synchronizes the internal clock every day from 02:15 to 03:15 on each full hour. If reception is unsuccessful, the clock will reattempt reception at 04:15 and 05:15. If the reception of the time signal fails, the radio control tower 4 will disappear from the display. Please set the time manually (see "Basic settings"). If reception is successful, the radio tower indicator 4 appears permanently on the display and the time, date and day of the week are set automatically. During daylight saving time, DST appears on the display next to the radio tower indicator 4. Please set the time manually, if reception fails (see "Basic settings"). Time zone adjustment If you are in a country in which the current time is incorrect even though the DCF77 signal was received, please use the time zone adjustment to adjust the time zone to a different setting than the standard setting (UTC+1 = Central European Time). Set the difference in hours (for example -01) to the required time zone. Press and hold MODE 9 for 3 seconds in normal time display mode. The language of the day of the week will blink. Press MODE 9 7x. Now the time zone will blink (00) and can be set by pressing + 10 or -/RCC OFF 11. Confirm your setting by pressing MODE 9. The radio tower indicator 4 will disappear. Press MODE 9 to select the day of the week, the zone or the seconds. The clock will continue to receive the DCF77 radio control signal but will show the changed time in ZONE mode (for example, 1 hour less). Activating/ deactivating radio signal reception Radio signal reception can be deactivated manually by pressing -/RCC OFF 11on the backside of the clock for 4 seconds. The radio tower 4 will disappear from the display. The radio waves are shown on the display

The clock will now no longer receive the radio signal. Set the time manually as described in basic settings. Radio signal reception can be restarted by pressing -/RCC OFF 11 on the backside of the clock for 4 seconds and the radio tower 4 will blink on the display. This process can take from 3 to 10 minutes. If radio reception fails, the time must be set manually (see basic settings). Reception problems The DCF77 radio signal is transmitted from a location near Frankfurt am Main and can be received within a radius of approximately 1500 km around Frankfurt am Main. However, there are some obstacles and sources of interference, which may substantially hinder reception. If your alarm clock does not correctly receive the DCF77 radio signal, please hang or place the alarm clock at a different location at your site. Please note that devices such as computers, telephones, radios and televisions may cause electromagnetic radiation which can interfere with the DCF77 signal reception. Other possible detriments to reception are: strong building insulation (metal building materials), nearby mountains or atmospheric interference. It may also be necessary to replace the batteries. Light Press -button 2 on the top of the clock to briefly activate the light. Speed setting When setting numerical settings, press and hold the relevant button to use the speed setting feature. Basic settings The following settings are possible: Hours of the time, minutes of the time, year, month, day, language of the day of the week display (DE – German, Fr – French, IT – Italian, DU – Dutch, ES – Spanish, DA – Danish, En – Englisch), 12/24 -hour time format and time zone. Press and hold MODE 9 for 3 seconds during normal time display. The hours of the time will blink and can be set by pressing + 10 or -/RCC OFF 11. Press MODE 9 to confirm your setting. Set the minutes of the time, year, month, day, language of the day of the week (DE, Fr, IT, DU, ES, DA, En), 12/24 -hour time format and time zone in the same way. Alarm The alarm clock has 2 alarm times, which can bet set separately. Press and hold ALARM 1 or 2 to enter the alarm time setting mode. The hours of alarm ALARM 1 or 2 will blink on the display. Press + 10 or -/RCC OFF 11 to set the hours and press ALARM 1 or 2 to confirm your setting. Set the minutes and the second alarm time in the same way. Activating or deactivating the alarm Press ALARM 1 or 2 during normal time display to activate the alarms. Press ALARM 1 or 2 again to activate the vibration, press ALARM 1 or 2 repeatedly to activate both alarms (sound and vibration), press ALARM 1 or 2 again to deactivate both alarms. If an alarm sound is activated, the bell symbol and/or will appear.-

If vibration is activated, the vibration symbol will appear . The alarm will start at the set time. If the alarm is not turned off, it will shut off automatically after 3 minutes. Snooze Press the -button 2 on the top of the alarm clock or shake the alarm clock. The light will activate briefly, Z

and the set alarm symbols , and/or will blink on the display. The alarm will be deactivated for 4 minutes and then restart. Cleaning instructions Improper cleaning can damage the device. Do not submerge the device in water or other liquids. Do not use aggressive cleaners, brushes with metal or nylon bristles, or sharp or metallic cleaning tools such as knives, scrapers or similar implements. These may damage the surface of the device. Clean the device using a soft, dry, lint-free cloth, such as a glasses cleaning cloth. Simplified EU declaration of conformity Hereby, digi-tech gmbh declares that the radio equipment type 4- LD5180-1 is in compliance with Directive RED 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.digi-tech-gmbh.com/ce/314815_1904_WE.pdf Disposal This device and all the packaging materials are recyclable. Please dispose of them separately for better waste handling. You can find out about disposal options for your product by contacting your municipality. Please take note of the marking of packaging material when separating waste materials. They are marked with abbreviations (a) and numbers (b) with the following meanings: 1-7 plastics / 20-22: paper and cardboard / 80-98: composite materials. Disposal of the electronic appliance This alarm clock may not be disposed of with normal household waste. In the interest of the environment, when your device has reached the end of its usefulness, do no throw it in the normal household trash. Dispose of it in the proper and correct way. You can find out about collection sites and their business hours from your public administration. Please adhere to applicable requirements. Disposal of the batteries Defective or spent batteries/rechargeable batteries must be recycled in accordance with directive 2006/66/EC and its revisions. Return batteries, rechargeable batteries or the device at the available collection sites. Improper disposal of batteries / rechargeable batteries causes environmental damage! Batteries / rechargeable batteries may not be disposed of in normal household waste. They may contain toxic heavy metals and are subject to hazardous waste treatment. The chemical symbols of the heavy metals are as follows: Cd = Cadmium, Hg = Mercury, Pb = lead. Therefore, please dispose of spent batteries /rechargeable batteries at a communal collection site.-

Recycling The product packaging consists of recyclable materials. Dispose of the packaging in an environmentally sound manner using the proper collection systems. Paperboard The packaging consists of non-corrugated fibreboard (paperboard). Waste disposal Dispose of the packaging in an environmentally responsible fashion. Please note the marking of the different packaging materials and separate them if applicable. digi-tech gmbh warranty This alarm clock includes a 3 year warranty starting on the day of purchase. In case of defects of this alarm clock you have, by law, certain rights regarding the vendor of the alarm clock. These rights are not changed by the warranty which is described in the following paragraphs. Warranty conditions The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the alarm clock within 3 years, the alarm clock will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the alarm clock and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired alarm clock or a new alarm clock. Repair or replacement does not cause the warranty period to restart. Warranty period and defects liability The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period. Scope of the warranty The alarm clock was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass. This warranty becomes void if the alarm clock is damaged, is not used in the recommended way or is improperly repaired. For proper use of the alarm clock all instructions in this manual must be adhered to exactly. Use of the alarm clock in a way that is discouraged in the manual must be avoided. The alarm clock not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centres will void the warranty. Warranty claim procedure To ensure that your call is processed in a fast and efficient manner please note the following directions: Have your receipt (as proof of purchase) and the article number (314815_1904) handy. The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the backside or bottom side of the case. In case defects occur, please first contact the service centre (see below) by phone or email.-

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Supplier Please note that the following address is not a service address. Please first contact the service address (see above). Name: digi-tech gmbh Street: Valterweg 27A Town: DE-65817 Eppstein Country: GERMANY-
