Product Type	Graphics Card
Brand	ASUS
Model	GT730MG2GD3
Graphics Processor	NVIDIA GeForce GT 730
Video Memory	2 GB GDDR3
Interface	PCI Express 2.0 x16
Maximum Resolution	2560 x 1600
Display Connectors	1 x DVI-D, 1 x HDMI, 1 x VGA (D-Sub)
Recommended PSU	300 W
Power Consumption	49 W (TDP)
Dimensions (L x W x H)	160 x 120 x 40 mm
Compatible Operating System	Windows 10/8/7 32/64-bit
Included Software	ASUS GPU Tweak II
Warranty	3 years
Cooling	Active Fan

Frequently Asked Questions - GT730MG2GD3 ASUS

How to install the ASUS GT730MG2GD3 graphics card?

Insert the card into a free PCI Express x16 slot on your motherboard. Connect the power cable if necessary (most models draw power from the PCIe slot). Connect your monitor via DVI, HDMI, or VGA port. Turn on the computer and install the drivers from the provided DVD or the ASUS website.

How to update the drivers of the GT730?

Download the latest NVIDIA GeForce drivers from the official NVIDIA website or use the Live Update utility in ASUS GPU Tweak II. Make sure you are connected to the internet and follow the on-screen instructions.

What are the system requirements for this card?

The card requires a free PCI Express 2.0 x16 slot, a power supply of at least 300 W, and Windows 10/8/7 32 or 64-bit. A processor and sufficient RAM for light gaming are recommended.

Does the graphics card support DirectX 12?

Yes, the NVIDIA GeForce GT 730 supports DirectX 12, but at feature level 12_0. It is therefore compatible with games using this API.

How to overclock the card with GPU Tweak II?

Launch ASUS GPU Tweak II, switch to professional mode. Select the profile, adjust the GPU and memory frequencies, then click Apply. Use the OC Mode option for automatic overclocking.

Can I connect multiple monitors with the GT730?

Yes, the card has three video outputs (DVI, HDMI, VGA). You can connect up to three monitors simultaneously, depending on your system's limitations.

What to do if the card is not detected by the computer?

Check that the card is properly seated in the PCIe slot and that the power cables are correctly connected. Test the card in another slot if possible. Update the motherboard BIOS and reinstall the drivers.

How to activate silent mode?

Use ASUS GPU Tweak II and select the Silent Mode profile. This reduces fan speed and GPU frequency for quieter operation.

What is the lifespan of the fan?

The fans on ASUS graphics cards are designed to last an average of 30,000 to 50,000 hours under normal use. Regular maintenance (dusting) extends their lifespan.

How to clean the graphics card?

Turn off the computer and disconnect the card. Use an antistatic brush or compressed air to remove dust from the heatsink and fan. Avoid contact with electronic components.

USER MANUAL GT730MG2GD3 ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English. 3

繁體中文 14

简体中文 25

Francais 36

日本語 47

Italiano 58

Pycckn 69

Čestina. 80

Nederlands 91

Elambdaeta 102

Portugues. 113

Polski 124

Espanol 135

YKpaHcbKa 146

Deutsch 157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

AMD 7000 Series GPU or higher
NVIDIA 600 Series GPU or higher
32-/64-bit Microsoft*Windows 10/8/8.1/7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

Double-click the GPU Tweak icon h the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

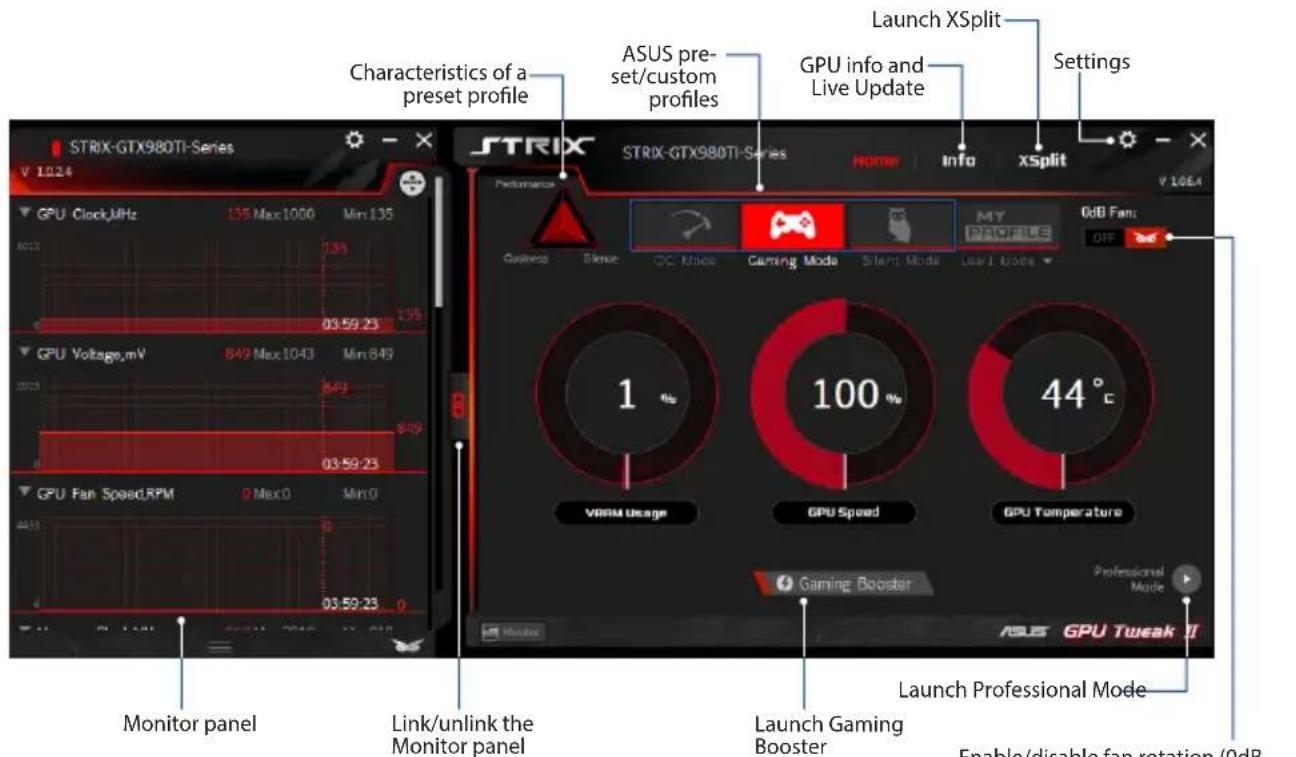

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

Enable/disable fan rotation (0dB Fan)* * Appears only on an ASUS Graphics card with 0dB Fan function.

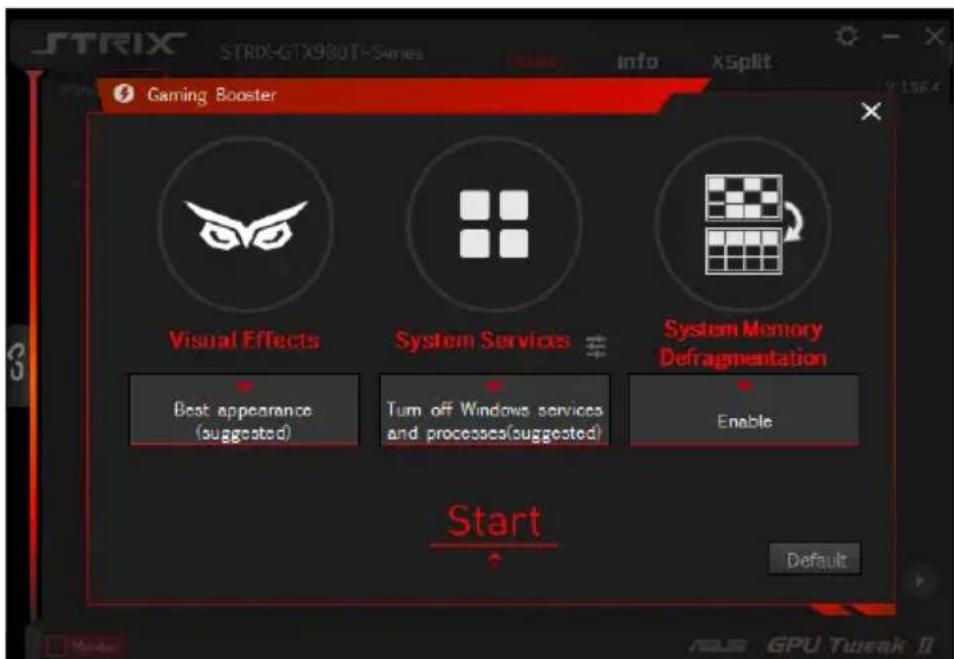

Gaming Booster

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
System Services: Lets you to automatically or manually turn off Windows® services or processes.

• System Services setting: Lets you to manually choose the services or processes that you want to stop.

• System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

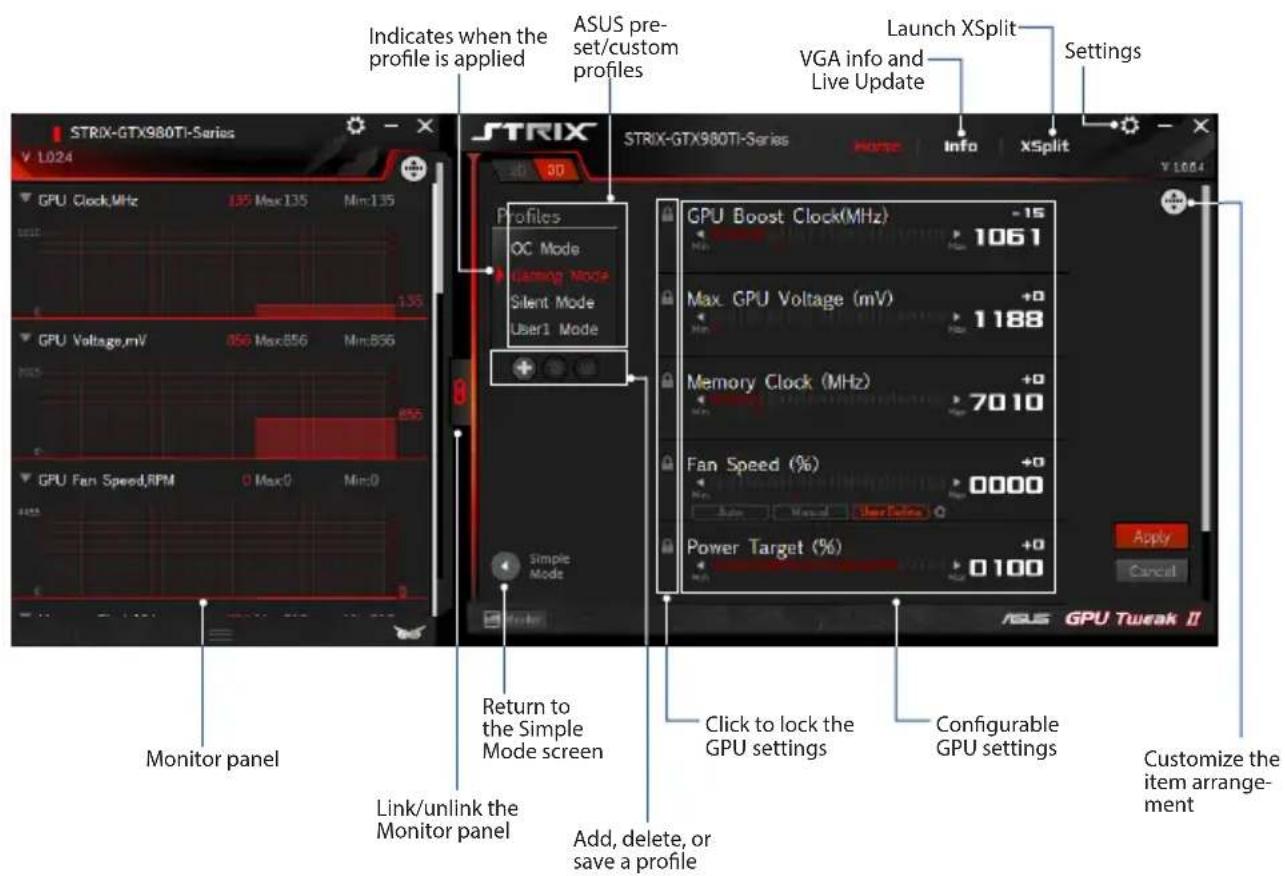

Professional Mode

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click save the profile.

Applying a profile

• Select the profile, then click Apply to apply the profile.

Deleting a profile

• Select the profile, then click to delete the profile.

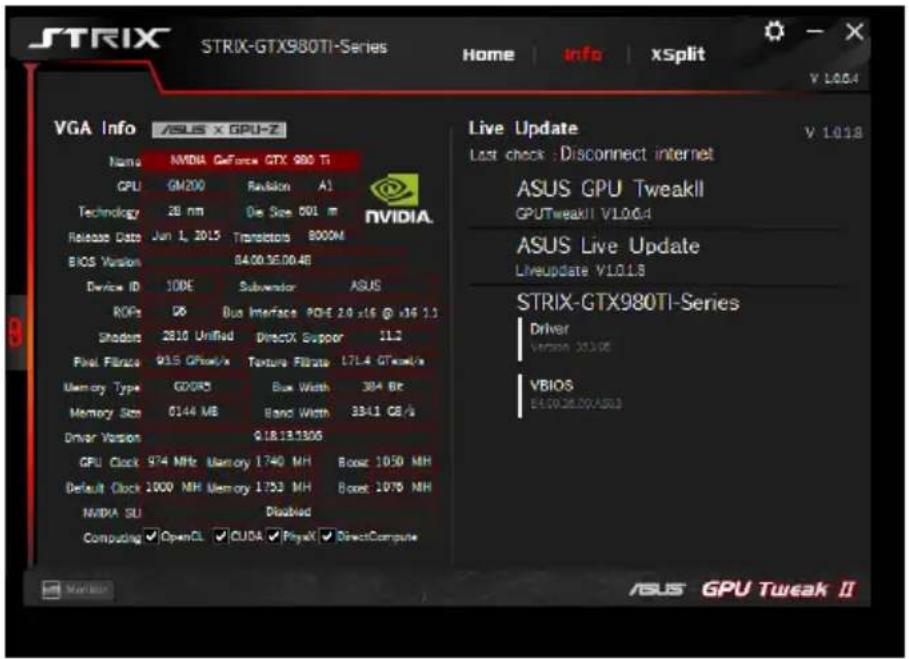

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

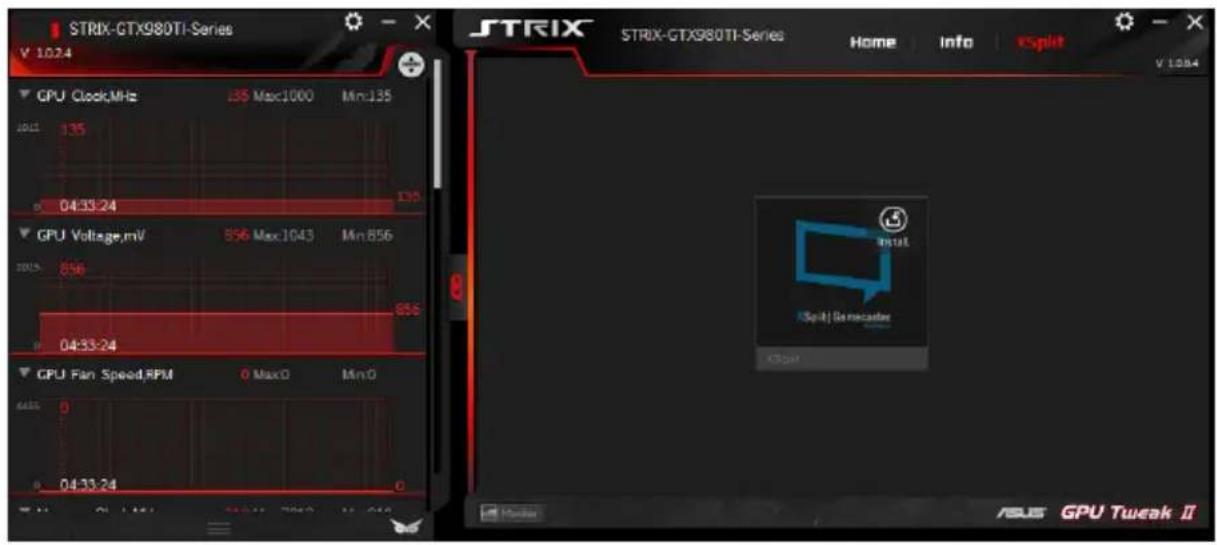

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

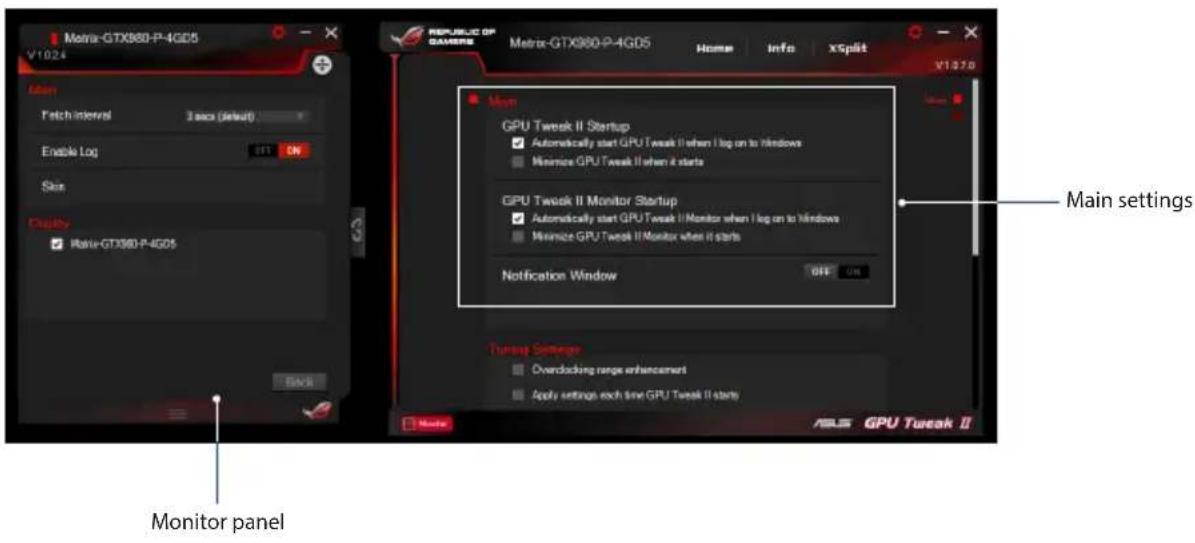

Main

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
• Minimize GPU Tweak II or its Monitor panel once launched.
• Turn the notification window on/off.

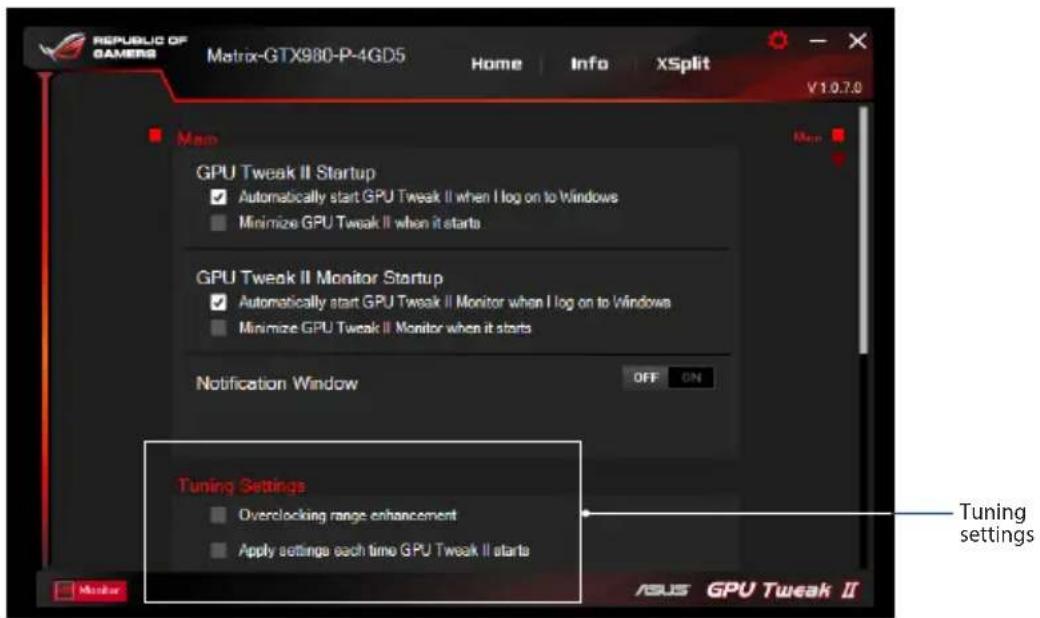

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
• Apply the settings on GPU Tweak startup.

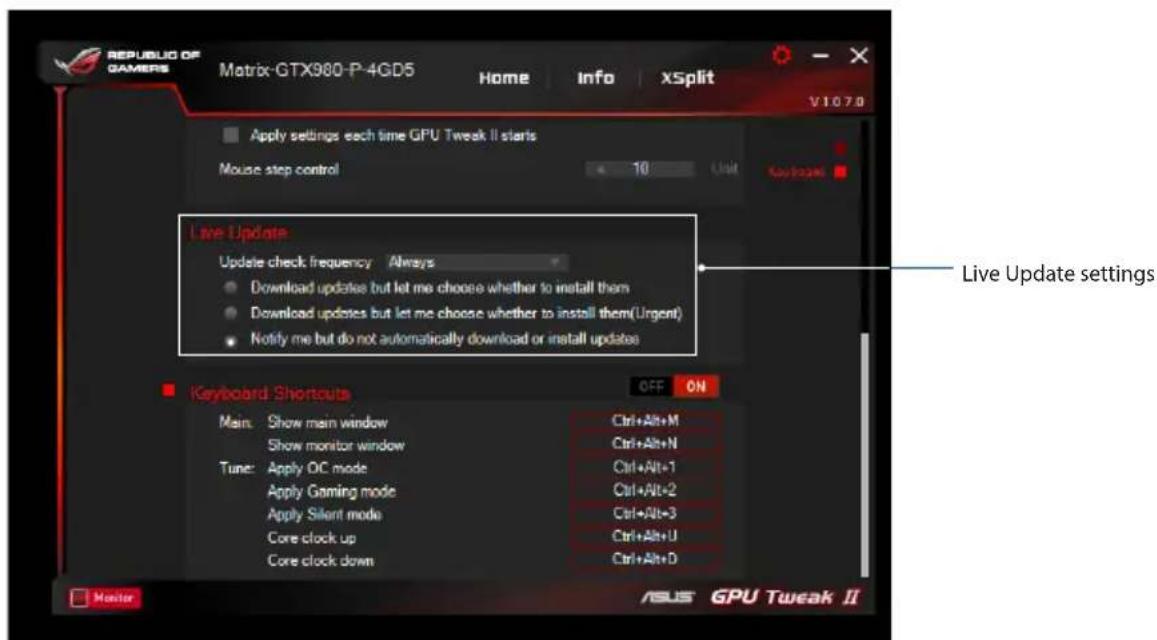

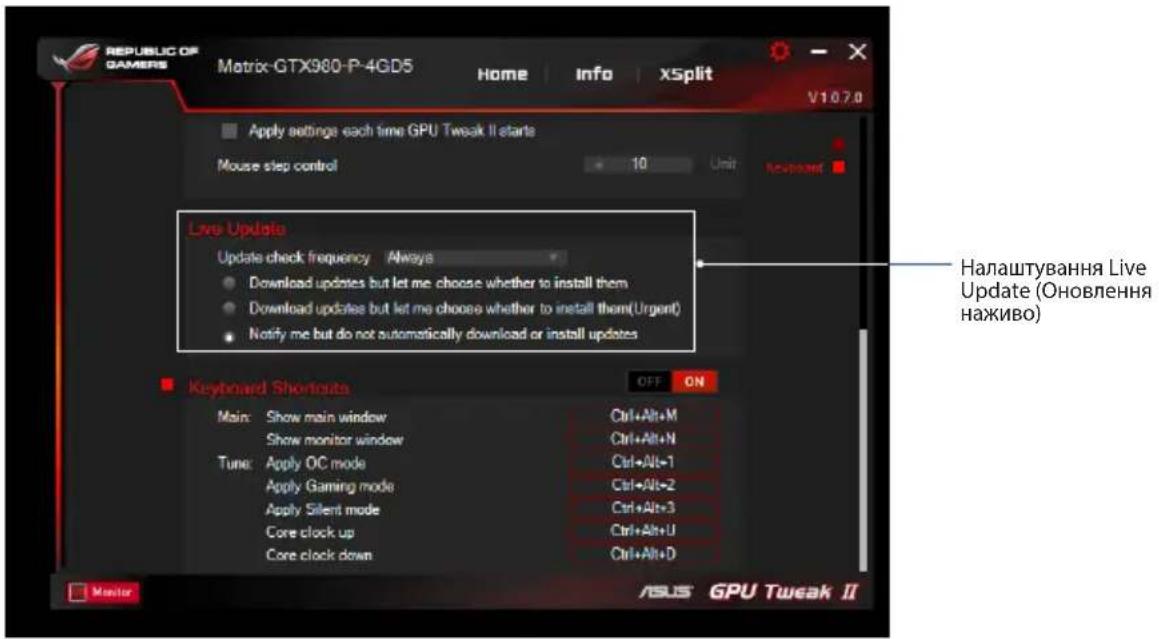

Live Update

Receive notifications on the latest VBOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.

• Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

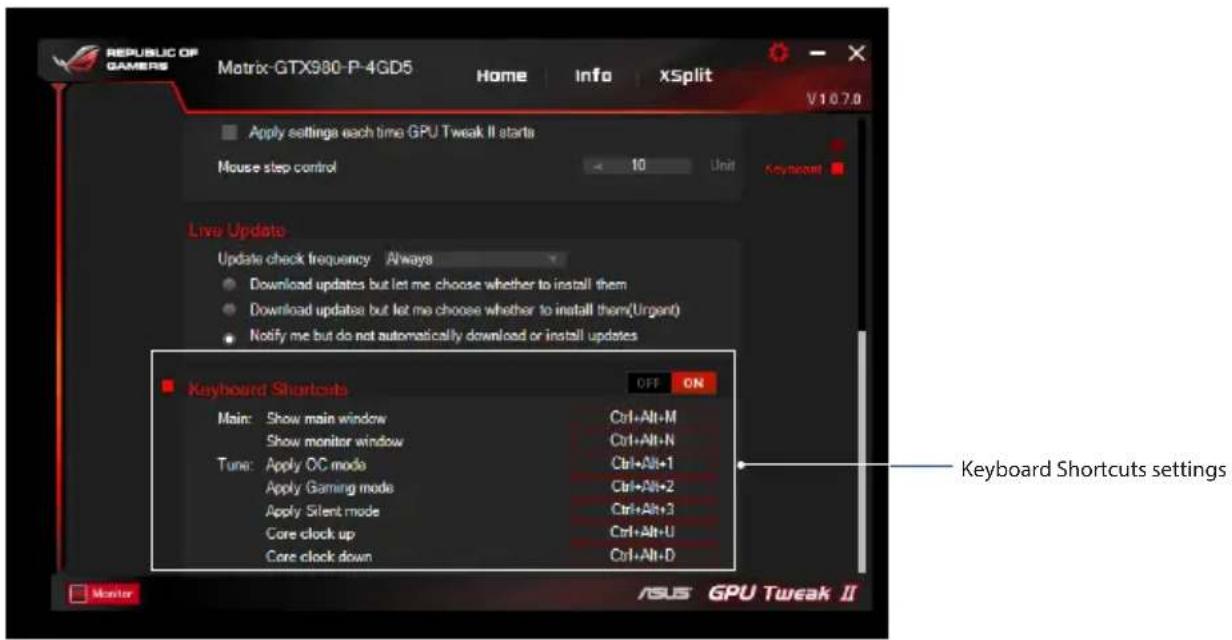

Keyboard Shortcuts

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.

了解GPU Tweak II

Gaming Mode (Tryb Gier)

My Profile (Moj profil)

Wymagania systemowe

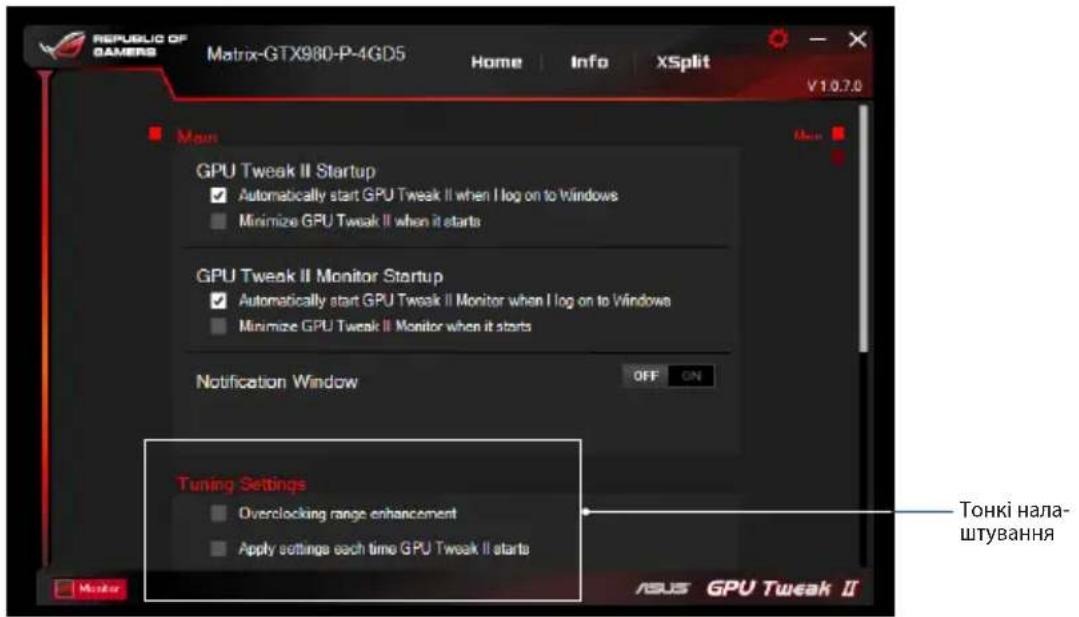

Y Tuning Settings (ToHki HanaStyBaHHa) MoXHa Bn6paTn 6yIb-3x Oni3acTocyBaHHa GPU Tweak II:

36inbwnTn diaanaoh npnckopeHHraOHHHka.
3actocyBaTN HalauByaHHn iD vac 3anycky GPU Tweak.

OHOBHeHHHaXnBO

OtpmybTu cnoiueHn npo hnhovisi VBios i OHOBneHn IpaBepa Bi Live Update (OHOBneHn Haxbo).KohphiIpyBaTu i Bn6paTu nacTynni onuii Live Update (OHOBneHn Haxbo);

BCTaHObUTn Update check frequency (Yactota nepeBipKn OHOBneHb) Ha YACTOTy, 3 RaKOIO Bn 6aXaTe OTpIMyBaTn Live Update (OHOBHeHHaXnBO).
Bn6epitb 6ydb-ky3 onui Live Update (OHOBneHHaHxNBO), 0o6:

3aBAHTaxNTn OHOBneHn, ane Do3BOUNt MeHi Bn6bnpaTn, nn HCTanIOBaTn ix: NocTaBte zu onuio Ha aBTOMaTnue He 3aBAHTaxKeHHn OHOBneHn i npabo BnpiSyBaTn, nn IHCTanIOBaTn ix BpyHy.
3aBaHTaXNTu BaxnBi OHOBHeH,ane Do3BOUNTu MeHi Bu6npaTu, uHCTaIIOBaTuix: TocTaTe IIO ONiIO Ha aBTOMaTnUHe 3aBaHTaXeHHKpTNuHo BaxnBuX OHOBHeb i Do3BIn BuPiSyBaTu, uHCTaJIIOBaTu ix BpyHy.
CnoBiuataHmehi,ane He 3aBaHTaxyBaTuH He IHCTaIIOBAtu OHOBJeHHA BTOMaTHUHO:IOCTaBTe IIOOniIO Ha OTPMaHHa IIOe CNOiueHb i IO3BIn BnpiuYBaTu, H3aBaHTaxyBaTu Ta IHCTaIIOBAtu OHOBHeHH BpyHy.

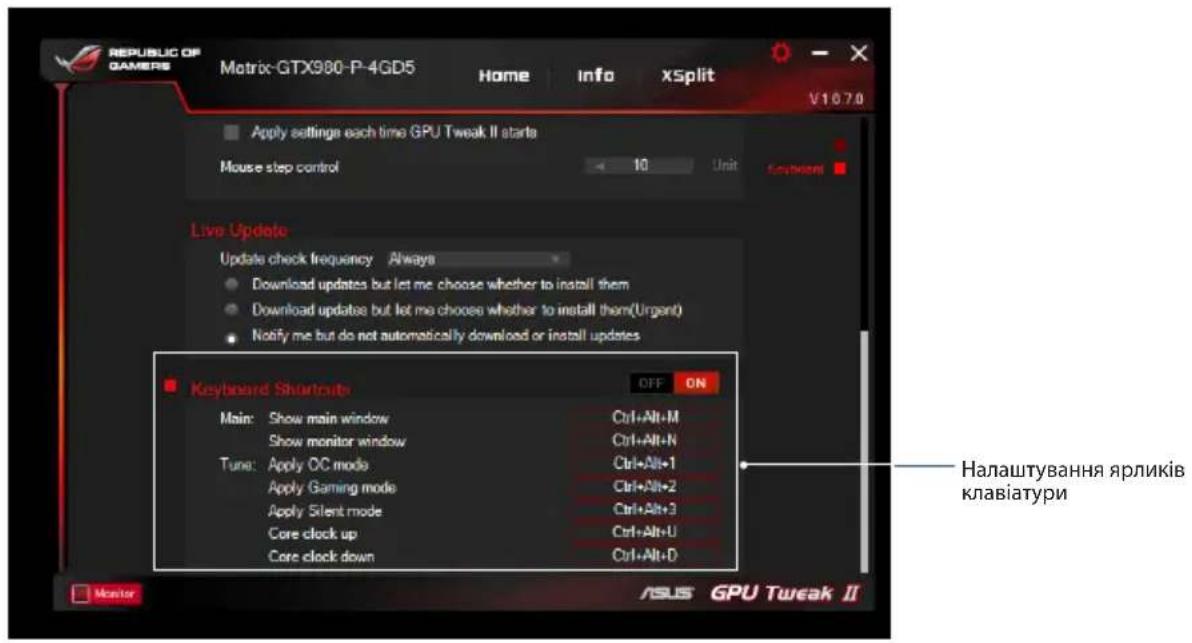

Ярпкkn knabiatypn

YbIMKHyTN/BmMKHyTN RaPnKn KnaBiaTypn, 06 WbNko Noka3yBtAn rOJOBHn eKpaH i WbNko BHOCTN neBHi KOpeKTnBn.
