Product type	Graphics card
Brand	ASUS
Model	Dual GeForce RTX 2060 Mini OC
Architecture	Turing
Video memory	6 GB GDDR6
Memory interface	192-bit
Bus interface	PCI Express 3.0 x16
Base frequency	1365 MHz
Boost frequency (OC)	1710 MHz
Number of CUDA cores	1920
Power connectors	1 x 8-pin
Recommended PSU	500 W
Video outputs	2 x HDMI 2.0, 2 x DisplayPort 1.4
Dimensions (L x W x H)	197 mm x 120 mm x 38 mm
Weight	Approx. 500 g
Cooling	Dual Axial-tech fans
DirectX	12
OpenGL	4.6
Warranty	3 years (depending on region)
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use liquid. Carefully dust the fans.
Safety	Disconnect power before any intervention. Use a power supply compatible with the required wattage.
Spare parts and repairability	Contact ASUS support for any parts. Repair by a certified professional recommended.
General information	Compact graphics card ideal for Mini-ITX builds. Supports Ray Tracing and DLSS.

Frequently Asked Questions - Dual GeForce RTX 2060 Mini OC ASUS

What are the requirements to install the ASUS Dual RTX 2060 Mini OC graphics card?

Make sure you have a free PCI Express x16 slot, a power supply of at least 500W with an 8-pin connector, and a case with clearance of 197 mm in length.

How to install drivers for this graphics card?

Download the latest drivers from the NVIDIA or ASUS website. Run the installer and restart your PC after installation.

Does this graphics card support Ray Tracing?

Yes, the RTX 2060 includes dedicated RT cores for real-time ray tracing in compatible games.

Can I use this card in a Mini-ITX case?

Yes, its compact dimensions (197 mm) make it suitable for most Mini-ITX cases, but check the available space.

What power supply is recommended for this card?

ASUS recommends a minimum 500 W power supply with an 8-pin connector for stable operation.

How to clean the card's fans?

Use a dry cloth or compressed air to remove dust. Avoid any liquid products.

What is the maximum operating temperature?

The target temperature is about 83°C under load. If it exceeds, check case ventilation and clean the fans.

Can I pair two RTX 2060 cards in SLI?

No, the RTX 2060 does not support SLI. Use a single card for optimal performance.

Does this card have RGB LEDs?

No, the ASUS Dual RTX 2060 Mini OC does not have RGB lighting. It remains sober and discreet.

What to do if the screen remains black after installation?

Check that the 8-pin power connector is properly connected, that the card is correctly inserted, and that your monitor is connected to the graphics card (not the motherboard).

USER MANUAL Dual GeForce RTX 2060 Mini OC ASUS

ASUS GPU Tweak II User Manual

Q10790

First Edition

August 2015

Contents

English....3

繁體中文 14

简体中文 25

Français 36

日本語 47

Italiano 58

Русский....69

Čeština....80

Nederlands 91

Ελληνικά.... 102

Português.... 113

Polski....124

Español.... 135

Українська.... 146

Deutsch....157

Knowing GPU Tweak II

ASUS GPU Tweak II utility allows you to monitor and tweak the settings of your ASUS graphics card for optimal performance. It has two user interfaces, the Simple Mode and Professional Mode, that allow you to quickly monitor your preset and customized profiles, boost the GPU settings for your game-changing enjoyment, or do some advanced tweaking on the GPU settings for optimal performance.

ASUS GPU Tweak II includes these ASUS-exclusive preset power-saving and gaming profiles:

OC Mode

Silent Mode

Gaming Mode

My Profile

System requirements

• AMD 7000 Series GPU or higher
• NVIDIA 600 Series GPU or higher
• 32-/64-bit Microsoft® Windows® 10 / 8 / 8.1 / 7

Installing GPU Tweak II

1. Ensure that you have installed the ASUS graphics card and its driver. Refer to the ASUS graphics card user manual for details on installing its driver.
2. Locate the ASUS GPU TweakII driver folder and double-click the setup.exe file to start the installation.
3. Follow the onscreen instructions to finish the installation.

Launching GPU Tweak II

• Double-click the GPU Tweak icon on the desktop.
- Click Start > All Programs > ASUS > GPU Tweak II to launch the program.

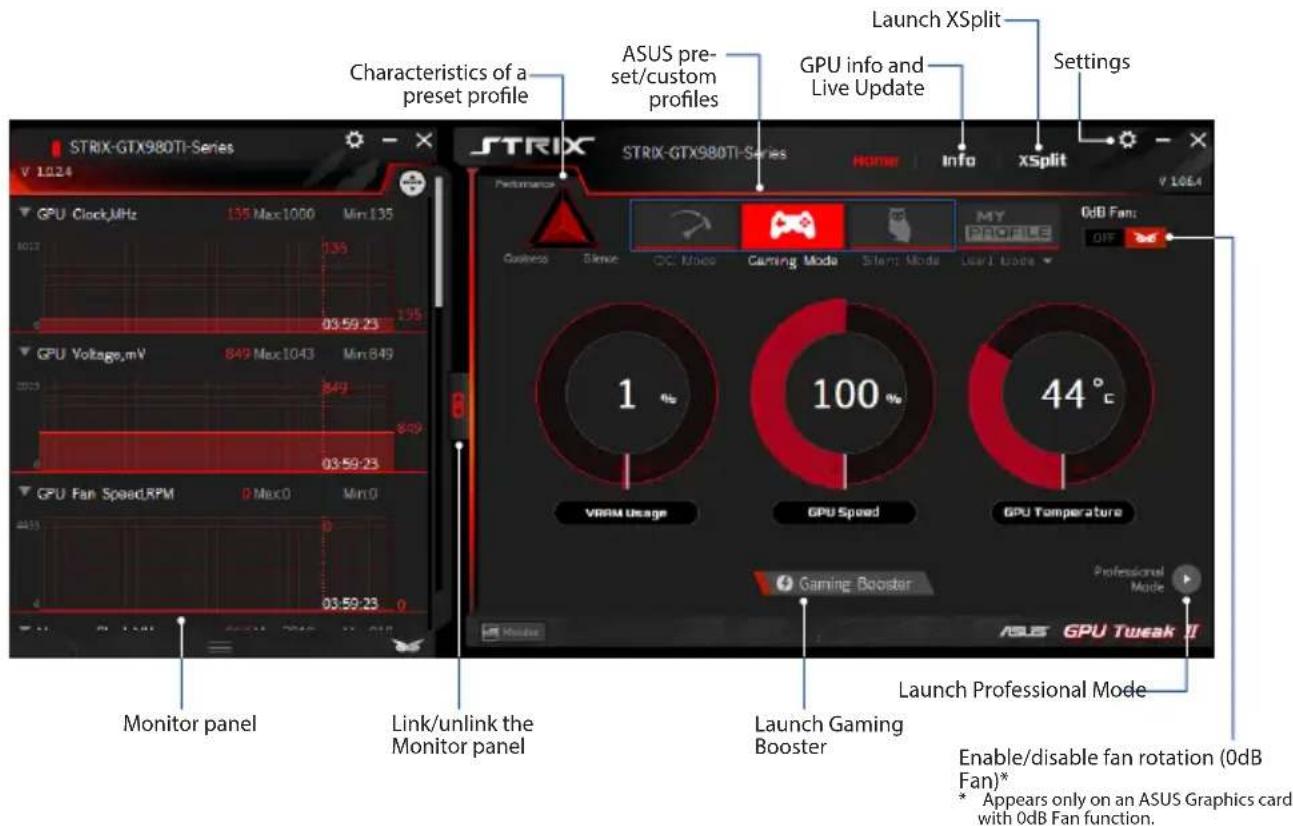

Simple Mode

Simple Mode provides you with a quick way to monitor your GPU settings in real-time, and tweak some system settings via Gaming Booster for your game-changing enjoyment.

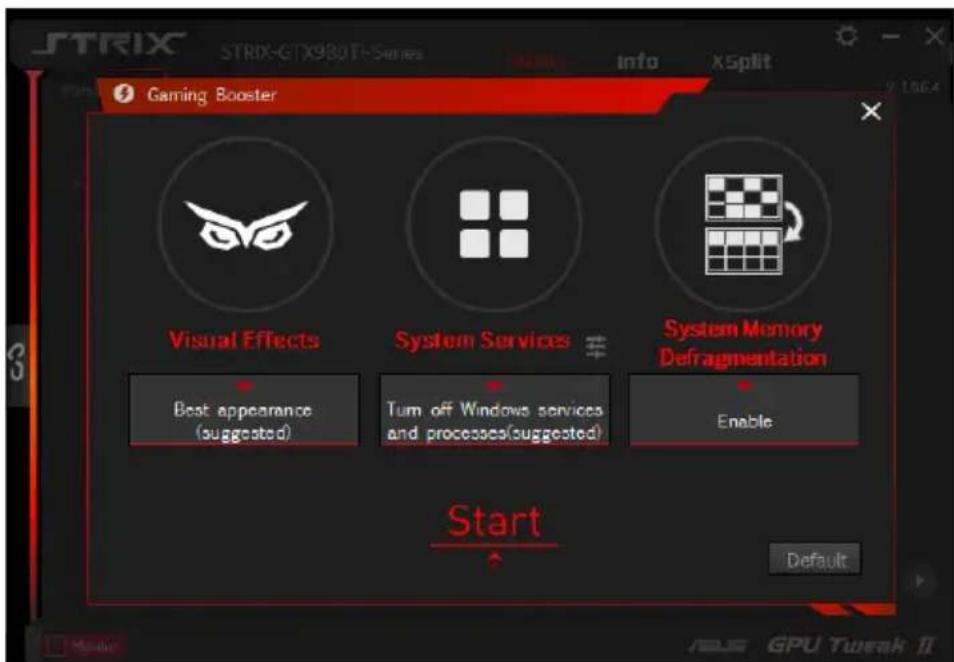

Gaming Booster

Get that game-changing performance edge with Gaming Booster, which helps optimize your system for a seamless and faster game play in your computer games.

Gaming Booster offers you these three (3) functions:

• Visual Effects: Lets you turn off the Windows® visual effects to intensify the processor performance.
• System Services: Lets you to automatically or manually turn off Windows® services or processes.

- System Services setting: Lets you to manually choose the services or processes that you want to stop.

- System Memory defragmentation: Lets you rearrange and clean your system memory without closing any processes.

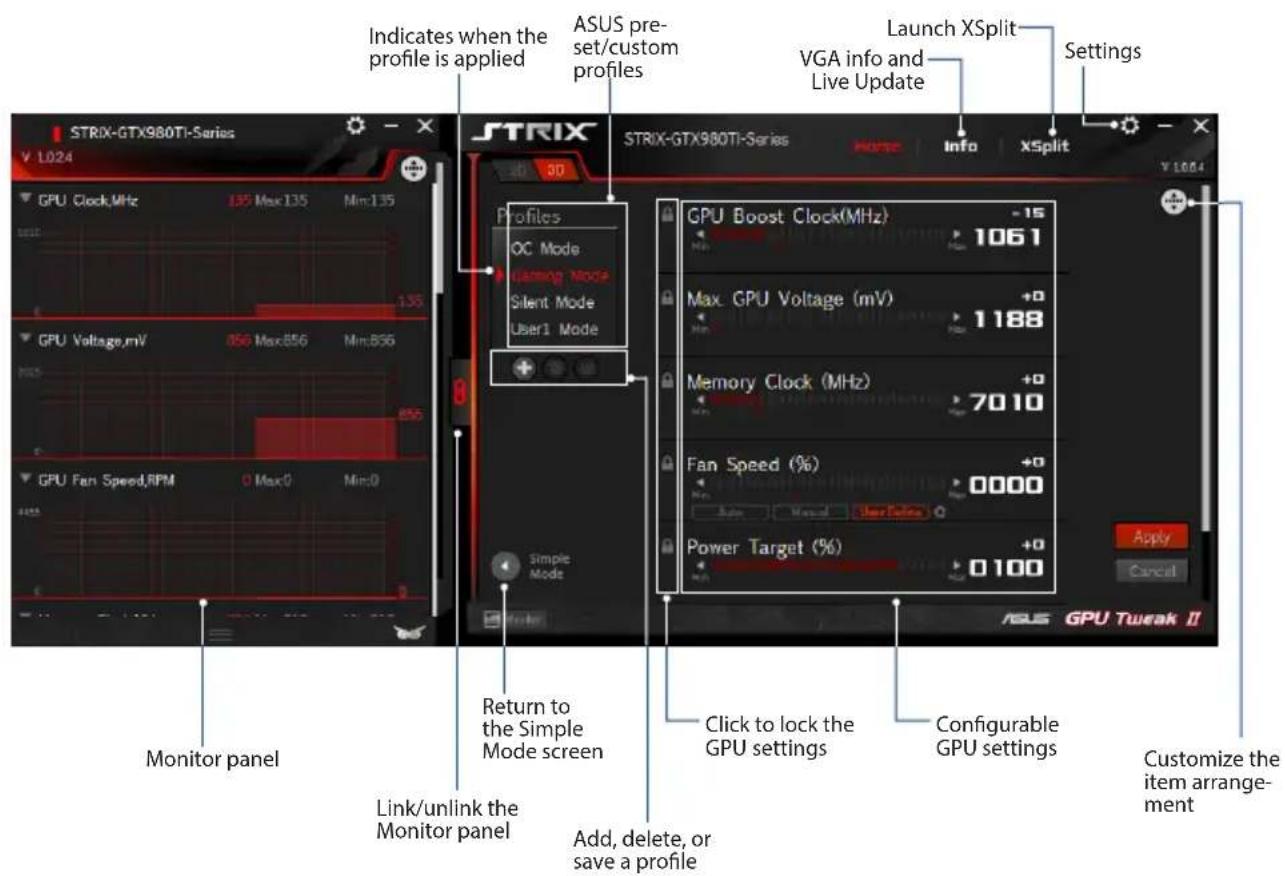

Professional Mode

Configure the GPU settings like a pro, and get the optimal performance from your ASUS Graphics card.

Configuring a profile

1. Select the profile that you want to configure.
2. Select the GPU setting, then key in your preferred value.
3. When done, click Apply

Adding a profile

1. Click + then assign the profile name.
2. Set your preferred values.
3. When done, click to save the profile.

Applying a profile

- Select the profile, then click to apply the profile.

Deleting a profile

- Select the profile, then click 📄 to delete the profile.

Getting the VGA info and Live Update

The Info screen provides you with information and live updates about your ASUS VGA card.

NOTE: Ensure that your computer is connected to the Internet to get the Live Update.

Launching XSplit

Install and launch XSplit Gamecaster from GPU Tweak II.

Using the Settings screen

The Settings screen allows you to configure the GPU Tweak II settings such as Main, Tuning Settings, Live Update, and Keyboard Shortcuts.

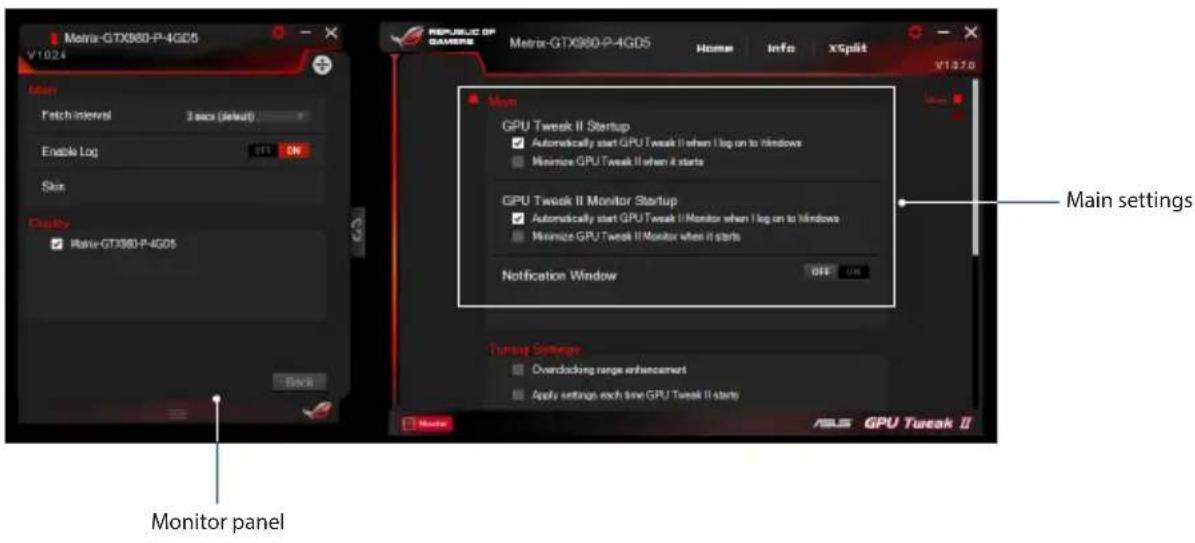

Main

From the Main settings, you can select any of these options on launching GPU Tweak II:

• Automatically launch GPU Tweak II or its Monitor panel on Windows® startup.
- Minimize GPU Tweak II or its Monitor panel once launched.
- Turn the notification window on/off.

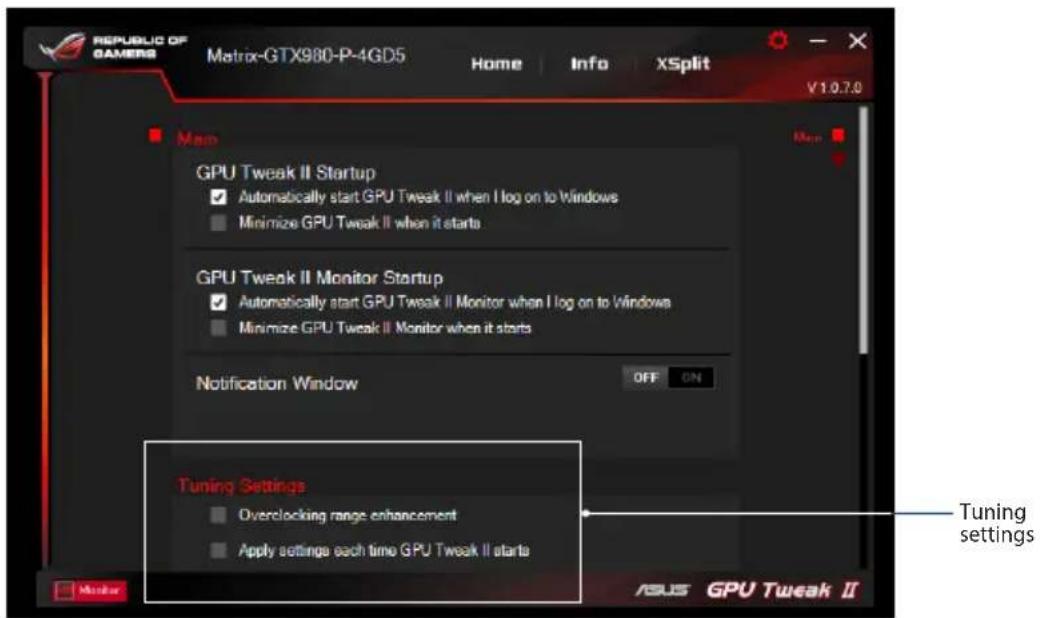

Tuning Settings

From the Tuning Settings, you can select any of these options on applying the GPU Tweak II settings:

• Enhance the overclocking range.
- Apply the settings on GPU Tweak startup.

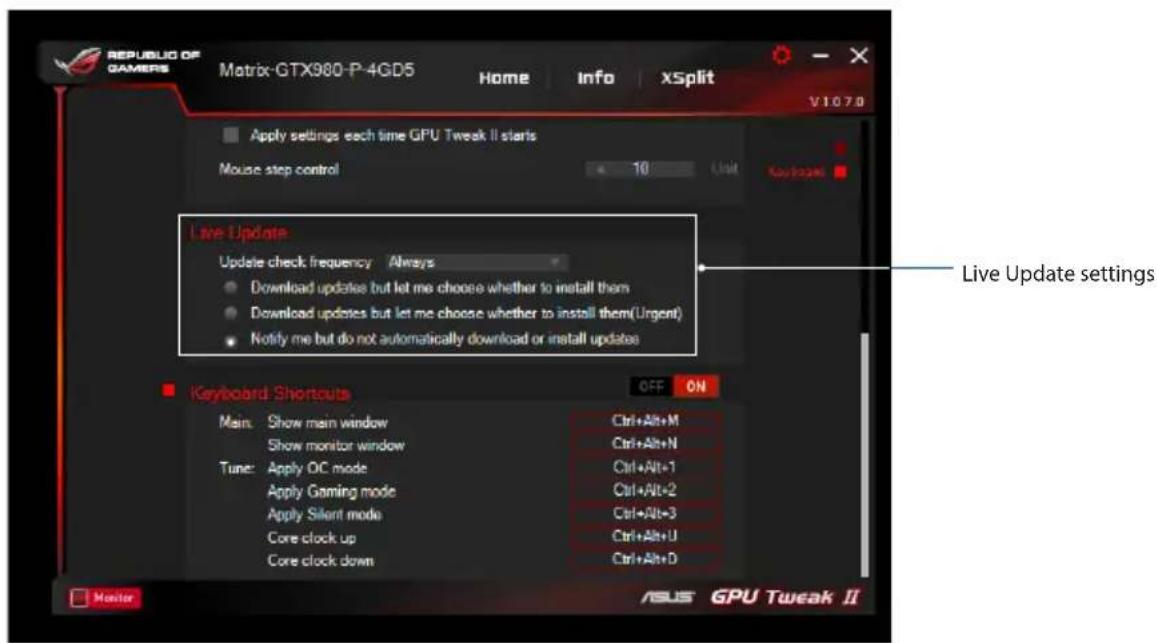

Live Update

Receive notifications on the latest VBIOS and driver updates from Live Update. Configure and select the following Live Update options:

• Set the Update check frequency as to when you want to receive the Live Update.
  • Select any of the Live Update options:

• Download updates but let me choose whether to install them: Select this option to automatically download updates, and decide whether to manually install them.

• Download important updates but let me choose whether to install them: Select this option to automatically download critical updates, and decide whether to manually install them.
• Notify me but do not automatically download or install updates: Select this option to receive notifications only, and decide whether to manually download and install the updates.

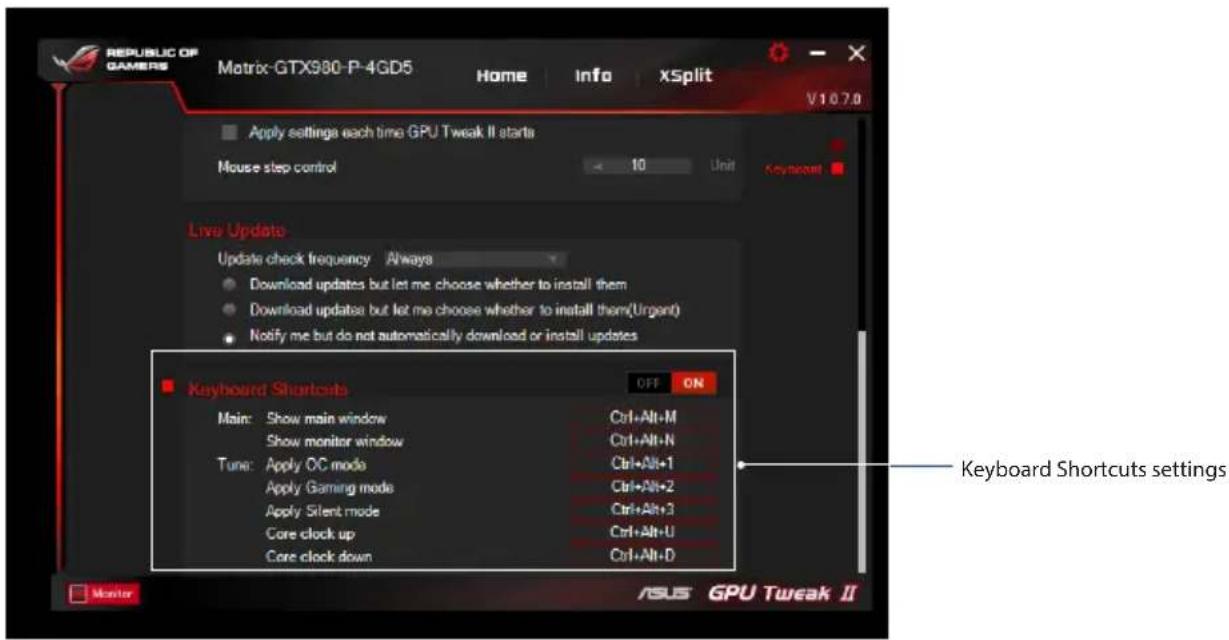

Keyboard Shortcuts

Turn on/off the Keyboard Shortcuts to quickly show the main screen or apply some quick adjustments.
