Product Type	Gaming Graphics Card
Brand	ASUS
Model	ROG Strix GeForce RTX 2080 Ti OC 11G
GPU	NVIDIA GeForce RTX 2080 Ti
Video Memory	11 GB GDDR6
Memory Interface	352-bit
Base Frequency	1350 MHz
Boost Frequency (OC Mode)	Up to 1665 MHz
Video Outputs	2x DisplayPort 1.4, 2x HDMI 2.0b, 1x USB Type-C (VirtualLink)
Power Connectors	2x 8-pin PCIe
Recommended PSU	650 W
Dimensions (L x W x H)	297 x 130 x 54 mm
Weight	Approximately 1.3 kg
Slot Occupancy	2.7 slots
Supported Technologies	Ray Tracing, DLSS, G-SYNC, VR Ready, Aura Sync RGB
Included Software	ASUS GPU Tweak II, XSplit Gamecaster, ASUS AURA
Maintenance and Cleaning	Disconnect power before cleaning. Use a soft dry cloth to remove dust. Avoid moisture and solvents.
Safety	Disconnect the power cable before installation or removal. Do not open the card's casing. Use on a stable surface.
Spare Parts and Repairability	No user-replaceable parts. For repairs, contact an ASUS authorized technician.
General Information	Limited warranty according to country. Check ASUS website for details. User manual available in multiple languages at notice-facile.com.

Frequently Asked Questions - ROG Strix GeForce RTX 2080 Ti OC 11G ASUS

How to install the ASUS ROG Strix RTX 2080 Ti graphics card?

Turn off the computer and unplug the power cable. Insert the card into the PCIe x16 slot, secure it, and connect the auxiliary power connectors 2x 8-pin. Reconnect power and turn on. Install drivers from the included CD or NVIDIA website.

What drivers are needed for this card?

The NVIDIA GeForce graphics driver is required. It is provided on the support CD or downloadable from NVIDIA website. Make sure to uninstall previous drivers before installation.

How to overclock the card with ASUS GPU Tweak?

Launch ASUS GPU Tweak II from the Start menu. You can adjust GPU and memory frequencies, voltage, and fan speeds. Use OC mode for automatic overclocking. Monitor temperatures.

How to customize the RGB lighting on the card?

Install ASUS AURA software from the support CD. Open AURA and select the graphics card. You can choose lighting effects, colors, and synchronize with other Aura Sync devices.

What power supply is recommended for the RTX 2080 Ti?

ASUS recommends a power supply of at least 650 W with two 8-pin PCIe connectors. Ensure your power supply can provide enough current on the +12V rail.

What to do if the screen stays black after installation?

Check that the card is properly inserted into the PCIe slot and the power connectors are plugged in. Check the monitor cable. Try restarting in safe mode and uninstall previous graphics drivers.

How to uninstall the drivers and ASUS software?

Go to Control Panel > Programs and Features. Select the NVIDIA driver or ASUS software (GPU Tweak, AURA, etc.) and click Uninstall. Reboot the computer after.

Does the card support Ray Tracing?

Yes, the GeForce RTX 2080 Ti is equipped with dedicated RT cores for real-time Ray Tracing, compatible with games and applications using DirectX Raytracing (DXR).

What display modes are supported?

The card supports resolutions up to 7680x4320 (8K) via DisplayPort. It is compatible with G-SYNC, HDR, and HDMI 2.0b outputs for 4K at 60 Hz.

How to clean the graphics card?

Disconnect power. Use a soft dry cloth or compressed air to remove dust from fans and heatsink. Do not use liquids or alcohol.

USER MANUAL ROG Strix GeForce RTX 2080 Ti OC 11G ASUS

Drivers and Utilities

Installation Guide

E15279

Revised Edition V6

March 2019

Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved.

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. ("ASUS").

Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Contents

Notices....5

Safety information....6

About this guide 7

1. Support CD information 8
2. VGA drivers 9

2.1 Installing the VGA drivers 9

2.2 Uninstalling the VGA drivers....10

1. ASUS GPU Tweak utility....11

3.1 Installing ASUS GPU Tweak....11

3.2 Uninstalling ASUS GPU Tweak 12

1. ASUS APRP 13

4.1 Installing ASUS APRP 13

4.2 Uninstalling ASUS APRP....14

1. XSplit Gamecaster 15

5.1 Installing XSplit Gamecaster....15

5.2 Uninstalling XSplit Gamecaster 16

1. ASUS AURA 17

6.1 Installing ASUS AURA 17

6.2 Uninstalling ASUS AURA 18

1. Other information.... 19

7.1 Browse the Support CD 19

7.2 Contact Information....19

7.3 Viewing the Readme file 20

Appendix: Basic troubleshooting 21

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference
• This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Safety information

Electrical safety

• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing devices on your motherboard, carefully read all the manuals that came with the package.
• Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and extreme temperature. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Information that you MUST follow to complete a task.

NOTE: Useful tips and additional information for completing a task.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS Websites

The ASUS websites worldwide (https://www.asus.com/) provide updated information on ASUS hardware and software products. The ASUS websites are listed in the ASUS Contact Information on the inside front cover of this installation guide.

2. Optional Documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

1. Support CD information

The support CD contains the drivers and utilities for your VGA card. Click the icons on the support CD's main menu to install software, obtain ASUS contact information, browse CD contents, or view the Readme file.

• The screens in this manual are for reference only and may not exactly match what you see on your screen.
• The device driver and utility in the support CD apply only to specific ASUS VGA card models.
• You may need administrator rights to install the drivers and utilities. See your Windows® 10 / 8.1 / 8 / 7 documentation for details.
• The contents of the support CD are subject to change at any time without notice. Visit the ASUS website at www.asus.com for updates.

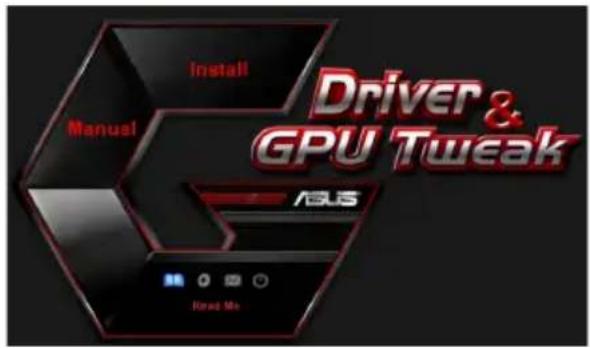

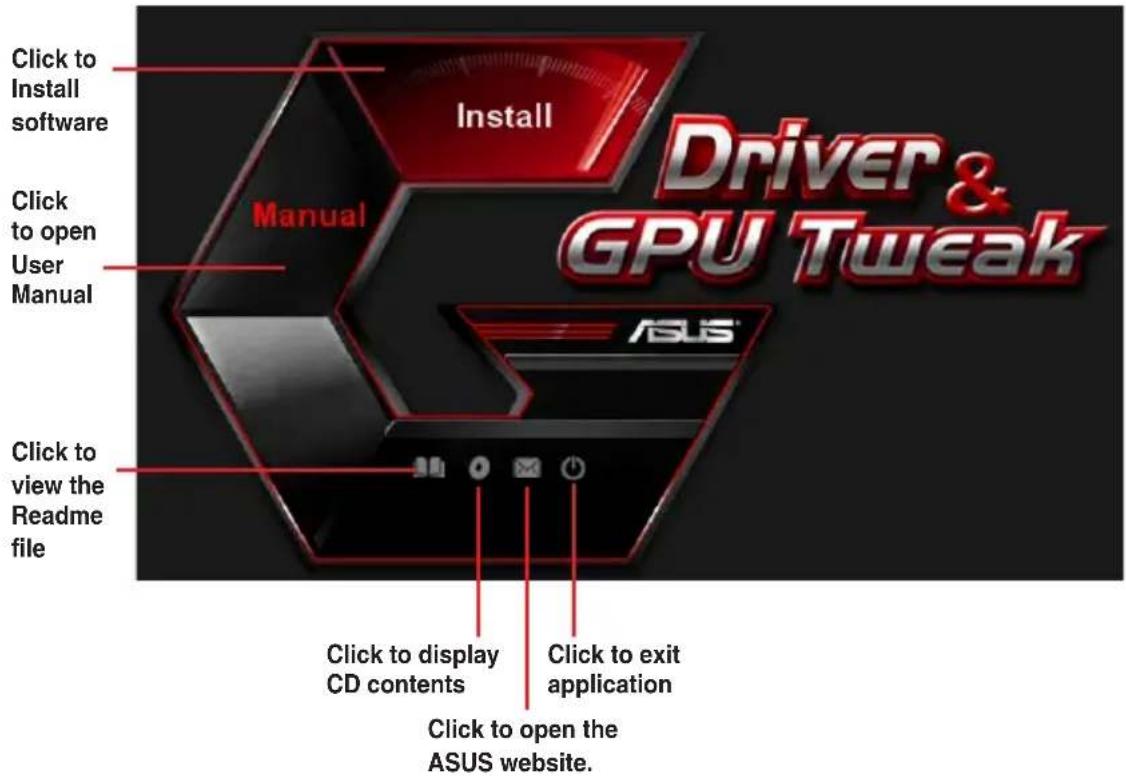

Insert the CD into your computer's optical drive. If Autorun is enabled, the Main Menu launches automatically.

If Autorun is NOT enabled on your computer, browse the contents of the support CD to locate the file UI.exe. Double-click the UI.exe to run the support CD installation program.

2. VGA drivers

The VGA driver is the software program that makes the device work with your operating system. After physically installing your graphics card, use any of the recommended methods in this section to install, update, or remove the VGA driver.

If you are replacing an old graphics card with a new ASUS graphics card, uninstall the old display driver from your system.

2.1 Installing the VGA drivers

2.1.1 Installing the VGA drivers in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install the VGA driver in Windows 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. From the main menu, click Install.
4. Select Display Driver and click the Install button.

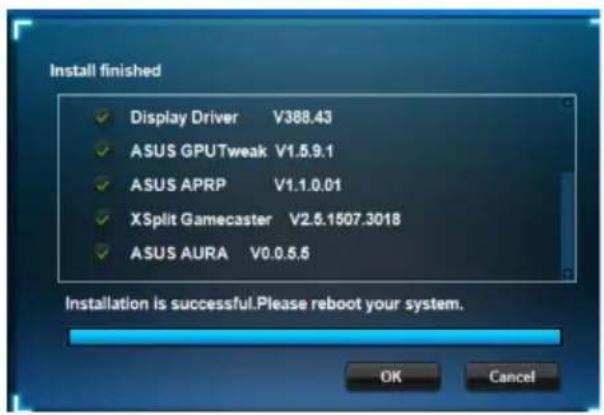

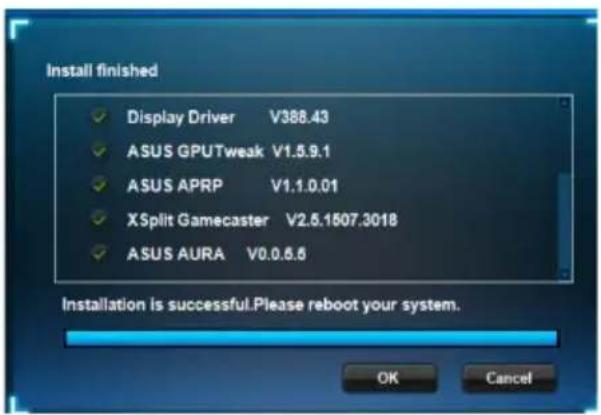

1. Once installation is complete, click OK to reboot the system.

2.2 Uninstalling the VGA drivers

2.2.1 Uninstalling the VGA drivers in Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove the VGA drivers in Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features, select Graphics driver. Click Uninstall.

3. ASUS GPU Tweak utility

ASUS GPU Tweak utility allows you to monitor and optimize the settings of your ASUS Graphics card.

3.1 Installing ASUS GPU Tweak

3.1.1 Installing ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install. Select ASUS GPU Tweak and click the Install button.

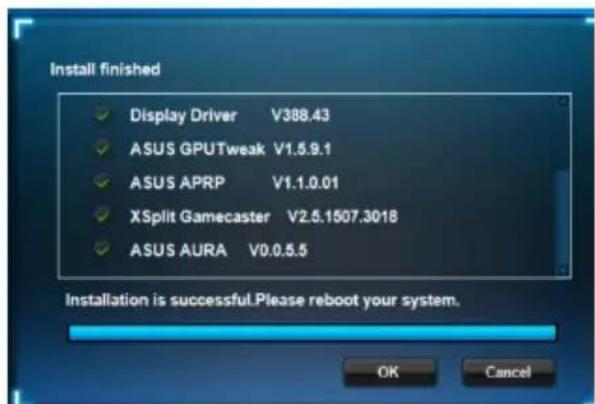

1. Once installation is complete, click OK.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit):

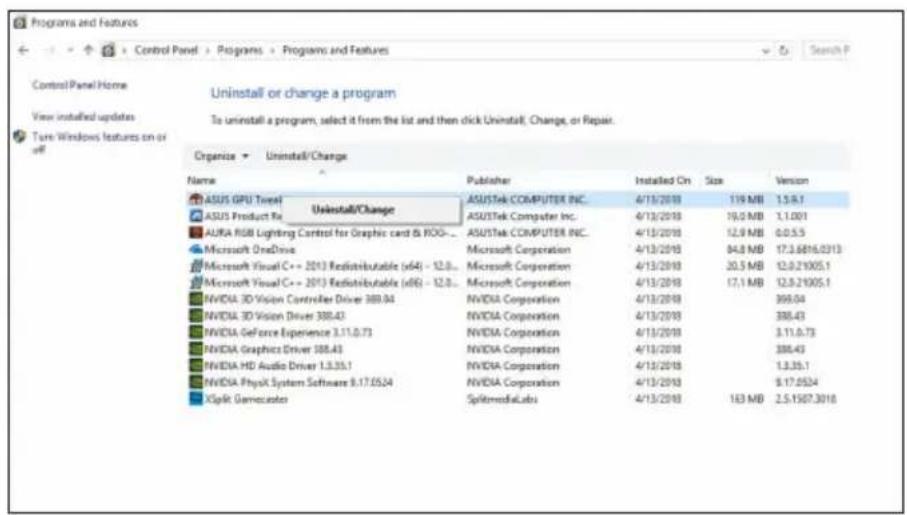

- Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install. Select ASUS APRP and click the Install button.

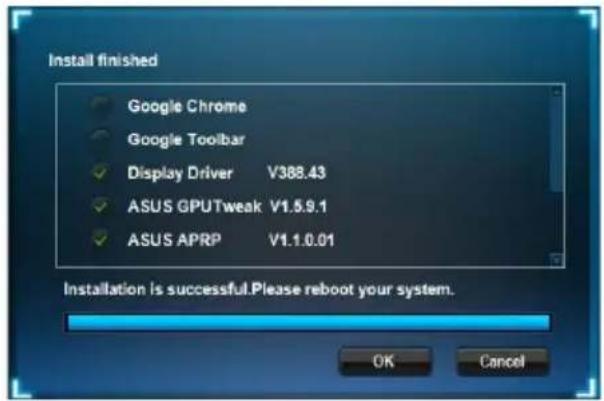

1. Once installation is complete, click OK.

4.2 Uninstalling ASUS APRP

4.2.1 Removing ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. XSplit Gamecaster

5.1 Installing XSplit Gamecaster

5.1.1 Installing XSplit Gamecaster in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install. Select XSplit Gamecaster and click the Install button.

1. Once installation is complete, click OK.

5.2 Uninstalling XSplit Gamecaster

5.2.1 Removing XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit):

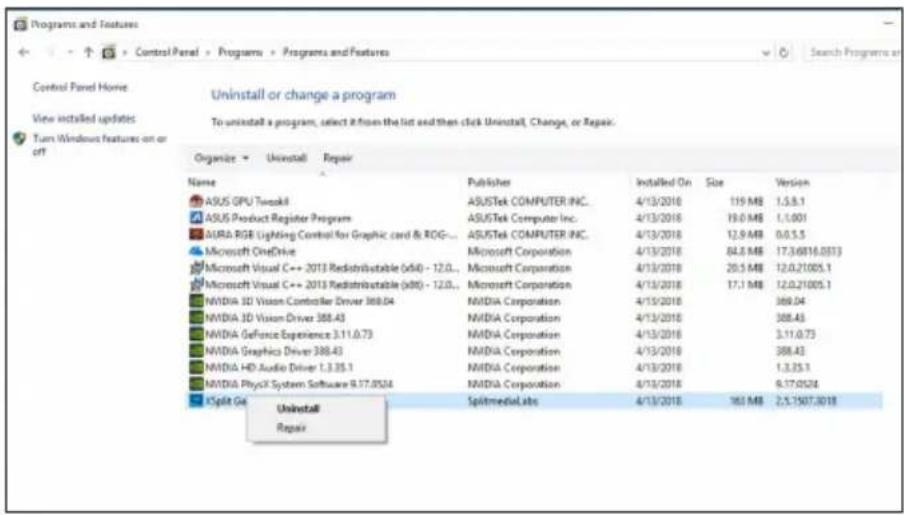

- Click Start > Control Panel > Programs > Programs and Features, select XSplit Gamecaster. Click Uninstall.

6. ASUS AURA

6.1 Installing ASUS AURA

6.1.1 Installing ASUS AURA in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS AURA in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Install. Select ASUS AURA and click the Install button.

1. Once installation is complete, click OK.

6.2 Uninstalling ASUS AURA

6.2.1 Removing ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit):

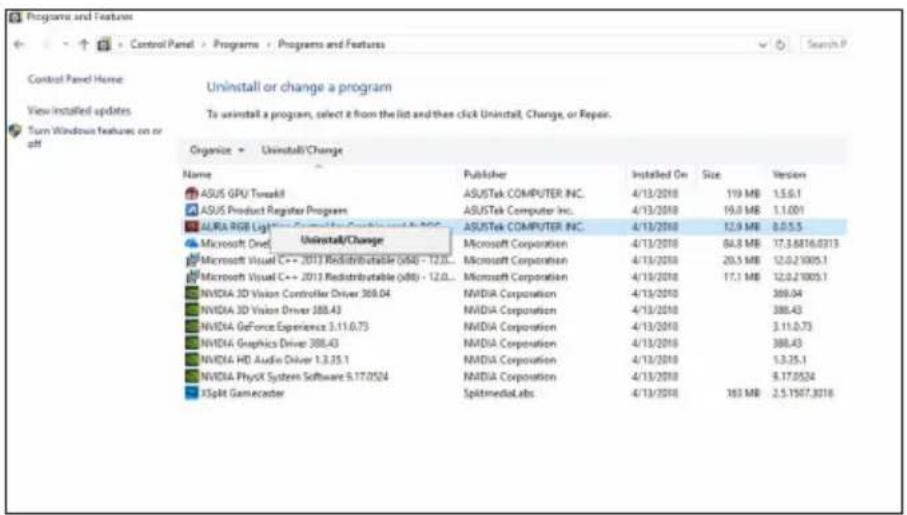

- Click Start > Control Panel > Programs > Programs and Features, select ASUS AURA. Click Uninstall.

7. Other information

7.1 Browse the Support CD

To browse the support CD:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

1. From the main menu, click Browse CD to view the contents of the CD.

7.2 Contact Information

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.
3. From the main menu, click Contact Us to open the ASUS website for additional information.

7.3 Viewing the Readme file

To view the Readme file:

1. Insert the support CD into your optical drive.
2. If Autorun is enabled, the main menu appears automatically. If Autorun is disabled, run UI.exe from the root directory of your support CD.

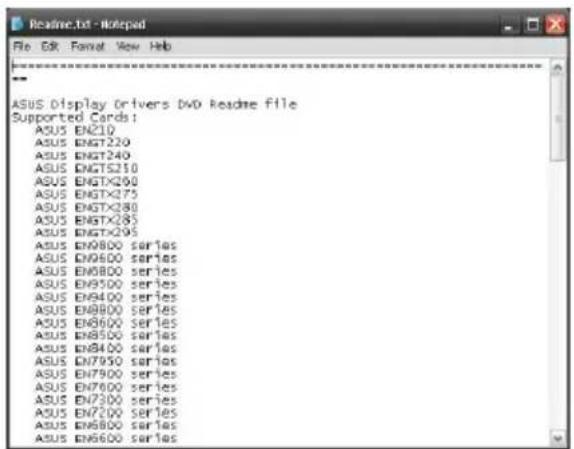

1. From the main menu, click Read Me to display the Readme text file.

Appendix: Basic troubleshooting

If you encounter any of the following scenarios after installing your graphics card, try performing one of the possible solutions before calling for technical support.

If you still have some issues with the product, please visit https://www.asus.com/support for more information.

Problem No display after the card is installed

Cause Your card might not be properly installed.

Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your monitor might not be properly connected.

Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Cause Your graphics card is not supported by your motherboard.

Solution Check the technical documentation that came with your motherboard and check the required specifications for your graphics card (e.g. AGP voltage requirement).

Cause The graphics card's auxiliary power is not connected.

Solution Make sure that the auxiliary power cables are properly connected with the power supply unit.

Cause Insufficient power supply.

Solution Make sure that your power supply unit can provide the minimum power requirement to your system.

Cause Incorrect motherboard hardware system settings (e.g. system control panel connections).

Solutions • Make sure that the system control panel cables are connected properly (e.g. power switch, reset).

Problem Wrong color balance

Cause Your card might not be properly installed.

Solution Make sure that the card is not tilted or skewed on the slot.

Cause Your video controls might not be properly set.

Solution • Manually configure your video controls to your desired settings.

Cause There may be unsupported graphics card drivers installed in your system. Conflicts may occur with graphics card drivers from different vendors.

Solution • Remove any unused graphics card drivers installed on your system.

Cause The graphics card's auxiliary power is not connected.

Solution Make sure that the auxiliary power cables are properly connected to the power supply unit.

Cause If your monitor comes with BNC connectors, the port connections may be incorrect.

Solution Make sure that all BNC connectors are connected properly to its corresponding port.

Cause Your monitor software settings might be incorrect.

Solution Configure your monitor to supported display settings.

Cause Your monitor might not be properly connected.

Solution Make sure that the signal cable is properly connected to your monitor and graphics card.

Problem The screen image is garbled

Cause Your monitor cannot support the selected display setting.

Solution Make sure that your monitor can support your desired display setting. Refer to the technical documentation that came with your monitor.

Cause Your graphics card cannot support the desired system setting.

Solution Make sure that your graphics card can support your desired display setting. See the specifications table that came with this graphics card package.

Cause Some graphics driver files might be corrupt.

Solution Remove your current graphics drivers and reinstall the graphics drivers from the support CD.

Cause Poor heat dissipation inside the chassis.

Solution Make sure that the chassis fan, CPU, and heatsink with fan, and/or the graphics card GPU fan are working properly.

Cause GPU or VGA memory overclocked beyond optimal working conditions.

Solutions Restore default frequency settings of GPU and VGA memory.

Other problems that you might encounter can be related to other parts or accessories (e.g., motherboard, power supply unit, LCD/CRT) of your system.

ASUS®

Graphics Card

Drivers and Utilities

Installation Guide

T15279

Sixth Edition

March 2019

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference - This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

ASUS REACH

2.2 Removing the VGA driver

3.2 Removing ASUS GPU Tweak

1. After installation is complete, click OK.

4.2 Removing ASUS APRP

1. After installation is complete, click OK.

5.2 Removing XSplit Gamecaster

1. After installation is complete, click OK.

6.2 Removing ASUS AURA

Appendix: Troubleshooting

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference - This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. - Increase the distance between the equipment and receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Canadian Department of Communication Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

ASUS REACH

2.2 Uninstalling the VGA driver

1. Click [OK] after installation is complete.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Uninstalling ASUS GPU Tweak in Windows 10/8.1/8/7 (64-bit) Follow the steps below to uninstall ASUS GPU Tweak in Windows 10/8.1/8/7 (64-bit):

1. Click [OK] after installation is complete.

4.2 Uninstalling ASUS APRP

4.2.1 Uninstalling ASUS APRP in Windows 10/8.1/8/7 (64-bit) Follow the steps below to uninstall ASUS APRP in Windows 10/8.1/8/7 (64-bit):

1. Click [OK] after installation is complete.

5.2 Uninstalling XSplit Gamecaster

5.2.1 Uninstalling XSplit Gamecaster in Windows 10/8.1/8/7 (64-bit) Follow the steps below to uninstall XSplit Gamecaster in Windows 10/8.1/8/7 (64-bit):

1. Click [OK] after installation is complete.

6.2 Uninstalling ASUS AURA

6.2.1 Uninstalling ASUS AURA in Windows 10/8.1/8/7 (64-bit) Follow the steps below to uninstall ASUS AURA in Windows 10/8.1/8/7 (64-bit):

Appendix: Troubleshooting

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Uninstalling ASUS GPU Tweak under Windows® 10 / 8.1 / 8 / 7 (64-bit versions)

4.2 Uninstalling ASUS APRP

4.2.1 Uninstalling ASUS APRP under Windows® 10 / 8.1 / 8 / 7 (64-bit versions)

5.2 Uninstalling XSplit Gamecaster

5.2.1 Uninstalling XSplit Gamecaster under Windows® 10 / 8.1 / 8 / 7 (64-bit versions)

6.2 Uninstalling ASUS AURA

6.2.1 Uninstalling ASUS AURA under Windows® 10 / 8.1 / 8 / 7 (64-bit versions)

Explanation of the Canadian Department of Communications

3.2 Uninstalling ASUS GPU Tweak

4.2 Uninstalling ASUS APRP

5.2 Uninstalling XSplit Gamecaster

6.2 Uninstalling ASUS AURA

FCC (Federal Communications Commission) Statement

To uninstall the VGA drivers in Windows® 10 / 8.1 / 8 / 7 (64-bit):

Copyright © 2019 ASUSTeK Computer Inc. All Rights Reserved.

1. XSplit Gamecaster....214

5.1 Installing XSplit Gamecaster 214

Appendix: Basic Troubleshooting

1. XSplit Gamecaster....236

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit)

5.2 Uninstalling XSplit Gamecaster

5.2.1 Removing XSplit Gamecaster in Windows® 10 / 8.1 / 8 / 7 (64-bit)

1. XSplit Gamecaster....258

5.1 Installing XSplit Gamecaster....258

5.2 Uninstalling XSplit Gamecaster....259

1. ASUS AURA 260

6.1 Installing ASUS AURA 260

6.2 Uninstalling ASUS AURA....261

2.2 Uninstalling the VGA driver

2.2.1 Removing on Windows® 10 / 8.1 / 8 / 7 (64-bit):

To remove the VGA driver on Windows® 10 / 8.1 / 8 / 7 (64-bit):

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS GPU Tweak on Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features. Select ASUS GPU Tweak. Click Uninstall.

4.2 Uninstalling ASUS APRP

4.2.1 Removing ASUS APRP on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS APRP on Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features. Select ASUS APRP. Click Uninstall.

5. XSplit Gamecaster

5.1 Installing XSplit Gamecaster

5.1.1 Installing XSplit Gamecaster on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install XSplit Gamecaster on Windows® 10 / 8.1 / 8 / 7 (64-bit):

5.2 Uninstalling XSplit Gamecaster

5.2.1 Removing XSplit Gamecaster on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove XSplit Gamecaster on Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features. Select XSplit Gamecaster. Click Uninstall.

6. ASUS AURA

6.1 Installing ASUS AURA

6.1.1 Installing ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit):

6.2 Uninstalling ASUS AURA

6.2.1 Removing ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features. Select ASUS AURA. Click Uninstall.

1. XSplit Gamecaster....280

5.1 Installing XSplit Gamecaster....280

5.2 Uninstalling XSplit Gamecaster 281

1. ASUS AURA 282

6.1 Installing ASUS AURA 282

6.2 Uninstalling ASUS AURA....283

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak on Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS GPU Tweak on Windows 10 / 8.1 / 8 / 7 (64-bit):

4.2 Uninstalling ASUS APRP

4.2.1 Removing ASUS APRP on Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS APRP on Windows 10 / 8.1 / 8 / 7 (64-bit):

5.2 Uninstalling XSplit Gamecaster

5.2.1 Removing XSplit Gamecaster on Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove XSplit Gamecaster on Windows 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features and select XSplit Gamecaster. Click Uninstall.

6. ASUS AURA

6.2 Uninstalling ASUS AURA

6.2.1 Uninstalling ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To uninstall ASUS AURA on Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. When the installation is complete, click OK to restart the system.

2.2 Uninstalling the VGA driver

2.2.1 Uninstalling the VGA driver on Windows 10 / 8.1 / 8 / 7 (64-bit)

To uninstall the VGA driver on Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features, select the graphics driver, and click Uninstall.

3. ASUS GPU Tweak utility

The ASUS GPU Tweak utility allows you to monitor and optimize the settings of your ASUS graphics card.

3.1 Installing ASUS GPU Tweak

3.1.1 Installing ASUS GPU Tweak on Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS GPU Tweak on Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Place the support CD into the optical drive.
2. If Autorun is enabled, the main menu will appear automatically. If Autorun is disabled, run the UI.exe file in the root directory of the support CD.
3. On the main menu, click Install.

Select ASUS GPU Tweak and click the Install button.

3.2 Uninstalling ASUS GPU Tweak

3.2.1 Removing ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS GPU Tweak in Windows® 10 / 8.1 / 8 / 7 (64-bit):

- Click Start > Control Panel > Programs > Programs and Features, select ASUS GPU Tweak. Click Uninstall.

4. ASUS APRP

4.1 Installing ASUS APRP

4.1.1 Installing ASUS APRP in Windows® 10 / 8.1 / 8 / 7 (64-bit)

To install ASUS APRP in Windows® 10 / 8.1 / 8 / 7 (64-bit):

1. Place the support CD into the optical drive.
2. If Autorun is enabled, the main menu will appear automatically. If Autorun is disabled, run the UI.exe file in the root directory of the support CD.
3. On the main menu, click Install. Select ASUS APRP and click the Install button.

4.2 Uninstalling ASUS APRP

4.2.1 Removing ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit)

To remove ASUS APRP in Windows 10 / 8.1 / 8 / 7 (64-bit):

Click Start > Control Panel > Programs > Programs and Features, select ASUS APRP. Click Uninstall.

5. XSplit Gamecaster

5.1 Installing XSplit Gamecaster

5.1.1 Installing XSplit Gamecaster in Windows 10 / 8.1 / 8 / 7 (64-bit)

To install XSplit Gamecaster in Windows 10 / 8.1 / 8 / 7 (64-bit):

1. Place the support CD into the optical drive.
2. If Autorun is enabled, the main menu will appear automatically. If Autorun is disabled, run the file Ul.exe in the root directory of the support CD.

1. On the main menu, click Install.

Select XSplit Gamecaster and click the Install button.

5.2 Uninstalling XSplit Gamecaster

5.2.1 Removing XSplit Gamecaster in Windows 10 / 8.1 / 8 / 7 (64-bit)

Removing XSplit Gamecaster in Windows 10 / 8.1 / 8 / 7 (64-bit):

Click Start > Control Panel > Programs > Programs and Features, select XSplit Gamecaster. Click Uninstall.

6. ASUS AURA

6.1 Installing ASUS AURA

6.1.1 Installing ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit)

Installing ASUS Streaming:

1. Place the support CD into the optical drive.
2. If Autorun is enabled, the main menu will appear automatically. If Autorun is disabled, run the UI.exe file in the root directory of the support CD.
3. On the main menu, click Install.

Select ASUS AURA and click the Install button.

6.2 Uninstalling ASUS AURA

6.2.1 Removing ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit)

Removing ASUS AURA in Windows 10 / 8.1 / 8 / 7 (64-bit):

Click Start > Control Panel > Programs > Programs and Features, select ASUS AURA. Click Uninstall.

7. Other information

1. After the installation is complete, click OK to restart your computer.

2.2 Removing the VGA card driver

2.2.1 Removing the VGA card driver in Windows® 10 / 8.1 / 8 / 7 (64-bit editions)

To remove the VGA card driver in Windows® 10 / 8.1 / 8 / 7 (64-bit editions):

- Click Start > Control Panel > Programs > Programs and Features, and select the graphics card driver. Click Uninstall.

3. ASUS GPU Tweak utility

1. After the installation is complete, click OK.

1. After the installation is complete, click OK.

4. After the installation is complete, click OK.

1. After the installation is complete, click OK.

6.2 Removing the ASUS AURA utility

6.2.1 Removing the ASUS AURA utility in Windows® 10 / 8.1 / 8 / 7 (64-bit editions)

To remove ASUS AURA in Windows® 10 / 8.1 / 8 / 7 (64-bit editions):

Click Start > Control Panel > Programs > Programs and Features and select "ASUS AURA". Click Uninstall.

7. Other Information

Appendix: Basic Troubleshooting
