USER MANUAL GZR320 JVC

GZ-R320A B5A-0800-00 BC mark means complies with Energy Efficiency Law.

Detailed User Guide For more details on operating thisproduct, please refer to the “DetailedUser Guide” at the following website. http://manual3.jvckenwood.com/index.html/. Mobile User Guide When you are outside, refer tothe “Mobile User Guide”.Mobile User Guide can beviewed with standard browserfor Android tablet and iPhone. http://manual3.jvckenwood.com/mobile/us/Dear CustomersThank you for purchasing this JVC product.Before use, please read the SafetyPrecautions and Cautions on p. 2 andp. 19 to ensure safe use of this product.For Future Reference:Enter the Model No. (located on the bottomof the camera) and Serial No.(located on the bottom of the camera)below.Model No.Serial No.Safety Precautions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICEPERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For AC adapter only:

Do not charge camcorder in area exposed to rain or moisture. NOTES:

The rating plate and safety caution are on the bottom and/or the back of the main unit.

The serial number plate is on the bottom of the main unit.

The rating information and safety caution of the AC adapter are on its upper and/or lower sides.

The camcorder with battery installed should not be exposed to excessive heat such as direct sunlight, fire or the like. CAUTION: A built-in lithium-ion battery is inside the unit. When discarding the unit, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly. Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to this unit and to the user. Carrying or holding this unit by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the unit. CAUTION! Connecting cables (Audio/Video, etc.) to this unit and leaving it on top of the TV is not recommended, as tripping on the cables will cause this unit to fall, resulting in damage. CAUTION: The mains plug shall remain readily operable.

Remove the mains plug immediately if the camcorder functions abnormally. 2 ENMake a backup of important recorded data JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a disc or other recording media for storage once every 3 months.

Read these instructions.

Keep these instructions.

Follow all instructions.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time. When using the AC adapter in areas other than the USA The provided AC adapter features automatic voltage selection in the AC range from 110 V to 240 V.

USING HOUSEHOLD AC PLUG ADAPTER

In case of connecting the unit’s power cord to an AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer.

Remove the AC adapter from the AC wall outlet when not in use.

Do not leave dust or metal objects adhered to the AC wall outlet or AC adapter (power/ DC plug).

Be sure to use the supplied AC adapter.

Do not use the supplied AC adapter with other devices. If this symbol is shown, it is only valid in the European Union. This product is licensed under the AVC Patent Portfolio License for the personal use of a consumer or other uses in which it does not receive remuneration to (i) encode video in compliance with the AVC standard (“AVC Video”) and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA, L.L.C. See http://www.mpegla.com EN 3Remember that this unit is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.) Trademarks

AVCHD and AVCHD logo are trademarks of Panasonic Corporation and Sony Corporation.

HDMI (High- Definition Multimedia Interface) and HDMI logo are either registered trademarks or trademarks of HDMI Licensing, LLC in the United States and/or other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

SDXC logo is a trademark of SD-3C, LLC.

Windows® and Windows Vista® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Apple, Mac, Mac OS, OS X, iMovie, iPhoto, iPhone and Safari are trademarks of Apple Inc., registered in the U.S. and other countries.

Intel and Intel Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.

Marks such as ™ and ® have been omitted in this manual.

This unit is equipped with Water proof, Dust proof, Drop proof and Freeze proof. Water proof: Equivalent to IEC Standard publication 529 IPX8 and IPX6 (30 minutes at depths up to 5 m (16.4 ft)) Dust proof: Equivalent to IEC Standard publication 529 IP5X Drop proof: This camera clears company testing compliant with "MIL-STD-810F Method; 516.5 Shock: dropping onto plywood 3cm (1-3/16") thick from a height of 1.5 m (4.9 ft)" Freeze proof: Allowable operating temperatures: −10°C to +40°C (14°F to 104°F) Note: Temperatures between −10°C and 0°C (14°F and 32°F) temporarily lower battery performance, reducing the time available for recording. Precautions for waterproof function

Malfunction due to misuse by the customer is not covered by warranty.

Before use in water, be sure to read and understand the “Detailed User Guide”.

Close the terminal cover firmly until it clicks and confirm that the red sign completely goes off.

Make sure that there is no damage to and no foreign material adhered to the packing inside the cover.

Use the camcorder in marine water and fresh water not deeper than 5 m or for not more than 30 minutes.

The waterproof cannot be guaranteed if the camcorder is subject to impact such as dropping.

Do not jump or dive into water holding the camcorder.

Do not use the camcorder in strong water flows such as in rapids or under waterfalls. The strong water pressure may impair the waterproof performance.

Do not soak the camcorder in hot springs or water of 40 °C or higher. 4 ENFogging inside the Lens Models with waterproof function are airtight. When the temperature rises during recording, condensation can occur inside the lens due to the internal humidity. During recording To prevent the temperature of this unit from rising, we recommend that you use the unit in the following ways.

Avoid frequent exposure to direct sunlight. Record under the shade or use an umbrella. Best if you could keep a wet towel cover the unit.

The use of a tripod is recommended. Long hours of recording while holding the unit in your hands will cause the temperature of the unit to rise.

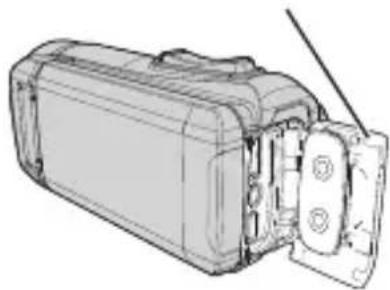

It is better to leave the terminal cover open while recording. However, the waterproof, dust-proof and shockproof features do not function in this condition. Do take note of the environment when using the camera. (Do not use a wet towel.)

Make sure to turn off the power when you are not recording. The power turns off when the LCD monitor is closed. During charging It is recommended to charge the unit in a low humidity environment. The moist air inside the unit can cause condensation. We recommend that you charge the unit in a room where humidifier is not in use, and in an air-conditioned room during summer. When fogging occurs inside the lens Open the terminal cover to reduce the temperature, close the LCD monitor and leave the camera as it is for a while.

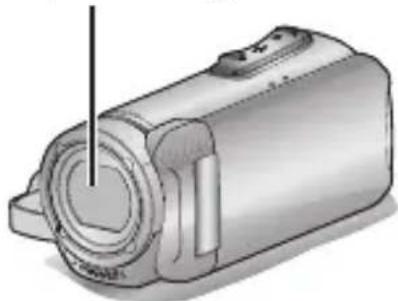

Open the terminal cover. Protecting the Lens This unit does not come with a lens cover and lens cap. However, there is a protective glass in front of the lens to protect the lens.

It is recommended to put the camera in a cloth bag when carrying it around.

If the protective glass is dirty, wipe clean using a commercially available cleaning cloth.

Open the terminal cover (SD card cover)

Please consult your JVC dealer or the nearest JVC service center when purchasing a new AV cable. EN 7Grip Belt Adjustment

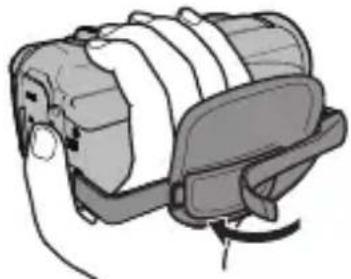

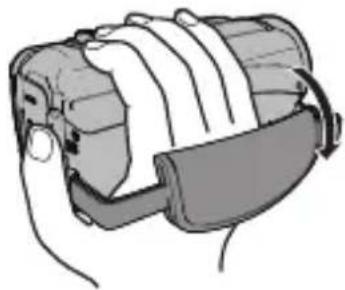

Adjust the length of the belt Attach the padPull back the pad Pad Date and Time Setting

Open the LCD monitor.

The unit turns on. When the LCD monitor is closed, the unit turns off.

Tap [OK] when [SET DATE/ TIME!] is displayed.

Set the date and time.

When the month, day, year, hour, or minute item is tapped, 3 and 2 will be displayed. Tap 3 or 2 to adjust the value.

Repeat this step to input the month, day, year, hour, and minute.

After setting the date and time, tap [SAVE].

Select the region where you live and tap [SAVE].

Time difference between the selected city and the GMT (Greenwich Mean Time) is displayed.

Tap 0 or 1 to select the city name.

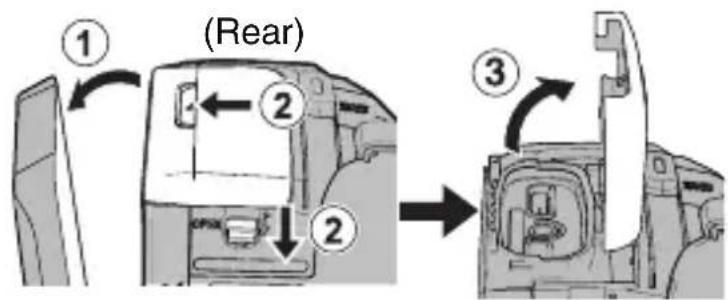

8 ENOpen the terminal cover (SD card cover)

Open the LCD monitor.

Slide down the terminal cover lock and slide the cover aside

Lift the cover slowly.

Not properly closed if the red mark is visible! Leave the LCD monitor open first.

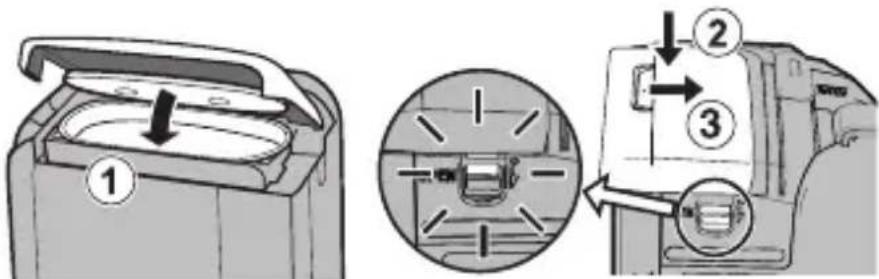

Flip down the cover slowly while making sure the gray waterproof seal fits into the opening at the terminals.

Press the entire cover against the camcorder with equal force and firmly attach the cover completely.

Slide the cover until it clicks into place. (The cover is not properly closed if the red mark at the terminal cover lock is visible.) CAUTION

Do not apply excessive force when opening or closing the terminal cover.

not open or close the terminal cover with wet or dirt/sand-covered hands.

Do not allow any dirt, lint, hair, sand, and other foreign substances to accumulate between the waterproof seal and the case.

Never damage or scratch the waterproof seal and terminal cover. Doing so can result in leaks. If the seal is damaged, contact your nearest JVC Service Center for a replacement. (Charges apply.)

Read the “Detailed User Guide” carefully before using the camcorder under water or in places exposed to water droplet. (Rear) EN 9Charging the Battery A battery is built into the camcorder.

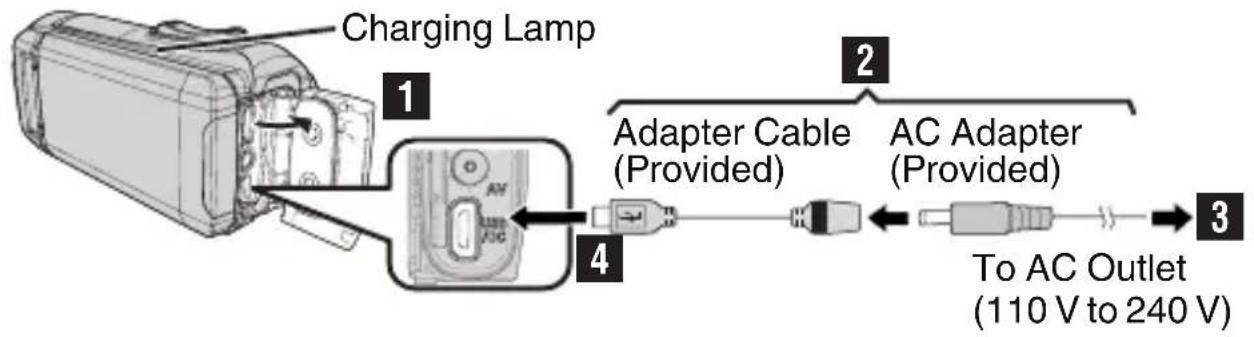

To AC Outlet (110 V to 240 V)AC Adapter(Provided)Adapter Cable(Provided)Charging Lamp

Open the terminal cover (p. 9)

Connect adapter cable to AC adapter.

Plug in the AC adapter to AC outlet (110 V to 240 V).

Connect the other side to USB socket on the unit. CAUTION At the time of purchase or in case of the battery is not used for a long period time, the charging time will be longer than usual. The camera does not turnon if the remaining battery power is low. In this case, charge the battery formore than 40 minutes before turning on the power. Charging time: Approx. 6 h 10 m (when charging at 25°C (77°F)) The battery cannot be charged outside the room temperature range of 10°Cto 35°C (50°F to 95°F). The CHARGE lamp does not light up when the batteryis not being charged. If the temperature increases or decreases duringcharging, the CHARGE lamp will blink slowly and charging will stop. In thiscase, remove the AC adapter, press the Reset button and wait until the roomtemperature is within the above stated range before charging again. You can record or play back videos during charging. (However, the chargingtime will be longer than usual. In addition, the remaining battery power maydecrease according to conditions.) If the internal temperature rises whenusing the unit, stop the charging temporarily. (The CHARGE lamp goes off.) If malfunctions (such as overvoltage) occur, charging will stop. In this case,the CHARGE lamp blinks quickly as a notification. When the recording time becomes extremely short even when the battery isfully charged, the battery needs to be replaced. For details on replacing thebuilt-in battery (subject to a fee), consult the nearest JVC service center. For details on other charging methods, please refer to the “Detailed User Guide”. 10 ENInserting an SD Card Insert a commercially available SD card before recording.

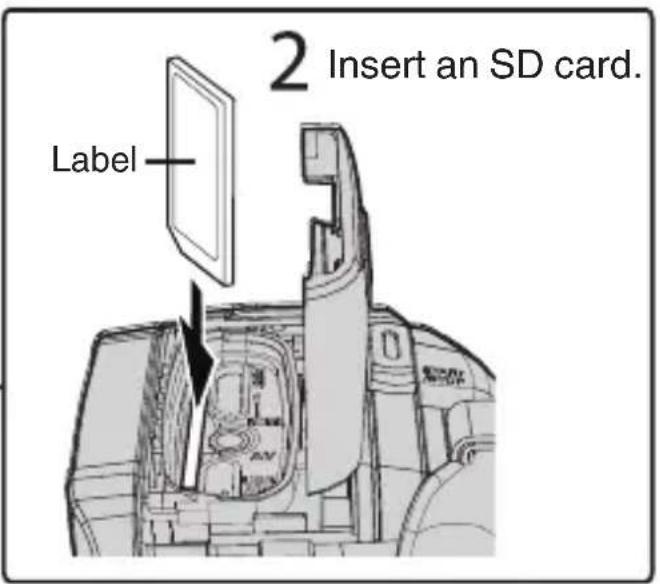

Insert an SD card. Before inserting the SD card, close the LCD monitor to turn off this unit. (Rear)Label Open the terminal cover.

To remove the SD card Push the SD card inward once, then pull it out straight. NOTE Operations are confirmed on the following SD cards. Manufacturer Panasonic, TOSHIBA, SanDisk Video A Class 4 or higher compatible SD card (2 GB)/ Class 4 or higher compatible SDHC card (4 GB to 32 GB)/ Class 4 or higher compatible SDXC card (64 GB to 128 GB)

When recording with video quality [UXP], Class 6 or higher is recommended. Still Image B SD card (256 MB to 2 GB) / SDHC card (4 GB to 32 GB) / SDXC card (64 GB to 128 GB)

Using SD cards (including SDHC/SDXC cards) other than those specified above may result in recording failure or data loss.

This unit is not guaranteed to operate with all SD cards, even when using the ones specified above. Some SD cards may not work due to specification changes, etc.

To protect the data, do not touch the terminals of the SD card.

When using an SDXC card, check its compatibility with the OS of your computer by referring to the Detailed User Guide.

Do not use a miniSD card or microSD card (even if the card is inserted in an adapter). It may cause malfunction to the camcorder. EN 11Video Recording You can record without worrying about the setting details by using the P (Intelligent Auto) mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions. Before recording an important scene, it is recommended to conduct a trial recording.

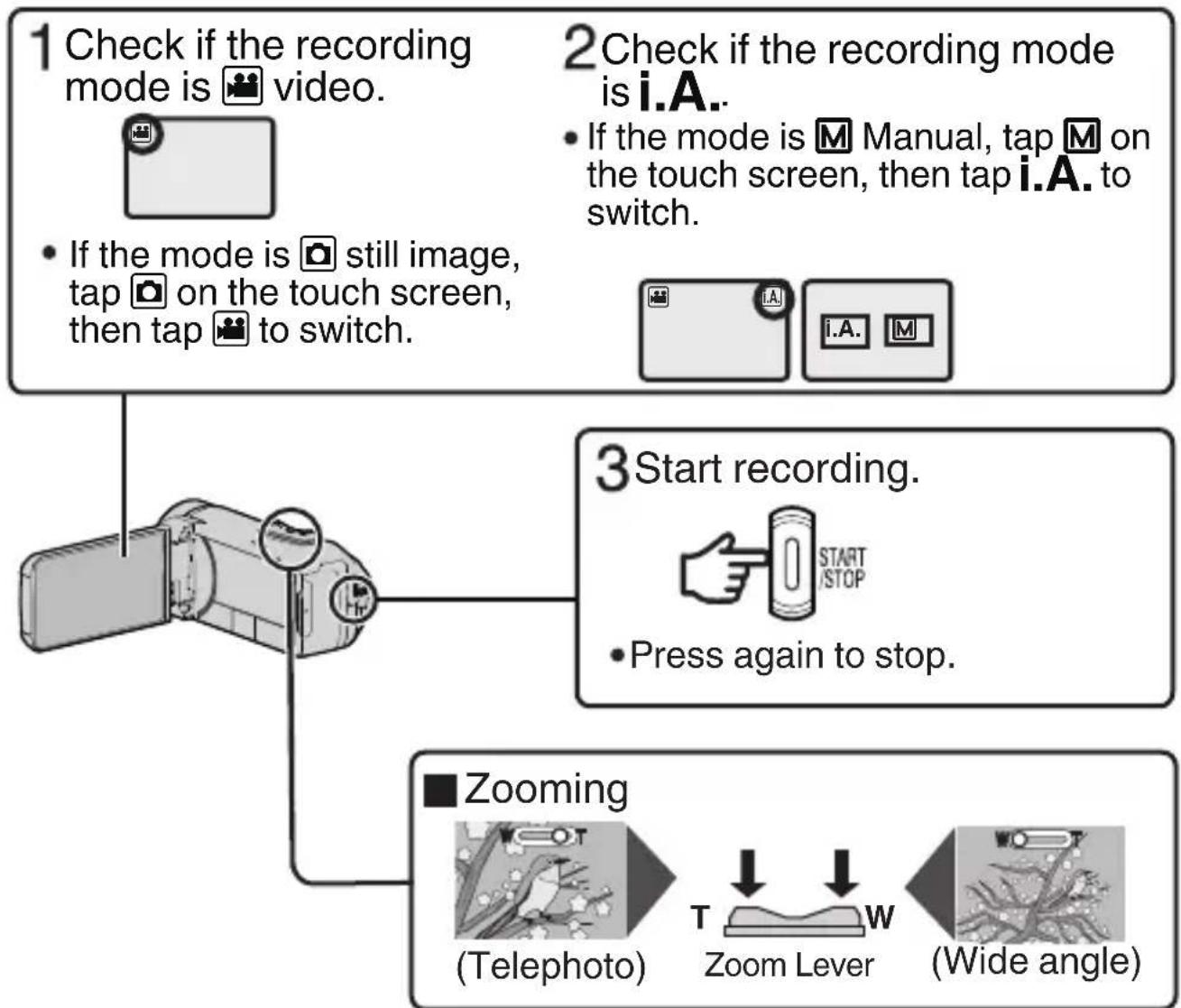

Check if the recording mode is A video. If the mode is B still image, tap B on the touch screen, then tap A to switch. Start recording. Press again to stop. Zooming (Wide angle) (Telephoto) Zoom Lever If the mode is H Manual, tap H on the touch screen, then tap P to switch. Check if the recording mode is P.

on the touch screen to record. To stop recording, tap

. In addition, you can also tap

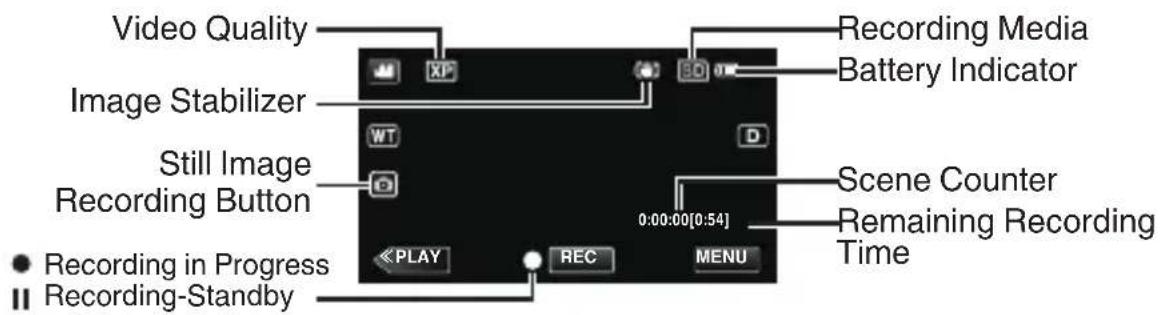

to zoom. 12 ENo Indications during video recording

MENU ≪PLAY0:00:00 [0:54] REC Recording in ProgressRecording-Standby Battery Indicator Recording Media Image Stabilizer Video Quality Remaining Recording Time Scene Counter Still Image Recording Button NOTE

The estimated recording time of the supplied battery is approximately 2 hour 50 minutes of actual recording and up to 5 hours 10 minutes of continuous recording.

Do not remove SD card when the POWER/ACCESS lamp is lighted. The recorded data may become unreadable.

With [AUTO POWER OFF] operation, the camera automatically turns off if no operation is performed for 5 minute, in order to conserve power. (The unit enters into standby mode when the AC adapter is used.)

The angle of view may change when the image stabilizer is turned on or off.

When recording underwater, the internal mechanical noise (such as zooming sound) may be easily picked up and recorded. This is not a malfunction.

Attaching the Core Filter Attach the core filter to the AV Cable as shown in the illustration. The core filter reduces interference when this unit is connected to other devices.

3 cm (1-3/16”) To be connected to this unit Release the stopper. Wind once EN 13Playing Back/Deleting Files on this Unit Select and play back the recorded videos or still images from an index screen (thumbnail display).

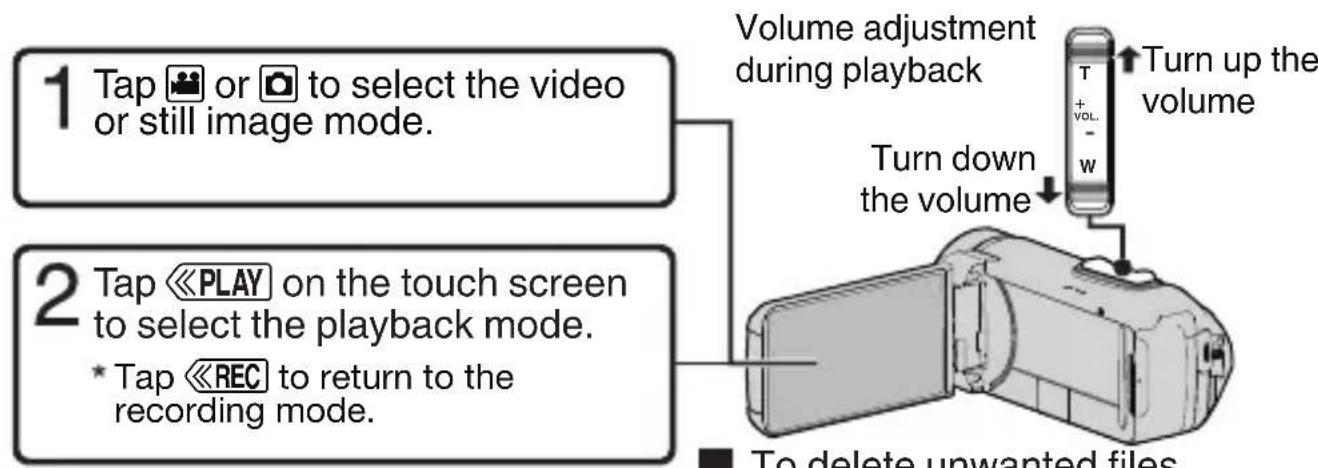

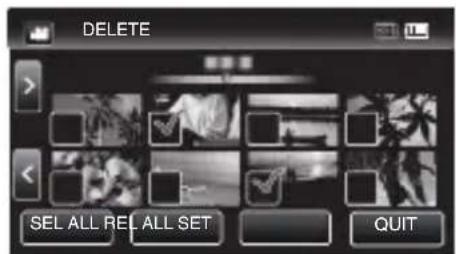

Tap on the files to delete. Ta p R. To delete unwanted files Turn up the volume Turn down the volume Volume adjustment during playback Ta p u to return to the video index screen. Tap on the file to play back. Tap “SET”. Tap E to return to the recording mode. Ta p F on the touch screen to select the playback mode. Ta p e to pause playback. Tap “OK”. Tap “EXECUTE” when the confirmation message appears. Ta p A or B to select the video or still image mode. A I mark appears on the selected file. To remove the I mark, tap again.

To capture a still image during playback

Pause the playback with e.

While this unit may be used with the LCD monitor reversed and closed, the temperature rises more easily. Leave the LCD monitor open when using this unit.

The power may turn off to protect the circuit if the temperature of this unit rises too much. 14 ENInstall Everio MediaBrowser (Windows 8/Windows 8.1) Everio MediaBrowser is included with your camera. It lets you archive and organize your videos. It also lets you create discs and upload video to YouTube, and other popular web sites.

Open the terminal cover.

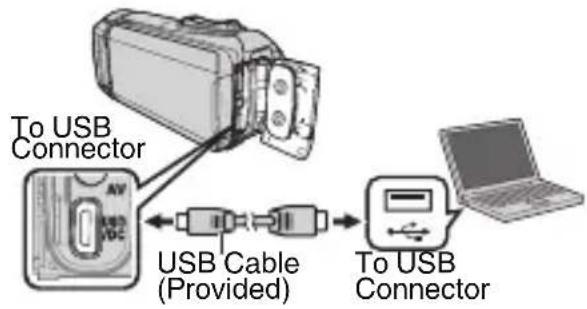

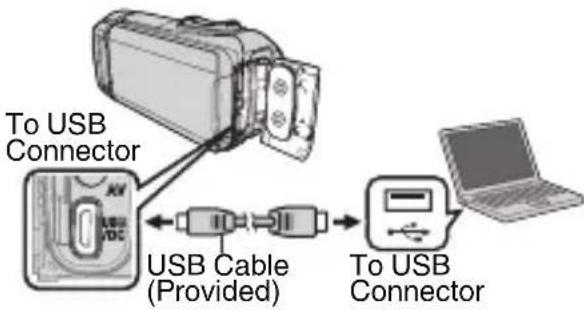

Connect the USB cable.

Before connecting the USB cable, close the LCD monitor to turn the camera off.

To USB ConnectorUSB Cable (Provided)To USB Connector

Open the LCD monitor to turn on this unit.

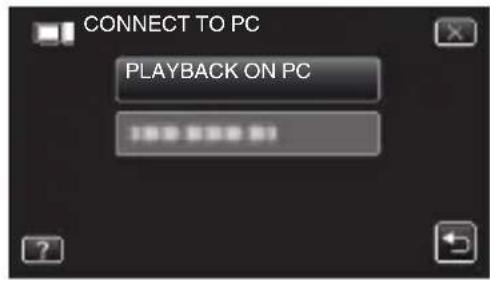

Operation on the camera's touch screen:

Operation on the computer:

Perform the following steps.

Display “Apps”. (Windows 8) Click “Search” charm. (Windows 8.1) Click F.

a “Computer” icon is shown on desktop, double-click the icon to open the “Computer” menu.

Double-click the “JVCCAM_APP” icon in the “Devices with Removable Storage” menu.

Double-click “install”.

Click "Yes" on the User Account Control screen.

“Software Setup” appears after a while.

Follow the on-screen instructions.

Installation ends and icons are created on the desktop. EN 15Install Everio MediaBrowser (Windows 7 / Windows Vista) Everio MediaBrowser is included withyour camera. It lets you archive andorganize your videos. It also lets youcreate discs and upload video toYouTube, and other popular web sites.

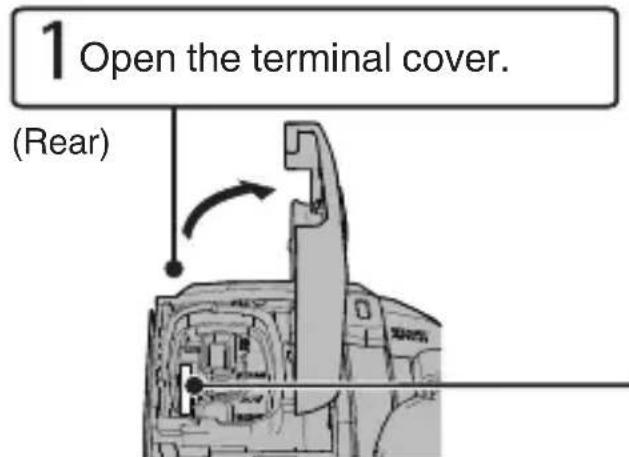

Open the terminal cover.

Connect the USB cable.

Before connecting the USB cable,close the LCD monitor to turn thecamera off.

To USB ConnectorUSB Cable (Provided)To USB Connector

Open the LCD monitor to turn on this unit.

Operation on the camera's touch screen:

Operation on the computer:

Perform the following steps.

For Windows Vista, click“Allow”. Click “Run INSTALL.EXE” in theauto play dialog box. Click “Continue” on the useraccount control screen. “Software Setup” appears aftera while. If it doesn’t appear, double-click“JVCCAM_APP” in “MyComputer” (or “Computer”),then double-click the“install.exe”.

Follow the on-screen instructions.

Installation ends and icons arecreated on the desktop. 16 ENFile Backup (Windows) Preparation: Install the Everio MediaBrowsersoftware onto the computer. Make sure that enough space is left inthe HDD of computer.

Open the terminal cover.

Connect the USB cable.

Before connecting the USB cable,close the LCD monitor to turn thecamera off.

To USB ConnectorUSB Cable (Provided)To USB Connector

Open the LCD monitor to turn on this unit.

Operation on the camera's touch screen:

Operation on the computer:

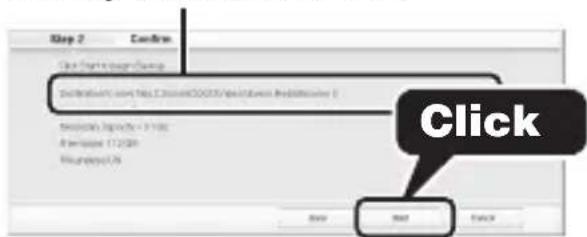

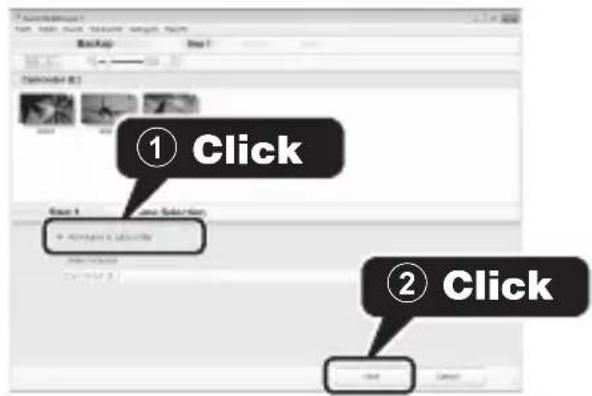

Select “All volume in camcorder”,then click “Next”.

Make sure of the saving destinationof files, then click “Start”.

Click Saving destination (PC) NOTE

File backup is only supported bythe provided software. EN 17Working with iMovie and iPhoto

You may use the software supplied with the Mac Computer to view and edit files from the camera.

Connect the camera to the Mac Computer using a USB Cable.

Files must be transferred to the Mac Computer for editing.

iMovie and iPhoto You can import files from this unit to a computer using Apple’s iMovie '11, Version 10 or iPhoto. To verify the system requirements of iMovie and iPhoto, refer to the Apple's user guides. NOTE

For the latest information on iMovie or iPhoto, refer to the Apple website.

For details on how to use iMovie or iPhoto, refer to the help file of the software.

There is no guarantee that the operations will work with all computer environments. Simple File Backup with a Mac Preparation:

Make sure that enough space is left in the Mac’s HDD.

Before connecting the USB cable to camcorder, close the LCD monitor to turn it off.

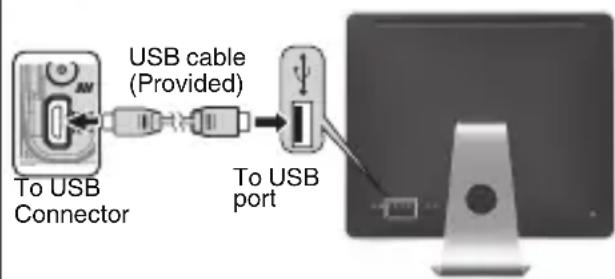

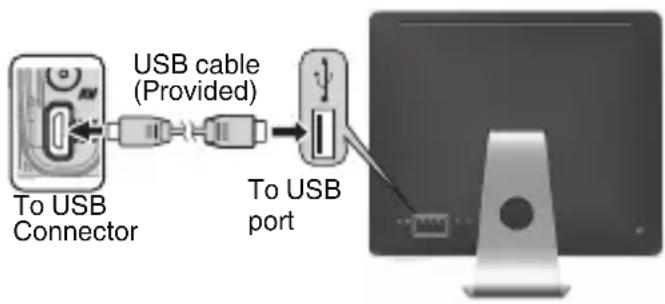

Connect the USB cable.

USB cable (Provided)To USB port To USB Connector

Then open the LCD monitor to turn on the camera.

Tap [CONNECT TO PC] on the camera’s touch screen.

Import the video using iMovie if you want to edit it. 18 ENTroubleshooting/Cautions Troubleshooting If you encounter problems with this unit, check the following before requesting service.

1. Refer to the “Troubleshooting” section

in the “Detailed User Guide”. If you have difficulties operating the unit, refer to the detailed descriptions in the “Detailed User Guide”. http://manual3.jvckenwood.com/ index.html/

2. This unit is a microcomputer-controlled

device. Electrostatic discharge, external noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such a case, reset the unit.

Remove all the cables from this unit.

Press the "Reset button" located inside of the terminal cover. (Before pressing the reset button, close the LCD monitor to turn off this unit.)

Reattach the AC adapter, open the LCD monitor and this unit powers on automatically.

3. If the above do not solve the problem,

consult your nearest JVC dealer or JVC service center. Built-in Battery This unit is equipped with a built-in lithium-ion battery. Before using this Unit, be sure to read the following cautions:

do not expose this Unit to temperatures exceeding 60°C (140°F), as this may cause the built-in battery to overheat, explode or catch fire.

To prevent damage and prolong service life

do not subject to unnecessary shock.

charge within the temperature range of 10°C to 35°C (50°F to 95°F). Cooler temperatures require longer charging time, or in some cases stop charging at all. Warmer temperatures prevent complete charging, or in some cases stop charging at all.

store in a cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life.

keep a 30% battery level (i) if the battery is not to be used for a long period of time. In addition, fully charge and then fully discharge the battery every 6 months, then continue to store it at a 30% battery level (i).

remove the AC adapter from the unit when not in use, as some machines use current even when switched off.

do not drop intentionally or subject to strong impact. The product you have purchased is powered by a rechargeable battery that is recyclable. Please call 1-800-8-BATTERY for information on how to recycle this battery. (USA and Canada only) ATTENTION: EN 19Recording Medium

Be sure to follow the guidelines below to prevent corruption or damage to your recorded data.

Do not bend or drop the recording medium, or subject it to strong pressure, jolts or vibrations.

Do not splash the recording medium with water.

Do not use, replace, or store the recording medium in locations that are exposed to strong static electricity or electrical noise.

Do not turn off the camcorder power during shooting, playback, or when otherwise accessing the recording medium.

Do not bring the recording medium near objects that have a strong magnetic field or that emit strong electromagnetic waves.

Do not store the recording medium in locations with high temperature or high humidity.

Do not touch the metal parts.

When erasing data using the camcorder, the data won’t be erased completely. When handing over your camcorder and/or SD card, you are recommended to erase all of the data by either performing “FORMAT” or “FACTORY PRESET” operation on this unit, using commercially available software, or by physically destroying the camcorder. LCD Monitor

To prevent damage to the LCD monitor, DO NOT

push it strongly or apply any shocks.

place the camcorder with LCD monitor on the bottom.

avoid rubbing it with coarse cloth. While the LCD monitor screen has more than 99.99% effective pixels, 0.01% of the pixels may be bright spots (red, blue, green) or dark spots. This is not a malfunction. The spots will not be recorded. Main Unit

place naked flame sources, such as lighted candles, on the apparatus.

leave dust or metal objects adhered to the power plug or an AC wall outlet.

insert any objects in the camcorder.

in places subject to soot or steam such as near a cooking stove.

in places subject to excessive shock or vibration.

near a television set.

near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.).

in places subject to extremely high (over 40°C or 104°F) or extremely low (under -10°C or 14°F) temperatures.

DO NOT leave the unit

in places of over 50°C (122°F).

in places where humidity is extremely low (below 35 %) or extremely high (above 80 %) with the terminal cover open.

in a closed car in summer.

in high places such as on a TV. Leaving the unit in high places while a cable is connected may result in a malfunction if the cable is caught and the unit falls onto the floor. 20 EN0 To protect the unit, DO NOT

drop the unit or strike it against hard objects.

subject it to shock or excessive vibration during transportation.

keep the lens directed at extremely bright objects for long periods.

expose the lens to direct sunlight.

swing the soft camcorder case excessively when the camcorder is inside it.

cover camcorder with a towel, cloth and so on.

To prevent the unit from dropping

Fasten the grip belt securely.

When using the camcorder with a tripod, attach the camcorder to the tripod securely. If the camcorder drops, you may be injured and the camcorder may be damaged. When a child uses the unit, there must be parental guidance. Declaration of Conformity Model Number : GZ-R320U Trade Name : JVC Responsible party : JVCKENWOOD USA Corporation Address : 1700 Valley Road Wayne, N. J. 07470 Telephone Number : 973-317-5000 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not approved by JVC could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, objects have fallen into the apparatus, ingress of water into the unit, does not operate normally. EN 21MEMO 22 ENMEMO EN 23Recordable Time/Specifications Approximate Video Recording Time Quality SDHC/SDXC Card 4 GB 8 GB 16 GB 32 GB 64 GB 128 GB UXP 20 m 40 m 1 h 20 m 2 h 40 m 5 h 40 m 11 h 30 m XP 30 m 1 h 1 h 50 m 3 h 50 m 8 h 10 m 16 h 20 m EP 1 h 40 m 3 h 30 m 7 h 14 h 28 h 50 m 57 h 50 m

The recordable time is only a guide. The actual recording time may be longer or shorter than the time indicated above. Camera Power supply Using AC adapter: DC 5.2 V Power consumption

2.2 W (when [MONITOR BRIGHTNESS] is set to [3] (standard))

Rated Current Consumption: 1A Dimensions 60 mm x 59.5 mm x 122 mm (2-3/8" x 2-3/8" x 4-13/16") (W x H x D: excluding grip belt) Weight Approx. 288 g (0.63 lbs) The specifications and appearance of this product are subject to changes for further improvement without prior notice. For more information, please refer to the Detailed User Guide. http://manual3.jvckenwood.com/index.html/ ©2015 JVC KENWOOD Corporation

D’ÉLECTROCUTION, NE PAS
