Product typeCordless rotary hammer / impact drill
BrandBlack & Decker
ModelEGBL188
Voltage18 V
No-load speed0-400 / 0-1350 rpm (two speeds)
Maximum torque17/38 Nm
Chuck capacity10 mm (keyless)
Drilling capacity steel/wood/masonry10 / 25 / 10 mm
Battery typeLi-Ion 18 V, 1.5 Ah
Charger100-240 V, output 8-20 V, 400 mA
Charging time3 to 5 hours
Weight (estimated)Approximately 1.6 kg
Main functionsDrilling, screwdriving, hammer drilling
Maintenance and cleaningClean ventilation slots with a soft brush and housing with a damp cloth. Do not use solvents.
SafetyWear safety glasses and ear protection. Read the manual before use.
Spare parts and repairabilityUse only original parts. Contact a Black & Decker authorized repair center.
Warranty2 years, subject to domestic use and presentation of proof of purchase.

Frequently Asked Questions - EGBL188 BLACK & DECKER

How to install the battery on the EGBL188 hammer?

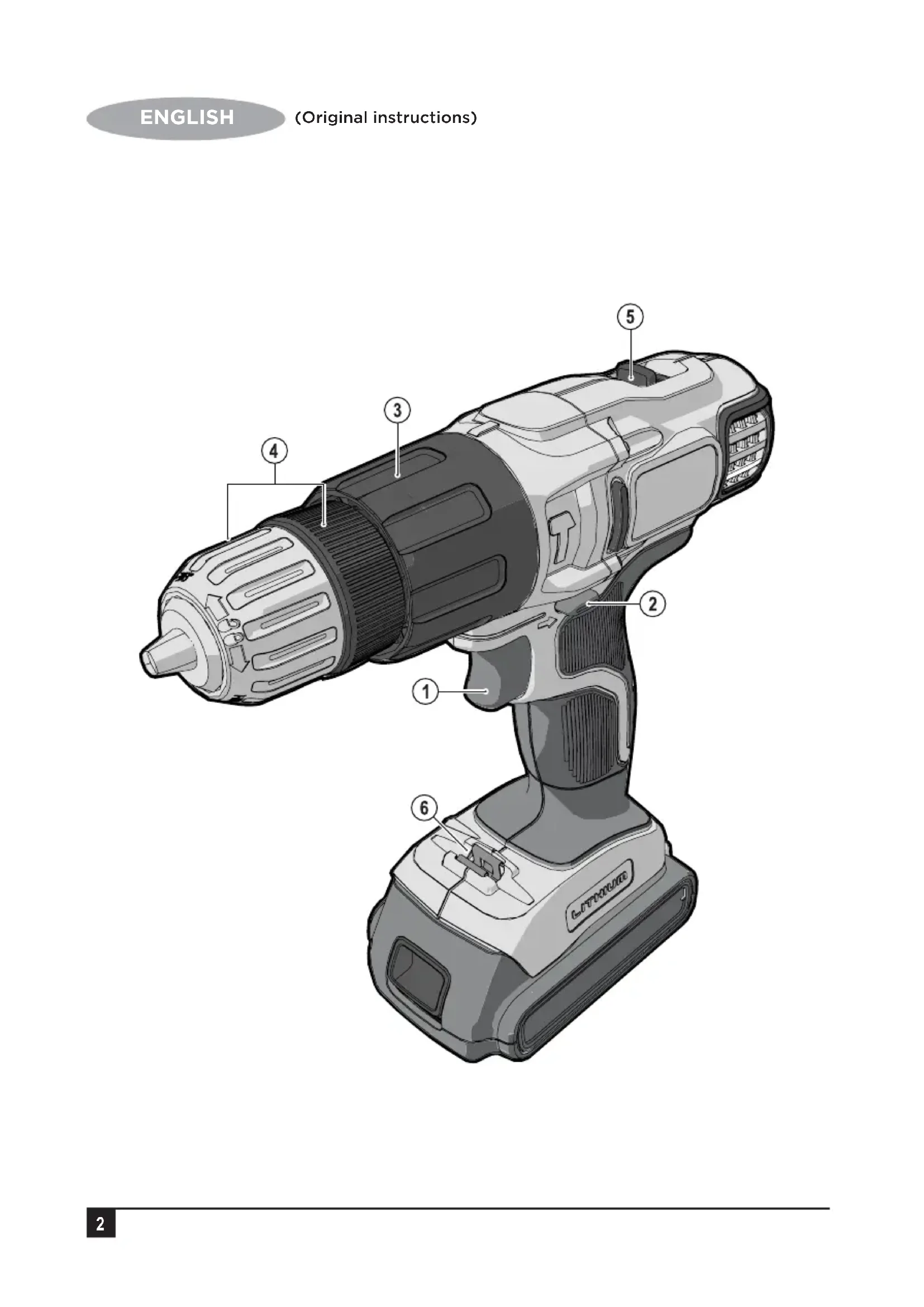

Align the battery (7) with the housing on the tool. Slide it until it clicks into place with a click. To remove, press the release button (10) while pulling.
How to change the drill bit on the keyless chuck?
Place the forward/reverse selector (2) in the center position to lock the tool. Open the chuck (4) by turning the front part while holding the rear part. Insert the bit shank and tighten the chuck firmly.
How to select the rotation direction?
For forward rotation (tightening), push the rotation selector (2) to the left. For reverse rotation (loosening), push it to the right. The center position locks the tool.
How to use hammer mode (percussion drilling)?
Turn the setting ring (3) to align the T symbol (hammer) with the mark. Then slide the speed selector (5) forward (second speed) for optimal performance in masonry.
How to adjust the torque for screwdriving?
Turn the setting ring (3) to the desired number (higher number means higher torque). Start with a low setting, drive the screw, and increase if the clutch clicks before finishing.
How long does it take to fully charge the battery?
Full charge takes about 3 to 5 hours. The charging indicator (9) blinks during charging and becomes steady when done. The charger maintains the battery safely.
What is the maximum drilling capacity in concrete?
With hammer mode, you can drill into light masonry up to 10 mm in diameter.
How to maintain the EGBL188 hammer?
Regularly clean ventilation slots with a soft brush or dry cloth. The housing can be cleaned with a damp cloth. Avoid abrasive products or solvents. Open the chuck and tap to remove dust.
What to do if the tool does not start?
Check that the battery is charged and properly installed. Make sure the rotation selector (2) is not in the center (locked) position. If the problem persists, contact a Black & Decker authorized repair center.
Where to find spare parts for this tool?
Original parts are available at Black & Decker authorized repair centers. Visit www.2helpU.com or contact the Black & Decker office to find the nearest center.
