Données de la moto

Modèle

Labeled diagram of a motorcycle with numbered parts for identification

Labeled diagram of a motorcycle showing internal components and parts with numbered annotations

Technical diagram of a motorcycle's internal components with numbered labels pointing to different parts.

1 Outillage de bord (→166)
2 Tableau des charges utiles
3 Batterie (→ 198)
4 Fusible principal 202)
5 Prise de diagnostic (→204)
6 Fusibles (→ 202)

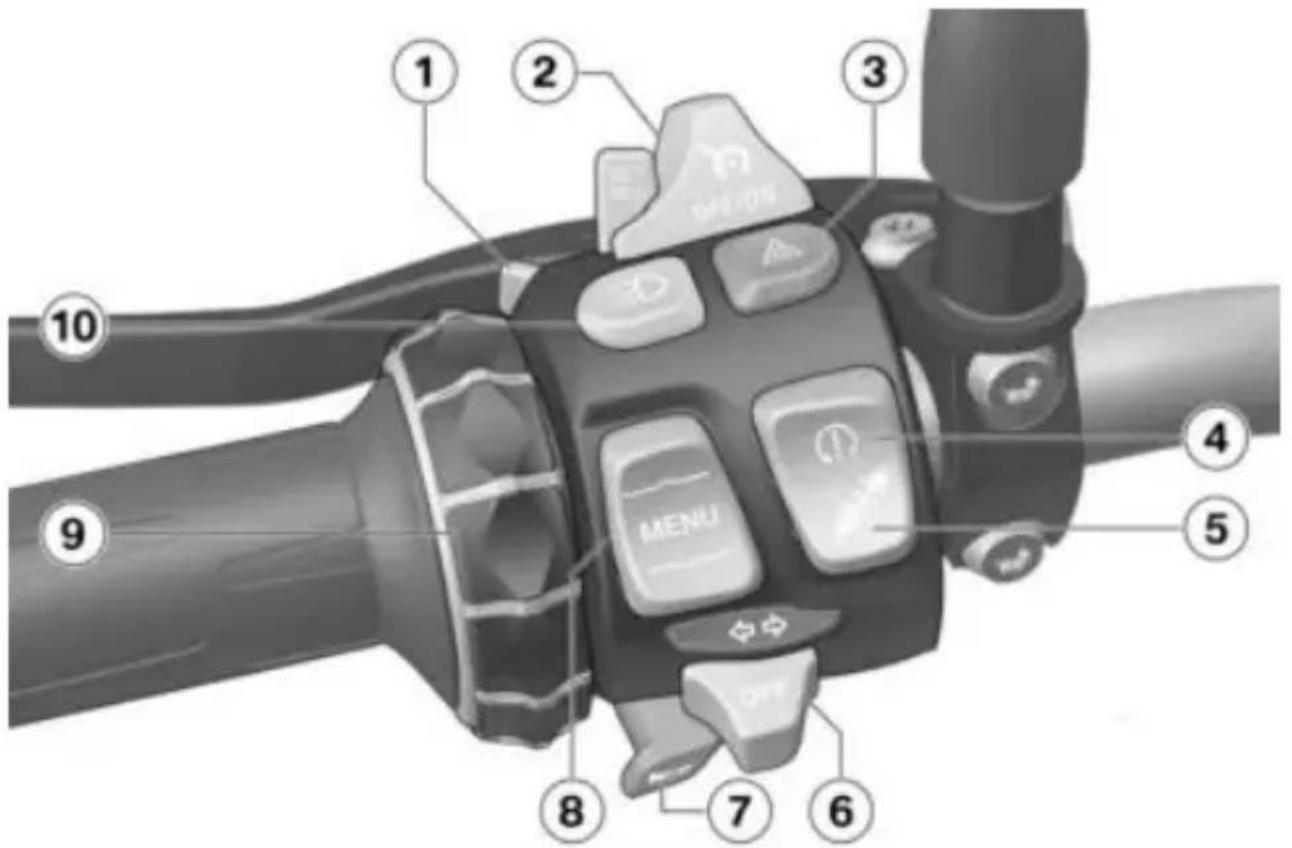

COMMODO GAUCHE

Labeled diagram of a wristwatch with numbered parts including control buttons, keys, and a 'MENU' button.

Labeled diagram of a camera control interface with numbered components including STOP and directional buttons

Diagram of a car dashboard with labeled buttons including STOP, MODE, and directional indicators

CONTACT AVEC KEYLESS RIDE 61

ANTIDÉMARRAGE ÉLECTRONIQUE EWS 65

COUPE-CIRCUIT 66

APPEL D'URGENCE INTELLIGENT 66

ÉCLAIRAGE 68

ÉCLAIRAGE DE JOUR 70

FEUX DE DÉTRESSE 72

CLIGNOTANTS 72

CONTRÔLE DE MOTRICITÉ (DTC) 73

RÉGLAGE ÉLECTRONIQUE DU CHÂSSIS (D-ESA) 74

MODE DE CONDUITE 77

ALARME ANTIVOL (DWA) 83

CONTRÔLE DE LA PRESSION DES PNEUS (RDC) 86

POIGNÉES CHAUFFANTES 87

SELLE 88

60 UTILISATION

SERRURE DE CONTACT/AN- TIVOL DE DIRECTION

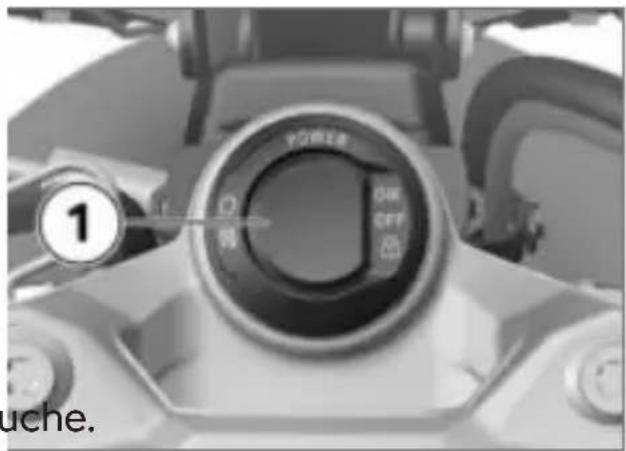

Clés du véhicule

Close-up of a mechanical control knob with directional arrows, no visible text or symbols

• Tourner la clé en position

» Eclairage éteint.

Close-up of a mechanical component with a circular dial and labeled knob (no readable text or symbols beyond basic markings)

POWER SW OFF 1 uche.

Close-up of a mechanical component with a circular dial and adjustment knob (no readable text or symbols)

Technical diagram of a mechanical component with numbered callouts indicating parts 1 and 2

Close-up of a black mechanical device with a control knob and indicator lights, labeled with number 1 (no readable text or symbols beyond the label)

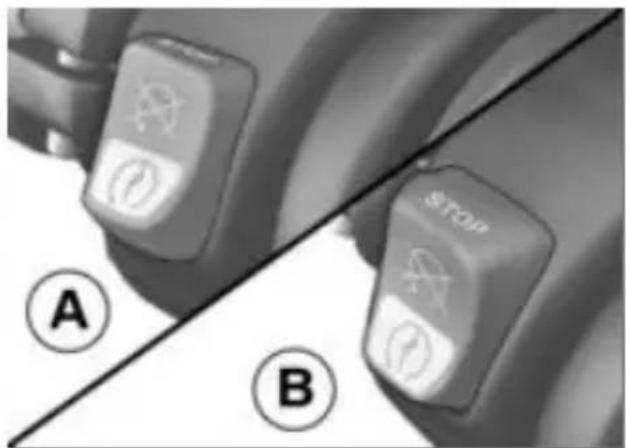

1 Coupe-circuit

A B

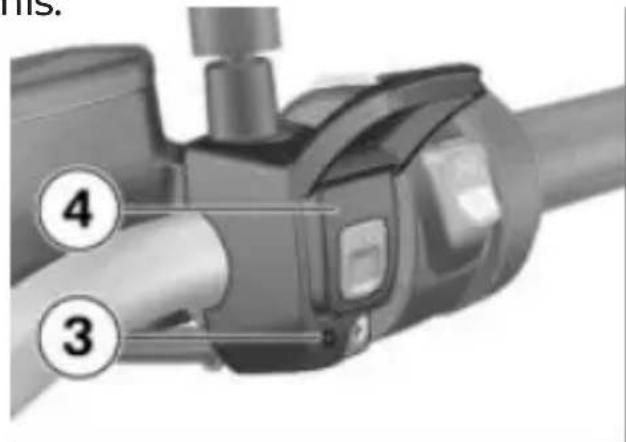

Diagram of a mechanical device with numbered components and directional arrow indicating motion or flow

4 3

•Transmettre les informations

① SD MD SD

Close-up of a mechanical hand gripping a brake caliper and lever (no visible text or symbols)

Close-up of a mechanical handwheel with control buttons and lever mechanism (no text or symbols visible)

Close-up of a mechanical handwheel with control buttons and a numbered indicator (1), no readable text or symbols beyond the number.

-avec Dynamic ESA

Close-up of a mechanical hand gripping a brake switch with control buttons (no visible text or symbols)

Close-up of a mechanical brake switch mechanism with no visible text or symbols

Close-up of a black mechanical lever handle with control buttons and a numbered dial (no text or symbols visible)

Close-up of a camera grip with buttons and a labeled component (no readable text or symbols)

ATTENTION

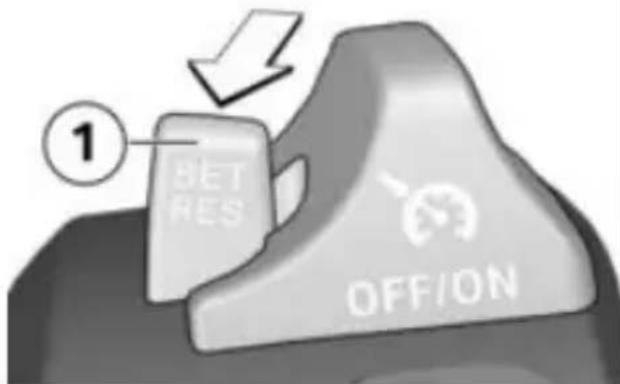

1 2 SET RES OFF/ON

① SET HES OFF/ON

① SET OFF/ON

1 BET RES OFF/ON

SET RES OFF/ON

Illustration of a camera with a labeled button (1) pointing to the lens (no text or symbols on the device itself)

Illustration of a camera with a labeled button (1) pointing to the lens area (no text or symbols beyond the label)

Illustration of a device with a labeled button (1) and circular arrow, no text or symbols present.

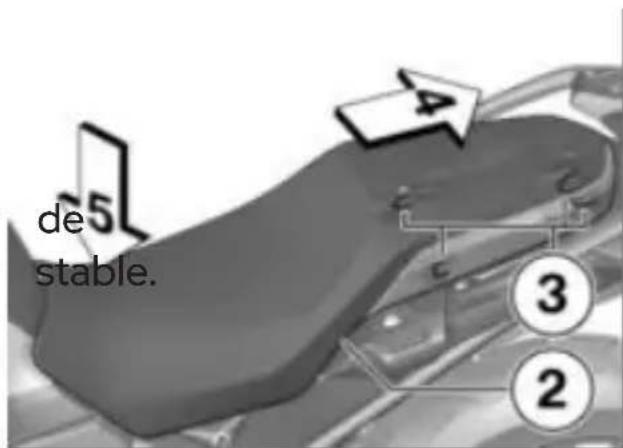

Désactivation

3D diagram of a device with a labeled component (1) and no visible text or symbols

Mechanical assembly diagram showing a lever mechanism with a numbered step indicator (1) and directional arrow (no text or symbols beyond the number)

de stable. ③ ②

Application BMW Motorrad Connected

Diagram of a mechanical device with numbered components and directional arrows indicating motion or movement.

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Close-up of a mechanical component with directional arrows indicating movement or assembly (no text or symbols visible)

Close-up of a hand gripping a device with directional arrows indicating movement (no text or symbols present)

J application Connected App hote, tre

100 ÉCRAN TFT

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or flow.

-Lecture ou Interruption lecture.

Close-up of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

Close-up of a black and white car wheel rim with a curved handle (no text or symbols)

Diagram of a mechanical component with numbered parts labeled 1 and 2

Close-up of mechanical components with numbered callouts (1 and 2), no readable text or symbols beyond labels

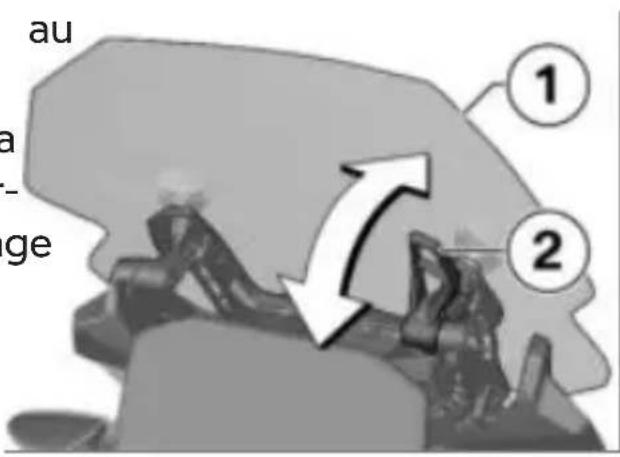

au a ge ① ②

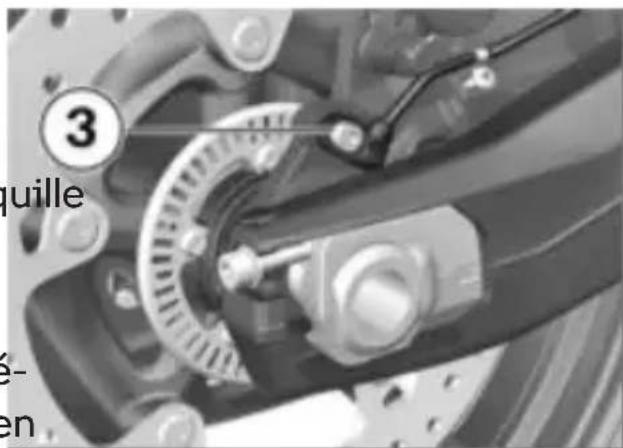

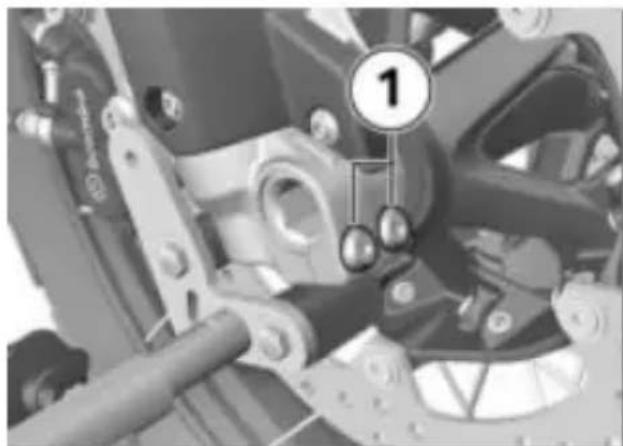

! AVERTISSEMENT

Close-up of a bicycle handle with labeled component (1), no visible text or symbols beyond the number and icon

AVERTISSEMENT

Abstract grayscale graphic with curved arrows and a numbered circle, no readable text or symbols

Close-up of a mechanical device's grip and lever mechanism, showing buttons and a numbered label (1) without any readable text or symbols.

Mechanical assembly diagram showing a valve and gear assembly (no text or labels visible)

Technical diagram showing mechanical assembly with numbered components, likely a robotic arm or machine component.

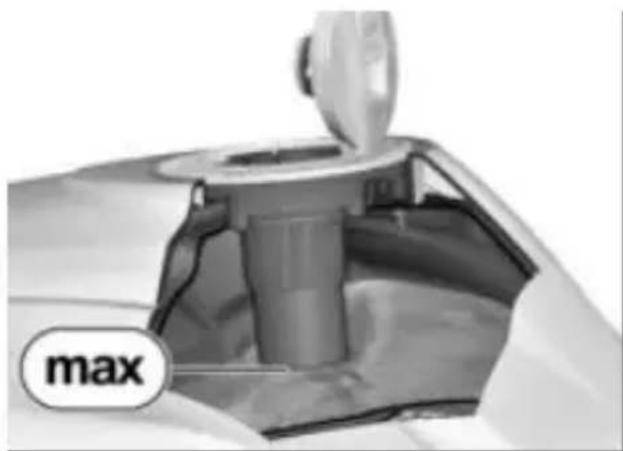

Close-up of a mechanical component with a metallic lever and a labeled 'max' button (no other text or symbols)

Close-up of a mechanical component with a circular dial and directional arrow, no visible text or symbols

Close-up of a mechanical component with a metallic top and internal structure, labeled 'max' in the corner (no other text or symbols)

Diagram of a device component with numbered parts labeled 1 and 2

Black-and-white photo of a motorcycle on a flatbed trailer, no visible text or symbols

ATTENTION

Close-up of mechanical components with no visible text or symbols

Close-up of mechanical components including gears and brackets (no visible text or symbols)

-ROAD (mode standard)

Close-up of mechanical components including bolts, screws, and a spring-loaded tool (no visible text or symbols)

Mechanical device with two wheels and a curved handle (no text or symbols visible)

Two white bicycle ladders with black wheels, no text or symbols visible

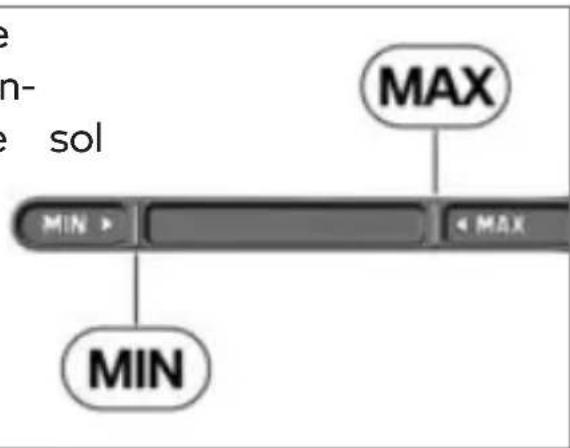

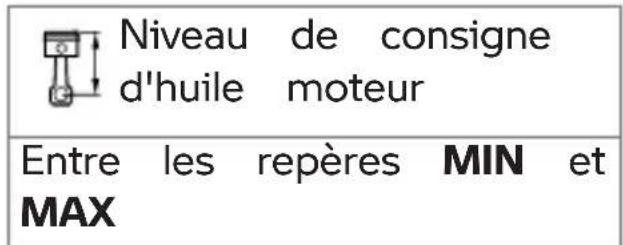

2 MIN > < MAX

Close-up of a BMW internal gear assembly with no visible text or symbols

e m- e sol MAX MIN MAX MIN

Close-up of mechanical components with no visible text or symbols

Cross-sectional diagram of a mechanical valve or pump assembly with directional arrows indicating flow (no text or labels)

Close-up of a motorcycle wheel and brake system with a white arrow pointing to a specific component (no text or symbols visible)

Mechanical assembly diagram showing a hand operating a car wheel with no visible text or symbols

e- LOWER MIN

Close-up mechanical assembly showing gears and components (no readable text or symbols)

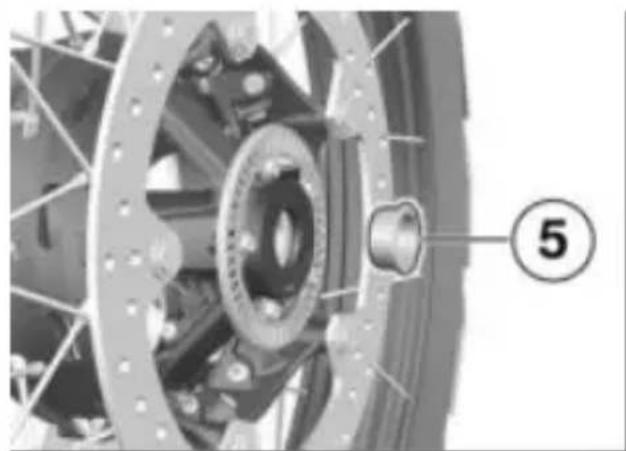

AVERTISSEMENT

MAX MIN MIN

Close-up mechanical component with numbered label (1) pointing to a rectangular feature, no readable text or symbols present.

Diagram of a motorcycle's internal components with numbered parts labeled 1, 2, and a downward arrow indicating direction.

MAX re- e ①

Technical diagram of a motorcycle's front view with numbered components and an arrow indicating direction

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Close-up mechanical assembly showing gears and shafts with a numbered component (1) in the center, no visible text or symbols.

te- in 3 2

Close-up mechanical assembly with numbered component (1) and no visible text or symbols

Close-up of a mechanical assembly with a numbered component (5) and no visible text or symbols

Mechanical assembly diagram showing a motor and gear assembly with no visible text or symbols

Close-up of a mechanical assembly with a numbered label (5) pointing to a central component (no readable text or symbols beyond the number)

Mechanical assembly diagram showing a pipe fitting and surrounding components (no readable text or symbols)

Lubrifiant

Unirex N3

Lubrifiant

Unirex N3

Mechanical assembly diagram showing three numbered components (1, 2, 3) without any readable text or symbols.

Mechanical assembly diagram showing gear and components with no visible text or symbols

Close-up of mechanical components with numbered callouts (1 and 2), no readable text or symbols present.

Technical diagram of a mechanical assembly with numbered components, likely illustrating a gear or cam mechanism.

Close-up of a mechanical assembly with gears and springs (no visible text or symbols)

Close-up of a mechanical assembly with gears and springs (no visible text or symbols)

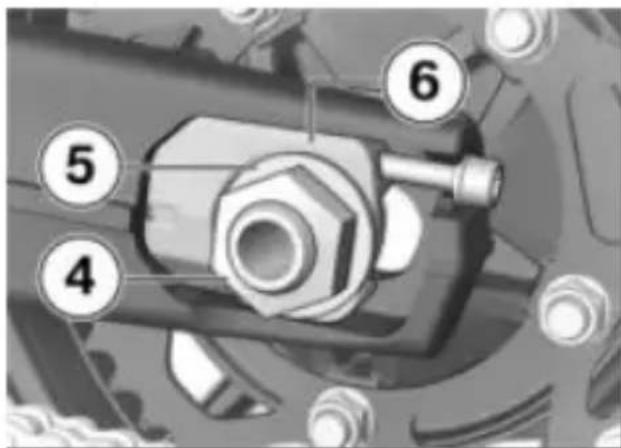

188 MAINTENANCE

Technical diagram of a mechanical assembly with numbered components labeled 4, 5, and 6

Close-up mechanical assembly showing a lever and shaft with numbered callouts (8 and 7), no readable text or symbols beyond labels.

Close-up of a bicycle wheel with visible gears and chains, no text or symbols present

Technical diagram of a mechanical component with numbered parts labeled 1 and 2

Close-up of a bicycle wheel with visible gears and chains, no text or symbols present

Mechanical assembly diagram with numbered components labeled 4, 5, and 6

Lubrifiant

Unirex N3

Technical diagram of a mechanical assembly with numbered components labeled 2, 3, and 4

Mechanical assembly diagram showing a motor with labeled components (no readable text or symbols)

Technical diagram of a mechanical assembly with numbered components labeled 1, 2, and 3

Close-up of a mechanical component with a numbered label (1) pointing to a section, no readable text or symbols present.

Technical diagram showing mechanical components with numbered labels 1 and 2, and a directional arrow indicating motion or flow.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Diagram showing a device with numbered parts labeled 4 and 5, likely illustrating a mechanical or electronic component.

Technical diagram of a device with numbered components, likely illustrating a mechanical or electrical assembly.

Close-up mechanical component with numbered annotation (4) and arrow, no readable text or symbols beyond annotations

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

• Enclipser le flexible ergots de fixation 2.

DISPOSITIFS D'ÉCLAIRAGE

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

Labeled diagram of a car engine component with numbered parts for identification

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3.

• Poser les vis 2.
• Poser les vis 1.
• Poser la selle ( 88).

AIDE AU DÉMARRAGE

ATTENTION

Technical diagram of a mechanical assembly with numbered components for identification

ATTENTION

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

Mechanical component diagram showing internal parts with a numbered label (1) and an arrow indicating direction, no readable text or symbols present.

Close-up of mechanical components with a numbered label (1) pointing to a specific part, no readable text or symbols present.

Technical diagram showing mechanical components with numbered labels 1 and 2 pointing to a component.

ATTENTION

Technical diagram of an automotive engine component with numbered parts labeled 1, 2, and 3.

Diagram of a vehicle's rearview and side view with numbered components and directional arrow indicating rotation or movement.

Interior view of a vehicle chassis showing internal components and a numbered marker (1), no readable text or symbols present.

Diagram of a vehicle's rearview and side view with numbered annotations indicating components or parts.

! ATTENTION rure

Diagram of a vehicle interior with numbered components and directional arrows indicating movement or flow.

Technical diagram of a mechanical component with numbered parts labeled 1 and 2

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Technical diagram showing two labeled components (① and ②) in a mechanical assembly, likely for assembly or maintenance.

Diagram of a vehicle showing two labeled parts (1 and 2) with directional arrows indicating movement or flow.

ATTENTION

Diagram of a mechanical component with numbered parts and directional arrows indicating flow or movement.

Close-up of a mechanical device with a numbered label (1) pointing to a component, no visible text or symbols beyond the number.

Open mechanical device with a numbered label '1' on the lid (no text or symbols on the device itself)

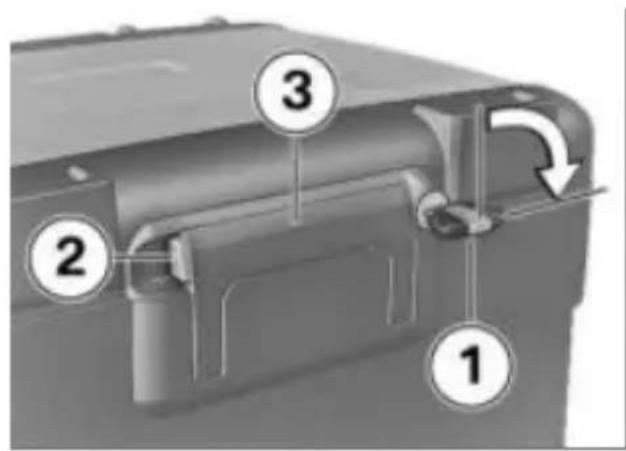

Diagram of a device handle with numbered parts and directional arrow indicating rotation or movement

Diagram of a mechanical component with numbered parts and directional arrow indicating motion or flow

ATTENTION

Diagram of a device rear panel with labeled parts, showing internal components and numbered annotations.

Diagram of a mechanical device with numbered parts labeled 1, 2, and 3

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols visible)

Diagram of a device interior with numbered components and directional arrow indicating rotation or movement

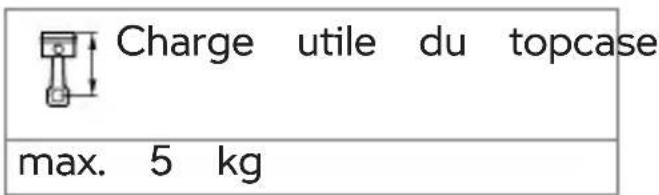

Charge utile du topcase max. 5 kg

SYSTÈME DE NAVIGATION

Diagram of a vehicle dashboard with numbered components and directional arrows indicating motion or movement.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

DONNÉES TECH- NIQUES

12

TABLEAU DES ANOMALIES 234

VISSAGES 236

CARBURANT 238

HUILE MOTEUR 239

MOTEUR 239

EMBRAYAGE 241

BOÎTE DE VITESSES 241

TRANSMISSION FINALE 241

CADRE 242

CHÂSSIS 242

FREINS 243

ROUES ET PNEUS 243

SYSTÈME ÉLECTRIQUE 245

DIMENSIONS 246

POIDS 247

PERFORMANCES 247

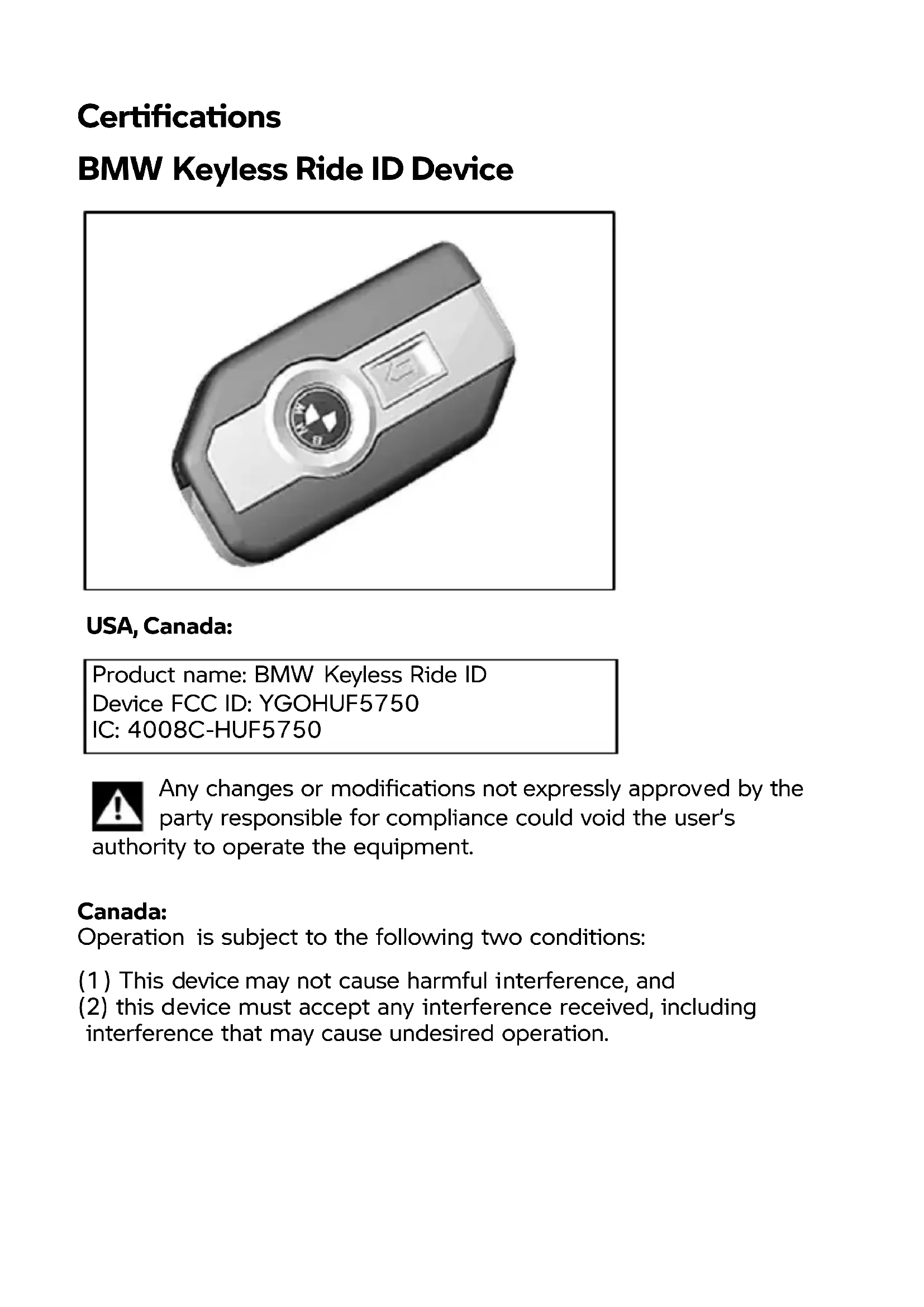

Declaration of Conformity

Radio equipment electronic immobiliser (EWS)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / TypeDST80, TMS3705 Transponder Base Station IC) Output Power: 50 dBμV/m

Manufacturer and Address

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53 The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Greece

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53.

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Italy

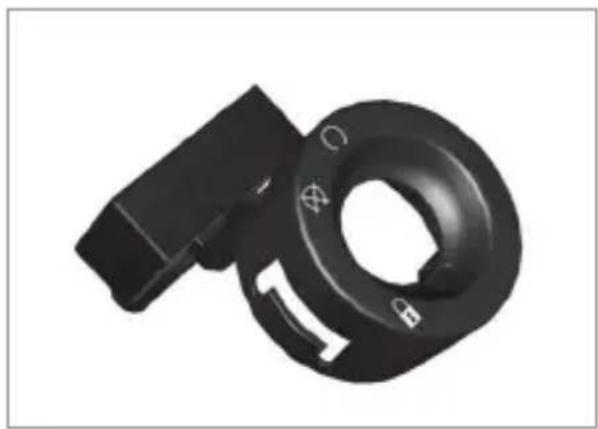

Ring aerial in the ignition switch

Close-up of a black industrial control knob with no visible text or symbols

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Close-up of a black industrial control knob with adjustment knobs and a circular dial (no text or symbols visible)

Declaration of Conformity

Radio equipment Keyless Ride

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency band: 434,42 MHz Maximum Transmission Power: 10 mW

Manufacturer and Address

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG Adress: Steeger Str. 17, 42551 Velbert, Germany

Bülgarski

Hereby, Huf Hülsbeck & Fürst GmbH & Co. KG declares that the radio equipment type HUF5750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.huf-group.com/eudoc

Español

3D rendered image of a black and silver remote control device with a circular dial and control knob (no text or symbols visible)

USA, Canada:

Product name: BMW Keyless Ride ID

Device FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment to be used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Dr. Aie

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Declaration of Conformity

Radio equipment tyre pressure control (RDC)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.895 - 433.945 MHz Output Power: <10 mW e.r.p.

Manufacturer and Address

Manufacturer: Schrader Electronics Ltd. Adress: Technology Park, Antrim, N. Ireland BT41 1QS, United Kingdom

Austria

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/

documents/

declaration_conformities

Greece

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Italy

http://www.tpmseuroshop.com/documents/declaration_conformities

Malta

B'dan, Schrader Electronics Ltd., niddikjara li dan it-tip ta' taghmir tar-radju BC5A4 huwa konformi mad-Direttiva 2014/53/UE. Ittest kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li gej: http://www.tpmseuroshop.com/documents/declaration_conformities

Netherlands

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4 IC: 2546A-BC54MA4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

FCC ID: MRXBC5A4 IC: 2546A-BC5A4

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range:: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment intelligent emergency call

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Antenna internal: Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 22 dBm Not acessable by user: Frequency Band: 1710 MHz - 1785 MHz Radiated Power [TRP]: < 26 dBm Frequency Band: 1920 MHz - 1980 MHz Radiated Power [TRP]: < 22 dBm Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 23 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment anti-theft alarm (DWA)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band:

433.05-434.79 MHz

Output Power: 10 mW e.r.p.

Manufacturer and Address

Manufacturer: Meta System S.p.A.

Adress: Via Galimberti 5 42124

Reggio Emilia - Italy

Austria

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/8 The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Greece

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Italy
