Type de produit	Motorcycle
Brand	BMW
Model	K 1600 B (2020)
Category	Touring motorcycle
Engine type	Liquid-cooled, 4-stroke inline-six
Displacement	1649 cc
Power	118 kW (160 hp) at 7,750 rpm
Torque	175 Nm (129 lb-ft) at 5,250 rpm
Transmission	6-speed constant mesh
Final drive	Shaft drive
Seat height	750 mm (29.5 in)
Wheelbase	1,618 mm (63.7 in)
Fuel capacity	26.5 L (7.0 US gal)
Weight (wet)	336 kg (741 lb)
Key features	Electronic immobilizer (EWS), Keyless Ride, Tire Pressure Control (RDC), Intelligent Emergency Call, Anti-theft alarm (DWA), Audio system, Navigation, Heated grips, Cruise control
Manual pages	300
Manual language	English (also available in other languages)
Certifications	FCC, IC, CE, R&TTE Directive
Battery (vehicle key)	Button cell (CR2032 or similar)
Maintenance	Refer to manual for service intervals, cleaning with mild detergent, careful with high-pressure washers

Frequently Asked Questions - K 1600 B (2020) BMW

What is the engine displacement of the BMW K 1600 B (2020)?

The engine displacement is 1649 cc from an inline-six cylinder layout.

How do I replace the battery in the vehicle key?

Remove the key fob cover, take out the discharged button cell (CR2032), and insert a new one of the same type. Ensure correct polarity. Keep batteries away from children.

What type of drive does the K 1600 B use?

It uses a shaft drive final drive, which is low-maintenance and smooth.

How to reset the tire pressure monitoring system?

The system resets automatically after adjusting tire pressures and riding for a short distance. Refer to the manual for manual reset procedures.

Can I connect my phone to the motorcycle's audio system?

Yes, via Bluetooth or auxiliary input. The system supports phone calls and music streaming. Check the manual for pairing instructions.

What is the fuel capacity of the BMW K 1600 B?

The fuel tank holds 26.5 liters (7.0 US gallons).

How do I activate the emergency call system?

Press the SOS button on the handlebar. The system will contact emergency services automatically. Ensure the system is activated in the settings.

What is the seat height of the K 1600 B?

The standard seat height is 750 mm (29.5 inches). Optional lower and higher seats are available.

How to clean the motorcycle properly?

Use a mild motorcycle shampoo and soft sponge. Avoid high-pressure washers on sensitive components like wheel bearings and electrical connectors. Dry with a microfiber cloth.

What is the warranty period for the K 1600 B?

BMW typically offers a 3-year unlimited mileage warranty. Check with your dealer for specific terms.

USER MANUAL K 1600 B (2020) BMW

Údaje o vozidlu

CELKOVÝ POHLED SHORA

Přímý výběr:

Vynulování hodnot:

Automatic mode - Off:

• Nastartujte motor.

JÍZDNÍ REŽIM

- Klíč v zámku kufru otočte z polohy LOCK do polohy s teč kou.

Radio Data System (RDS)

VAROVÁNÍ

VAROVÁNÍ

! VAROVÁNÍ

POZOR

POZOR

POZOR

POZOR

POZOR

UPOZORNĚNÍ

• Uvolněte šroub 1.

OSVĚTLOVACÍ PROSTŘEDKY

• Odpojte konektor 3.

• Odpojte konektor 2.

• Demontujte šroub 1.

- Nasad'te novou žárovku do objímky.

1 40 A

hlavní pojistka

2 7,5 A

Audiosystém

3 neobsazeno

• Vložte krytku 2.

Ovládání navigace

OŠETŘUJÍCÍ PROSTŘEDKY

MYTÍ MOTOCYKLU

Declaration of Conformity

Radio equipment electronic immobiliser (EWS)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / TypeDST80, TMS3705 Transponder Base Station IC) Output Power : 50 dBμV/m

Manufacturer and Address

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Greece

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Italy

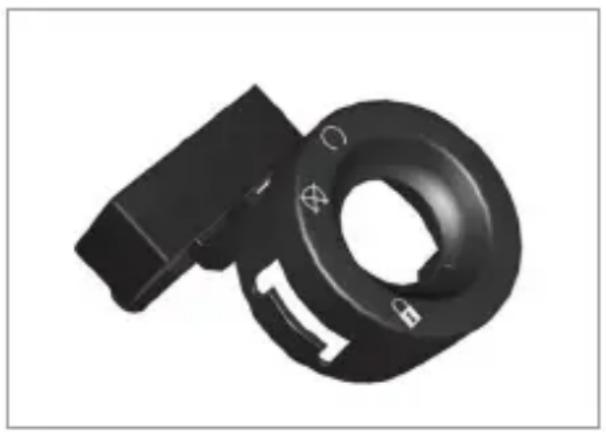

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Certifications Remote Control for central locking system

Česky

Hereby, Meta System S.p.A., declares that this PF240009 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Español

Product name: TX BMW

MR FCC ID: P3O98400

IC:4429A - TXBMWMR

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration Of Conformity

R&TTE Declaration Of Conformity (DoC)

C€0470

We:

Meta System S.p.A.

with the address:

Via Majakovskij 10 b/c/d/e 42124 Reggio Emilia -Italy

Declare

Under own responsibility that the product:

TX BMW MR

To which this declaration relates is in conformity with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC).

This product is in conformity with the following standards:

Health & Safety (art.3.1)

EMC (art.3.2) Spectrum

Human exposure

EN 60950-1

ETSI EN 301 489-1/-3

ETSI EN 300 220 - 2

EN 62311

According to Directive 1999/5/

CE Reggio Emilia, 14/07/2010

Technical

Director Lasagni

Cesare

Declaration of Conformity

Radio equipment Keyless Ride

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency band: 434,42 MHz Maximum Transmission Power: 10 mW

Manufacturer and Address

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG Adress: Steeger Str. 17, 42551 Velbert, Germany

Bülgarski

Hereby, Huf Hülsbeck & Fürst GmbH & Co. KG declares that the radio equipment type HUF5750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.huf-group.com/eudoc

Español

USA, Canada:

Product name: BMW Keyless Ride ID Device FCC ID: YGOHUF5750 IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment tobe used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Declaration of Conformity

Radio equipment tyre pressure control (RDC)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.895 - 433.945 MHz

Output Power: <10 mW e.r.p.

Manufacturer and Address

Manufacturer: Schrader Electronics Ltd.

Adress: Technology Park, Antrim, N. Ireland BT41 1QS, United Kingdom

Austria

http://www.tpmseuroshop.com/documents/declaration_conformities

Belgium

http://www.tpmseuroshop.com/documents/declaration_conformities

Cyprus

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Greece

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Italy

http://www.tpmseuroshop.com/documents/declaration_conformities

Malta

B'dan, Schrader Electronics Ltd., niddikjara li dan it-tip ta' taghmir tar-radju BC5A4 huwa konformi mad-Direttiva 2014/53/UE.

www.tpmseuroshop.com/documents/

declaration_conformities

Netherlands

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4

IC: 2546A-BC54MA4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

FCC ID: MRXBC5A4

IC: 2546A-BC5A4

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment intelligent emergency call

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Antenna internal:

Frequency Band: 880 MHz - 915 MHz

Radiated Power [TRP]: < 22 dBm Not acessable by user:

Frequency Band: 1710 MHz - 1785 MHz

Radiated Power [TRP]: < 26 dBm

Frequency Band: 1920 MHz - 1980 MHz

Radiated Power [TRP]: < 22 dBm

Frequency Band: 880 MHz - 915 MHz

Radiated Power [TRP]: < 23 dBm

Manufacturer and Address

Manufacturer:

Robert Bosch Car Multimedia GmbH

Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment anti-theft alarm (DWA)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.05-434.79 MHz

Output Power: 10 mW e.r.p.

Manufacturer and Address

Manufacturer: Meta System S.p.A.

Adress: Via Galimberti 5 42124 Reggio Emilia - Italy

Austria

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/E63 The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Greece

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Italy

Declaration of Conformity

EMC directive 2014/30/EU

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Measurements according to EN55014 and ECE-R10 Rev. 5

Manufacturer and Address

Manufacturer: speedsignal GmbH Adress: Carl-von-Ossietzky-Str. 3, 83043 Bad Aibling, Germany

Austria

Hereby, Speedsignal GmbH declares that the radio equipment type 9443643 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.speedsignal.de/zertifikate

Greece

Hereby, Speedsignal GmbH declares that the radio equipment type 9443643 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.speedsignal.de/zertifikate

Italy

Radio Data System RDS, 107

Rám

Please note the following in addition to the information provided in the Owner's Handbook.

WARNING

The battery inside the vehicle key is a button cell. Batteries or button cells can be swallowed, causing serious or even fatal injuries within two hours, e.g. due to internal burns or cauterisations. There is a danger of injury or danger to life. Keep vehicle keys and batteries out of the reach of children. Seek medical assistance immediately if you suspect that a battery or button cell has been swallowed or has got into a part of the body.

NOTE

Using unsuitable batteries in a vehicle key can damage the vehicle key. There is a risk of material damage. Discharged batteries should only ever be replaced with batteries of the same voltage, same size and same specification.

Not to be reproduced, wholly or in part, without written permission from BMW AG, Munich.

Order No.: 01 40 9 831 840

12.2020

Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.
