Product Type	Motorcycle
Brand	BMW
Model	F 850 GS Adventure (2020)
Engine Type	4-stroke, 2-cylinder, liquid-cooled
Displacement	853 cc
Maximum Power	70 hp (51.5 kW)
Maximum Torque	83 Nm
Transmission	6-speed
Final Drive	Chain
Dimensions (L x W x H)	2300 x 920 x 1450 mm
Wheelbase	1593 mm
Seat Height	890 mm
Curb Weight	229 kg
Fuel Capacity	23 L
Fuel Consumption	4.0 L/100km
Front Brake	Dual disc, 305 mm
Rear Brake	Single disc, 265 mm
Front Tire	90/90 R21
Rear Tire	150/70 R17
ABS	Standard
Traction Control	Standard
Instrument Cluster	TFT display with Bluetooth and WLAN
Battery	12V, 12 Ah
Warranty	2 years

Frequently Asked Questions - F 850 GS Adventure (2020) BMW

How to change the remote key battery?

When the remote key battery is weak, you will see a warning: 'Remote key battery weak. Limited central locking function. Change battery.' To replace, use a suitable battery of the same voltage, size, and specification. Keep battery and key away from children.

What does the ABS failure warning mean?

If the ABS failure warning appears, you can still ride but should proceed carefully to the next specialist workshop. The ABS system is not functioning, so brake carefully.

How to check tire pressure?

The motorcycle has a Tyre Pressure Control (RDC) system. If the warning 'Tyre pressure does not match setpoint' appears, check the tire pressure immediately. Use a gauge to adjust to the recommended pressure.

What to do if the engine does not start?

Refer to the fault table in the manual. Common causes: low battery, faulty spark plug, or fuel supply. Ensure the kill switch is in run position and the side stand is up. If problem persists, have it checked by a specialist workshop.

How to adjust the spring strut?

The Spring strut adjustment can be set manually or via the menu. If a fault appears, ride carefully to a specialist workshop. To adjust, locate the adjustment knob on the rear shock absorber and turn to desired setting.

How to pair a phone via Bluetooth?

Go to Menu > Settings > System settings > Bluetooth. Enable Bluetooth on the TFT cluster and your phone. Select the device from the list and confirm pairing. The cluster supports Bluetooth 4.2 for calls and media.

How to reset the service indicator?

The service indicator can only be reset by a specialist workshop after performing the service. When 'Service due!' or 'Service overdue!' appears, schedule a service appointment. Do not attempt to reset yourself.

What does the traction control de-activated warning mean?

A warning 'Traction control de-activated' indicates the system is off. This may happen due to a fault or manual deactivation. Ride carefully to the next specialist workshop to have it checked.

How to clean the motorcycle?

Use mild detergent and water. Avoid high-pressure washers near electrical components. After washing, dry the motorcycle and lubricate the chain. The manual includes a section 'Mytí motocyklu' (washing the motorcycle).

Where is the VIN number located?

The VIN (Vehicle Identification Number) is typically stamped on the steering head or on the right side of the frame. Refer to the manual's dimensions section for exact location.

USER MANUAL F 850 GS Adventure (2020) BMW

Údaje o vozidlu

Model

Dialog Check-Control

Remote key not in range. Not possi- to switch on igni- n again.

Možná příčina:

Remote key battery at 50%. No function-impairment.

Remote key battery weak. Limited cen- l locking function. nge battery.

Možná příčina:

b Vehicle voltage low. Switch off unnecessary consumers.

Vehicle voltage critical! Consumers were switched off. Check battery condition.

Vehicle voltage critical! Consumers were switched off. Check battery condition.

VAROVÁNÍ

Front right turn indicator faulty!

Vehicle voltage critical! Battery is

Low-beam headlight faulty!

not being charged. Check battery status.

Front side light faulty!

38 UKAZATELE

Daytime riding light faulty!

Tail light faulty!

Brake light faulty!

Rear left turn indicator faulty!, popř.

Rear right turn indicator faulty!

Number plate light faulty!

Left additional headlight faulty!, popř.

Right additional headlight faulty!

-Have it checked by a specialist workshop.

VAROVÁNÍ

restrictions. Make an appointment at a specialist workshop.

Alarm system battery empty. No independent alarm. Make an ap- pointment at a specia- list workshop.

Coolant temperature too high! Check coolant level. Continue driving in part. load to cool down.

POZOR

Engine! Have it checked by a specialist workshop.

Možná příčina:

No communication with engine cont- . Multiple sys. af- ted. Ride carefully the next specialist workshop.

Fault in the engine control. Onwardney possible Ridefully to next speci-st workshop.

journey possible Ride carefully to next specialist workshop.

VAROVÁNÍ

Serious fault in the engine control! Riding at mod. speed pos. Damage possible. Have checked by workshop.

VAROVÁNÍ

Tyre pressure does not match setpoint

Check tyre pressure.

Možná příčina:

Tyre pressure does not match setpoint to immediately! Check the pressure.

Tyre press. control. Loss of pres- e. Stop immediately! ck tyre pressure.

VAROVÁNÍ

Emergency call failure. Make an ap-RDC sensor battery weak. Function limipointment at a specialist workshop.

ted. Have it checked by specialist workshop.

aMožná příčina:

Side stand monito- ring faulty. Onward journey possible. Engine stop. when stationary! Have checked by workshop.

Vadný snímač pádu

Drop sensor faulty. Have it checked by a specialist workshop.

Možná příčina:

Limited ABS availability! Onward journey possible. Ride carefully to next specialist workshop.

Možná příčina:

ABS failure! Onward journey possible.

Ride carefully to next specialist workshop.

Móžná příčina:

possible. Ride carefully to next specialist workshop.

Možná příčina:

Traction control de-activated.

Možná příčina:

Traction control limited! Onward jour-possible. Ride care-y to next specialist kshop.

48 UKAZATELE

Možná příčina:

Traction control failure! Onward

journey possible. Ride carefully to next specialist workshop.

Možná příčina:

Spring strut adjustment faulty! Onward journey possible. Ride carefully to next specialist workshop.

Možná příčina:

Service due! Have service performed by a specialist workshop.

Možná příčina:

tService overdue! Have service performed by a specialist workshop.

Možná příčina:

Remote key battery weak. Limited central locking function. Change battery.

• Vyměňte baterii.

dne

POZOR

- Vyvolejte menu Settings, System settings, Date and time.

-At current location

-At destination

-Along the route

•Vyvolejte menu Navigation, Active route guidance.
•Vyberte a potvrd'te End route guidance.

• Vyvolejte menu Navigation, Active route guidance.
• Vyberte a potvrd'te Current instruction.

MÉDIA

Předpoklad

•Vyvolejte menu Media.

BMW Motorrad doporu- -Vyberte Playlists.

VAROVÁNÍ

VAROVÁNÍ

POZOR

POZOR

Uskřípnutí součástí

Poškození součástí

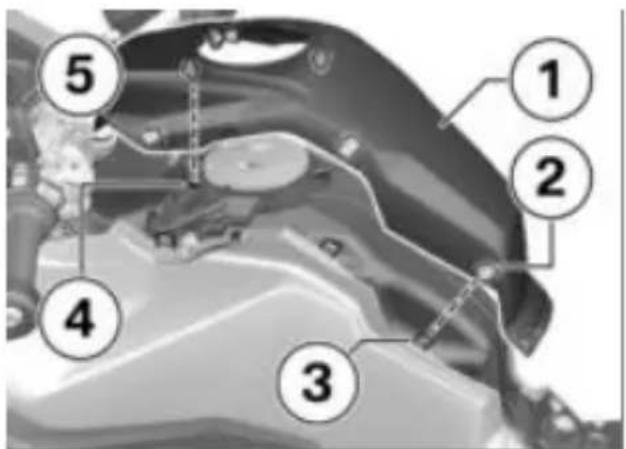

• Namontujte rám 4.

Montáž krytu nádrže

POZOR

POZOR

OŠETŘUJÍCÍ PROSTŘEDKY

MYTÍ MOTOCYKLU

ELEKTRICKÁ INSTALACE 222

ROZMĚRY 223

HMOTNOSTI 224

JÍZDNÍ VÝKONY

224

212 TECHNICKÉ ÚDAJE

TABULKA ZÁVAD

Motor nestartuje:

Příčina Odstranění

ELEKTRICKÁ INSTALACE

Declaration of Conformity

Radio equipment electronic immobiliser (EWS)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / TypeDST80, TMS3705 Transponder Base Station IC) Output Power: 50 dBμV/m

Manufacturer and Address

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53 The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Greece

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53.

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Italy

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment Keyless Ride

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency band: 434,42 MHz Maximum Transmission Power: 10 mW

Manufacturer and Address

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG Adress: Steeger Str. 17, 42551 Velbert, Germany

Bülgarski

Hereby, Huf Hülsbeck & Fürst GmbH & Co. KG declares that the radio equipment type HUF5750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.huf-group.com/eudoc

Español

USA, Canada:

Product name: BMW Keyless Ride ID

Device FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment to be used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Declaration of Conformity

Radio equipment tyre pressure control (RDC)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.895 - 433.945 MHz Output Power: <10 mW e.r.p.

Manufacturer and Address

Manufacturer: Schrader Electronics Ltd. Adress: Technology Park, Antrim, N. Ireland BT41 1QS, United Kingdom

Austria

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/

documents/

declaration_conformities

Greece

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Italy

http://www.tpmseuroshop.com/documents/declaration_conformities

Malta

B'dan, Schrader Electronics Ltd., niddikjara li dan it-tip ta' taghmir tar-radju BC5A4 huwa konformi mad-Direttiva 2014/53/UE. Ittest kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li gej: http://www.tpmseuroshop.com/documents/declaration_conformities

Netherlands

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4 IC: 2546A-BC54MA4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

FCC ID: MRXBC5A4 IC: 2546A-BC5A4

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range:: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment intelligent emergency call

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Antenna internal: Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 22 dBm Not acessable by user: Frequency Band: 1710 MHz - 1785 MHz Radiated Power [TRP]: < 26 dBm Frequency Band: 1920 MHz - 1980 MHz Radiated Power [TRP]: < 22 dBm Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 23 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment anti-theft alarm (DWA)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band:

433.05-434.79 MHz

Output Power: 10 mW e.r.p.

Manufacturer and Address

Manufacturer: Meta System S.p.A.

Adress: Via Galimberti 5 42124

Reggio Emilia - Italy

Austria

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/8 The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Greece

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Italy

Please note the following in addition to the information provided in the Owner's Handbook.

WARNING

The battery inside the vehicle key is a button cell. Batteries or button cells can be swallowed, causing serious or even fatal injuries within two hours, e.g. due to internal burns or cauterisations. There is a danger of injury or danger to life. Keep vehicle keys and batteries out of the reach of children. Seek medical assistance immediately if you suspect that a battery or button cell has been swallowed or has got into a part of the body.

NOTE

Using unsuitable batteries in a vehicle key can damage the vehicle key. There is a risk of material damage. Discharged batteries should only ever be replaced with batteries of the same voltage, same size and same specification.

Not to be reproduced, wholly or in part, without written permission from BMW AG, Munich.

Order No.: 01 40 9 831 840

12.2020

Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.
