USER MANUAL IAN 321928 AURIOL

PDF ONLINE www.lidl-service.com

RADIO-CONTROLLED WALL CLOCK

GB IE NI

RADIO-CONTROLLED WALL CLOCK

Operation and safety notes

DK

RADIOSTYRET UR

GB/IE/NI Operation and safety notes Page 5

List of pictograms used ...... Page 6

Introduction Page 6

Intended use.... Page 6

Description of parts ...... Page 7

Technical data Page 7

Scope of delivery.... Page 7

Safety instructions.... Page 8

General safety information ...... Page 8

Before initial use ...... Page 10

Operation Page 12

Receiving the DCF / MSF radio time signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the time manually....Page 13

Resetting the settings ...... Page 13

Cleaning and care Page 13

Disposal Page 14

Simplified EU declaration of conformity ...... Page 15

Warranty Page 15

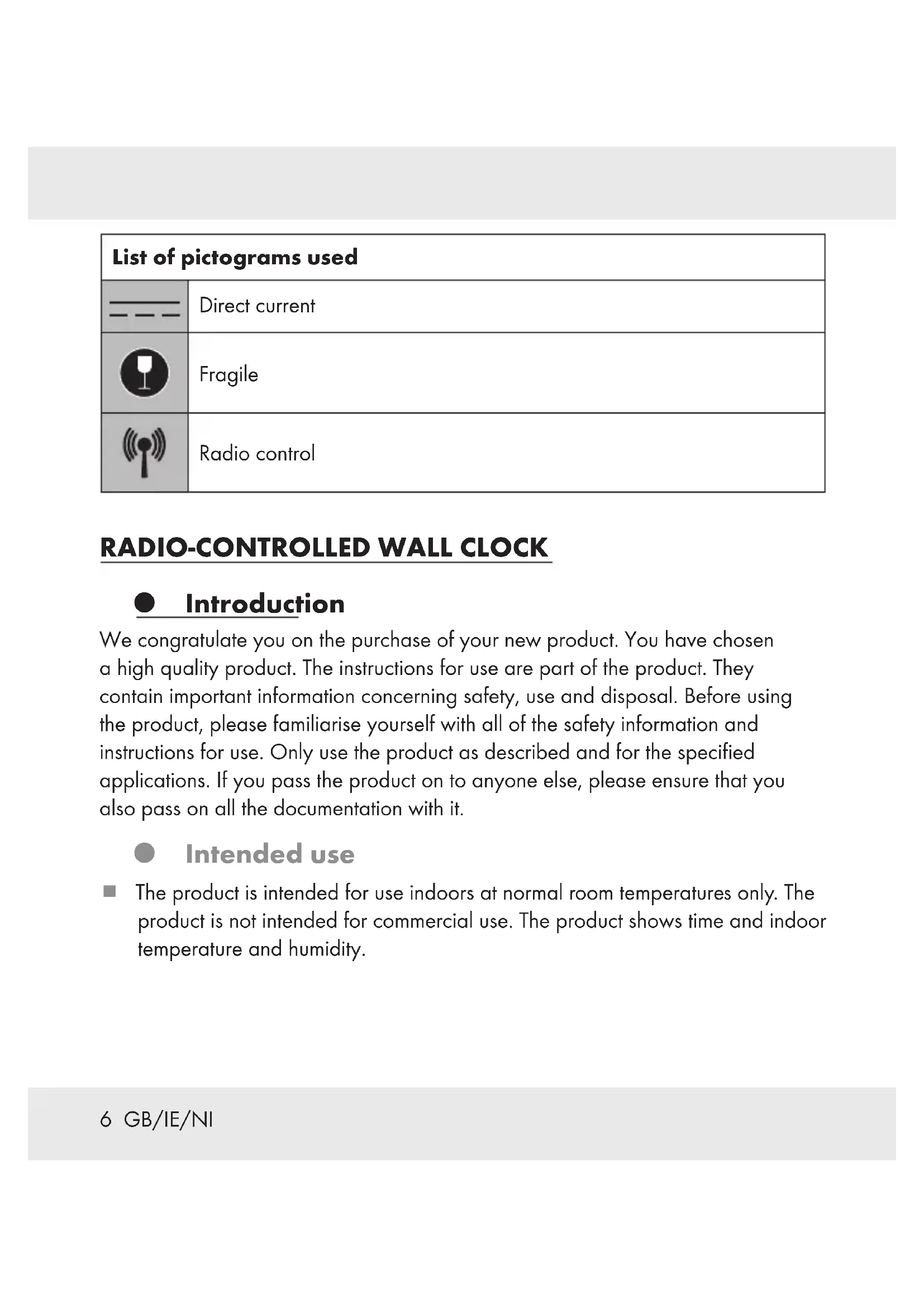

List of pictograms used
——	Direct current
	Fragile
	Radio control

RADIO-CONTROLLED WALL CLOCK

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is intended for use indoors at normal room temperatures only. The product is not intended for commercial use. The product shows time and indoor temperature and humidity.

● Description of parts

1 Mounting hold
2 RESET button
3 REC button
4 M.SET button
5 Battery compartment

- Technical data

Temperature display: -40 to 60 °C

Humidity display: 0 to 100 %

Battery type: 1 x 1.5 V AA, LR6---

Quartz movement: Radio signal for HG05089: DCF77

Radio signal for HG05089-BS: MSF60

Frequency band: 77.5 kHz (HG05089); 60 kHz (HG05089-BS)

Model number: HG05089: DCF RC movement

HG05089-BS: MSF RC movement

- Scope of delivery

Immediately after unpacking, please check the package contents for completeness and if the product and all parts are in good condition.

1 Radio-controlled wall clock
1 Battery 1 x 1.5 V --- AA, LR6 (included)
1 Operating instructions

Safety instructions

WARNING! Please read all safety information and instructions. Failure to comply with the safety information and instructions may result in, fire and / or severe injuries.

General safety information

WARNING! DANGER TO LIFE AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN! Never allow children to play unsupervised with the packaging material.

There is a danger of suffocation from the packaging material. Children frequently underestimate the dangers.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

WARNING! DANGER TO LIFE! Batteries can be swallowed, which may represent a danger to life. If a battery has been swallowed, medical help is required immediately.

Do not use the product if it is damaged.
■ Repairs should only be carried out by specialist personnel.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

⚠️ DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
  If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!

• Insert batteries / rechargeable batteries according to polarity marks (+) and (−) on the battery / rechargeable battery and the product.
• Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
  ■ Remove exhausted batteries / rechargeable batteries from the product immediately.

Before initial use

- Remove the battery from the box and plastic wrapper. Insert the battery into the battery compartment, placing first the - contact and then pushing down at the + contact.

Replacing the battery

■ Turn the wall clock over. Place it on a soft underlay to avoid scratching the surface.
■ Remove the battery and then insert a new battery with the correct polarity.
■ Make sure to first insert the battery into the battery compartment from the negative terminal. Then, press down the positive terminal of the battery.
■ The wall clock is now ready for use.

Radio Signal (DCF for HG05089, MSF for HG05089-BS):

HG05089:

The DCF signal (time signal transmitter) consists of time pulses emitted by one of the most accurate clocks in the world. This clock is located close to Frankfurt / Main, Germany and it can usually achieve an accuracy within a hundredth of a second relative to the time standard.

Your radio-controlled wall clock receives these signals under ideal conditions up to a distance of approx. 1,500 km around Frankfurt / Main. Reception of the radio signal generally takes approx. 3 to 12 minutes.

HG05089-BS:

The MSF signal (time signal transmitter) consists of time pulses emitted by one of the most accurate clocks in the world. This clock is located in Anthorn, UK and it can usually achieve an accuracy within a hundredth of a second relative to the time standard.

Your radio-controlled wall clock receives these signals under ideal conditions up to a distance of approx. 1,500 km Anthorn, UK. Reception of the radio signal generally takes approx. 3 to 12 minutes.

Note: Reception may be considerably reduced by obstructions (e.g. concrete walls) or sources of interference (e.g. other electrical products). In the event of reception problems, change the position of the wall clock (e.g. to somewhere near a window).

Operation

- Receiving the DCF / MSF radio time signal

• Insert a 1.5 V AA / LR6 battery with the correct polarity into the battery compartment on the back of the product.
  The wall clock automatically starts to search for the DCF / MSF radio time signal. This process takes about 3 to 12 minutes to complete.

Within 4 minutes, the hands will move to 12 o'clock. The radio signal reception is initiated once all the hands have moved to the 12 o'clock position. After 3 to 10 minutes, the clock will receive the signal and set itself to the exact time.

The reception of the DCF / MSF radio time signal by the wall clock can also be started manually.

Press and hold the REC button at least 5 seconds. The wall clock attempts to receive the DCF / MSF radio time signal. This process takes a few minutes to complete.

Note: If the wall clock was not able to receive the DCF / MSF radio time signal because of errors, e.g. due your location to being at too great a distance from the transmitter or for other reasons, you can set the time manually. The manually set value is overwritten as soon as reception of the DCF / MSF radio time signal is successful.

Note: For products in tended for Romania, Cyprus, Bulgaria and Greece, the display stops at "01:00".

- Setting the time manually

Press and hold the M.SET button at least 3 seconds. The wall clock switches into manual mode.
Press and hold the M.SET button again until the hands reach the correct position for you to set the time.
Briefly pressing the M.SET button moves the hands forward in one minute steps to enable you to set the current time manually.

Note: After 8 seconds without pressing the M.SET button 4, the wall clock switches out of manual mode and keeps the time as normal. The manually set value is overwritten as soon as the reception of the DCF / MSF radio time signal is successful.

- Resetting the settings

Press the RESET button to reset the radio clock settings. Alternatively, remove the battery from the product and insert it again. The product now automatically starts to search for the DCF / MSF radio time signal.

Note: Press RESET button 2 with a pointed object (e.g. pencil).

● Cleaning and care

The product should only be cleaned on the outside with a soft dry cloth.

If the wall clock is not going to be used, remove the battery.

Note: When the battery voltage is depleted after about 9 months (depending on reception quality), the second hand will stop moving. However, the hour and minute will keep on showing the right time until the battery voltage is too low, after which the clock will stop completely.

It is advised to change a new battery as soon as this occurs.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1 - 7: plastics / 20 - 22: paper and fibreboard / 80 - 98: composite materials

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

● Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declares that the product RADIO-CONTROLLED WALL CLOCK, HG05089 / HG05089-BS, is in compliance with Directives 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Service Northern Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
