USER MANUAL PSK985E Pelgrim

Exterior view of a stainless steel kitchen range hood (no text or symbols visible)

PSK985E

PSK1085E

PSK1285E

Pelgrim

Handleiding

Notice d'utilisation - Anleitung - Manual

NL

Handleiding 3 - 12

FR

Two technical diagrams showing wall-mounted equipment with directional arrows indicating motion (no text or symbols present)

Bediening

1 2 3 4 5

Ventilator inschakelen

Simple line drawing of a rectangular panel with an arrow indicating rotation or movement (no text or symbols)

Pure technical diagram of a rectangular structure with internal components and a labeled point A (no text or symbols beyond label)

Simple diagram showing a downward arrow on a diagonal line with a shaded rectangular area (no text or symbols)

4.4 Reinigen

Afzuigkap

Technical diagram of a mechanical assembly with labeled components and dimensions, including parts A, B, C, D, E, K, and 100mm height.

Symbol of a trash bin with crossed x-marks and a blank rectangular base (no text or numbers)

Two technical diagrams showing airflow or ventilation system between a brick wall and a cabinet, with no visible text or symbols.

Commande

1 2 3 4 5

Simple line drawing of a rectangular panel with an arrow indicating rotation or movement (no text or symbols)

Pure technical diagram of a rectangular structure with internal components and an arrow, no text or symbols present

Simple diagram showing a downward arrow pointing to a rectangular object on a diagonal line (no text or symbols)

4.4 Nettoyage

Hotte

Technical diagram of a mechanical assembly with labeled components and dimensions, including parts A, B, C, D, E, K, and 100mm height.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Two technical diagrams showing wall-mounted air ducts and ventilation system, with no text or symbols present.

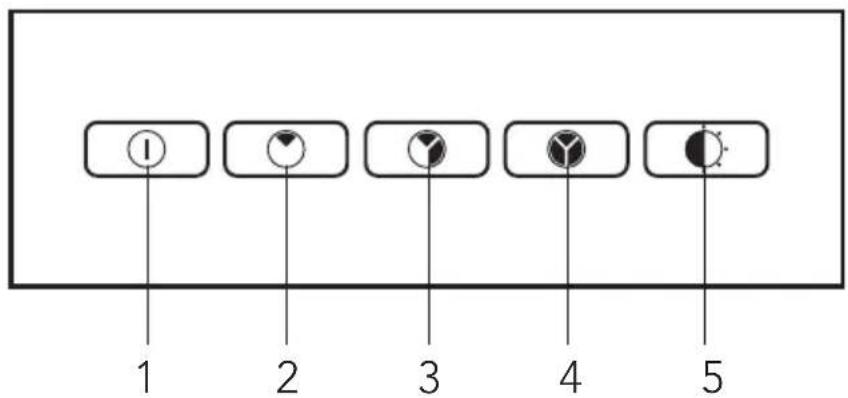

Bedienung

1 2 3 4 5

Gebläse einschalten

Simple line drawing of a rectangular panel with an arrow indicating rotation or movement (no text or symbols)

Pure technical diagram of a rectangular structure with internal components and an arrow labeled 'A' (no text or symbols beyond label)

Simple diagram showing a downward arrow pointing to a rectangular object on a diagonal line (no text or symbols)

4.4 Reinigen

Dunstabzugshaube

Technical diagram of a mechanical assembly with labeled components and dimensions, including parts A, B, C, D, E, K, and 50mm measurements.

Symbol of a trash bin with crossed x-marks and a blank base (no text or numbers)

2.1 Precautions you must take 35
2.2 Extraction systems 36

3 Use 37

4 Maintenance

4.1 Removing the grease filters 38
4.2 Replacing the carbon filter 38
4.3 Changing the light bulbs 38
4.4 Cleaning 39

5 Installation

5.1 General 40
5.2 Mounting the canopy hood 41

6 Appendice 42

1 Your canopy hood

1 2 3 4 5

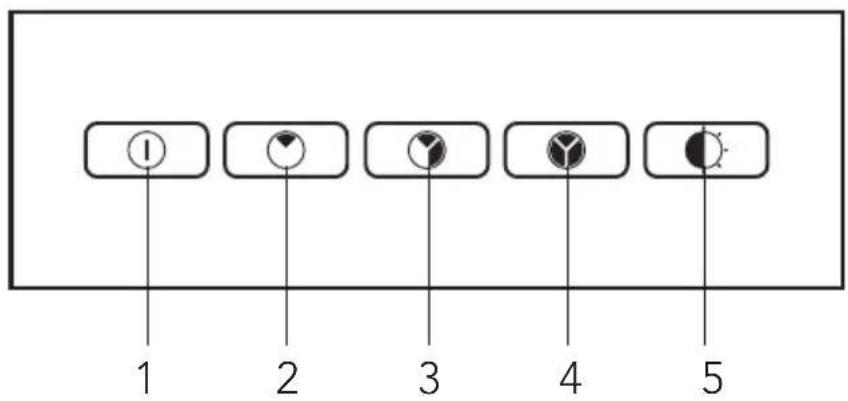

1.1 Description

On/off1.

Fan setting 12.

Fan setting 23.

Fan setting 34.

Lightning5.

1.2 Introduction

When you have read these instructions for use, you will quickly be aware of all the facilities the appliance can offer you. You can read about safety and how you should look after the appliance.

Keep the instructions for use and the installation instructions. Any later user of this appliance could benefit from them.

2.1 What you need to take into account

Attention! Make sure the appliance is installed by an authorised installer (see "Installation" chapter). Do not connect the appliance to the flow network before completing the installation.

Connect the appliance in accordance with the applicable regulations in your area.

We advise you to wear protective work gloves during the installation of the exhaust • hood due to possible sharp edges.

- The appliance has been manufactured in accordance with the latest safety standards.

However we do advise that mentally handicapped, disabled or retarded individuals do not use this appliance without the proper supervision of a competent person. The same applies to children.

Never use the exhaust hood when the grease filter has not been properly installed!

Do not lean against the exhaust hood.

Make sure there is sufficient circulation when you use the exhaust hood on a gas cooker.

The exhaust exit must never be connected to a smoke duct which is also used for other heating appliances.

Never flambé under the exhaust hood and always clean the filters on time. Frying needs to be done under constant supervision to prevent the heated fat from catching fire.

The exhaust hood needs to be cleaned regularly (at least once a month) on the • inside as well as on the outside. When the filters are insufficiently cleaned or replaced, this will result in a fire hazard.

If the connection cable becomes damaged, it should be replaced by the •

manufacturer's service department or by a person with equivalent qualifications, in order to prevent dangerous situations from arising.

First disconnect the appliance from the socket when you replace the lights! Only use identical lamps with the wattage indicated. Only use the exhaust hood with lamps installed to reduce the risk of electrical shock.

The grease filters become hot during operation. Wait a minimum of 30 minutes after • cooking before cleaning it.

2 Safety

The main current must be switched off during reparation or cleaning. Remove the plug from the mains current or turn the switch in the meter cupboard to zero.

Grease and oil are flammable when they are overheated. Stay in the vicinity of the • cooker when preparing food

This appliance is marked in accordance with European guideline regarding the disposal of electrical and electronic appliances (AEEA). This product should be disposed of in accordance with the local environmental regulations for disposal of waste. For further information regarding the treatment, recovery and recycling of this product you can contact your local council, the household waste service or the shop where you purchased the product.

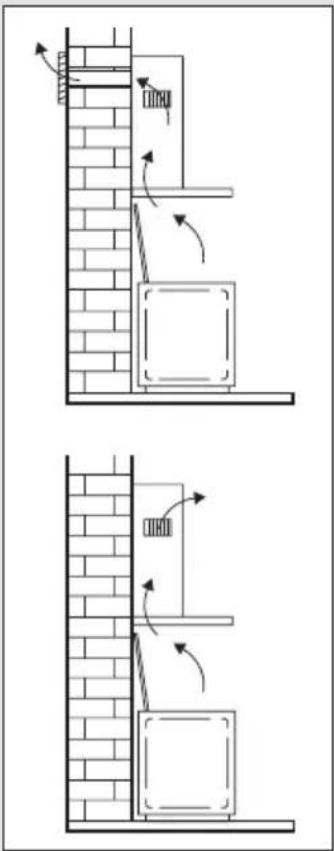

2.2 Extraction systems

Depending on the type, the cooker hoods can be connected in one of two ways:

1. To a duct. To a duct, the cooking vapours extracted by suction are carried outside, once the grease particles have been filtered. This is the best method.

2. Recirculation hood. As a recirculation hood, the grease particles and the smell in the extracted vapours are filtered. The air that has been sucked in is not carried outside but recirculates in the kitchen. In this case you must have a carbon filter fitted.

Attention! The carbon filter needs to be ordered separately.

Two technical diagrams showing wall-mounted air ducts and ventilation system, with no text or symbols present.

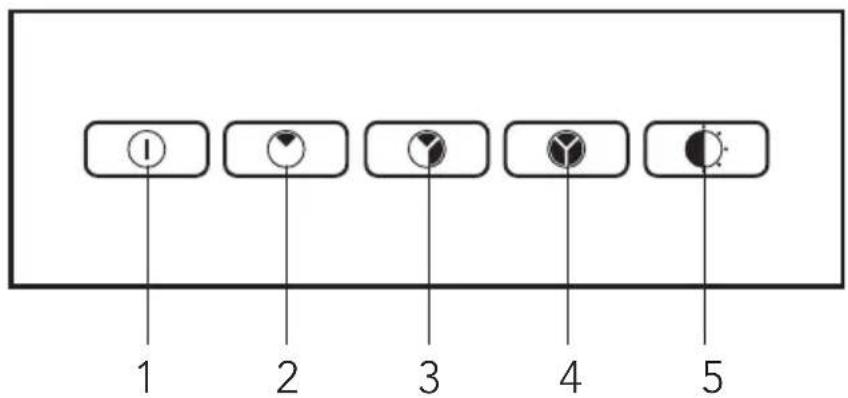

Controls

1 2 3 4 5

The extractor hood switches on at the setting that was selected the last time.

The extractor hood switches on at the setting selected.

Switching lighting on and off

Press the lighting button Ⓞ(5).

The lighting switches on.

Press the button again and the lighting goes out.

The extractor hood switches off.

4 Maintenance

4.1 Removing the grease filters

Switch off the electricity! Remove the plug from the socket or switch the electricity off at the mains. Pull the grease filter towards you and tilt it downwards at the front.

Simple line drawing of a rectangular frame with an arrow indicating rotation or movement (no text or symbols)

4.2 Replacing the carbon filter

The carbon filter must always be used if the cooker hood is not ducted.

Note:

Saturation of the activated charcoal will eventually occur after more or less prolonged use, depending on the type of cooking and how frequently the grease filter is cleaned.

In all cases it is necessary to replace the cartridge at least every four months.

DO NOT wash or reuse the carbon filter. Saturated carbon is not environmentally friendly, change the filter regularly.

Fix the carbon filter underneath the motor housing using the plastic clips (A).

Replace the filter grids in the extractor hood.

Isometric diagram of a rectangular structure with internal components and an arrow labeled 'A' pointing to a section (no text or symbols beyond label)

4.3 Changing the light bulbs

Remove the lamp cover.

Always replace burn-out lamps, according to what is provided for your appliance, with max. 40 Watt bulbs (E14).

Re-close the lamp cover.

Simple diagram showing a downward arrow pointing to a rectangular object on a diagonal line (no text or symbols)

4.4 Cleaning

Cooker hood

Clean the cooker hood with soapy water and a soft cloth. Then wipe with clean water to rinse. Do not use aggressive cleaning agents such as soda. The cooker hood paintwork will stay looking nice if you wax it occasionally.

Stainless steel canopy hoods

Do not use any sort of scourer. Treat with Stahlfix (supermarket) and polish with the structure of the stainless steel.

Metal grease filters

The grease filters can be placed in the dishwasher for cleaning. The openings must be placed downwards to let the water run out of the filters. The cleaning agents will make the aluminium filter turn dull, this is normal.

Glass panels

Do not clean the glass panels in a dishwasher in connection with the risk of discolouration. Glass panels can best be cleaned by hand with soapsuds.

5.1 General

This appliance should be connected to the power supply by a recognized fitter who is familiar with, and works according to the correct safety regulations. This appliance meets the European requirements.

Important that you know:

The minimum distance between the supporting surface for the cooking vessels on • the hob and the lowest part of the range hood must be not less than 65 cm from electric cookers and 75 cm from gas or mixed cookers.

If the cooker hood is to be fitted to an existing duct no other appliances, such as a • geyser or heater, may be connected to that same duct.

Consider local regulations with respect to the ventilation of gas appliances.

The shorter the duct, and the fewer the bends in it, the better the cooker hood will work.

Before you start drilling check that there are no installation cables present.

The connecting pipe for the extractor hood has a diameter of 125 mm or 150 mm. It is best also to use a flue pipe of the same diameter.

The installation material supplied with this rangehood is designed for fixing to • reinforced concrete or masonry walls. For some types of walls you may need special plugs and screws.

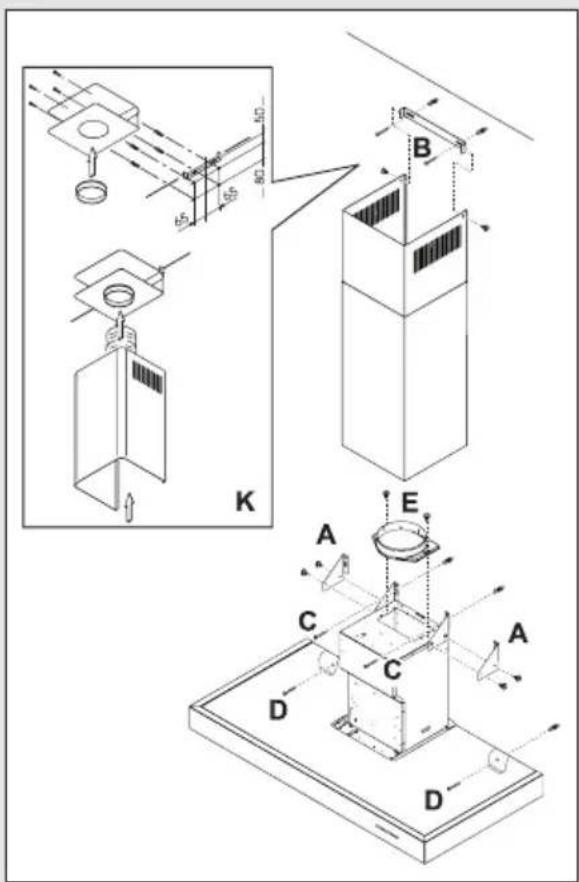

5.2 Mounting the canopy hood

First, fix brackets (A) to the hood with the screws provided determine the position and distance with regard to the mounting brackets. Mark the holes that must be drilled and drill the holes.

If a recirculation system is used, • mount the recirculation kit (K) instead of a duct.

Fix brackets (B) to the wall with the • plugs and screws provided.

Screw the hood to the wall with the • plugs and screws (C) provided.

On the back of the canopy hood are • 2 holes with a diameter of 8 mm for the 2 plugs/screws (D) to fix the hood.

Technical diagram of a mechanical assembly with labeled components and dimensional annotations

Fix the connection ring (E) with the screws provided.

Connect the duct.

Fit the short cylinder to the mounting bracket (B) and pull the long cylinder to the top of the canopy hood.

Disposal of appliance and packaging

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The local authorities can provide you with the relevant information.

The packaging of this appliance is recyclable. It could have been made from:

cardboard;•

polythene foil (PE);•

CFK-free polystyrene (PS-hard foam).

You need to dispose of these materials responsibly in accordance with official regulations.

To draw attention to the fact that the segregated processing of electric household appliances is compulsory, this appliance carries the symbol of a crossed-out dustbin. This means that at the end of its working life, you may not dispose of the appliance as household refuse. Instead, you should hand it in at a special refuse collection centre run by the local authority or at a dealer's providing this service.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Segregated processing of household appliances avoids any negative effects on the environment and public health that might otherwise occur.

It enables the recovery of the materials used in the production of this appliance, thus realising considerable savings in terms of raw materials and energy.

Exterior view of a modern kitchen appliance with a flat roof and side panel (no visible text or symbols)

Warning symbol with exclamation mark inside a triangle

The appliance identification card is located on the inside of the appliance.

Plak hier het toestel-identificatieplaatje. Placez ici la plaque d'identification de l'appareil. Kleben Sie hier das Gerätetypenschild ein. Stick the appliance identification card here.

When contacting the service department, have the complete type number to hand.

Order with this exhaust hood charcoal filter KF71

ATTENTION!
