USER MANUAL SKG 1 A1 SILVERCREST

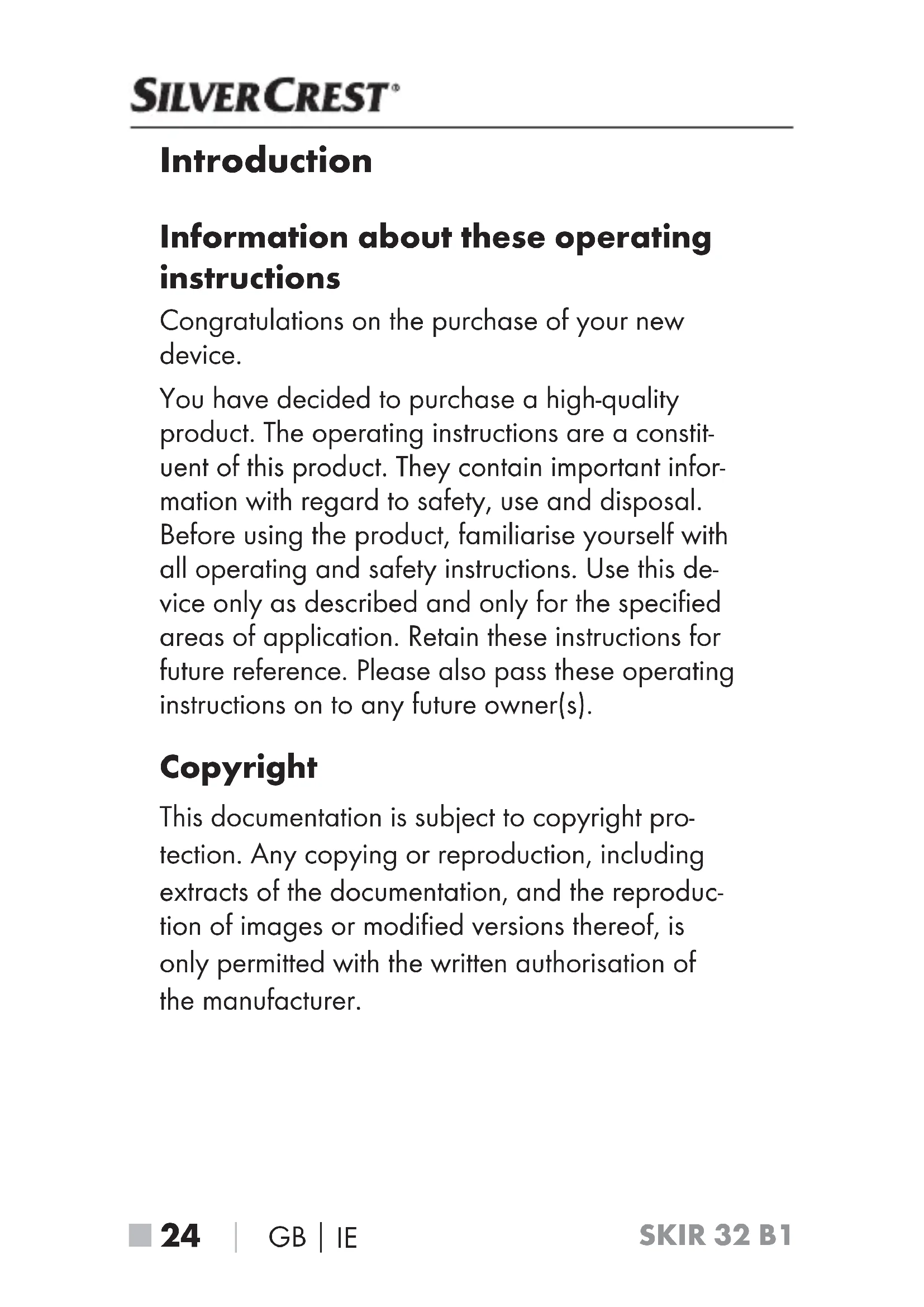

Introduction Information about these operating instructions Congratulations on the purchase of your new device. You have decided to purchase a high-quality product. The operating instructions are a constit- uent of this product. They contain important infor- mation with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this de- vice only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s). Copyright This documentation is subject to copyright pro- tection. Any copying or reproduction, including extracts of the documentation, and the reproduc- tion of images or modified versions thereof, is only permitted with the written authorisation of the manufacturer.SKIR 32 B1

 25 ■ Limitation of liability The manufacturer assumes no liability for damage caused by failure to observe these instructions, non-intended use, improper repairs, making un- authorised modifications or using non-approved replacement parts. Use for intended purpose These headphones are a consumer electronics device. They are intended for non-commercial use for listening to audio material. The headphones can also be used as a headset set in order to accept calls thanks to the integrated microphone. Any other or additional usage is considered to be improper use and can lead to damage. Claims of any kind for damage arising as a result of non-intended use will not be accepted.SKIR 32 B1 ■ 26 

Warnings The following warnings are used in these operat- ing instructions: DANGER A warning at this risk level indicates a potentially hazardous situation. Failure to avoid this hazardous situation could result in physical injury or death. ► Follow the instructions in this warning to pre- vent physical injury. CAUTION A warning at this risk level indicates potential damage to property. Failure to avoid this situation could result in damage to property. ► Follow the instructions in this warning to prevent damage to property. NOTE ► A note indicates additional information that will assist you in handling the device.SKIR 32 B1

 27 ■ Safety instructions For safe handling of the device, follow the safety information below: ■ Check the headphones for external signs of damage before use. Do not operate damaged headphones or earphones that have been dropped. ■ If the cables or connections are damaged, have them replaced by an authorised specialist or customer service. ■ Persons who are incapable of operating the headphones safely due to their physical, intellec- tual or motor abilities must only use them under the supervision or direction of a responsible adult. ■ Children may only be permitted to use the head- phones if they are under supervision. ■ Repairs to the headphones should only be car- ried out by authorised specialist personnel or by the customer service department. Failure to make proper repairs can put the user at risk. This will also invalidate warranty claims.SKIR 32 B1 ■ 28 

■ Repairs to the headphones during the warranty period may only be carried out by a customer service department that has been authorised by the manufacturer, otherwise no additional war- ranty claims can be considered for subsequent damage. ■ Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety requirements are being complied with if using original replacement parts are used. ■ No unauthorised design changes or modifica- tions must be made to the headphones. ■ Protect the headphones from penetration by moisture and liquids. ■ Do not use the headphones in the vicinity of naked flames (e.g. candles).

DANGER! The packaging material is not a plaything. Keep plastic sheeting, bags and all other packaging material away from children. There is a risk of suffocation.SKIR 32 B1

 29 ■ Risk of hearing damage DANGER Risks as a result of extremely high sound levels! Loud music can lead to hearing damage. ► Avoid extreme sound levels, especially over long periods of time, when you are using these headphones. Risk of accidents DANGER Danger as a result of affected perception! ► Acoustic warning and indication signals and ambient noise may be perceived differently when headphones are being worn. It is important to be aware of how these signals can differ so that you can recognise them in the relevant situations.SKIR 32 B1 ■ 30 

DANGER ► Do not use the headphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the head- phones. Descriptions of components Headphones Ear cushions (medium)

Microphone Multi-function button Ear cushions (small) Ear cushions (large) Set of operating instructionsSKIR 32 B1

 31 ■ Commissioning Package contents (see fold-out page) The headphones are delivered with the following components as standard: ▯ Headphones with pre-installed ear cushions (medium size ) ▯ 2 pairs of ear cushions (small and large ) ▯ These operating instructions NOTE ► Check contents for completeness and for signs of visible damage. ► If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service). Disposal of packaging The packaging protects the appliance from trans- port damage. Recirculating the packaging into the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging material that is no longer needed in accordance with applicable local regulations.SKIR 32 B1 ■ 32 

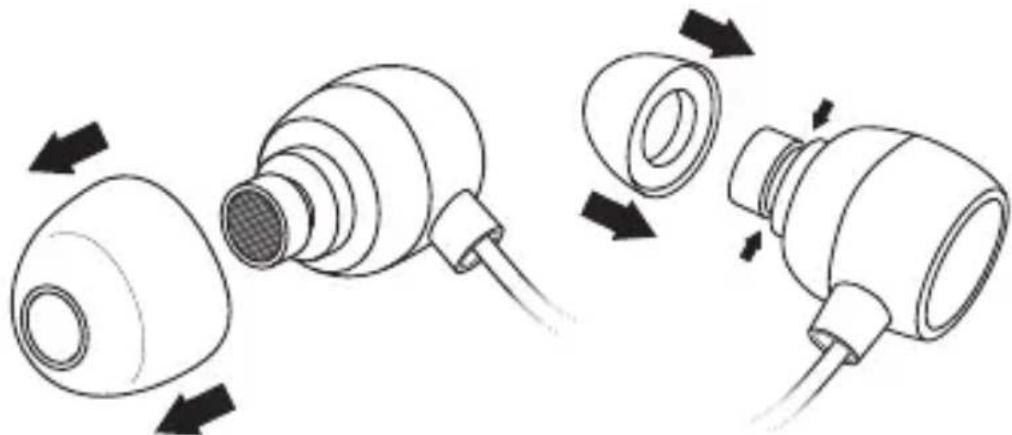

Using the headphones ■ When putting on the headphones , pay attention to the side indicators “R” (right) and “L” (left) on the earpieces. ■ Carefully slide one of the headphones deep into the ear canal. In order to straighten the ear channel somewhat and therefore make the earphone easier to insert, pull auricle backwards and upwards a little. ■ Proceed in the same way to insert the other earphone . Replacing the ear cushions In the as-delivered condition, the headphones are provided with medium size ear cushions . Depending on the size of your auricle you can use ear cushions ( or ) of a different size from the ones supplied. NOTE ► The better the ear cushion seals off the ear canal, the better the sound quality, particu- larly at lower frequencies. ■ Use your fingers to carefully pull on the ear cush- ions to detach them from the headphones (see fig. 1).SKIR 32 B1

 33 ■ ■ Select suitable ear cushions ( or ) from the ones that are supplied. Push these directly onto the headphones until they slip into the recesses on the headphones (see fig. 2). Fig. 1 Fig. 2 Connecting the headphones The headphones are equipped with a 3.5 mm jackplug. Many electronic entertainment devices are provided with an appropriate headphone socket. If your audio device has been equipped with a differ- ent headphone connector, you may need to use a suitable adapter (not supplied). Multi-function button functions The multifunction button can be used to carry out basic functions for playing music and making telephone calls.SKIR 32 B1 ■ 34 

NOTE ► The functions available from the multifunction button depend on the device connected. Depending on the device connected (e.g. smartphone), it could be that not all functions are supported, or that more functions are available. Telephone Press multifunction button Accept call Press once End call Press once Reject call Press for approx. 2 seconds then release it Activate voice control Keep multifunction button pressed Music Play/pause Press once Next title Press twice rapidly Previous title Press rapidly 3 x Microphone The microphone can be used during telephone calls. The nearer to your mouth it is the better the commu- nication.SKIR 32 B1

 35 ■ Fault rectification Fault causes and rectification The following table will help with localising and remedying minor malfunctions: Defect Cause/remedy No sound coming from head- phones . The volume control of the play- back device is set to the minimum volume. Increase the playback volume. The 3.5 mm jackplug is not fully inserted into the playback de- vice's headphone socket. Push the

3.5 mm jackplug all the way into

the socket. Sound is only coming from one side of the head- phones . The 3.5 mm jackplug is not fully inserted into the playback de- vice's headphone socket. Push the

3.5 mm jackplug all the way into

the socket. The Stereo-Balance-Control on the playback device is incorrectly adjusted. Adjust it to the setting you desire.SKIR 32 B1 ■ 36 

NOTE ► If the malfunction cannot be remedied with the described solution proposals or if other types of malfunctions occur please contact our service department (see chapter Service). Cleaning CAUTION ► Do not allow any liquids to penetrate the in- terior of the headphones . This could cause irreparable damage to them. ■ Clean the headphones with a slightly damp cloth. ■ Remove the ear cushions (, or ) for cleaning. Clean the ear cushions under running water. Dry the ear cushions properly. Do not fold the ear cushions back over the headphones until they are properly dry. Storage when not in use ■ Store the headphones in a dry and dust-free location.SKIR 32 B1

 37 ■ Disposal The symbol of a crossed-out wheelie bin means that this product is subject to European Directive 2012/19/EU and may not be disposed of in the domestic waste. The product must be taken to a dedicated collection point for electrical and electronic appliances. This disposal is free of charge for the user. You will be helping to protect both the en- vironment and your personal health and recycling valuable raw materials. More information on disposal and the nearest col- lection point is available from your town council.SKIR 32 B1 ■ 38 

Appendix Technical details Impedance 32 Ω +/- 4 Ω Sensitivity 100 dB +/- 10% at 1 kHz Frequency response 20 Hz - 20 kHz Input power max. 50 mW Wide band characteristic voltage approx. 100 mV +/- 20% Connector 3.5 mm jackplug Cable length approx. 120 cm Weight approx. 22 g Operating temperature

 39 ■ Notes on the EU Declaration of Conformity This device complies with the basic requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The complete EU Declaration of Conformity is available from the importer and may be requested if required (see Chapter Importer). Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or produc- tion fault occurs within three years of the date of purchase of the product, we will either repair orSKIR 32 B1 ■ 40 

replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, bat- teries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly main-SKIR 32 B1

 41 ■ tained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commer- cial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been car- ried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ▯ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of pur- chase. ▯ You will find the item number on the type plate, an engraving on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. ▯ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ▯ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.SKIR 32 B1 ■ 42 

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 281910 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
