USER MANUAL IAN 282286 SILVERCREST

Operation and Safety Notes

DK

BLUETOOTH®-OUTDOORHØJTALER

Scope of delivery.. Page 9

Parts Description.. Page 9

Technical Data.. 10

Safety Page 10

Warnings regarding the built-in rechargeable battery. Page 13

Before use.. 14

Charging Page 15

Using the Bluetooth® speaker...... Page 16

Functions of the buttons on the Bluetooth® speaker... Page 16

Taking calls (hands-free mode)......Page 17

Use Bluetooth® speaker via AUX stereo jack.....Page 18

Switching between AUX-in connection and the Bluetooth® connection Page 19

Storage in case of non-use... Page 19

Troubleshooting Page 19

Disposal.. Page 21

Information about the EU declaration of conformity 22

Warranty . 23

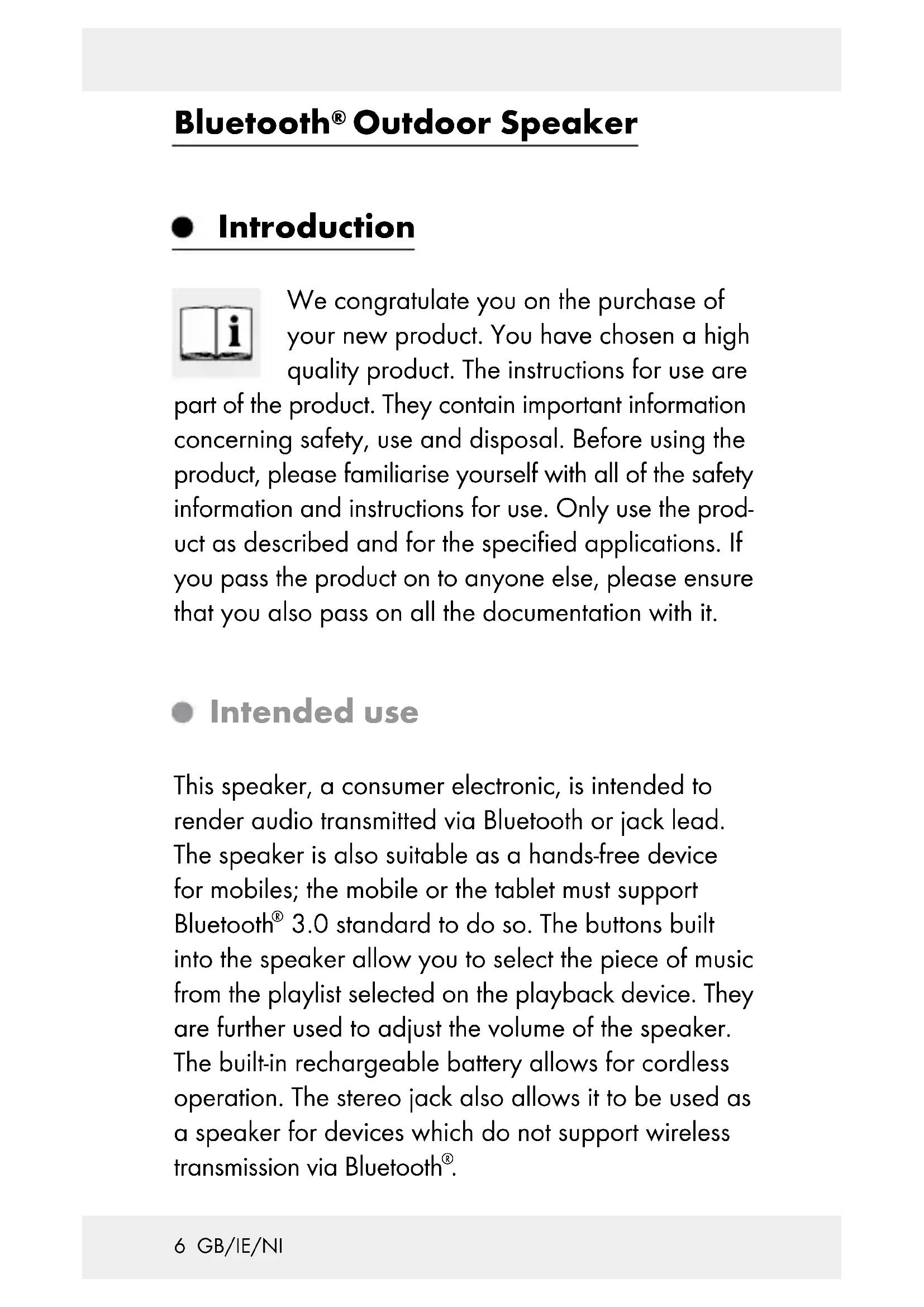

Bluetooth® Outdoor Speaker

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are

part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This speaker, a consumer electronic, is intended to render audio transmitted via Bluetooth or jack lead. The speaker is also suitable as a hands-free device for mobiles; the mobile or the tablet must support Bluetooth® 3.0 standard to do so. The buttons built into the speaker allow you to select the piece of music from the playlist selected on the playback device. They are further used to adjust the volume of the speaker. The built-in rechargeable battery allows for cordless operation. The stereo jack also allows it to be used as a speaker for devices which do not support wireless transmission via Bluetooth®.

The product is designed for private use, including outdoors, and must not be used for commercial purposes.

Any other use is considered improper. Any claims resulting from improper use or due to unauthorised modification of the speaker will be considered unwarranted. Any such use is at your own risk.

-Warnings used

These instructions for use contain the following warnings:

DANGER

A warning with this symbol and the word „DANGER“ indicates a life threatening situation.

Failure to observe this warning may result in fatal or serious injuries.

Follow the instructions in this warning to prevent a danger to life or serious injury!

A warning with this symbol and the word "DANGER! HIGH VOLTAGE" indicates the threat of electrical shock due to high voltage.

Failure to observe this warning may result in fatal or serious injuries.

Follow instructions in this warning to prevent a danger to life or serious injury!

CAUTION! EXPLOSION HAZARD! A warning with this symbol and and word "CAUTION! EXPLOSION

HAZARD" indicates the potential threat of explosion.

Failure to observer this warning may result in fatal or serious injuries and potential property damage.

Follow the instructions in this warning to prevent a danger to life, serious injuries or property damage!

ATTENTION

A warning with this symbol and the word „ATTENTION“ indicates potential property damage.

Failure to observe this warning may result in fatal or serious injuries.

Follow the instructions in this warning to prevent a danger to life or serious injury!

Trademark notice

-USB is a registered trademark of USB Implementers Forum, Inc.

• TheBluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OWIM GmbH & Co. KG is under license.

• The SilverCrest trademark and trade name is the property of their respective owners.

Any other names and products may be trademarks or registered trademarks of their respective owners.

- Scope of delivery

1 Bluetooth® Outdoor Speaker
1 Charging cable (Micro USB / USB type A)
1 Aux cable
1 Instructions for use

- Parts Description

Speaker (2 pieces)
2 Signal LED
3 Protective cover
4 Microphone
Loop for wrist strap
6 Wrist strap
3.5 mm stereo jack (AUX)
8 Micro-USB socket
9 Volume up / Skip up button
10 Day / Skip down button
11 Volume down / Previous button
12 Charging cable (Micro USB / USB type A)
13 3.5 mm stereo jack lead
14 Instructions for use

Technical Data

Power supply: Micro USB socket: 5 V, min.
500 mA
Battery: 1 x 3.7 V rechargeable
lithium polymer battery with
1000 mAh (battery not
replaceable.)

Music output: max. 2 × 2 W RMS
Wireless standard: Bluetooth ® 3.0
Charging socket: micro-USB
AUX jack: 3.5 ~mm Stereo jack plug
Dimensions: approx. 142 × 52 ~mm (w x Ø)

Weight: approx. 245 g
Degree of protection: IP44 (splash-proof) with protective cover closed 3

Operating conditions: 10^ - 40^, 40% -85% rel. humidity Storage temperature: -20^ + 60^

Safety

This chapter provides important safety information for handling the device. Improper use can result in personal injury and property damage.

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

V/RNING!

LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER

■ Risk of suffocation! Packaging material (i.e film or polystyrene) should not be used to play with. Always keep children away from the packaging material. The packaging material is not a toy.

• Keep electrical devices away from children. People with sensory, motor, mental and physical impairments should not use the electrical device, unless they are instructed and supervised by a responsible person. This product is not a toy! Keep packaging materials away from children - it poses a risk of suffocation.

RISK OF PROPERTY DAMAGE

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.

Check the product before every use! Discontinue use if any damage to the device or the charging cable is detected!

If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the device off immediately and disconnect all cables. Do not use the device anymore.

Sudden temperature changes may cause condensation inside the device. In this case, allow the

device to acclimate for some time before using it again!

• Do not place burning candles or open fire on or near the speakers.
• Do not use the product near heat sources such as radiators or other devices emitting heat!
• Do not throw the speaker into fire and do not expose to high temperatures.
  Please note, when the protective cover 3 is open, the device is not protected from water entering the device. In this case, only use the device in a dry environment.

DANGER

• Do not try to open the device! It has no internal parts requiring maintenance.

DANGER

Wireless interface

Switch the device off on airplanes, in hospitals, service rooms, or near medical electronic systems. The wireless signals transmitted could impact the functionality of sensitive electronics. Keep the device at least 20~cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers. The radio waves transmitted could cause interference in hearing aids. Do not place the device near flammable gasses or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire. The range of the

radio waves varies by environmental conditions. In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded. OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the device. OWIM GmbH & Co KG further assumes no liability for using or replacing cables and devices not distributed by OWIM. The user of the device is fully responsible for correcting interference caused by such unauthorised modification of the device, as well as replacement of such devices.

-Warnings regarding the built-in rechargeable battery

CAUTION! EXPLOSION HAZARD!

DANGER!

The speakers have a built-in rechargeable lithium polymer battery. Improper handling of rechargeable lithium polymer batteries may result in fire and explosion. Furthermore, hazardous substances may leak from the rechargeable battery.

Do not throw the device into fire.
- Do not operate the device outside the operating conditions specified under "Technical Data"!

Risk of damage to the rechargeable battery

• Avoid extreme conditions and temperatures which may affect rechargeable batteries, e.g. on heaters or in direct sunlight!
  Do not cover the device during use or charging!
• Only charge the battery in a dry environment, as the device is not splash-proof when the micro-USB socket 8 is open.
  A chemical released by a leaking battery may irritate the skin. If the chemical comes into contact with the skin, rinse the skin with plenty of water. If the chemicals come into contact with the eyes, rinse eyes with plenty of water, do not rub eyes, and seek medical attention. Be very careful when handling damaged or leaking batteries. Risk of injury! Wear gloves!

- Before use

Before use, verify the package contents are complete and undamaged!
- Attach the wrist strap 6 to the loop 5. Place the wrist strap around your wrist when transporting the device.
Place the device on a level, even surface for operation. When doing so, place the wrist strap under the device to prevent it from rolling.

- Charging

The battery must be charged prior to first use.
When the battery is drained, a sound will be emitted every 30 seconds during operation. The battery should then be charged as soon as possible.
Depending on the volume and the age of the battery, the operating time for the device is approx. 5 hours when fully charged.
Open the protective cover 3.
Insert the micro-USB plug of the charging cable 12 into the micro-USB socket 8 of the Bluetooth speaker. Insert the USB plug of the charging cable into the USB port on a PC or a USB adapter (not included in scope of delivery).

Note: The signal LED 2 will light up red whilst charging and goes out once charging is completed. The charging time for a drained battery is approx. 4 hours.

Note: The speaker may be used whilst charging. However, doing so will at a minimum double the charging time.

Once charging is complete, remove the micro-USB plug of the charging cable and close the protective cover so the device is splash-proof again.

Using the Bluetooth® speaker

Establishing a Bluetooth® connection:

Remove all plugs from the AUX stereo jack 7 before you establish Bluetooth® radio link.

Press and hold the button 10 until the signal LED 2 flashes blue and a beep sounds. The speaker will now attempt to connect to the playback device (e.g. smartphone or computer).

Switch on the playback device and approve the connection. Please note the requirements of the software on the playback device. The signal LED will light up blue and a beep sound.

The speaker identification on the playback device will be HG00595.

The maximum range of the connection is approx. 10m but may be reduced to the geometry of the space (obstructing furniture, walls, etc.).

The playback device must support Bluetooth standard 3.0. Otherwise you may not be able to use all the functions listed below.

- Functions of the buttons on the Bluetooth® speaker

Start a playlist on your playback device. Set the volume on the playback device to Maximum. The volume on the Bluetooth® speaker can be adjusted as described below. Music is played back through the speakers 1.

The Bluetooth® speaker has 3 buttons. These control the following functions:

Button Function
HI	- Hold approx. 2 seconds: switch device on or off - Press briefly during playback: pause or continue playing
+》	- Press briefly during playback: skip to next song in the playlist - Hold during playback: increase volume. Two beeps will sound when the maximum volume level has been reached
←=	- Press briefly during playback: replay song - Briefly press twice during playback: previous song in the playlist - Hold during playback: reduce volume

- Taking calls (hands-free mode)

If the Bluetooth® speaker is connected to a smartphone supporting Bluetooth® Standard 3.0, you make also answer calls whilst the Bluetooth® speaker is playing music. Please refer to the instructions for your smartphone for the required smartphone settings.

The ringer and the caller's voice are rendered through the speaker 1.
Music playback is automatically paused when a call is received.
The microphone 4 receives your voice.
Briefly press the button to answer the call.

Adjust the volume during the telephone call using the + button or the button 11.

□ Briefly press the button to end the call.

Music playback will continue once the phone call has been terminated.

Use Bluetooth speaker via AUX stereo jack

Note: Music playback via cable takes priority over music playback via Bluetooth®. Music playback from a Bluetooth® source is therefore interrupted once the jack lead 13 is plugged into the jack 7. The signal LED 2 lights up green.

Music playback via the AUX stereo jack is prioritized over playback via Bluetooth®.
Switch on the sound source.
If the Bluetooth® speaker is off, press and hold the button until the signal LED light green and two beeps sound.
Start playback on the sound source and adjust the volume to the highest possible volume. Adjust the volume on the speaker using the + button (up) or the ← button (down).
Start playing music on the sound source.

- Switching between AUX-in connection and the Bluetooth® connection

Aux-in connection has a higher priority over the Bluetooth® connection as following:

Once the jack lead 13 is plugged into the jack 7, the Bluetooth® wireless connection is disconnected. The music playback is switched to AUX-in only and the signal LED 2 lights up green.
To resume music playback and call answering via Bluetooth® connection, please unplug the jack lead 13 from the speaker. It will search for the previously paired device (if any) and re-establish the Bluetooth® connection automatically.

Storage in case of non-use

• Switch the device off, remove all plugs, and close the protective cover 3 before cleaning!
  Only clean the outside of the device using a soft, dry cloth!

- Troubleshooting

= Fault
= Possible cause
O = A cTION

No functions
Battery drained.
Recharge the battery as described in "Charging the battery".

No Bluetooth connection

Error operating the speaker
If necessary, unplug the jack plug from the jack
Switch the Bluetooth® speaker off and on again, increase the volume
Playback device error
Check if the Bluetooth® speaker was detected by the playback device
Check if the playback device detects other devices with Bluetooth® Standard 3.0

No music playback via Bluetooth®
Error operating the speakers
Check if a jack plug is inserted in the jack and remove, if applicable
Switch the Bluetooth® speaker off and on again
Press the button to check if it was pressed inadvertently
Press and hold the button to increase the volume
Error operating the playback device
O Increase the volume on the playback device
No music playback via cable connection
Error connecting the cable
Reconnect the cable to the playback device

Disposal

Disposing of the device

The adjacent symbol of a crossed out dustbin on wheels indicates this device is subject to Directive 2012/19/EU. This directive

states at the end of the life this device must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

The built-in rechargeable battery cannot be removed for disposal.

This disposal is free of charge to you. Protect the environment and dispose properly.

Please contact your local waste management company or the city / municipal administration for more information.

Disposing of the packaging

The packaging protects the device from transport damage. The packaging materials were selected based on eco-friendly and waste management aspects and are therefore recyclable.

Returning the packaging to the material flow reduces the use of raw materials and waste. Dispose of packaging materials

which are no longer needed according to applicable local ordinances.

Information about the EU declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, declare the product HG00595D, HG00595E, HG00595F Bluetooth® Outdoor Speaker, to meet the fundamental requirements and other relevant provisions of R&TTE Directive 1999/5/EC and RoHS Directive 2011/65/EU.

Identification number: IAN 282286

Harmonised standards applied:

EN 60065: 2014

EN 300 328 V1.9.1

EN 301 489-1 V1.9.2

EN 301 489-17 V2.2.1

EN 50581: 2012

EN 62479:2010

EN 55032:2012

EN 55020:2007/A11:2011

Tobias Koenig

Department Manager

Neckarsulm, 31 Dec 2016

The full EU declaration of conformity can be viewed at:

www.owim.com

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
