USER MANUAL SSK 32 A1 SILVERCREST

Operating instructions

IAN 89663

DF AT CH

（FR）（NL）GB

Toz89663_Sportkopfhoerer_Cover_LB1.indd 2 28.05.13 13:17

Deutsch 2

Francais 16

Italiano 30

ID:SSK32A1_13_V1.4

1. Overview 58
2. Intended purpose 60
3. Safety information 60
4. Items supplied .62
5. Operation 63
6. Cleaning 64
7. Disposal 65
8. Troubleshooting 66
9. Technical specifications 67
10. Warranty of the HOYER Handel GmbH 68

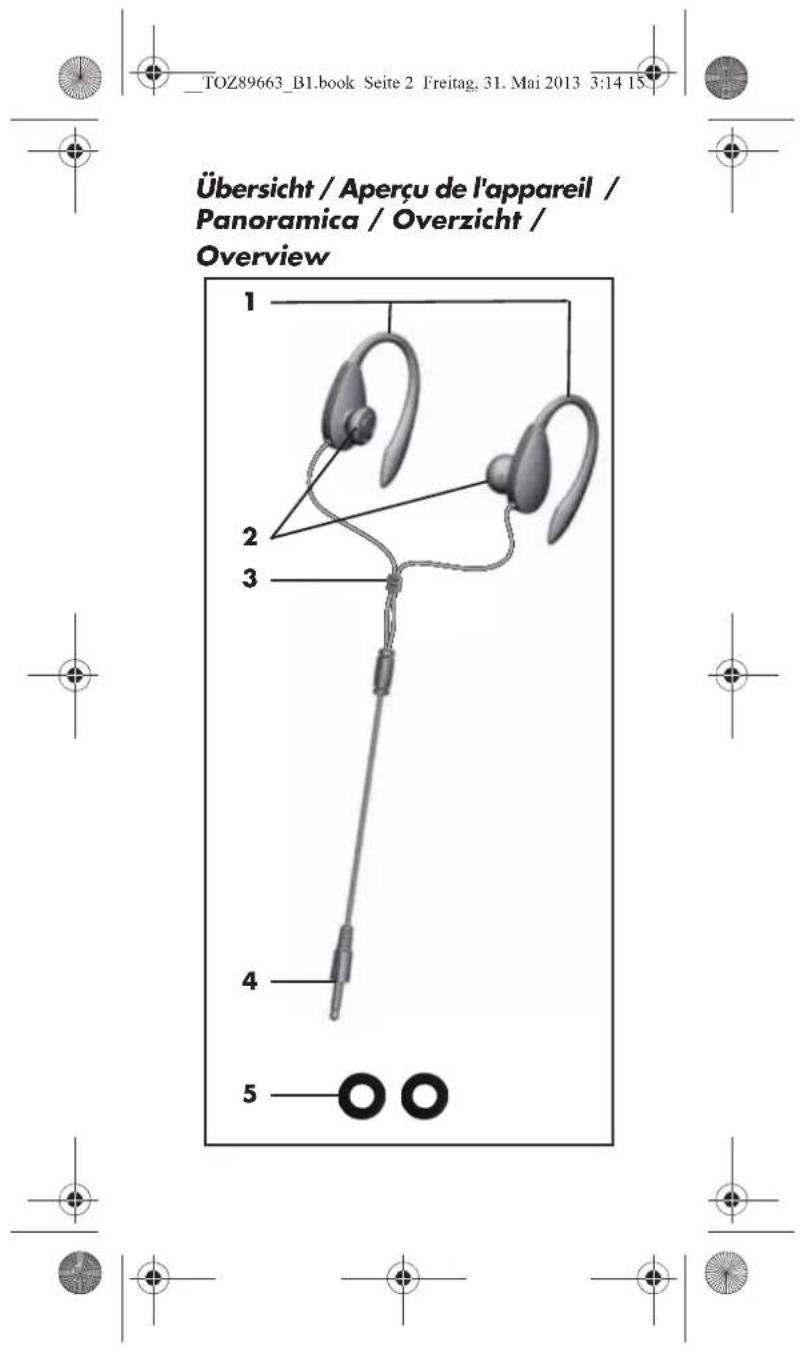

1. Overview

1 Headband
2 Headphone earpiece (R/L)
3 Adjuster for cable length
4 3.5 mm TRS connector
5 Earpads

58

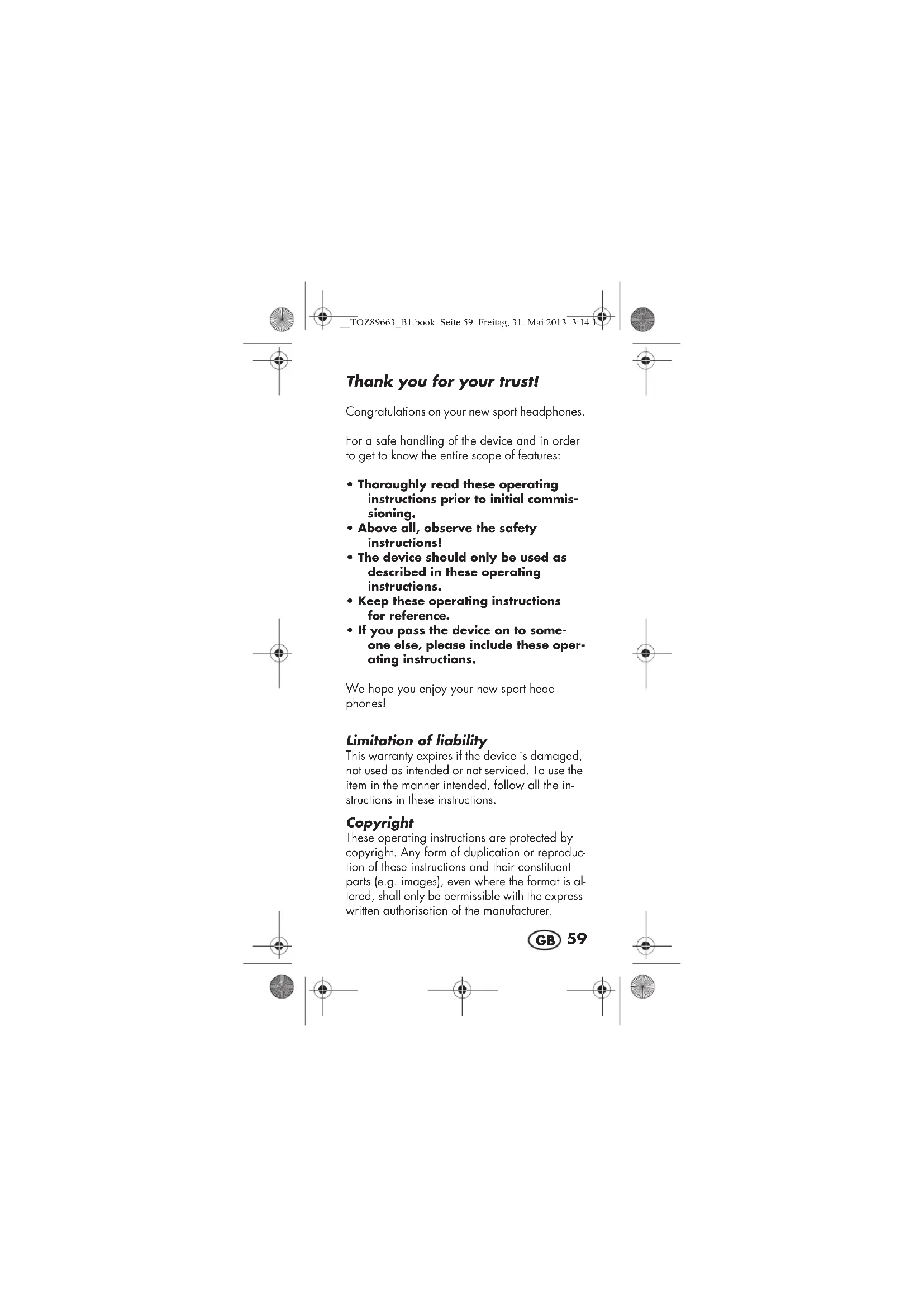

Thank you for your trust!

Congratulations on your new sport headphones.

For a safe handling of the device and in order to get to know the entire scope of features:

• Thoroughly read these operating instructions prior to initial commissioning.
• Above all, observe the safety instructions!
  The device should only be used as described in these operating instructions.
• Keep these operating instructions for reference.
• If you pass the device on to someone else, please include these operating instructions.

We hope you enjoy your new sport headphones!

Limitation of liability

This warranty expires if the device is damaged, not used as intended or not serviced. To use the item in the manner intended, follow all the instructions in these instructions.

Copyright

These operating instructions are protected by copyright. Any form of duplication or reproduction of these instructions and their constituent parts (e.g. images), even where the format is altered, shall only be permissible with the express written authorisation of the manufacturer.

GB 59

The sport headphones are intended for playing sound from audio devices at a normal listening volume.

The device is designed for use in private households. This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings will be used in these operating instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

DANGER as small parts may be swallowed

The earpads are small parts that could be swallowed. Keep these away from children under the age of 36 months.

DANGER for children and persons with disabilities

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation.

60

This device is not designed to be used by people (including children) with limited physical, sensory or mental capabilities or people without adequate experience and/or understanding unless they are supervised by someone responsible for their safety or are instructed by them on how to use the device.
Children must be supervised to ensure that they do not play with the device.
- Keep the device out of the reach of children.

DANGER of accidents due to impaired perception

• Never use the headphones during activities when you must be attentively aware of your surroundings, particularly when operating machinery or vehicles in traffic (this also applies to bicycles). You must also comply with the legal provisions and regulations of the country in which you are using the device.

Running with headphones can significantly increase the risk of an accident, as you may no longer be able to hear traffic properly.

When adjusting the headache volume, you should still be able to hear your own voice when speaking at a normal volume.

DANGER of affecting cardiac pacemakers

The magnetic fields generated by the headphones may impair the functioning of cardiac pacemakers and implanted defibrillators. You must therefore maintain a minimum distance of 10 cm between the

GB

61

headphones and the cardiac pacemaker / defibrillator.

WARNING! Risk of hearing damage

• Set a low volume on the playback device before you connect the headphones to the sound source.
• Avoid excessive volumes, particularly over extended periods or in the case of frequent use. Excessive volume can result in permanent hearing damage.

WARNING! Risk of material damage

• Protect the device against damage, e.g. from:

• drips and splashes of water
  -heat, direct sunlight and open flames

• impacts and similar violent effects

• Protect the cable against damage, e.g. from:

• s h a r p e d g e s

hot places

• clamping or crushing

• Do not use any astringent or abrasive cleaning agents.

• To avoid any risk, do not make modifications to the device. Repairs must be carried out by a specialist workshop or the Service Centre.

4. Items supplied

1 set of sport headphones (medium earpads 5 mounted)
2 pairs of earpads 5 (small, large)
1 set of operating instructions

62

• Remove all packing material.
• Check that the device is undamaged.

Changing earpads

The sport headphones are supplied with earpads 5 in three sizes. The medium-sized earpads are mounted when supplied. You can significantly improve your wearing of the sport headphones by replacing the earpads 5 if needed.

1. Remove the earpads 5 carefully from the sport headphones using your fingers.
2. Pull the other earpad over the headphoneearpiece 2 until it slides into the depression.

Connecting

1. Set the sound source to a low volume.
2. Insert the 3.5mm TRS connector 4 into the headphone socket of the sound source (e.g. MP3 player).

NOTE: if your sound source has another type of connection, you can also connect the headphones using an adapter (not contained in the scope of delivery).

Put on the headphones

1. Put on the single headbands 1 in such a way that the marking R is on the right-hand side, and L is on the left.
2. Push the headbands 1 behind the headphone earpieces and bend the headbands to adjust them to the earpieces.
3. Push the earpads 5 gently into your ears.

GB 63

1. Set the volume of the sound source. Ensure that you are still able to hear sounds in your surroundings.

NOTE: the length of the cable between the headphones can be adjusted by sliding the adjuster 3.

6. Cleaning

WARNING! Risk of material damage!

• Protect the device from water drops and water spray.
• Do not use any astringent or abrasive cleaning agents.
  If necessary, clean the device with a soft, damp cloth.

Earpads

1. Remove the earpads 5 before cleaning.
2. Clean the earpads 5 under running water, and then allow them to dry.
3. Only reattach the earpads 5 after they have dried completely.

This product is subject to European Directive 2002/96/EC.

The symbol showing a wheeley bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Prod

ucts identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electronic and electronic appliances. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

GB

65

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

WARNING! Risk of material damage!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes/Action

No sound	Make sure that the TRS connector 4 is inserted into the socket of the sound source. Check the settings (volume, playback) at your sound source.
Sound only on one side of the head-phones	Check the balance settings on your sound source. Make sure that the TRS connector 4 is fully inserted into the socket of the sound source.

66

9. Technical specifications

Model: SSK 32 A1
Resistance: 32 Ω +/-4 Ω
Input power: max. 50 mW
Broadband ID voltage (WBCV): ≥ 75 mV
Sensitivity: 100 dB +/-10% at 1 kHz
Transmission range: 20 Hz - 20 kHz
Storage temperature: 0 - 45 °C
Maximum humidity: 85%
Plug: 3.5 mm TPS connector
Cable length: 1.2 m
Operating temperature: 10 - 40 °C

Subject to technical modification.

Declaration of conformity

A complete declaration of conformity can be requested from HOYER Handel GmbH, see service centres.

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us - at our discretion - free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects. This warranty does not include product parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of

GB 69

force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN:89663 and the purchase receipt as a purchase verification for all inquiries.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

Please visit www.lidl-service.com to download this and many other manuals, product videos and software.

70

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

{0,08 EUR/Min., (peak)} {0,06 EUR/Min.}

(off peak))

E-Mail: [e-mail]

IAN:89663

Supplier

Please note that the following address is

no service address. First contact the

aforementioned Service Centre.

HOYER Handel GmbH

Kühnehoe 5

22761 Hamburg

Germany

GB

HOYER HANDEL GMBH

Kühnhöfe 5

D-22761 Hamburg

Status of information:
