USER MANUAL SB265IBT THOMSON

FM ST. LED , W / AUX IN

SB160IBT/SB260IBT/SB265IBT

SB160IBT/SB260IBT/SB265IBT

SB160IBT/SB260IBT/SB265IBT

FM ST. LED , W / AUX IN

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

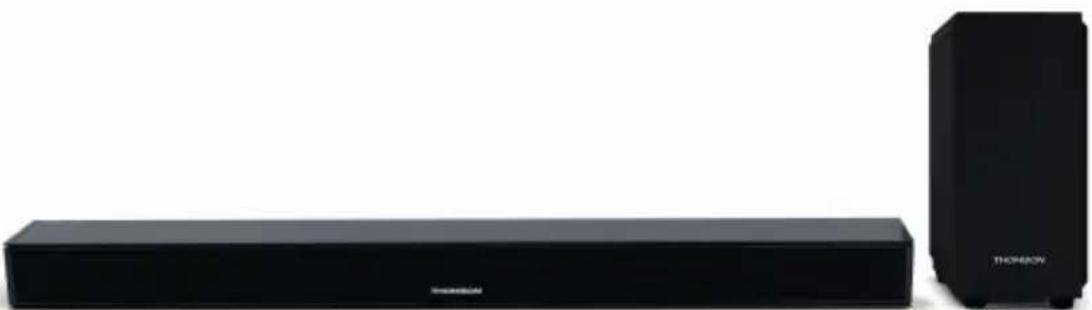

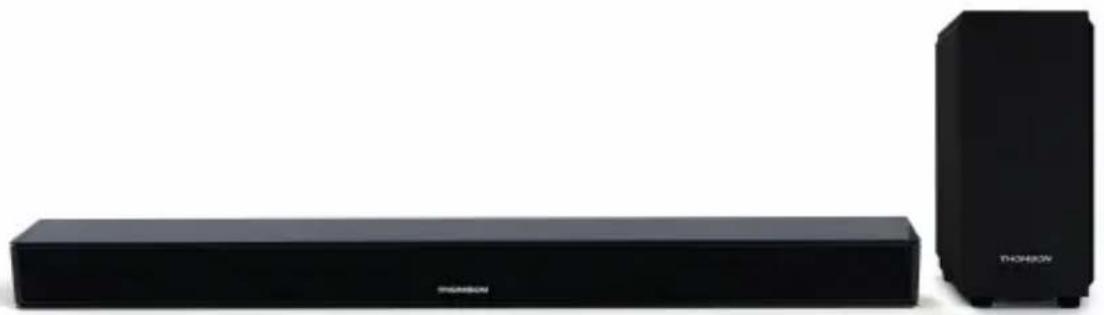

SOUNDBAR WITH WIRELESS INDUCTION*

CHARGING FOR MOBILES

SB260IBT SB265IBT SB160IBT7

Contents Setting Started 1 Safety and Notice 1 Care for your product 2 Care of the environment 2 Compliance 2 Technical specifications 3 What’s in the box 3 Description of Parts 3 Replacing battery Get started 5 Use 5 Remarks Setting Started

• Remove the appliance from the box.

• Remove any packaging from the product.

• Place the packaging inside the box and either or dispose of safely. Safety and Notice Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply. Safety Warning

• Never place this apparatus on other electrical equipment.

• Keep this apparatus away from direct sunlight, naked Fames or heat.

• Never look into the laser beam inside this apparatus.

• Ensure that you always have easy access to the power cord, plug or adaptor to disconnect this apparatus from the power.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the Point where they exit from the apparatus.

10. Only use attachments/accessories specified by the manufacture .

11. Unplug this apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has

been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. - EN 1 -13. Apparatus shall not be exposed to dripping or splashing. 14 . Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles)

the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

16. Make sure there is enough free space around the product for ventilation.

17. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as

sunshine, fire or the like 18 . The appliance must equipped with the appropriate batteries in order to function properly. Only recommended batteries should be used. Polarity must be respected in such a way as to avoid any short. Don’t mix used and new batteries. Don’t mix alkaline, standard (carbon-zinc) and rechargeable (nickel-cadmium) batteries. Don’t recharge or try to open the batteries. Don’t throw the batteries in fire Replace all batteries at the same time with new, identical batteries. Remove the batteries when unused for a long time. Care for your product

1. Always unplug the appliance when not in use and before cleaning.

not play music at excessive volume levels as damage to hearing and or the equipment may occur.

3. Do not use this unit in wet or damp conditions.

4. Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with

a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health. Compliance - EN 2 -

direct current alternating current Symbol indoor use

This product complies with the requirements of the EuropeWhat’s in the box Check and identify the contents of your package:

• RCA cable Description of Parts Overview of the main unit

• Total consumption: 50W SB160IBT

• Audio cable for sub (SB260IBT/SB265IBT)

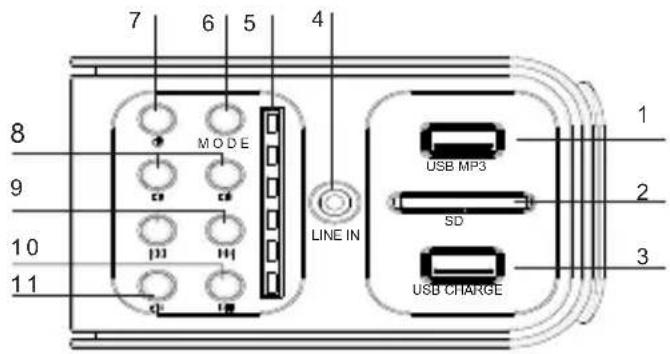

LINE IN MODE LED indicator Show the current status Audio in Connect an external audio device Mode Select a mode: Bluetooth, USB, SD,AUDIO IN Standby Turn on the unit, switch to Standby mode VOL - Press and hold adjust the Volume- VOL + Press and hold adjust the Volume+ Skip to the previous track Skip to the next track

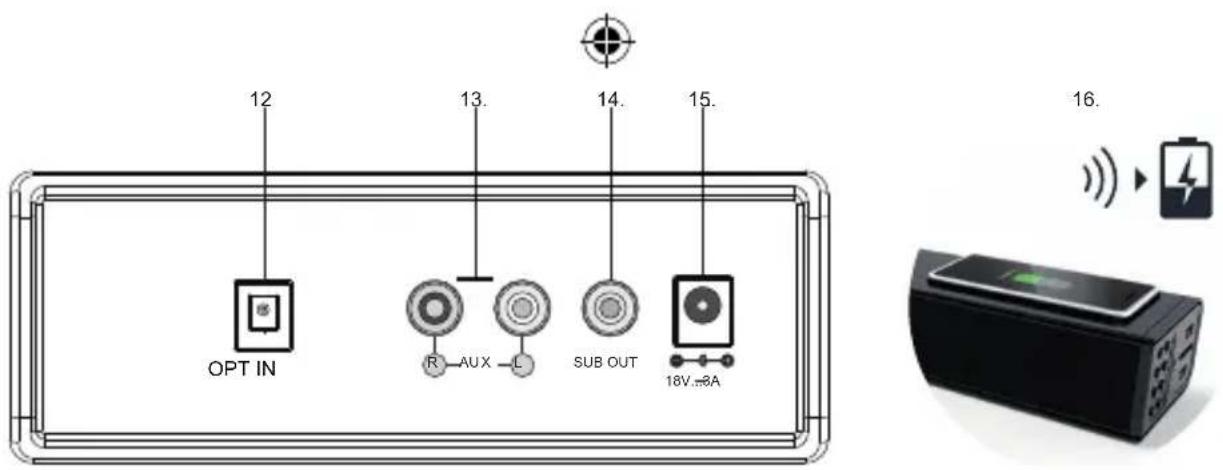

Mute Press to Mute or restore volume14. DC In (SB160IBT--18V/2.5A) (SB260IBT--18V/3A) (SB265IBT--18V/3A)

15. Wireless charger using induction technology*

Press to power the tower of f and on

USB Press to USB mode

VOLUME+ Press to adjust the volume+

Skip to the previous track

VOLUME- Press to adjust the volume-

Press to Bluetooth mode

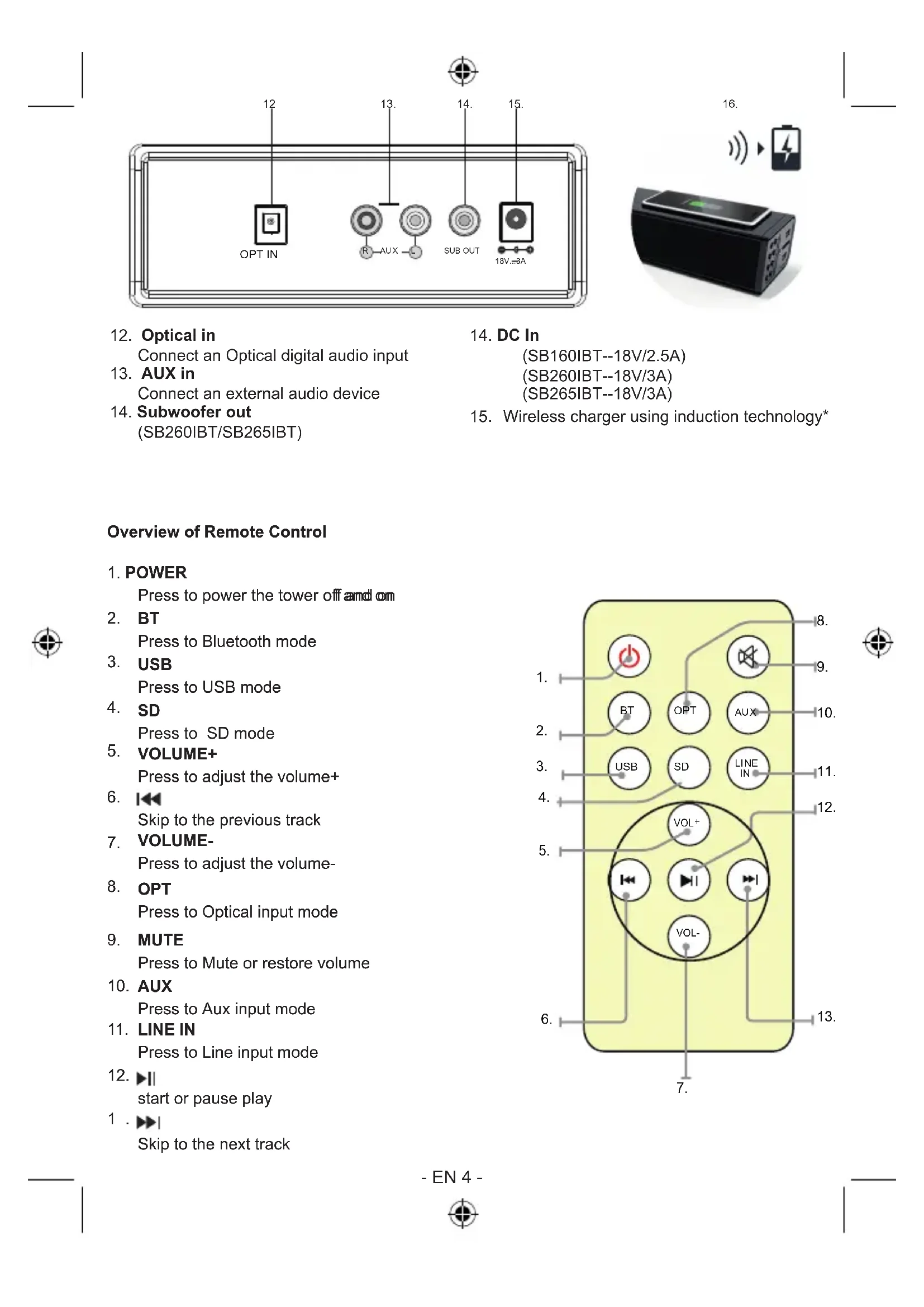

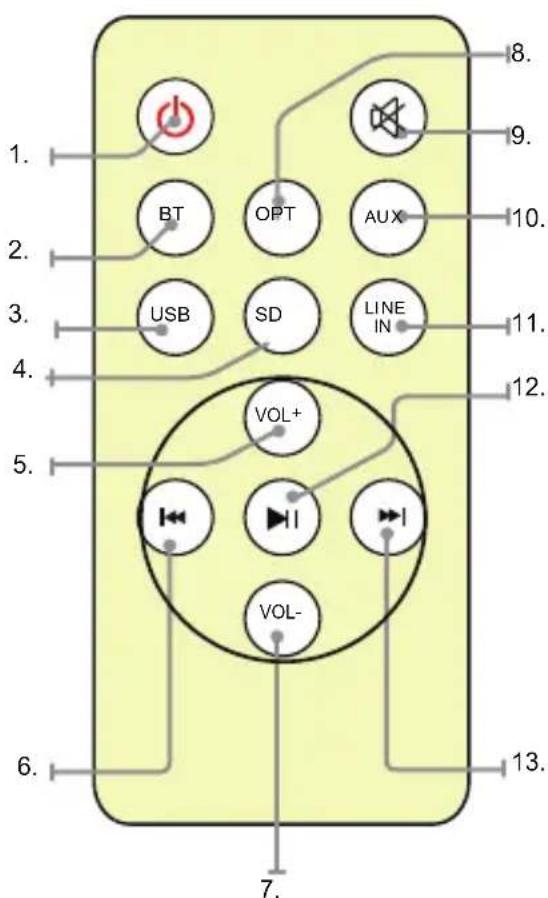

Skip to the next track Overview of Remote Control

Press to power the tower off and on

USB Press to USB mode

VOLUME+ Press to adjust the volume+

Skip to the previous track

VOLUME- Press to adjust the volume-

Press to Bluetooth mode

Skip to the next track Overview of Remote Control - EN 4 -

Connect an external audio device

(SB260IBT/SB265IBT) 16.Replacing battery The remote control works with lithium button cell CR2025 3V batteries. When the remote no longer works you need to replace the batteries as follows:

• Press the tab on the side of the battery cover to release it and allow the battery support to come out.

• Replace the battery paying attention to the correct orientation of the poles.

• Replace the battery support pushing it inside until you hear a “click”.

TTENTION: Danger of explosion if batteries are not inserted correct. CR2025 Replacing battery The remote control works with lithium button cell CR2025 3V batteries. When the remote no longer works you need to replace the batteries as follows:

• Press the tab on the side of the battery cover to release it and allow the battery support to come out.

• Replace the battery paying attention to the correct orientation of the poles.

• Replace the battery support pushing it inside until you hear a “click”.

TTENTION: Danger of explosion if batteries are not inserted correct. CR2025 Get started Power CAUTION

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.

• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.

• Before connecting the AC power cord, ensure you have completed all other connections. Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable. Auto standby When playing media from a connected device, the soundbar automatically switches to standby if:

• No button is pressed for 10 minutes,

• No audio from a connected device for 10 minutes. Use Play from external audio You can play from an external audio device such as MP3 player through this unit. Optical in Jack (Requires an optical cable)

1. Connect an Optical cable to

the optical jack on back panel. Connect the other end of the Optical cable to the digital audio device.

button to turn the unit on.

3. Press the MODE button to switch to Optical In mode.

4. Use the controls on the connected device to begin playing audio routed through the unit.

Line in Jack (Requires a 3.5mm cable)

1. Connect a 3.5mm cable to the Line jack

on top panel. Connect the other end of the 3.5mm cable to an Mp3 player or other audio device.

button to turn the unit on.

3. Press the MODE button to switch to Line In mode.

4. Use the controls on the connected device to begin playing audio routed through the unit.

• USB port is easy to sensitive equipment, will cause the equipment work is not stable. A. Pairing with a Bluetooth cell phone Please make sure your cell phone is Bluetooth-enabled. Specific pairing steps may vary with different cell phones. Please refer to the user manual of your cell phone for further information. The general pairing steps are as follows:

1. Keep SB160IBT/SB260IBT/SB265IBTand Bluetooth cell phone within 1 meter when pairing.

B. Music Playback Connecting with a A2DP cell phone or Bluetooth transmitter.

1. Connect your cell phone or Bluetooth transmitter with SB160IBT/SB260IBT/SB265IBT.

2. You can listen to your music from SB160IBT/SB260IBT/SB265IBT now when playing it back.

3. Press Vol+ to turn up the volume, press Vol-

to turn down the volume.

to skip to the previous song.

to skip to the next song. Auxiliary Input RCA (Requires an RCA cable)

1. Connect an RCA cable to the Auxiliary Input. Connect the other end of the RCA cable to the audio

output on your DVD player, stereo system, gaming system or television.

2. Press the power button to turn the unit on.

3. Press the MODE button to switch to Aux In mode.

4. Use the controls on the connected device to begin playing audio routed through the unit.

- EN 6 - Switch on your cell phone’s Bluetooth function and search for Bluetooth devices. After the search is completed, select “

SB160IBT/SB260IBT/SB265IBT

” from the Bluetooth device list. According to indication, enter password or PIN No: “0000” and press “Yes” or “confirm” After successful pairing, select “

SB160IBT/SB260IBT/SB265IBT

” from the Bluetooth device list and press “connect”. Plug your USB flash drive or SD card to the USB socket or SD slot Press button to select USB or SD mode, the unit can play automatically. If not, press

USB charging There is a USB charger on the side of the unit to charge small devices such as smartphones that can be charged via USB. Output power: 5V/1A Wireless induction charging for mobile There is a charging surface on the top of the unit for charging your smartphone. Please place the smartphone on the charging spot : . Your smartphone will begin charging. If not, please make sure the phone is placed on the center of the charging spot.

• Your phone must be compatible with wireless chargers or Qi technology. Bluetooth ModeRemarks: Don’t discard the electrical and electronic appliances in the regular waste disposal.

• Take them to a collection point.

• Some components in these appliances may be hazardous to health and the environment.

• In order to save energy when the unit has no sound output for a while, the unit will be switched to stand-by automatically. It can be switched ON by using the POWER selector again.

• If there is an incoming call while SB160IBT/SB260IBT/SB265IBT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)

• The Bluetooth® word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.

CS 90414 59814 LESQUIN Cedex - France www.bigben.eu Made in China THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben interactive. The undersigned, Bigben Interactive declares that the radio equipment of the SB160IBT/ SB260IBT/SB265IBT type complies with the 2014/53/EU directive. The complete text is available at www.bigben.fr/support
