USER MANUAL S_HT501DC Vonroc

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or batte- ry-operated (cordless) power tool.

a) Keep the work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos- pheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while ope- rating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of elec- tric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet condi- tions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device

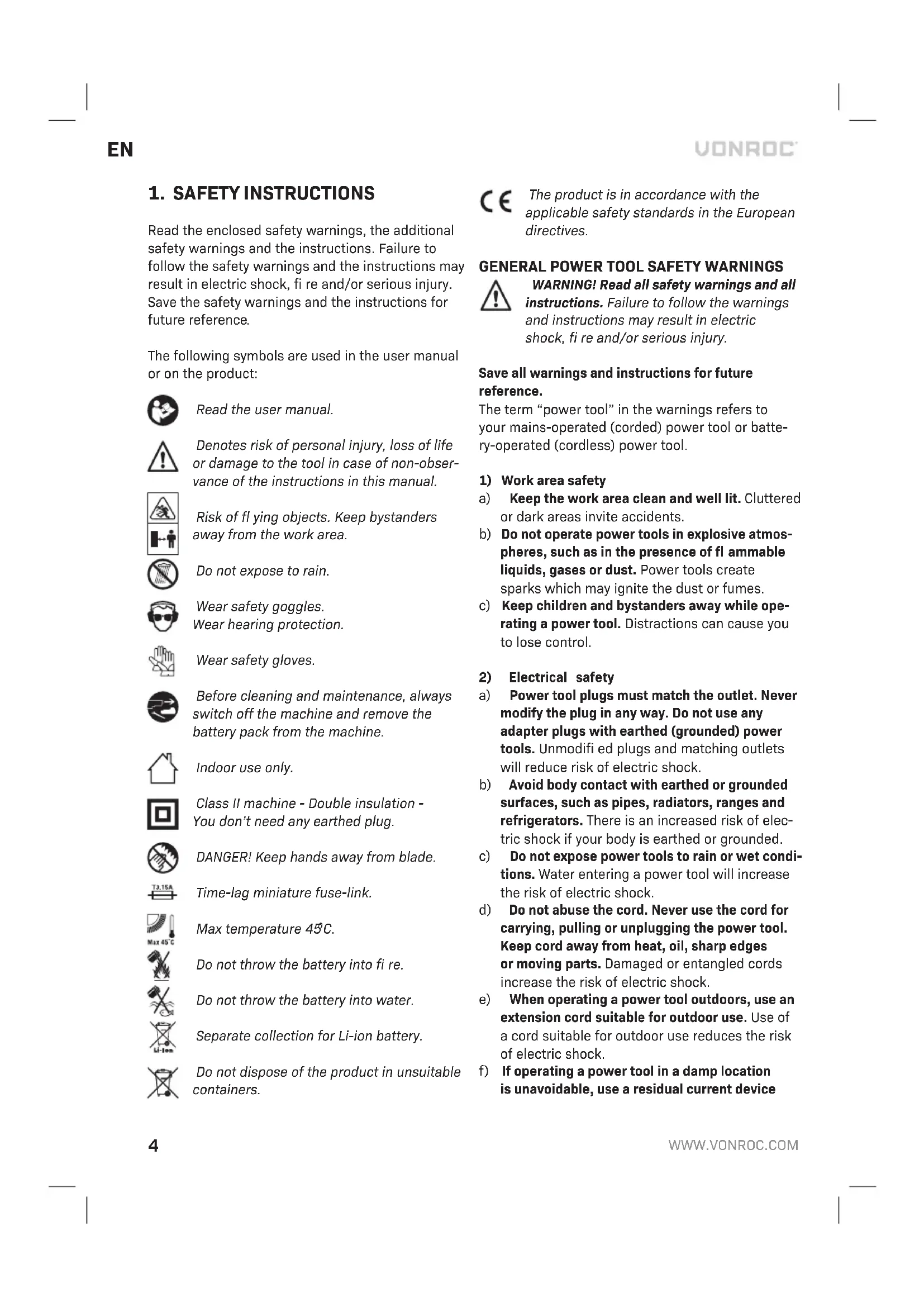

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fi re and/or serious injury. Save the safety warnings and the instructions for future reference

The following symbols are used in the user manual or on the product: Read the user manual. Denotes risk of personal injury, loss of life or damage to the tool in case of non-obser- vance of the instructions in this manual. Risk of fl ying objects. Keep bystanders away from the work area. Do not expose to rain. Wear safety goggles. Wear hearing protection. Wear safety gloves. Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine. Indoor use only. Class II machine - Double insulation - You don’t need any earthed plug. DANGER! Keep hands away from blade. Time-lag miniature fuse-link. Max temperature 45

Do not throw the battery into fi re. Do not throw the battery into water. Separate collection for Li-ion battery. Do not dispose of the product in unsuitable containers.EN

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medi- cation. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewel- lery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of child- ren and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally design- ated battery packs. Use of any other battery packs may create a risk of injury and fi re.

When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re.

Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.6

e) Do not use a battery pack or tool that is dama- ged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury.

Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.

Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

• Keep the area you are working in clean and tidy.

• Always hold the trimmer properly. When opera- ting us both hands.

• If you are using a means of support to raise yourself off the ground, ensure that it is stable and cannot topple over - do not overreach at any time.

• Do not use power tools in the rain or wet en- vironments. Do not use power tools where there is a risk of fi re or explosion - i.e. near fl ammable liquids or gases.

• Do not allow children into the area where you are working.

• Do not let children or other people touch power tools.

• Do not leave the power tool unattended.

Store in a dry place well out of reach of children.

• Always use safety glasses and gloves. We also recommend the use of ear protectors.

• Wear the right clothes - not loose fi tting or je- wellery and ensure garments cannot come into contact with moving parts.

• If you have long hair, tie it back safely to avoid tangling it in moving parts.

• Before using any power tool, check fi rst for damaged parts and if found do not use it before the part or parts have been replaced with new ones.

• Do not use power tools when you are tired or have been drinking alcohol.

• Do not force the appliance - let it work at the rate for which it was intended.

• Do not overreach while working - you may lose your balance.

• Never use this appliance without the blade guard fi tted. It must always remain fi tted.

• Only use spare parts and attachments supplied by Vonroc. Use of attachments other than those supplied or recommended by Vonroc will invali- date your guarantee and could be dangerous.

• Only use this appliance for its intended purpose trimming hedges and bushes. Above all be carefull! Danger!

• Keep all parts of the body away from the cut- ting blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.

• Carry the hedge trimmer by the handle with the cutting blade stopped. When transporting or storing the hedge trimmer always fi t the trans- port protection sleeve. Proper handling of the hedge trimmer will reduce possible injury from the cutting blades.

• The cutting elements continue to move after the motor is switch off.

• Inspect and maintain the trimmer regularly. Have the trimmer repaired only by an authorised repairer.

• Inspect the hedge or bushes for foreign objects like wire fences

• Keep your hands and feet away from the cutting area at all times.

• Always hold the trimmer at a safe distance from the body.

• Always wear protective goggles.

• Ensure the ventilation openings are clear of debris at all times.

• Ensure there are no people of animals within 5 metres of your trimming area.

• Remove the plug from the power socket before attempting any maintenance.

• After use the tool should be stored so that the blade is not exposed.

• Hold the power tool by insulated gripping surfa- ces only, because the cutter blade may contact hidden wiring. Cutter blade contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.

• Do not charge hedge trimmer in rain, or in wet locations.

• Do not use battery-operated hedge trimmer in rain.

• Remove or disconnect battery before servicing, cleaning, or removing material from the hedge trimmer.

• Do not dispose of the battery(ies) in a fi re. The cell may explode. Check with local codes for possible special disposal instructions.

SAFETY WARNINGS FOR BATTERY

a) Do not open the battery. Danger of short- circuiting. b) Protect the battery against heat, e. g., against continuous intense sunlight, fi re, water, and moisture. Danger of explosion. c) In case of damage and improper use of the bat- tery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload. e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.

SAFETY WARNINGS FOR CHARGER

Intended use Charge only CD801AA and CD803AA type rechargea- ble Battery packs with the charger. Other types of bat- teries may burst causing personal injury and damage. a) The appliance is not to be used by persons (including children) with reduced physical, sen- sory or mental capabilities, or lack of experien- ce and knowledge, unless they have been given supervision or instruction. b) Children being supervised not to play with the appliance. c) Do not recharging non-rechargeable batteries! d) During charging, batteries must be placed in the well ventilated area! Electrical safety Always check that the voltage of the power supply corresponds to the voltage on the rating plate.

2. MACHINE INFORMATION

Intended use This hedge trimmer is only intended for cutting branches from shrubs, bushes, ornamental plants and hedges. TECHNICAL SPECIFICATIONS This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifi cations table for the correct composition and contents of your set. Model No. Batteries included Chargers included HT501DC

Weight 2.15 kgSound pressure level L

Model No. CD801AA Battery Type Lithium-IonVoltage 20V Capacity 2.0 AhRecommended charger CD802AAWeight 0.3 kg Model No. CD802AA Charger input 220-240V, 50Hz 0.4ACharger output 21V 2.5ACharging time 2Ah battery 60 minutesCharging time 4Ah battery 120 minutesRecommended batteries CD801AA, CD803AAWeight 0.36 kg Model No. CD803AA Battery Type Lithium-IonVoltage 20V Capacity 4.0 AhRecommended charger CD802AAWeight 0.65 kg Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other bat- teries could cause serious injury or damage the tool. CD801AA 20V, 2Ah Lithium-Ion CD803AA 20V, 4Ah Lithium-Ion The following charger of the can be used to charge these batteries. CD802AA Quick charger The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools. Vibration level The vibration emission level stated in this instruc- tion manual has been measured in accordance with a standardized test given in EN60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may signifi cantly increase the exposure level. The times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level. Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns. DESCRIPTION The numbers in the text refer to the diagrams on page 2-3.

Before any work on the power tool, remove the battery. The battery must be charged before fi rst use. Mounting the front handle (Fig. B)

1. Put the front handle (6) on the machine, as

2. Mount the front handle (6) by tightening the

four screws. Mounting the protection guard (Fig. C) You may not use the hedge trimmer without the protection guard.EN

1. Put the protection guard (5) on the machine, as

2. Mount the protection guard (5) by tightening

the two screws. Inserting the battery into the machine (Fig. A, D) Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.

Insert the battery (2) into the base of the machine as shown in Fig. D.

2. Push the battery further forward until it clicks

into place. Removing the battery from the machine (Fig. A, D)

1. Push the battery unlock button (3).

2. Pull the battery out of the machine like shown

in Fig. D. Checking the battery charging status (Fig. E)

• To check the battery charge status, push the button (9) on battery shortly.

The battery has 3 lights indicating the charge level, the more lights that burn, the more charge the battery has left.

When the lights are not burning it means the bat- tery is empty and must be charged immediately. Charging the battery with the charger (Fig. E)

1. Take the battery (2) from the machine.

2. Turn the battery (2) to upside down position and

slide it onto the charger (11) as shown in Fig. E.

3. Push the battery until it is fully pushed into the

4. Plug the charger plug into an electrical outlet

and wait for a while. The LED indicators (12) on the charger (11) will lighten up and show the charger status. The charger has 2 LED indicators (12) which indicate the status of the charging process: Red LED Status Green LED status Charger status Off Off No power Off On Standby mode: - No battery is inserted or, - Battery inserted but charging has fi nished On Off Battery charging in progress

• Fully charging the 2Ah battery may take up to 60 minutes.

• Fully charging the 4Ah battery may take up to 120 minutes. After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger. When the machine is not being used over a longer period of time it is best to store the battery in charged condition.

Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. You may not use the hedge trimmer without the protection guard. Always use both hands to hold the hedge trimmer and keep it away from your own body. Using your hedge trimmer

• For your own safety and for best results read the following user advice and do not use this product for anything other than its intended purpose.

• This hedge trimmer is made for cutting hedges and bushes. All other use that is not specifi cally allowed in this manual mat lead to manage to the hedge trimmer or injury to the user. Switching on and off (Fig. A)

• To switch the trimmer on, press the safety switch (7) and the start switch (1) at the same time.10

• To switch off, release one or both switches. Trimming a hedge - best method

• Apart from hedges the hedge trimmer may also be used for cutting bushes.

• The best cutting effect is achieved when hol- ding the blade at an angle to the of approx. 15°.

• The opposite rotating knives cut on both sides, and it is therefore possible to trim the hedge in both directions.

• The side of the hedge are trimmed using curved shaped movements from the bottom and upwards.

• Ideally a hedge should be wider at the bottom than the top. This will improve light penetration, keeping the hedge healthy. If possible, trim both sides of the hedge.

• When trimming the sides of the hedge, trim from the bottom upwards. This will ensure there are no hedge trimmings obscuring or interfering with your cut strokes. The blade should not be forced to cut too deep. Cut lightly through the surface of the hedge.

• When trimming the top of the hedge, trim away from you but do not over-reach. It is much wiser and safer to move along and cut within your reach remaining on two feet at all times. Safety transport The hedge trimmer has a transport protection Co- ver (8) for save transportation of the machine.

Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine. Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Re- move very persistent dirt using a soft cloth moiste- ned with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components. Cutting blade

• Always wear gloves when handling or cleaning the cutting blade.

• Clean the cutting blade and spray with a protective oil after every use. We recommend lubricating the cutting blade with protective oil at regular intervals during long working periods.

• Visually inspect the condition of the cutting blade Check that the screws are fi rmly seated in the cutter bar.

• Ensure that the blade guard is fi tted on the machine. Storage The hedge trimmer should be kept in a safe, dry place, well out of the reach of children. Do not place other objects on top of it. ENVIRONMENT Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations. Only for EC countries Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way. WARRANTY VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly. The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;

• Normal wear and tear;

• The tool has been abused, misused or improperly maintained;

• Non-original spare parts have been used. This constitutes the sole warranty made by compa- ny either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the im-DE

plied warranties of merchantability and fi tness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts. The product and the user manual are subject to change. Specifi cations can be changed without further notice.

DECLARATION OF CONFORMITY
