KMB400 - Hand blender WILFA - Free user manual and instructions

Product type	Immersion blender / Hand mixer with stand
Brand	Wilfa
Model	KMB400
Power supply	Mains, 220-240 V
Functions	Variable speed, Turbo function, dough hooks, whisk
Included accessories	Bowl with lid, dough hooks (2), whisk (2), stand
Maximum usage time	10 minutes continuous, 5 minutes for heavy loads
Care and cleaning	Unplug before cleaning. Wipe motor body with a dry cloth. Accessories washable with water and detergent.
Safety	Do not immerse in water. Unplug when not in use. Do not leave unattended. Keep out of reach of children.
Warranty	5 years, valid for domestic use only. Wear parts not covered.
Spare parts and repairability	Visit wilfa.com for assistance and parts.
Usage	Domestic only, not for commercial use.

Frequently Asked Questions - KMB400 WILFA

How to insert the dough hooks or whisks?

Insert both accessories into the holes and turn slightly until they lock. Never use whisks and hooks simultaneously.

What is the maximum usage time?

Do not exceed 10 minutes continuous, or 5 minutes for heavy loads. Allow to cool to room temperature before reuse.

How to clean the appliance?

Unplug first. Clean the motor body with a dry cloth. The whisks and hooks are washable with water and detergent.

Can I immerse the mixer in water?

No, never immerse the motor body in water or any other liquid. Use only a damp cloth for cleaning.

How to use the Turbo function?

Press the Turbo button for a brief high-speed boost. Release to stop.

What should I do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by the manufacturer, its service department, or a qualified person.

How to remove the whisks or hooks?

Make sure the speed is set to 'OFF', then press the eject button on both sides simultaneously.

Does the warranty cover commercial use?

No, the 5-year warranty is valid only for domestic use. Commercial use voids the warranty.

Can I use the appliance for other things than food?

No, this appliance is designed exclusively for mixing and stirring food. Do not use for other materials.

Where to find spare parts?

Visit wilfa.com and the customer service page for spare parts and assistance.

USER MANUAL KMB400 WILFA

IMPORTANT SAFETY INSTRUCTIONS

• Before using this appliance, read the user instructions carefully.
• Keep these instructions, the warranty card, purchase receipt and, if possible, the box, together with the inner packaging.
• This appliance is only for domestic use, not for commercial use.
• Always disconnect the appliance from the power supply if it is left unattended and before assembling, disassembling or cleaning.
• Keep the appliance and cable away from direct sunlight, damp, sharp edges and other dangers.
• Never leave your appliance unattended when in use! Always unplug the unit when it is not in use, even if only for a moment.
• Never use any accessories or parts from other manufacturers.
• Do not use outdoors.
• Never allow the unit to come into contact with or become immersed in water or any other liquids. Do not use the unit with wet hands.

• Use this appliance only for its intended purpose.

• Never touch the rotating tools while they are still in motion; always wait for them to stop.

• Never use this appliance to mix or stir anything other than foods.
• If the supply cord is damaged, it must be replaced by the manufacturer, the manufacturer's service agent or a qualified person in order to avoid possible hazards.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
  Children shall not play with the appliance.
• Switch off the appliance before changing accessories or touching parts that move during use.

EN

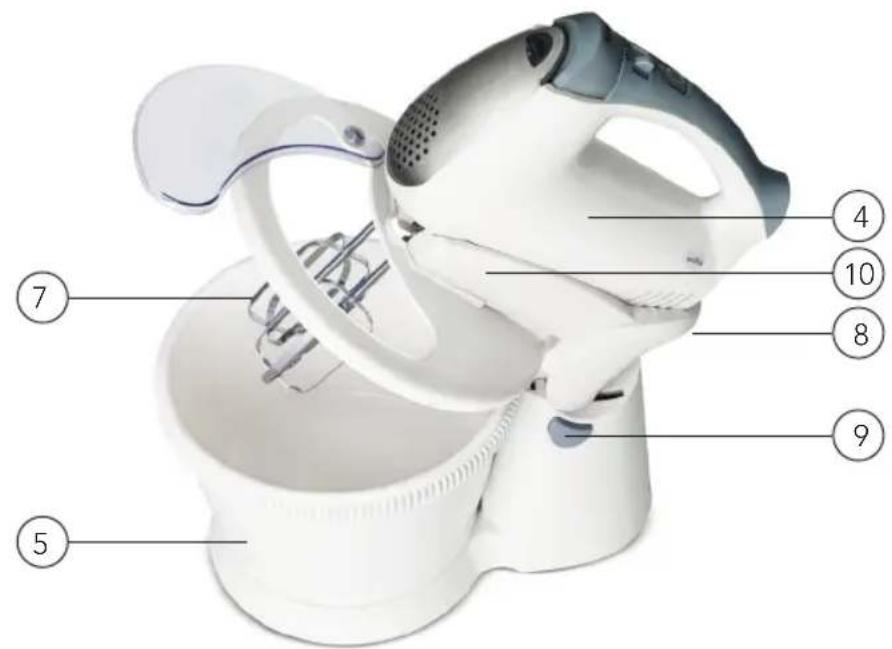

PRODUCT OVERVIEW

1. Eject button
2. Speed control
3. Turbo button
4. Motor unit

5. Bowl with lid

6. Dough hooks

7. Beater
8. Eject button hand mixer
9. Holder release button
10. Mixer holder

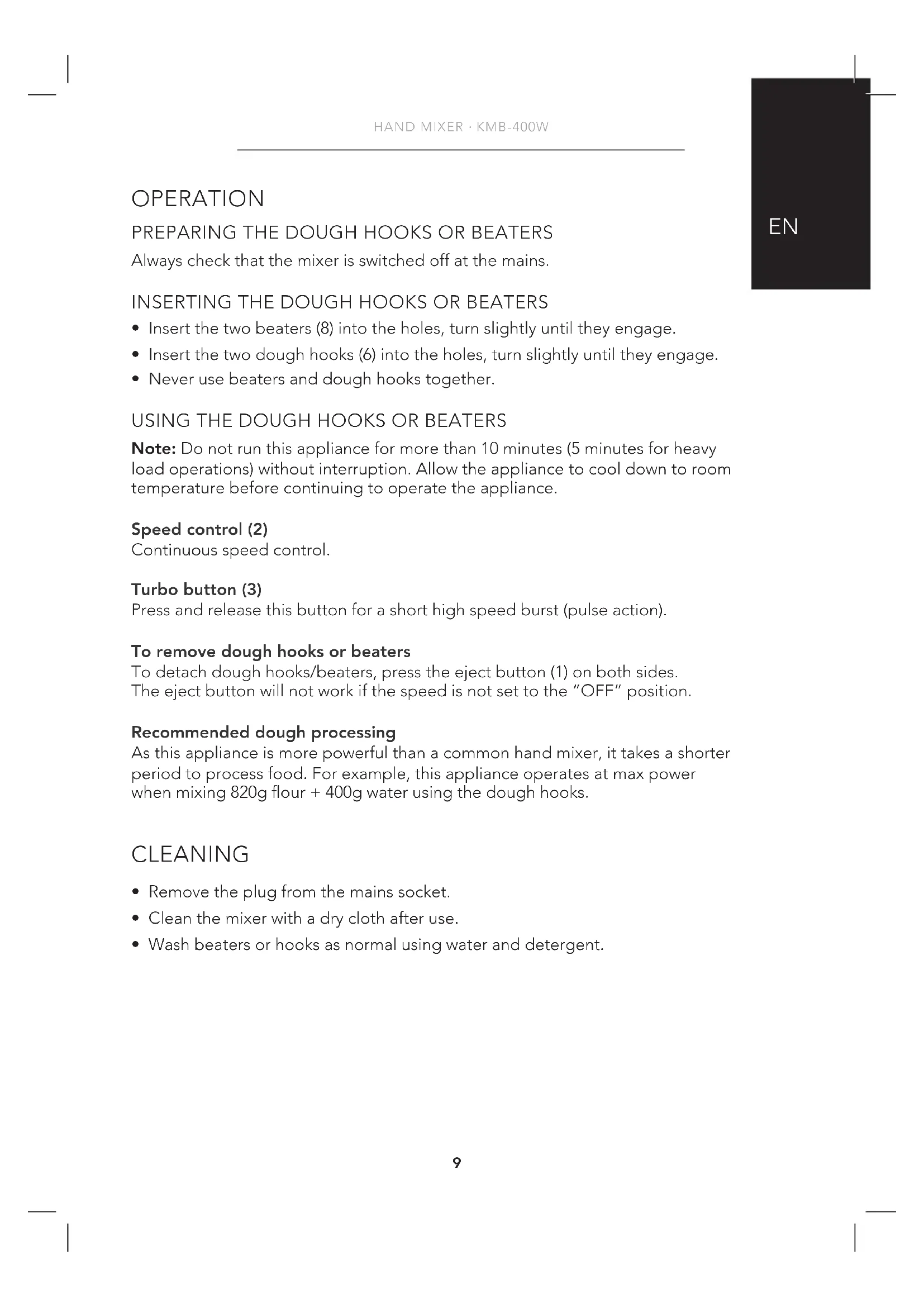

OPERATION

PREPARING THE DOUGH HOOKS OR BEATERS

Always check that the mixer is switched off at the mains.

INSERTING THE DOUGH HOOKS OR BEATERS

• Insert the two beaters (8) into the holes, turn slightly until they engage.
• Insert the two dough hooks (6) into the holes, turn slightly until they engage.
• Never use beaters and dough hooks together.

USING THE DOUGH HOOKS OR BEATERS

Note: Do not run this appliance for more than 10 minutes (5 minutes for heavy load operations) without interruption. Allow the appliance to cool down to room temperature before continuing to operate the appliance.

Speed control (2)

Continuous speed control.

Turbo button (3)

Press and release this button for a short high speed burst (pulse action).

To remove dough hooks or beaters

To detach dough hooks/beaters, press the eject button (1) on both sides. The eject button will not work if the speed is not set to the "OFF" position.

Recommended dough processing

As this appliance is more powerful than a common hand mixer, it takes a shorter period to process food. For example, this appliance operates at max power when mixing 820g flour + 400g water using the dough hooks.

CLEANING

• Remove the plug from the mains socket.
• Clean the mixer with a dry cloth after use.
• Wash beaters or hooks as normal using water and detergent.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

Overloading of product
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

220-240V 50/60Hz 400W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or

contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

INNHOLD

14 VIKTIGE SIKKERHETSINSTRUKSJONER
16 PRODUKTOVERSIKT
17 BRUK
17 RENGJØRING
18 GARANTI
19 PRODUKTSPESIFIKASJONER
19 SUPPORT OG RESERVEDELER
19 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

CARACTERISTIQUES DU PRODUIT

220-240 V~ 50/60 Hz, 400 W
