Fusion SM2B-1000FP - Hand blender WILFA - Free user manual and instructions

Product Type	Hand blender (stick blender)
Brand	Wilfa
Model	Fusion SM2B-1000FP
Power Consumption	1000 W
Power Supply	220-240 V, 50/60 Hz
Speed Settings	Variable speed with turbo boost
Shaft Material	Stainless steel
Handle Material	Plastic with soft-grip
Cord Length	1.2 m
Weight (blender only)	0.8 kg
Dimensions (L x W x H)	40 x 7 x 7 cm
Blending Capacity (recommended)	Up to 1 L in beaker
Included Accessories	Blending shaft, 0.8 L beaker
Dishwasher Safe Parts	Shaft and beaker (top rack)
Safety Features	Double safety switch, motor overload protection
Noise Level	Approx. 85 dB
Warranty	2 years
Spare Parts Available	Shaft, beaker, gasket (contact support)
Repair Service	Authorized service centers; user-replaceable parts
Manual Languages	DA, DE, EN, FI, NO, SV

Frequently Asked Questions - Fusion SM2B-1000FP WILFA

Can I blend hot liquids with the Wilfa Fusion SM2B-1000FP?

Yes, but allow liquids to cool below 80°C to avoid splashing and damage. Never immerse the handle in hot liquids.

Is the blending shaft dishwasher safe?

Yes, the stainless steel shaft and beaker are dishwasher safe (top rack only). The hand unit should be wiped clean with a damp cloth.

How do I use the turbo function?

Press the turbo button for maximum power. Use it for brief bursts (max 30 seconds) to blend tough ingredients or crush ice.

What is the maximum continuous blending time?

For heavy mixtures, do not exceed 1 minute continuous operation. Let the blender cool for 2 minutes between uses.

Can I crush ice with this hand blender?

Yes, with the turbo function. Use only small ice cubes and submerge the shaft fully to avoid splashing.

How do I clean the hand blender?

Detach the shaft and beaker and wash in warm soapy water or dishwasher (top rack). Wipe the motor unit with a damp cloth. Never submerge the handle.

What does the variable speed setting do?

Slide the speed control to adjust from low (stirring) to high (pureeing). Use lower speeds for soft foods, higher for hard ingredients.

How do I avoid splashing?

Always fully submerge the blending shaft before starting, and keep the shaft immersed while blending. Start at low speed and increase gradually.

Where can I get spare parts or repair?

Contact Wilfa customer service or visit an authorized service center. Spare parts like shafts, beakers, and gaskets are available.

What is the warranty period?

The Wilfa Fusion SM2B-1000FP comes with a 2-year warranty covering manufacturing defects. Proof of purchase is required.

USER MANUAL Fusion SM2B-1000FP WILFA

Product photo of a Wilfa brand kitchen tool with three components: blender, whisk, and clear cup (no text or symbols visible)

FUSION

IMMERSION BLENDER SM2B-1000FP

EN · Instruction manual

FI · Käyttöohje

NO · Bruksanvisning

DE · Anleitung

SE · Bruksanvisning

4 IMPORTANT SAFETY INSTRUCTIONS

6 PRODUCT OVERVIEW

7 USE

9 CLEANING AND MAINTENANCE

10 GUARANTEE

IMPORTANT SAFETY INSTRUCTIONS

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Note: When disconnecting the unit from the power supply, do not pull the cord! Pull the plug.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• There is a potential injury from misuse.
• The appliance is only intended for the purpose described in this manual. Do not use appliance or any part of the appliance out of the intended use to avoid risk for injury.
• Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
• Knife blades on stick mixer and mini chopper blade are very sharp. Handle with care.
• Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Never use accessories from other manufacturers.
• Do not immerse the motor unit in water.
• Do not let the power cord hang over edge of the table or counter or touch hot surface.
• Do not place the appliance near a gas outlet, electric burner or heated oven.
• This product is intended for indoor, non-industrial, non-commercial, household use only.
• Do not use the item outdoors or for any other purpose.
• Short-time operating for food. Use the appliance for no longer than 1 minute, and don't operate hard food for no longer than 10 seconds.
• Use the appliance for no longer than 3 minutes when the whisk is used.

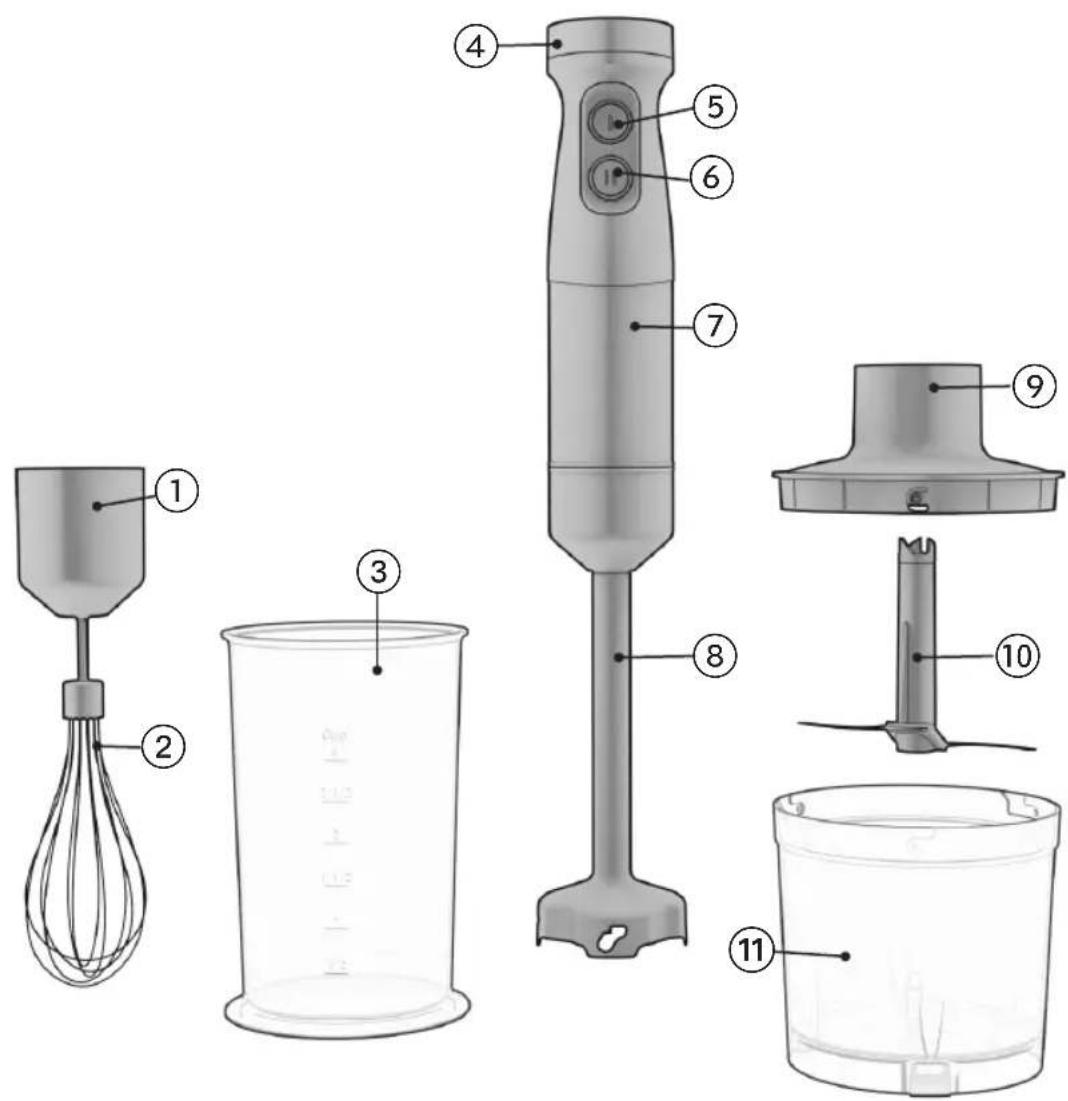

PRODUCT OVERVIEW

1. Whisk holder
2. Whish
3. Beaker

4. Speed switch

5. Speed 1

6. Speed 2 (High)
7. Motor unit

8. Blender shaft

9. Chopper bowl lid

10. S-blade
11. Chopper bowl

BEFORE USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

USE

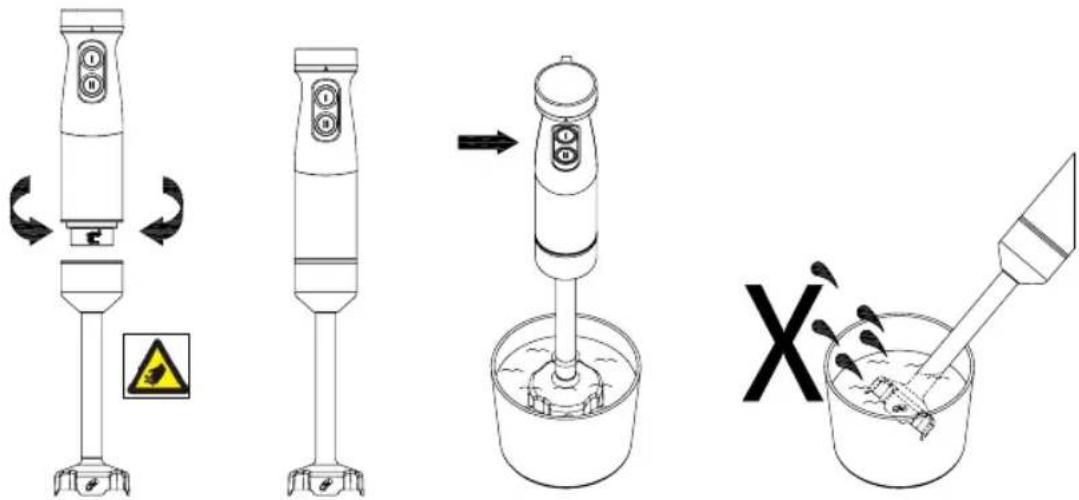

HOW TO USE THE BLENDER SHAFT

The shaft is suited for preparing dips, sauces, soups, mayonnaise and baby food, as well as for mixing and making milkshakes.

• Turn the blender shaft on the motor unit until it locks.
• Put it in the beaker and press and hold speed 1 or speed 2.
• While pressing speed 1 you can adjust the speed with the speed switch on top of the unit.
• Do not use it for longer than 1 minute at a time.

Caution: The blade is very sharp!

Caution: Don't blend food with no liquid.

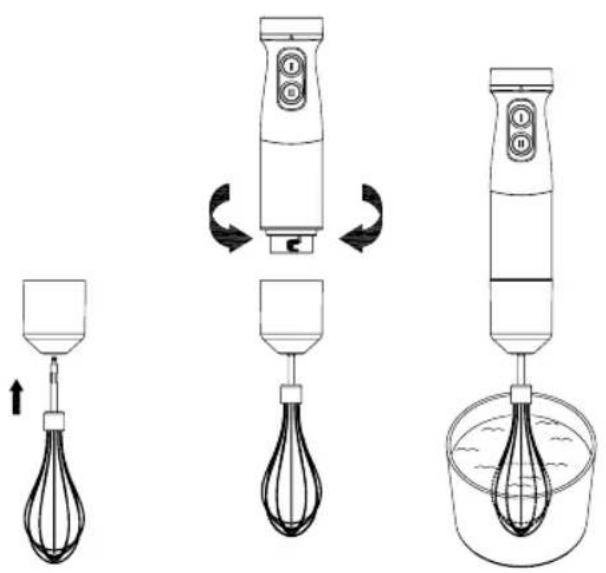

HOW TO USE THE WHISK

Use the whisk only for whipping cream, beating egg whites, mixing ready-mix desserts and batter.

• Insert the whisk into the whisk holder and then turn it onto the motor unit until it locks.
• Place the whisk in a bowl.
  • Use the whisk for no longer than 3 minutes.
• Turn the whisk holder off the motor unit after use. Then pull the whisk out of the whisk holder.

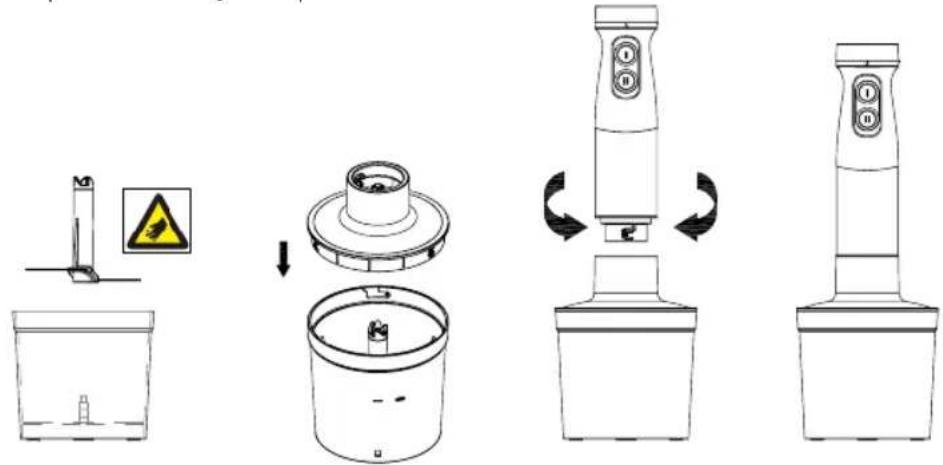

HOW TO USE THE CHOPPER

The chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc. Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains. Before chopping:

• The meat should be cut into size that does not exceed 20x20x40mm.
• Carefully remove the plastic cover from the blade. Caution: the blade is very sharp!
  • Always hold it by the upper plastic part.
• Place the blade on the centre pin of the chopper bowl. Press down the blade and lock bowl.
• Place the food in the chopper bowl.
• Place the chopping bowl lid on the chopper bowl.
• Turn the motor unit on the chopping bowl lid until it locks.
• During processing, hold the motor unit with on hand and the chopper bowl the other.
• After use, turn the motor unit off the chopping bowl lid. Then remove the chopping bowl lid. carefully take out the blade.
• Remove the processed food from the chopper bowl.
• Operate with highest speed and do not exceed 30 seconds.

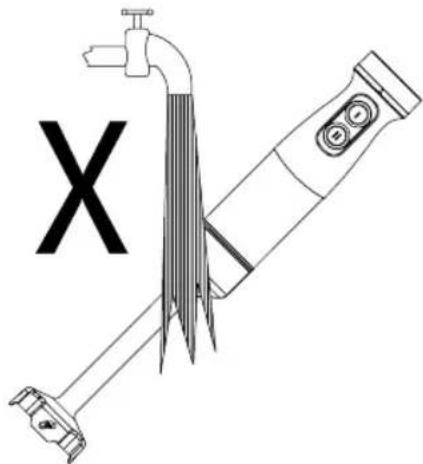

CLEANING AND MAINTENANCE

• Unplug the appliance before cleaning.
- The blades are very sharp, please pay attention while disassembling and cleaning.
- Cleaning the motor unit and chopping bowl lid only with a damp cloth. All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades right away.
- When processing food with colour, the plastic parts of the appliance may become discoloured. Wipe these parts with vegetable oil before placing them in the dishwasher.

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Parts which are normally worn down

Instruction manual is also available at our website; wilfa.com

PRODUCT SPECIFICATIONS

220-240V 50-60Hz 1000W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

14 VIKTIGE SIKKERHETSANVISNINGER

16 PRODUKTOVERSIKT

17 BRUK

19 RENGJ∅RING

20 GARANTI

VIKTIGE SIKKERHETSANVISNINGER

F∅R BRUK

HVORDAN BRUKE VISPEN

Diagram of a hairdryer with a whisk and lever, showing rotational motion (no text or symbols)

Line drawing of a hand mixer in a bowl with liquid, no text or symbols present

HVORDAN BRUKE HAKKERN

RENGJ∅RING OG VEDLIKEHOLD

FÖRE FÖRSTA ANVÄNDNING

ANVÄNDA VISPEN

ANVÄNDA HACKAREN

RENGÖRING OCH UNDERHÅLL

F∅R IBRUGTAGNING

SÅDAN BRUGES PISKERISET

DK

SÅDAN BRUGES HAKKEREN

RENG∅RING OG VEDLIGEHOLDELSE

FI

KUINKA KÄYTTÄÄ VISPILÄÄ

MINISILPPURIN KÄYTTÖ

PUHDISTUS JA KUNNOSSAPITO

SO VERWENDEN SIE DEN HACKAUFSATZ

SM2B-1000FP_20_01
