USER MANUAL MMB150EK Waring Commercial

MMB BLENDER SERIES INSTRUCTION MANUAL

For your safety and continued enjoyment of this product, always read the instruction book carefully before using.

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS.
2. To protect against electrical hazards, do not immerse the blender base in water or other liquids.
3. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
4. Children should be supervised to ensure that they do not play with the appliance.
5. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
6. Avoid contact with moving parts.
7. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
8. The use of attachments, including canning jars, not recommended by the appliance manufacturer may cause hazards.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter, where it can inadvertently be pulled on or tripped over or touch hot surfaces, which could damage the cord.
11. Keep hands and utensils out of container while blending, to prevent the possibility of severe personal injury and/or damage to the blender. A rubber scraper may be used, but must be used only when the blender is not running.

12. Blades are SHARP. Handle carefully.

13. Never place cutting assembly or cutting blades on base without container properly attached.

14. Always operate blender with cover in place.
15. Always operate blender with jar pad in place.
16. CAUTION: This blender is not intended for use with hot liquids or ingredients.
17. Do not fi II above MAX FILL line for blending.
18. Not for waterjet cleaning.
19. Ensure the jar coupler and motor coupler are aligned and engaged before operating. If unable to engage, remove jar and shake contents, then try again.
20. The jar coupler and motor coupler may be hot after running; do not touch.
21. Replace jar pad if worn with groove.
22. Always use Hi (III) speed for crushing ice.
23. If the jar overflows during blending, there is too much liquid/ingredients in the jar. Stop blending, remove enough liquid/ingredients to below MAX FILL line, and continue blending. Do not operate if overflowing.

SAVE THESE INSTRUCTIONS

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

TO ENSURE PROPER USE OF THIS UNIT, PLEASE SEE IMPORTANT GROUNDING INSTRUCTIONS BELOW. PRIMARY COUNTRIES USING THE DIFFERENT PLUG TYPES ARE LISTED FOR REFERENCE ONLY. REFER TO THE ACTUAL UNIT TO DETERMINE WHICH PLUG TYPE IS APPLICABLE.

TYPE F PLUG

(GERMANY, AUSTRIA, NETHERLANDS, SWEDEN, NORWAY, FINLAND, PORTUGAL, SPAIN, EASTERN EUROPE)

This grounded plug has two round prongs, and there are two grounding clips on the sides of the socket. This plug is non-polarized, so the plug can be inserted in either direction into the socket. Grounding is accomplished when the clip on the socket meets the contact on the plug. Ensure that the plug is fully inserted.

TYPE G PLUG

(UNITED KINGDOM, IRELAND, CYPRUS, MALTA, MALAYSIA, SINGAPORE AND HONG KONG)

This grounded plug has three rectangular prongs that form a triangle. Line up the prongs to the socket and ensure that the plug is fully inserted. This plug is also fuse-protected for power surges.

BLENDER SPECIFICATIONS

• Capacity: 48 oz. Working Capacity
  Rating: 230 Volts, 50 Hz
• Base Material: Polycarbonate
• Bearing: High-Precision Ball Bearing
• Cord: Detachable cord is 6-foot with either F plug or G plug.
• Overall Height: 17 Inches
  CE
• Operating Cycle: 1 min. ON/3 min. OFF

Controls:

MMB145E/K - Toggle Switches - Hi (II) / Lo(I) / Off (pand Pulse (O)

MMB150E/K - Electronic Keypad - Hi (II), Lo (I), Stop (Q), Pulse (Θ)

MMB160E/K - Electronic Keypad with 60-Second Timer - Hi (II), Lo (I), Stop (O), Pulse (Θ), Timer LED and Timer Up (+) and Down (-) Controls

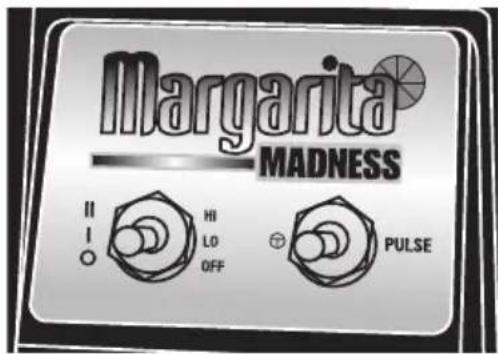

MMB145E/K OPERATION

1. Before starting, make sure that the blender is unplugged.

2. Ensure the blender is in the Off (o) position. Place container on blender base. Be sure container is fully seated and that drive coupling is properly engaged.

1. The Margarita Madness Series has a detachable cord. First plug the detachable cord into the base unit and then into the outlet.

2. Put ingredients into container and cover it. Do not fill above MAX FILL line.

3. This blender has 2 speed settings: Hi (I) and Lo (I). Press toggle switch to desired position. To crush ice, always use Hi (II) speed setting. Green LED light will blink while in operation.

NOTE: This blender utilizes a Slow Start™ feature. When beginning Hi (II) or Lo (I) operation, the unit will start in a lower speed for 3 seconds and then switch to the full selected speed. Pulse (Θ) utilizes a 1-second Slow Start™. This allows for a more even blending of ingredients in container.

1. When finished blending, set toggle switch to Off position.

2. This blender is equipped with a Pulse@) option. Hold toggle switch in Down position to engage Pulse (Θ) function. Unit will run on Hi (II) speed until the toggle switch is released.

3. Allow motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.

4. Always hold container with one hand when starting and while blending. Never operate without jar lid.

5. Wash and dry container after each use. See Cleaning and Sanitizing Instructions.

6. Unplug to turn off all power to blender.

MMB150E/K OPERATION

Follow steps 1-4 from MMB145E/K Operation section.

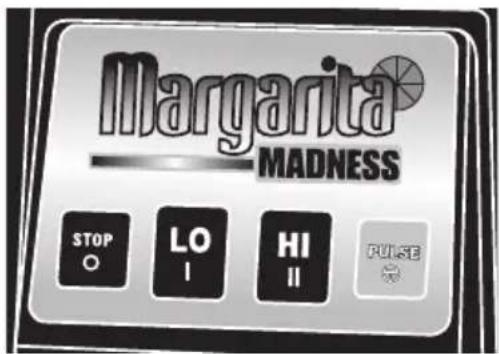

1. This blender is equipped with an electronic membrane keypad. The keypad has Hi (II), Lo (I), Stop (o and Pulse () buttons. Always use Hi (II) speed for crushing

1. For continuous operation, press either the Lol or Hi (II) button. When fi nished blending, press Stop (O). For momentary operation, press the Pulse (O) button; motor will run on Hi (II) speed until the button is released. Green LED light will blink while in operation.

NOTE: This blender utilizes a Slow Start™ feature. When beginning Hi (II) or Lo (I) operation, the unit will start in a lower speed for 3 seconds and then switch to the full selected speed. Pulse (Θ) utilizes a 1-second Slow Start™. This allows for a more even blending of ingredients in container.

1. Allow motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.
2. Always hold container with one hand when starting and while blending. Never operate without jar lid.
3. Wash and dry container after each use. See Cleaning and Sanitizing Instructions.
4. Unplug to turn off all power to blender.

MMB160E/K OPERATION

Follow steps 1-4 in the MMB145E/K Operation section.

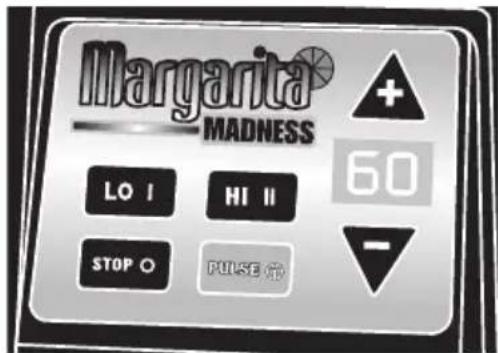

1. This blender is equipped with an electronic membrane keypad. The keypad has Hi (II), Lo (I), Stop (o and Pulse () buttons, as well

as a 60-second countdown timer with Up and Down arrows to set time. Always use Hi (II) speed for crushing ice. The blender can operate in two modes: timer mode and continuous mode.

1. For timer mode, press the Up (+) or Down (-) arrow to set the desired time. The electronic timer will indicate run time in 1-second intervals, up to a maximum of 60 seconds. Press and hold either Up (+) or Down (-) buttons for fast scrolling. After the desired time is set, press Hi (II) or Lo (I) to start the blender. Green LED light will blink during blending. The timer will count down to 0 in 1-second intervals and blender will shut off. Pressing the Pulse (+) button or the Stop (O) button will override the timer and the blender will stop regardless of time left on timer.

NOTE: If you want to increase or decrease time while timer is counting down, press Up (+) or Down (-) arrows. Time will increase or decrease in 1-second intervals.

1. If the Stop() button is pressed, the timer function will turn off and the unit will return to continuous mode. To reactivate timer, press Up (+) or Down (-) arrows. When using the electronic timer again, the initial time will be the last time set. Note: If unit has been unplugged, the timer will default back to 5 seconds.

2. For continuous operation, press either the Lol or Hi (II) button when timer is not lit. If the timer is lit and you want to use continuous mode, press the Stop (O) button and proceed. When fi nished blending, press

Stop. For momentary operation, press the Pulse (Θ) button. Motor will run on Hi (II) speed until the button is released. Green LED light will blink while in operation.

NOTE: This blender utilizes a Slow Start™ feature. When beginning Hi (II) or Lo (I) operation, the unit will start in a lower speed for 3 seconds and then switch to the full selected speed. Pulse (Θ) utilizes a 1-second Slow Start™. This allows for a more even blending of ingredients in container.

1. Allow motor to come to a complete stop before removing container from blender base. Never place the container on the motor base or remove it from the motor base while motor is running.
2. Always hold container with one hand when starting and while blending. Never operate without jar lid.
3. Wash and dry container after each use. See Cleaning and Sanitizing Instructions.
4. Unplug to turn off all power to blender.

RESETTING THERMAL PROTECTION

• Your blender is equipped with a manual reset switch to protect the motor from overheating.
• If your blender stops running under heavy use, or if the green LED light starts to blink much more rapidly than during normal blending, press the power switch to Off (o) and unplug the power cord. Empty the blender container of all its contents and allow approximately 5 to 10 minutes for the motor to cool down.
• Plug the power cord back into the outlet and continue blending.
• If your blender does not function properly following this procedure, discontinue use and contact a certifi ed Waring Customer Service Center.

CLEANING AND SANITIZING INSTRUCTIONS

THE CONTAINER MUST BE CLEANED AND DRIED AFTER EACH USE OF THE BLENDER ACCORDING TO THE FOLLOWING INSTRUCTIONS.

FAILURE TO DO SO MAY ALLOW RESIDUES OF PROCESSED MATERIAL TO COLLECT ON THE INTERNAL SEALS OF THE BLADE ASSEMBLY, RENDERING THEM INEFFECTIVE.

• Wash, rinse, sanitize and dry container prior to initial use and whenever it will not be used again within a period of 1 hour.
• Wash and rinse container after each use.
• Clean and sanitize motor base prior to initial use and after each use.
• Washing solutions based on non-sudsing detergents and chlorine-based sanitizing solutions having a minimum chlorine concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their equivalents, may be used.

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE

Washing Diversey Wyandotte 4 Tablespoons Hot 115^ (46°C)

Diversol BX/a or CX/A /Gallon

Rinsing

Plain Water

Warm 95^ (35^)

Sanitizing

Clorox®

1 Tablespoon/Gallon

Cold 50 - 70^

Institutional Bleach

(10-21°C)

• In repetitive batch-processing applications, frequent cleaning of the container will prolong the life of the blade assembly. In no case should actual running time between cleanings exceed one-half hour.
• Do not use container to store processed foods or beverages.

TO WASH AND RINSE CONTAINER

1. REMOVE CONTAINER FROM MOTOR BASE.

Remove lid. Rinse container interior and lid under running water. Add washing solution to container. Scrub and flush out the container interior and lid to dislodge and remove as much food residue as possible. Empty container.

1. Wipe down exterior of container with a soft cloth or sponge dampened with washing solution. Wash lid and lid insert in fresh washing solution. Fill container one-quarter full with fresh washing solution, cover (with lid only), place on motor base and run on Hi (II) speed for two (2) minutes. Empty container.
2. Repeat step (2) using clean rinse water in place of washing solution.

IMPORTANT

Note: IN ORDER TO MINIMIZE POSSIBILITY OF SCALDING, TEMPERATURE OF WASHING SOLUTION AND RINSE WATER MUST NOT EXCEED 115^ (46^) , AND QUANTITY USED MUST NOT EXCEED ONE-QUARTER CONTAINERFUL.

TO SANITIZE AND DRY CONTAINER

1. Wipe down exterior of container with a soft cloth or sponge dampened with sanitizing solution.
2. Fill container with sanitizing solution, cover, place on motor base, and run on Hi (II) speed for one (1) minute. Empty container. Dislodge any residual moisture from blade assembly by placing empty container on motor base and running on Hi (II) for two (2) seconds.
3. Sanitize lid and lid insert by immersing in sanitizing solution for two (2) minutes.
4. Do not rinse container, lid, or lid insert after sanitizing is completed. Allow parts to air-dry.

TO CLEAN AND SANITIZE MOTOR BASE

1. UNPLUG POWER CORD. Wipe down exterior surfaces of motor base with soft cloths or sponges dampened with washing solution, rinse water, and sanitizing solution. Prevent liquid from running into motor base by wringing all excess moisture from cloths or sponges before using them.
   DO NOT IMMERSE MOTOR BASE IN WASHING SOLUTION, RINSE WATER OR SANITIZING SOLUTION.
2. Allow motor base to air-dry before using.

Any other servicing should be performed by our authorized service representatives.

SERVICE

Refer to the list of Authorized Service Centers enclosed with your Waring® Commercial Blender for the name of the nearest Service Center, or write to:

Waring Factory Service Center
314 Ella T. Grasso Avenue
Torrington, CT 06790
[phone]

Ship blenders for repair to the above address or to an Authorized Service Center. Do not ship to a Waring Sales Offi ce.

Note: If your application involves the processing of biologically active material, we request that any items returned for service be sterilized before being shipped. Such items must be clearly identified as having been sterilized, both by a tag on the item itself and by a statement in the accompanying correspondence. Waring will not accept delivery of any return unless it is so identified.

Replacement parts for your out of warranty repairs are obtainable at the address below.

For Waring products sold outside of the U.S. and Canada, the warranty is the responsibility of the local importer or distributor. This warranty may vary according to local regulations.

Waring Commercial
314 Ella T. Grasso Avenue
Torrington, CT 06790
1-800-4-WARING
www.waringproducts.com

Waring Factory Service Center

314 Ella T. Grasso Avenue
Torrington, CT 06790
[phone]
