USER MANUAL 5810252 BEST

READ AND SAVE THESE INSTRUCTIONS

WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions,

contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service

panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accor-

dance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue

(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equip- ment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any separate solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

1. For indoor use only.

2. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent

exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

3. Take care when using cleaning agents or detergents.

4. Avoid using food products that produce flames under the Range Hood.

5. For general ventilating use only. Do not use to exhaust hazardous or explosive materi-

6. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall

spray, construction dust, etc. off power unit.

7. Your hood motor has a thermal overload which will automatically shut off the motor if it

becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.

8. For best capture of cooking impurities, the bottom of the hood should be a minimum of

24" and a maximum of 30" above the cooking surface.

9. Use with approved cord-connection kit only.

10. Please read specification label on product for further information and requirements.

WARNING TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. B. Always turn hood ON when cooking at high heat or when cooking flaming foods. (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe’). C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. D. Use proper pan size. Always use cookware appropriate for the size of the surface element. TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP

GREASE FIRE, OBSERVE THE FOLLOWING:*

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the

burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will

A. You know you have a Class ABC extinguisher and you already know how to operate it. B. The fire is small and contained in the area where it started. C. The fire department is being called. D. You can fight the fire with your back to an exit.

• Based on “Kitchen Fire Safety Tips” published by NFPA.- 5 -

Unpack hood and check contents.

CAUTION Wear safety gloves before every installation and/or manitenance operation

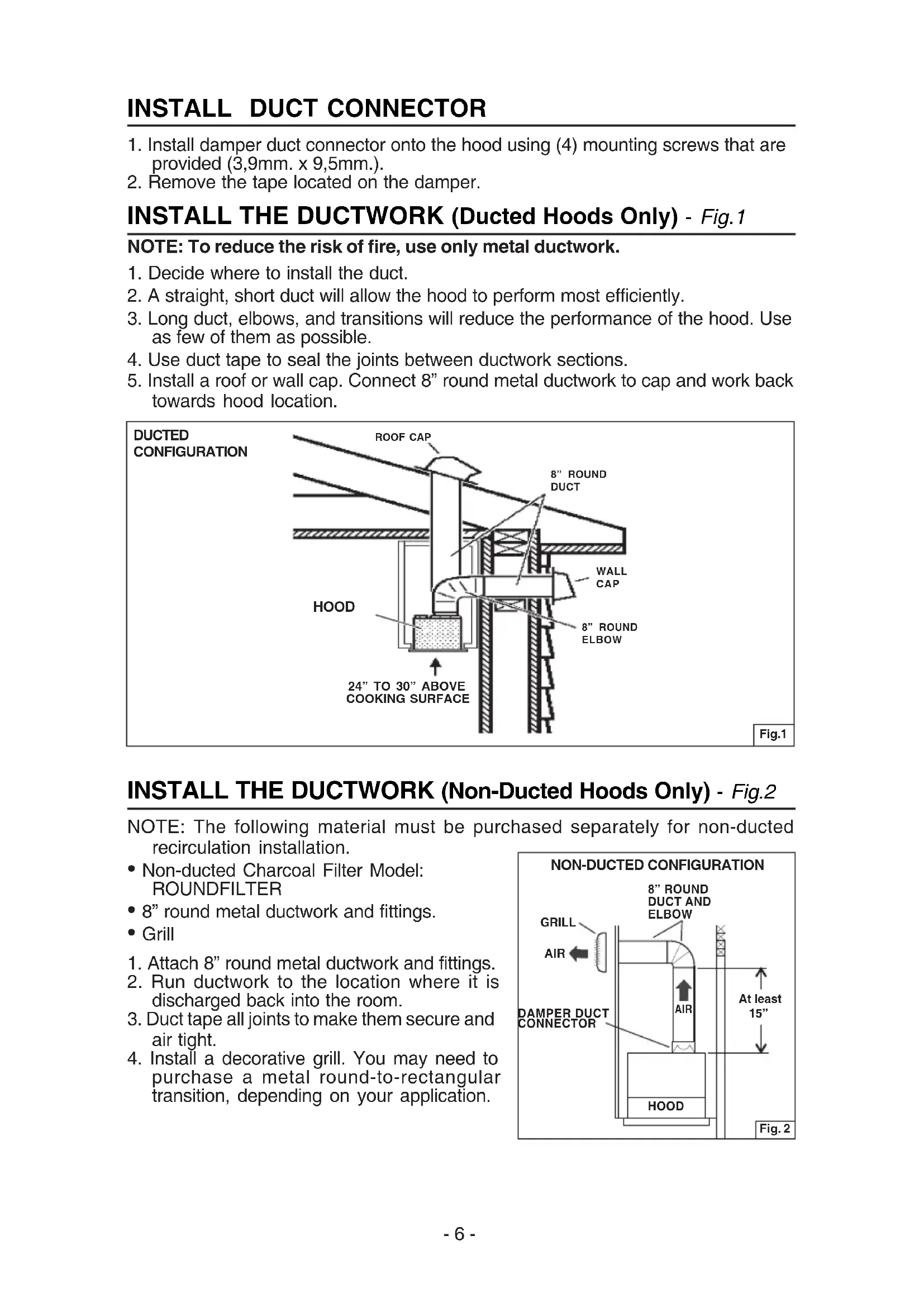

HOOD At least 15” INSTALL THE DUCTWORK (Ducted Hoods Only) - Fig.1 NOTE: To reduce the risk of fire, use only metal ductwork.

1. Decide where to install the duct.

2. A straight, short duct will allow the hood to perform most efficiently.

3. Long duct, elbows, and transitions will reduce the performance of the hood. Use

as few of them as possible.

4. Use duct tape to seal the joints between ductwork sections.

5. Install a roof or wall cap. Connect 8” round metal ductwork to cap and work back

towards hood location. DUCTED CONFIGURATION

1. Install damper duct connector onto the hood using (4) mounting screws that are

provided (3,9mm. x 9,5mm.).

2. Remove the tape located on the damper.

Fig.1Fig. 2 NON-DUCTED CONFIGURATION INSTALL THE DUCTWORK (Non-Ducted Hoods Only) - Fig.2 NOTE: The following material must be purchased separately for non-ducted recirculation installation.

• Non-ducted Charcoal Filter Model: ROUNDFILTER

• 8” round metal ductwork and fittings.

1. Attach 8” round metal ductwork and fittings.

2. Run ductwork to the location where it is

discharged back into the room.

3. Duct tape all joints to make them secure and

4. Install a decorative grill. You may need to

purchase a metal round-to-rectangular transition, depending on your application.- 7 - HOOD 33-7/16”(85cm.) MAX.

Note: The hood must be installed inside the cabinet. The internal height of cabinet must be minimum 16”. The hood should be mounted centered over the cook top burners.

1. Remove the frame by moving the 2

slide fasteners “A” forward (Fig.4 ). Push the filter latch and tilt the filter downward (B) and remove.

2. Cut a hole in the bottom of the cabinet,

using the dimensions shown (Fig.5 ).

3. Adjust the position of the clasping side

spring by turning the “D” screw according to the thickness of the cabinet to which it is going to be anchored (Fig.6).

4. Insert the hood in the cabinet (Fig.7 )

and lock into position using the side spring.

5. Secure the hood with (4) “C” mounting

6. Replace the frame by moving the 2

slide fasteners “A” backward. (Fig.4 ). Fig. 4 26-9/1610-¼”

Fig. 5 X = min 7/16” max 13/16” CLASPING SIDESPRING Fig.6 Fig.7 WIRING Note: This range hood must be properly grounded. The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes. The grounded 3 prong outlet should be accessible after the hood installation (i.e.: access door). GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must by plugged into an outlet that is properly installed and grounded. WARNING - Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exist as to wheter the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance. Position the power socket at a maximum distance of 33-7/16” (85cm.) from where the lead exits from the hood (see illustration alongside). Fit the plug into the power socket. CONNECT DUCTWORK

1. Use 8" round metal duct to connect

the duct connector on the hood to the ductwork above.

2. Use duct tape to make all joints secure

1. Install a charcoal filter on each side of

the blower (included with Non-ducted Charcoal Filter Model: ROUNDFILTER

2. To install the charcoal filter, align center

keyhole slot on the filter with center of the blower. Rotate to lock filter into place.

3. To remove the charcoal filter, rotate the

filter until it disengages from the blower. (DUCTED AND NON-DUCTED HOODS)

• To remove the GREASE filter, grip the latch tab and pull it down. This will disengange the filter from the hood.

• To install the GREASE filter, align filter tabs to the side of the filter with slots in the hood drawer. Pull latch tab down, push filter up into place and release the tab.

• Make sure the filter is securely enganged after assembly. Fig.8 NON-DUCTED RECIRCULATION FILTERS MAINTENANCE

OPERATIONS ON THE APPLIANCE. Grease Filters The grease filter should be cleaned fre- quently. Use a warm detergent solution. Grease filter is dishwasher safe. To remove the grease filter: push in on the metal latch tab. Tilt the filter downward and remove. Cleaning Occasional care will help preserve its fine appearance.

• Clean with warm water and mild detergent only.

• Follow all cleaning by rinsing with clear water.

• Wipe dry with clean, soft cloth. Light bulbs This range hood requires two 13 watt G24q-1 Compact Fluorescent lamps (included). To change bulbs (Fig.9):

1. Remove the frame by moving the 2 slide

fasteners (A) (Fig.4, page 6).

2. To replace lamp, grasp lamp at base and

pull out to remove. Replace with 13W Fluorescent lamp noted above. CAUTION: BULB MAY BE HOT! Fig.9 OPERATION - Fig.10 Controls The light switch turns the lamps on and off. The blower switch: makes it possible to select the motor operating speed (3 speeds). Position 0: motor off. The pilot lamp lights up whenever the blower is on. LIGHT SWITCH BLOWER SWITCH PILOT LAMP Fig.10- 9 - WARRANTY ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service. THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND INCANDESCENT BULBS, FUSE, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions. The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN- NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty supersedes all prior warranties. To qualify for warranty service, you must (a) notify Broan-NuTone at the address stated below or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. In USA - Best®, 926 W. State Street, Hartford, WI 53027 (800-558-1711) In Canada - Best®, 550 Lemire Blvd., Drummondville, QC J2C 7W9 (866-737-7770) www.BestRangeHoods.com HEAT SENTRY™ Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

SWITCH MOUNTING BOARD

MOTOR SWITCH LIGHT SWITCH PARTS BAG BLOWER ASSEMBLY (Included Key No. 42, 45, 48, 49, 53) SWITCH BOX ASSEMBLY (Included Key No. 228, 229, 230, 234, 238, 241) 8” DAMPER DUCT CONNECTOR (Included Key No. 56, 57)
