USER MANUAL HWN660 SAMSUNG

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

SAFETY INFORMATION

SAFETYWARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER- SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN.
This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.
This symbol indicates that this product has included important literature concerning operation and maintenance.
Class II product: This symbol indicates that it does not require a safety connection to electrical earth (ground).
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
DC voltage: This symbol indicates that the rated voltage marked with the symbol is DC voltage.
Caution, Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times.

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification sticker located on the bottom of your product. Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7 10~cm) . Make sure the ventilation slots are not covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your product is not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat, direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with the same or equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper, USER MANUAL and a detailed FULL MANUAL you can download.

USER MANUAL

See this manual for safety instructions, product installation, components, connections, and product specifications.

FULL MANUAL

You can access the FULL MANUAL on Samsung's on-line customer support centre by scanning the QR code. To see the manual on your PC or mobile device, download the manual in document format from Samsung's website. (http://www.samsung.com/support)

Design and specifications are subject to change without prior notice.

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar 3

Bottom Panel of the Soundbar 4

03 Connecting the Soundbar 5

Connecting Electrical Power 5

Connecting the Soundbar to the Subwoofer 6

• Automatic connection between the Subwoofer and the Soundbar 6
• Manually connecting the Subwoofer if automatic connection fails

Connecting the SWA-8500S to a Soundbar (Sold Separately) 8

04 Connecting to your TV 10

Method 1. Connecting with a Cable 10

• Connecting using an Optical Cable 10
• Connecting a TV using an HDMI Cable 11

Method 2. Connecting Wirelessly 12

• Connecting a TV via Bluetooth 12

05 Connecting an External Device 14

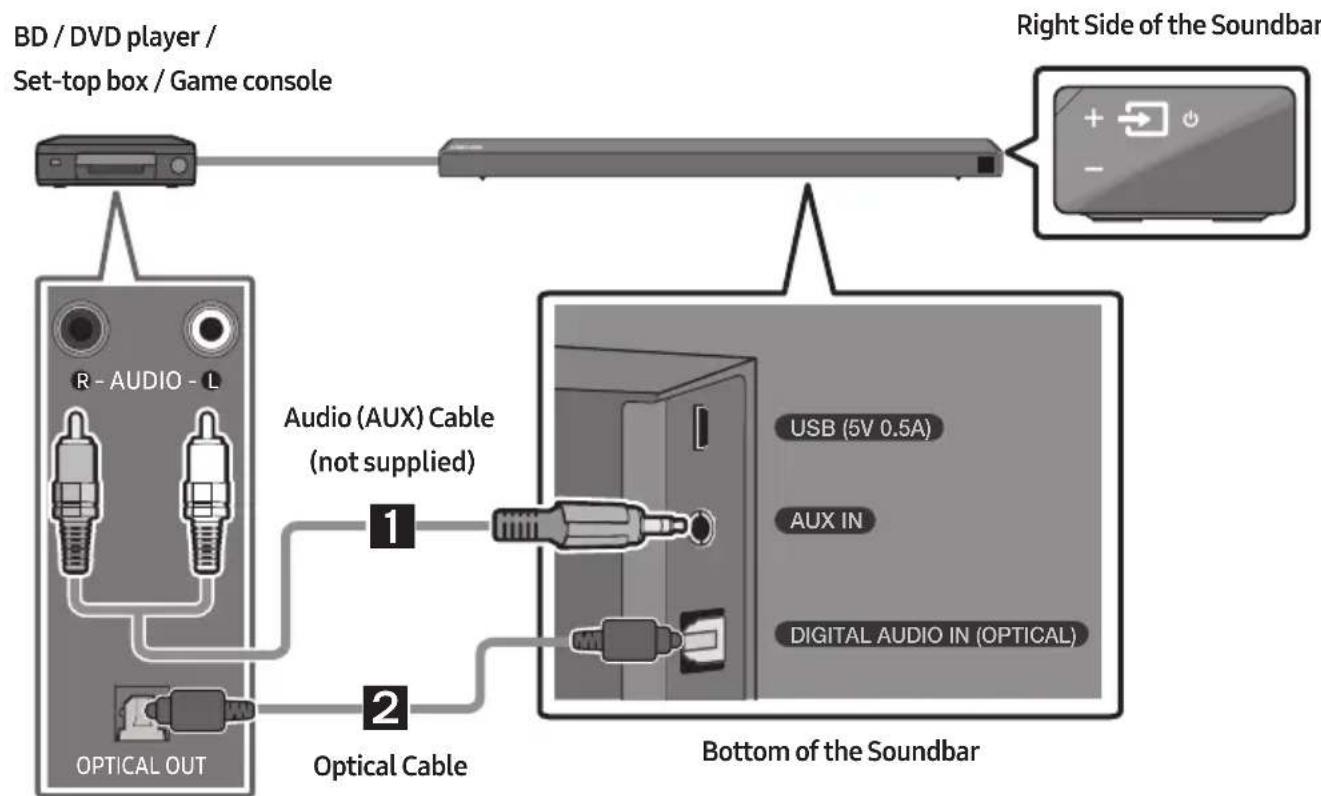

Connecting using an Optical or Analogue Audio (AUX) Cable 14

Connecting using an HDMI Cable 15

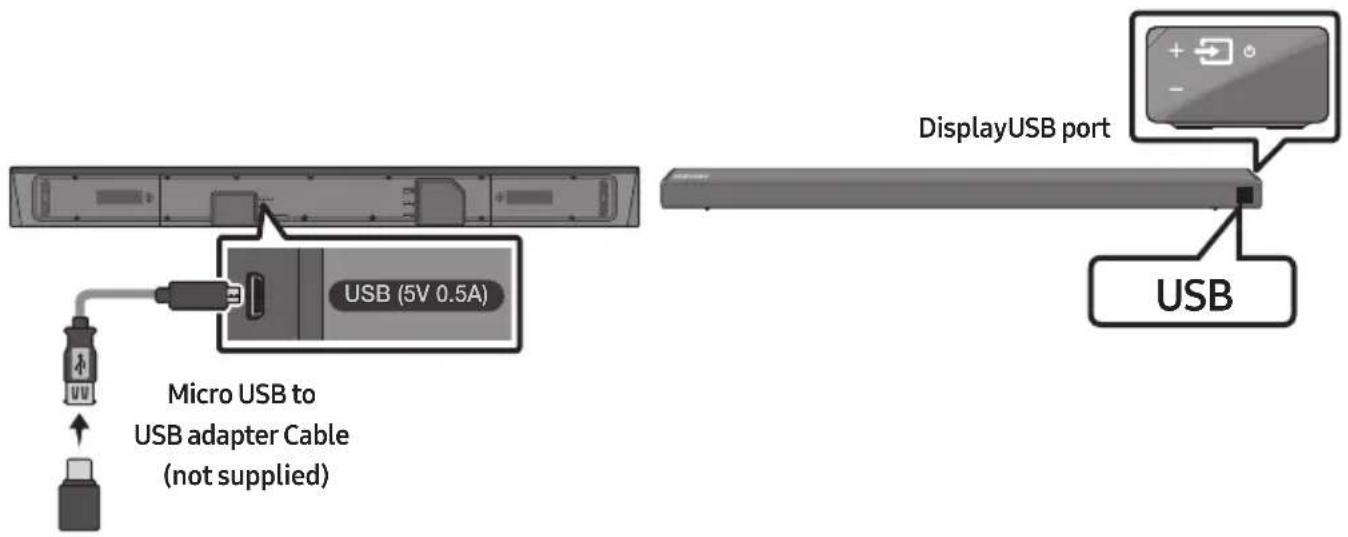

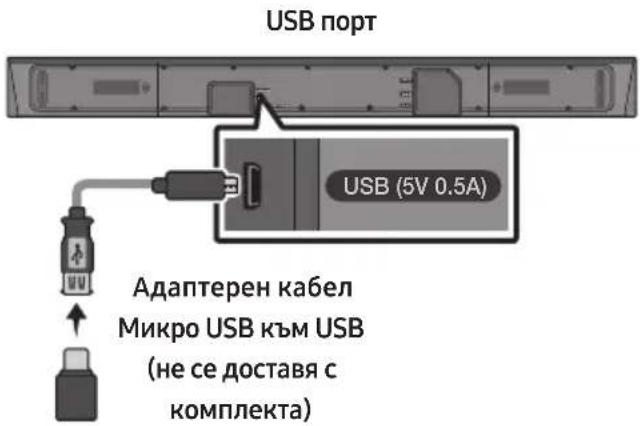

06 Connecting a USB Storage Device 16

07 Connecting a Mobile Device 18

Connecting via Bluetooth 18

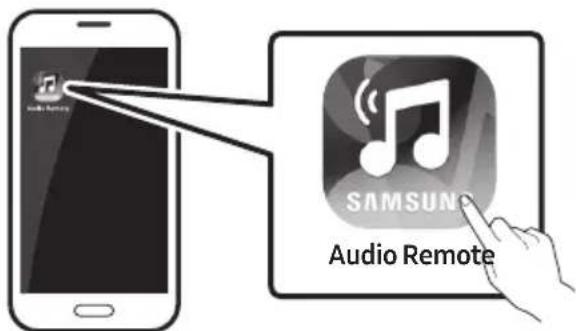

Using the Samsung Audio Remote App 21

• Installing the Samsung Audio Remote App 21
• Launching the Samsung Audio Remote App 21

08 Using the Remote Control 22

How to Use the Remote Control 22

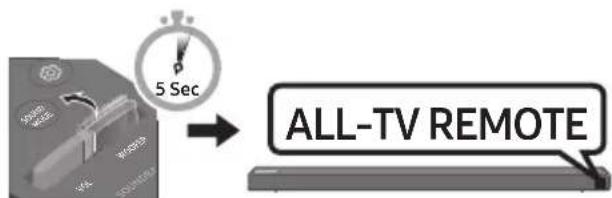

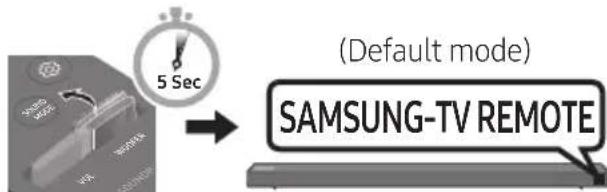

Adjusting the Soundbar volume with a TV remote control 25
Using the Hidden Buttons (Buttons with more than one function) 26
Output specifications for the different sound effect modes 26

09 Installing the Wall Mount 27

Installation Precautions 27

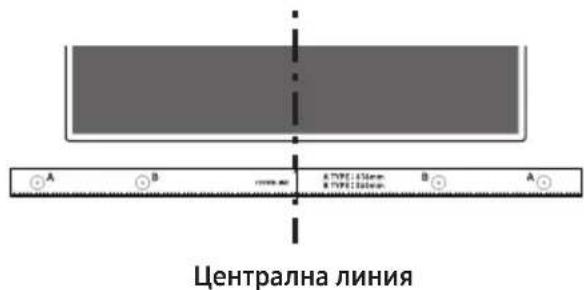

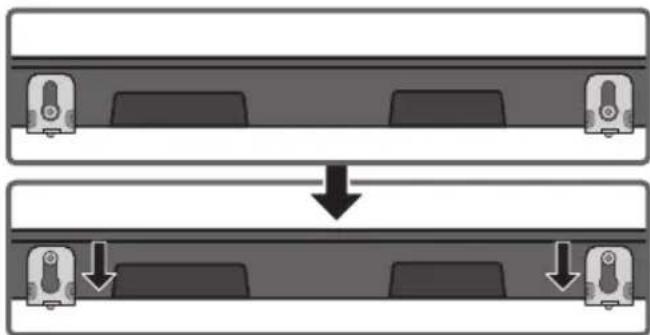

Wallmount Components 27

10 Software Update 29

Updating Procedure 30
If UPDATE is not displayed 30

11 Troubleshooting 31

Licence 32
Open Source Licence Notice 32

14 Important Notes About Service 32

Specifications and Guide 33

Specifications 33

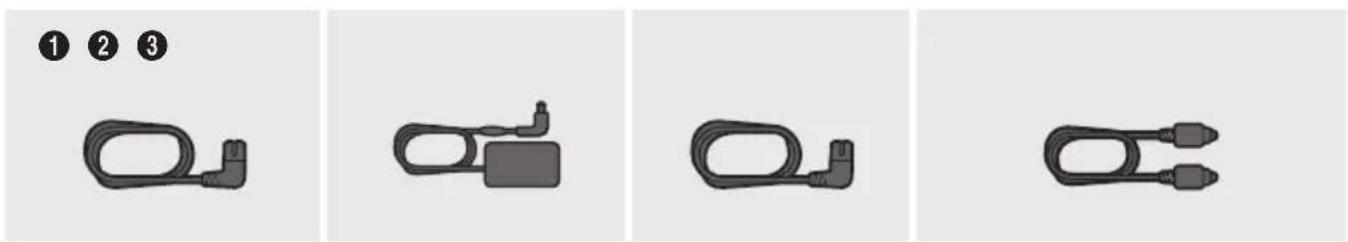

01 CHECKING THE COMPONENTS

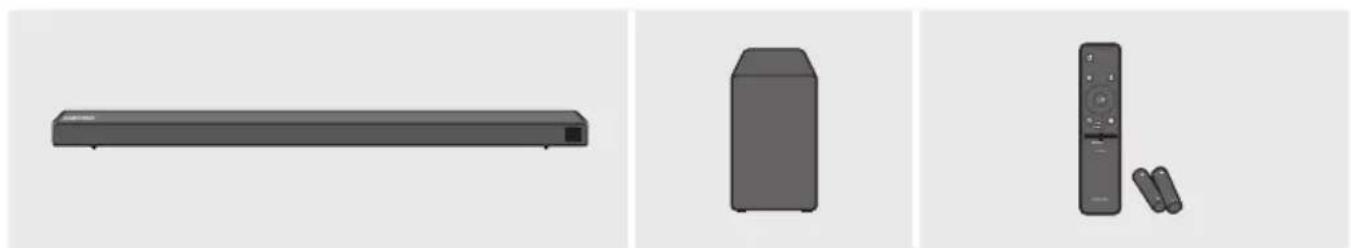

Soundbar Main Unit Subwoofer Remote Control / Batteries
Power Cord (Subwoofer)
AC/DC Adapter (Main Unit)
Power Cord (AC/DC Adapter)
Optical Cable

• For more information about the power supply and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)
• The power components are labelled (1,2,3) . For more information about power connections, see page 5.
• For Soundbar wall mounting components, see page 27.
• To purchase additional components or optional cables, contact a Samsung Service Centre on Samsung Customer Care.
  The appearance of the accessories may differ slightly from the illustrations above.

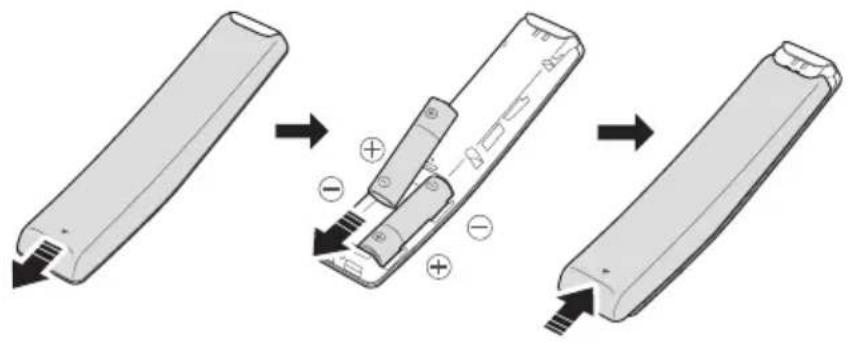

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries (1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG-2

02 PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

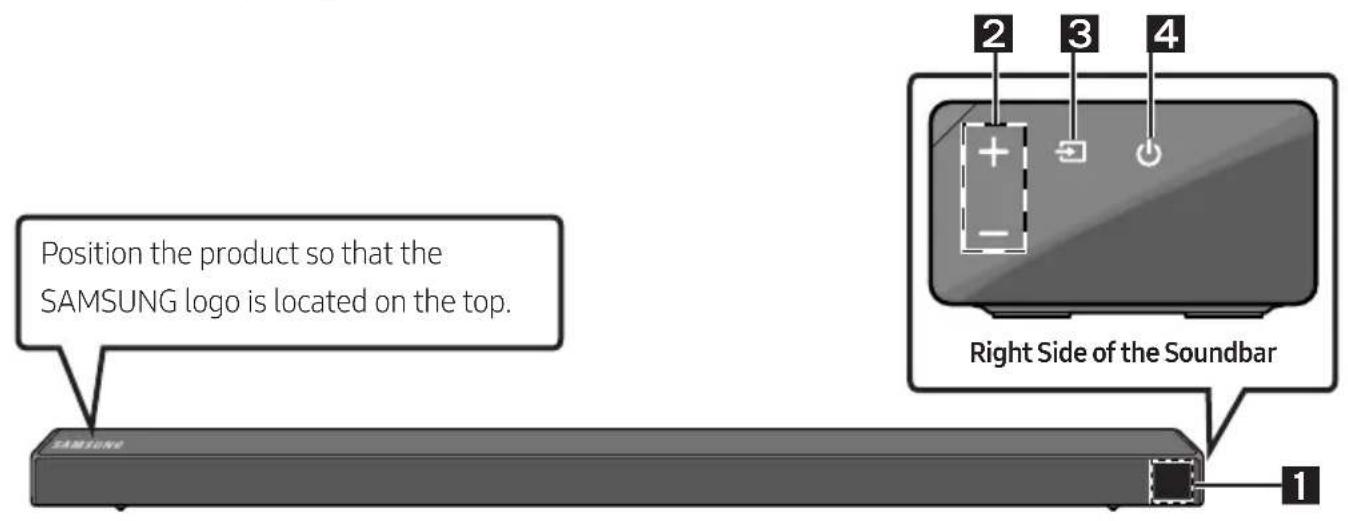

1	Display Displays the product's status and current mode.
2	+/- (Volume) Button Adjusts the volume. · When adjusted, the volume level appears on the Soundbar's front display.
3	(Source) Button Selects the source input mode.
	Input mode Display
	Optical Digital input D.IN
	ARC (HDMI OUT) input	D.IN → TV ARC (Auto conversion)
	AUX input AUX
	HDMI input HDMI
	BLUETOOTH mode BT
	USB mode USB
	· To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the (Source) button for more than 5 seconds.
4	(Power) Button Turns the power on and off.

• When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.
• When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.
• If you want to enjoy sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV.

Bottom Panel of the Soundbar

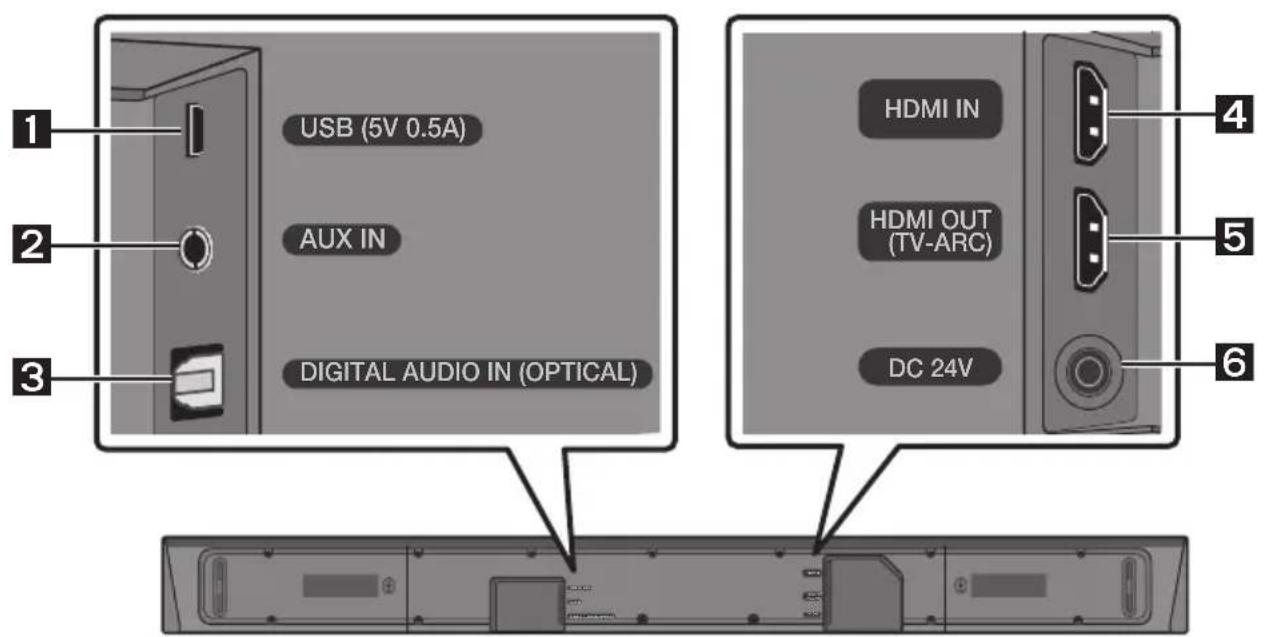

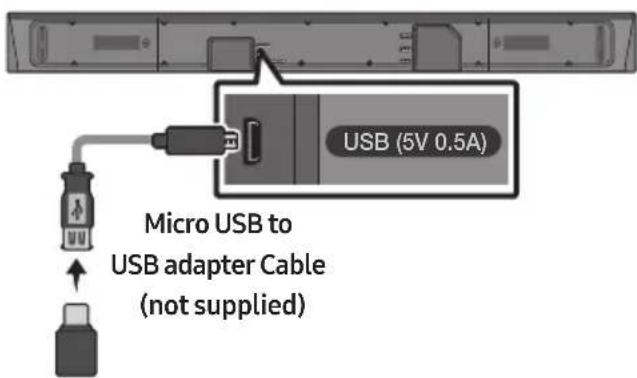

1	USB (5V 0.5A) Connect a USB device here to play music files on the USB device through the Soundbar.
2	AUX IN Connect to the Analogue output of an external device.
3	DIGITAL AUDIO IN (OPTICAL) Connect to the digital (optical) output of an external device.
4	HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable. Connect to the HDMI output of an external device.
5	HDMI OUT (TV-ARC) Connect to the HDMI (ARC) jack on a TV.
6	DC 24V (Power Supply In) Connect the AC/DC power adapter.

• When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug. Do not pull the cable.
• Do not connect this unit or other components to an AC outlet until all connections between components are complete.

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

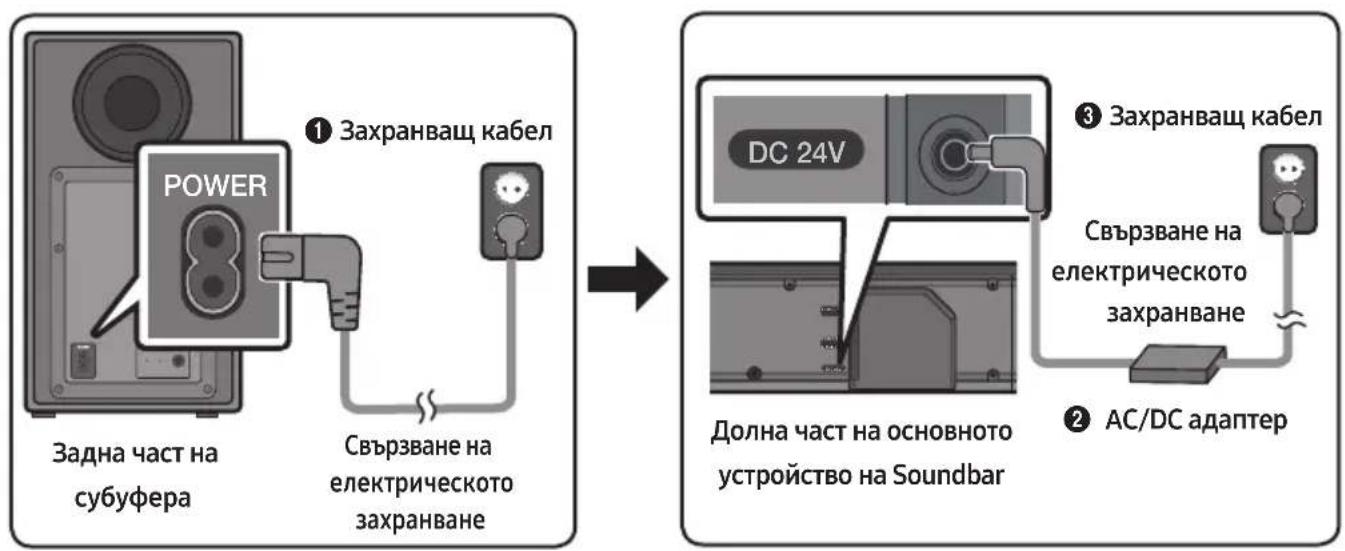

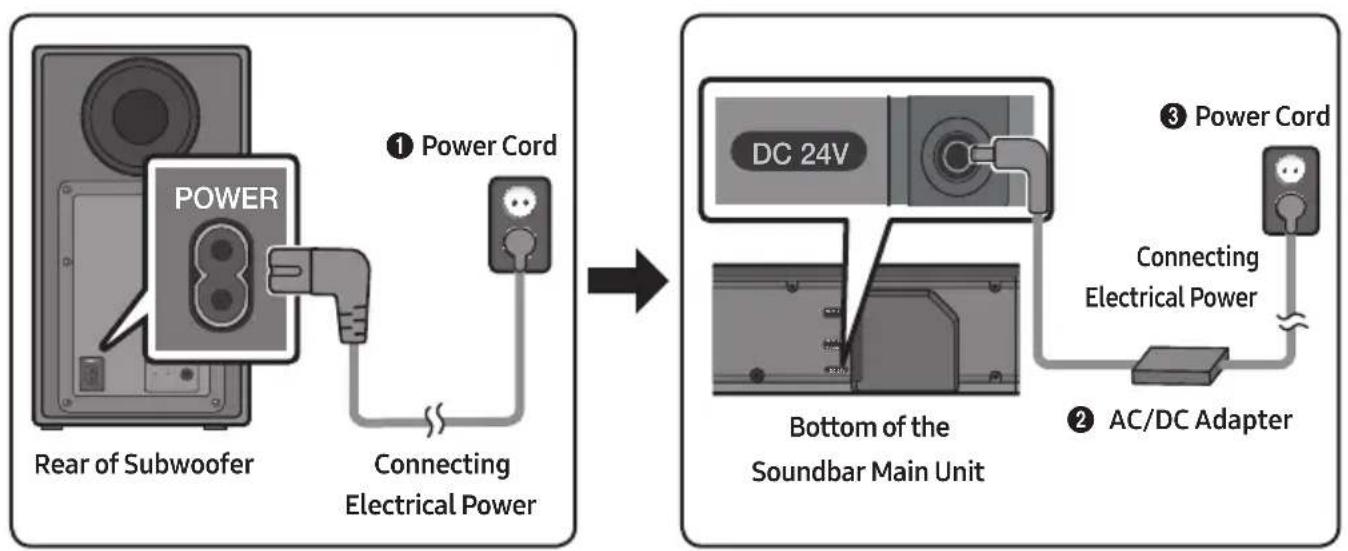

Use the power components (1, 2, 3) to connect the Subwoofer and Soundbar to an electrical outlet in the following order:

1 Connect the power cord to the Subwoofer.
Connect the power output cable to the power adapter, and then to the Soundbar.
3 Connect the power cord to a wall socket.

See the illustrations below.

• For more information about the required electrical power and power consumption, refer to the label attached to the product. (Label : Bottom of the Soundbar Main Unit)

• Make sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter and cause the Adapter to malfunction.

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the subwoofer is automatically connected to the Soundbar.

• When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution
Blue	On	Successfully connected (normal operation)	-
	Blinking Recovering the connection		Check if the power cable attached to the main Soundbar unit is connected properly or wait about 5 minutes. If blinking persists, try manually connecting the subwoofer. See page 7.
Red On		Standby (with the Soundbar main unit turned off)	Check if the power cable attached to the main Soundbar unit is connected properly.
		Connection failed	Connect again. See the instructions for manual connection on page 7.
Red and blue	Blinking Malfunction		See the contact information for the Samsung Service Centre in this manual.

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

• Check whether the power cables for the Soundbar and subwoofer are connected properly.
  Make sure that the Soundbar is turned on.

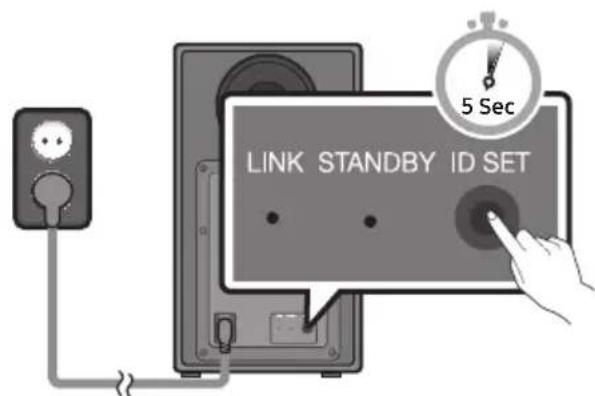

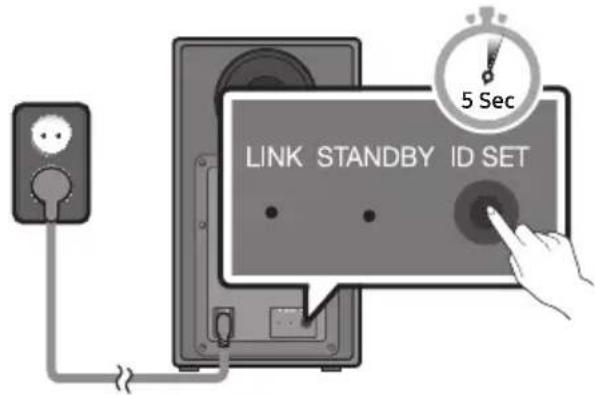

• Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

• The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

Rear of Subwoofer

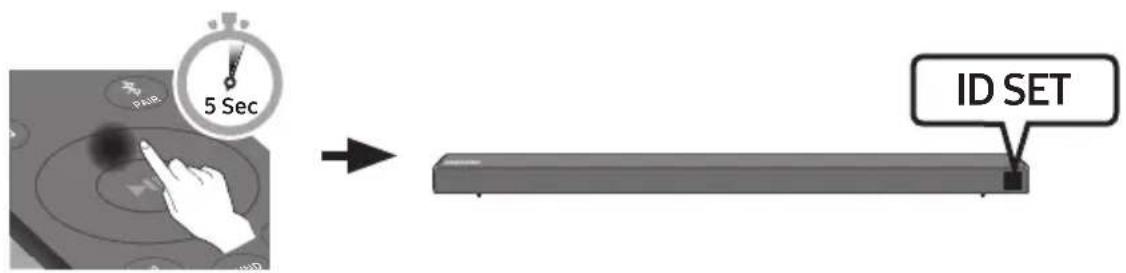

1. Press and hold the Up button on the remote control for at least 5 seconds.

2. The ID SET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

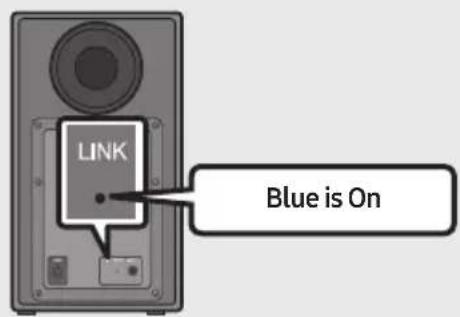

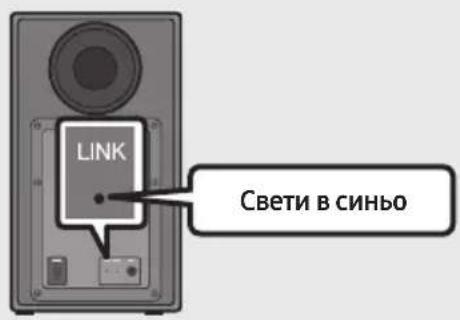

1. Check if the LINK LED is solid blue (connection complete).

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Subwoofer.

NOTES

• Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete.
• Before moving or installing this product, be sure to turn off the power and disconnect the power cord.
• If the main unit is powered off, the wireless subwoofer will go into stand-by mode and the STANDBY LED on the rear will be Red after blinking Blue several times.
• If you use a device that uses the same frequency (5.8GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption.
• The maximum transmission distance of the wireless signal of the main unit is about 10 meters, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer the system may not operate at all, because the wireless signal cannot penetrate metal.

PRECAUTIONS

• Wireless receiving antennas are built into the wireless subwoofer. Keep the units away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless subwoofer and Wireless Receiver Module (Sold separately) location is clear of any obstructions.

Connecting the SWA-8500S to a Soundbar (Sold Separately)

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S) to your Soundbar (Sold separately).

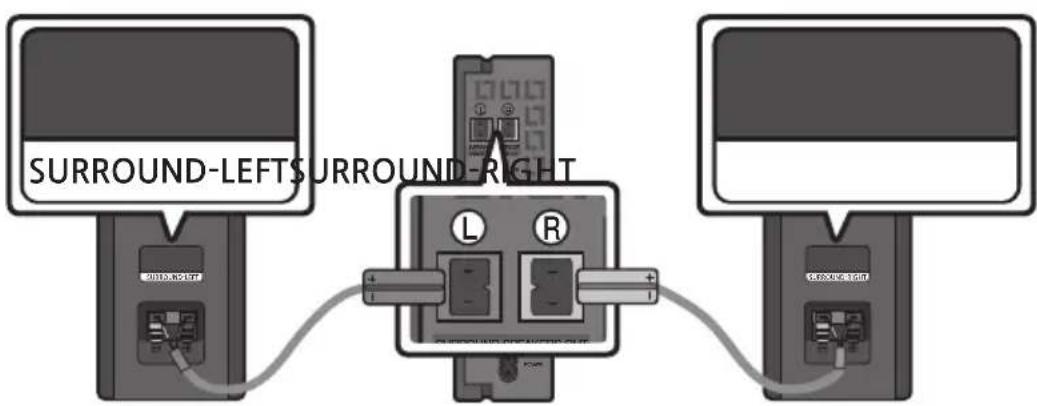

1. Connect the Wireless Receiver Module to 2 Surround Speakers.

2. The speaker cables are colour coded.

1. Check the standby status of the Wireless Receiver Module after plugging it into an electrical outlet.

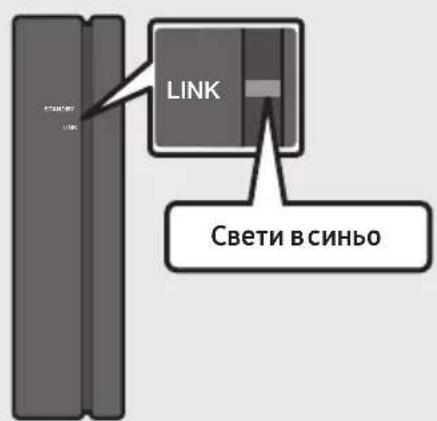

2. The LINK LED indicator (blue LED) on the Wireless Receiver Module blinks. If the LED does not blink, press the ID SET button on the back of the Wireless Receiver Module with a pen tip for 5~6 seconds until the LINK LED indicator blinks (in Blue). For more about the LED, please refer to the SWA-8500S user manual.

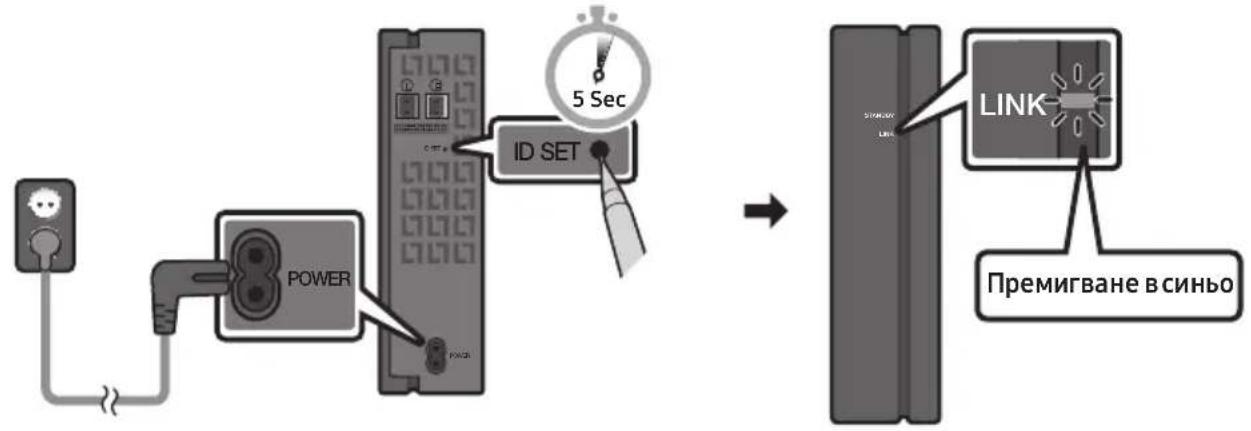

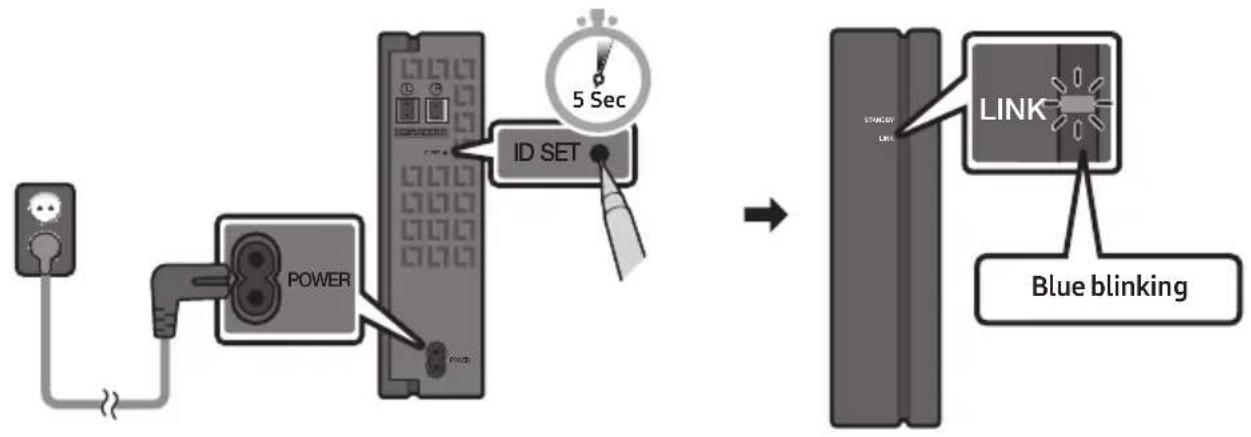

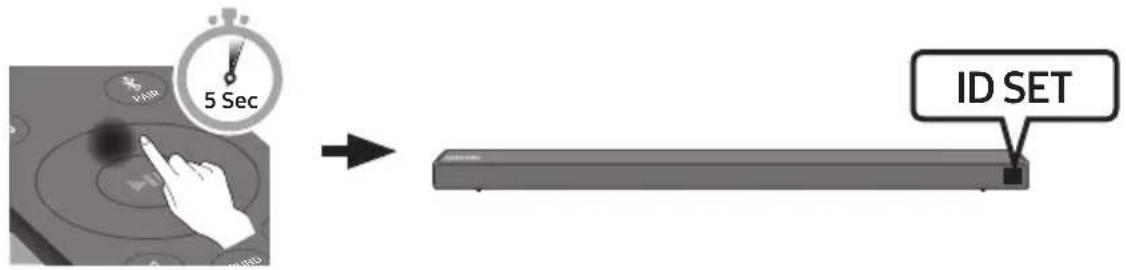

1. Press and hold the Up button on the remote control for at least 5 seconds.

2. The IDSET message appears on the display of the Soundbar for a moment, and then it disappears.

3. The Soundbar will automatically power on when ID SET is complete.

CAUTION

• If your Soundbar was playing music when it connects to the SWA-8500S, you may hear some stuttering from the woofer as the connection finalises.

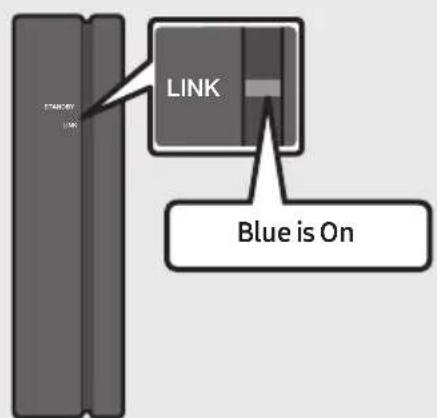

• Check if the LINK LED is solid blue (connection complete)

The LINK LED indicator stops blinking and glows a solid blue when a connection is established between the Soundbar and the Wireless Receiver Module.

1. If SWA-8500S is not connected, repeat the procedure from Step 2.

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

• When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV's remote control.

• This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.

• This function also allows you to use the TV menu to adjust the sound field and various settings as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the "Digital Output Audio Format" on your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on the TV is changed, you will experience better sound quality. (The TV menu may differ depending on the TV manufacturer.)

Connecting using an Optical Cable

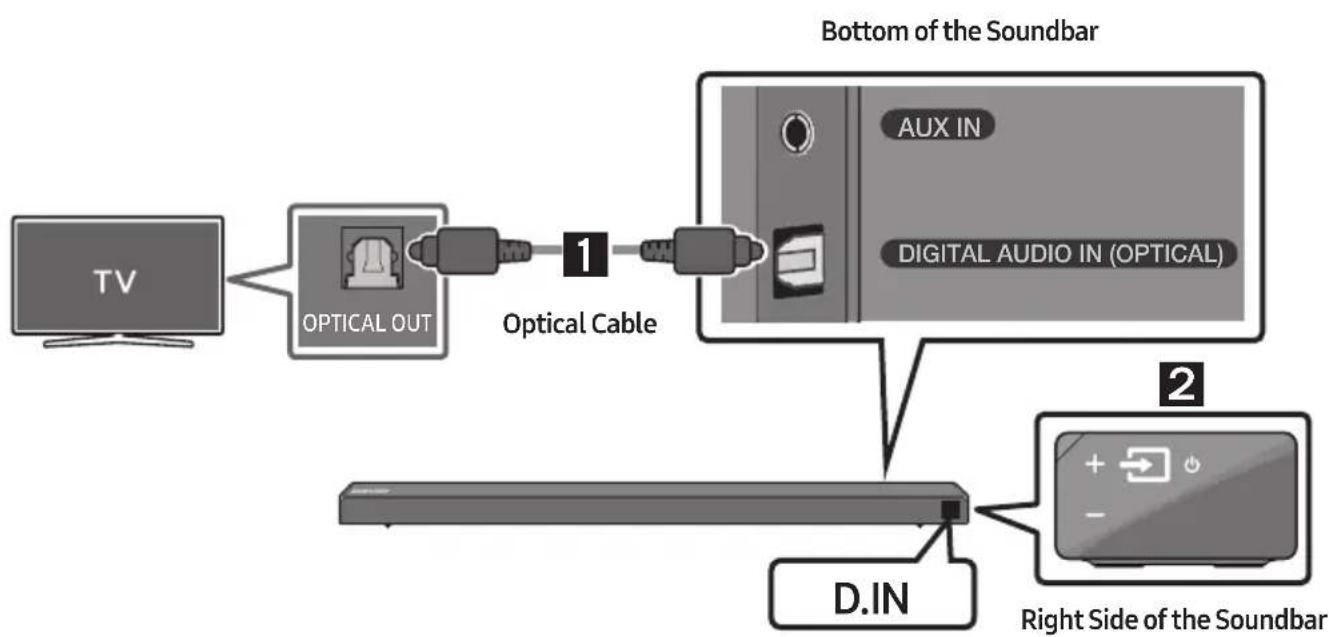

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with a digital optical cable.
2. Press the (Source) button on the right side panel or remote control, and then select the "D.IN" mode.

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable.

2. Press the Left button on the remote control (the blue spot in the illustration to the right) for 5 seconds to turn Auto Power Link on or off.

3. Auto Power Link is set to ON by default.

(To turn off this function, hold the Left button on the remote for 5 seconds.)

• Depending on the connected device, Auto Power Link may not function.
• This function is only available in the "D.IN" mode.

Connecting a TV using an HDMI Cable

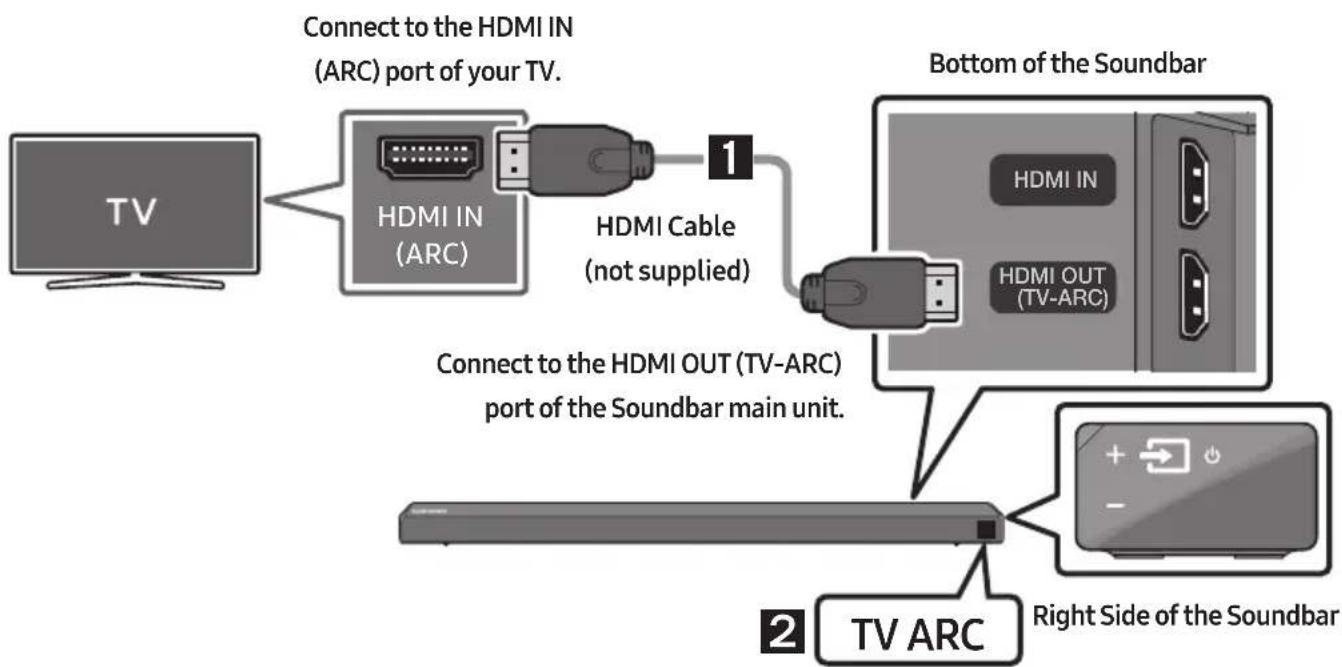

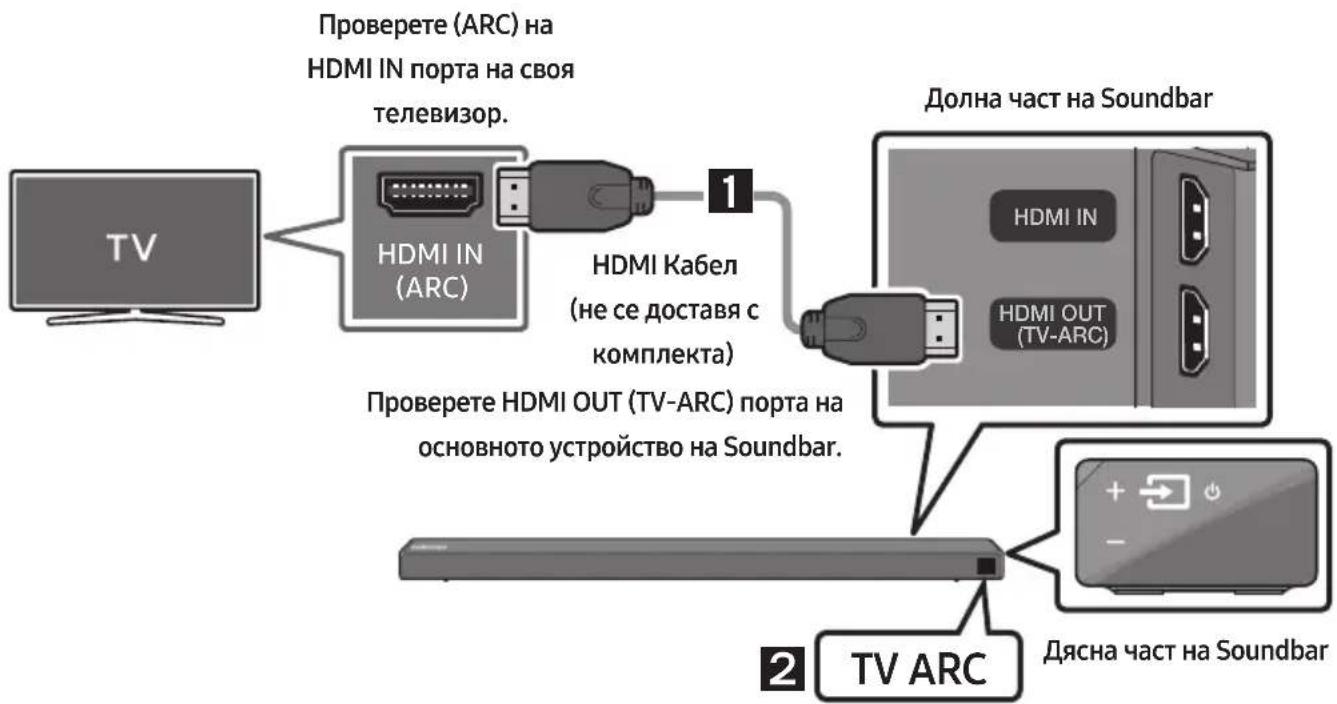

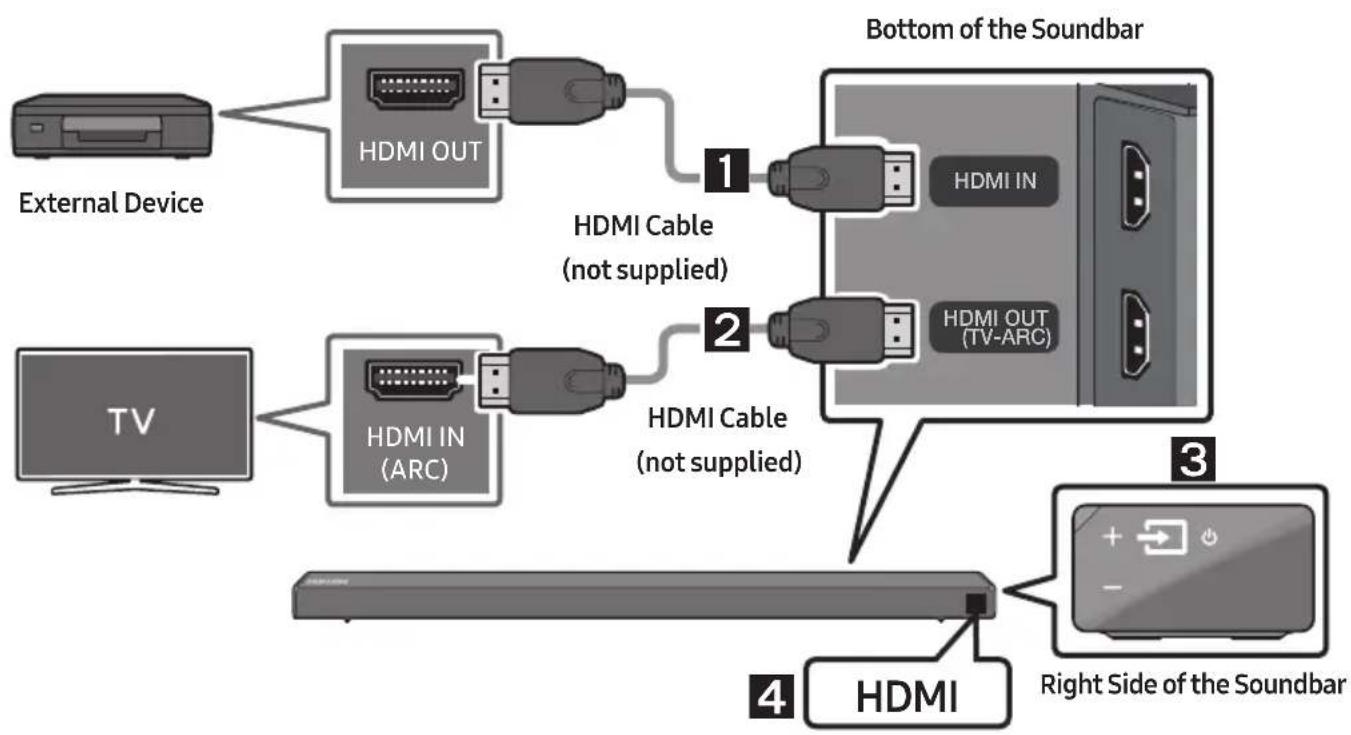

1. With the Soundbar and TV turned on, connect the HDMI cable (not supplied) as shown in the figure.

2. "TVARC" appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

3. If TV sound is inaudible, press the (Source) button on the remote control or on the right side of the Soundbar to switch to "D.IN" mode. The screen displays "D.IN" and "TV ARC" in sequence, and TV sound is played.

4. If "TV ARC" does not appear in the display window of the Soundbar main unit, confirm that the HDMI cable (not supplied) is connected to the correct port.

5. Use the volume buttons on the TV's remote control to change the volume on the Soundbar.

NOTES

• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector.
• If the TV provides an ARC port, connect the HDMI cable to the HDMI IN (ARC) port.
• We recommend you use a coreless HDMI cable if possible. If you use a cored HDMI cable, use one whose diameter is less than 14mm .
• Anynet+ must be turned on.
• This function is not available if the HDMI cable does not support ARC.

Method 2. Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• Only one TV can be connected at a time.

The initial connection

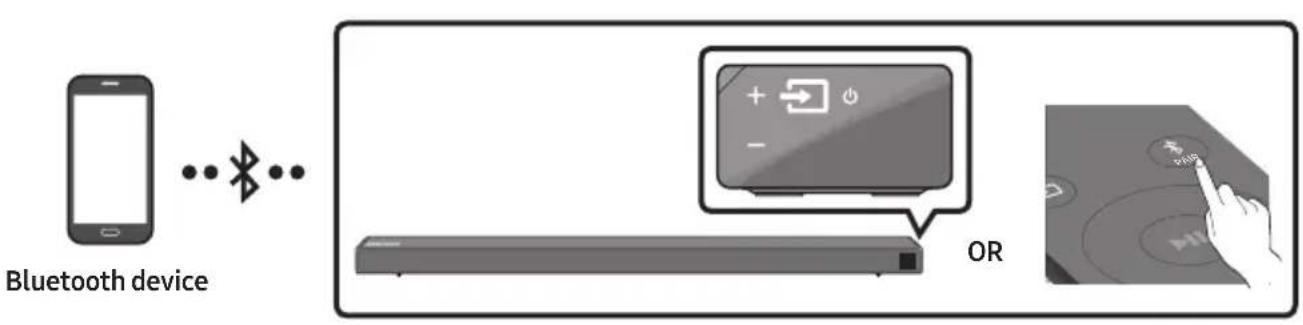

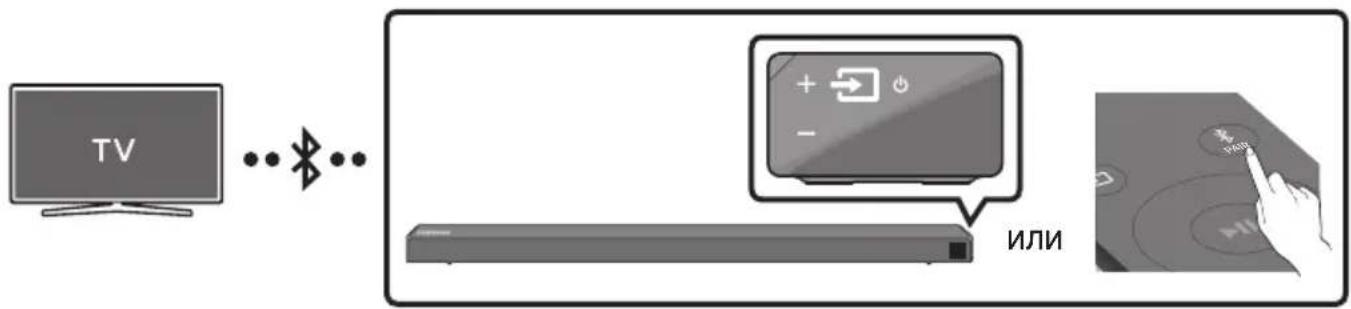

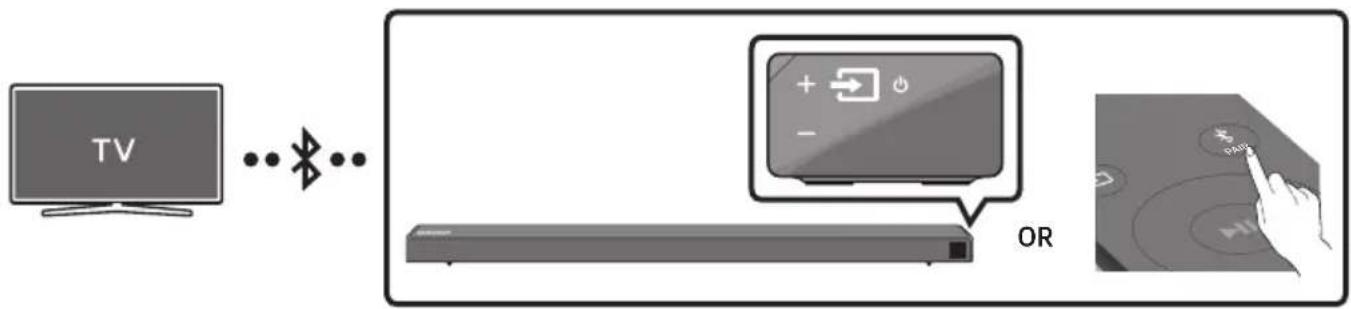

1. Press the PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the Source button on the right side panel and then select "BT". Change "BT" to "BT READY".

b. When "BT READY" appears, press and hold the (Source) button on the right side panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. Select Bluetooth mode on the TV. (For more information, see the TV's manual.)

2. Select "[AV] Samsung Soundbar Nxxx N-Series" from the list on TV's screen. An available Soundbar is indicated with "Need Pairing" or "Paired" on the TV's Bluetooth device list. To connect the TV to the Soundbar, select the message, and then establish a connection.

3. When the TV is connected, [TV Name] "BT" appears on the Soundbar's front display.

4. You can now hear TV sound from the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar Nxxx N-Series") appears in the list, delete it.
• Then repeat steps 1 through 3.

NOTE

• After you have connected the Soundbar to your TV the first time, use the "BT READY" mode to reconnect.

Disconnecting the Soundbar from the TV

Press the (Source) button on the right side panel or on the remote control and switch to any mode but "BT".

• Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.)
• To cancel the automatic Bluetooth connection between the Soundbar and TV, press the II (Play/Pause) button on the remote control for 5 seconds with the Soundbar in "BT READY" status. (Toggle On Off)

What is the difference between BT READY and BT PAIRING?

• BT READY: In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING: In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the Source) button on the right side of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

05 CONNECTING AN EXTERNAL DEVICE

Connect to an external device via a wired or wireless network to play the external device's sound through the Soundbar.

Connecting using an Optical or Analogue Audio (AUX) Cable

1 Audio (AUX) Cable

Connect AUXIN (Audio) on the main unit to the AUDIO OUT jack of the Source Device using an audio cable.
2 Select "AUX" mode by pressing the (Source) button on the right side panel or on the remote control.

2 Optical Cable

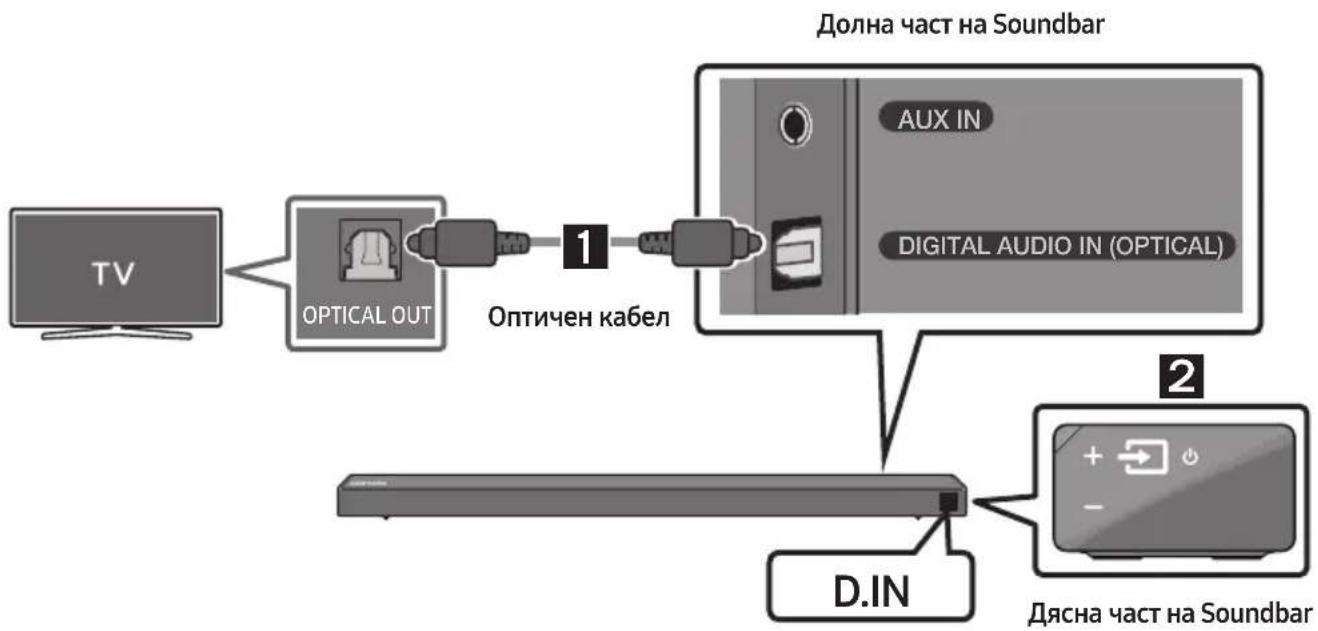

Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT jack of the Source Device using a digital optical cable.
Select "D.IN" mode by pressing the (Source) button on the right side panel or on the remote control.

Connecting using an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI OUT jack on your digital device.
2. Connect an HDMI cable (not supplied) from the HDMI OUT (TV-ARC) jack on the back of the product to the HDMI IN jack on your TV.
3. Press the (Source) button on the right side panel or on the remote control, and then select "HDMI".
4. "HDMI" mode is displayed on the Soundbar display panel and sound plays.

06 CONNECTING A USB STORAGE DEVICE

You can play music files located on USB storage devices through the Soundbar.

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.
2. The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
3. Connect your USB device to the female end of the adapter cable.
4. Press the (Source) button on the right side panel or on the remote control, and then select "USB".
5. "USB" appears in the display screen.

6. Play music files from the USB storage device through the Soundbar.

7. The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more than 5 minutes.

File Format Type Compatibility list

Extension Codec Sampling Rate Bitrate
*.mp3 MPEG1 Layer2 16KHz ~ 48KHz 80kbps~320kbps
		MPEG 1 Layer3 16KHz ~ 48KHz	80kbps~320kbps
		MPEG 2 Layer3 16KHz ~ 48KHz	80kbps~320kbps
		MPEG 2.5 Layer3 16KHz ~ 48KHz	80kbps~320kbps
*.wma	Wave_Style_MSAudio1	16KHz ~ 48KHz	56kbps~128kbps
	Wave_Style_MSAudio2 16KHz ~ 48KHz	16KHz ~ 48KHz 56kbps~128kbps
*.aac	AAC	16KHz ~ 96KHz	48kbps~320kbps
	AAC-LC	16KHz ~ 96KHz	128kbps~192kbps 5.1ch 320kbps
	HE-AAC	24KHz ~ 96KHz	48kbps~64kbps 5.1ch 160kbps
*.wav	-	16KHz ~ 48KHz	up to 3000kbps
*.ogg	OGG 1.1.0	16KHz ~ 48KHz	50kbps~500kbps
*.flac	FLAC 1.1.0, FLAC 1.2.1	16KHz ~ 96KHz	up to 3000kbps

• If there are too many folders and files stored on the USB device, it may take the Soundbar sometime to access and play files.

07 CONNECTING A MOBILE DEVICE

Connecting via Bluetooth

When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

• You cannot connect more than one Bluetooth device at a time.

The initial connection

1. Press the PAIR button on the remote control to enter the "BT PAIRING" mode.

(OR) a. Press the (Source) button on the right side panel and then select "BT". Change "BT" to "BT READY".

b. When "BT READY" appears, press and hold the l (Source) button on the right side panel of the Soundbar for more than 5 seconds to display "BT PAIRING".

1. On your device, select "[AV] Samsung Soundbar Nxxx N-Series" from the list that appears.

2. When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] "BT" appears in the front display.

3. Play music files from the device connected via Bluetooth through the Soundbar.

If the device fails to connect

• If a previously connected Soundbar listing (e.g. "[AV] Samsung Soundbar Nxxx N-Series") appears in the list, delete it.

• Then repeat steps 1 through 2.

NOTE

• After you have connected the Soundbar to your mobile device the first time, use the "BT READY" mode to reconnect.

What is the difference between BT READY and BT PAIRING?

• BT READY: In this mode, you can search for previously connected TVs or connect a previously connected mobile device to the Soundbar.
• BT PAIRING: In this mode, you can connect a new device to the Soundbar. (Press the PAIR button on the remote control or press and hold the Source) button on the right side of the Soundbar for more than 5 seconds while the Soundbar is in "BT" mode.)

NOTES

• If asked for a PIN code when connecting a Bluetooth device, enter <0000>.
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

• The Soundbar may not perform Bluetooth search or connection correctly under the following circumstances:

• If there is a strong electrical field around the Soundbar.

• If several Bluetooth devices are simultaneously paired with the Soundbar.

• If the Bluetooth device is turned off, not in place, or malfunctions.

• Electronic devices may cause radio interference. Devices that generate electromagnetic waves must be kept away from the Soundbar main unit - e.g., microwaves, wireless LAN devices, etc.

• The Soundbar supports SBC data (44.1kHz, 48kHz).
• Connect only to a Bluetooth device that supports the A2DP (AV) function.
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

• Once you have paired the Soundbar to a Bluetooth device, selecting "[AV] Samsung Soundbar Nxxx N-Series" from the device's scanned devices list will automatically change the Soundbar to "BT" mode.

• Available only if the Soundbar is listed among the Bluetooth device's paired devices.

(The Bluetooth device and the Soundbar must have been previously paired at least once.)

• The Soundbar will appear in the Bluetooth device's searched devices list only when the Soundbar is displaying "BT READY".
• The Soundbar cannot be paired to another Bluetooth device if already in Bluetooth mode and paired to a Bluetooth device.

Bluetooth Power On (SOUND MODE)

If a previously paired Bluetooth device tries to pair with the Soundbar when the Bluetooth Power On function is on and the Soundbar is turned off, the Soundbar turns on automatically.

1. Press and hold the SOUND MODE button for more than 5 seconds on the remote while the Soundbar is turned on.
2. "ON-BLUETOOTH POWER" appears on the Soundbar's display.

Disconnecting the Bluetooth device from a Soundbar

You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

• The Soundbar will be disconnected.
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

Disconnecting the Soundbar from the Bluetooth device

Press the (Source) button on the right side panel or on the remote control, and then change to any mode except "BT".

• Disconnecting takes time because the Bluetooth device must receive a response from the Soundbar. (Disconnection time may differ, depending on the Bluetooth device)
• When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display "BT DISCONNECTED" on the front display.

NOTES

• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar and the Bluetooth device exceeds 10 meters.
• The Soundbar automatically turns off after 5 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a short wireless connection.

• A Bluetooth device may cause noise or malfunction, depending on usage, if:
• A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Soundbar.
• It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.
• It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.
• Pair the Soundbar with the Bluetooth device while they are close together.
• The further the distance between the Soundbar and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.
• In poor reception areas, the Bluetooth connection may not work properly.
• The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.
• This wireless device may cause electric interference during its operation.

Using the Samsung Audio Remote App

Installing the Samsung Audio Remote App

To control the Soundbar with your smart device and the Samsung Audio Remote app, download the Samsung Audio Remote app from the Google Play store.

Market search : Samsung Audio Remote

Launching the Samsung Audio Remote App

To launch and use the Samsung Audio Remote app, touch the Audio Remote icon on your smart device, and then follow the directions on the screen.

• The Samsung Audio Remote app is only compatible with Android mobile phones and mobile devices running Android OS 3.0 or later.

08 USING THE REMOTE CONTROL

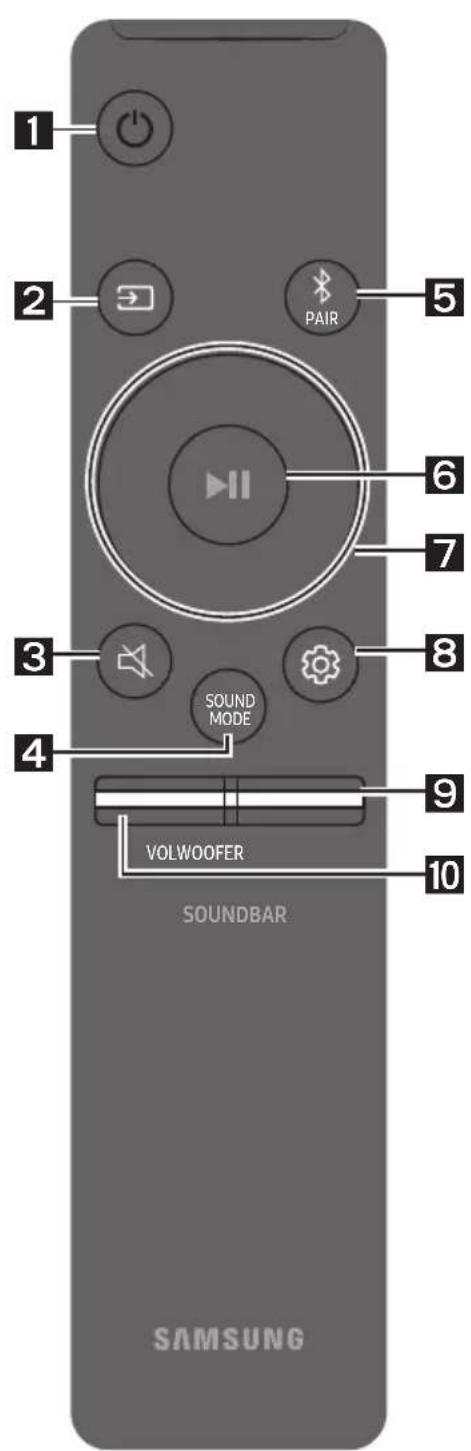

How to Use the Remote Control

1	Power	Turns the Soundbar on and off.
2	Source	Press to select a source connected to the Soundbar. • BT PAIRING mode To turn on “BT PAIRING” mode, press and hold the <Source> button for more than 5 seconds.
3	Mute	Press the (Mute) button to mute the sound. Press it again to unmute the sound.
4	SOUND MODE	You can select the desired sound effect by choosing STANDARD, SURROUND, or GAME. Select the “STANDARD” mode if you want to enjoy the original sound. • DRC (Dynamic Range Control) Lets you apply dynamic range control to Dolby Digital tracks. Press and hold the SOUND MODE button while the Soundbar is powered off to turn DRC (Dynamic Range Control) on or off. With the DRC turned on, loud sound is reduced. (The sound may be distorted.) • Bluetooth Power This feature automatically turns the Soundbar on when it receives a connection request from a previously connected TV or Bluetooth device. The setting is On by default. • Press and hold the SOUND MODE button for more than 5 seconds to turn off the Bluetooth Power function.

5	Bluetooth PAIR	Press the PAIR button. "BT PAIRING" appears in the Soundbar's display. You can connect the Soundbar to a new Bluetooth device in this mode by selecting the Soundbar from the Bluetooth device's search list.
6	Play / Pause	Press the button to pause a music file temporarily. When you press the button again, the music file plays. • Auto Power Down Function The unit turns off automatically in the following situations. - D.IN / HDMI / BT / USB Mode: If there is no audio signal for 5 minutes. - AUX Mode: - If the Audio (AUX) Cable is disconnected for 5 minutes. - If there is no KEY input for 8 hours when the Audio (AUX) Cable is connected. (Auto Power Down function can be turned off only in that case.) - To turn off Auto Power Down function, while in "AUX" mode, press and hold the button for 5 seconds. "ON-AUTO POWER DOWN" / "OFF-AUTO POWER DOWN" appears on the display.
7	Up/Down/ Left/Right	Press the indicated areas to select Up/Down/Left/Right. Press Up/Down/Left/Right on the button to select or set functions. • Repeat To use the Repeat function in "USB" mode, press the Up button. • Music Skip Press the Right button to select the next music file. Press the Left button to select the previous music file. • Anynet+ / Auto Power Link You can turn Anynet+ and Auto Power Link on or off. Anynet+ and Auto Power Link are turned on and turned off by the Right and Left buttons respectively. - Anynet+: If the Soundbar is connected to a Samsung TV through an HDMI cable, you can control your Soundbar with a Samsung TV remote control. Press and hold the Right button for 5 seconds to toggle Anynet+ ON and OFF. - Auto Power Link: If the Soundbar is connected to your TV through a digital optical cable, the Soundbar can automatically turn on when you turn on your TV. Press and hold the Left button for 5 seconds to toggle Auto Power Link ON and OFF. - Anynet+ / Auto Power Link are set to ON by default. • ID SET Press and hold the Up button for 5 seconds to complete ID SET (when connecting to an accessory item).
		·Volume restriction function Because it may damage hearing when the power is turned on at high volumes, it adjusts the volume to 20 when the set volume is higher than 20. - The default value for Volume restriction is off. The set volume is maintained even when the power is turned off. - To change the setting, press and hold the Down button on the remote control for 5 seconds. With the volume restriction off, "V FREE" appears on the front display and with the function on, "V LOCK" appears.
8	Sound Control	You can select from TREBLE, BASS, or AUDIO SYNC. ·To control the volume of the treble or bass sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons. ·Press and hold the (Sound Control) button for about 5 seconds to adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz, 2.5KHz, 5KHz, and 10KHz are selectable using the Left/Right buttons and each can be adjusted to a setting between -6 to +6 using the Up/Down buttons. ·If the video on the TV and audio from the Soundbar are not synchronised, select AUDIO SYNC in Sound Settings, and then set the audio delay between 0~300 milliseconds by using the Up/Down buttons. (Not available in "USB" mode.) ·AUDIO SYNC is only supported for some functions.
9	WOOFER	Push the button up or down to adjust the volume of the subwoofer to -12 or between -6 to +6. To set the subwoofer volume level to 0, press the button.
10	VOL	Push the button up or down to adjust the volume. ·Mute Press the VOL button to mute the sound. Press it again to unmute the sound.

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar's volume using the IR remote control that came with your Samsung TV.

First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your Samsung remote to control the Soundbar's volume. For more information, see the TV's user manual. The default mode for this function is control by a Samsung TV remote. If your TV is not a Samsung TV, follow the directions below to change the settings of this function.

1. Turn Off the Soundbar.

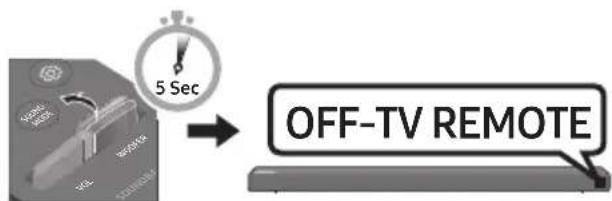

1. If you do not want to use this function, push up and hold the WOOFER button repeatedly for 5 seconds until "OFF-TV REMOTE" appears in the display.

1. If you want to control the Soundbar with your TV's remote, push up and hold the WOOFER button for 5 seconds repeatedly until "ALL-TV REMOTE" appears in the display. Then, use your TV's menu to select external speakers.

1. If you want to return the Soundbar to the default mode (control by a Samsung TV remote), push up and hold the WOOFER button for 5 seconds repeatedly until "SAMSUNG-TV REMOTE" appears in the display.

Each time you push the WOOFER button up and hold it for 5 seconds, the mode switches in the following order:

"SAMSUNG-TV REMOTE" (Default mode)

"OFF-TV REMOTE" "ALL-TV REMOTE".

• This function may not be available, depending on the remote control.

Manufacturers supporting this function: VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG,

Hisense, RCA

Using the Hidden Buttons (Buttons with more than one function)

Hidden Button		Reference page
Remote Control Button Function
WOOFER	TV remote control On/Off (Standby)	page 25
(Source)	BT Pairing page 22
▶II (Play / Pause)	Auto Power Down On/Off (AUX mode)	page 23
	Initialise (Standby) page 30
	BT Ready page 13
Left	Auto Power Link ON/OFF	page 23
Right Anynet+ ON/OFF page 23
Up ID SET page 23
Down	Volume restriction On/Off	page 24
(Sound Control)	7 Band EQ page 24
SOUND MODE	DRC ON/OFF (Standby)	page 22
	Bluetooth Power	page 22

Output specifications for the different sound effect modes

Effect		Input	Output
			Without Wireless Rear Speaker Kit	With Wireless Rear Speaker Kit
SOUND MODE	STANDARD	2.0 ch	2.1 ch	4.1 ch
		5.1 ch	3.1 ch	5.1 ch
SOUND MODE	SURROUND	2.0 ch	5.1 ch	5.1 ch
		5.1 ch	5.1 ch	5.1 ch

• Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from.

09 INSTALLING THE WALL MOUNT

Installation Precautions

Install on a vertical wall only.
- Do not install in a place with high temperature or humidity.
- Verify whether the wall is strong enough to support the product's weight. If not, reinforce the wall or choose another installation point.
Purchase and use the fixing screws or anchors appropriate for the kind of wall you have (plaster board, iron board, wood, etc.). If possible, fix the support screws into wall studs.
Purchase wall mounting screws according to the type and thickness of the wall you want to mount the Soundbar on.

Diameter: M5
Length: 35mm or longer recommended.

• Connect cables from the unit to external devices before you install the Soundbar on the wall.
  Make sure the unit is turned off and unplugged before you install it. Otherwise, it may cause an electric shock.

Wallmount Components

Wall Mount Guide

Holder-Screw (2 EA) Screw (2 EA)
Bracket-Wall Mount (2 EA)

1. Place the Wall Mount Guide against the wall surface.

2. The Wall Mount Guide must be level.

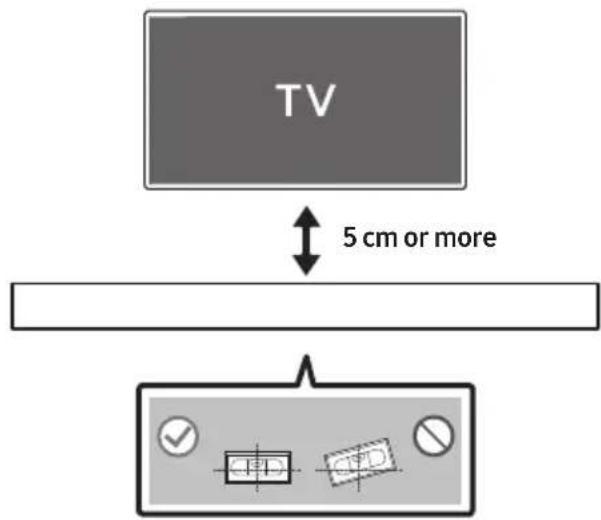

3. If your TV is mounted on the wall, install the Soundbar at least 5 cm below the TV.

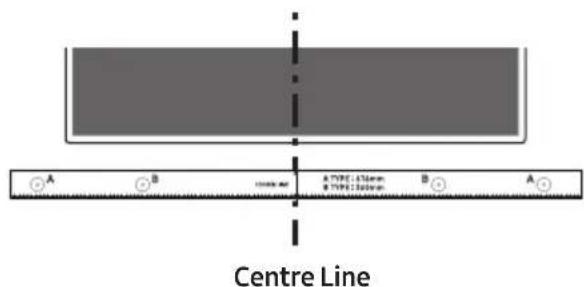

1. Align the Wall Mount Guide's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

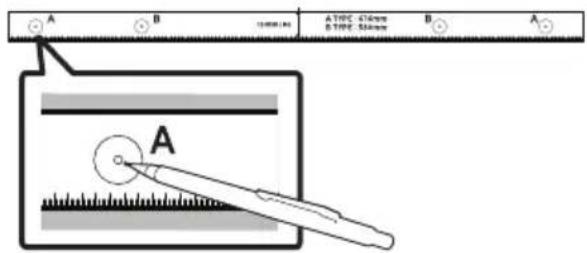

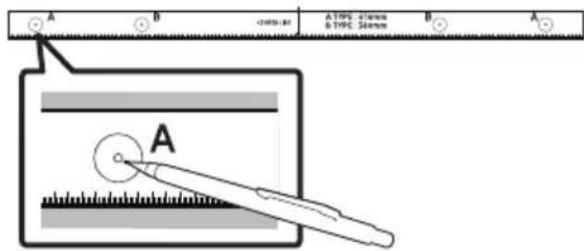

1. Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

1. Using an appropriately sized drill bit, drill a hole in the wall at each marking.

2. If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

3. Push a screw (not supplied) through each Holder-Screw, and then screw each screw firmly into a support screw hole.

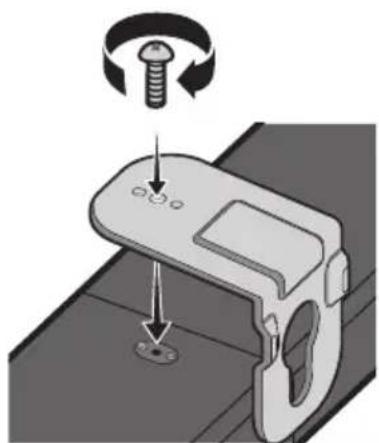

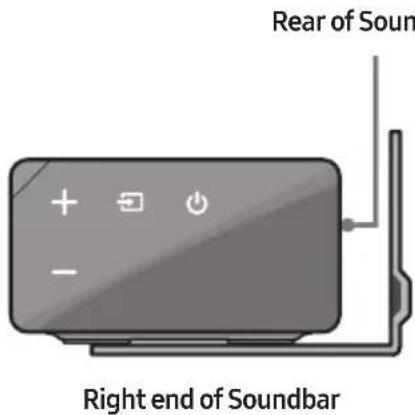

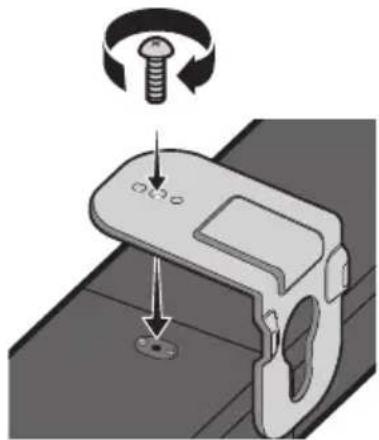

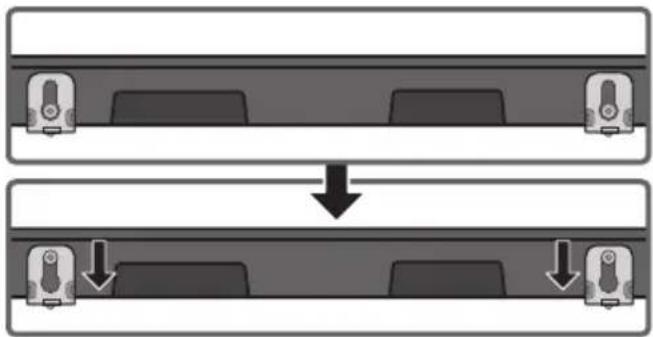

1. Install the 2 Bracket-Wall Mounts in the correct orientation on the bottom of the Soundbar using 2 Screws.

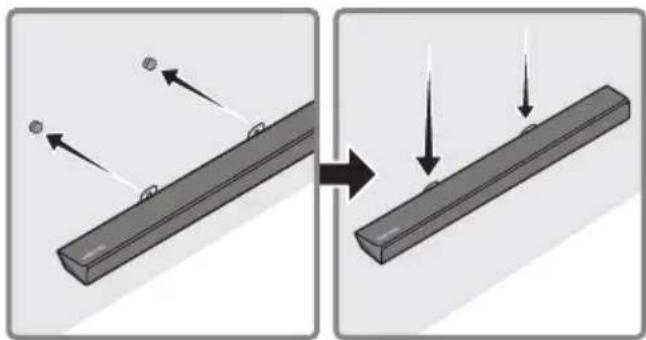

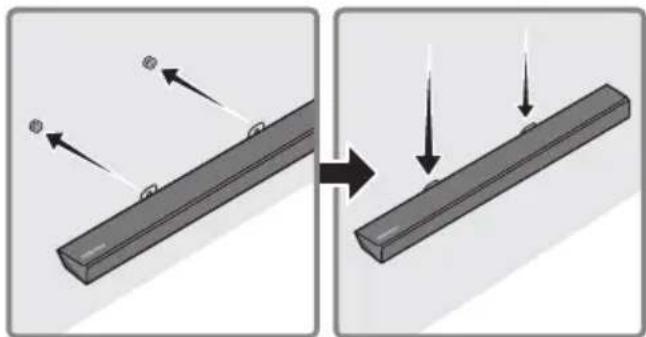

• When assembling, make sure the hanger part of the Bracket-Wall Mounts are located behind the rear of the Soundbar.

1. Install the Soundbar with the attached Bracket-Wall Mounts by hanging the Bracket-Wall Mounts on the Holder-Screws on the wall.

1. Slide the Soundbar down as shown below so that the Bracket-Wall Mounts rest securely on the Holder-Screws.

2. Insert the Holder-Screws into the wide (bottom) part of the Bracket-Wall Mounts, and then slide the Bracket-Wall Mounts down so that Bracket-Wall Mounts rest securely on the Holder-Screws.

10 SOFTWARE UPDATE

Samsung may offer updates for the Soundbar's system firmware in the future.

USB port

If an update is offered, you can update the firmware by connecting a USB device with the firmware update stored on it to the USB port on your Soundbar. For more information about how to download update files, go to the Samsung Electronics website at www.samsung.com Support.

Then, enter or select the model number of your Soundbar, select the Software & Apps option, and then Downloads. Note that the option names can vary.

Updating Procedure

1. Connect a Micro USB to USB adapter cable with a male USB 2.0 Micro USB plug (Type B) on one end and a standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.

2. The Micro USB to USB adapter cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

3. Follow the steps below to download the product software:
   Go to the Samsung website at (samsung.com) search for the model name - select the customer support option (the option name is subject to change)

4. Save the downloaded software to a USB stick and select "Extract Here" to unzip the folder.
5. Turn off the Soundbar and connect the USB stick containing the software update to the female port on a Micro USB adapter cable. Connect the cable to the USB port on the Soundbar.
6. Turn on the Soundbar. Within 3 minutes, "UPDATE" is displayed and updating begins.

7. When the update finishes, the Soundbar turns off. Press the button on the remote control for 5 seconds. "INIT" appears on the display and then the Soundbar turns off. The update is complete.

8. This product has a DUAL BOOT function. If the firmware fails to update, you can update the firmware again.

If UPDATE is not displayed

1. Turn off the Soundbar, disconnect and then reconnect the USB storage device that contains the update files to the Soundbar's USB port.

2. Disconnect the Soundbar's power cord, reconnect it, and then turn on the Soundbar.

3. Updating firmware may not work properly if audio files supported by the Soundbar are stored in the USB storage device.

4. Do not disconnect the power or remove the USB device while updates are being applied. The main unit will turn off automatically after completing the firmware update.

5. After update is completed, the user setup in Soundbar is initialised. We recommend you write down your settings so that you can easily reset them after the update. Note that updating firmware resets the subwoofer connection too. If the connection to the subwoofer is not re-established automatically after the update, refer to page 6. If the software update fails, check if the USB stick is defective.

6. Mac OS users should use MS-DOS (FAT) as the USB format.

7. Updating via USB may not be available, depending on the USB storage device manufacturer.

11 TROUBLESHOOTING

Before seeking assistance, check the following.

The unit will not turn on.

Is the power cord plugged into the outlet?→Connect the power plug to the outlet.

A function does not work when the button is pressed.

Is there static electricity in the air?→Disconnect the power plug and connect it again.

Sound dropouts occur in BT mode.

→See the Bluetooth connection sections on pages 12 and 18.

Sound is not produced.

Is the Mute function on?→Press the VOL button to cancel the function.

Is the volume set to minimum?→Adjust the Volume.

The remote control does not work.

Are the batteries drained?→Replace with new batteries.

Is the distance between the remote control and Soundbar main unit too far?→Move the remote control closer to the Soundbar main unit.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

This issue can occur if the subwoofer is not connected to the Soundbar main unit.→Try to connect your subwoofer again. (See page 6.)

The subwoofer drones and vibrates noticeably.

Try to adjust the vibration of your subwoofer.→Push the WOOFER button on your remote control up or down to adjust the subwoofer volume. (to -12, or between -6 ~ +6).

12 LICENCE

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGH.DEPTION MULTIMEDIA INTERFERENCE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OPEN SOURCE LICENCE NOTICE

To send inquiries and requests regarding open sources, contact Samsung via Email ([e-mail]).

14 IMPORTANT NOTES ABOUT SERVICE

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
• An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read).
(b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read).
- You will be informed of the administration fee amount before a technician visits.

15 SPECIFICATIONS AND GUIDE

Specifications

Model Name HW-N650
USB 5V/0.5A
Weight 3.6 kg
Dimensions(W x H x D) 1100.0 x 59.0 x 100.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % ~ 75 %
AMPLIFIER Rated Output power 30W x 6 + 10W x 2
Supported play formats	LPCM 2ch, Dolby AudioTM (supporting Dolby® Digital), DTS
WIRELESS DEVICE OUTPUT POWER BT max transmitter power	100mW at 2.4GHz – 2.4835GHz
SRD max transmitter power	25mW at 5.725GHz – 5.825GHz

Subwoofer Name PS-WN30
Weight 7.0 kg
Dimensions(W x H x D) 215.0 x 384.5 x 304.0 mm
AMPLIFIER
Rated Output power 160W

Overall Standby Power Consumption (W)	2.9W
Bluetooth Port deactivation method	Press and hold the SOUND MODE button for more than 5 seconds to turn off Bluetooth Power function.

NOTES

Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.

• Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries.

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit:

http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data-corner.html

1	USB (5V 0.5A) Свъ捐献е USB усточьу тук, за вьзэрпизбдате музikuални садлове на USB усточьоточрозoundbar.
2	AUX IN Свъ捐献е кьм онлайнюгия Ихов на вьншно усточьо.
3	DIGITAL AUDIO IN (OPTICAL) Свъ捐献е кьм сифровая (ортуен) Ихов на вьншно усточьо.
4	HDMI IN Въ捐献а сифровая Виdeo- и удиосигални_edновкеMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMoMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMuMoMu MoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMo MoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMoMo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M Mo M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M M N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N NN N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N.N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N NO N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N A N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N N D A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B A B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B B C BbPjEe TcBm aHaIogOBY n3xOJ ha BbHshno yCtpoCTBO.
5	HDMI OUT (TV-ARC) Свъ捐献е кьm HDMI (ARC) жжak на телевизор.
6	DC 24V (Вхд за зхсаны)

• Ппи ИЗКлЮчВане на зхранвашикаел на AC/DC садапета за зхранвае от eлькtripиески Контак, Издрпайт ecencela. He дрпайт kaбena.
  He cBp3BaIe TOBa yCTpoiCTBO IIN dpyrN KOMNoHEnT N KbM AC KOHTaKT,doKaTO BCnKn Bpb3Kn MeJy KOMNoHEnTte He 6bDat 3aBbpSeHN.

03 CBbP3BAHE HA SOUNDBAR

Cbbp3BaHe Ha eJekTpnuyeckoto 3aXpaHBaHe

Изпалыт eхранвашит e kompoнeHTn ( 1, 2, 3), 3a Да CBьржeTe cy6yфepa n Soundbar KbmeleКТричeckn KOHTaKT B CJIeДнЯ peД:

1 BkIIOUeTe 3axpaHbAunna Ka6eN KbM cy6yepa.
CbpxkeTe n3xOHNnKa6eJ 3a 3axpaHbHeTo KbM 3axpaHbUaIg aanTep n CneTob KaM Soundbar.
3 BkIIOyEt 3axpaHbAun Ka6eJ BCTHeH KOHTaKT.

BnKTe nIIOCTpaCUNTE no-dony.

3adoJIbHnTeHa HOpMaun OTHoCHO Heo6xOIMOTO eKeKtp03axpaHbaHe I KOHCymaun Ha eHepTn BnXte etketa, nocTaBeH Ha npOdykta. (Etuket: dJlHa yact Ha oCHOBHOTy cTPOIcTBo Ha Soundbar)

• Ybepete ce, ye AC/DC aanTepbTe nocTaBeH xOpn30HTaHOB bByxmuHa noJa. Ako nocTabte AC/DC aanTepa taKa, ye da Bucn C BXoJa 3a AC ka6eJa opneHTupaH harope, Ba anTepa MoKe Da npOHKe BOJa IIn dpyrN ChxuN ToBa Da npUHN Hei3npaBHOCT Ha aanTepa.

Cbbp3BaHe Ha Soundbar KbM cy6yepa

Korato cy6yfepebTe cBbp3aH, moKeTe da ce hacnaXdaBaTe Ha hacnten 6acob 3Byk.

АВТOMатино CBьрЗВане мени субуфера n Soundbar

Korato BkIouHTe 3axpaHbaHeto, cIeI KaTO CbByKeTe 3axpaHbAunTe Ka6eIN KbM Soundbar n KbM cy6yepa, cy6yepbT ce CbByp3Ba aBtOMaTHNO KbM Soundbar.

Korato aBtOMaTnUHOTo CDbOraBaHe npNKIOuN, CInHTe INdIkaTopn B3aHaTa YacT Ha cy6yepa Ce BKIOuYBaT.

CBeTInHHn LED nHdNkAtOpn B 3aHaTa YacT Ha cy6yΦepa

LED инданкатори	Състаяне	Описане Раделенha сюбноct
Син bó	Вкл.	Усpenho CBvp3bahe (hopmaлиа pa6ota)	-
	Мira	Вьздановаяне на Врьзкata	ПробпpoПрobерete дали зхраисят кавел, ручке и вм основно усточьо на Soundbar e CBvp3ан павлино или ячakайte 5 minут. Ако пемигванeto постыжи, опitaite рчно на CBvpжete субфера. Вижто сTRAница 7.
Черveно Вкл.	Мira	Готовноct (ocnoboto усточьо на Soundbar се иЗклочило)	Прobерete дали зхраисят кавел на OCnoboto усточьо на Soundbar e CBvp3ан павлино.
		Сьvp3baHETo e Heucneшно	Свьржete OTHOB. Вижто Иструкцип te 3a рьчно CBvp3baHe Na STPANUZA 7.
Черveно и Син bó	Мira He	Изпразвноct	Вижто Информацята за Врьзka сбс сервизен цentьр на Samsung в рьковдстOTO.

PbHcBb3BaHe Ha cy6yepa, aKO aBTOMaTnHOTo CBbp3BaHe e HeycneHHO

Ipei n3PbJIHeHne Ha npOeDypaTa 3a pbUHO CBbp3BaHe no-dOny:

• Поверете дали зхарнвашиte ka6ели на Soundbarи на cy6yфepa ca CBbp3an npabnilno.

• YBepete ce, ye Soundbar e BKJIIOueH.

• HATINCHETI 3aIbXTe ID SET B 3aHata cact Ha cy6yepa Hau-MaIKo 3a5cekyHn.

• YepBENHrT INnKAtOp OT3aJHa cy6yphipeCa eN3KJHouBa nCINHrT INnKAtOp npemrBa.

3aHaacTNa cy6yepa

1. HATINCHETe 3aIpbXTe 6yToHa Harope Ha INCTaHcNHOHOTo ynpabNeHne Hau-MaIKO 3a 5 cekyn.

Ha nncnna Ha Soundbar 3a MOMENT ce n3Bexka cbo6ueHHeTo ID SET n cIeT TOBa n3ye3Ba.
Soundbar ce BkIIOUba aBToMaTnH, KOraTo ID SET 3aBbPnN.

1. Поверете дали LED Индikatopьт 3a CBbp3BaHe CBETN NOCTOHHO B CINHbO (3abbpseho CBbp3BaHe).

LED nHnKaTOpbT 3a Cbbp3BaHe cnipa da npemrBa n CBETBa NOCTOARHBO B CnHbO, KOrato e yctaHOBeHa Bpb3Ka MeJy Soundbar n 6e3xuHnry cy6yphiP.

BENEXKNI

He cBbP3BaIte 3axpaHbAunna Ka6eHa To3n IpOdyKT nn BaunrTeJeBn3Op KbmeEKeKtpueckn KOHTaKT,doKATO BCNUKN Bpb3KN MeJy KOMNOHEHTnte He 6bDat 3aBbpweH.
- Праздддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徴увери,уьханьанeto e n3ключedoи 3axpaHbaцят ka6eн He e CBp3aH KBm eJeKtpnueckn KOHTaKT.
- Ako ochobnayr moyn e n3knuehen, 6e3kunnyr cy6yep ue npemHe B pexmHa rTOBHOCT n CBetoIObT STANDBY B 3aHata qact ue CBeThe B cepBeHo, cIeK KaTo e npemrHaJ HAKOJIKO IbTu B CInHbO.
- Ako n3no3BaTe yctpoiCTBO, Koeto n3no3Ba cBuaTa yeCTota (5,8 GHz), KaKTo Soundbar, B 6n3ocT do Soundbar, cmUeHraTa Morat da npuHnT pKeKbCbaHe Ha 3Byka.
- Makcimamno To pa3ctoHne Ha npedabane Ha 6e3KnHnCnHa n Ha ochOBnma Odyne oKONo 10 MeTpa, Ho MoKe Da Bapnpa B 3abncmocT OT BaWata pa6OTHa cpea. Ako MeJy ochOBnma MOnyn 6e3KnHnCy6yep mMa CTOMaHO6eTOHnHa nn MetaHa CTeHa, cnCTemata MoKe n3O6uO da He pa6OTn, 3aUTo 6e3KnHnT CnHaI He MoKe Da npOHnKHe ppe3 MetaI.

PNEIa3HIMEPKIN

B6e3KnHn cy6yep nMa BrpaJeHn aHTeHn 3a npneMaHe Ha 6e3KuHc nHaI. CbXpaHraBaIte Moynite daJeU OT B0da N Blara.
3a da cn ocNrypnte onTImaHNO kaueCTBO npn cIyuahe, yBepete ce, ye B 3oHaTa OKOIO 6e3KuHHn BVCOKOrOBOpNTeJI 3a HnCKn YecTOTn mOdyla Ha 6e3KuHHn npneMHNK (npoJaBa ce OTdeJHo) Hma npenTCTBna.

CbBp3BaHe Ha SWA-8500S KbM Soundbar (npo#aBa ce otdeIHo)

3a da noctnHte nCTnHcN 6e3xuueH cbpaYnd 3Byk, CbpxKeTe KOMPJIeKta ot 6e3xuHn 3aHn BvcoKorOBopitn Ha Samsung (SWA-8500S) KbM Soundbar (npoJaBa ce oTJeHNo).

1. CbpxkTe 6e3KnHnI npHeMaU MOyJ KbM 2 cbpayH BnCOKOrOBOpntJIa.

2. Ka6eInte Ha BvCOKoROBOpNTeIte ca ZBeTHO KoInpaHn.

1. CnEi BkIIOUBaHe Ha 6e3KuHnI npHemaI MOnyI B eJeKtpueeCKN KOHTaKT npOBepTe daIIeB CbCTOHN He Ha N3aKBAHe.

LED nHnKATOpbT 3a CbP3BaHe (CIN LED) Ha 6e3xNCHn npneMaTeIen MoyI npemrBa. Ako LED He npemrBa, HATNCHEte 6byToHa IDSET Ha Tbp6a Ha 6e3xNCHn npneMaTeIen MoyI c Bbpxa Ha Xmikai 3a 5~6 cekyni, DOKato LED nHnKATOpbT LINK npemrHe (B cnHbo). 3a Ooie nHΦopMaun OTHOcHo LED BNKepepbKOoDCTBOTo Ha Notpe6nteHa SWA-8500S.

1. HatncheTe n 3aDpBkTe 6yToHa Harope Ha dNCTaHcNoHHoTo ynpabHeHne Hn-MaIKO 3a 5 cekyni.

Ha niscnne Ha Soundbar 3a MOMENT ce n3BexKa cbo6eHHeTo ID SET n cJeT ToBA n3Ye3Ba.
Soundbar ce BkIIOyBa aBtOMaTnUHO, KOraTo ID SET 3aBbPshn.

BHIMAHNE

• Ako Baunr Soundbar n3nBnHbMa My3nKa,doKato ce Cbbp3Ba KbM SWA-8500S, moKe da

• CyBaTe n3BeCTHn CmUeHn O7 6acOBn BnCOKOROBOpHTe,doKato ce yCTaHOBn Bp3kata.

• IpoBepete daJIu LED uHnIkaTOpbT 3a CbP3BaHe CBETN NOCTOHHO B CINHbO (3aBbPseHo CbP3BaHe).

LED INIINKATOpbT 3a Cbbp3BaHe cnpa da npemrBa n CBETBa NOCTOARHBO BCINbO, KOrato ce yctAHOBn Bpb3Ka MeJdy Soundbar n 6e3xuHnna npneMaun Moyn.

5.Ako SWA-8500S He ce cBbpxe, nobTopeTe npoueypaTa oT CTbnka 2.

04 CBbP3BAHE KbM BALUNA TEJIEBN3OP

Mokte na cnyuatae 3Byka Ha TeleBn3opa oT cBoa Soundbar ue3 ka6eJHa nn6e3KuHa Bpb3ka.

Korato caynd6apbTe cBbp3aH KbM n36paHn TeleBn3Opn Samsung,ToJ MoKe da ce ynpabnaBnocpeiCTBOM dNCTaHcUNHOHTo ynpabLeHne Ha TeteBn3Opa.

• TaizyHKZnca ce noIbpxka ot 2017 r n ot no-HOBITE TeJeBn3Opn Samsung Smart, konto noIbpxkaat Bluetooth, korato cBbpxkete Soundbar kblm TeJeBn3Opa nocpeCTBOM onTNUeH Ka6eI.
• Ocben ToBa Ta3n ΦyHKzra Bn N03B0JRA Ba Da n3noJ3BaTe MeHIO Ha TeJeBn3Opa, 3a Da 3aDaBaTe POneTo Ha 3Byka n pa3nnuHn HAcTpoKn, KaKTo n Cnilata Ha 3Byka n 3aRnyuBaHaTO Ha 3Byka.

MeToI. Cbbp3BaHe 4pe3 ka6eI

Korato n3buaHnTe cunHaIc Ca Dolby Digital, a HactpoiKaTa Ha TeVeBn3Opa 3a „LlΦpOB n3xoJeH ayDIO φOpMaT" e PCM, npenopbUba ce da npomeHnte HactpoiKaTa, taKa ye da 6bJe Dolby Digital. Korato HactpoiKaTa ce npomeHn, moKeTe Da cnlywate 3Byk C no-do6po KaueCTBO. (MeHHTo moKe da ce pa3nUaBA B 3aBNCIMoCT OT npON3BOIDnteHa TeVeBn3Opa.)

Cbbp3BaHe ype3 onTnueH ka6eI

1. Cbpxte kaka DIGITAL AUDIO IN (OPTICAL) Ha Soundbar KbM kaka OPTICAL OUT Ha TeleBn3opa Upe3 uipob oTnueH Ka6en.
2. Hatachete 6ytoHa (N3ToCHNK) Ha naneIa OTdACHO IIN Ha DCtAHIOHHTO ynpabBHeHne IN CnE TOBa n36epTe peKIM ,D.IN".

Auto Power Link

Bpb3kata 3a aBTOMATNUHO 3axpaHbAHe BKJIIOUBA aBTOMATNUHO Soundbar, KORATo TEJIeBN3OpbT Ce BKJIIOUH.

1. Cbpxkete Soundbar n TeIeBn3opa Upe3 uΦpOB oTnueh Ka6eJ.

2. Hatnche 6ytoHa HnABo Ha nCTaHcnoHTo ynpabJeHne (CnHra Toka Ha nIOCTpaunrTa BnCHO) B npObIJIKeHne Ha 5 ceKyni, 3a da BKIOUHTe NIN nKIOUHTe Auto Power Link.

3. По поразбиранe Auto Power Link e Вклочena (ON). (3aдаизклочит e тazи Функця,Здрьхte 6утона Habявога ДИСТАнцИОНHOTO ynpableneHne B npodblженье Ha 5 cekyн.)

B3aBnCmOCTOTCBp3aHOTyCTPOINCTBOeBb3MOxHOAutoPowerLinkdaHeyHKUOHnpa.

• Ta3n ΦyHKUЯ e haJIuHa caMo bpeKIM ,D.IN".

Cbbp3BaHe Ha TeIeBn3Op 4pe3 HDMI ka6eJ

1. Пи влочен Soundbar и телевизор сбъркete HDMI ka6ena (He e doctabeh), кakto e noka3aHo Ha Фигура.

2. 2008

3. "TVARC" ce noявая ha ekpaHa ha Дисплег Ha ochOBHOTO yctpoiCTBO Ha Soundbar n Soundbar Bb3npoN3BexJa 3Byka Ha TeleBn3opa.

4. Ako 3Bykbt Ha TeIeBn30pa He ce cyBa, HATncHete 6yToHa (N3ToCHNK) Ha INCTaHcNoHHOT ynpabHeHne IIN B DaChata CtpaHa Ha Soundbar, 3a da npEbkInOHTe B pexKIM ,D.IN". Ha ekpaHa Ce n3BeXdA T NocJeIOBaTeJHo ,D.IN" u ,TV ARC" n Ce Bb3IpOn3BeXJa 3ByKbT Ha TeIeBn30pa.

5. Ako B npo3opeua Ha dincnej Ha oCHOBHOTo yCTpoiCTBO Ha Soundbar He ce nokaKe,TVARC", npoBepete daHDMI ka6eIbT (He ce doCTaB B KOMnEkTa) e Cbbp3aH KbM npabuHnna nopT.

6. IV3noI3BaIte 6yToHInTe 3a Cnla Ha 3Byka Ha IInCTaHcNoHHOTo ynpaBJIeHne Ha TeNeBn3Opa, 3a Da npomHeTe CnIata Ha 3Byka Ha Soundbar.

BENEKNI

HDMI npedctablaBa nHTeppeic, KOTo no3Bolra uNpOBO npedabaHe Ha Bndeo naHHn camo qpe3 eINH KOHEKTOP.
- Ako TeIeBn3OpbT mA ARC nOPT. CBbPKeTe HDMI Ka6eJa KbM nOPTa HDMI IN (ARC).
- IpnopbVbme n3noJ3BaHeTo Ha HDMI ka6e 6e3 cbpuebnHa, aKo e Bb3MOxHo. Ako n3noJ3BaTe HDMI ka6e CbC cbpuebnHa, n3noJ3BaTe TaKbB, uHrTO dnaMeTbp e NO-MaJIbK OT 14 MM.

• Anynet+ Tp86Ba Da 6bIe BkJIIOUyeHO.
• Ta3nФυнкиЯ He e haJInuHa aKO HDMI ka6eIbT He noIbPjka ARC.

Metod 2. Be3xuHcBbP3BaHe

Cbbp3BaHe Ha TeIeBn3Op Upe3 Bluetooth

Korato TeleBn3OpbTe cBbP3aH ue3 Bluetooth, moKeTe da cnUwate cTepeo 3Byk, 6e3 da nMa xaoc ca Ka6eInte.

• Camo einn TelenBn3Op MoKeJa 6bJe Cbbp3aH B daJen MOMeHT.

• Ako He MOHTnpaTe NOI TeJIeBN3Op, NOCTaBeTe LENTpaHa IINHbBcHa 30HaTa 3a MoHTnpaHe.

3.Пьхhte Вьрха Ha XIMIKaI ИИ ПОДОCTpeH MOLINBпрзцentbpaHa n3O6paXeHЯTA A-TYPE BvB BCEKn KpaI Ha BOJaUa,3aДa МарКирATE OTBOPHTe 3a NOДьрЖaUNTe BINTOBe,CleI TOBa MAXHeTe Boa43a MOHTIPAHe Ha CTeHa.

1. KaTo n3POn3BaTe CBpeIIO C NOxOJaU pa3Mep, npo6nIte OTBOp B CTeHaTa Bbpxy BCa MapKnupOBka.

2. Ako MapknpoBknte He cBbnaat Ha no3nnte Ha rpeinte, noCTaBeTe noXoJusn anKeepn nn DIO6eN B OTBOPnte, npei Da noCTaBNTe ONOpHNTe BHTOBe. Ako n3NoI3BaTe aHKeepn nn IIO6eN, yBepTe ce, ye OTBopnte, KOtTO npo6NaTe, ca DoCTaTbUHO roJeMn 3a anKeepnte nn IIO6eNte, KOtTO NO3BaTe.

3. BkapaTe BnHT (He e doctabeH) npe3 BCEKn DbpKa-BrHT n CneI TOBa 3aBnHTe TBeCekn BnHT 3dpaBO B OTbopa 3a ONopeH BnHT.

6.МонтураиTe 2 MoHTaЖн eLemeHTa cko6a-CTeHa B npaBnHaTa opneHTaцЯ OT ДолнATA CTpaHa Ha Soundbar, kato n3noJ3BaTe 2 BnHTa.

• Ppi crno6ybaHeto ce yBepTe, ye 3aKaaykata Ha KOH3oNn 3a OkayBaHe Ha CteHa e paNoJoxKeHa 3aD 3aHaTa qact Ha Soundbar.

Дecen Кай Ha Soundbar

1. MohtnpaTe Soundbar c npnkpeneHte KOH30JI 3a OKaYBaHe Ha CTeHa, KaTO 3aKaHTe KOH30JI 3a OKaYBaHe Ha CTeHa Ha DbpxKaY-BnHTOBete Ha CTeHaT.

8.Пьзhte Soundbar haOу,kaKTo e noka3aHo no-Доу,Taka Ye MoNTaXHn eIeMeHTa cKo6a-CTeHa Da 3aCTaHAT Cta6uINHO BvB BInTOBe 3a DbpxKa7a.

BkapaTe BnHTOBe 3a DbpxkaaB Wnpokata (Dolna) aact Ha MoNTaxHnTe eIeMeHTN cKo6a-CTeHa, CJIeKD KoETo nIb3Hete MoTAXHnTe eIeMeHTN cKo6a-CTeHa HADony, TaKa Ye da 3aCTaHaT CTA6NIHO BB BnHTOBete 3a Dbpxkaa.

10 AKTYAJIIN3NPAHE HA COΦTYEP

Samsung Moxe da npedloxn aKtyaun3aun Ha cnCTeMHnA _b pMyep Ha Soundbar B 6bndeJe.

Ako ce npedla r aaktyaun3aun, mokeTe da aktyaun3nape Tbpmyepa, kaTo cBbpKeTe USB yctpoiCTBO C aktyaun3aunra Ta Ha bpmyepa, cbxpaneha B Hero, KbM USB nopTa Ha Baunr Soundbar.

3adoIbHnTeHa nHΦopMaζη OTHOCHO ⅢTeTlHeTo Ha φaIIOBe cakTyalnaζη, nocetete ye6caɪta Ha Samsung Electronics Ha aIpec www.samsung.com Support. CneTobA BbVeTe IInn I36epeTe MoJela Ha cB0r Soundbar, I36epeTe CoΦTyep i npIoKHeNry i CneTobA IV3TeTlAHHa. ObpHeTe BnImaHne, Ye H3BaHnTa Ha ONIHTe MoKe Da ca pa3JIuHn.

Ako He ce nokajke UPDATE

1.ИЗкlioуete Soundbar,ИЗвадеTeи CBьржete OTHOBO USB CTnka,КоJOTo CBДьржа Файловerte сaktyaJIиЗaци,КьM USB npopta HaSoundbar.
2.ИЗклочete 3axpaHbaця ka6eI Ha Soundbar, cIeTToBa rO CBbPjKeTe OTHOBN BkIIOChTe Soundbar.

• Aktyализиранeto Na Фърмуера можende не павелно, акоayднофайLOBete подьржан OTSoundbar, ca сьхсан c USB стika.
  He n3KlIOUBAIte 3axpaHbAHeTo n He oTcTaPnBaIte USB yCTpOiCTBOTO, JOKaTO ce aKtuaN3aunTe ce npuHaT. OChOBnIrT Moyn Ie ce n3KluOnn abTomAtuHO CneI, 3aBbPbBaHe Ha aKtuaN3aunTa Ha bPmyepa.
• Cnéд кATO akTyaln3aunra 3abbpHIn, ce HnHnuaHn3upat notpe6nteLcknte NaCTpoNHaSoundbar. IpenopbUBaMe Da cn 3aPiWte BaWnte NaCTPOKn, TaKa Ye leCHO da MoKeTe da rN Bb3ctaHOBNTe CnéД akTyaln3aun.

ImaTe npedBnD,Ye aKtuaHn3npaHeTo HaΦbPmEpa Hynipa CbUO N Bp3KaTa KbM cy6yΦepa.AKO Bp3KaTa KbM cy6yΦepa He ce Bb3CTaHO BVOMaTHUHO Cnei aKtuaHn3aunraT, BNKe CTpaHnUa 6.

Ako aKtuaIaIaIraHa coΦTyepa e HeycneuHa, npOBepTe daII USB cTnKbT He e DeΦeKTeH.

YepeHnT LED nHnKaTop Ha cy6yepa npemrBa, Ho Toi He npOn3BexJa 3ByK.

To3n npo6nem moxe da Bb3HnKHe, aKO cy6yphiBt He e Cbbp3aH KbM OCHOBHOTO yCTpoIcTBO Ha Soundbar.

OonitaiTe da cBbpxte cy6yphipea OTHOBO. (BnKTe cTpaHnua 6.)

Cy6yΦepbT 6pbMn n Bn6pnpa 3a6eJxmo.

OnntaTe ce da perylnpate Bn6paunra Ha cy6yepa.

→HaTnchete 6yToHa WOOFER Ha nuctaHcnoHHTO cn ynpaBneHne Harope nn HaoIy, 3a da perynipate cnilata Ha 3Byka Ha cy6yphiepa. (do -12 nn MeJy -6~+6).

12JIINCEH3

DOLBY

AUDIO

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHPFINTIONMULTIMEDAETTERPAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 BENEKKA 3A

JIINCEH3A 3A

OTBOPEH KOD

3a n3npaashe Ha 3aNTBaHnI N 3aBKN BbB Bpb3Ka C n3TOUHnIte C OTBOpEN KOD Ce CBpJxTe cbSamsung ype3 ImeJ ([e-mail]).

14 BAXKHN

БЕЛEXКИ 3A

OBCJIyXBAHETO

• ΚифриTe И ИюстрацinteВTOBa pbkoBOДСТВЗа NOTpe6nteЯ ca празoctавенсамоЗправkaИМогатда ce pa3лчавAT OT DeiCTBNTeHLHЯИЗгел徳 ИЗделNETO.
• Je da ce Naucn TaKca 3a aMHHCTpnpaHe, aKO:

(a) e n3BnKaH TexnK NO BaIe HaCToRBaHe n HЯMa IeΦeKT B npOdykTa (T.e. He cTe npOyei npkoBOdCTBOTO 3a Notpe6ntela)
(b) 3aHecTe ypeDa B cepBn3eH ueHTbp NHaMa DeΦeKT B npOdyKTA (T.e. He cTe npOyei pBkoBOdCTBOTO 3a notpe6ntela).
Cymata 3a Ta3n TaKc3a aDMNHnCTpnpaHe
Ie Bn 6bJe Cbo6uHa, Ipei Da ce
IN3BbPm KcKBaTo n Da e 6nlo pa6oTa nn
NoceueHne Bkbu.

Ako 6aTeepnTe He ce n3XbPJIrT npaBnIHO, Te3N BeIeCTBa MoRa T da IpeDn3BnKaT yBpeKdaHe Ha OOBeShKOTo 3dpaBe NII Na OKoJHaTa CpeJa.

3a da ppeiHaNTe npipOHNTE pecypcn i 3a da cBdeIcTBaTe 3a MHOROKpaTHaTa ynoTpe6a Ha MaTePnAInHtPe pecypcn, moJIa OTdEJIaIte 6aTePnIte OT dpyrIte BnIOBe OTnaIbUHn IpoDyKtn n rPeuNKlnpaIte NocpeIcTBom BaWata lokaHa cnCTema 3a 6e3PiATHO BpbUaHe Ha 6aTePNI.

IpaBnHTo TpeTnpaHe Ha n3dJIneTo CneI KpA Ha eKcNlOaTaUHOHHMy JxHBOT (OtnaDbu, npedCTablaBaun eJekTpuecko n eJekTpoHNo 06OpyDahe)

(HaHnUHO B CtpaHn CbC CnCTeMn 3a pa3JeHn CmTeOcb6npaHe)

To3n 3NaK, noctaben Bbpyx n3denneto, herobn npnaJaleknoCTn nn neaTHMaTePnala, 03NaUba, ye npodukTbT n npinaJaleknoCTte (HaNPimep 3apndo yctpoiCTBO, cnyuallkn, USB ka6e) He 6nbda ce n3xBbpIaT 3aeHNO C dpynte 6ntobu OTpaDbuN, kOraTO n3teue ekcnloataunOHnT My jKBOT. Otdela Te3n yctpoiCTBa OT dpynte BVIOBn OTpaDbuN i rnpedabaTe 3a peuzknaphe. Cna3BaKn TOBa npabnilo He n3laRaTe Ha onacnoct 3dpabeto Ha dpuyn Xopa n npedna3BaTe OKolnata CpeDa ot 3ambpcaBaHe, npedn3BvkaHO OT 6e3koHTpOlnHO n3XBbpIaHe Ha oTpaDbuN. Ocben ToBa, noD6Ho OTROBOPHO NOBeJeHne Cb3daBA Bb3MOXHOCT 3a NOBtOpHO (ekolornuHO Cbo6pa3Ho) n3No13BaHe Ha MaTePnAHHte pecypcs.

ДомашнITEnotpe6nteItrp6BaJaCECBpbKJATCTbproBeuaHaIpe6Ho,OTKOROTOca3akyniIn
n3deJIneTo,INNCbCbOTBeTHaTMeCTHaDbPkaBHaareHcNIA,3aDaNOLyauTPODp6HnIHCTpyKcNKNbDe
nKORA MoRat Da 3aHecat Te3u yctpoiCTBa 3a peunKlnpaHe,6eOonacHO 3a OKoJHata CpeJa.
KopnpaTHNBHTeNotpe6nteINcIeBaJaCeCBpbKAtCDOCTabUckaCNJaPNOBeprTycNoBnTaHa
doROBopa 3a NOKyPkA.ToBa n3dEInne HnEROBtE eJeKTPOHn PpuHaIeJXHocTn He 6Nbda Ce CmecTBaT c
dpyrHteOTNaDbuHa TbproBCKOTOppeIprTne.

3a nHΦopMaζη oTHOcHo aHraJxMentHTe Ha Samsung no oTHoUHe HnHa OKoJIHaTa cpea n cpeuΦnHyTe 3a npOyKta peRyIaTOpHn 3aIbIjXeHn, hApPrImep REACH, WEEE, 6aTePn, nocetete: http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data-corner.html

SIGURNOSNE INFORMACije

SIGURNOSNA UPOZORENJA

DA BISTE SMANJILI OPASNOST OD
ELEKTRICNOG UDARA, NE ODSTRANJUJE
POKLOPAC (ILI POLEDINU).
U UNUTRAŠNJOSTI NEMA DIJELOVA KOJE MOZE
SERVISIRATI KORISNIK. PREPUSTITE
SERVISIRANJE KVALIFICIRANOM SERVISNOM
OSOBLJU.

4	OPREZ OPASNOST OD ELEKTRICNOG UDARA NE OTVARAJTE
5	Ovaj simbol znači da je struja u unutrašnjosti visokog napona. Opasno je dolaziti u bilo kakav doticaj s unutarnjim sklopovima proizvoda.
7	Ovaj simbol naznačuje da je uz urežaj priložena važna dokumentacija o njugovom radu i odžavanju.
10	Proizvod II. razreda: Ovaj simbol označava da.nije potrebna sigurnosna veza s uzemljem.
~	AC napon: Ovaj simbol označava da nazivni napon označen navenedenim simbolom predstavlja AC napon.
---	DC napon: Ovaj simbol označava da nazivni napon označen navenedenim simbolom predstavlja DC napon.
ai	Oprez, pogledajte upute za upotrebu: Ovaj simbol upićuje korisnika da potraži dodatne informacije u pogledu sigurnosti u korisničkom prisćniku.

UPOZORENJE

• Da biste smanjili opasnost od požara ili elektricnog udara, ne izlažite uredaj kisi ili vlazi.

OPREZ

DA BISTE SPRIJEČILI ELEKTRICNI UDAR, NAMJESTITE ŠIROKE KONTAKTE UTIKAÇA U SIOK UTOR, UMETNUT DO KRAJA.
- Ovaj uredaj treba uvijek biti spojen na uticnicu izmjenične struje sa zašitnim uzemljenjem.
- Da biste isključili urežaj iz struje, morate izvuci utikač iz strujne utičnice. Stoga strujni utikač treba biti spreman za rad.
- Ne izlažite ovaj urešaj kapanju ili prskanjutekućina. Ne stavljajte predmete punetekućine, poput vaza, na urešaj.
- Da biste potpuno isključili ovaj urežaj, morate izvuči utikač za napajanje iz zidne uticnice. Stoga utikač mora uvijek biti lakо dostupan.

MJERE OPREZA

1. Osigurajte da napajanje izmjeničnom strujom u kuci bude kompatibilno sa zahtjevima napajanja navedenim na identifikacijskoj naljepnici na dnu proizvoda. Proizvod postavite vodoravno na prikladnu povrsinu (namještaj) s dovoljno prostora za ventilaciju 7~10 cm. Pobrinite se da ventilacijski otvori ne budu prekriveni. Ne postavlajte Jedinicu na pojacala ili drugu opremu koja se griere. Ova jedinica dizajnirana je za neprekidnu uporabu. Za potpuno isključivanje jedinice izvucite strujni utikač iz zidne utičnice. Ako ne namjeravate upotrebljavati jedinicu dulje vrijeme, izvucite utikač.
2. Za vrijeme olujnog nevremena izvucite utikač za napajanje izmjeničnom strujom iz sidne utičnice. Vršni naponi zbog munja mogu ošteti uredaj.
3. Ne izlažite uredaj izravnoj suncevoj svjetlosti ili drugim izvorima topline. To moze dovesti do pregrijavanja i kvara uredaja.

4. Zašitite proizvod od vlage (npr. vaze) i prekomjerne topline (npr. kamin) ili od opreme koja stvara jaka magnetska ili elektricna polja. Isključite kabel za napajanje iz izvora napajanja izmjeničnom strujom ako jedinica neispravno radi. Proizvod njenamijenjen za industrijsku uporabu. On je namijenjen samo za osobnu uporabu. Ako su proizvod ili disk pohranjeni na niskim temperaturama, moze doci do kondenzacije. Ako tijekom zime prenosite jedinicu, prčekajte oko 2 sata kako bi jedinica prije uporabe dosegnula sobnu temperaturu.

5. Baterije korištene s ovim proizvodom sadržavaju kemikalije koje su štete za okolis. Ne odlažite baterije s opadom kućanstva. Baterije nemojte bacati u vatru. Nemojte krako spajati, rastavlji, ili pregrijavati baterije. U slučaju zamjene neodgovarajućim baterijama postoji opasnost od eksplozije. Baterije mistrjenajte samo baterijama iste ili ekvivalentne vrste.

O OVOM PRIRUČNIKU

Korisnici prisucnik ima dva rijela: ovaj\ jednostavni KORISNICI PRIRUCNIK i detaljni\ POTPUNI PRIRUCNIK koji možete preuzeti.

KORISNICKI PRIRUCNIK

Pogledajte ovaj prisučnik za sigurnosne upute, instalaciju proizvoda, componente, povezivanje i specifikacije proizvoda.

POTPUNI PRIRUÇNIK

POTPUNI PRIRUÇNIK možete pristupiti putem web-centra službe za korisnike tvrtke Samsung skeniranjem QR koda. Za pregled prisčnika na računalu ili mobilnom urežaju preuzmite prisčnik u formatu dokumenta s web-stranice tvrtke Samsung. (http://www.samsung.com/support)

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHSOPINIONMULTIMPOA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBAVIJESTO LICENCIZA UPORABU SOFTVERA OTVORENOG KODA

Za slanje upita i zahtjeva u vezi otvorenih izvora obratite se tvrtki Samsung putem e-poste ([e-mail]).

14 VAŽNA NAPOMENA VEZANA UZ SERVIS

• Slike u ovom korisničkom priručniku služe kao samo kao referencec i mogu se razlikovati od stvarnog izgleda proizvoda.
• Moguca je naplata administrativne pristojbe u slučaju

(a) poziva inženjera na vaš zahtjev, a nema oštećenja na proizvodu (tj. ako niste pročitali korisnički prirucnik)
(b) da donesete Jedinicu na popravak u servis, a nema oštećenja na proizvodu (tj. akoniste pročitali korisnički prirucnik)
- S visinom administrativne pristojbe bit cete upoznati prije poduzimanja bilo kakvih radnji ili kućnog posjeta.

15 TEHNICKI PODACI I VODIC

Tehnicki podaci

Naziv modela HW-N650
USB 5V/0,5A
Težina 3,6 kg
Dimenzije (Š x V x D) 1100,0 x 59,0 x 100,0 mm
Raspon radne temperature +5°C do +35°C
Raspon vlažnosti 10 % ~ 75 %
POJAČALO Nazivna izlazna snaga	30W x 6 + 10W x 2
Podržani formati za reprodukciju	LPCM 2ch, Dolby Audio™ (podržava Dolby® Digital), DTS
IZLAZNA SNAGA BEŽICNOG UREDAJA Maks. snaga BT odašiljača	100mW pri 2,4GHz - 2,4835GHz
Maks. snaga SRD odašiljača	25mW pri 5,725GHz - 5,825GHz

Naziv subwoofera PS-WN30
Težina 7,0 kg
Dimenzije (Š x V x D) 215,0 x 384,5 x 304,0 mm
POJACALO Nazivna izlazna snaga	160W

Ukupna potrošnja energije u stanju mirovanja (W)	2,9W
Bluetooth Način isključivanja ulaza	Pritisnite i držite gumb SOUND MODE dulje od 5 sekundi da biste isključili funkcjju Bluetooth Power.

NAPOMENE

Samsung Electronics Co., Ltd pridržava pravo promjene specifikacija bez prethodne obavijesti.
- Težina i dimenzije su približni.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHSOPINIONMULTIMPOA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 POZNÁMKA K LICENCI OTEVRENEHO SOFTWARE

Das Benutzerhandbuch hat zwei Teile:这其中, there are two basic concepts. The first is the concept of a handbuch. It is a concept that has been developed by many researchers and is used in the field of information technology (IT). This concept is based on the idea that it is a concept that can be used to describe the characteristics of a system or process. The second is the concept of a system or process that can be used to describe the characteristics of a system or process.

BENUTZERHANDBUCH

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHOFTINETIONMULTIMEDIAINTERFAGE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHOPHNNTIONMULTIMPDAA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVATUD LÄHTEKOODI LITSENTSI TEATIS

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHOPHNNTIONMULTIMPDAA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVIS DE LICENCE LIBRE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHNDEFINITION MULTIMEDIA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 EIDONOHIATIAGEIEXPHESIOMIKOY ANOXTOY KQIA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHOFTNNTION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 NYICT FORRASKODU LICENC MEGJEGYZES

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHPINNTIONMULTIMPOA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 AVVISO DI LICENZA OPEN SOURCE

http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/

DROŠIBAS INFORMÁCIJA

DROŠIBAS BRIDINAJUMI

LAI SAMAZINATU ELEKTRISKAS STRAVAS TRIECIENA RISKU, NENONEMIET PARSEGU (VAI KORPUSA AIZMUGURI). IERICES IEKSPUSE NEATRODAS NEVIENA DETALA, KURAS APKOPE BUTU JAVEIC LIETOTAJAM. UZTICIET APKOPI KVALIFICETIEM APKOPES SPECIALISTEM.

11 PROBLEMU NOVER'SANA

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHPDEFINITIONMULTIMEDAINTERFAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 PAZINOJUMS PAR ATVERTA PIRMKODA LICENCI

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHPONNTIONMULTIMDAATTERPA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 ATVIROSIOS PROGRAMINES IRANGOS LICENCIJOS PRANEŠIMAS

Noredami siusti uzklausas ir prasymus, susijusius su atviraja programine jranga, susisiekite su "Samsung" el. pastu (oss.request @samsung.com).

14 SVARBI PASTABA APIE TECHNINE PRIEŽIÜRÅ

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHPDEFINITIONMULTIMEDAINTERFAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 INFORMACJA O LICENCJI OPEN SOURCE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHNDEFINITION MULTIMEDIA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 NOTIFICARE DE LICENTÀ OPEN SOURCE

Pentru a trimite intrebari si solicitari referitoare la software-ul open source, contactaSamsung prin e-mail ([e-mail]).

14 NOTÄ IMPORTANT DESPRE SERVICE

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHNDEFINITION MULTIMEDIA

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBAVEŠTENJE O LICENCI OTVORENOG IZVORNOG KODA

Svoje upite i zahteve u vezi sa otvorenim izvornim kodovima možete uputiti kompaniji Samsung putem e-poste ([e-mail]).

14 VAŽNA NAPOMENA O SERVISIRANJU

• Slike i ilustracije koje su upotrebljene u ovom korisničkom uputstvu date su samo kao reference i mogu se razlikovati od vašeg proizvoda.
• Administrativni troškovi mogu biti naplaceni u sledecim slučajevima:

11 RIESENIE PROBLEMOV

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHOFFINETIONMULTIMPOIAINTERPAC

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 POZNÁMKA K LICENCIIS OTVORENÍM ZDROJOVÍM KÓDOM

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

dt

Digital Surround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with the Symbol, and DTS Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

HIGHNDEFINITIONMULTEMDAATTERPAE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

13 OBVESTILO O ODPRTOKODNIH LICENCAH

© 2018 Samsung Electronics Co., Ltd. All rights reserved.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care Centre.

Country	Contact Centre	Web Site
■Europe
UK 0330 SAMSUNG (7267864)		www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support
GERMANY 06196	77 555 77	www.samsung.com/de/support
FRANCE 01 48 63	00 00	www.samsung.com/fr/support
ITALIA 800-SAMSUNG (800.7267864)		www.samsung.com/it/support
SPAIN 0034902172678		www.samsung.com/es/support
PORTUGAL 808 207 267		www.samsung.com.pt/support
LUXEMBURG 261 03 710		www.samsung.com/be_fr/support
NETHERLANDS 088 90 90 100		www.samsung.com/nl/support
BELGIUM 02-201 24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
NORWAY 815 56480		www.samsung.com/no/support
DENMARK 707 01 970		www.samsung.com/dk/support
FINLAND 030-6227 515		www.samsung.com/fi/support
SWEDEN	0771 726 786	www.samsung.com/se/support
POLAND	801-172-678* lub [phone]* (* koszt polączenia wedtug taryfy operadora)	http://www.samsung.com/pl/support/
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
AUSTRIA	0800-SAMSUNG (0800-7267864) [Only for Dealers] 0810-112233	www.samsung.com/at/support

Country	Contact Centre	Web Site
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
CZECH	800 - SAMSUNG (800-726786)	www.samsung.com/cz/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
CROATIA	072 726 786	www.samsung.com/hr/support
BOSNIA	055 233 999	www.samsung.com/support
MONTENEGRO	020 405 888
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
SERBIA	011 321 6899	www.samsung.com/rs/support
ALBANIA 045 620	202	www.samsung.com/al/support
BULGARIA	*3000 Lěna в мржата0800 111 31, Бецлатаtelephone繁殖диратя	www.samsung.com/bg/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) onlyfrom land line([phone] from mobile andland line
LITHUANIA 8-80	0-7777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
